Product Overview

Description







Product Overview

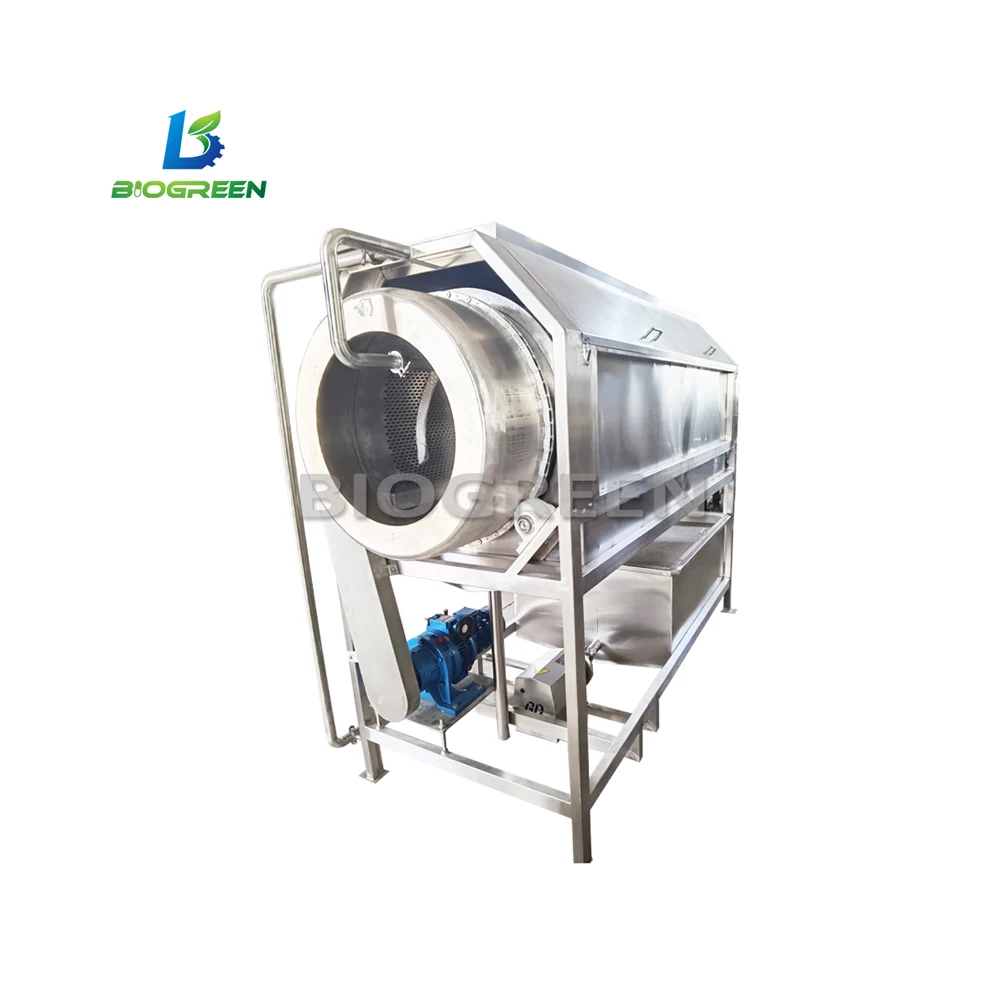

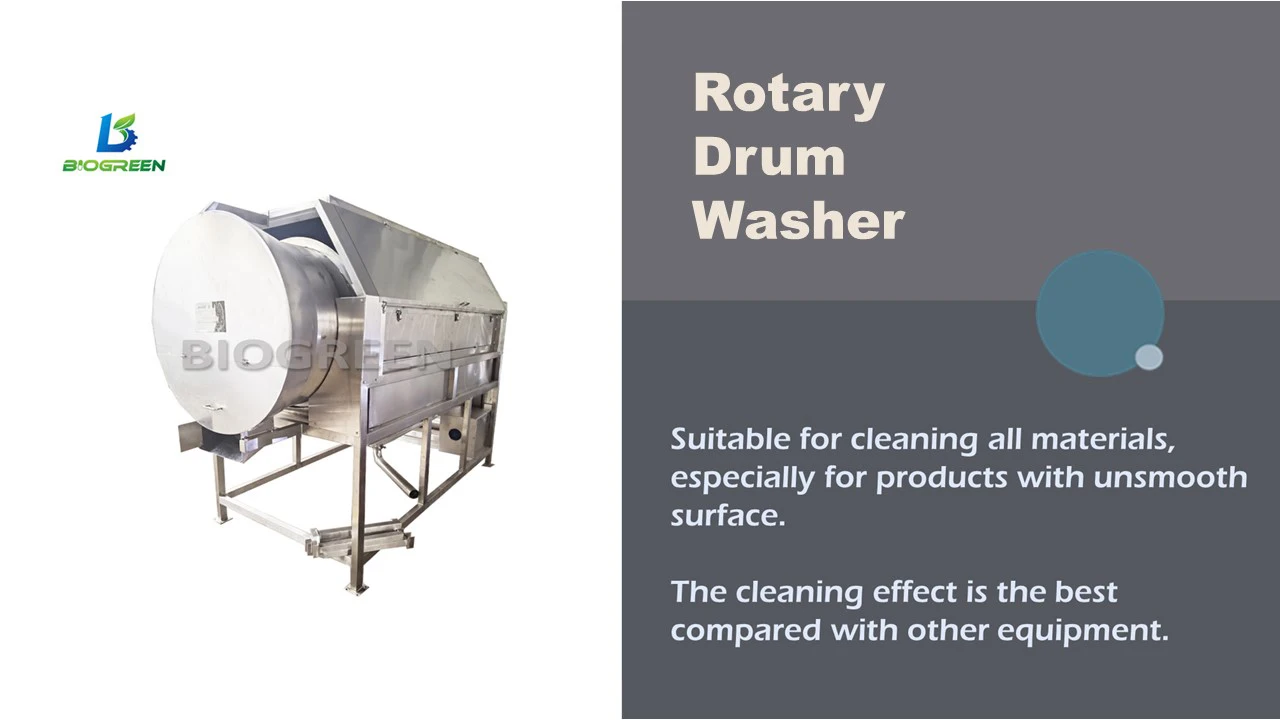

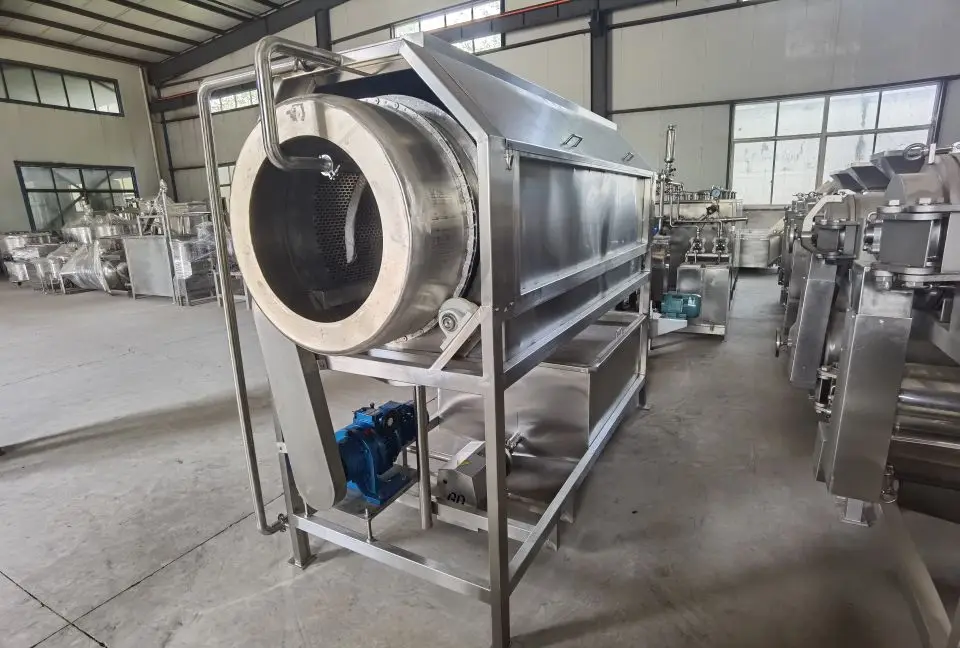

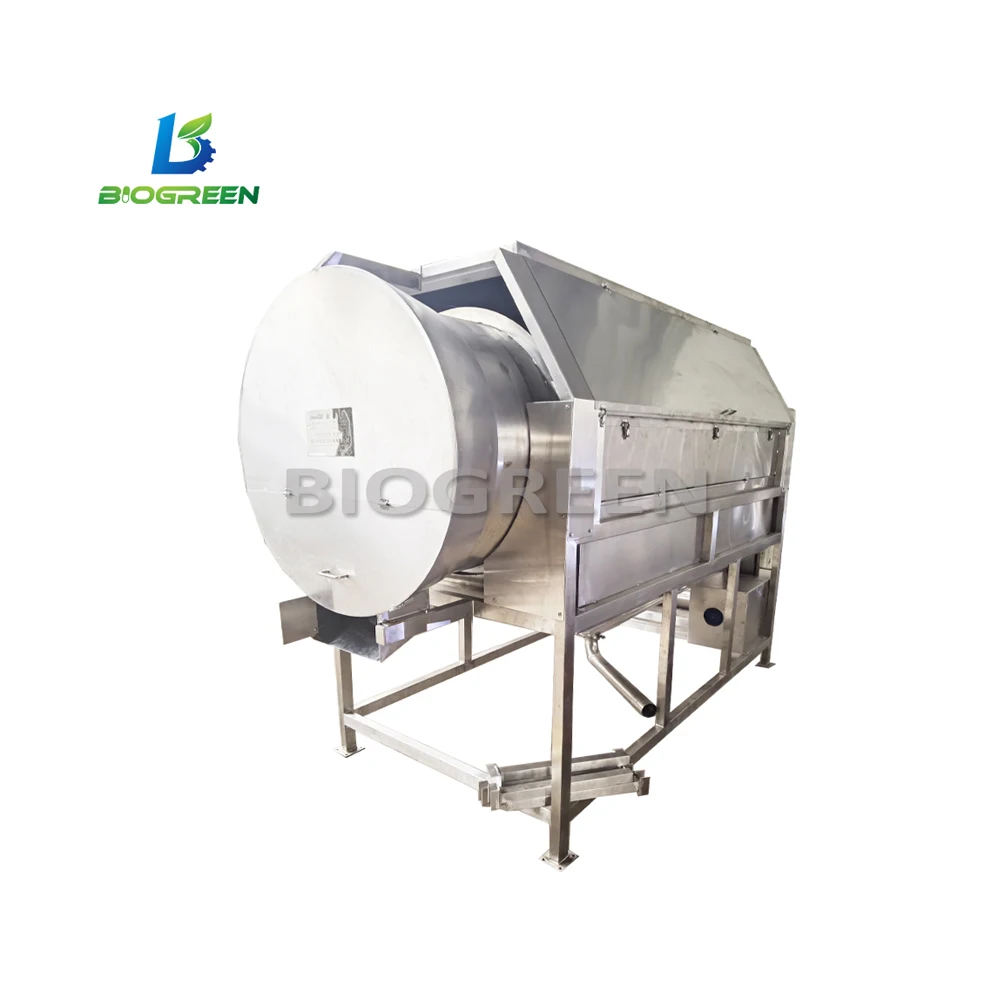

Roller cleaning machine
Roller cleaning machine is suitable for all materials cleaning, especially for the surface of the product is not smooth, the cleaning effect is the best compared with other equipment. During the cleaning process, the whole drum rotates 360 degrees to drive the materials in the drum to rotate 360 degrees. At the same time, the high-pressure nozzle is installed in the drum to make the material cleaning more clean. A material guide device is installed inside the drum to push the material slowly from the inlet to the outlet. In addition, the structure of the water pipe can be made into a two-stage spray design, the front end of the spray water is directly discharged, the sewage after the second stage of cleaning is collected in the water tank through filtration, and then the water is sent to the first stage of the cleaning pipeline through the circulating pump, and the material just entered the cleaning machine is cleaned. This design saves the consumption of water.




Product Features:
1、Machine size can be customized
2、The drum has a guide track inside,
3、The cylinder is equipped with a high-pressure water spray pipe,
4、The drum rotates 360 degrees
5、The drum is equipped with a feeding device


Product Details and Specification


Product Details


1、The red box is the guide to push the material into the outlet.

2、The green box is the spray pipe, high pressure water spray from the spray pipe to the material surface cleaning.

3、The blue is the feeding device to prevent material accumulation and cleaning is not thorough.

4、The inner cavity is stainless steel plate with holes to facilitate sewage discharge to the outside of the cylinder.




1、The red box is the sewage collection tank with stainless steel filters to prevent large size impurities from clogging the pump head

2、The yellow box is the circulating pump. The filtered sewage is sent back to the spray pipe to save water. The pump is a food grade 304 centrifugal pump

3、The blue is the power motor that drives the drum


Details Images


The filter of the filter tank
Drain butterfly valve under the tank
Nylon roller for drum support


Product Types and Specification


Technical parameters
type
Capacity(T/H)
Power(kw）
size（mm）
BDDC-1
0.2-1
1.1
1000*600*1000
BDDC-3
1-3
1.5
2000*850*1200
BDDC-5
4-6
3
3000*1050*1500
BDDC-10
8-12
4
4500*1250*1650
BDDC-3
1-3
1.5
2200*1150*1450
BDDC-5
4-8
2.2
2200*1150*1450
BDDC-10
8-10
3
2800*1250*1850
BDDC-20
15-20
4
4000*1500*2500


Main Application




Product packaging and Transport


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Land transportation, sea transportation, air transportation and express delivery will be provided.
