sawdust Thermal Efficiency Three Cylinder Rotary dryer

Product Overview

Description

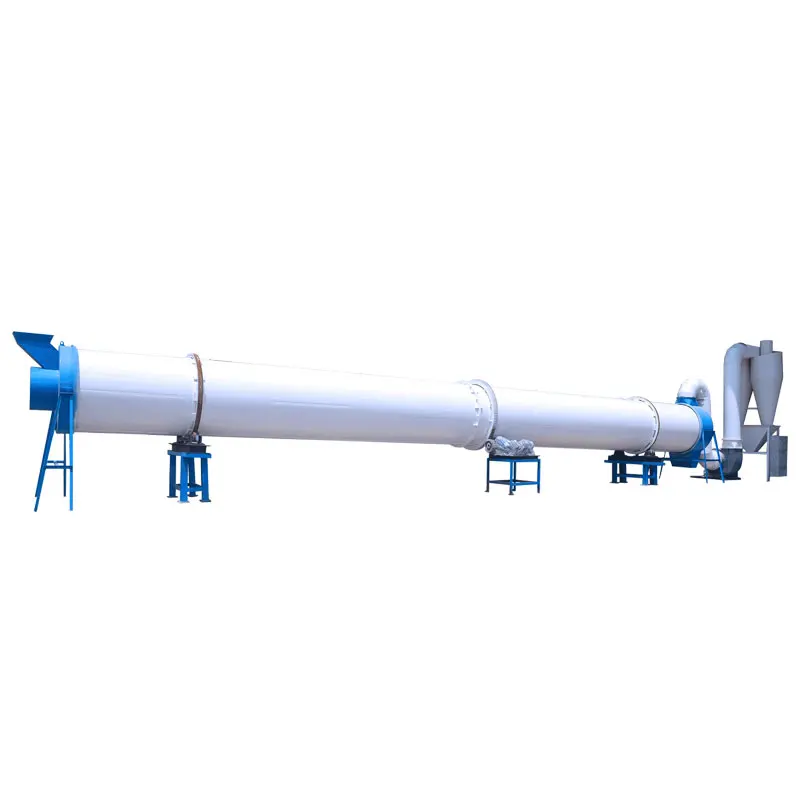

sawdust Thermal Efficiency Three Cylinder Rotary dryer





The sawdust rotary dryer is a type of industrial dryer employed to reduce or minimize
the liquid moisture content of the material it is handling by bringing it into direct
contact with a heated gas.

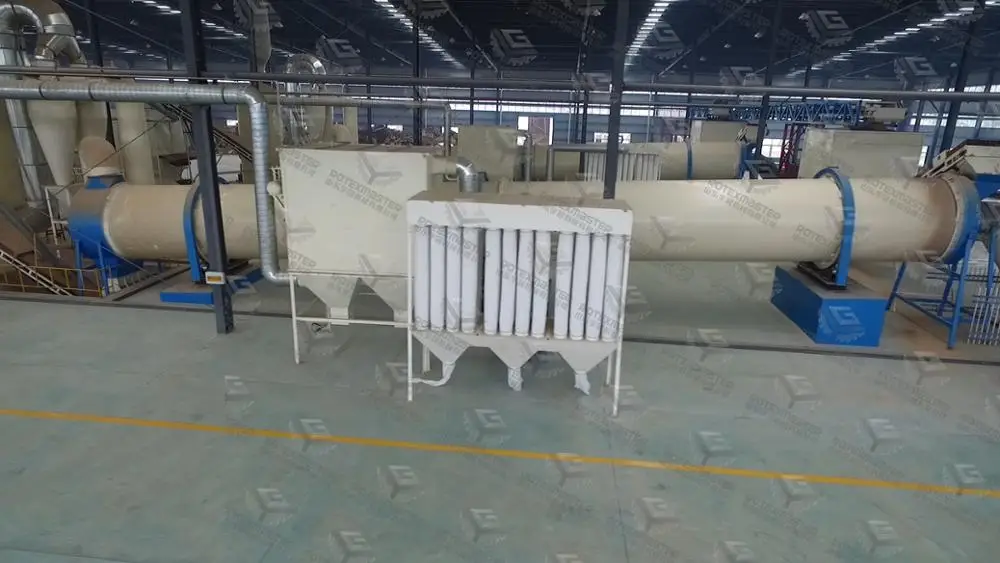

Tunisia olive slag and sawdust rotary dryer

Sawdust Rotary dryers are customized drying equipment for your specific requirement.
our ROTEXMASTER’s design team are able to design rotary drying equipment which
can effectively save your budget and efficiently running.

Highly various material from the feed screw directly into the sawdust rotary dryer,
the plate is on the inner wall of the roller against taking the fall. Break bulk material
with a negative pressure of the high temperature medium full contact, complete
heat transfer process. Since the inclination and the action of the draft fan, the
material from the feed end to the discharge end to move slowly, and then in the
discharging end airflow extraction, via the conveying pipe after further drying
into the dust, the airlock discharge.

1.The rotary speed is adjustable.
2.simple structure
3.The dryer can dry high moisture content and large volume materials.
4.There is elastic plate sealing strip in feed inlet and outlet.

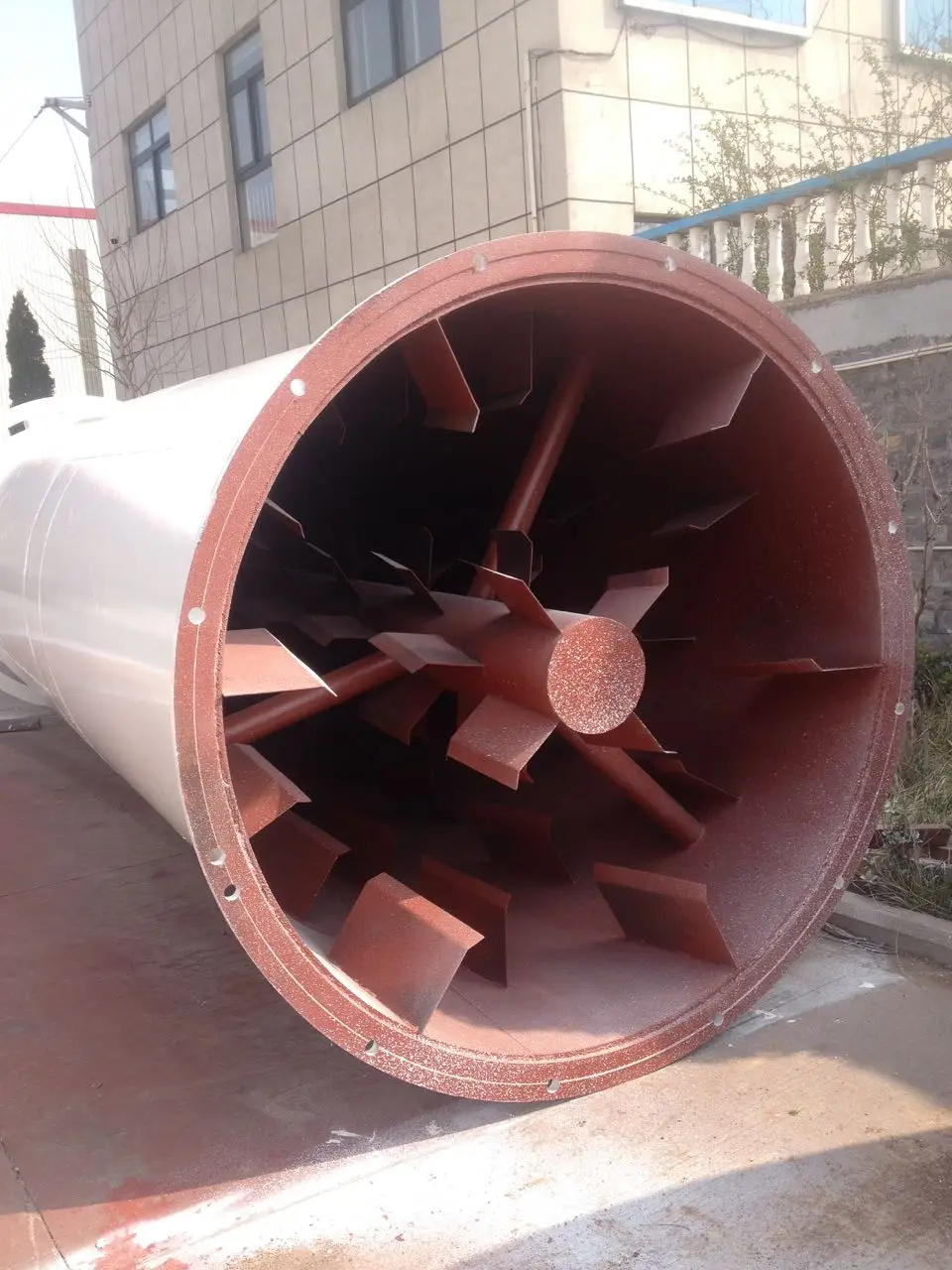

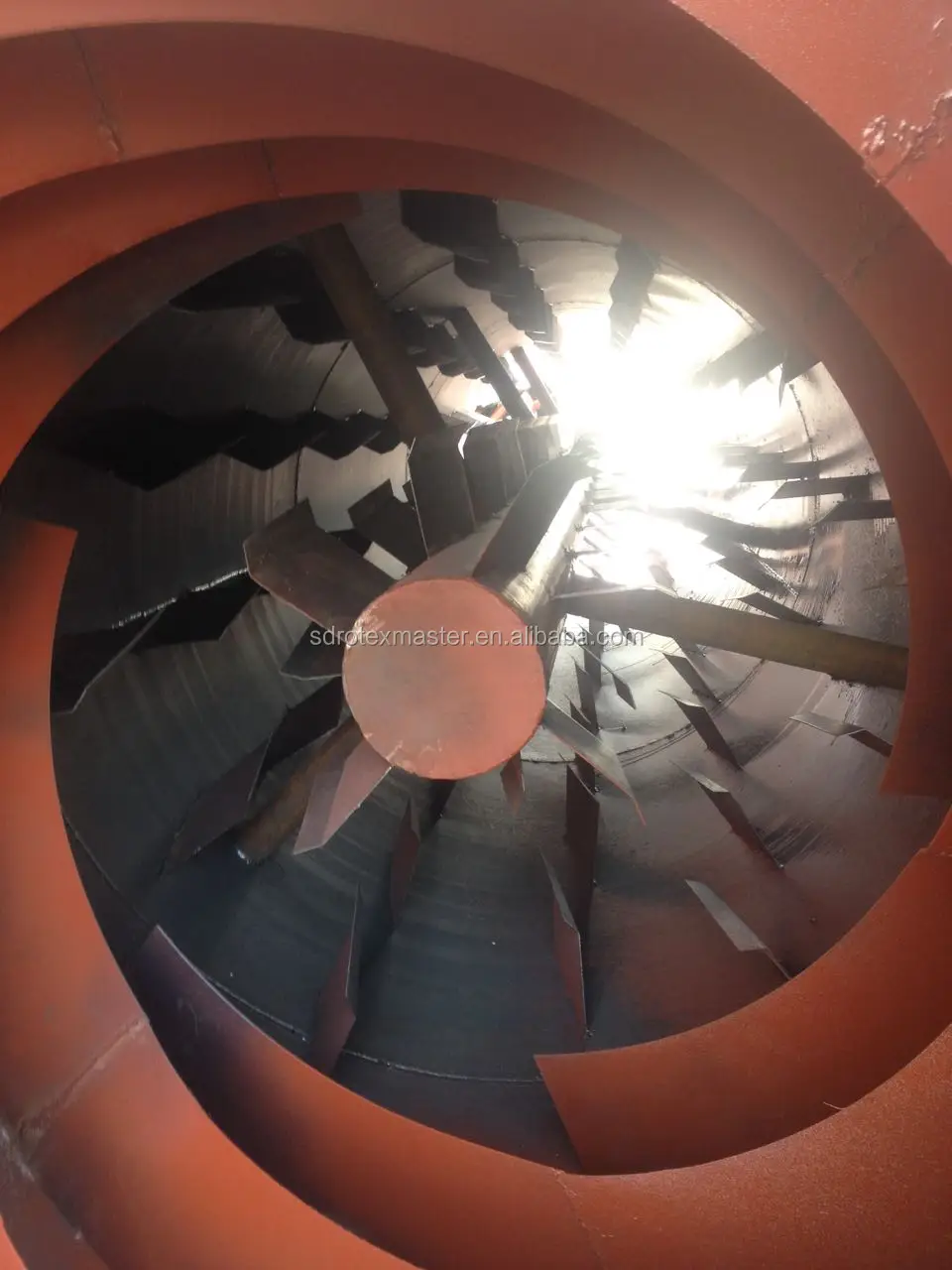

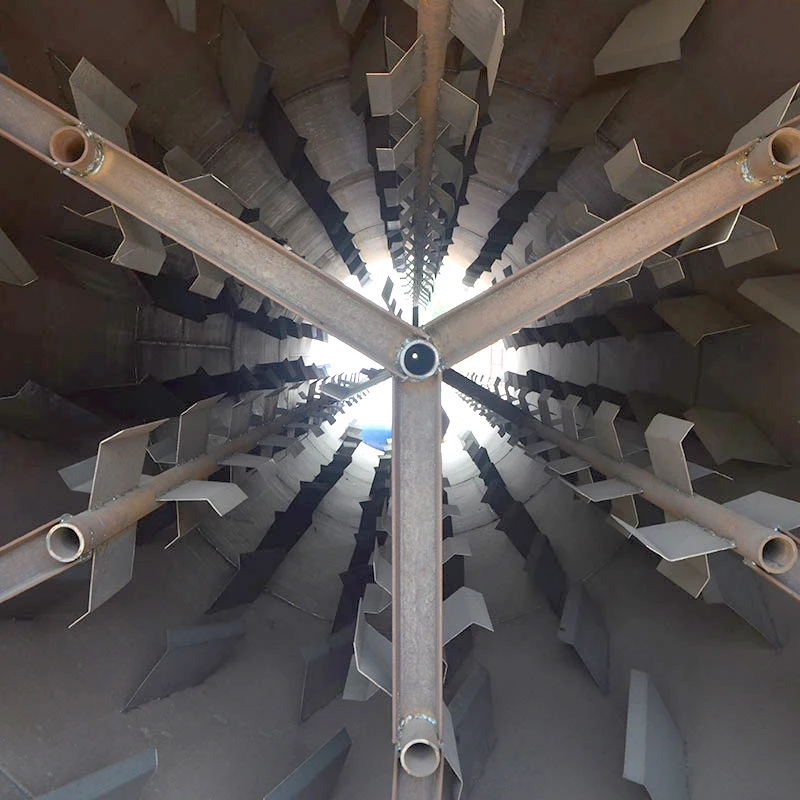

5.There is lifting blade in the inner cylinder, it can make the material mixed
with the heat flow fully.

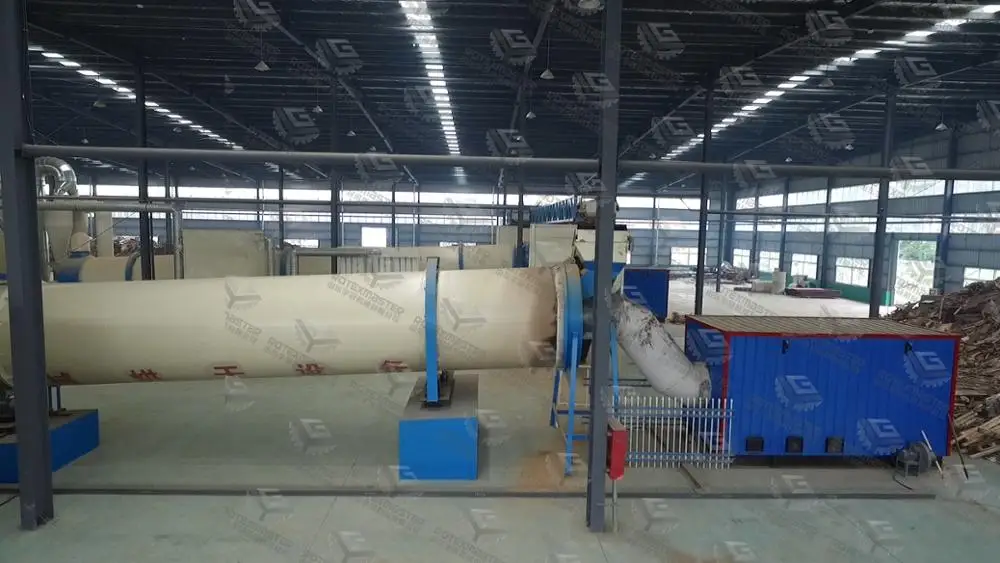

6.It is matched with stove.





 Technical details of the sawdust rotary dryer



Model	Power(kw)	evaporation (t/h)	Rotating speed (r/min)
YSHG1.8*10*3	2.2*4+37+3+3+2.2	0.8-1.4	4-10
YSHG2.2*10*3	3*4+55+5.5+5.5+3	1.2-1.8	4-10
YSHG2.5*10*3	5.5*4+75+5.5+5.5+3	2-3	4-10
YSHG3.0*10.3	5.5*4+90+5.5+5.5+3	2.8-4	4-10

Quality is first, Customer is first !!!

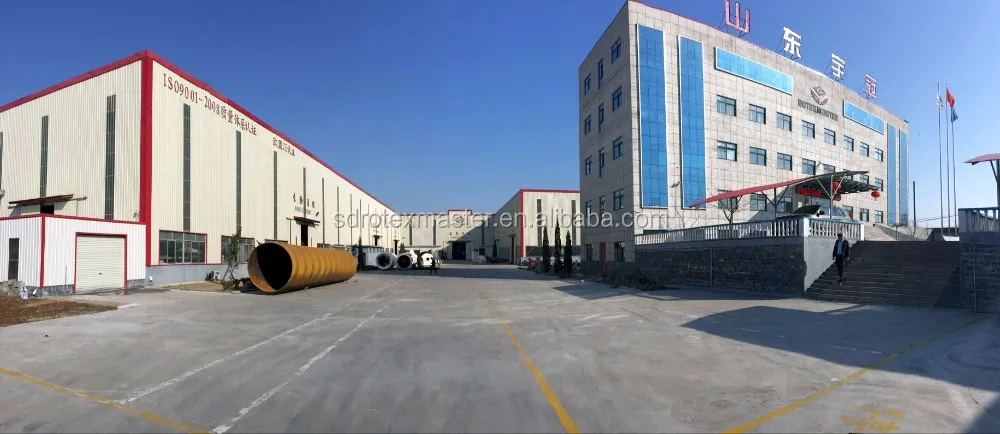

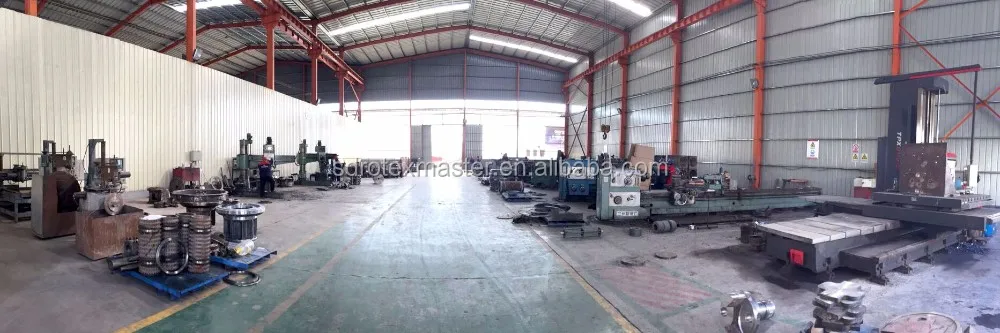

Shandong Rotex Machinery Co.,Ltd is an enterprise of research and development,
manufacturing, international trade as a whole, registered capacity is 10 million Yuan,
more than 200 staff. Strong technical force, advanced production technology,perfect
after-sales service.
Mainly produce: biomass fuel pellet production line, feed pellet production line,organic
fertilizer and Municipal Solid Waste processing equipment, agricultural equipment,
forestry equipment, etc.
