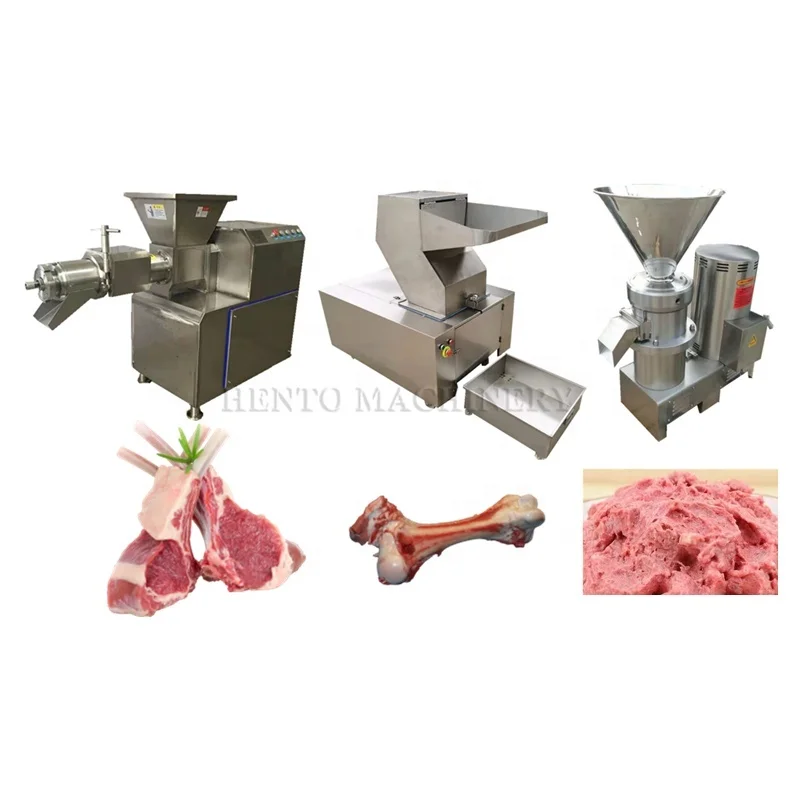

High Quality Beef Meat Bone Separator / Grinder Bone Bone Crusher / Bone Mud Paste Production Line

Product Overview

Description

33

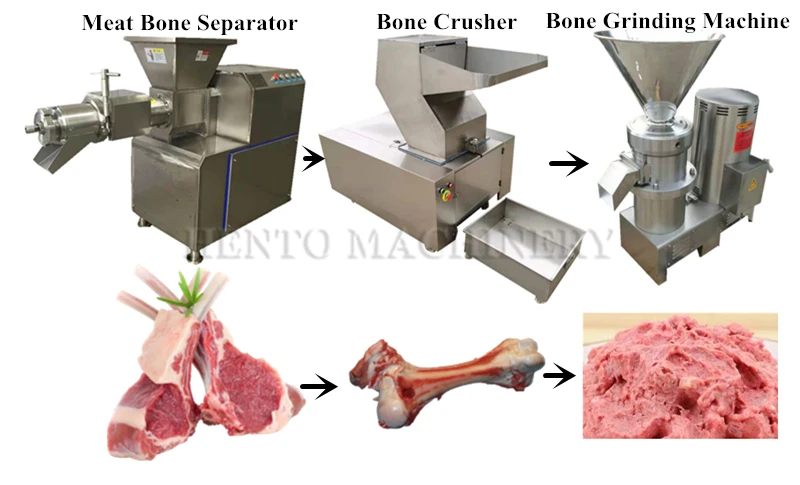

Bone Paste Production Line Operating Procedures:

1.Meat Bone Separator Machine

2.Bone Crushing Machine

3.Bone Paste Grinding Machine

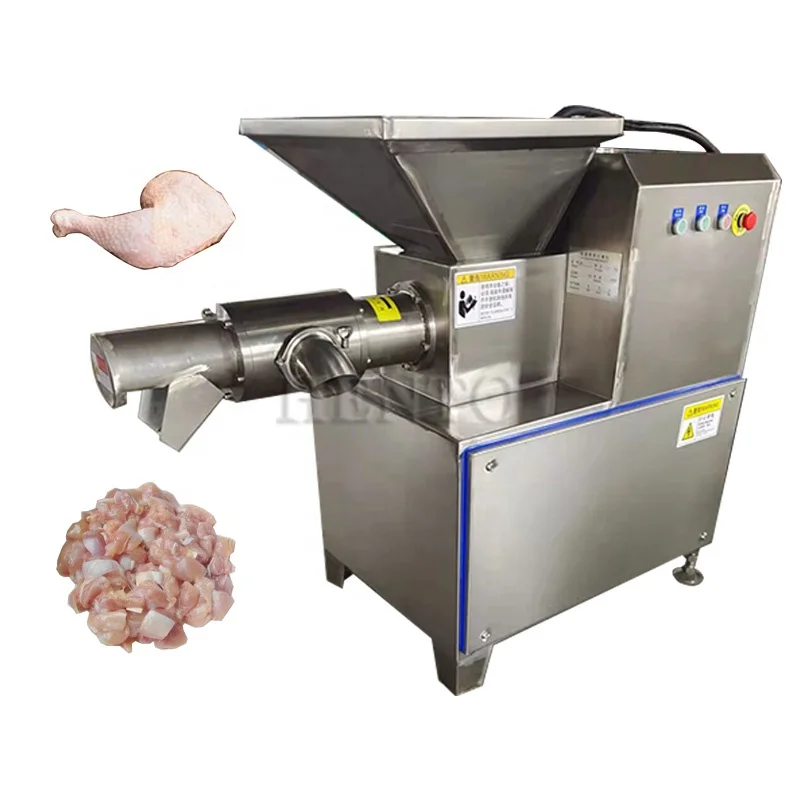

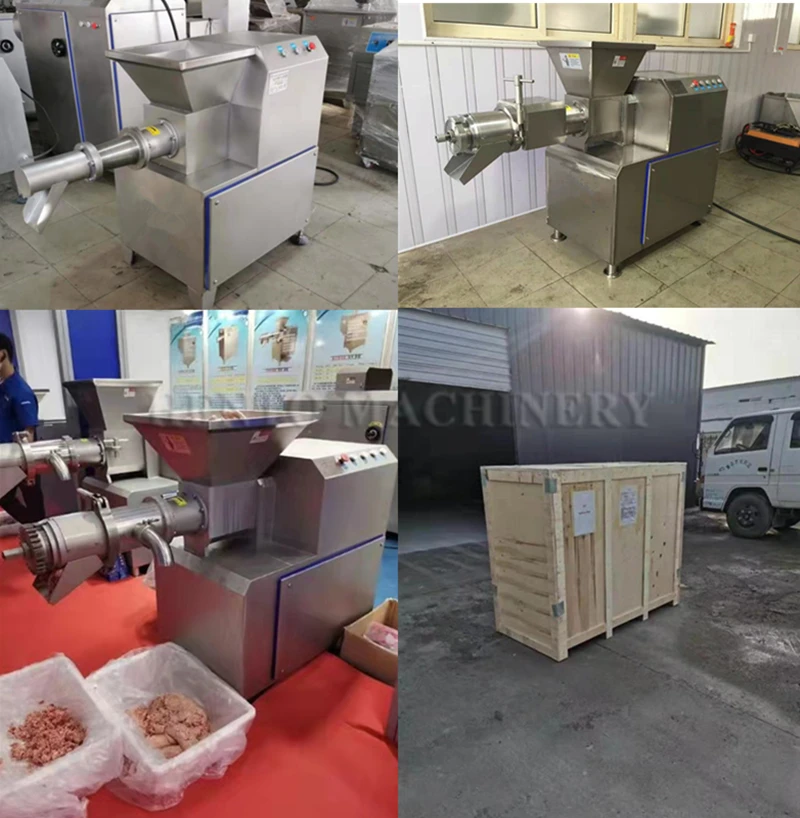

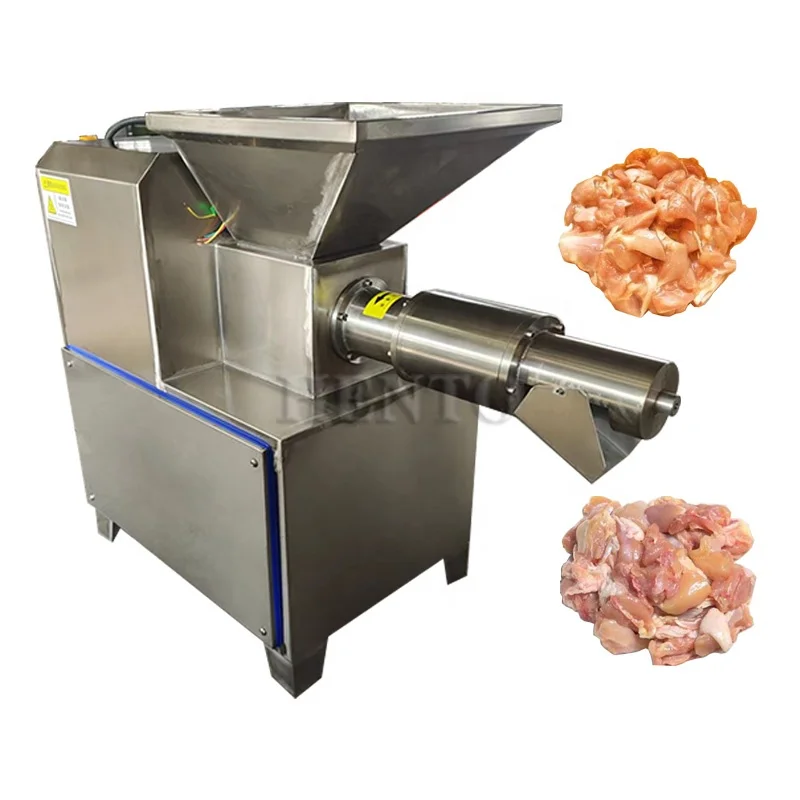

(1)Meat Bone Separator Machine

The meat debone machine is made of high quality and high strength stainless steel, durable, easy to clean and disassemble. It can separable raw materials, chicken, duck, goose, rabbit, such as chicken skeleton, duck frame, rabbit frame, chicken neck, chicken leg cartilage minced meat, etc.

The machine can separate the meat and bone at one time, saving manpower and material resources.

Characteristics of separated meat

1. good color, can be added in large quantities

2. Good taste.

3. Small destruction of meat tissue structure, with flaky, filamentous and blocky shape, improving product quality

4. The separation temperature is low, bacteria is not easy to reproduce, oxidation, the flavor and shelf life of the product has little impact.



Model	HT-GRF500
Voltage	380v/50hz
Power	7.5kw
Capacity	400-500kg/h
Weight	400kg
Dimension	1400*650*1000mm

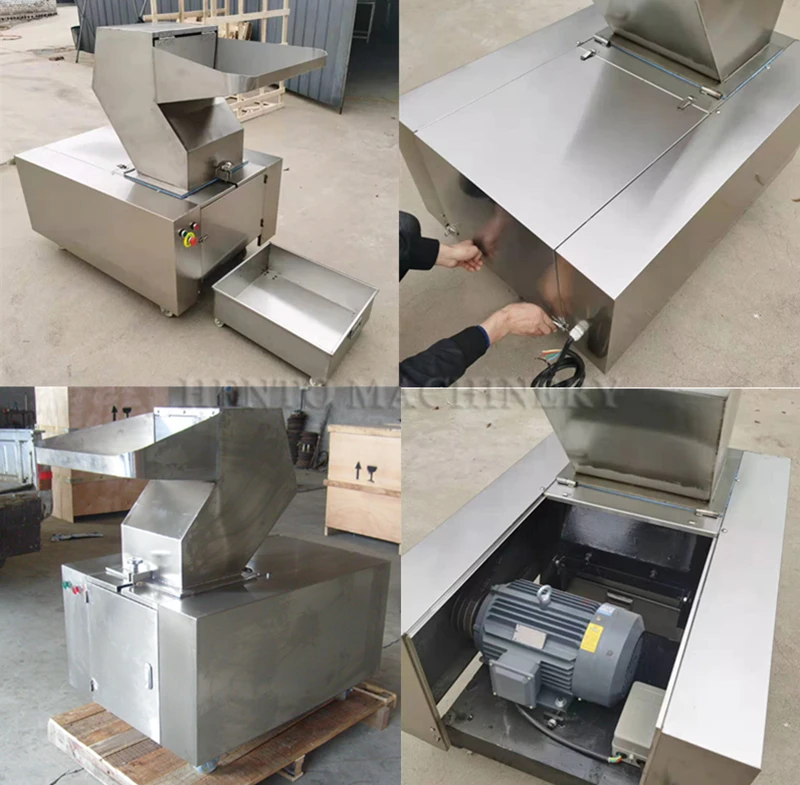

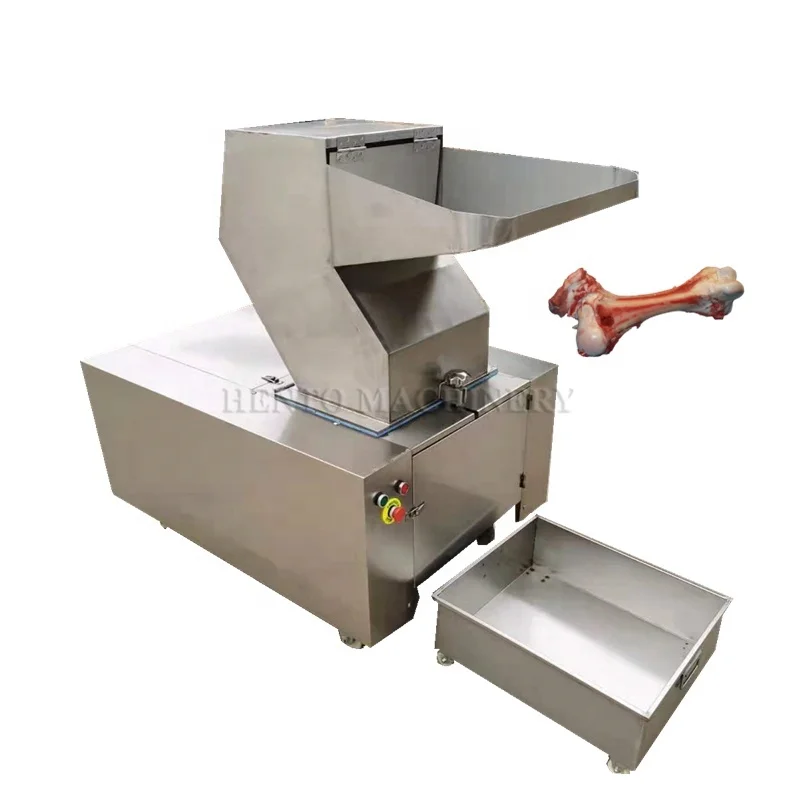

(2).Bone Crushing Machine

Mainly use:

The machine is particularly suitable for dry and fresh cattle, pigs,large sheep bone, The donkey bone,chicken bone,and various animal bones,broken bones.broken range to 55mm. Widely used in all kinds of sausage, lunch meats, meatball, frozen food, bone marrow, bone meal and bone soup, etc.

Features:

Automated feeding and discharging materials, reducing labor intensity. Simple operation, convenient maintenance and cleaning, stable working, compact structure, high yield, low temperature.



Model	HT-PG600	HT-PG800
Voltage	380v	380v
Capacity	300-900kg/h(according to different bones)	800-2200kg/h(according to different bones)
Feeding Diameter	600*320mm	800*650mm
Power	15kw	22kw
Machine size	1650*1200*1700mm	2400*1500*2400mm
Machine weight	800kg	2000kg

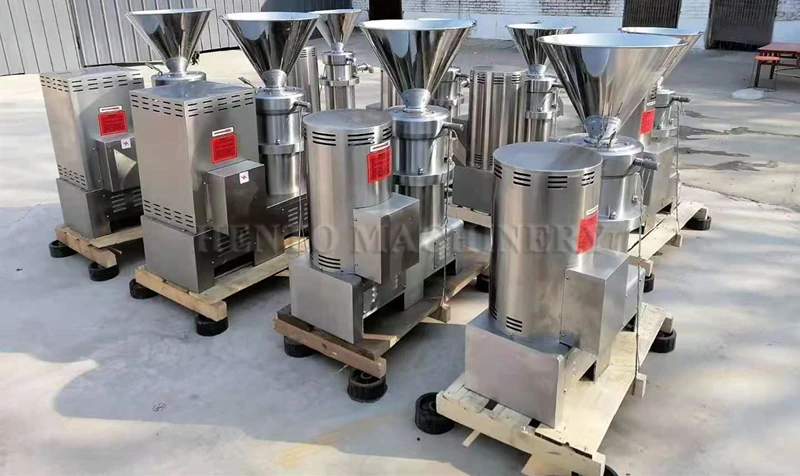

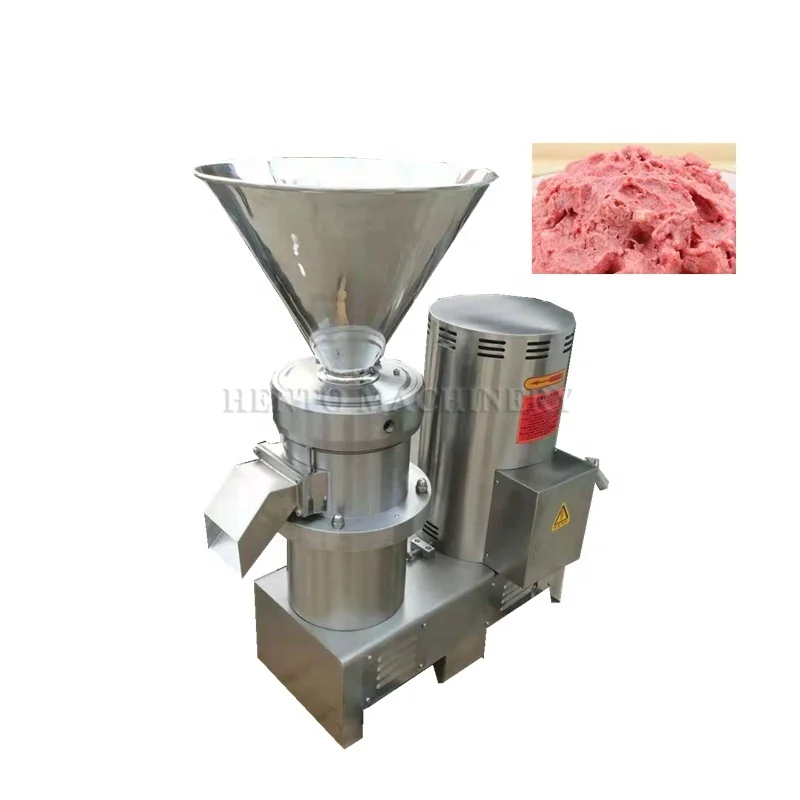

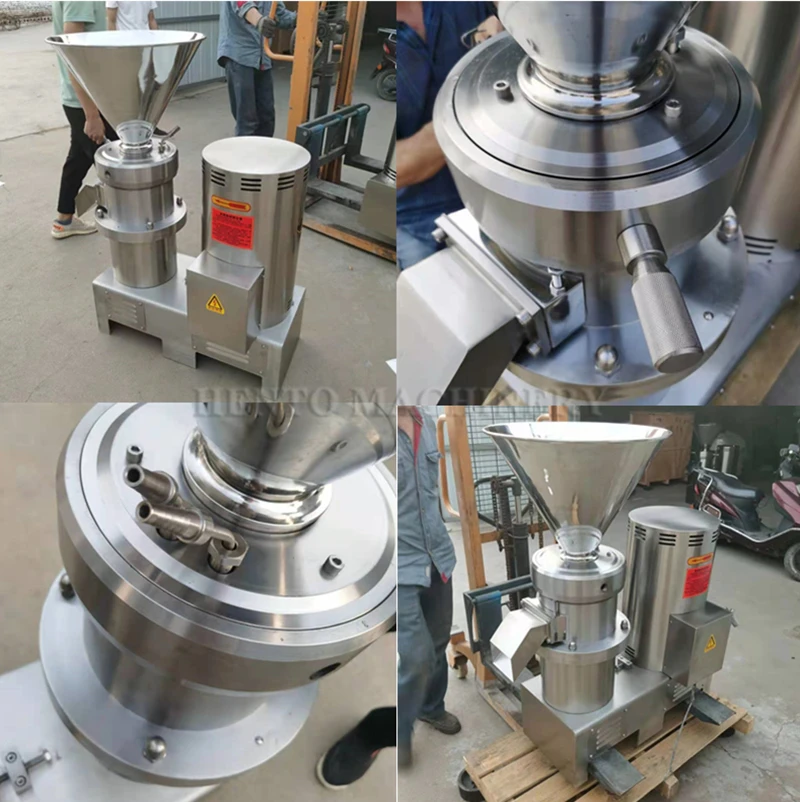

(3).Bone Paste Grinding Machine

Paste making machine is designed to make bone paste, peanut butter, sesame paste, almond paste ,cashew nut paste , Hummus paste,pistachio paste, etc various tastes. Besides, the grinding machine can be used to grind peanut milk, almond ,protein milk, soy milk, dairy products, malted milk, fragrance, drinks, aloe Vera, pollen, pineapple, tea, ice cream, moon cake stuffing, butter, jam, fruit juice etc.

Features:

(1)High capacity.

(2)Can grind peanuts or almonds wholly,needn’t cut the peanuts into small particles.



Note: we especially make cooling system space inside the machine to prevent high temperature and extend service -life time of machines.



Model	Capacity(kg/h)	Power	Weight	Dimension
HT-MJ70	60-80kg/h	3kw	70kg	650*320*650mm
HT-MJ85	100-150kg/h	5.5kw	170kg	900*350*900mm
HT-MJ110	150-200kg/h	7.5kw	175kg	700*430*980mm
HT-MJ130	200-300kg/h	11kw	270kg	1000*350*1000mm
HT-MJ180	500-800kg/h	30kw	470kg	1200*450*1200mm
HT-GN240	1000-1500kg/h	37kw	1600kg	1320*500*1280mm
HT-GN300	3000-4000kg/h	18.5kw	450kg	1440*630*1420mm
