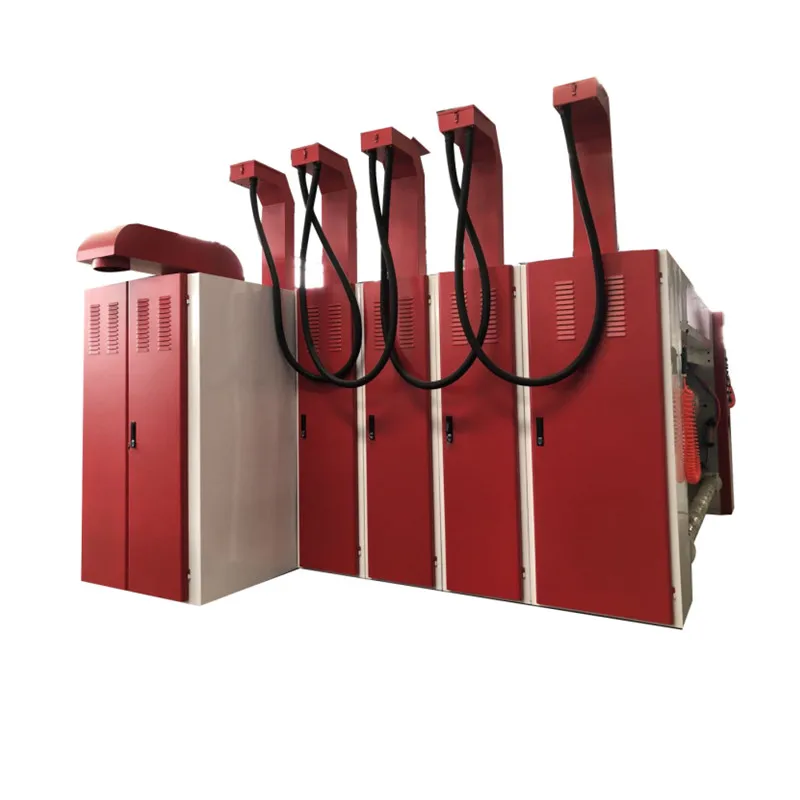

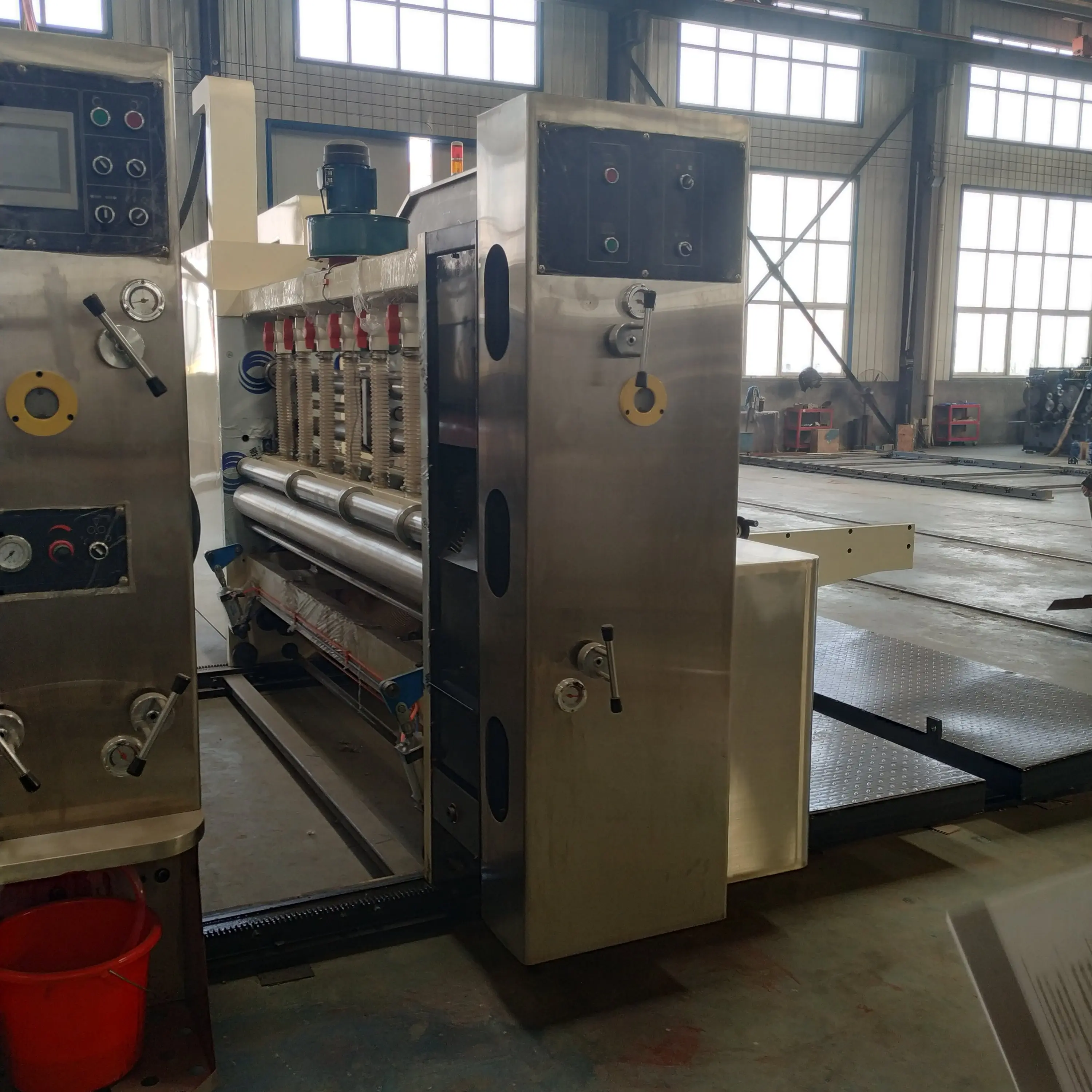

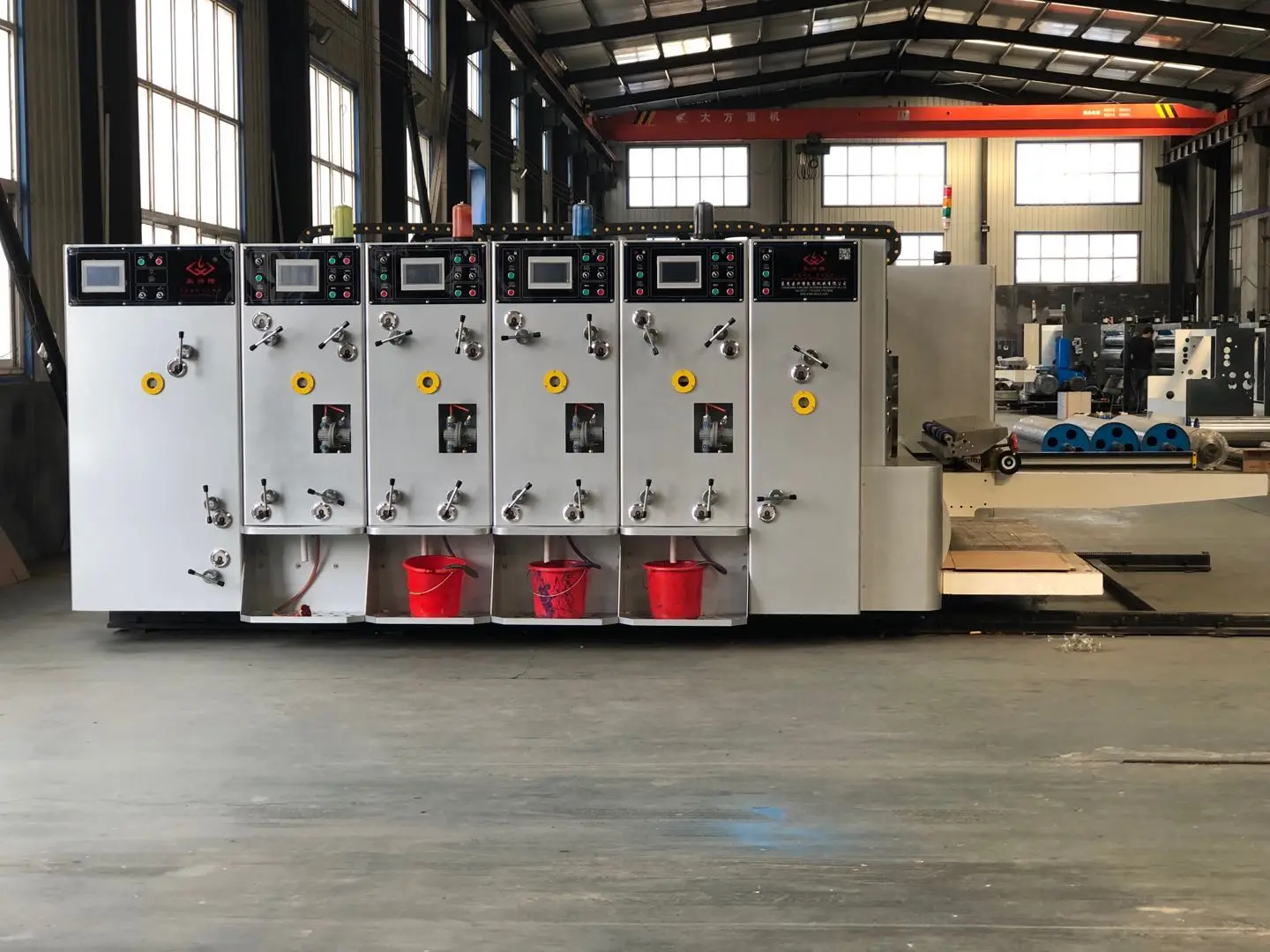

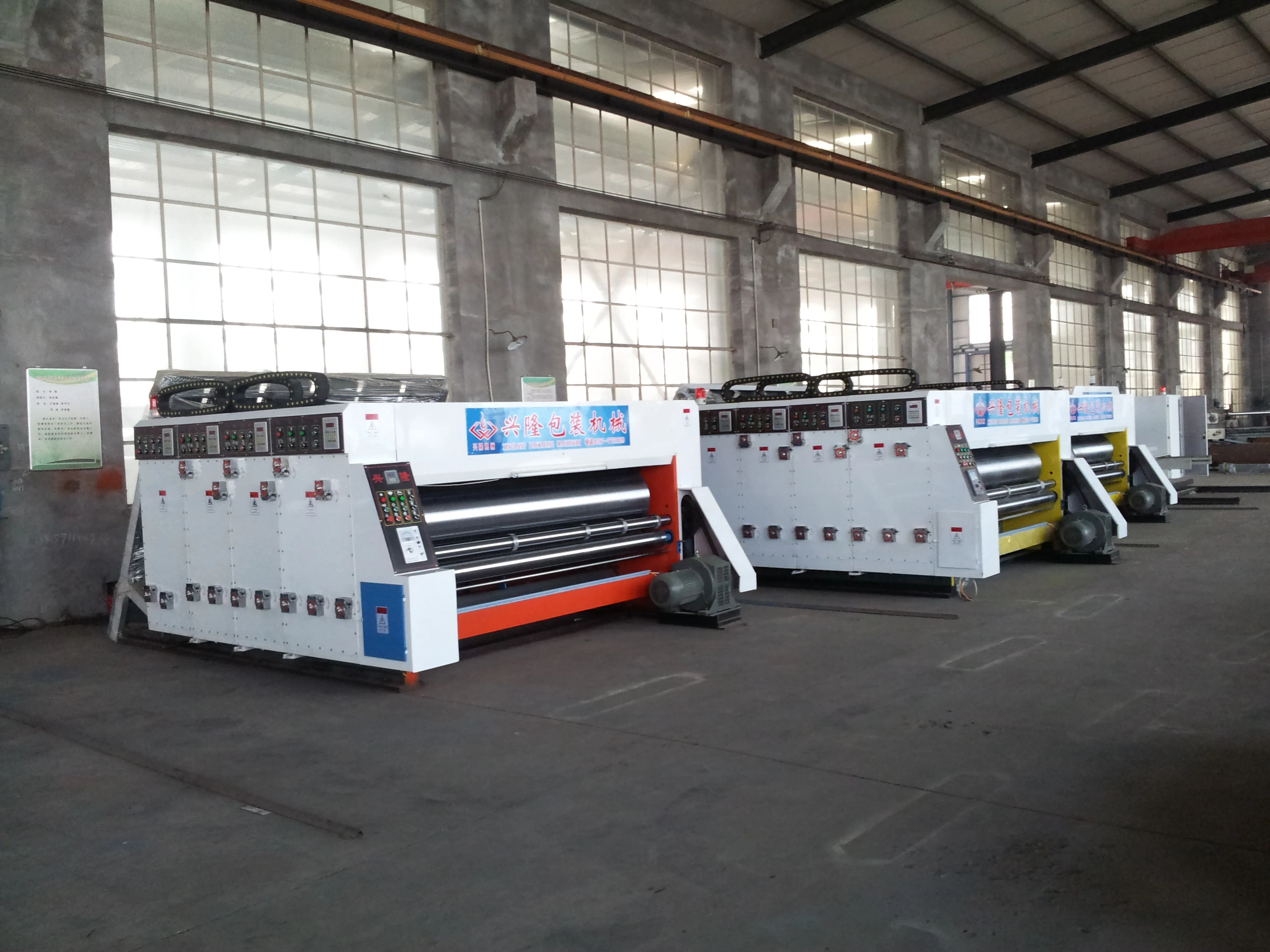

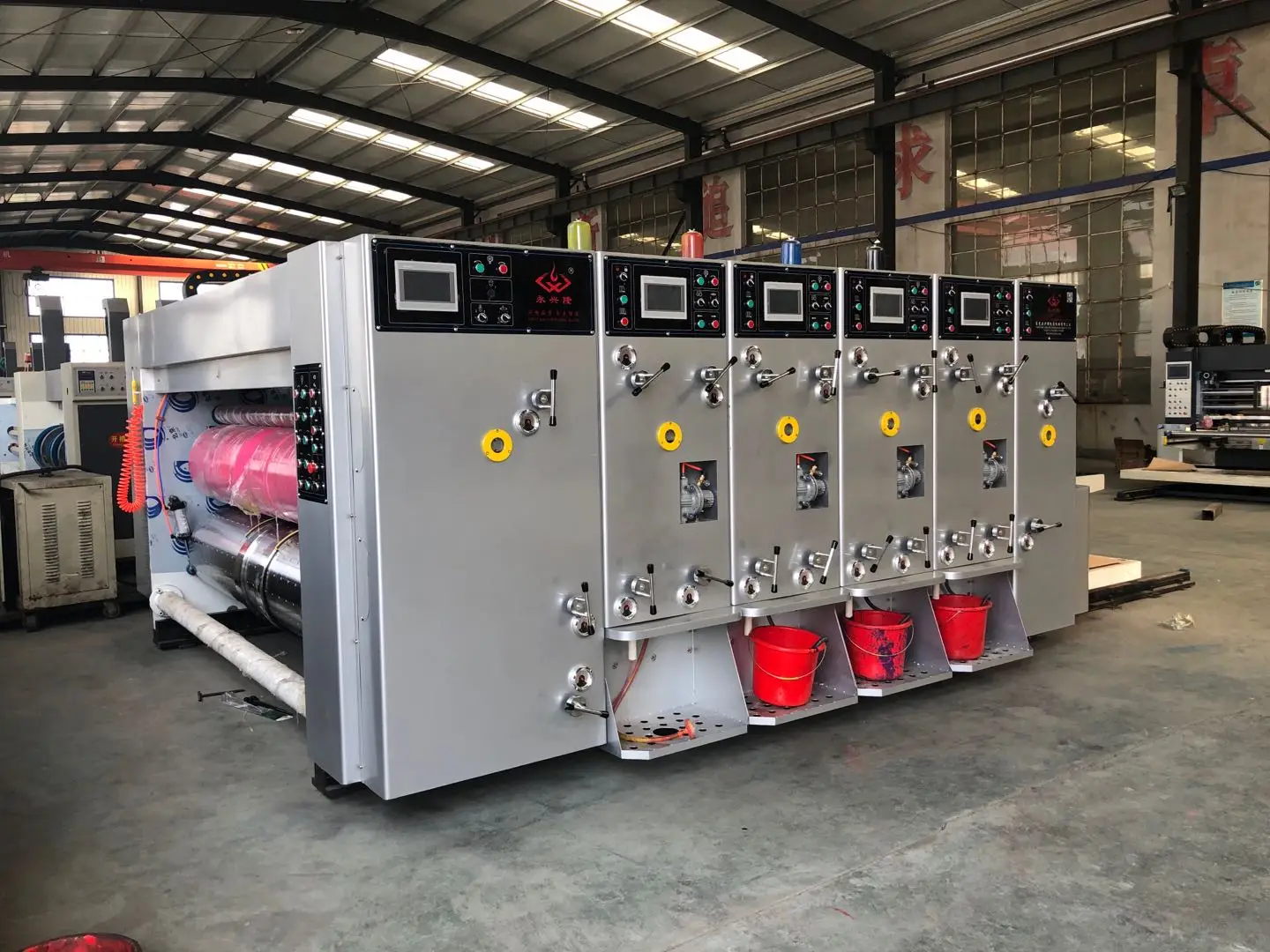

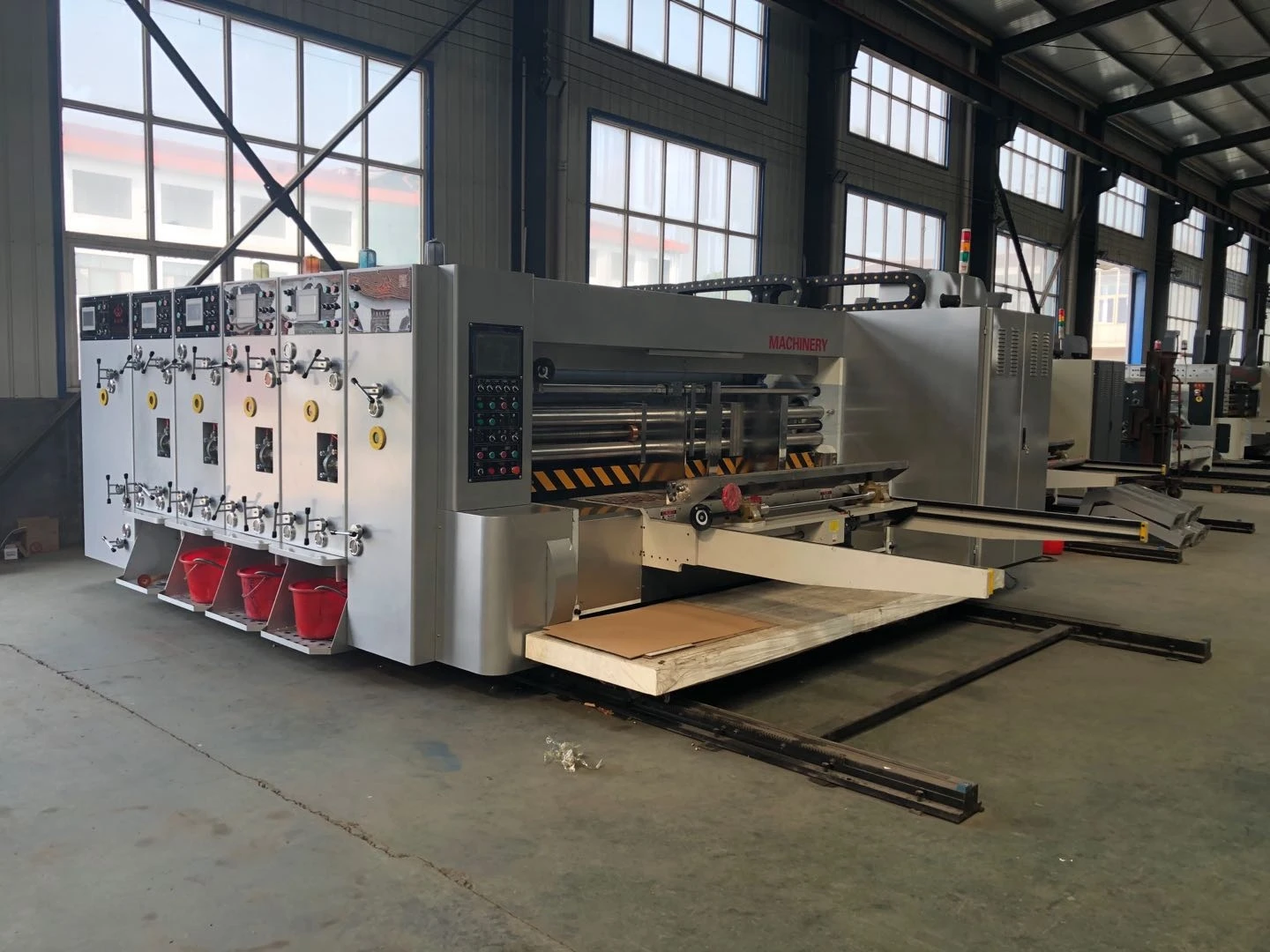

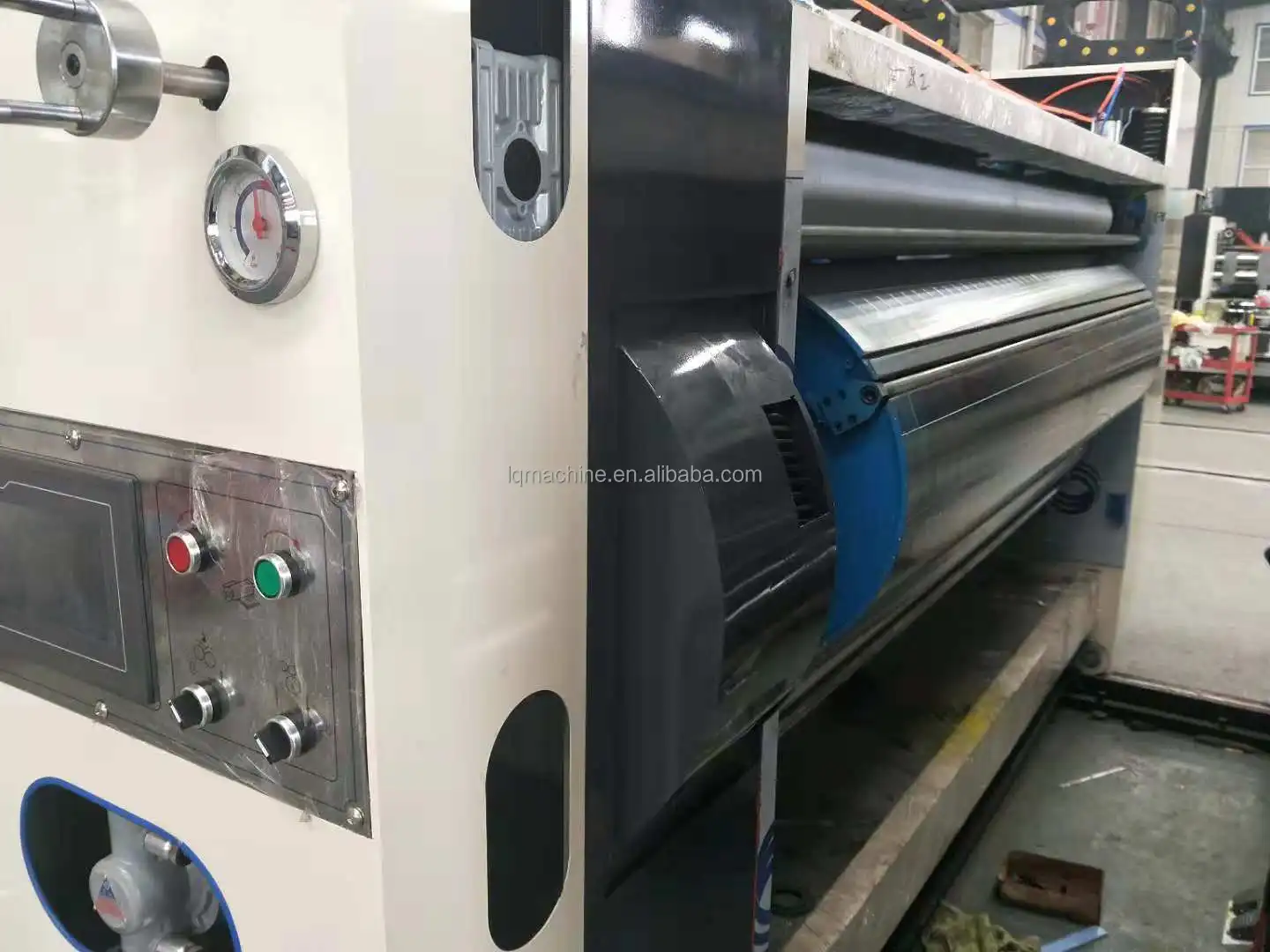

Factory Price Flexo Trade Sheet Automatic 4 Color Slotting Corrugated Carton Printing Machine
Product Description
Fully automatic high speed printing slotting diecutting machine
Performance and Characteristics
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Transmission gears made from high quality steel be precision grinding and heat treatment, adopt cross slip system connect with gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen) Lead edge feeder with vacuum sucntion, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually.
Main motor is VFD, working stability, low power consumption.
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Transmission gears made from high quality steel be precision grinding and heat treatment, adopt cross slip system connect with gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen) Lead edge feeder with vacuum sucntion, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually.
Main motor is VFD, working stability, low power consumption.
Specification
color | yello, blue, white or customized |
usage | milk, fruit and vegetable, beverage, egg |
print number | 1-6 colors |
application | corrugated carton making |
design speed | 200pcs/min |
power | 20-50kw |
feed type | lead ege feeder |
printing type | flexo |
material of print plate | resin |
ink type | water base ink |
Detail of machine

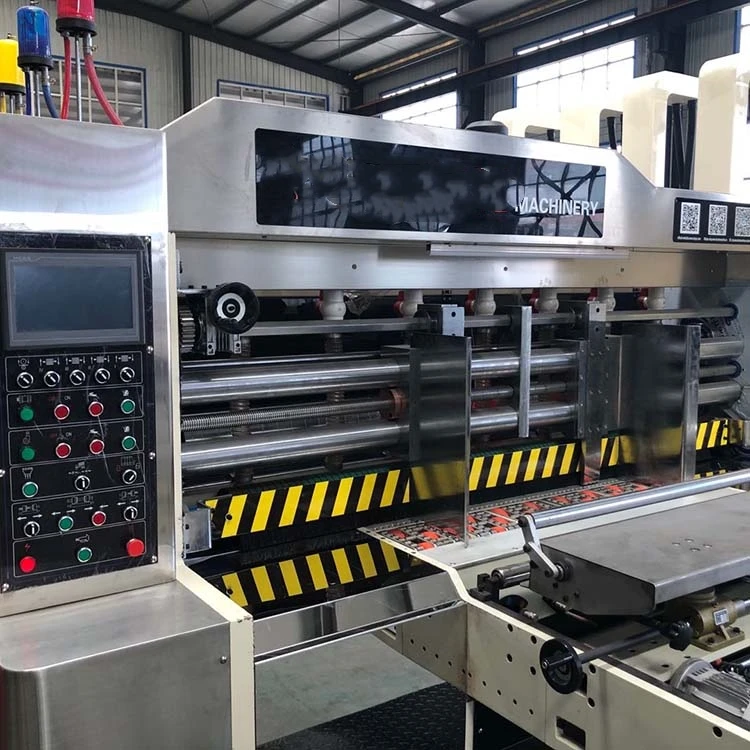

Feed unit
Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.
Main motor with start protecting device, machine cannot run when machine units aren’t lock.
Continuous or skip feeding available.
Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet.
Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.
Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size
Machine units move by motorized and move with alarm belling to make sure safety.
Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.
Main motor with start protecting device, machine cannot run when machine units aren’t lock.
Continuous or skip feeding available.
Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet.
Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.
Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size
Machine units move by motorized and move with alarm belling to make sure safety.

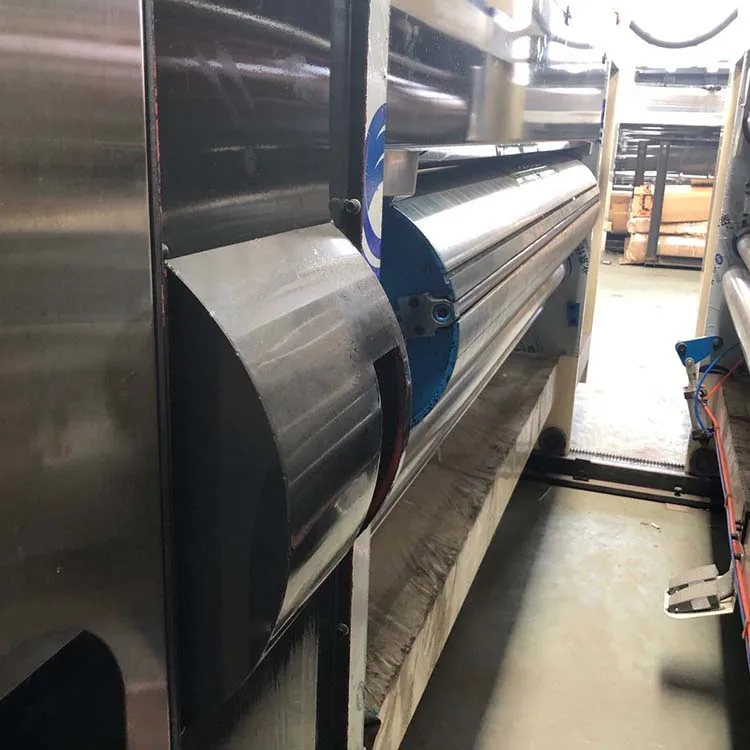

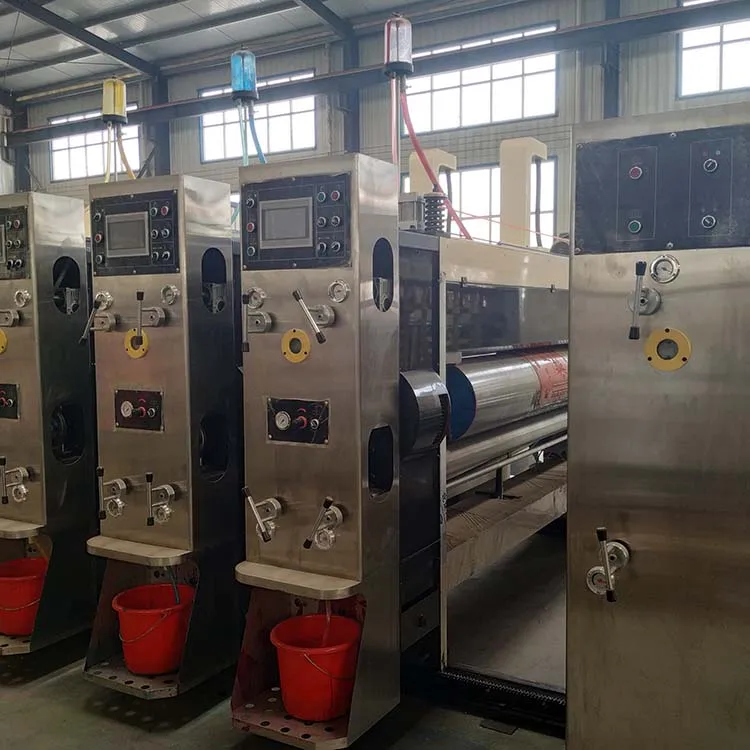

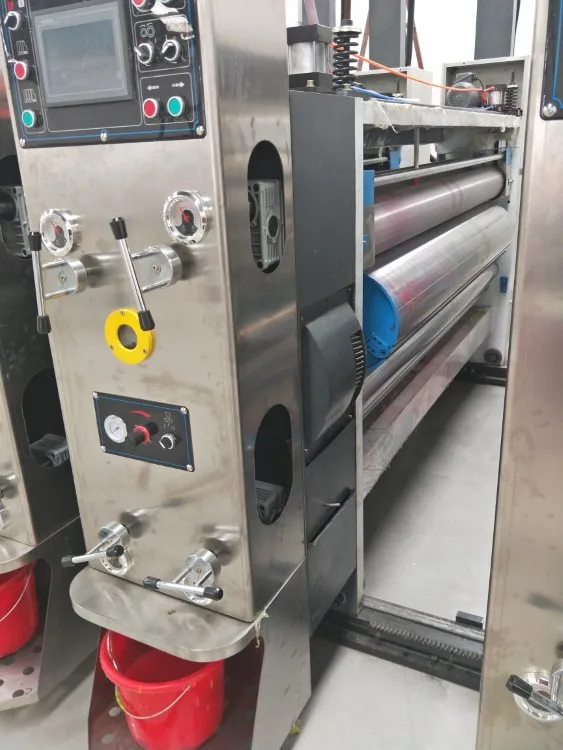

printing unit
Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise.
Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part.
Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop.
Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
Pneumatic lift anilox roller for ink, motorized ink will no dry.
Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
Double diagram pump ink, recycle automatically, clean with water.
Memory function, after clean plate it back to original position.
Printing precision: +-0.5mm
Printing cylinder horizontal move by motorized .
Steel anilox roller from Haili brand (option: ceramic roller with doctor blade).
Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part.
Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop.
Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
Pneumatic lift anilox roller for ink, motorized ink will no dry.
Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
Double diagram pump ink, recycle automatically, clean with water.
Memory function, after clean plate it back to original position.
Printing precision: +-0.5mm
Printing cylinder horizontal move by motorized .
Steel anilox roller from Haili brand (option: ceramic roller with doctor blade).

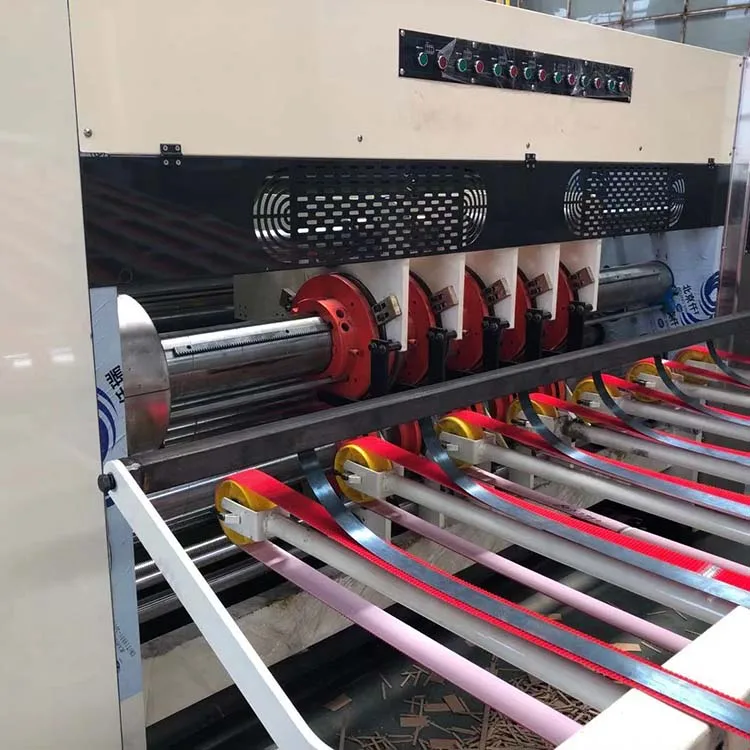

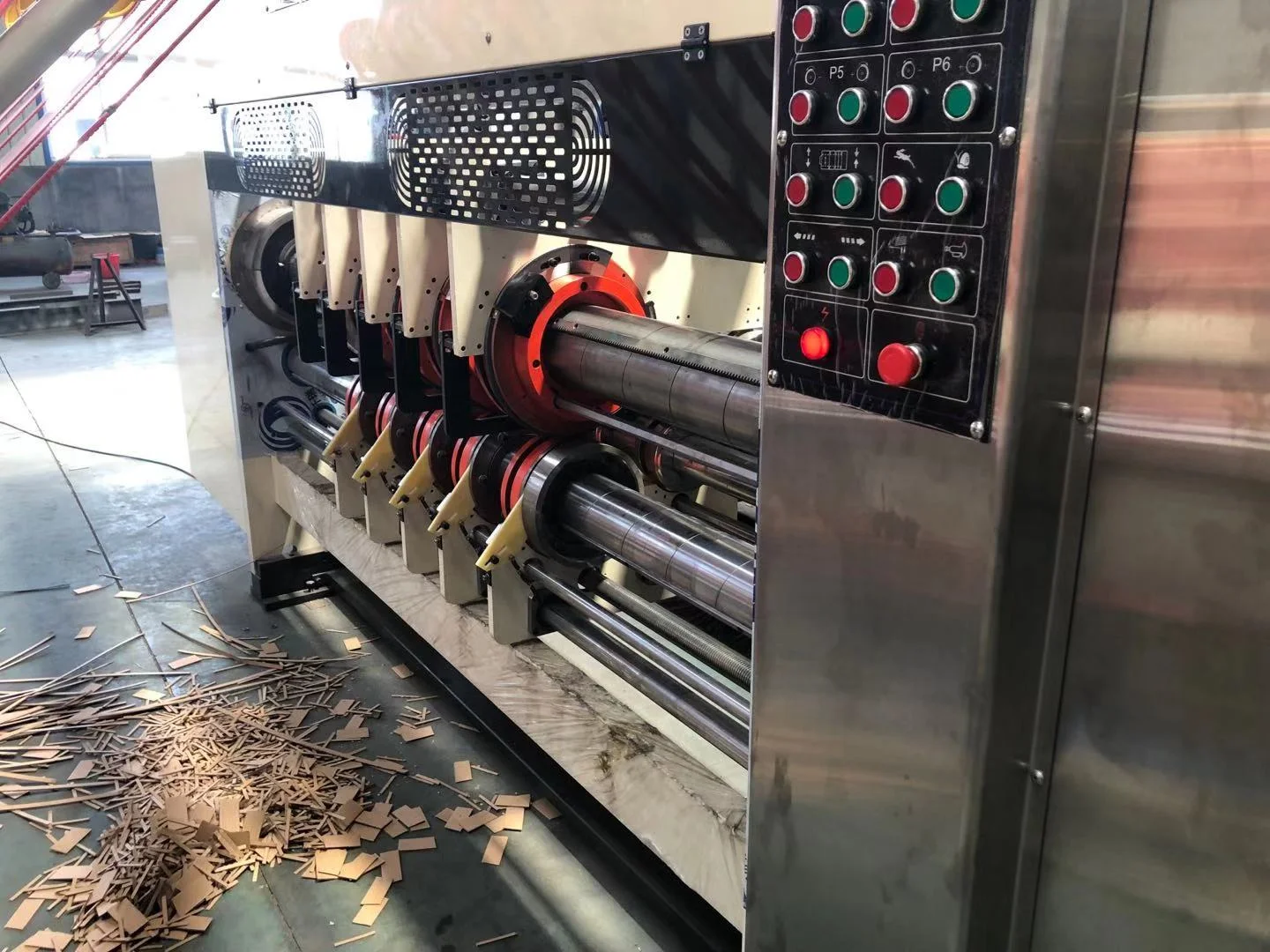

Slotting unit
Box height adjusted by motorized. Slotting phase adjusted by PLC in 360 degree with digital input, do when machine running or stop.
Slotting die and crease die move together by motorized
Crease gap and knife gap adjusted by self-lock mechanism
Collison protection on slotting knife for height adjust and move, don’t damage machine
Collison protection for slotting die horizontal move (electronical)
Slotting knife width 7mm, good quality material, with hot-treatment and grinded, teeth knife, double-piece trim knife, sharpen and precision.

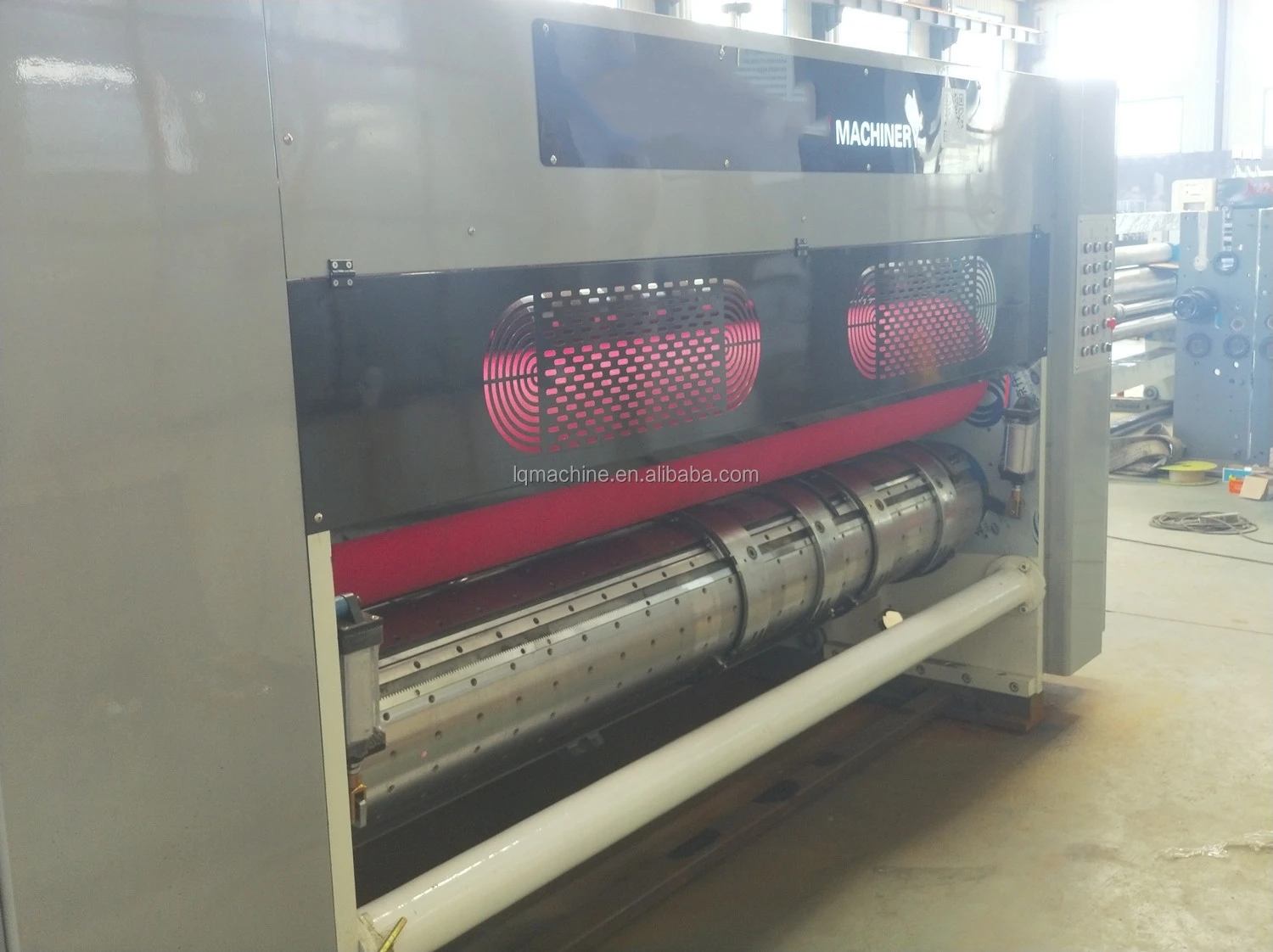

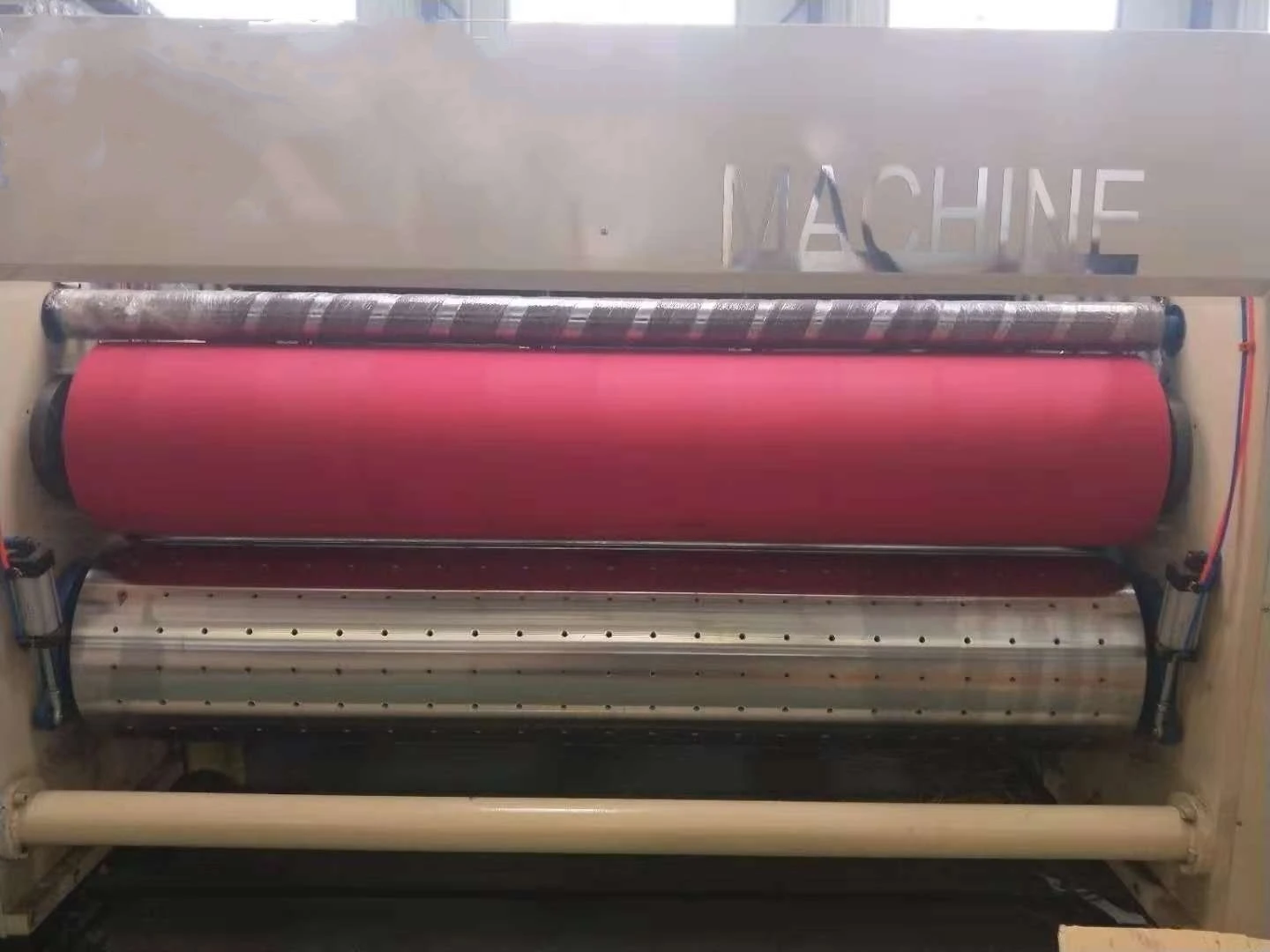

Rotary die-cutter
Rubber roller: made of good quality steel, be grinded with chrome plated.Do balance treatment, improve machine running steady
Rubber cylinder is separate with die cylinder by air cylinder when no cutting, reduce no-load and prolong blanket use-life.
Die roller lift-down automatic by pneumatic control( feed sheets roller go up, stop feeding roller down, make sure correct cutting for every sheets)
Rubber roller move 40mm in left and right, wearable average prolong use-life
Rubber roller rotates follow die roller by speed compensation device whatever how rubber diameter change, make sure rubber speed same as wooden die, keep cut box is consist with wooden die.
Planetary gear structure used for phase adjustment.
Phase adjustment by PLC in 360degree with digital input( can be done when run, stop or clockwise or anticlockwise)
Machine have repair roller to grind blanket, so it can use many times.
Function and characters

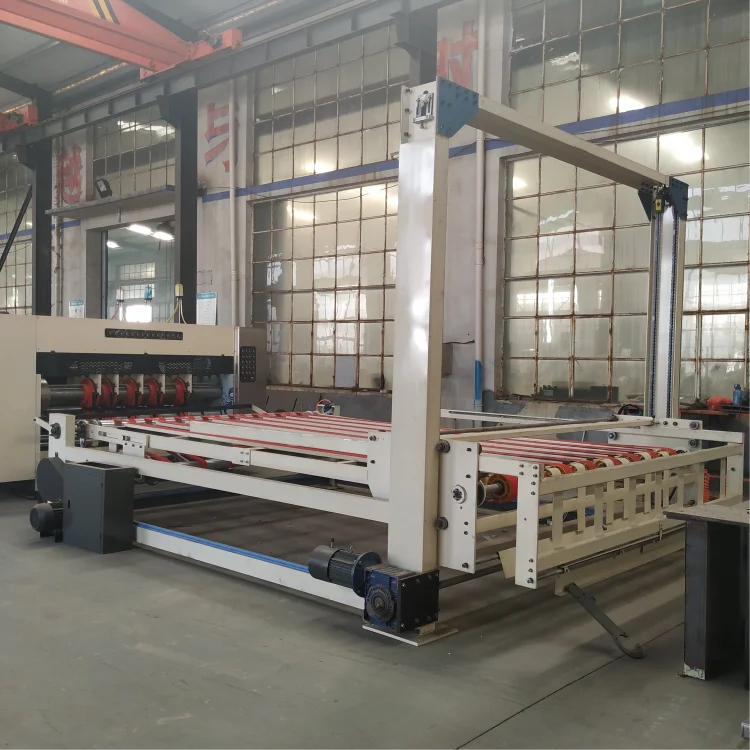

Gantry stacker lift-down by motorized
Full piece belt to convey, smooth and tidy.
Electric stack and collect sheet, up to store height.
Photoelectric measure stack height.
Electric stack and collect sheet, up to store height.
Photoelectric measure stack height.
Rollers details
Name | Diameter (mm） | Thickness(mm) | Material and treatment | Original | ||||
Feed roll | ||||||||
1 upper roller | 120 | 18 | Wrap wearable rubber, do balance treatment | |||||
2 Lower roller | 156 | 18 | Wrap wearable rubber, do balance treatment | |||||
Printing unit | ||||||||
Printing cylinder | 405 | Steel roller be grinded , chrome plated, do balance treatment | ||||||
Press roller | 156 | 18 | Steel roller be grinded , chrome plated, do balance treatment | |||||
Upper feed roller | 102 | 18 | Steel roller attached 3 feed wheel, do balance treatment | |||||
Lower feeder roller | 156 | 18 | Steel roller, grinded and chrome plated | |||||
Anilox roller | 175 | 22 | Steel roller be grinded, chrome plated, do balance treatment,200mesh | Haili,, Jiangsu | ||||
Rubber roller | 175 | 24 | Steel roller be wrapped with rubber, do balance treatment | Jizhou | ||||
Die-cutting unit | ||||||||
Upper cylinder | 400 | 30 | Steel roller be grinded, do balance treatment, wraped with blank from “Maxdrua” | |||||
Lower cylinder | 350 | 30 | Roller be grinded with chrome plated and balance treatment | |||||
Upper feed roller | 102 | 18 | Steel roller with 3 feed wheel, do balance treatment | |||||
Lower feed roller | 156 | 18 | Roller be grinded with chrome plated and balance treatment | |||||
Gear is made of steel, first tempering then high-frequency quenching | ||||||||
Motor list
Item | Brand or original | Specification | ||
Feed unit | ||||
Main drive motor | Hebeit | frequency motor | ||
move motor | TECO, Taiwan | Reducer motor | ||
Fan | Hebei | 11KW | ||
Printing unit | ||||
1 Phase register motor | GPG, Zhejiang | Reducer motor | ||
2 Ink motor | wuxi | Reducer motor | ||
Slotting unit | ||||
Phase register motor | Zhejiang | Reducer motor | ||
Slot knife move motor | wuxi | Reducer motor | ||
Stacker | ||||
Belt covey motor | Qufu | speed adjustable motor | ||
Table up-down motor | Wuxi | Reducer motor | ||
Others | ||||
Bearing | Wanxiang | |||
Electric appliance | Siemens | |||
Pneumatic diagram | Jincchangjiang, Wuhan | |||
slotting knife | Qifeng, Qingdao | |||
PLC | Delta | |||
encoder | Delta | |||
touch screen | Delta | |||
keyless link ring | xianyang | |||
