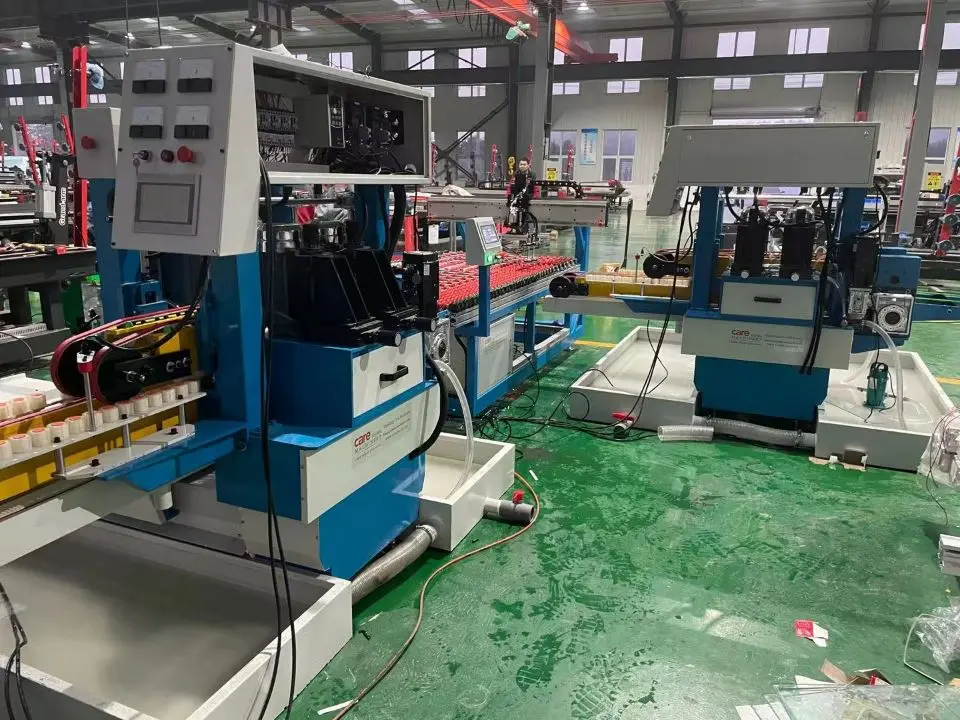

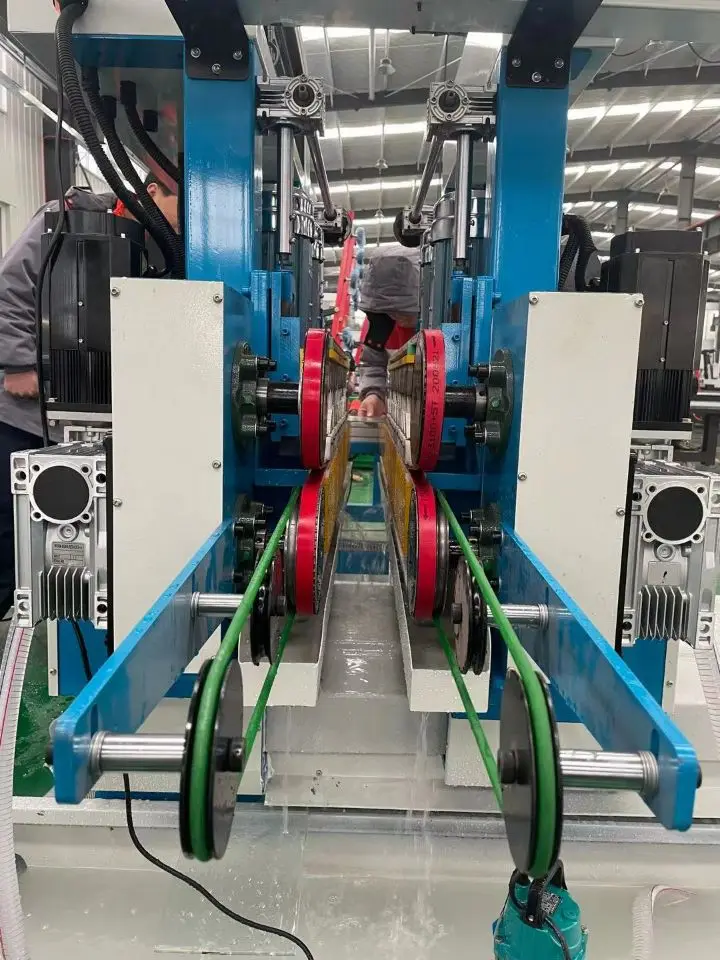

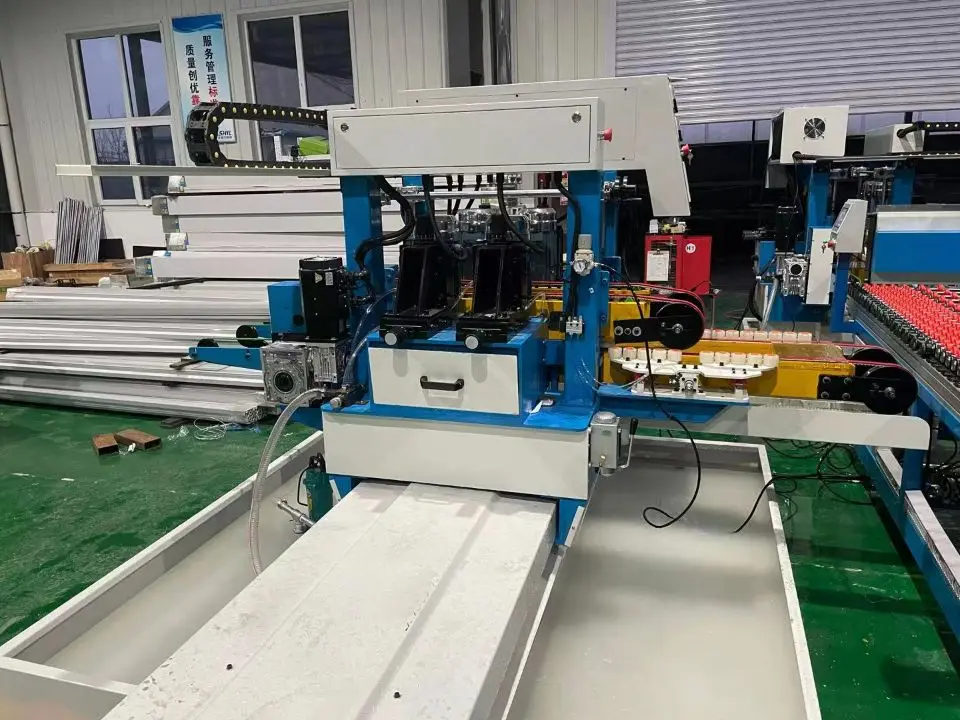

glass grinder machine 12 kw CNC Glass Polishing Machine Glass Edge Processing Machinery
- Category: >>>
- Supplier: Jinan Care Machinery Technology Co. Ltd.
Share on (1600379087330):
Product Overview
Description

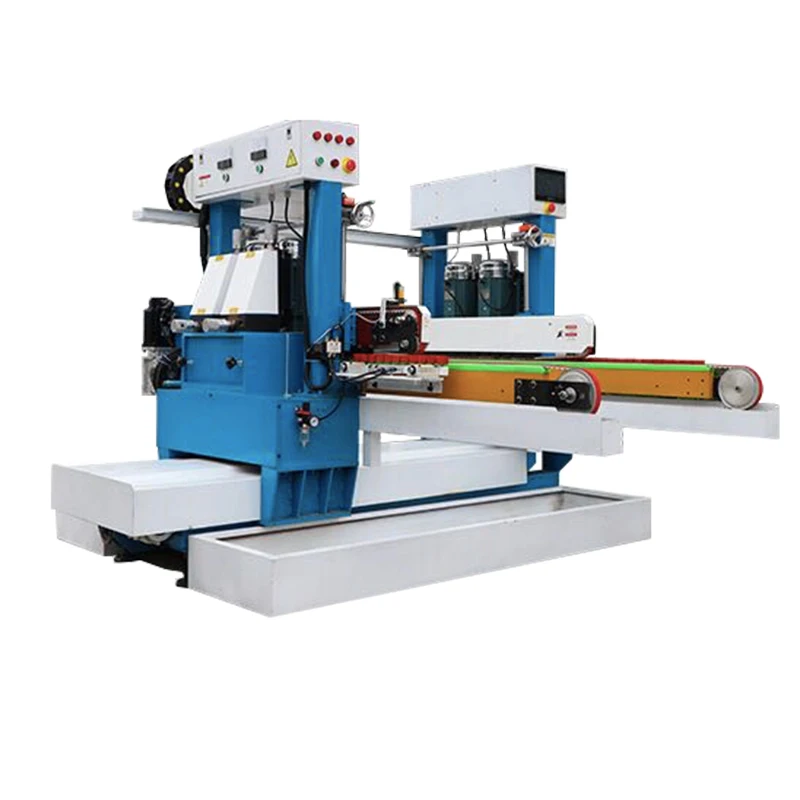

glass grinder machine
12 kw CNC Glass Polishing Machine Glass Edge Processing Machinery
Products Description
The product is suitable for grinding flat glass with double straight sides. Rough grinding, fine grinding, polishing safety angle (installed safety chamfering wheel) once completed..
Product Parameters
Dimension | 2300*2800*1800mm |
Weight | 1000kg |
Min processing size | 10*10cm |
Max processing size | 150cm(Not fixed, can be customized) |
Min glass processing thickness | 2mm((Not fixed, can be customized) |
Glass transfer speed | 10-20m/min |
Power | 12kw |
Voltage | 380v (or customized) |

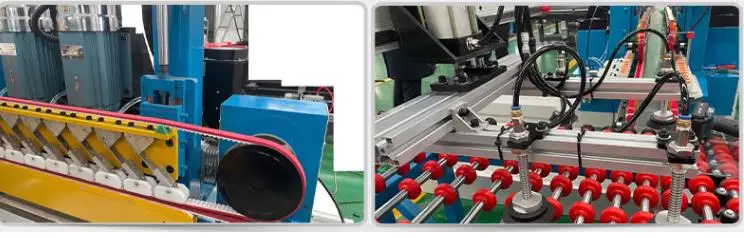

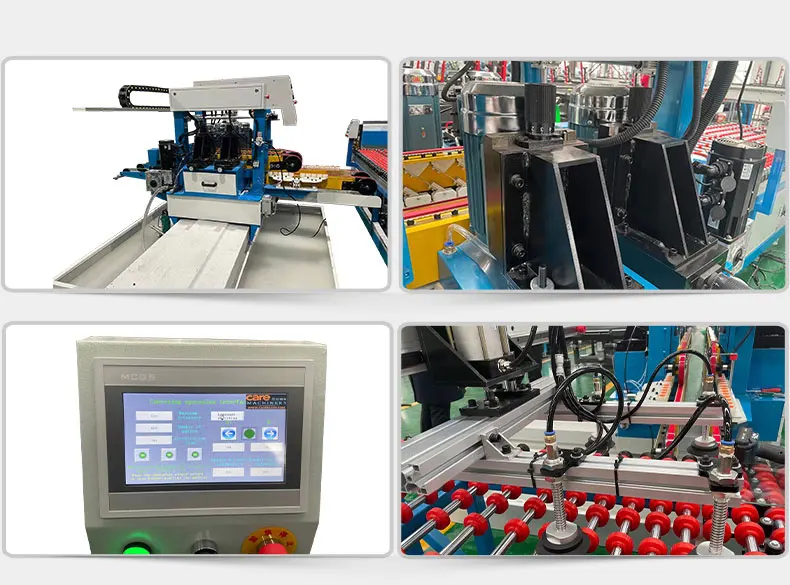

Product detail
Product Features

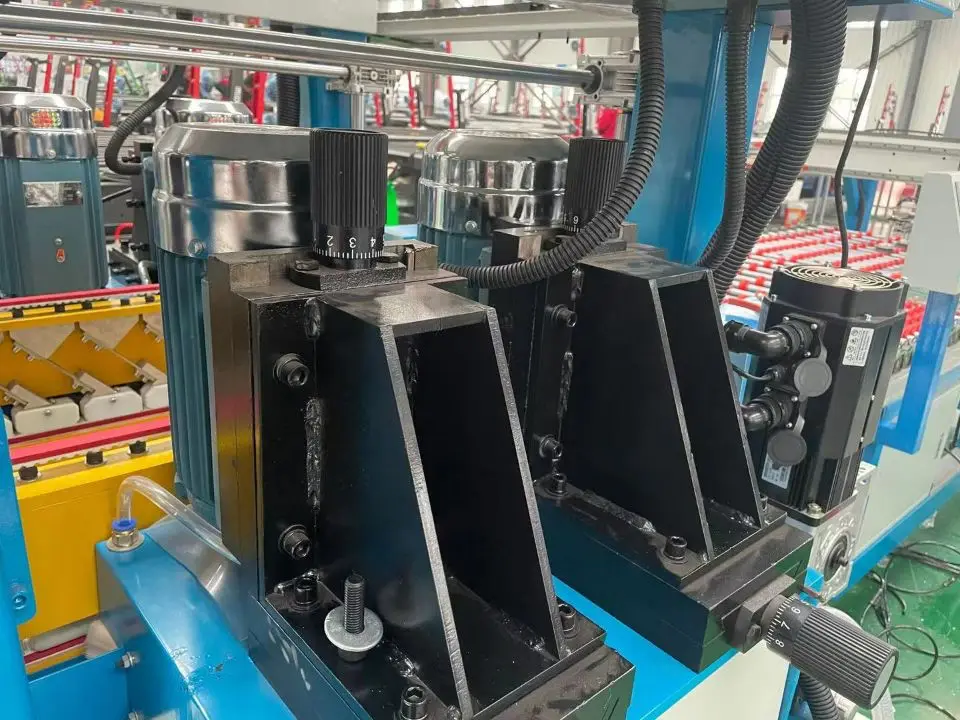

1.Grinding head sliding with double straight rolling guide, double ball screw drive to reach a stable moving speed, eliminate mobile clearance, reduce resistance and friction, to ensure repeat positioning.
2.PLC control system set the processing parameters by the interface to complete the processing.
3.The use of automatic compensation polishing brake mechanism to ensure the surface finish after grinding.
4.Width opening and closing and crawler drive using high-power inverter motor. Speed control, constant power, constant twist rejection output, stable and reliable.
5.This glass double-sided machine has been improved compared to the bilateral machines currently on the market. Added CNC system, with automatic opening and closing system to automatically adjust the edging width. Manual mode, automatic mode is optional.
6.The machine has improved the single drive of the gearbox, two servo drives are used to make the machine edging more accurate and the belt replacement is more convenient in the later period.
2.PLC control system set the processing parameters by the interface to complete the processing.
3.The use of automatic compensation polishing brake mechanism to ensure the surface finish after grinding.
4.Width opening and closing and crawler drive using high-power inverter motor. Speed control, constant power, constant twist rejection output, stable and reliable.
5.This glass double-sided machine has been improved compared to the bilateral machines currently on the market. Added CNC system, with automatic opening and closing system to automatically adjust the edging width. Manual mode, automatic mode is optional.
6.The machine has improved the single drive of the gearbox, two servo drives are used to make the machine edging more accurate and the belt replacement is more convenient in the later period.
Packing &Shipping
payment method

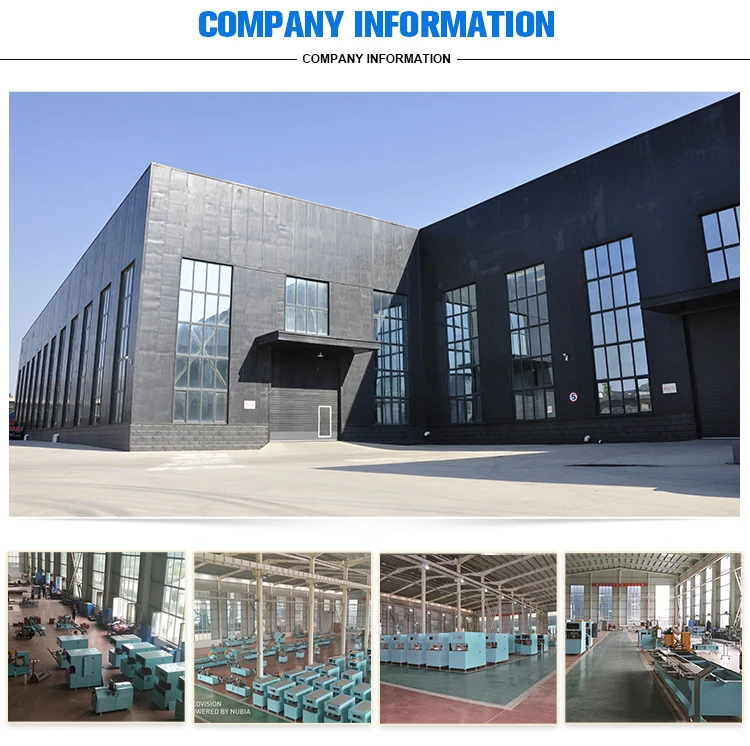

Company Profile
Customer Photos
