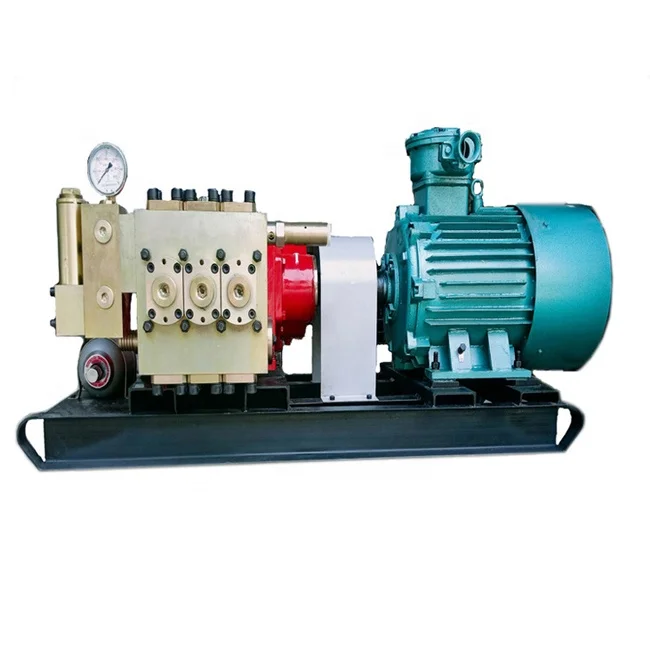

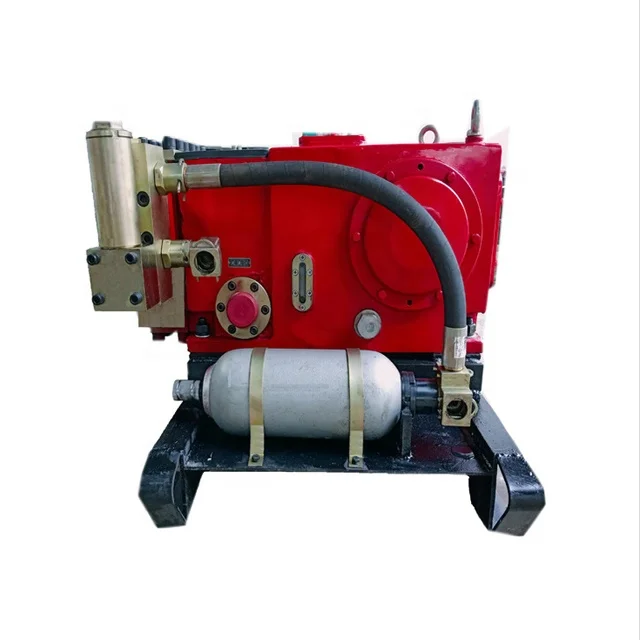

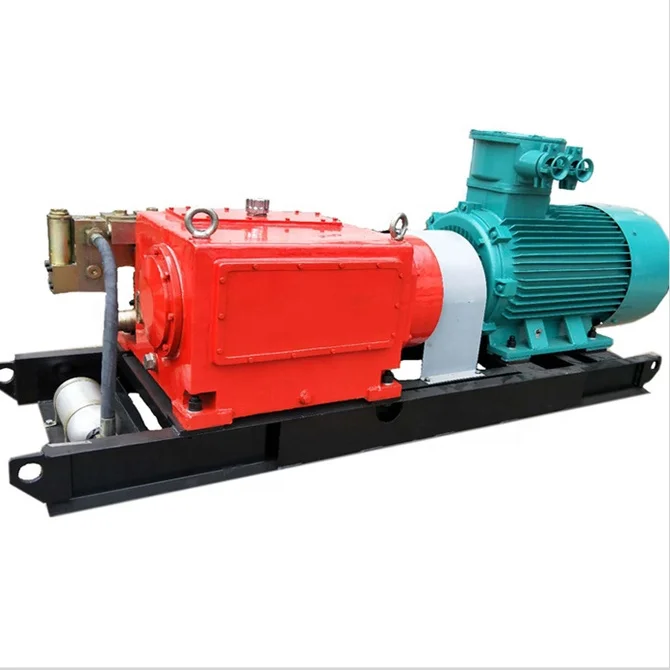

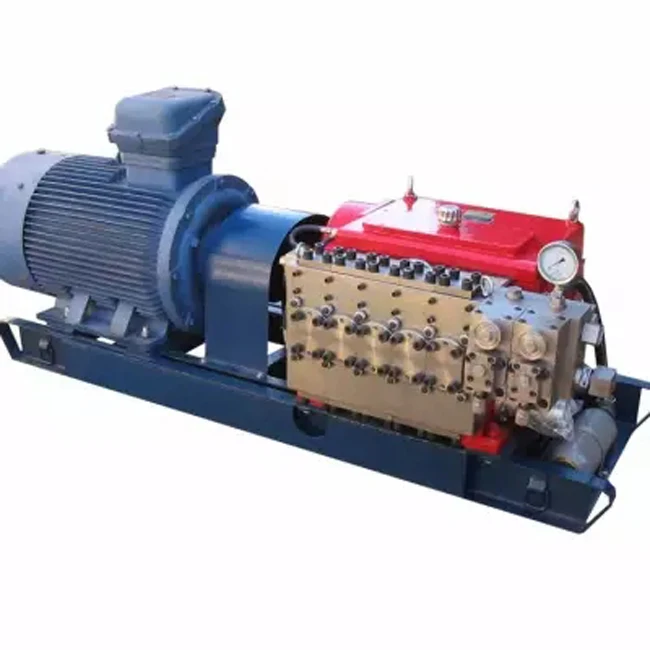

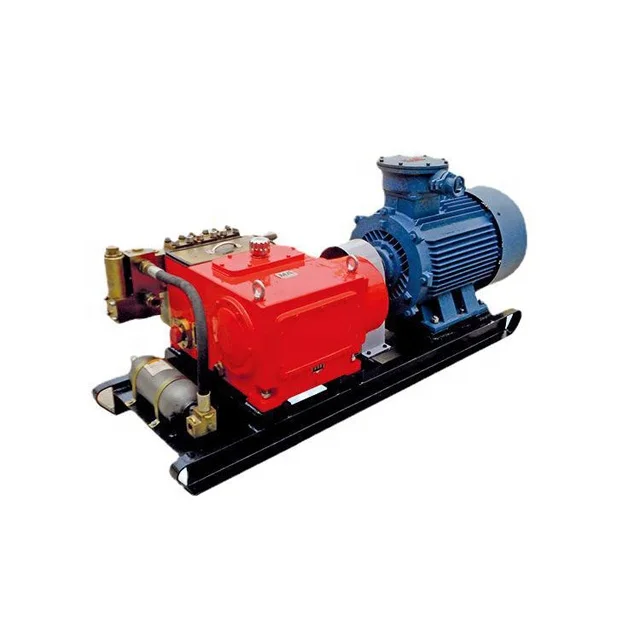

BRW Series Multi function Emulsion Pumping Station For Mining
- Category: >>>
- Supplier: Jining Enwei Intelligent Technology Co. Ltd.
Share on (1600379113490):
Product Overview
Description
Products Description

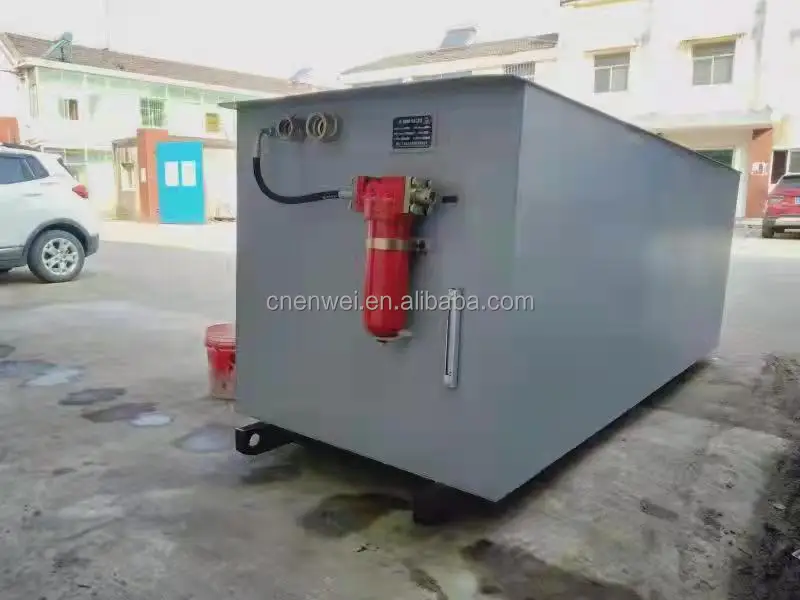

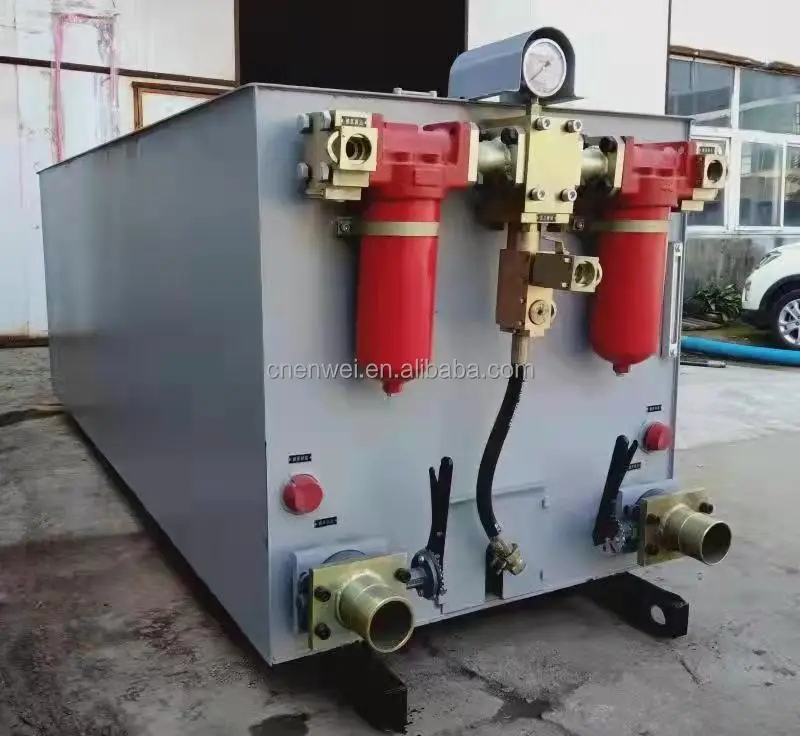

BRW series emulsion pumping station is mainly used for fully mechanized coal mining face, and can also be used as a power source for other hydraulic equipment. The pumping station system usually consists of two emulsion pumps and one emulsion tank.
The pump is a horizontal five-plunger reciprocating pump. Driven by a three-phase four-pole explosion-proof motor, it is decelerated by a coupling and a pair of helical cylindrical gears to drive the crankshaft to rotate, and then the plunger is driven to reciprocate through the connecting rod slider, so that the working fluid is sucked and discharged through the suction and discharge valves. Discharge and output high-pressure liquid for the work of the hydraulic support. The hydraulic end of the pump adopts a separate valve body structure; the lubrication method adopts the splash method and the gear oil pump circulating spray; the lubricating oil machine is cooled by the external circulation. The high-pressure discharge port of the pump is equipped with an adjusted high-pressure safety valve and an automatic unloading valve (pressure control valve) to ensure the reliability of the hydraulic system.
The pump is a horizontal five-plunger reciprocating pump. Driven by a three-phase four-pole explosion-proof motor, it is decelerated by a coupling and a pair of helical cylindrical gears to drive the crankshaft to rotate, and then the plunger is driven to reciprocate through the connecting rod slider, so that the working fluid is sucked and discharged through the suction and discharge valves. Discharge and output high-pressure liquid for the work of the hydraulic support. The hydraulic end of the pump adopts a separate valve body structure; the lubrication method adopts the splash method and the gear oil pump circulating spray; the lubricating oil machine is cooled by the external circulation. The high-pressure discharge port of the pump is equipped with an adjusted high-pressure safety valve and an automatic unloading valve (pressure control valve) to ensure the reliability of the hydraulic system.
Feature:
Five-cylinder split valve body.
Lubricating oil liquid cavity cooling, splash + jet lubrication.
Integral suction valve and discharge valve.
Used for high-yield and efficient coal mining operations.
Lubricating oil liquid cavity cooling, splash + jet lubrication.
Integral suction valve and discharge valve.
Used for high-yield and efficient coal mining operations.
Working Principle
According to different flow and pressure, choose different power motors. The motor drives the emulsion pump through the tire-type coupling to perform reciprocating motion to achieve aspiration and drainage.
The utility model has the advantages of compact structure, small volume, light weight, stable pressure flow, stable operation, strong safety performance and convenient use and maintenance.
According to different flow and pressure, choose different power motors. The motor drives the emulsion pump through the tire-type coupling to perform reciprocating motion to achieve aspiration and drainage.
The utility model has the advantages of compact structure, small volume, light weight, stable pressure flow, stable operation, strong safety performance and convenient use and maintenance.
Product Parameters
Model | Rated flow (L/min) | Rated pressure (Mpa) | Rated power (KW) | Dia. of plunger (mm) | Stroke (mm) | Reciprocal time | Piston No. | Size (mm) | Tank capacity (L) |
BRW40/20 | 40 | 20 | 15 | 25 | 50 | 547 | 3 | 1380*670*570 | 640 |
BRW80/20 | 80 | 20 | 37 | 40 | 44 | 535 | 3 | 2200*840*855 | 640 |
BRW80/31.5 | 80 | 31.5 | 55 | 40 | 44 | 535 | 3 | 2200*840*855 | 640 |
BRW125/31.5 | 125 | 31.5 | 75 | 40 | 66 | 560 | 3 | 2100*850*1000 | 1000 |
BRW160/31.5 | 160 | 31.5 | 110 | 45 | 66 | 547 | 3 | 2400*905*1245 | 1500 |
BRW200/31.5 | 200 | 31.5 | 125 | 40 | 62 | 548 | 5 | 2400*960*1300 | 1600 |
BRW315/31.5 | 315 | 31.5 | 200 | 50 | 64 | 548 | 5 | 3200*1100*1350 | 2000 |
BRW400/31.5 | 400 | 31.5 | 250 | 56 | 64 | 548 | 5 | 3200*1100*1350 | 3000 |
BRW500/31.5 | 500 | 31.5 | 315 | 60 | 73 | 532 | 5 | 3370*1370*1390 | 3000+2000 |
Details Images

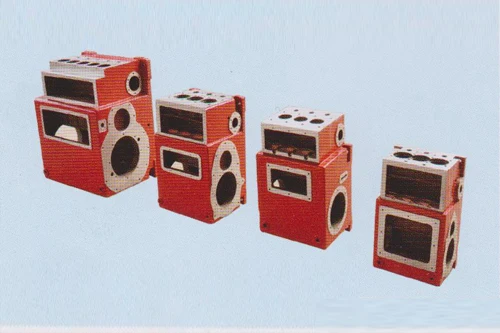

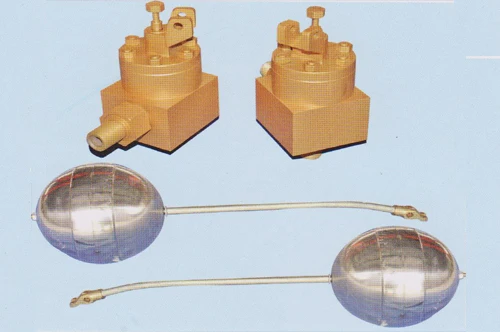

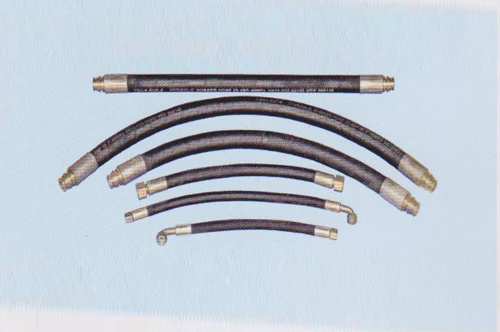

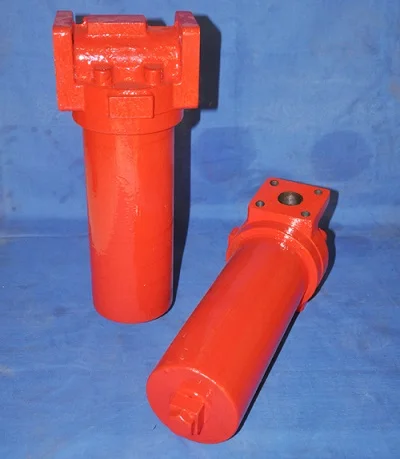

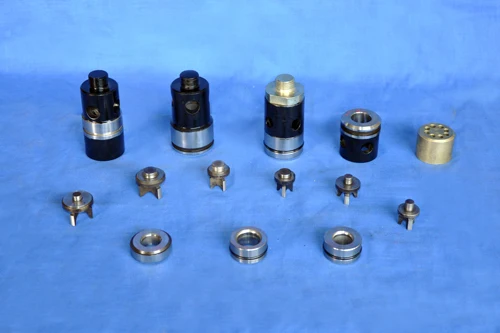

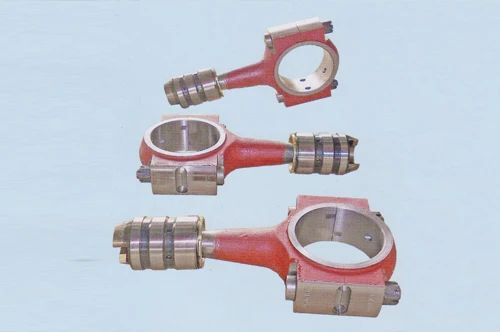

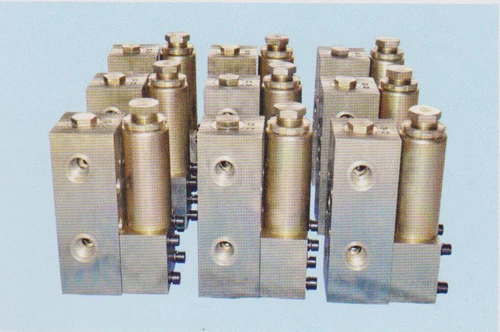

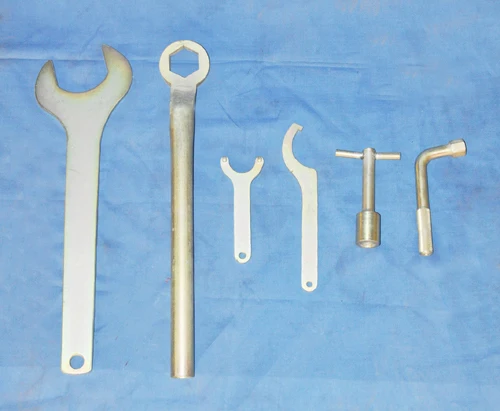

Spare parts

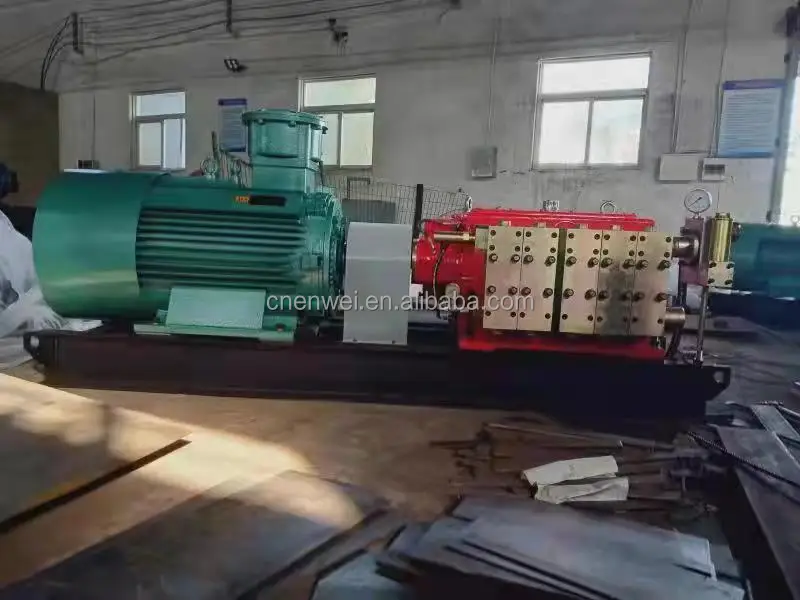

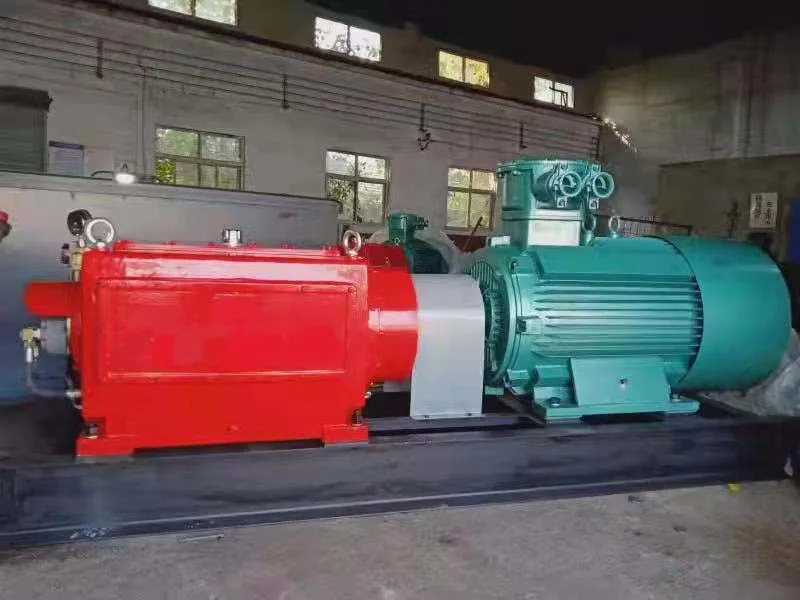

Factory Show
