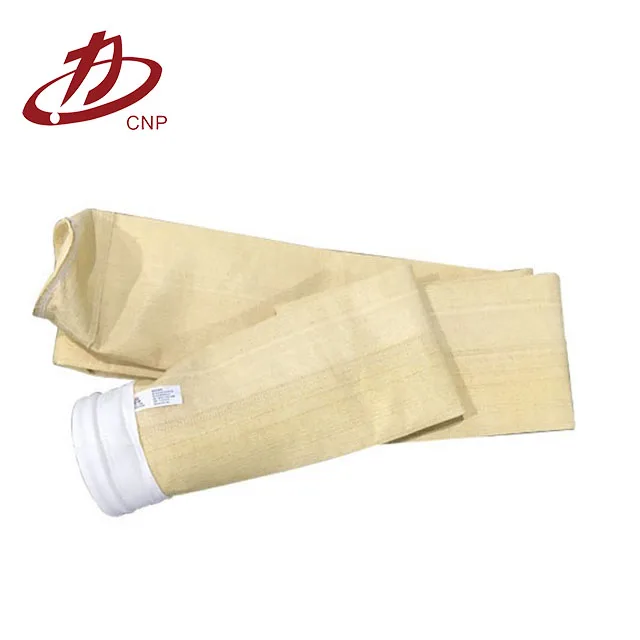

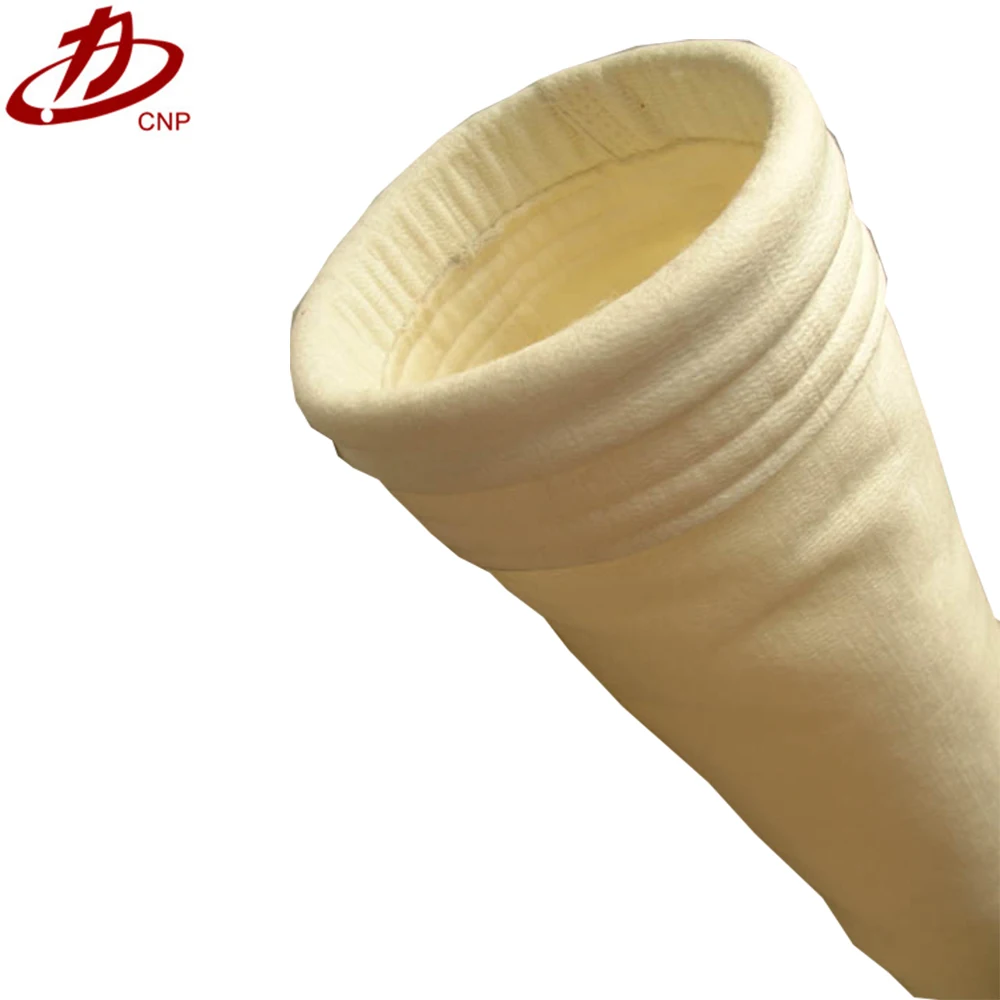

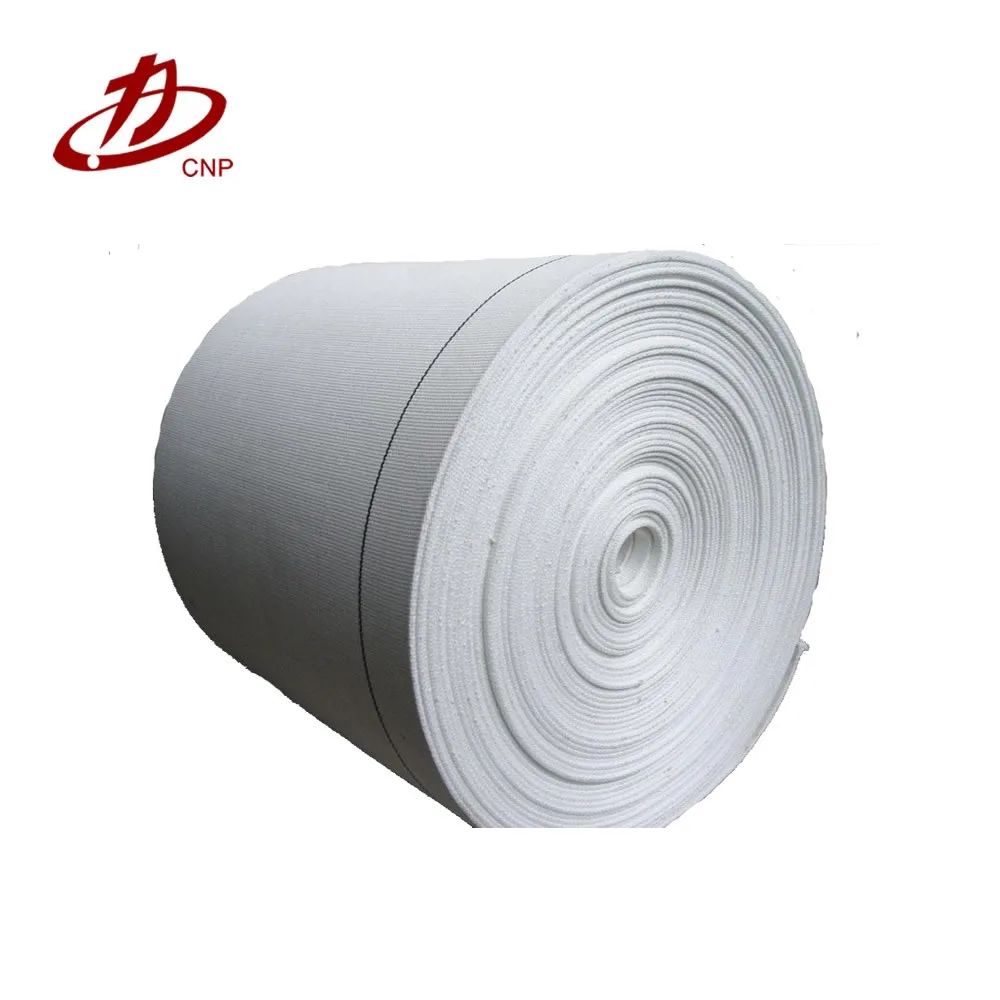

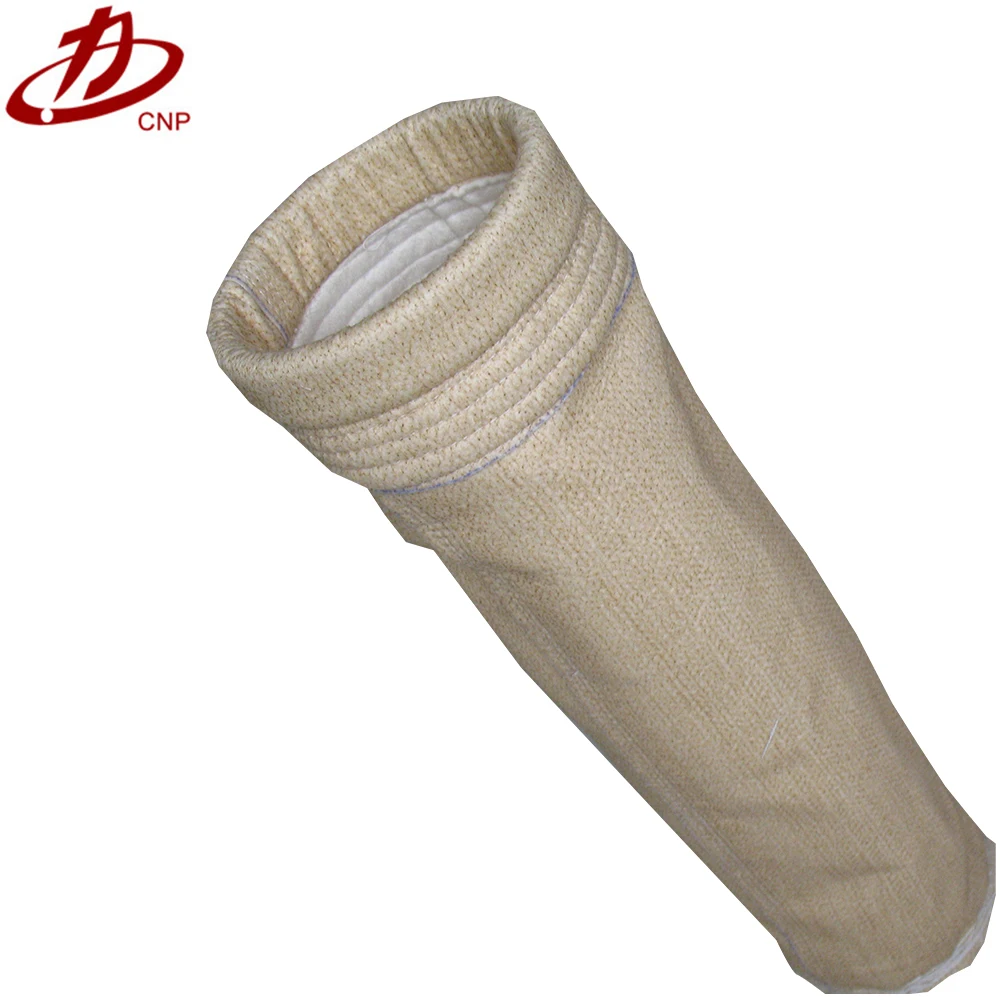

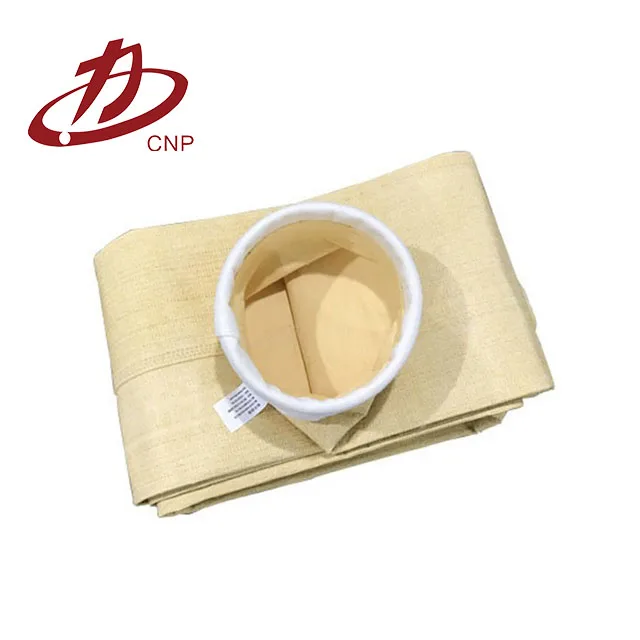

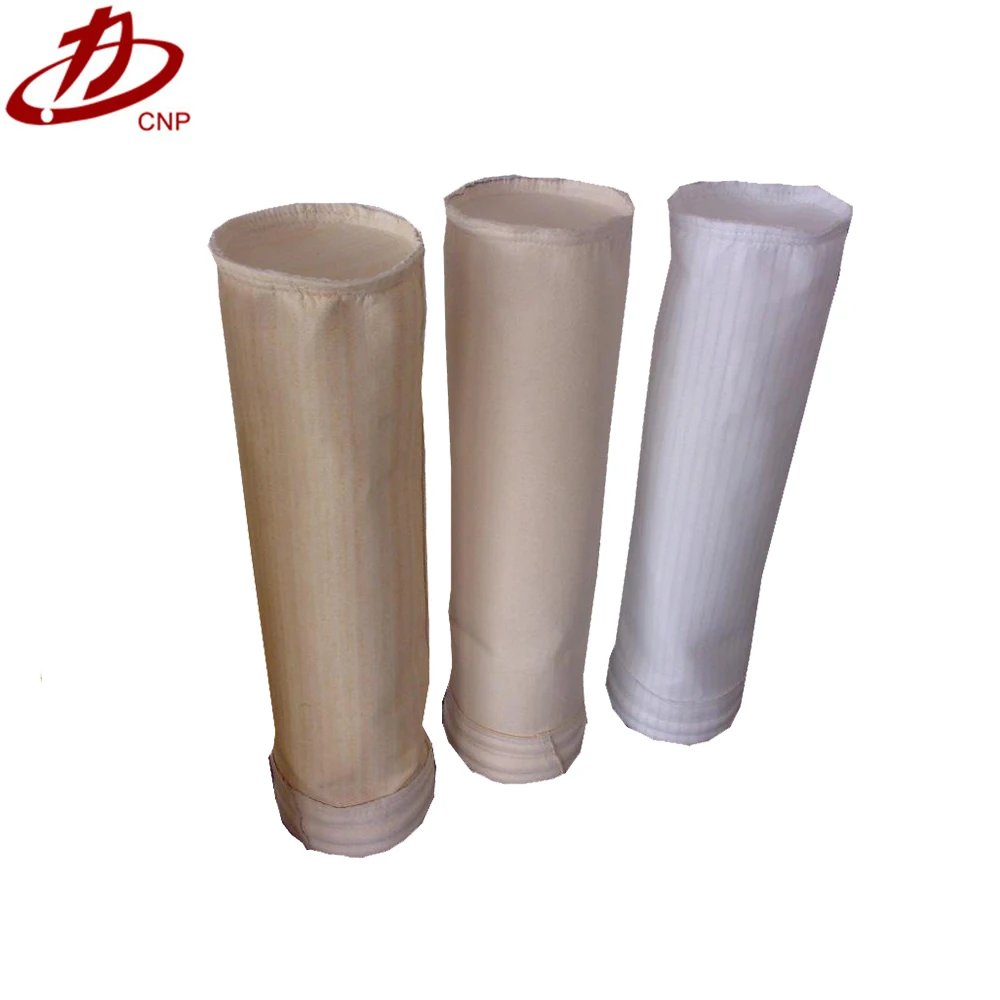

1.The filter cloth is based on the thickness of the whole filter layer and belongs to deep filtration
2. the depth of the whole filter layer is formed from the fiber into a three-dimensional porous structure, from the inside and outside to the outside Dense, forming gradient filtering
3. high pollution capacity, long filtration life, low pressure difference
4.Repeated cleaning, economic benefits
Application
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.


Material | Nomex Aramid filter/ Nomex aramid scrim | ||||
Weight (g/m2) | 450 | 500 | 550 | ||
Thickness (mm) | 2.0 | 2.2 | 2.4 | ||
Air permenability (m3/m2/min) | 21 | 17 | 14 | ||
Tensile strength/ warp | > 800 | > 800 | > 800 | ||
Tensile strength/ weft | > 1100 | > 1200 | > 1300 | ||
Tensile elongation/ warp | < 35 | < 35 | < 35 | ||
Tensile elongation/ weft | < 55 | < 55 | < 55 | ||
Broke strength (Mpa/min) | 2.55 | 2.40 | 2.35 | ||
Working temperature (℃) | ≤ 204 | ≤ 204 | ≤ 204 | ||
Peak temperature (℃) | 250 | 250 | 250 | ||
Anti Acidic | good | ||||
Anti alkaline | excellent | ||||
Anti wearing | excellent | ||||
hydrolisis | good | ||||
Finishing treatment | heat setting, singeing, calendering, PTFE process | ||||








Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, FCA, EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them.
Generally, It will take 10 to 20 days after receiving your advanced payment. The specific delivery time depends on your items and quantity of your order.
