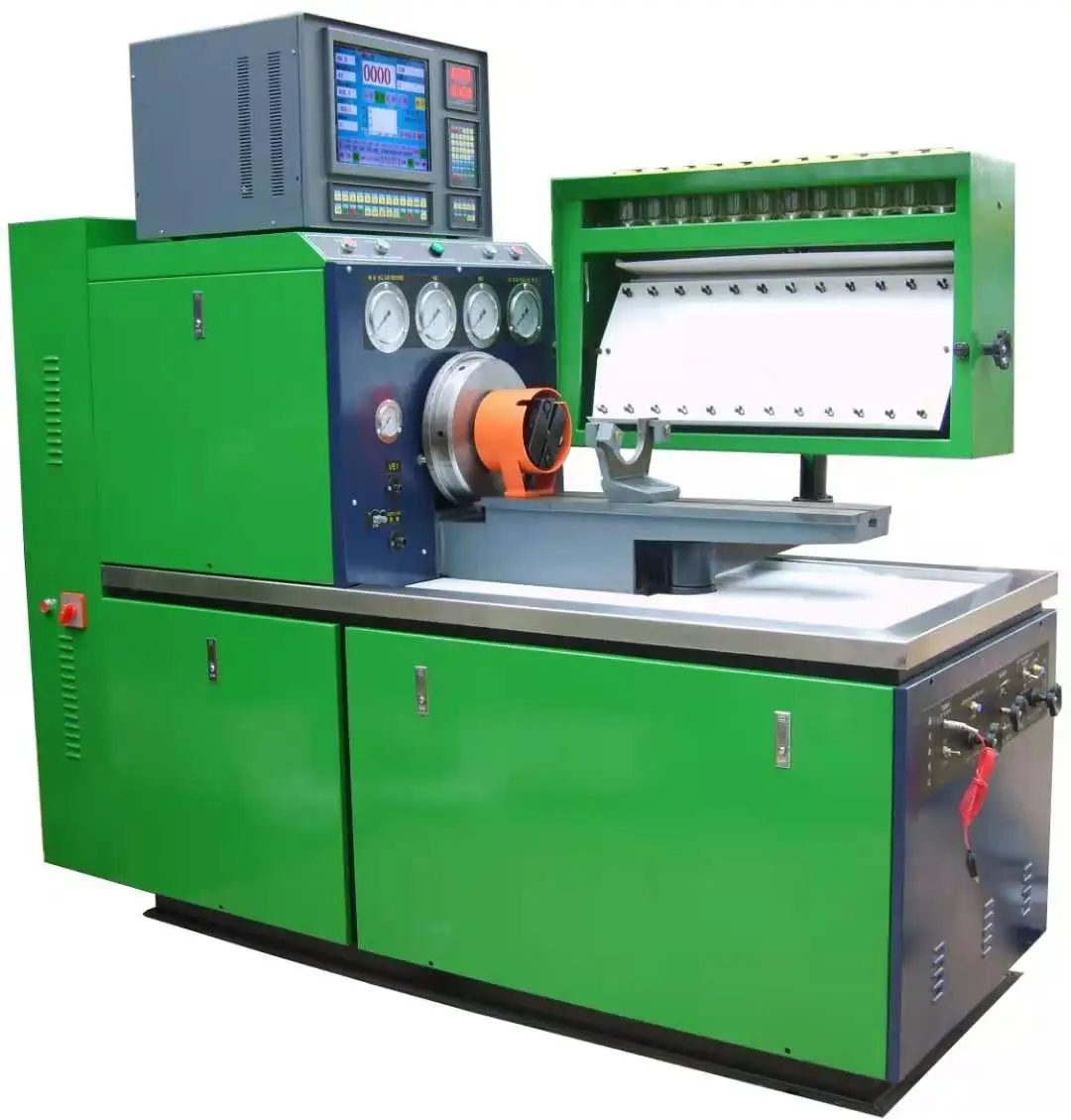

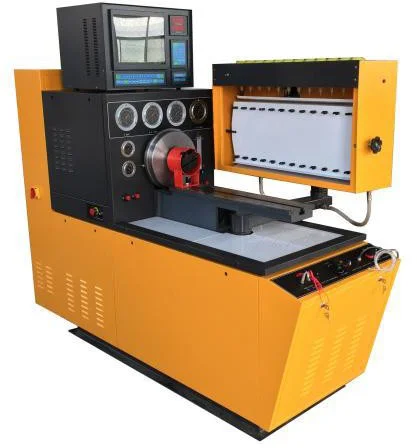

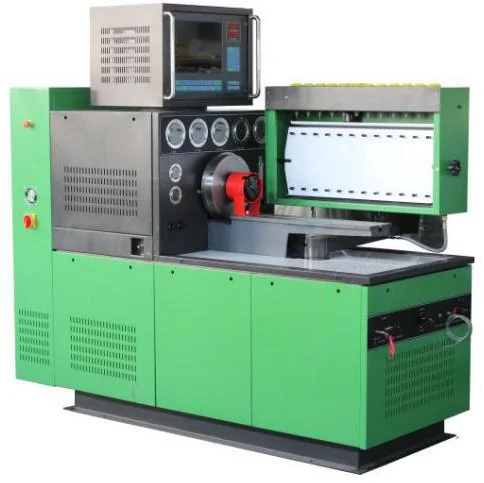

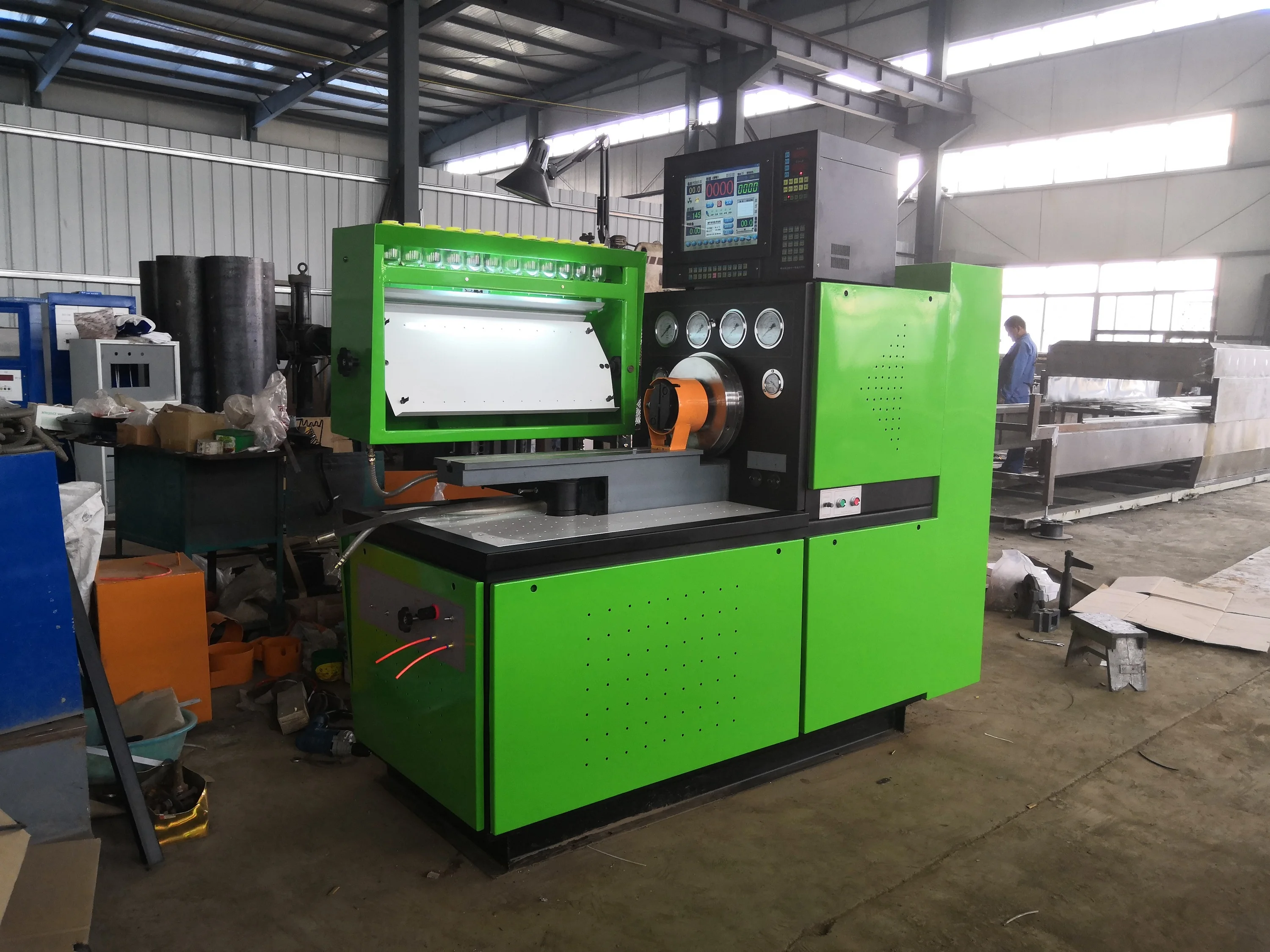

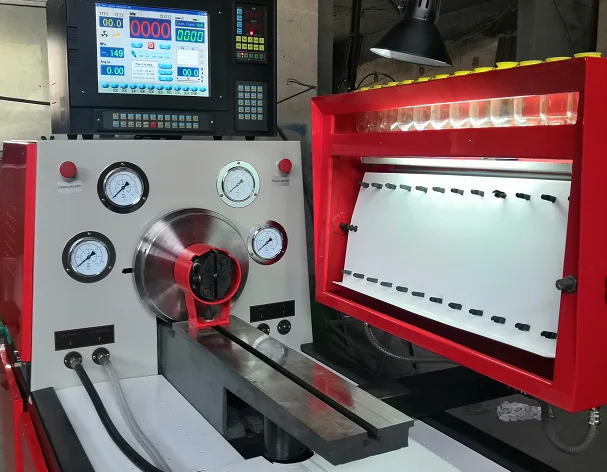

11kw Fuel Injection Pump Test Bench
- Category: >>>
- Supplier: Jinan Tech View Machinery Technology Co. Ltd.
Share on (1600379136850):
Product Overview
Description
Product Description
liquid crystal display pump test bench 12psb
high measurement accuracy
With overvoltage，overload，and short circuit protection functions
Product Details
* high quality couplings more stable connect with injection pump
* Copper core motor 11kw powerful long service time
* Switchboard positioned correctly，with complete components
* Inverter high performance and versatile
* Digital display English version can use long time
* Air compressor provide 1-1.5 bar air pressure to pump
>>> FUNCTIONS
1. Measurement of each cylinder's delivery at various rotation speeds;
2. Checking of each cylinder's injection time with static state;
3. Checking of the mechanical speed governors;
4. Checking of the electromagnetic valve of distributor pumps;
5. Checking of the pneumatic speed governors' positive pressure performance;
6. Checking of the pneumatic speed governor's vacuum performance;
7. Measurement of the reflux delivery of distributor pumps;
8. Measurement of the distributor pump's body internal pressure;
9. Checking of sealing of fuel injection pump body.
2. Checking of each cylinder's injection time with static state;
3. Checking of the mechanical speed governors;
4. Checking of the electromagnetic valve of distributor pumps;
5. Checking of the pneumatic speed governors' positive pressure performance;
6. Checking of the pneumatic speed governor's vacuum performance;
7. Measurement of the reflux delivery of distributor pumps;
8. Measurement of the distributor pump's body internal pressure;
9. Checking of sealing of fuel injection pump body.
>>>Features
1. Test the oil supply of each cylinder at different speeds;
2. Statically check the oil supply time of each cylinder;
3. Check the governor performance;
4. Test of the solenoid valve of the distribution pump;
5. Check the performance of the pneumatic governor;
6. Check the performance of the booster compensator;
7. Check the oil supply capacity of the distribution pump;
8. Measure the internal pressure of the distribution pump;
9. Check the negative pressure performance of the film governor;
10. Carry out the leak test of the fuel injection pump.
2. Statically check the oil supply time of each cylinder;
3. Check the governor performance;
4. Test of the solenoid valve of the distribution pump;
5. Check the performance of the pneumatic governor;
6. Check the performance of the booster compensator;
7. Check the oil supply capacity of the distribution pump;
8. Measure the internal pressure of the distribution pump;
9. Check the negative pressure performance of the film governor;
10. Carry out the leak test of the fuel injection pump.
Specification
Adjustable rotation speed range | 0~4000RPM |
Double series of graduates | 45CC, 150CC |
Volume of oil tank | 60L |
Temperature stabilization | 40±2°C |
Test oil filtering unit | 5μ |
DC. Supply | 12/24V |
Feed pressure | 0~0.4MPa (low), 0~4MPa (high) |
Air pressure (MPa) | 0~0.3 |
3-phase power supply | 380V/50Hz or on request |
Flywheel inertia's moment | 0.8kg·m2 |
Center height | 125mm |
Output power | 7.5kw, 11kw, 15kw, 18.5kw or on request |
Overall dimensions (mm) | 1800×960×1750 |
Net weight (kg) | 1200 |
Why Choose Us
Company Profile
Jinan Tech View Machinery Technology Co., Ltd located in Jinan, the capital city of Shandong Province, it specializes in the R&D, design and production of internal combustionengine testing equipment. The main products are: common rail comprehensive performance test bench, common rail injector test bench, electronic control unit pump/pump nozzle test bench, HEUI test Bench and traditional fuel injection pump test bench. Our company's products have the world's advanced level. Our company is a comprehensive enterprise integrating R&D, production, sales, service and import and export trade. It has independent import and export rights . Our products spread all the
fields,such as auto-maintenance,project item and oil pump,injector manufacture.We obtained many national patent,export to Asia,north America, Latin America, East Europe,Africa and so on. We are always committed to quality stability. And efficient after-sales.Our customers think well of our product. Tech View expects to make prosperity together with you.
fields,such as auto-maintenance,project item and oil pump,injector manufacture.We obtained many national patent,export to Asia,north America, Latin America, East Europe,Africa and so on. We are always committed to quality stability. And efficient after-sales.Our customers think well of our product. Tech View expects to make prosperity together with you.
Successful Cases
Packing&Delivery
FAQ
1 Q:How can i start the order?
A:STEP1,please let us know what model do you inferest and quantity you need
STEP2 ,then we will make a PI for you to confirm all the order detail
STEP2 ,then we will make a PI for you to confirm all the order detail
STEP3, after you confirmed all the detail then you can arrange the payment
STEP4 ,after we received the payment we will start the prod ction and delivery for you
2 Q:What is the delivery time?
A:lt depend on what kind of product do you need if you need a small tester or the spare partsabout2-3 work days. For big product such as test bench or balancing machine takes about 7-10 work days .
3 Q:What is the payment term?
A:We support TT/ WEST UNIONLCI MONEY GRAMI AL IBABA tRade ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole life.
5.Q:What delivery term do you support?
A.For sea shipping,we can do the term EXW,FOB,CFR,CIF ,DDU and DDP.For courier service we can delivery by DHL TNT,FEDEX,EMS and etc. Please for more information directly contact us we will give you the best option.
