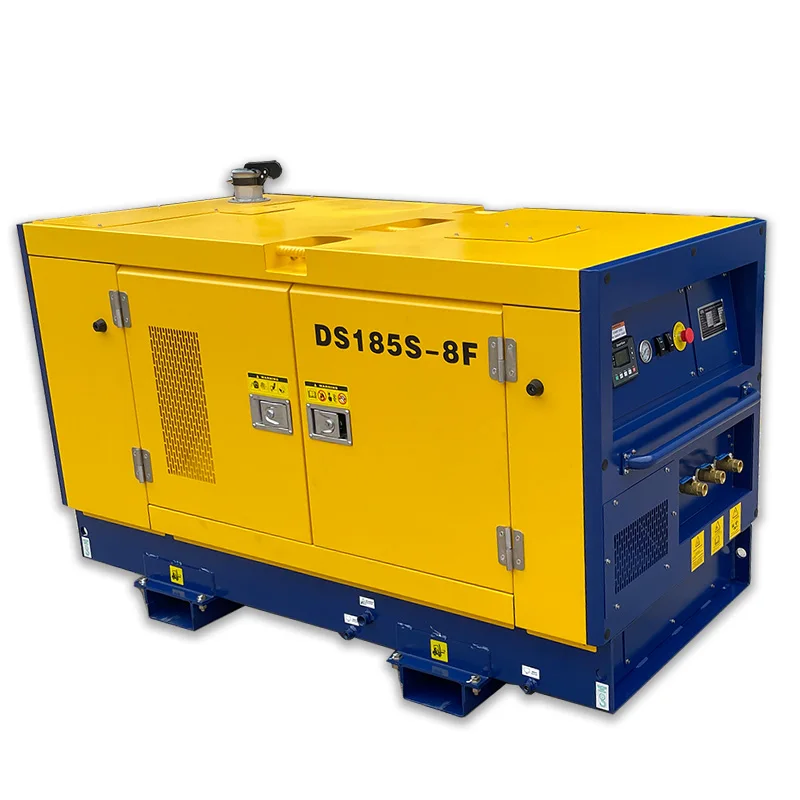

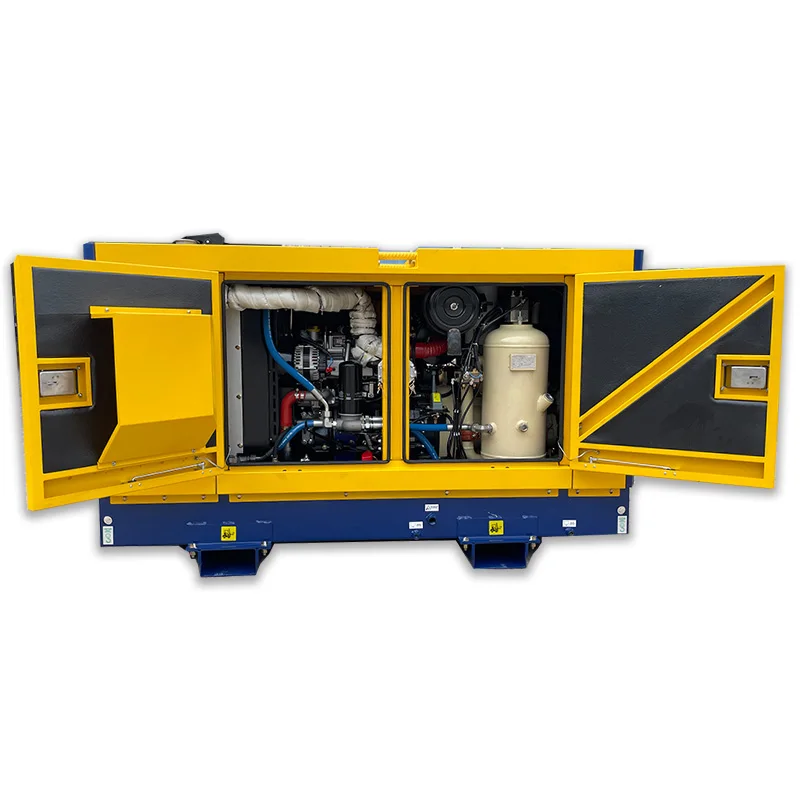

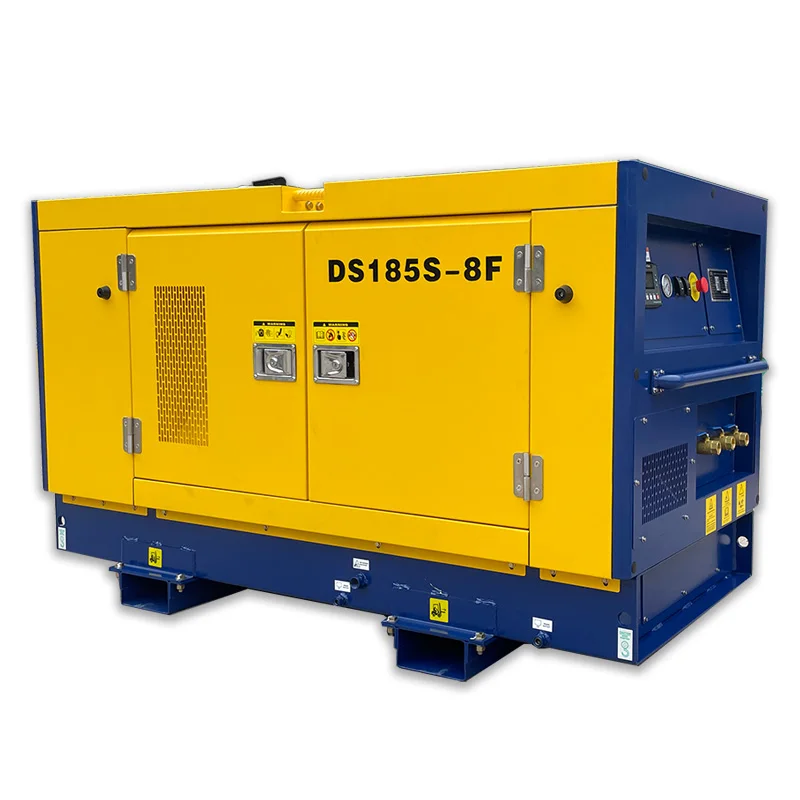

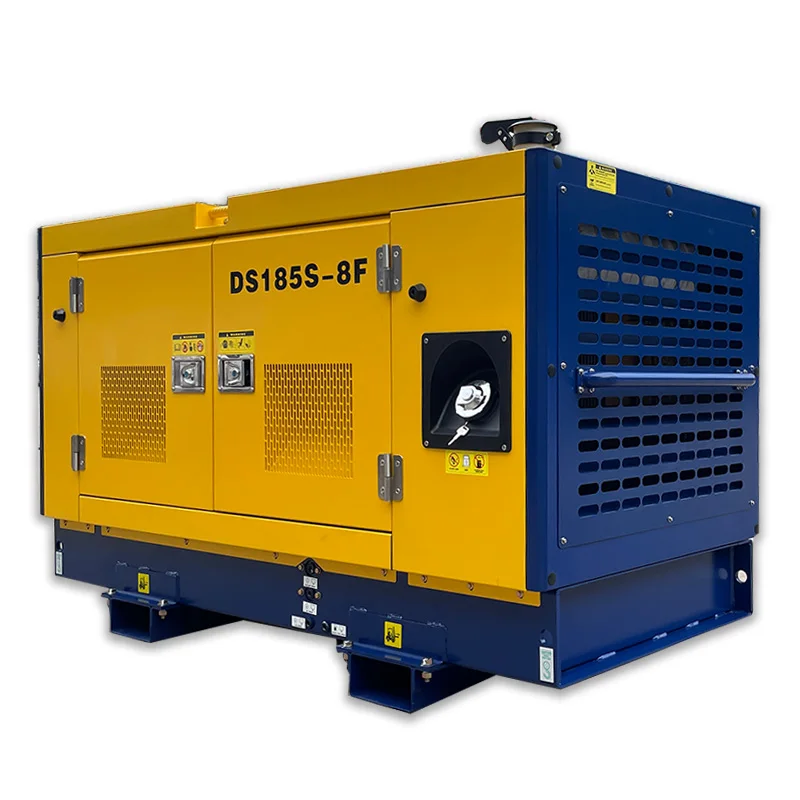

3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D 22
3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D-22
3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D-22
3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D-22
3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D-22
3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D-22
3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D-22

3.7m3 8bar 130CFM Stationary Screw Air Compressor Diesel Compressor by engine Perkins 404D 22

Share on (1600379171107):


Price:$8,330.00

Quantity:


Product Overview

Description



Product Description




































































































ModelMDS130S
CompressorAir
delivery		m3/min3.67
cu.ft/min 134
Discharge pressurebar                                              8
psig116
Oil gas tankL25
Diesel
Engine		Manufacture&ModelPerkins 404D-22
Cylinder Number4
Displacement(L)2.216
Rotation speed(Rmp)Operating2300
Idle speed(r/min)1500
Rated power(KW)32.5
Lubricating Oil capacity(L)9
Coolant Capacity(L)10.6
Battery6-QW-70
OthersDimensionL(mm)2200
W(mm)950
H(mm)1360
Weight(kg)1050






Standard Configuration


Suction valve                                    Lubricating oil filter                           Oil thermostatic valve                  50°C radiator
Solenoid valve                                Vertical air/oil tank                                Pressure regular valve            Air/oil separator Lubricating oil radiator        Safety valve                                                   Emergency stop button           Air filter of engine
Minimum pressure valve       Lockable battery isolator switch              Air filter of compressor        Vent valve               Powder coated canopy                                           Shuttle valve
 24V sealed for life maintenance free battery                                Fuel tank for 8 hours running


downLoadImg (4).jpgdownLoadImg (3).jpg



2


 1
