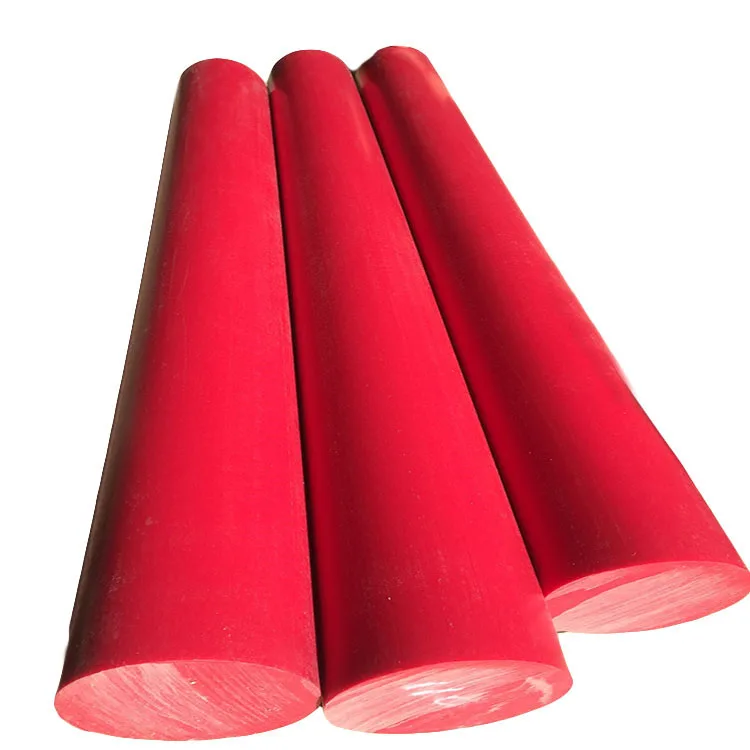

Flexible Plastic Moulding Cast Nylon Rod,Nylon Square Round Bar
- Category: >>>
- Supplier: Langfang Zhongrun Sealing Material Co. Ltd.
Share on (1600379172232):
Product Overview
Description
PRODUCT DISPLAY
Product Description:
Nylon rod is an important engineering plastic, which can replace the wear-resistant parts of mechanical equipment and copper and alloy as the wear-resistant parts of equipment. It has the characteristics of good toughness, strong wear resistance, oil resistance, earthquake resistance, good tensile and bending strength, small water absorption and good dimensional stability, so it is used to process all kinds of wear-resistant high-strength parts. It is suitable for making wear-resistant parts, transmission structural parts, household appliance parts, automobile manufacturing parts, screw rod, textile machinery parts, chemical machinery parts and chemical equipment. Such as turbine, gear, bearing, impeller, crank, instrument panel, drive shaft, valve, blade, screw rod, high-pressure washer, screw, nut , sealing ring, shuttle, sleeve, shaft sleeve connector, etc.
Main features:
High mechanical strength, stiffness, hardness, toughness, good aging resistance, good mechanical damping capacity, good sliding performance, excellent wear resistance, good machining performance, no creep phenomenon when used for precise and effective control, good wear resistance and good dimensional stability.
Application fields:
It is widely used for making gears and bad parts of chemical machinery and anti-corrosion equipment. Wear resistant parts, transmission structure parts, household appliance parts, automobile manufacturing parts, screw rod prevention machinery parts, chemical machinery parts, chemical equipment, etc.
Nylon rod is an important engineering plastic, which can replace the wear-resistant parts of mechanical equipment and copper and alloy as the wear-resistant parts of equipment. It has the characteristics of good toughness, strong wear resistance, oil resistance, earthquake resistance, good tensile and bending strength, small water absorption and good dimensional stability, so it is used to process all kinds of wear-resistant high-strength parts. It is suitable for making wear-resistant parts, transmission structural parts, household appliance parts, automobile manufacturing parts, screw rod, textile machinery parts, chemical machinery parts and chemical equipment. Such as turbine, gear, bearing, impeller, crank, instrument panel, drive shaft, valve, blade, screw rod, high-pressure washer, screw, nut , sealing ring, shuttle, sleeve, shaft sleeve connector, etc.
Main features:
High mechanical strength, stiffness, hardness, toughness, good aging resistance, good mechanical damping capacity, good sliding performance, excellent wear resistance, good machining performance, no creep phenomenon when used for precise and effective control, good wear resistance and good dimensional stability.
Application fields:
It is widely used for making gears and bad parts of chemical machinery and anti-corrosion equipment. Wear resistant parts, transmission structure parts, household appliance parts, automobile manufacturing parts, screw rod prevention machinery parts, chemical machinery parts, chemical equipment, etc.
PRODUCT PARAMETER
Property | Item No. | Unit | MC Nylon (Natural) | Oil Nylon+Carbon (Black) | Oil Nylon (Green) | MC901 (Blue) | MC Nylon+MSO2 (Light black) |
1 | Density | g/cm3 | 1.15 | 1.15 | 1.135 | 1.15 | 1.16 |
2 | Water absorption (23℃ in air) | ％ | 1.8-2.0 | 1.8-2.0 | 2 | 2.3 | 2.4 |
3 | Tensile strength | MPa | 89 | 75.3 | 70 | 81 | 78 |
4 | Tensile strain at break | ％ | 29 | 22.7 | 25 | 35 | 25 |
5 | Compressive stress(at 2%nominal strain) | MPa | 51 | 51 | 43 | 47 | 49 |
6 | Charpy impact strength (unnotched) | KJ/m2 | No break | No break | ≥50 | No break | No break |
7 | Charpy impact strength (notched) | KJ/m2 | ≥5.7 | ≥6.4 | 4 | 3.5 | 3.5 |
8 | Tensile modulus of elasticity | MPa | 3190 | 3130 | 3000 | 3200 | 3300 |
9 | Ball indentation hardness | N2 | 164 | 150 | 145 | 160 | 160 |
10 | Rockwell hardness | -- | M88 | M87 | M82 | M85 | M84 |
COMPANY PROFILE
Company Profile
Langfang Zhongrun sealing material Co., Ltd., founded in 1998, is a professional manufacturer engaged in graphite packing. The company has advanced equipment, strong technical force and complete testing means. It mainly produces three series of products such as anti-corrosion and thermal insulation, chemical industry and sealing. The products are widely used in petroleum, chemical industry, machinery, construction, automobile, national defense and other industries. It sells well in more than 20 provinces, cities and autonomous regions across the country. The company is a manufacturer and distributor of high-performance sealing products. It provides various types of graphite packing, pump sealing materials, sealing gaskets, Teflon plates, sealing belts and metal gaskets for various applications.
Why choose us?
The company has passed the ISO9001 international quality system certification and the special pressure license issued by the State Administration of quality supervision and quarantine. As a professional manufacturer of sealing and thermal insulation materials, the company provides all-round dynamic and static sealing and pipeline thermal insulation products. In order to meet the special needs of customers at home and abroad, it also acts as an agent for the production of foreign famous sealing brands - Gore, Wall card, etc.
