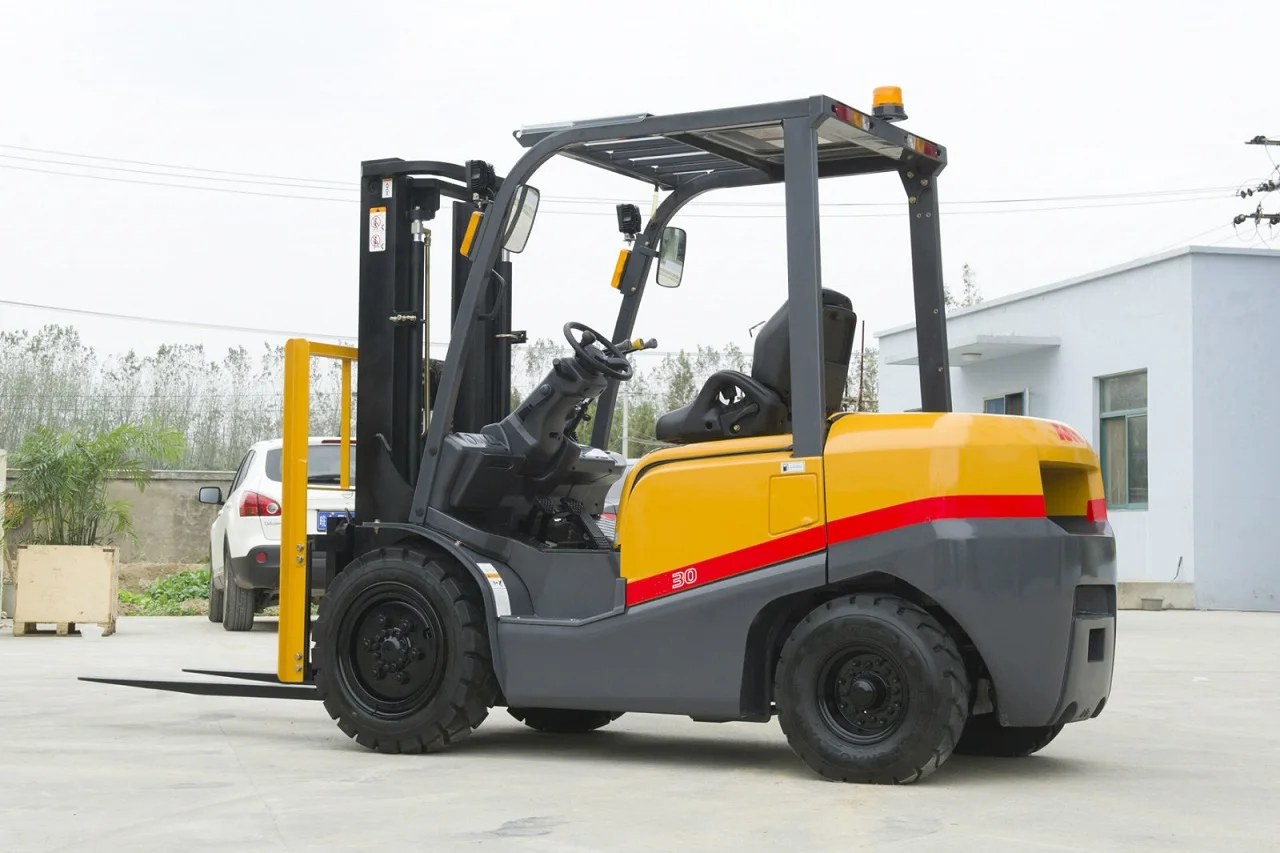

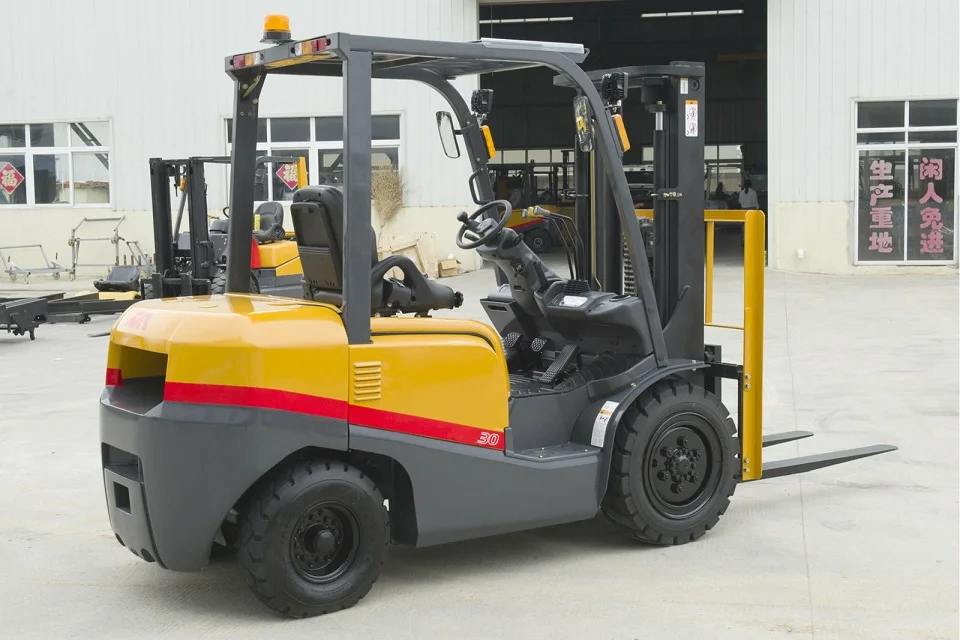

Best quality forklift 3t diesel fork lifter with cheap price forklift 7 ton
- Category: >>>
- Supplier: Anhui Vmax Heavy Industry Co. Ltd.
Share on (1600379173241):
Product Overview
Description
Product Description
Best quality forklift 3.0t diesel fork lifter china made forklift truck forklift with cheap price forklift 7 ton
3 tons CE EPA Euro3 certificate with Japan made engine C240, S4S, 4TNE98 CPCD35 FD35 diesel engine forklift truck Japanese engine
VMAX Automated 3.5ton forklift counterbalance forklift truck CPCD35 FD35 diesel powered forklift forklift 7 ton
Best quality forklift 3.5t diesel fork lifter with cheap price forklift 7 ton
Products model | CPCD30 |
Engine | China xinchai engine, Japan made engine C240, S4S, 4TNE98 engine, Kohler engine |
Color | Red,yellow,black and gray |
Mast | 3000mm,3500mm,4000mm,4500mm,5000mm,5500mm,6000mm,7000mm |
Transmission | China electric automatic transmission |
Forks | 1220mm |
Seat | Suspension seat, Safety Seat with belt |

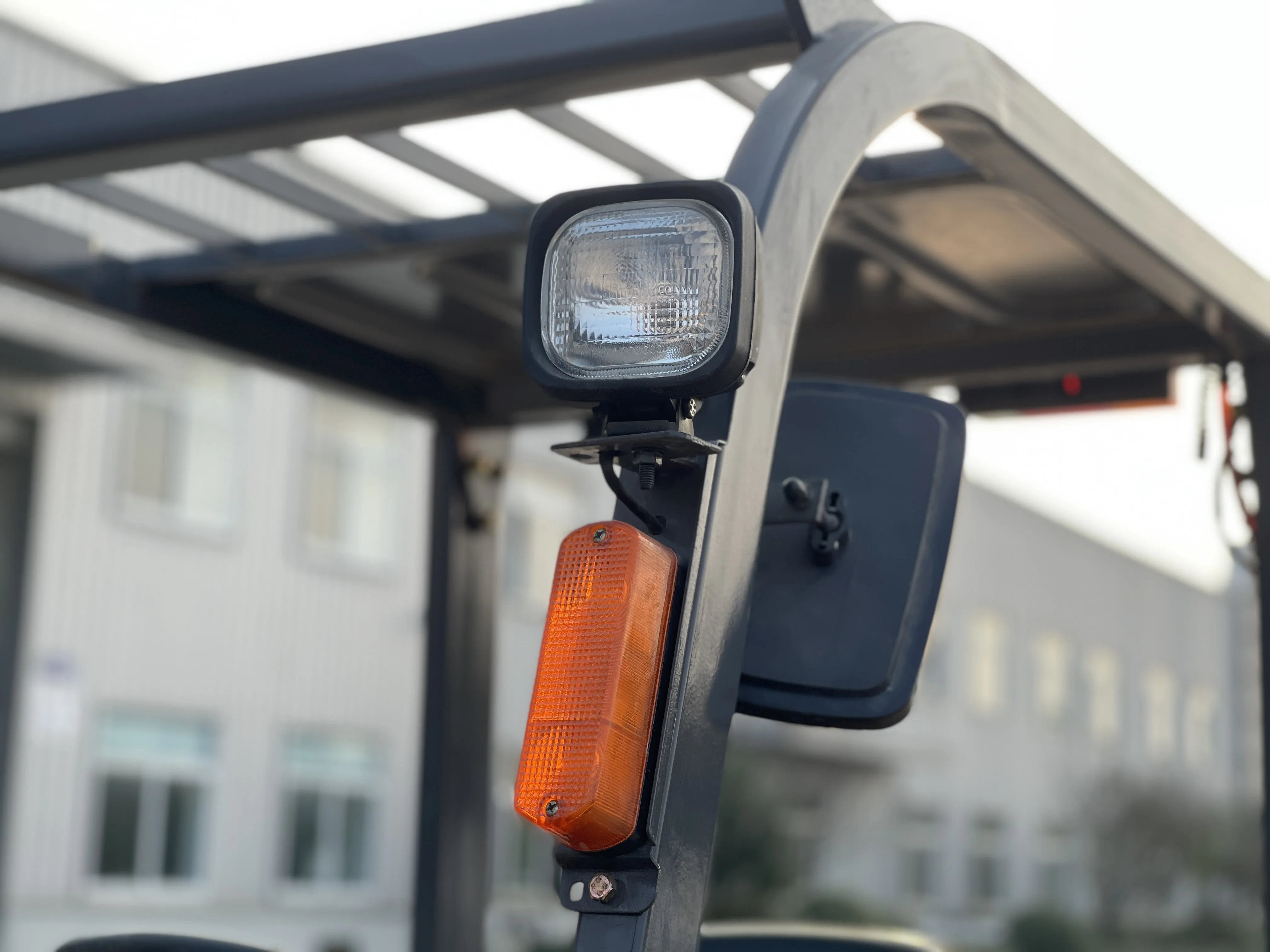

Light | LED |

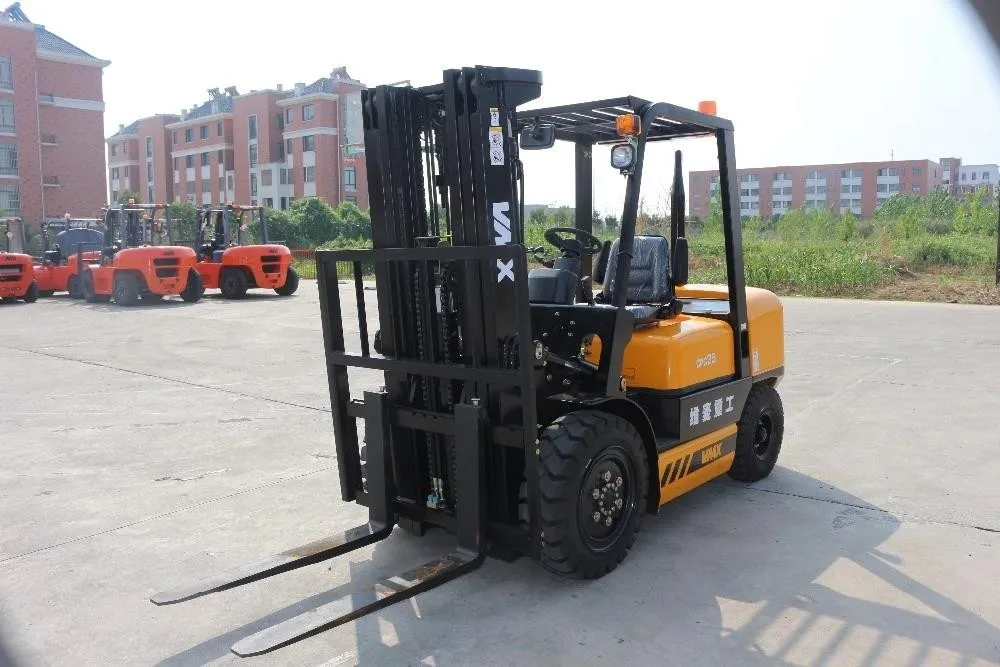

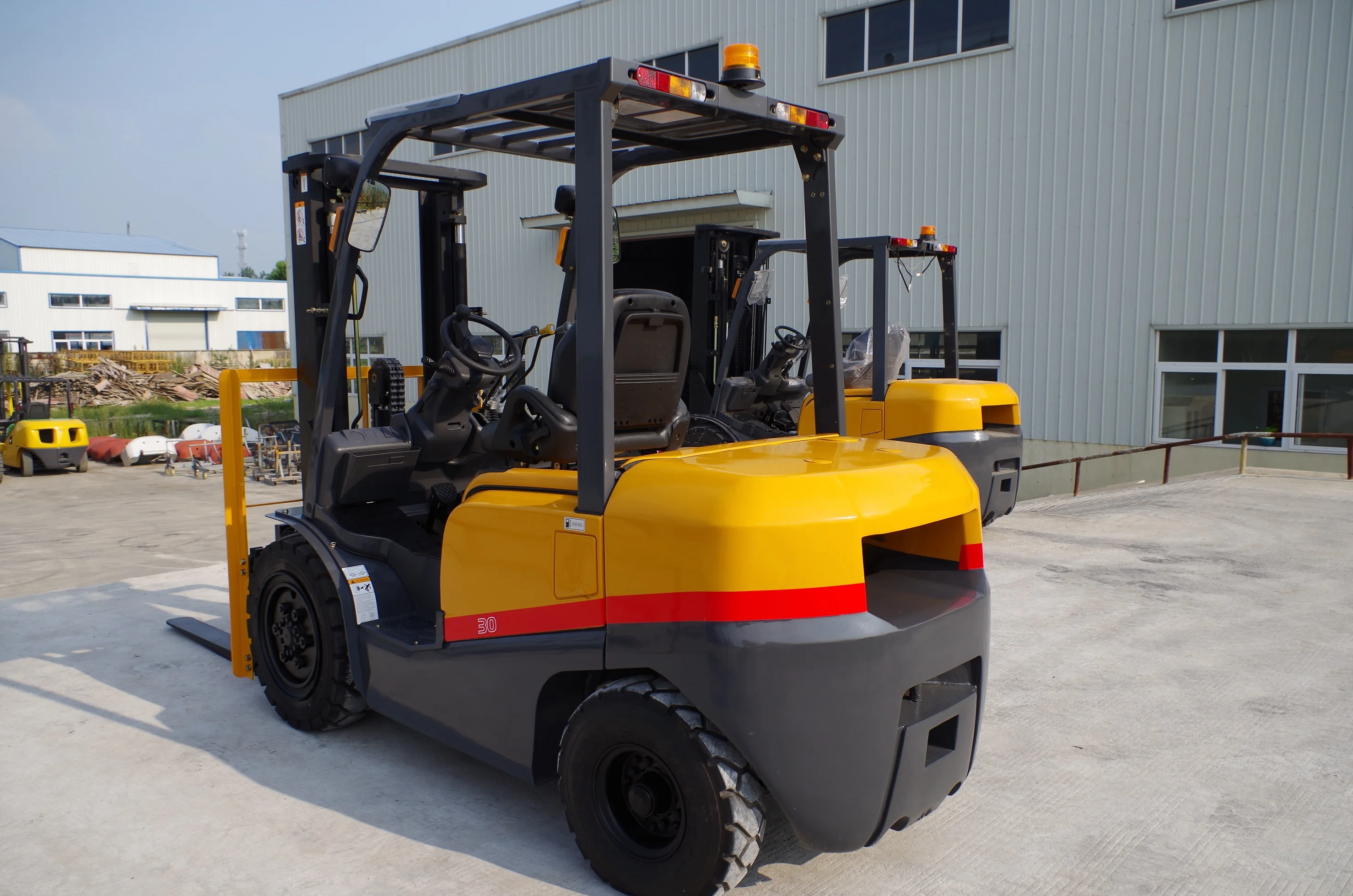

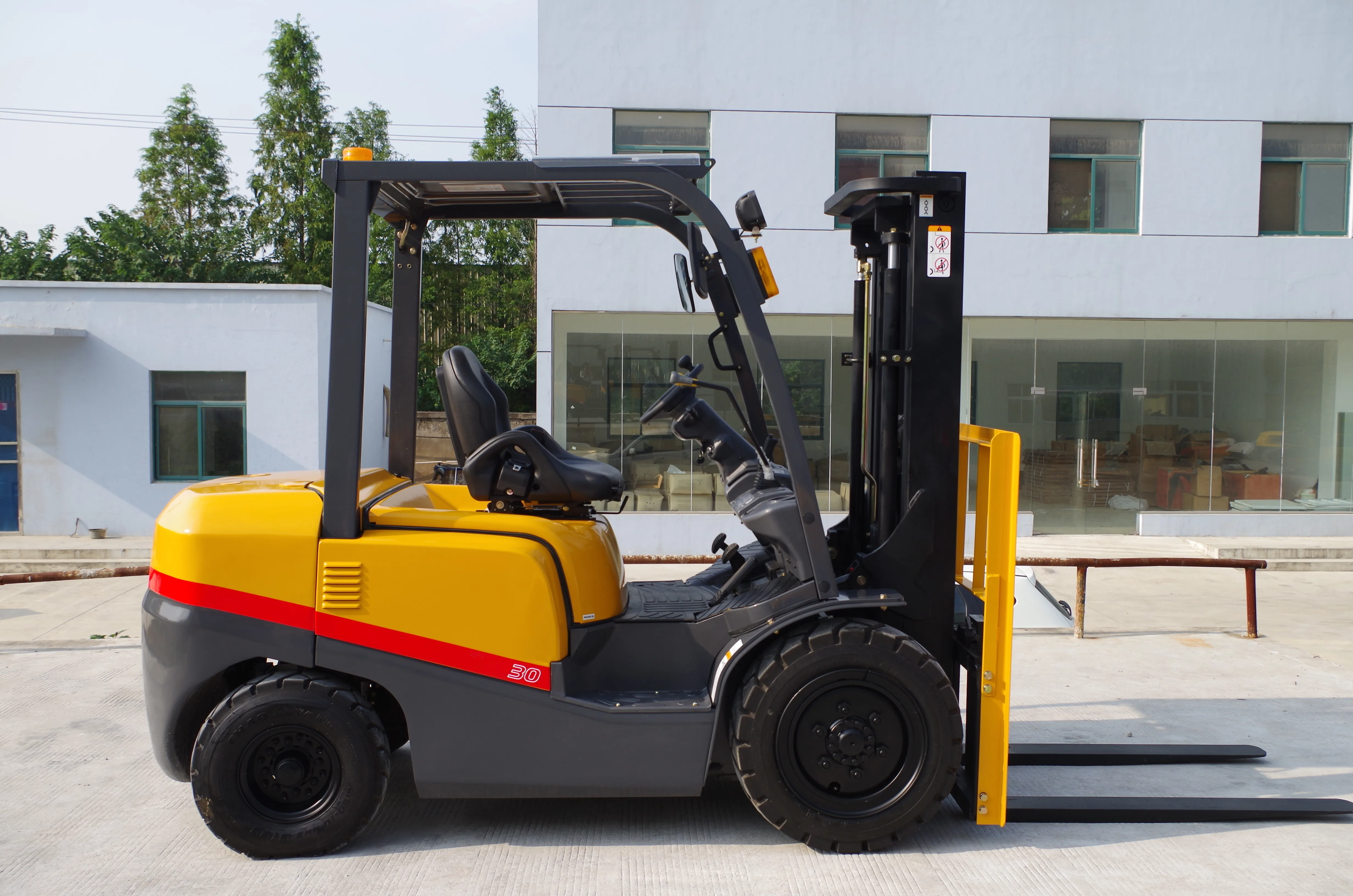

Product Show
Products Parameters
manufacturer | VMAX | ||||||||
model | FD30 | FG30 | |||||||
Rated capacity | kg | 3000 | |||||||
Load center | mm | ||||||||
power type | diesel | gasoline | |||||||
Operator type | |||||||||
Type of tyres | |||||||||
Max.lifting height of fork( standard) | B | mm | |||||||
Max.lift height of mast with load-backrest | A | mm | 4262 | ||||||
free lift height(standard) | E | mm | 160 | ||||||
Height of mast(standard) | C | mm | 2065 | ||||||
( Height of load-backrest) | D | mm | 1242 | ||||||
fork size | (length* width* height) | JxUxF | mm | 1070*125*45 | |||||
The distance between forks | (Max/minimum) | R | mm | 1060/250 | |||||
tile angel | Tread(front/rear) | Y | deg | ||||||
Overall length | I | mm | 2720 | ||||||
Length with fork | H | mm | 3790 | ||||||
Overall width | Q | mm | 1220（1750） | ||||||
Front wheel overhead | P | mm | 2090 | ||||||
driver's seat height | Z | mm | |||||||
Turning radius | Min.turning radius( outside) | W | mm | 2500 | |||||
Min.turning radius( inside) | V | mm | 200 | ||||||
front overhang | K | mm | 490 | ||||||
Rear overhang | M | mm | 530 | ||||||
Min.ground clearance | G | mm | 120 | ||||||
tow pin height | N | mm | 560 | ||||||
Min.intersecting aisle | X | mm | 2430 | ||||||
RASA Basic intersectng stacking aisle width | RASA | mm | 4260 | ||||||
Speeds | Max.drive speeds | (with full load) | km/h | 20 | |||||
(without full load) | km/h | 19.5 | |||||||
lifting speeds | (with full load) | mm/s | 470 | ||||||
(without full load) | mm/s | 470 | |||||||
Lowering speeds | (with full load) | mm/s | 450 | ||||||
(without full load) | mm/s | 420 | |||||||
Max.tractive force | (with full load) | kN | 13.7 | 14.2 | |||||
(without full load) | kN | 9.8 | |||||||
Max.grade ability | (with full load) | % | 18 | 18 | |||||
(without full load) | % | 20 | |||||||
Total weight | kg | 4300 | 4255 | ||||||
Weight distribution | full load | front | kg | 6385 | 6380 | ||||
rear | kg | 915 | 875 | ||||||
Without full load | front | kg | 1600 | 1585 | |||||
rear | kg | 2700 | 2670 | ||||||
Wheels | quantity | front/rear | |||||||
size | front | 28X9-15-12PR | |||||||
rear | 6.50-10-10PR | ||||||||
wheel base | L | mm | 1700 | ||||||
wheel base | front | S | mm | 1000（1260） | |||||
rear | T | mm | 970 | ||||||
Brake | Driving brake | ||||||||
Parking brake | |||||||||
battery | Voltage/Power | V/Ah | |||||||
Engine | Model | ISUZU C240 | NISSAN K21 | ||||||
/rpm rated output | kW | 34.7/2500 | 37.4/2300 | ||||||
/rpm Rated torque | N.m | 138.5/1800 | 176.5/1600 | ||||||
No.of cylinder | |||||||||
Displacement | cc | 2369 | 2488 | ||||||
Fuel tank capacity | L | ||||||||
Transmission | type | ||||||||
grade | forward-backward | ||||||||
Detailed Images

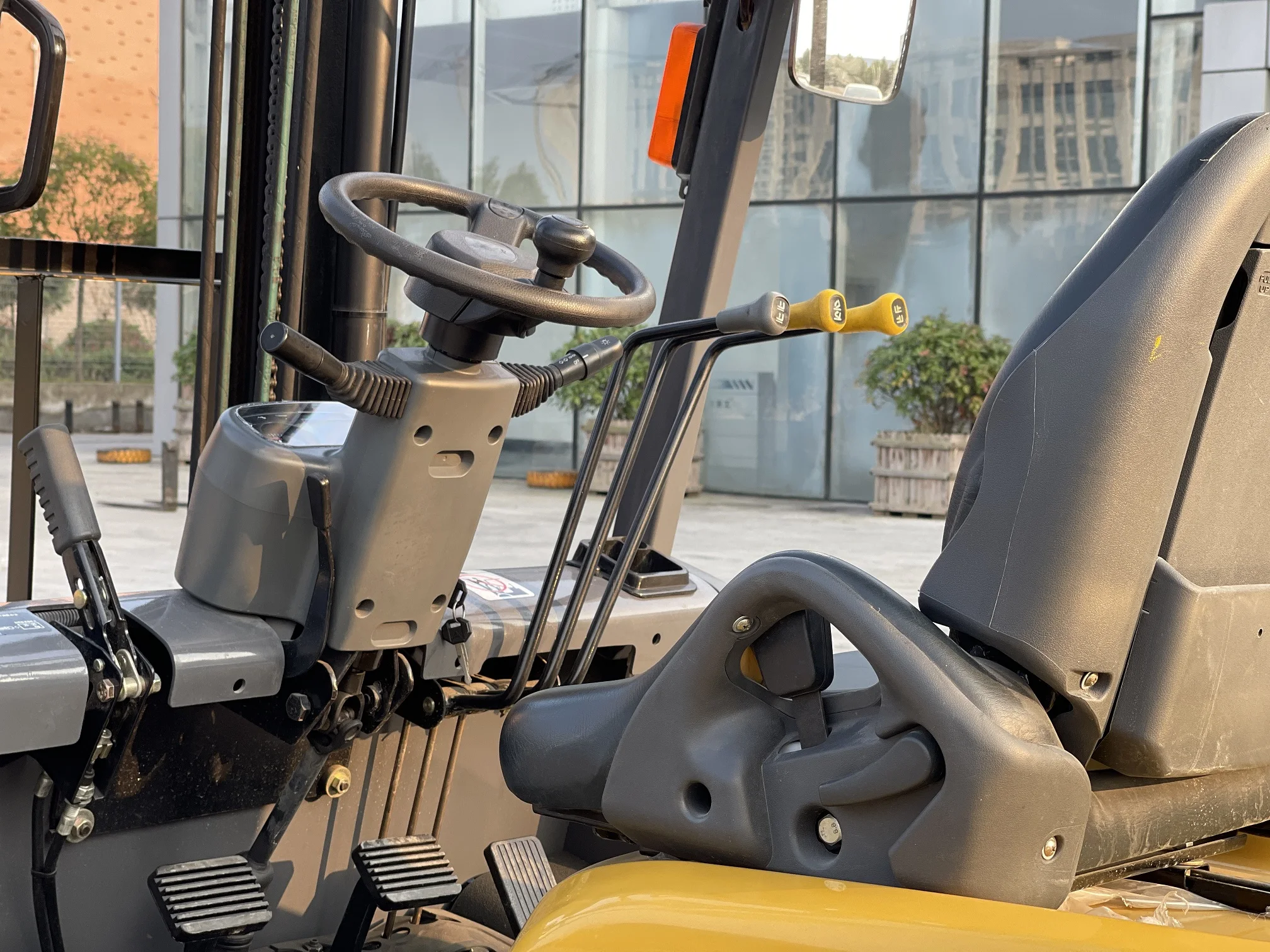

Innovation on Rideability
1. Optimization on Parking brake lever position
2. Increased bottom plate area
3. Increased the area of the forklift stairs
4. Integrated modeling overhead guard
2. Increased bottom plate area
3. Increased the area of the forklift stairs
4. Integrated modeling overhead guard
Increased bottom plate area
The tilt cylinder is stowed under the bottom plate area , which increases the pedal area by 45%, making it easier to operate by feet and get on and off the forklift.
Detailed Innovation on Mobility and Safety
1,Overwhelmingly spacious vision
2,Proper steering wheel
3,Redesigned combination switch
4,Configured with the hood anti-slip mat
5,Appropriate instrument position
2,Proper steering wheel
3,Redesigned combination switch
4,Configured with the hood anti-slip mat
5,Appropriate instrument position
Customized services

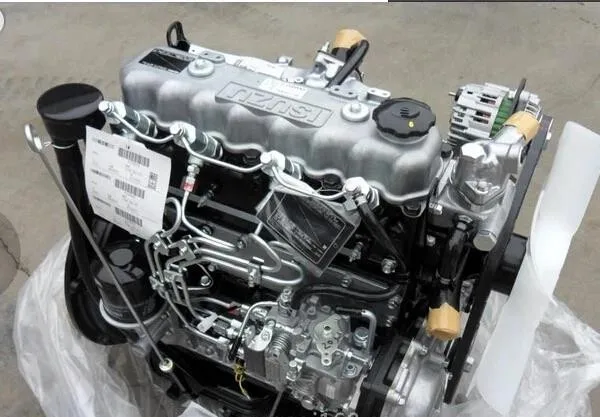

Engine optional
VMAX offers a wide choice of engines,such as China engine,ISUZU engine,Mitsubishi engine,Yanmar engine,Commins engine and so on
Mast optional
Based on the safe principle, VMAX offers mast with different lift height to improve working efficiency.

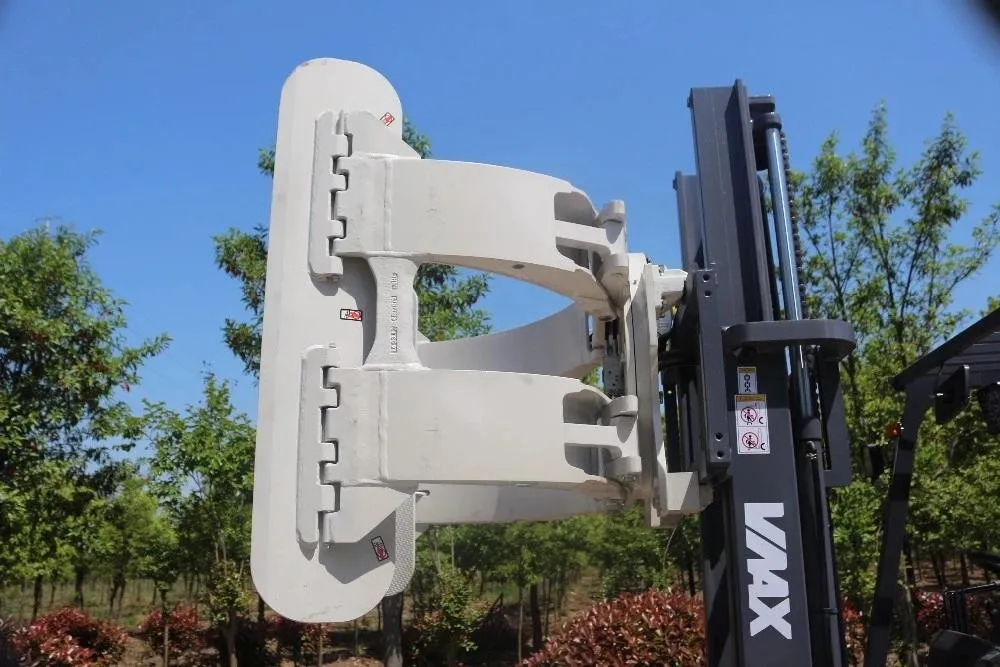

Attachment optional
VMAX forklift can be equipped with side shifter,paper roll clamp or other attachments to get higher work efficiency according to customer requirements.

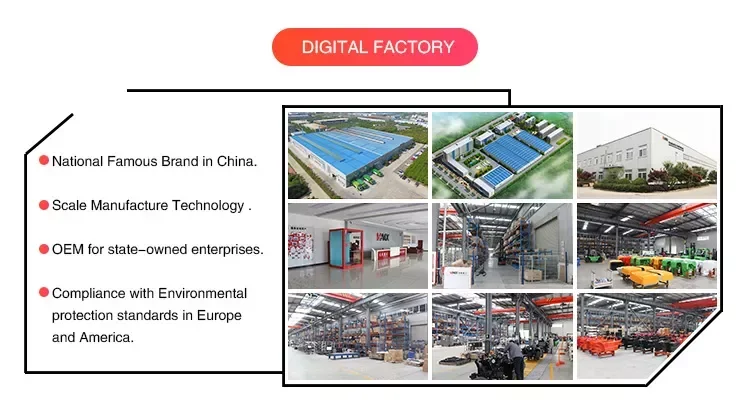

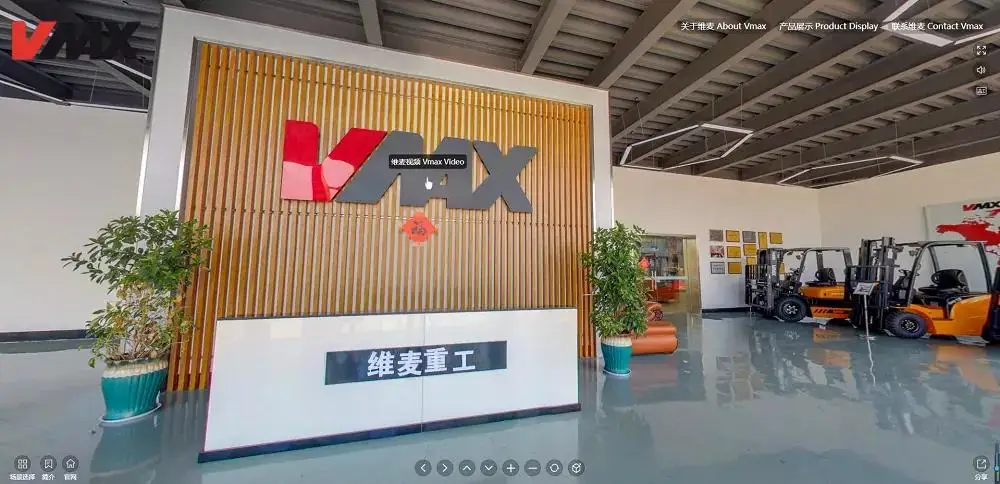

Our Company
VMAX has a complete product range of material handling equipment, from 1-16t internal combustion counterbalance forklift, 1-5t electric counterbalance forklift truck, warehouse equipment, reach stacker and more. Utilizing our state-of-art R&D center, our provincial level technology center, efficient production support system and our strong marketing leading system, more 40 abroad agents, all these offers strong support to our customers.

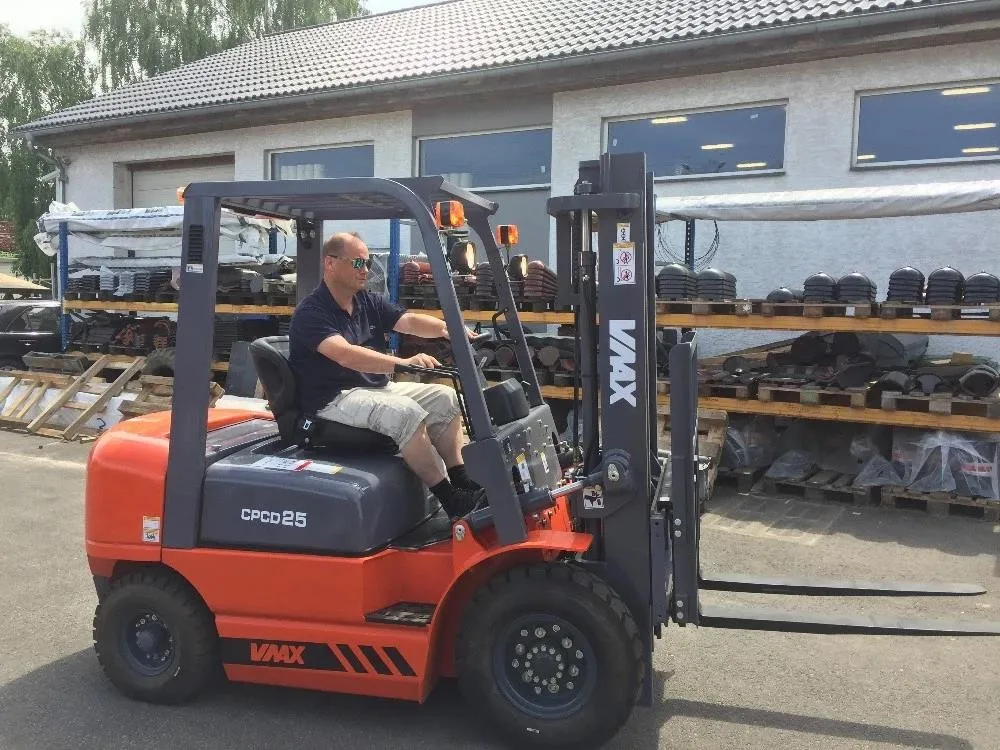

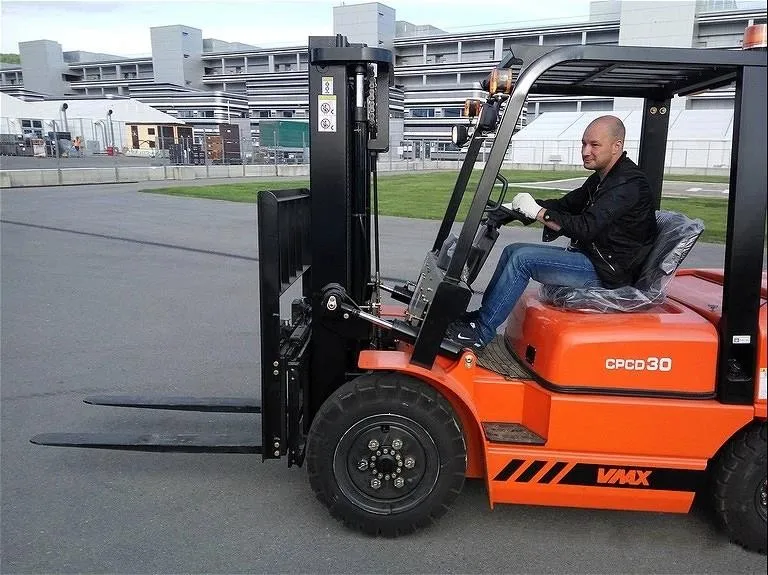

Customer Photo

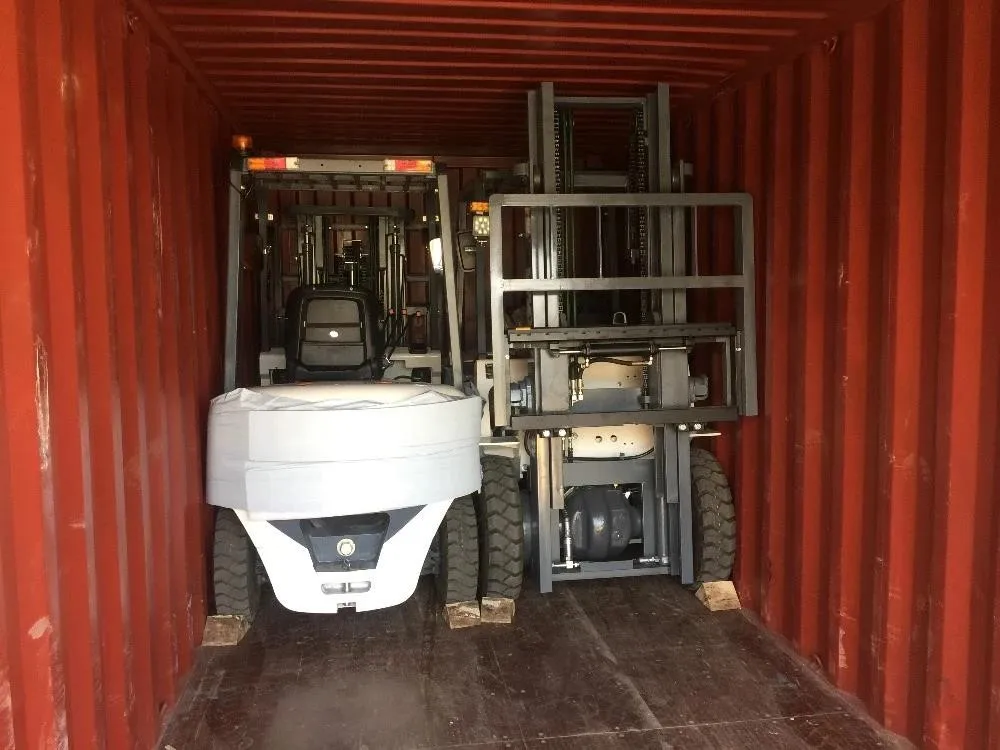

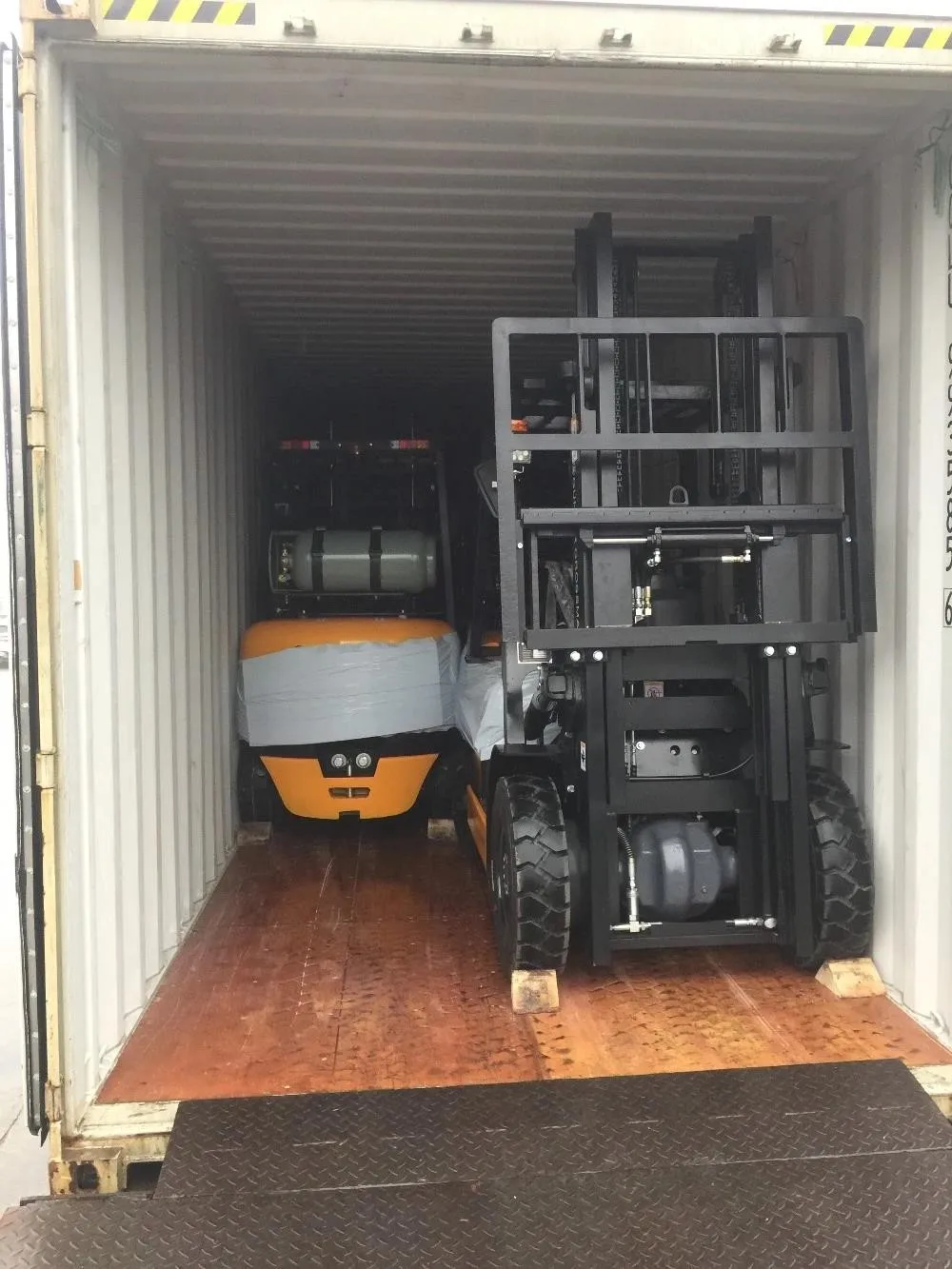

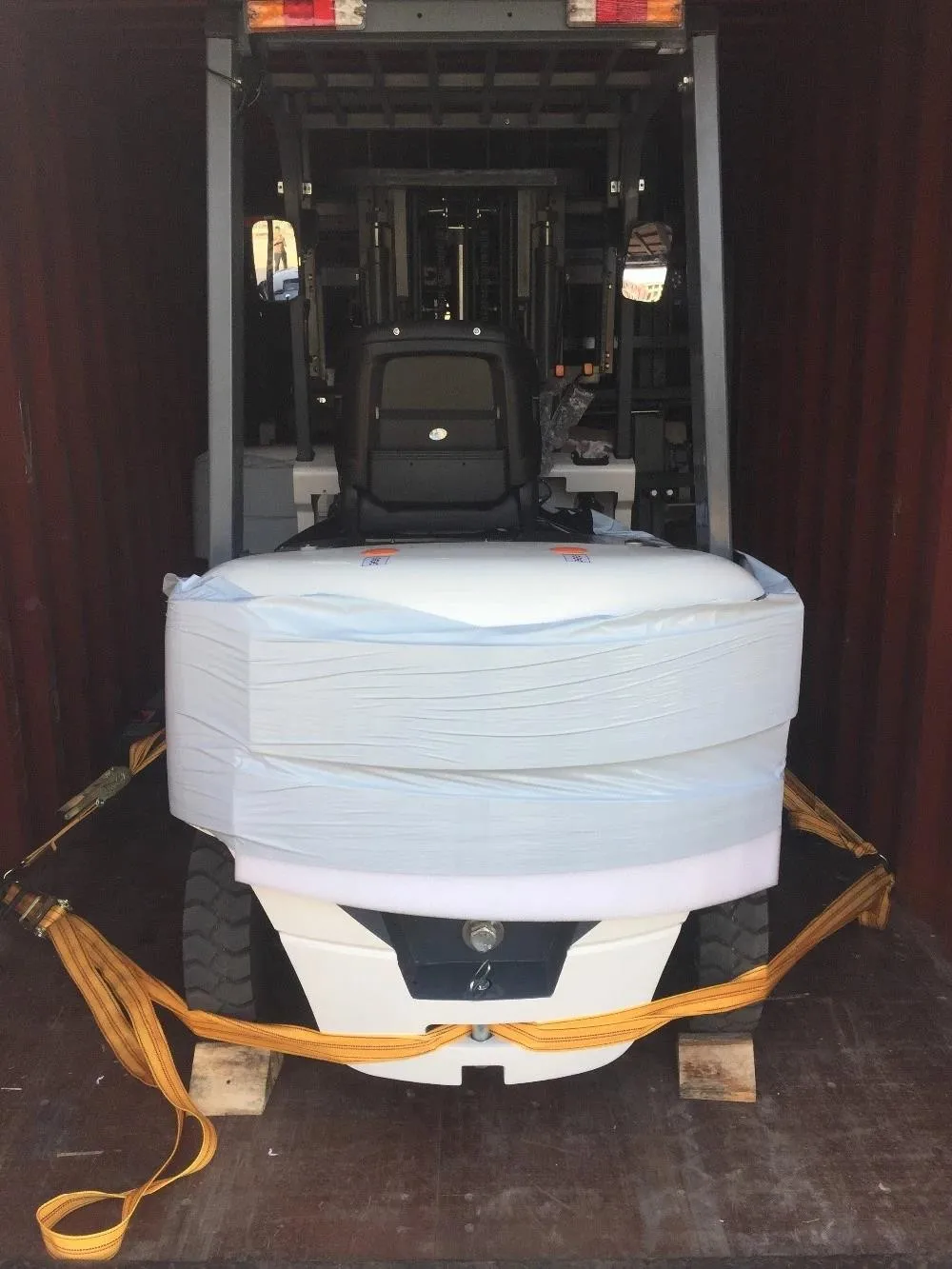

Packing Details : Nude packing
Delivery Details : 15-45 days after order
RFQ
Q: Are you trading company or manufacturer ?
A: VMAX was founded in 2010, is a professional production and sales of forklift manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity and model.
Q: Do you provide samples ?
A: Yes, VMAX accept the sample order.
Q: What is your terms of payment ?
A: T/T and L/C is accepted.
