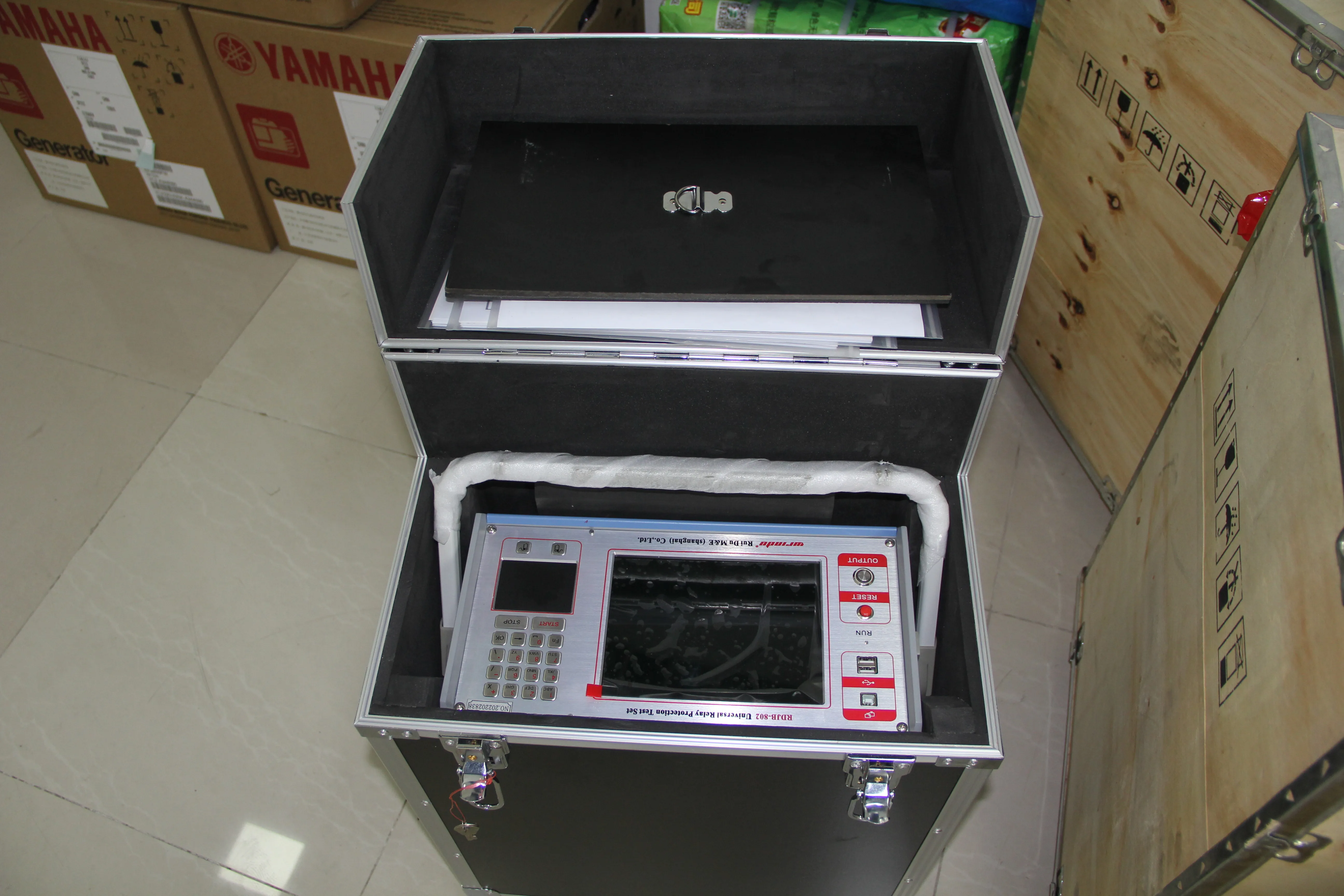

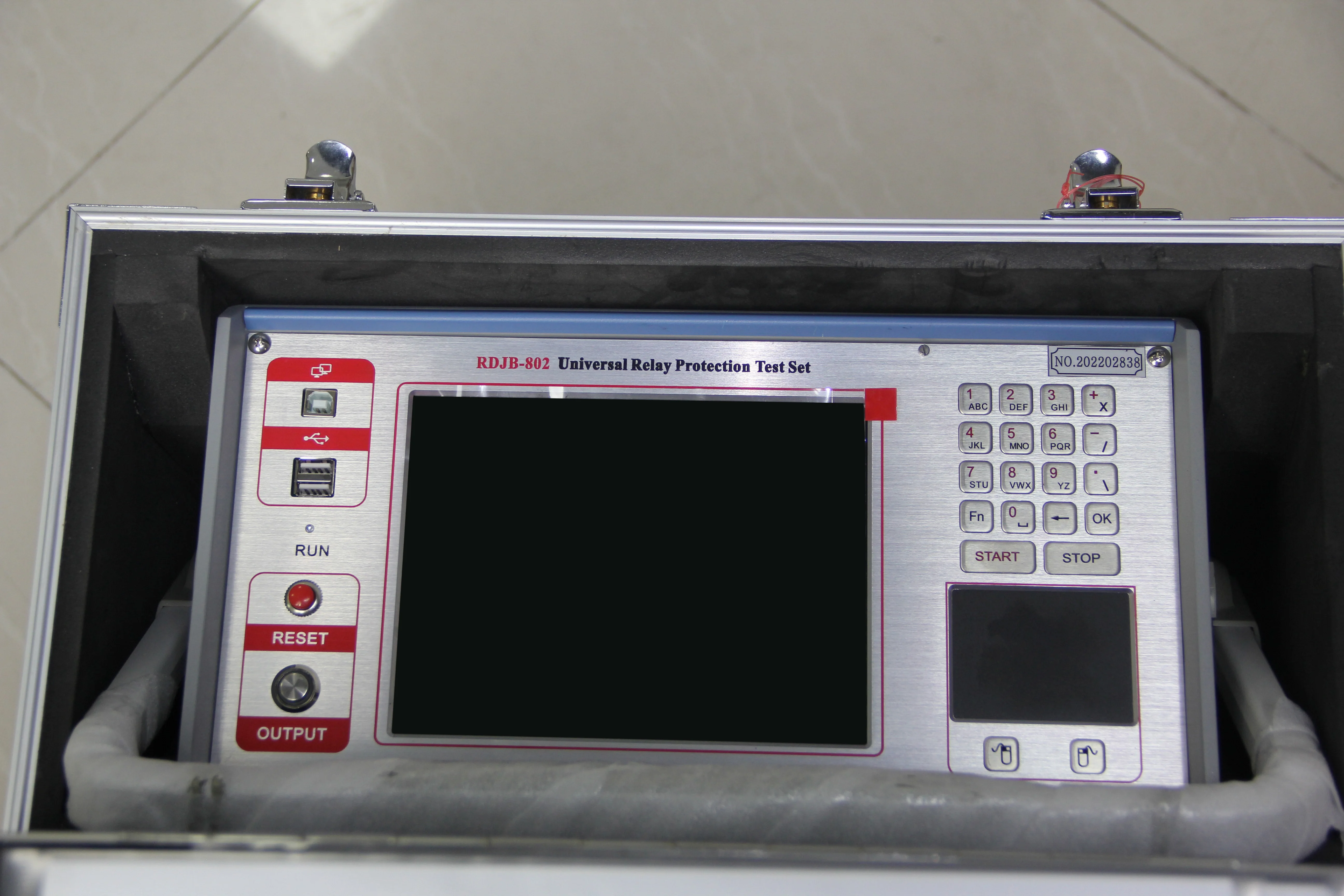

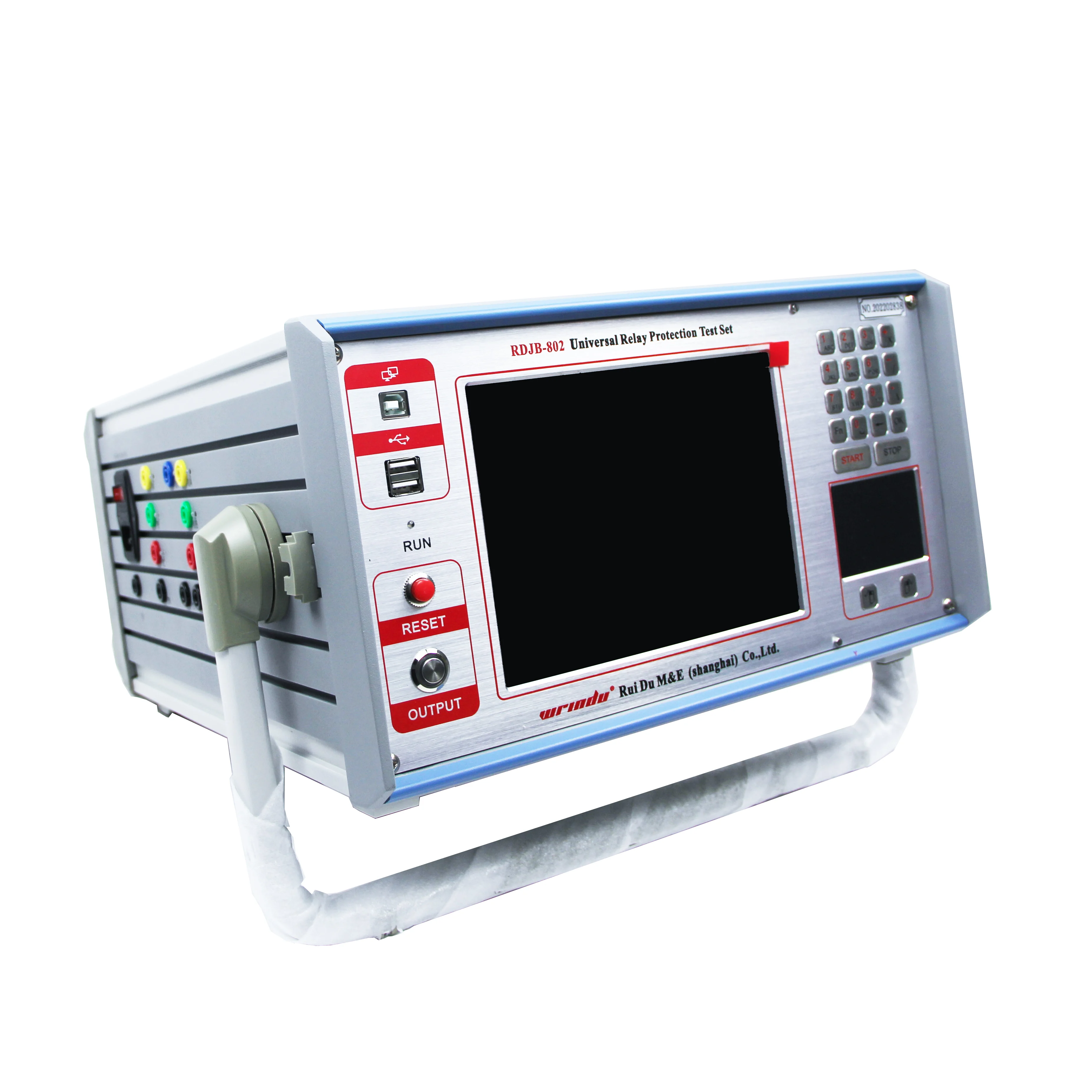

3 phase portable power micro computer protection relay tester
- Category: >>>
- Supplier: Rui Du Mechanical and electrical (Shanghai) Co. Ltd.
Share on (1600379192154):
Product Overview
Description
Product Description
Product features
1.\tMeets all the requirement of field tests. This tester with standard 4 phase voltage, 3 phase current output, voltage 125V/phase, current 40A/phase, 3 phases in parallel can up to 120A. Digital Signal Processor Microcomputer. Not only test the traditional relays and protectors, but also test the modern micro computer replays, special for transformer differential protection and transfer equipment.
2.\tClassic Windows 7 operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4 inch resolution of 800 × 600 TFT true color display which provides rich visual information, includes the current working condition and all kinds of help information.
3.\tIntegrated metal industrial keyboard and touch screen, which can complete various operations through multifunctional metal keys and touch screen..
4.\tThe main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
5.\tUsing high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
6.\tPerfect self-protection function, adopt rationally designed heat dissipation structure, and have reliable and perfect various protection measures and power soft start, with a certain degree of fault self-diagnosis and blocking function
7.\tUSB directly connect with PC, without any adapter cable, easy to use.
8.\tWith a separate DC auxiliary voltage source, output voltage 110V(1A)，220V(0.6A), provides relays or protective devices which require DC power.
9.\tThe software with self calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
Product technical parameters

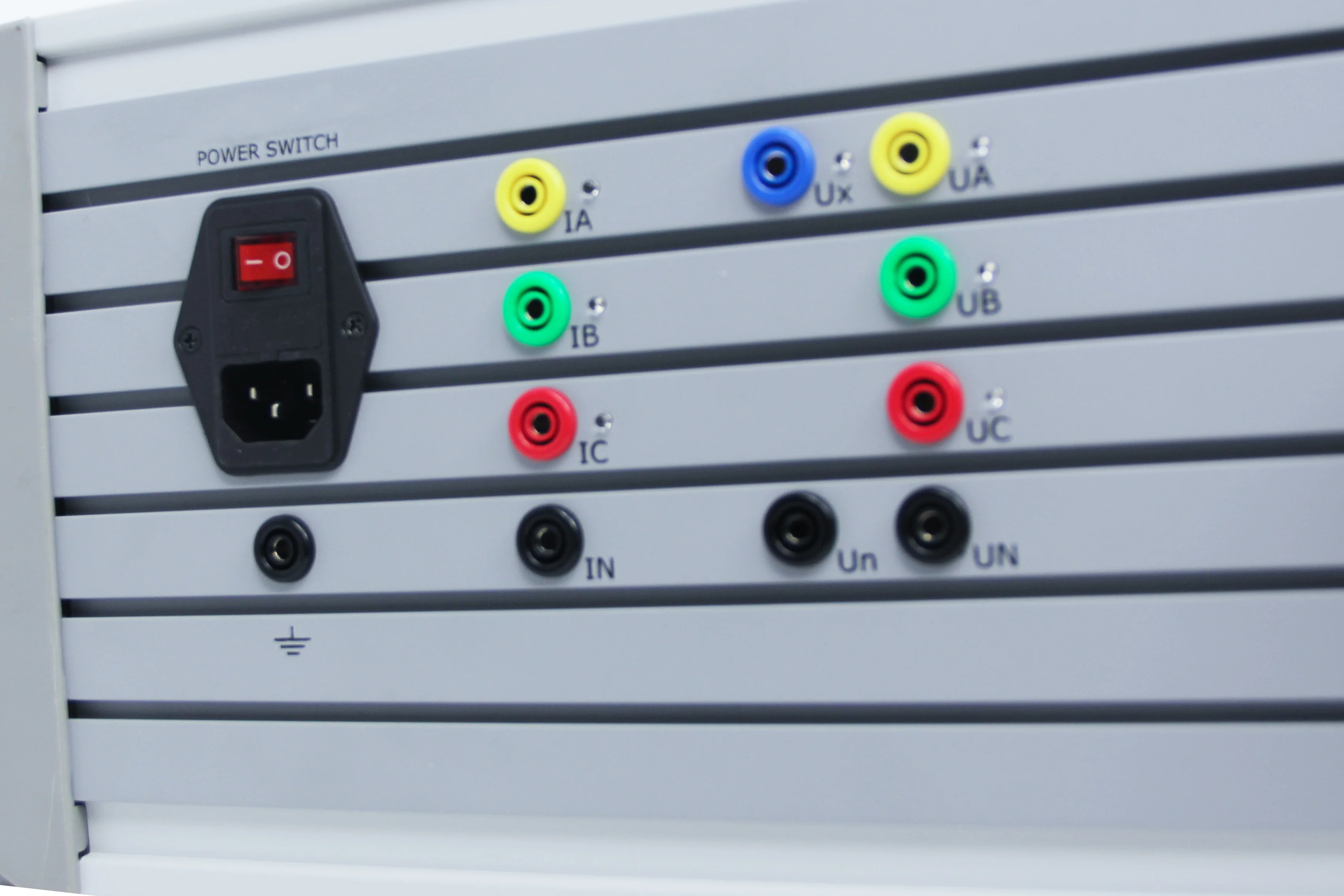

1.\tAC current source
Phase current output (effective value): 0~40A/phase, accuracy 0.2%
3 phase parallel current output (effective value): 0~120A
Phase current working value for allowed long time (effective value): 10A
Maximum output power of each Phase: 420VA
Maximum output power of 3 parallel current: 900VA
Maximum permitted work time of 3 parallel current: 10s
Frequency range: 0~1000Hz, accuracy: 0.001Hz
Harmonic time: 2~20
Phase: 0~360°, accuracy: 0.1°
2.\tDC current source:
Current range: 0~±30A/phase, power: 300VA/phase, accuracy:0.2%
3.\tAC voltage source:
Phase voltage output (effective value): 0~125V/phase, accuracy: 0.2%
Line voltage output (effective value): 0~250V
Phase voltage / Line voltage output power: 75VA/100VA
Frequency range: 0~1000Hz, accuracy: 0.001Hz
Harmonic time: 2~20
Phase: 0~360°, accuracy: 0.1°
4.\tDC voltage source
Phase voltage output range: 0~±150V, accuracy: 0.2%
Line voltage output range: 0~±300V
Phase voltage / Line voltage output power: 90VA / 180VA

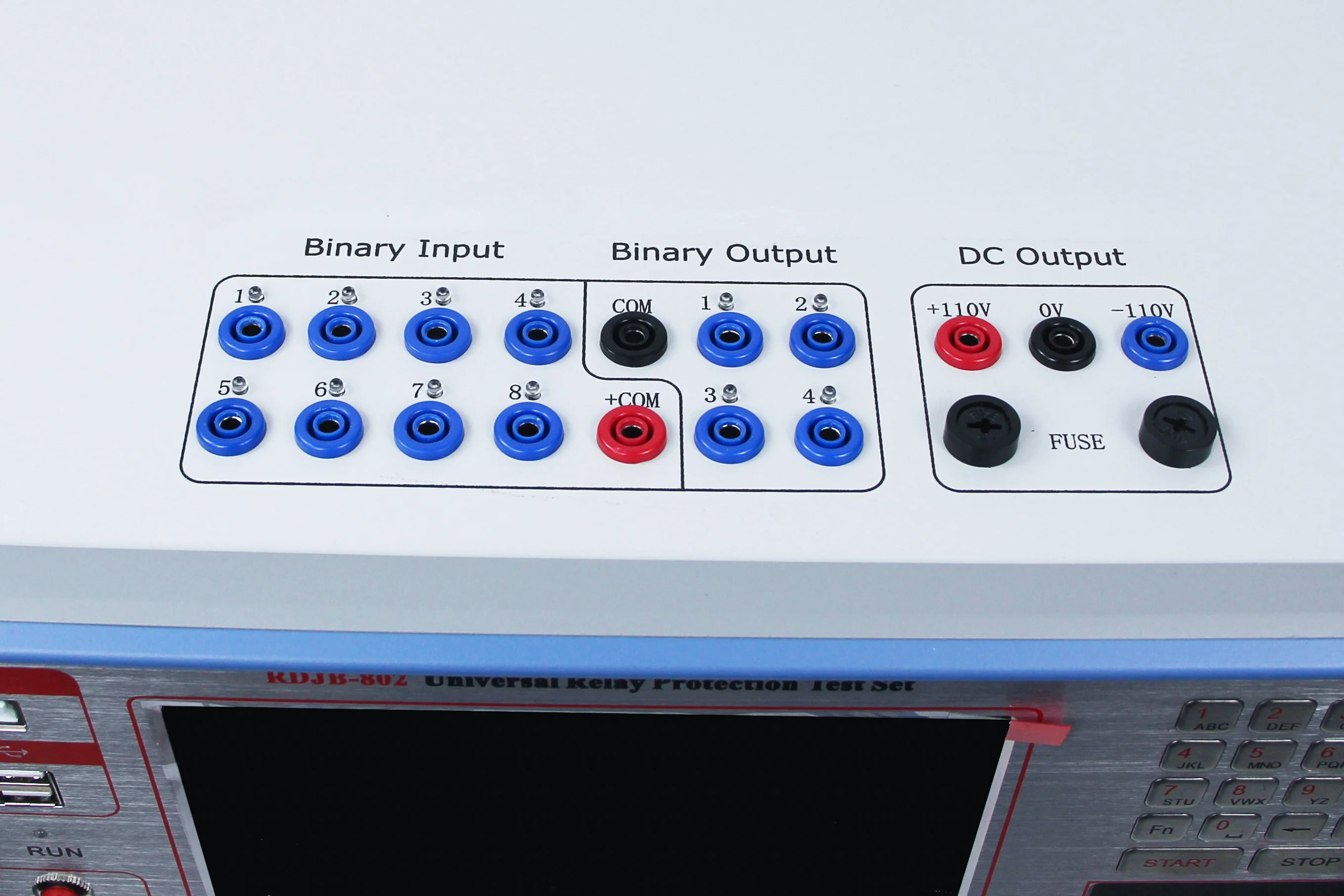

5.\tSwitching terminal
Switch input terminals: 8 pairs
Dead contact: 1~20mA, 24V active output inside the device.
Potential flip: 0~6V DC low level
15~250V DC high level
Switch output terminals: 4 pairs, dead contact, rupturing capacity: 110V/2A, 220V/1A
6.\tTime measurement range:
1ms ~ 9999s , accuracy :1ms
7.\tPower: AC220V±10% 50Hz 10A
Phase current output (effective value): 0~40A/phase, accuracy 0.2%
3 phase parallel current output (effective value): 0~120A
Phase current working value for allowed long time (effective value): 10A
Maximum output power of each Phase: 420VA
Maximum output power of 3 parallel current: 900VA
Maximum permitted work time of 3 parallel current: 10s
Frequency range: 0~1000Hz, accuracy: 0.001Hz
Harmonic time: 2~20
Phase: 0~360°, accuracy: 0.1°
2.\tDC current source:
Current range: 0~±30A/phase, power: 300VA/phase, accuracy:0.2%
3.\tAC voltage source:
Phase voltage output (effective value): 0~125V/phase, accuracy: 0.2%
Line voltage output (effective value): 0~250V
Phase voltage / Line voltage output power: 75VA/100VA
Frequency range: 0~1000Hz, accuracy: 0.001Hz
Harmonic time: 2~20
Phase: 0~360°, accuracy: 0.1°
4.\tDC voltage source
Phase voltage output range: 0~±150V, accuracy: 0.2%
Line voltage output range: 0~±300V
Phase voltage / Line voltage output power: 90VA / 180VA
5.\tSwitching terminal
Switch input terminals: 8 pairs
Dead contact: 1~20mA, 24V active output inside the device.
Potential flip: 0~6V DC low level
15~250V DC high level
Switch output terminals: 4 pairs, dead contact, rupturing capacity: 110V/2A, 220V/1A
6.\tTime measurement range:
1ms ~ 9999s , accuracy :1ms
7.\tPower: AC220V±10% 50Hz 10A
