Product Overview
Description
Product Description

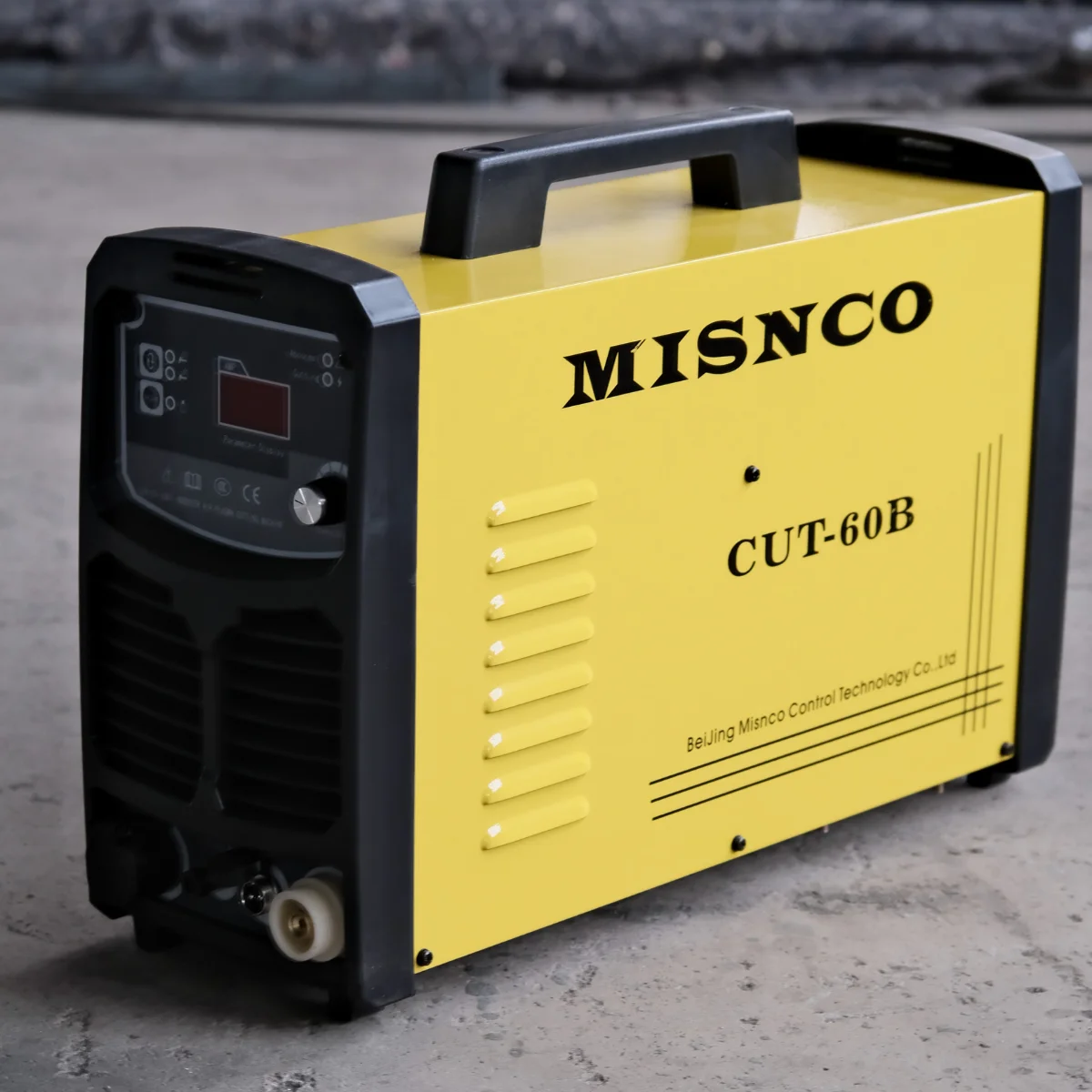

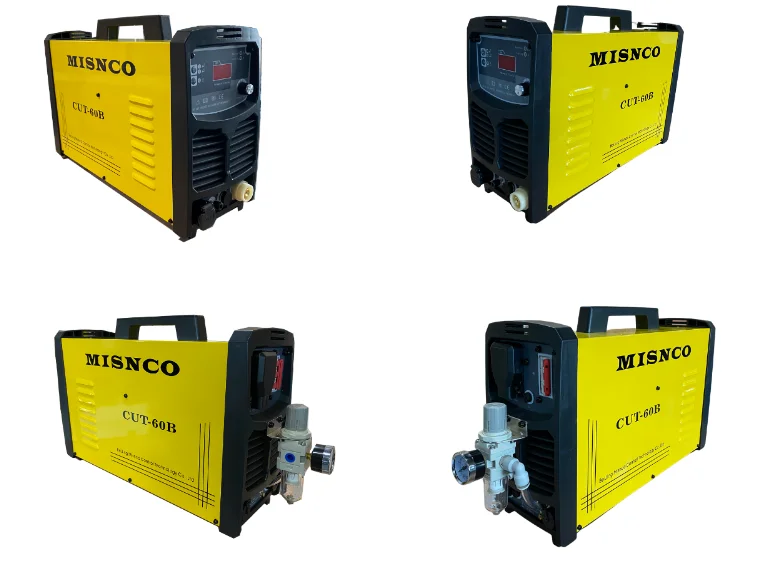

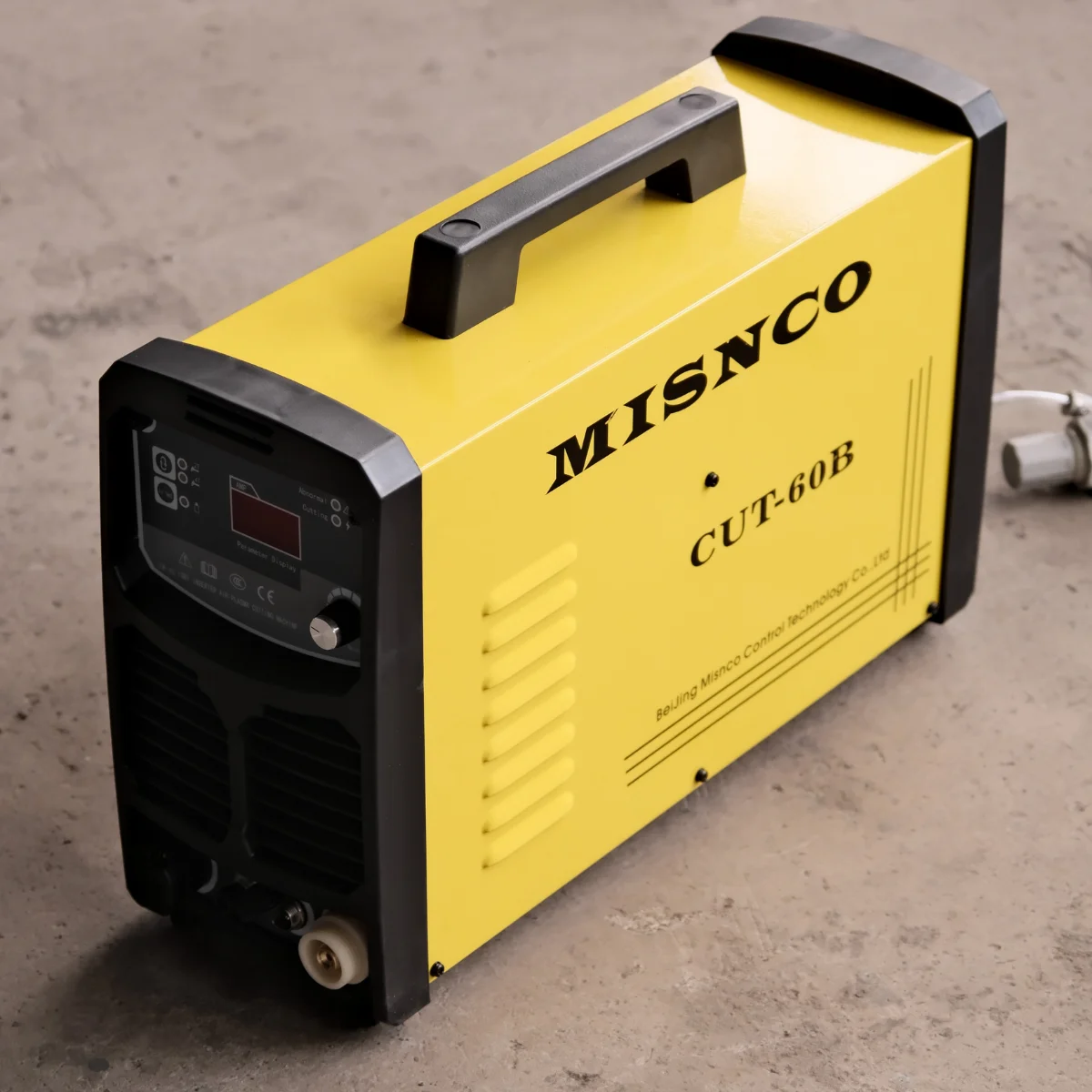

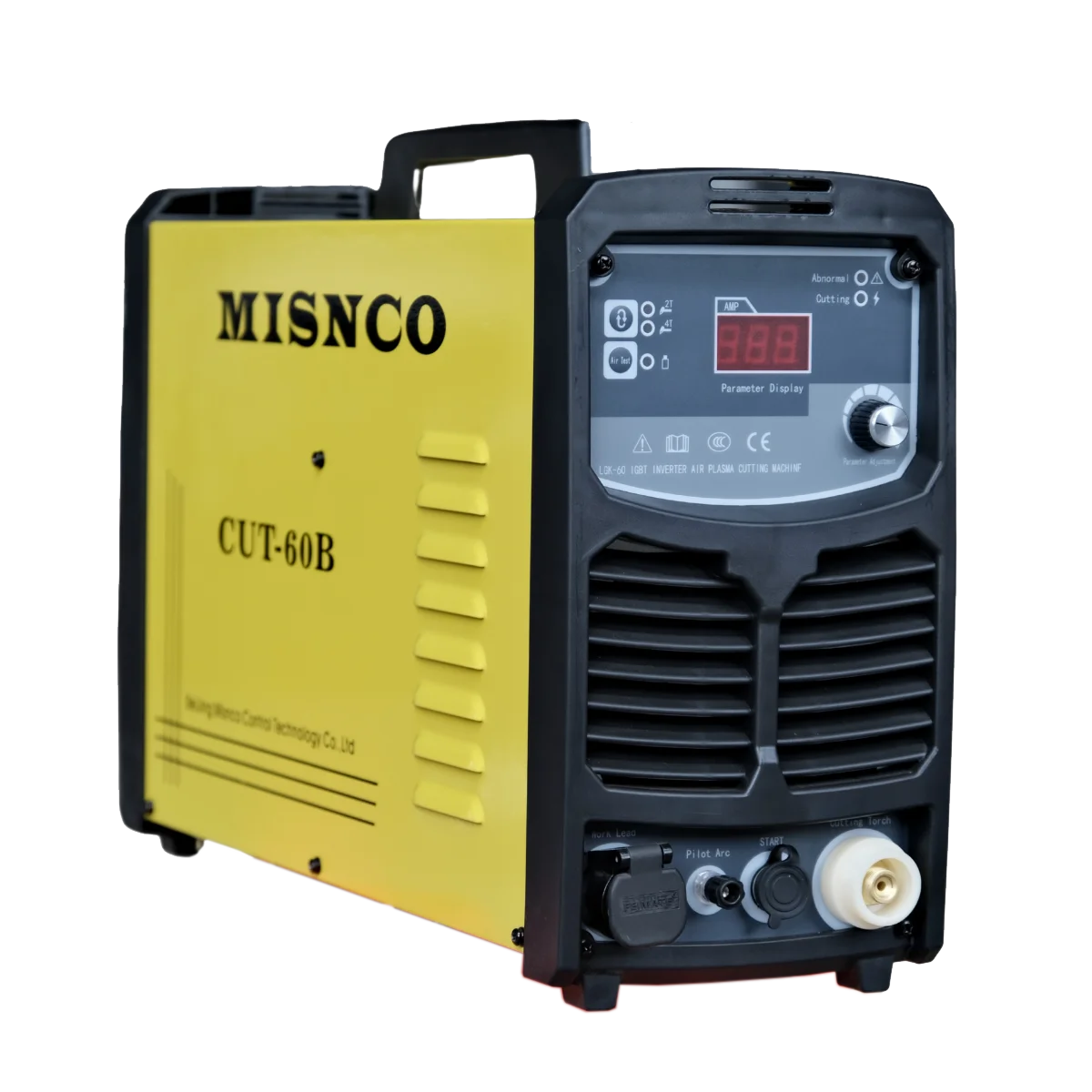

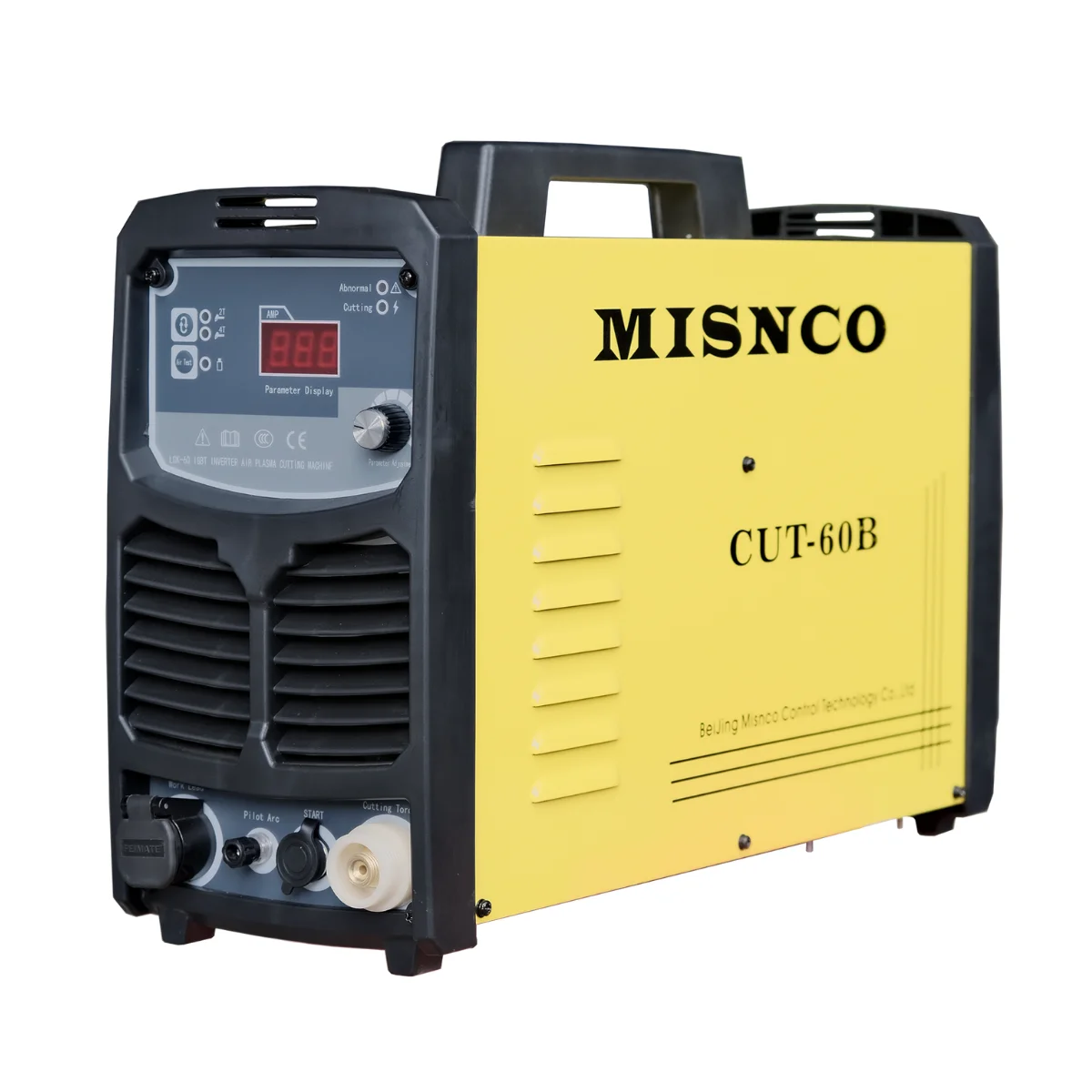

MISNCO CUT-60B inverter type plasma cutting machine, Is a new design of metal processing equipment. The IGBT module for the whole machine. 100% Duty Cycle, suitable for cutting in all heavy industry fields, industrial grade.
The cutting machine can cut all metal materials, especially suitable for "flame cutting" can not achieve high alloy steel and non-ferrous metals. The series of cutting machines have reasonable static and external characteristics, and also have good dynamic characteristics, With high frequency arc starting function . The Soft-switching inverter technology, can improve reliability and reduce failure rate.
Widely used in all kinds of machinery manufacturing industry.
Main Features:
Slow rise technology is applied from the arc ignition current to the cutting current.
Protect the cutting torch and reduce the consumption of consumables.
Initiating arc gas and cutting gas dual-in control.
Improve the success rate of arc ignition
Soft-switching inverter technology, improve reliability and reduce failure rate.
Cutting speed (3-5 times of gas cutting)
Cutting costs are low
Incision stenosis. Clean and tidy; close to vertical
Small deformation of workpiece
The cutting current is adjustable continuously
Easy arc setting
The operation is very convenient
Light weight, small size, easy to move
High efficiency, high power factor, it is a kind of energy saving equipment
Low noise and strong adaptability
Reduce the labor intensity of workers
Easy Opration & Friendly To Use

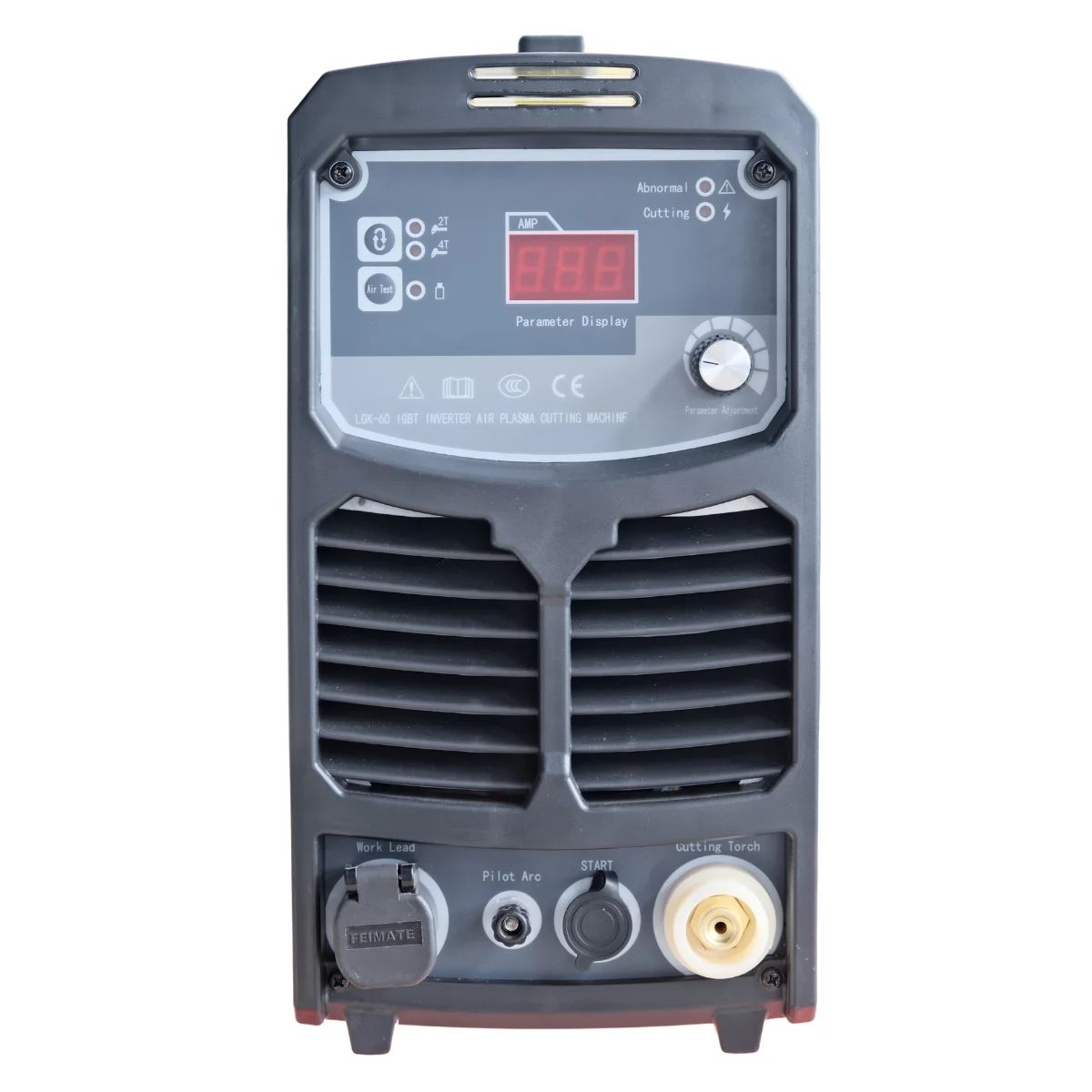

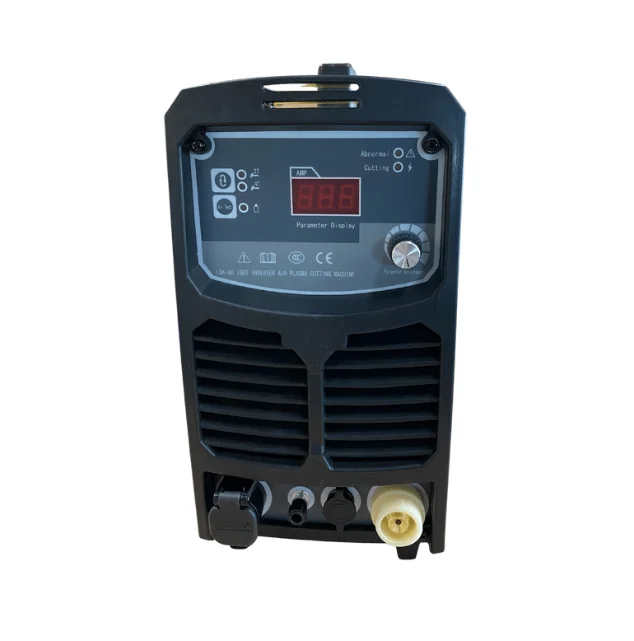

The control system of Cut-60B makes the operation easier and user-friendly, with one button, you can start plasma cutting immediately.
And it can adjust the cutting strength.
Airflow slow-rising technology
Slow rise technology is applied from the arc ignition current to the cutting current
Protect the cutting gun and reduce the consumption of consumables
Initiating arc gas and cutting gas dual-in control
Improve the success rate of arc ignition
Continuous Pilot Arc for Mesh or Perforated Steel
misnco plasma cutter also offers a continuous pilot arc, cutting material like grating, mesh steel, and expanded metal with ease. When the arc is in open spaces in the metal, the torch stops cutting until it reaches another solid place, then restrikes the cutting arc.
Extensive application
The cutting machine can cut all metal materials, especially suitable for "flame cutting" which can not achieve high alloy steel and non-ferrous metals. The series of cutting machines have reasonable static and external characteristics, and also have good dynamic characteristics, With high-frequency arc starting function. Widely used in all kinds of the machinery manufacturing industry.
| Model | CUT-6OB |
| Rated input voltage | 3~380V/50HZ |
| Rated input capacity | 15.6KVA |
| Rated Output current | 60 |
| Rated output voltage | 220V |
| Rated load sustainability | 100.00% |
| No-load voltage | 30oVDC |
| Regulating rangeof current | 30~60 |

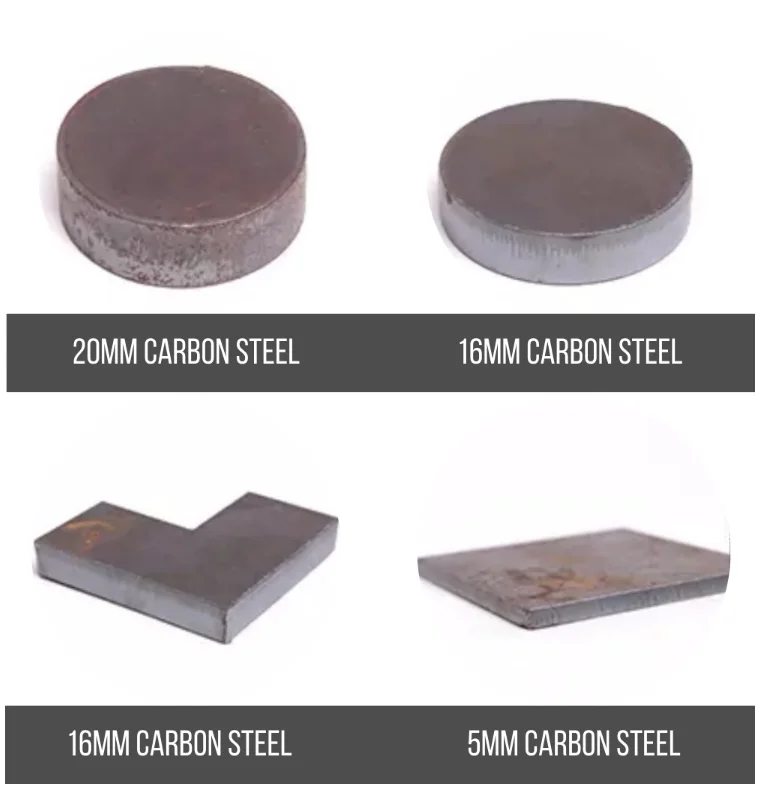

| High quality cutting thickness | 0.3-12mm |
| Maximum cutting thickness | 20mm |
| Use of plasma gas | compressed air |

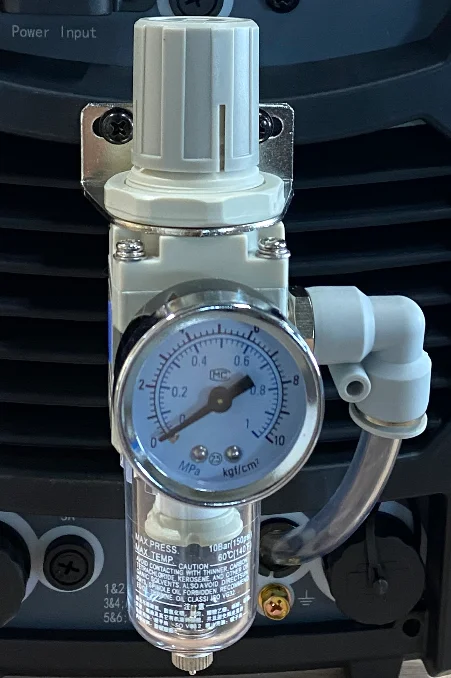

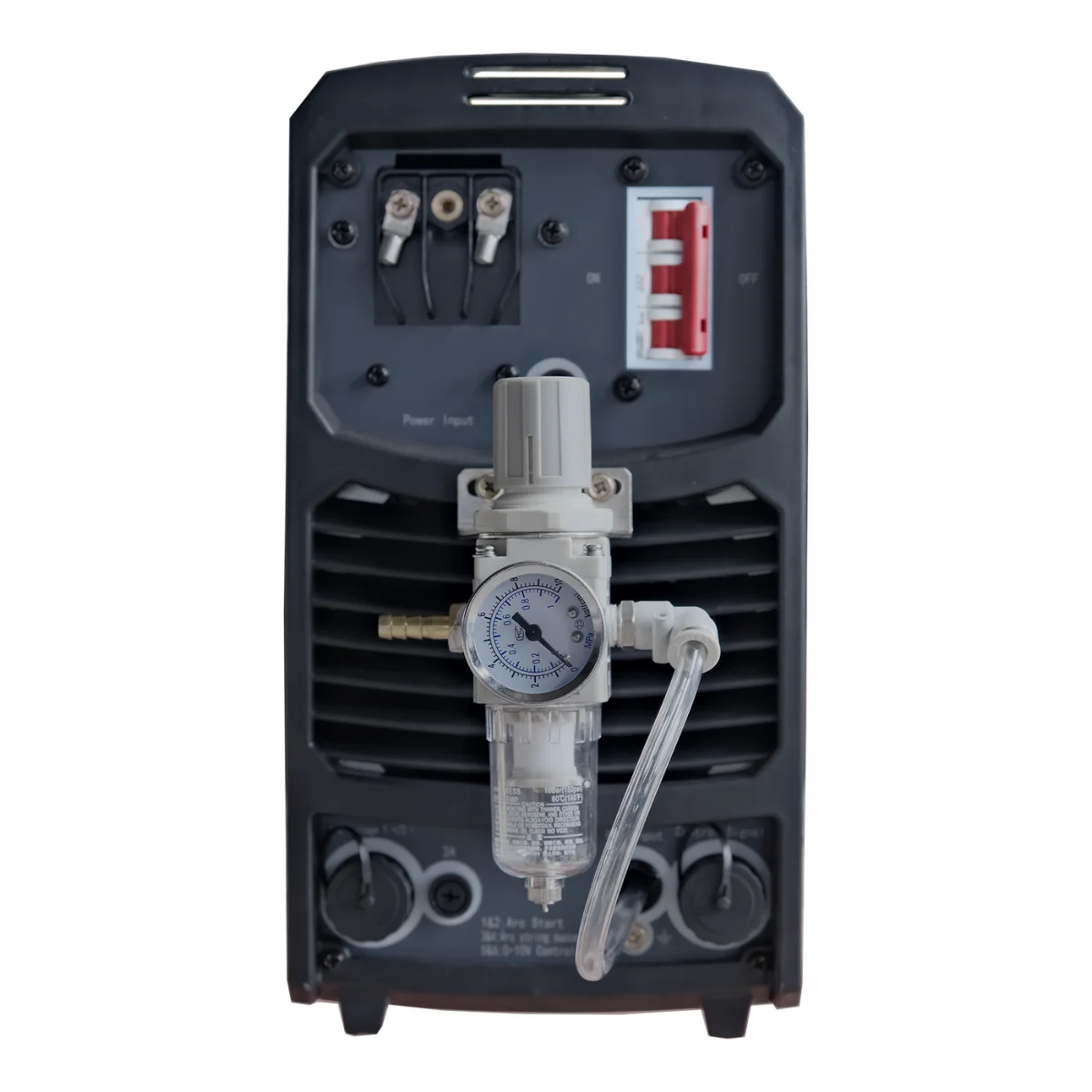

| Working gas pressure | 0.4~0.6MPa |
| The cooling method of cutting torch | air-cooled |
| Arc ignition mode | Non contact mode |
| Volume | 51cm*17cm*31cm |
| Weight | 20KG |
| Insulation grade | F |
Application:
Carbon steel, stainless steel, aluminum,copper, other non-ferrous metals.
