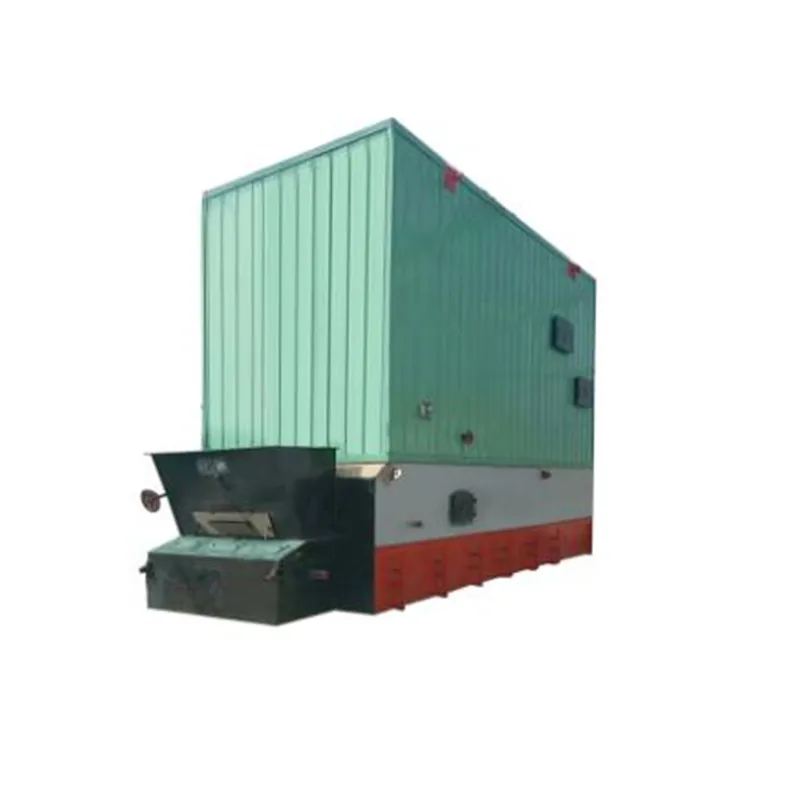

China YLW Horizontal Thermal Oil Boiler Heater 700kw 1000KW Coal Pellet Fired for Plywood and Paper Mill Industrial heater
- Category: >>>
- Supplier: Henan Zhongde Environmental Protection Technology Co. Ltd.
Share on (1600379235520):
Product Overview
Description
Product Description
Characteristics of YLW furnace type
1. Strong adaptability to different fuels
The combustion equipment is designed separately from the upper furnace body, and the furnace structure can be designed separately according to the different properties of solid fuel;
2. High degree of grate automation
The grate of this structure is a fully automatic chain grate.
3. Square coil combustion chamber
The boiler combustion chamber is composed of chain grate and front and rear arches, with sufficient fuel combustion space, complete combustion and high thermal efficiency.
4. Best coil design
The radiation section is made of square coil tube and the convection section is made of serpentine tube. The heating surface tube has good thermal expansion performance, low stress, safety and reliability.
5. Best process design
The flue gas has three returns, the medium flows through the convection and radiation coil, the flow rate is uniform, and the operation is safe and stable.
6. Sufficient output
The heating surface is reasonably arranged, with large area, good heat transfer effect, high efficiency, stable and sufficient output.
7. Improvement of automatic control measures
The oil outlet temperature is controlled accurately, and multiple control protection is set for medium temperature, pressure and over smoke temperature to ensure safe and reliable operation.
8. The level of automatic control is leading
The boiler controller adopts Siemens / Delixi electrical components with reliable performance. The controller has three forms: ordinary type, Chinese and English menu type with liquid crystal display, and touch screen type with man-machine dialogue and remote control. The standard configuration is ordinary type.
1. Strong adaptability to different fuels
The combustion equipment is designed separately from the upper furnace body, and the furnace structure can be designed separately according to the different properties of solid fuel;
2. High degree of grate automation
The grate of this structure is a fully automatic chain grate.
3. Square coil combustion chamber
The boiler combustion chamber is composed of chain grate and front and rear arches, with sufficient fuel combustion space, complete combustion and high thermal efficiency.
4. Best coil design
The radiation section is made of square coil tube and the convection section is made of serpentine tube. The heating surface tube has good thermal expansion performance, low stress, safety and reliability.
5. Best process design
The flue gas has three returns, the medium flows through the convection and radiation coil, the flow rate is uniform, and the operation is safe and stable.
6. Sufficient output
The heating surface is reasonably arranged, with large area, good heat transfer effect, high efficiency, stable and sufficient output.
7. Improvement of automatic control measures
The oil outlet temperature is controlled accurately, and multiple control protection is set for medium temperature, pressure and over smoke temperature to ensure safe and reliable operation.
8. The level of automatic control is leading
The boiler controller adopts Siemens / Delixi electrical components with reliable performance. The controller has three forms: ordinary type, Chinese and English menu type with liquid crystal display, and touch screen type with man-machine dialogue and remote control. The standard configuration is ordinary type.
Model YLW Rated Thermal Power 1400-35000 KW
Design Pressure 1.1 Mpa
Working Pressure 0.8 Mpa
Medium Outlet Temperature ≤350 ℃
Solid fuels such as coal, biomass particles, sawdust, wood blocks, palm shells and rice husks can be used
Solid fuels such as coal, biomass particles, sawdust, wood blocks, palm shells and rice husks can be used
Application Chemical,Oil,Petrochemical,Textile,Printing,Rubber,Carton,Plywood,Asphalt,Cement, etc
Product Datasets
MODEL | YLW-1400MA | YLW-1800MA | YLW-2100MA | YLW-2400MA | YLW-3000MA | YLW-3500MA | YLW-4200MA | YLW-4700MA | |||||||
Rated power(KW) | 1400 | 1800 | 2100 | 2400 | 3000 | 3500 | 4200 | 4700 | |||||||
Design pressure(Mpa) | 1.1 | ||||||||||||||
Rated working pressure(Mpa) | 0.8 | ||||||||||||||
Highest working temperature(℃) | 320 | ||||||||||||||
Furnace oil volume(m3/h) | 1.2 | 1.5 | 1.9 | 2.1 | 2.4 | 3.8 | 4.2 | 4.6 | |||||||
Circulation oil volume(m3/h) | 100 | 100 | 140 | 160 | 200 | 200 | 250 | 250 | |||||||
Pipe connection diameter(DN) | 125 | 150 | 150 | 150 | 150 | 200 | 200 | 200 | |||||||
Thermal Efficiency (%) | ～85 | ||||||||||||||
Upper part Size (m) | 4.1x2.48x2.83 | 4.55x2.6 x3.01 | 5.3x2.75 x2.7 | 5.3x2.75 x2.96 | 5.74x2.75x2.96 | 6.33x2.93 x3.02 | 6.94x3.1 x3.4 | 7.1x3.3 x3.7 | |||||||
Lower part Size (m) | 4.87x2.5 x1.6 | 5.3x2.65 x1.6 | 5.8x2.53 x1.6 | 6.63x2.53x1.75 | 6.63x2.55 x1.75 | 7.5x2.93 x1.75 | 7.7x2.9 x2 | 7.7x2.99 x2 | |||||||
Weight (T) | 19.5 | 22 | 25 | 28 | 34 | 38 | 44 | 48 | |||||||
MODEL | YLW-6000MA | YLW-7000MA | YLW-8200MA | YLW-9400MA | YLW-10500MA | YLW-12000MA | YLW-14000MA | YLW-18000MA | |||||||
Rated power(KW) | 6000 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 18000 | |||||||
Design pressure(Mpa) | 1.1 | ||||||||||||||
Rated working pressure(Mpa) | 0.8 | ||||||||||||||
Highest working temperature(℃) | 320 | ||||||||||||||
Furnace oil volume(m3/h) | 7.8 | 9.1 | 10.5 | 12 | 14 | 16 | 18 | 24 | |||||||
Circulation oil volume(m3/h) | 320 | 375 | 400 | 520 | 550 | 600 | 680 | 1000 | |||||||
Pipe connection diameter(DN) | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 400 | |||||||
Thermal Efficiency (%) | ～85 | ||||||||||||||
Product manufacturing process
Application & Boiler case
Applicable industry
Chemical industry, grease, petrochemical, textile, printing and dyeing, plastics, rubber, fiber, carbon, construction, cement, asphalt, metal, coating, wood processing, papermaking and printing, atomic energy industry, etc.
Chemical industry, grease, petrochemical, textile, printing and dyeing, plastics, rubber, fiber, carbon, construction, cement, asphalt, metal, coating, wood processing, papermaking and printing, atomic energy industry, etc.
8 MKcal Heat transfer oil boiler
Fuel: Waste wood, sanding powder
User’s site: Malaysia
Capacity: 9400KW
Application:wood industry
User’s site: Malaysia
Capacity: 9400KW
Application:wood industry
5 MKcal Heat transfer oil boiler
Fuel: Coal
User’s site: Indonesia
Capacity: 6000KW
Application: construction industry
User’s site: Indonesia
Capacity: 6000KW
Application: construction industry
7 MKcal Heat transfer oil boiler
Fuel: Waste wood, sanding powder
User’s site: Vietnam
Capacity: 8200KW
Application: wood industry
User’s site: Vietnam
Capacity: 8200KW
Application: wood industry
12 MKcal Heat transfer oil boiler
Fuel: Coal
User’s site: Thailand
Capacity: 14000KW
Application:Rubber industry
User’s site: Thailand
Capacity: 14000KW
Application:Rubber industry
