HT-802 3 Phase Electrical Power Testers Relay Protection Device Test
- Category: Testing Equipment >>>
- Supplier: Wuhan,UHV,Power,Technology,Co.,Ltd
Share on:
Product Overview
Description

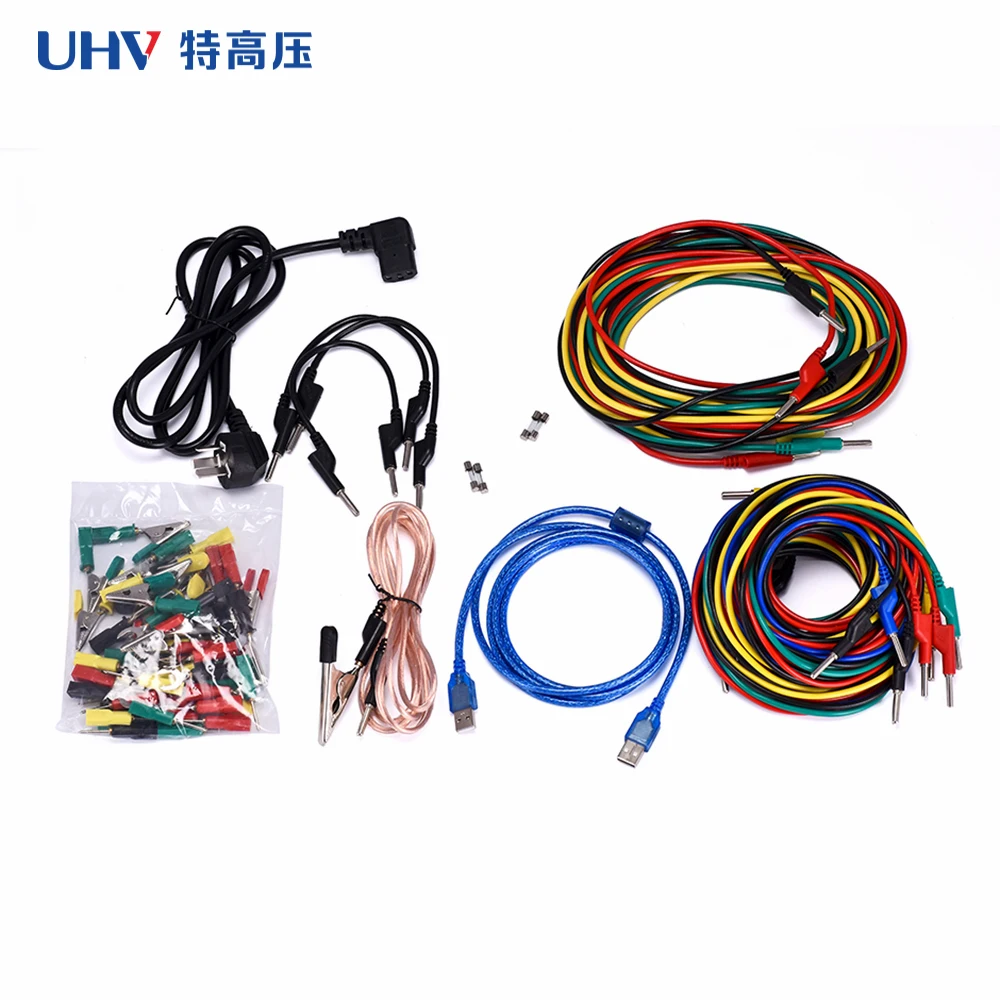

HT-802 3 Phase Electrical Power Testers Relay Protection Device Test
Product Description
HT-1200 China Factory Six Phase Secondary Injection Relay Test Set relay tester
The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.Classic Windows XP operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4 inch resolution of 800 × 600 TFT true color display which provides rich visual information,includes the current working condition and all kinds of help information.The software with self-calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
Product Paramenters
AC current source
Phase current output ( RMS ) | 3X(0~40A)/phase， accuracy: 0.5% | ||||||
3-phase in parallel output (RMS) | 0~120A | ||||||
Phase current values allowed to work a long time (RMS) | 10A | ||||||
Phase current max output power | 420VA | ||||||
3-phase in parallel current max output power | 900VA | ||||||
3-phase in parallel current max output allowable working time | 10s | ||||||
Frequency range | 0~1000Hz; accuracy: 0.001Hz | ||||||
Overtone order | 2~20; phase :0~360°; accuracy: 0.1° | ||||||
DC current source
Current output | 0~±30A/phase; accuracy: 0.5% | ||||||
AC voltage source
Amplitude range | 3x(0~125V)/phase, accuracy: 0.5% | ||
Line voltage range | 0~250V | ||
Phase voltage / Line voltage output power | 75VA/100VA | ||
Frequency range | 0~1000Hz accuracy: 0.001Hz | ||
Overtone order | 2~20; phase :0~360°; accuracy: 0.1° | ||
DC voltage source
Phase voltage output range | 0~±150V | ||||||
Accuracy | 0.5% | ||||||
Line voltage output range | 0~±300V | ||||||
Phase voltage / Line voltage output power | 970VA/180VA | ||||||
Switch termianl

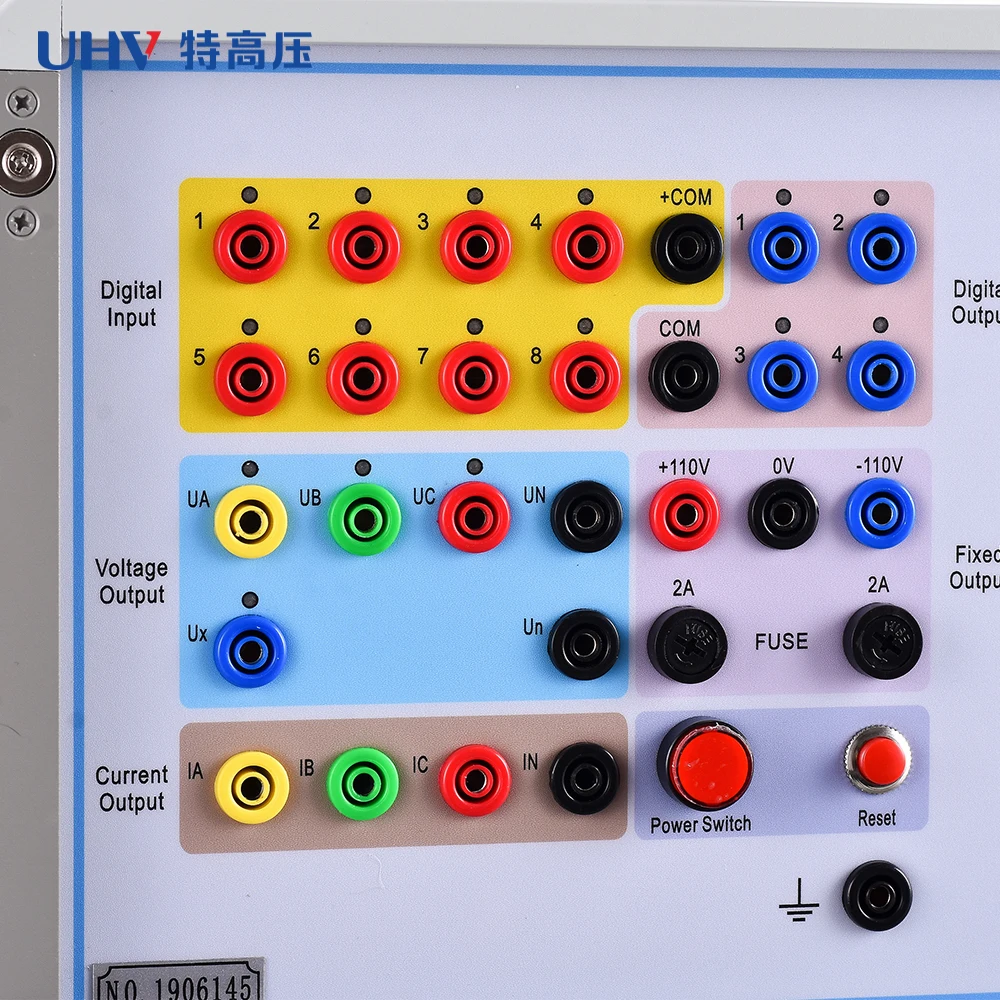

Switch input terminals | 8 pairs | ||||||
Dead contact | 1-20mA, 24V active output inside the device. | ||||||
Potential flip | 0--6V DC low level; 15-250V DC high level | ||||||
Switch output terminals | 4 pairs, dead contact, rupturing capacity: 110V/2A, 220V/1A | ||||||
Time measurement range
Range | 1ms~9999s | ||||||
Accuracy | 1ms | ||||||
Dimension & weight
Dimension | 455×530×220mm | ||||||
Weight | 30Kg | ||||||
Power
AC | 220V±10%, 50Hz,10A | ||||||
Features
1. Meets all the requirement of field tests. This tester with standard 4 phase voltage, 3 phase current output, voltage 125V/phase, current 40A/phase, 3 phases in parallel can up to 120A. Digital Signal Processor Microcomputer. Not only test the traditional relays and protectors, but also test the modern micro computer replays, special for transformer differential protection and transfer equipment.
2. All technical indicators fully meet the standard DL/T624-1997: Technical condition of the relay computer test device.

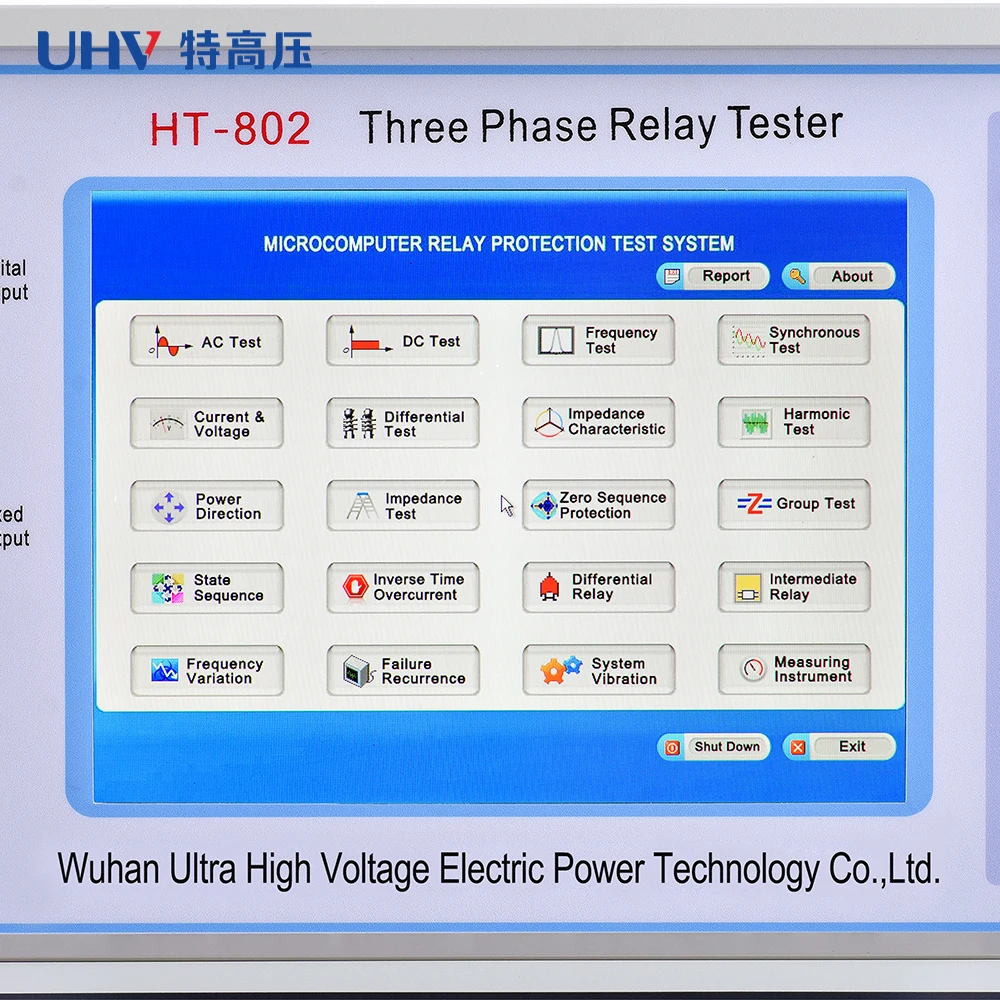

3. Classic Windows XP operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4 inch 8.4 - inch resolution of 800 × 600 TFT true color display which provides rich visual information, includes the current working condition and all kinds of help information.
4. The Windows XP system comes with the restore function; avoid system crashes caused due to illegal shutdown, or malfunction, etc.
5. Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of
operations using keyboard or mouse the same as ordinary PC.
6. The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
7. Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but
also guarantee the stability of the high current.
8. USB directly connect with PC, without any adapter cable, easy to use.
9. Can be connected to a laptop computer (optional).Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.10. With GPS synchronization test function. The device can be built-in GPS synchronization card (optional) connects with PC by RS232; people can do remote synchronization swap test for the two testers.
11. With a separate DC auxiliary voltage source, output voltage 110V(1A)，220V(0.6A),
provides relays or protective devices which require DC power.
12. The software with self calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
2. All technical indicators fully meet the standard DL/T624-1997: Technical condition of the relay computer test device.
3. Classic Windows XP operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4 inch 8.4 - inch resolution of 800 × 600 TFT true color display which provides rich visual information, includes the current working condition and all kinds of help information.
4. The Windows XP system comes with the restore function; avoid system crashes caused due to illegal shutdown, or malfunction, etc.
5. Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of
operations using keyboard or mouse the same as ordinary PC.
6. The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
7. Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but
also guarantee the stability of the high current.
8. USB directly connect with PC, without any adapter cable, easy to use.
9. Can be connected to a laptop computer (optional).Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.10. With GPS synchronization test function. The device can be built-in GPS synchronization card (optional) connects with PC by RS232; people can do remote synchronization swap test for the two testers.
11. With a separate DC auxiliary voltage source, output voltage 110V(1A)，220V(0.6A),
provides relays or protective devices which require DC power.
12. The software with self calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
