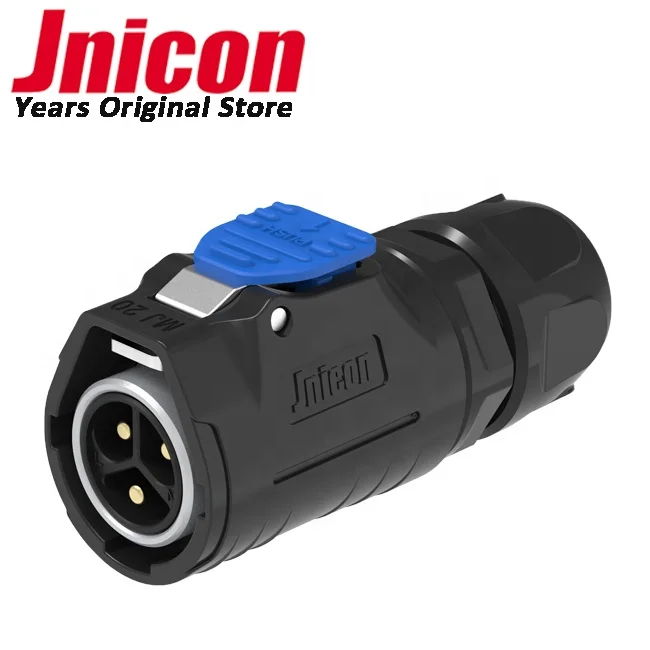

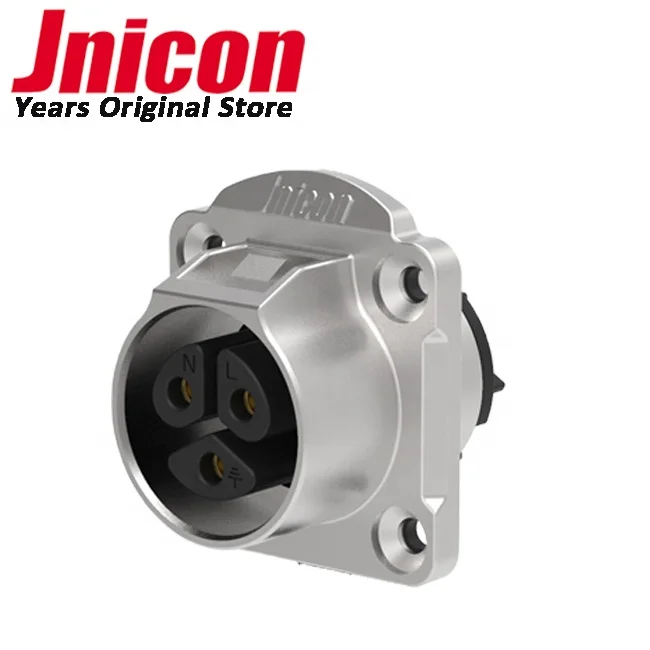

M20 Male Plug Waterproof Bulkhead Electrical Connectors Female 3 Pin 20A IP67 For Device
- Category: Connectors >>>
- Supplier: Shenzhen,Jnicon,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Overview and features / Applications / pictures
This series is available for cable to cable (in-line) and cable to panel connection. Each side can choose from male or female contact.
1) Panel-hole cutout size: 20mm
2) Number of contacts: 2-5 with gold plated contacts
3) Rated current: 20A-5A
4) IP rating: IP67 after mated
5) Cable outer diameter: type I: 3-6mm, II: 6-8mm III:8-10mm
6) Certification: CE, ROHS approval
Applications: This IP67 waterproof connector is designed for high-end products. The Zin alloy metal made shell made it widely used in many high-end areas, such as medical devices, high-end equipments, testing or measuring equipments, communications field, marine equipments etc. It can be used for both data and power.
Product Name | MJ20 Power connector | Brand | Jnicon |
Current Rating | 20A max. | Application | Power |
Voltage Rating | 600V | Certification | UL,TUV,CQC,CE, RoHS |
Temperature Rating | -40-105℃ | Warranty | 5years |
Waterproof Rating | IP67 | Cable Specification | 1.5m㎡-2.5m㎡ |
Cable Max. Diameter | 10.0mm | Connecting Mode | Plug/Unplug |
Pin Number | 3pin | Flammability Class | UL94-V0 |
Gender | Male + Female | Port | Shenzhen |
Features

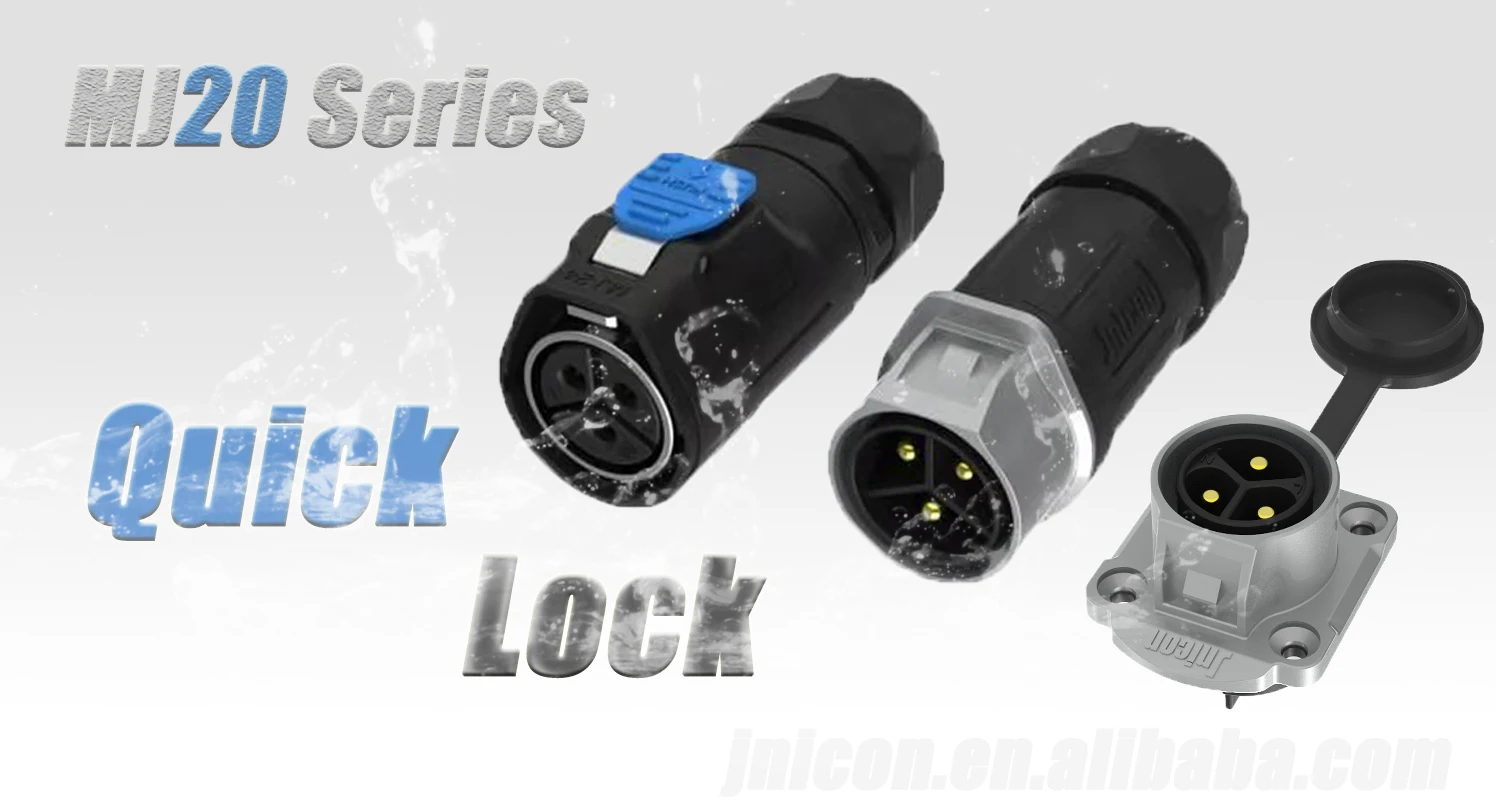

1.Quick Lock structure,simple and easy to operate.
2.Solder/ Screw terminals options
3.Different current rated options: 20A max., welcome ODM
4.Different pins number: 2Pin,3Pin,4Pin and 5Pin,welcome custom
5.Zin Alloy Metal Main parts, strong and durable
6.Waterproof Level IP67(mated/unmated)
8.Massive quantity applied in various Power and signal device

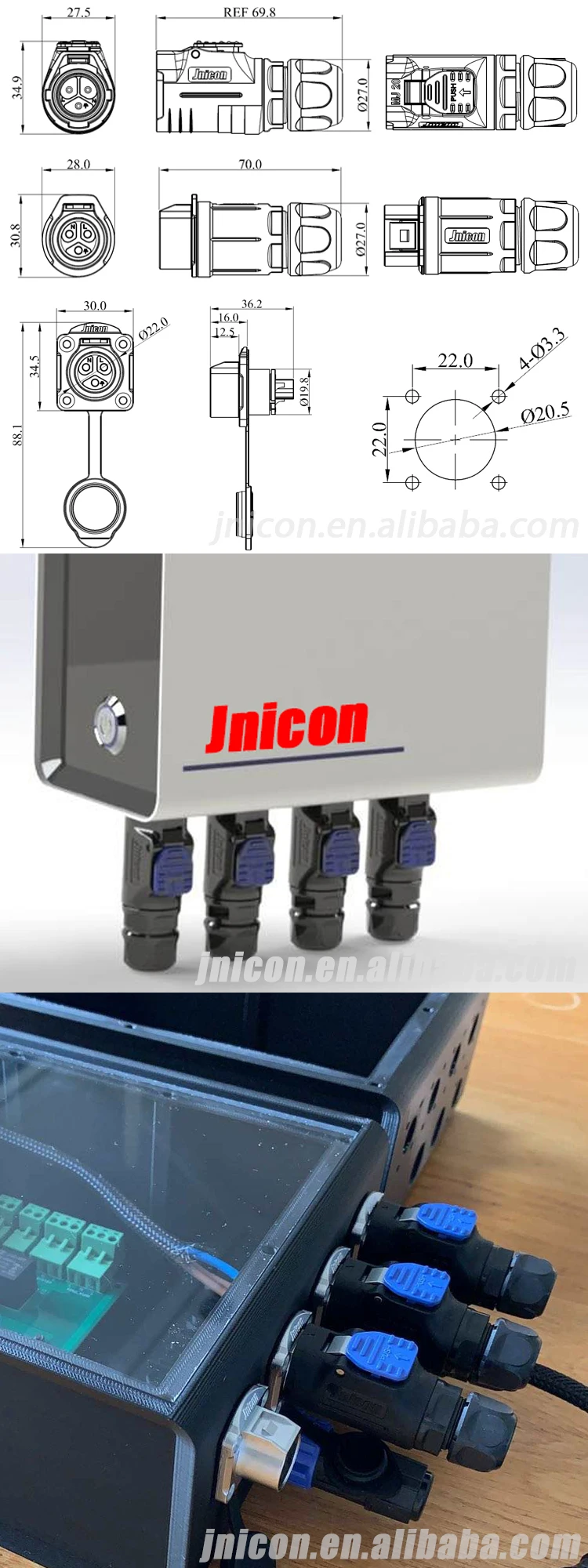

Detailed Images
Our Company
Packing & Delivery
Our Service
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in standard export brown cartons.But we also can accept the customization.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
Q8.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
