HeoZ China Factory SIP Weatherproof Weather Resistant Phones Emergency Outdoor Analog Telephones
- Category: >>>
- Supplier: Shenzhen PSST Technology Co. Ltd.
Share on (1600379264965):
Product Overview
Description
HeoZ Industrial Telephone Introduction
HeoZ Weatherproof & Weather Resistant Phones and outdoor roadside telephone is housed in the anti-vandal SMC enclosure designed for wall mounting or post mounting for self-standing.Ideal for both Indoor and Outdoor usage in Metros,Railways, Express ways, Mines, Oil rigs, Tunnels, Steel Plants, Chemical plants, Power plants, Airports, Marine Environment, Military and other related industrial applications.
HeoZ Highway Emergency Call Box(ECB) Specification
Product Name | Highway telephone |
Model No. | HZ-WP1502009 |
Size | 300*180*40mm |
Material | Industrial SMC |
Project Reference | Chile Highway, Pakistan National Highway, Maysia highway side. |
1. SMC shell with high mechanical strength and impact resistance.
2. Support echo cancellation.
3. Push button to call or scroll dialing option.
4. The weatherproof grade is IP65/IP66.
5. Lightening protection to ITU-T recommendation K.21.
6. Powder-coated in UV stabilized polyester finish.
7. The size and style of highway telephone can be customized according to customer demand.
2. Support echo cancellation.
3. Push button to call or scroll dialing option.
4. The weatherproof grade is IP65/IP66.
5. Lightening protection to ITU-T recommendation K.21.
6. Powder-coated in UV stabilized polyester finish.
7. The size and style of highway telephone can be customized according to customer demand.
8, Support OEM, ODM and customized order.
9. Analog, SIP VoIP and 4G 3G are avaiable.

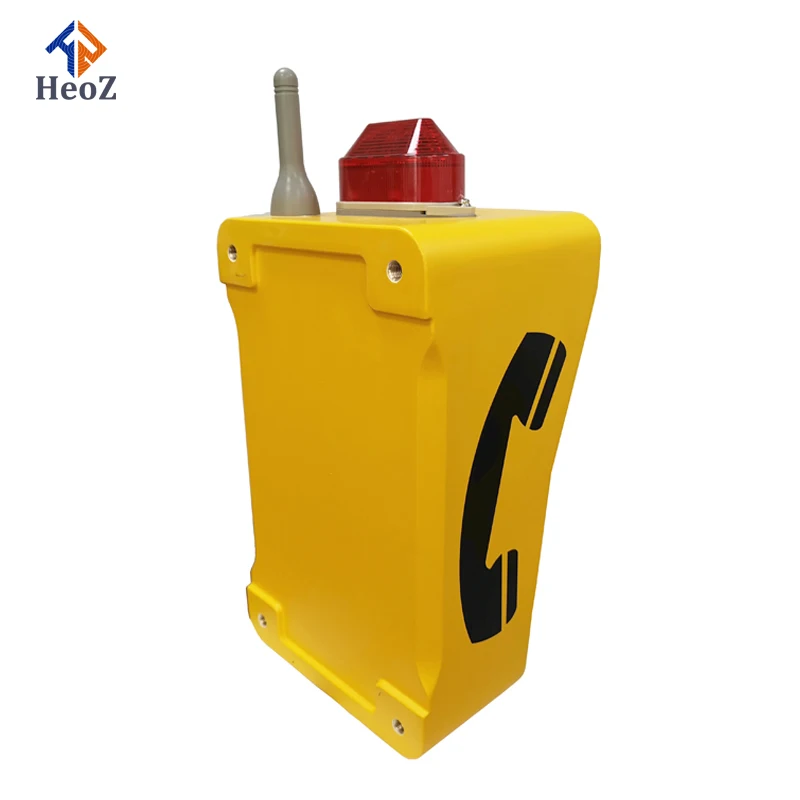

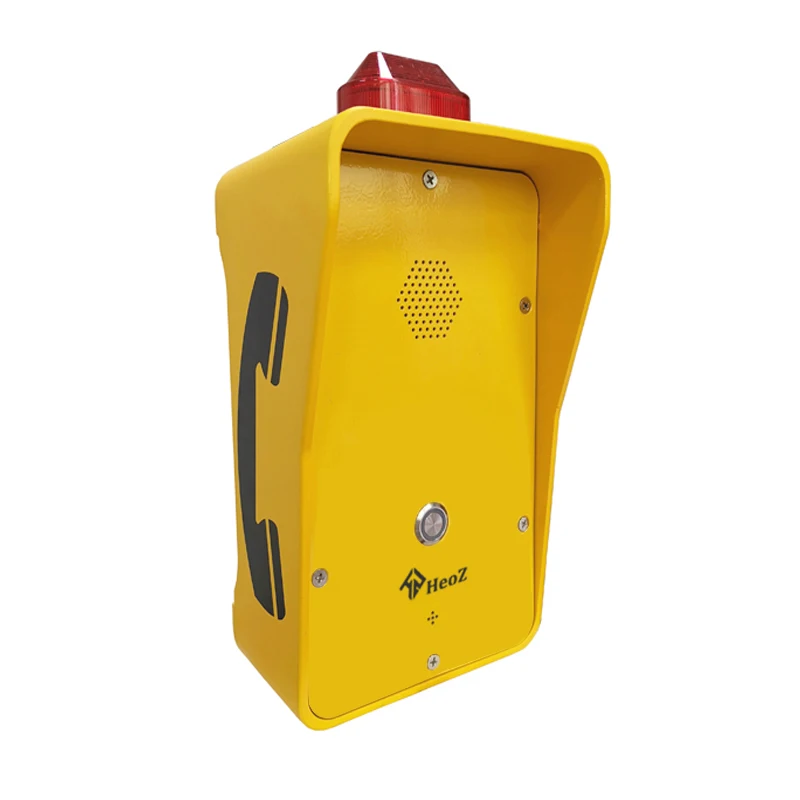

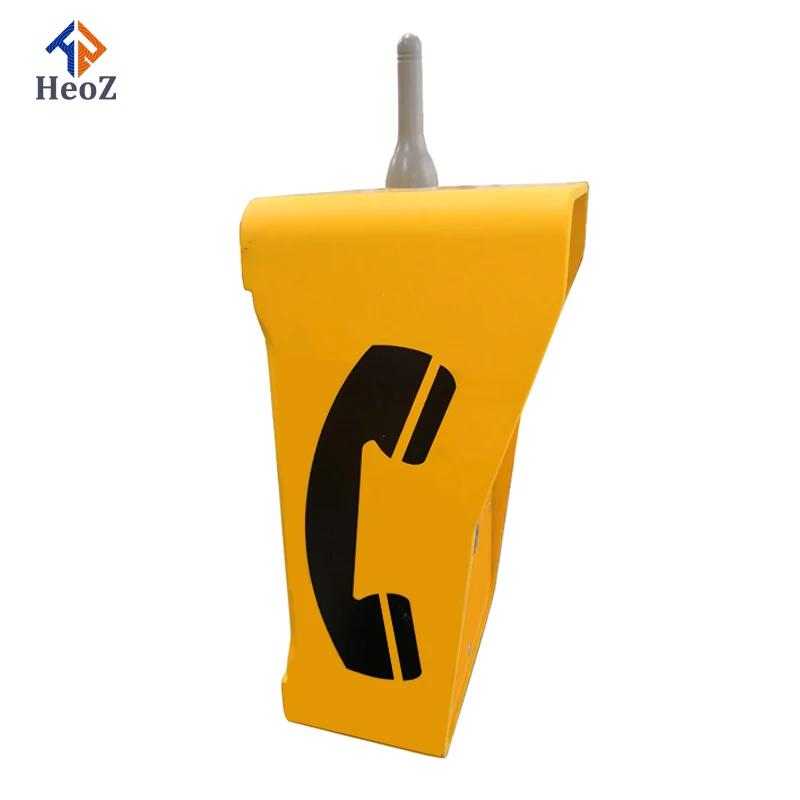

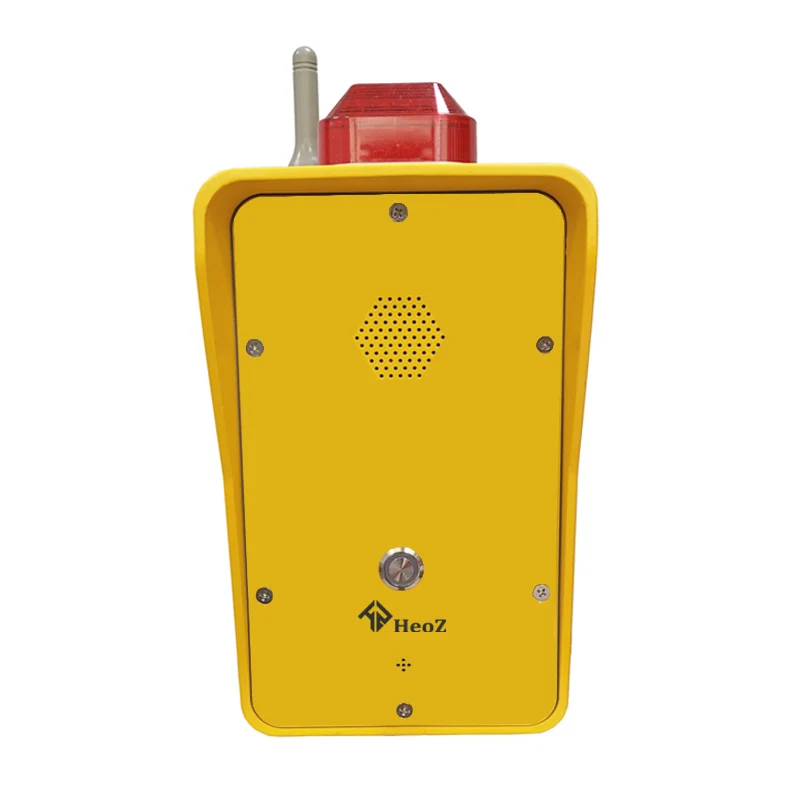

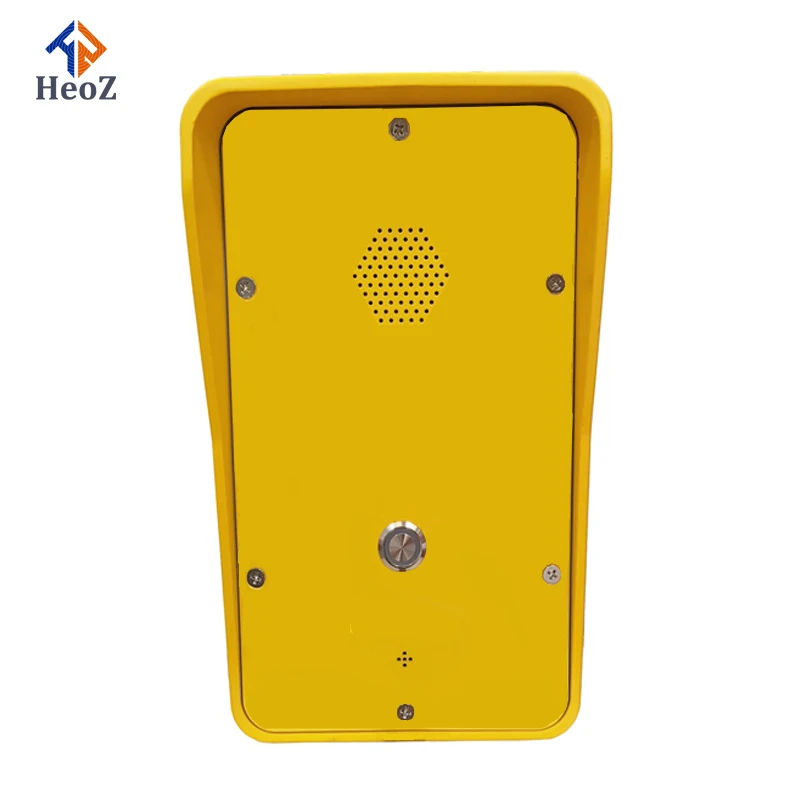

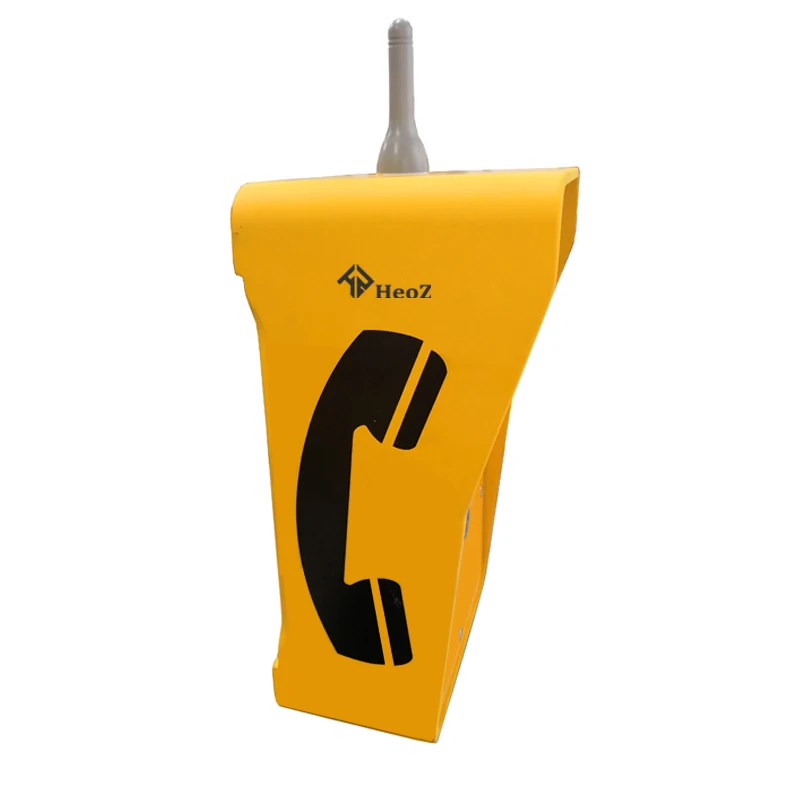

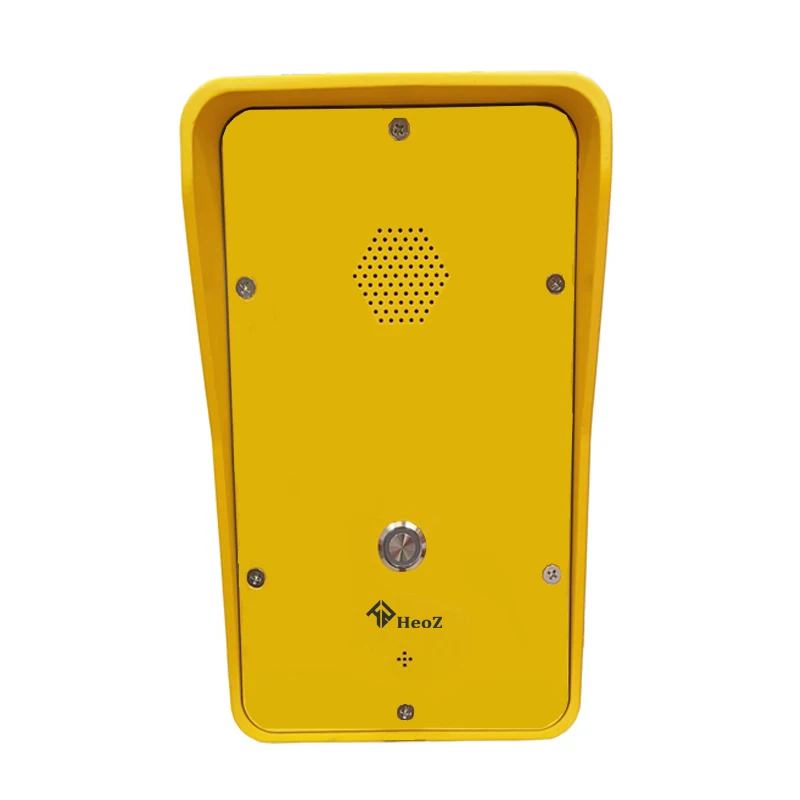

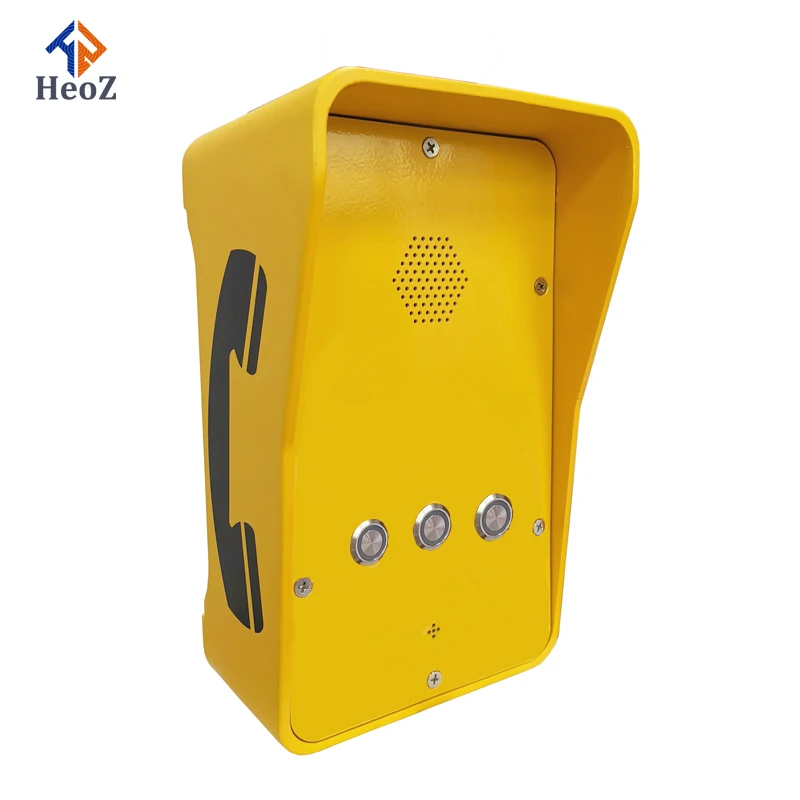

HeoZ Highway Telephone Details Images
HeoZ Roadside Emergency Telephone Paramenters
2G 3G 4G version Weatherproof & Weather Resistant Phones HZ-WP1502009G
GSM PCB Support: 2G, 3G, 4G modules.
Solar Panels: 18w/30w/55w (options)
Working Frequency Rage: GSM Frequency 850/900/1800/1900MHZ
(WCDMA850/1900Mhz is an option).
Suopported: SMS or GPRS
Sound Level of Ringing: >80dB(A). 2w speaker
Power Supply: 12V DC/ 110/220V AC, battery, solar.
Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas.
Humidity Conditions: 10% - 95%
MTBF:100,000 hours.
MTTR: 15min.
Ultra-low power consumption, standby current less than 3mA
Complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/
GPRS/GSM module solution in LCC type
Solar Panels: 18w/30w/55w (options)
Working Frequency Rage: GSM Frequency 850/900/1800/1900MHZ
(WCDMA850/1900Mhz is an option).
Suopported: SMS or GPRS
Sound Level of Ringing: >80dB(A). 2w speaker
Power Supply: 12V DC/ 110/220V AC, battery, solar.
Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas.
Humidity Conditions: 10% - 95%
MTBF:100,000 hours.
MTTR: 15min.
Ultra-low power consumption, standby current less than 3mA
Complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/
GPRS/GSM module solution in LCC type
SIP VoIP version Weatherproof & Weather Resistant PhonesHZ-WP1502009V
Communication: Full Duplex SIP Support: SIP2.0(RFC3261).
Speech Coding: G.711A/ u, G.7321 high/ low, G.729 a/ b, G.722, G.722.1, G726.
Echo Cancellation Code: G.167 /G.168
Circumstance noise: ≤ 60dB(A).
Sound Level of Ringing: >90dB(A).
Auxiliary Contact: 1Aux output, dry contact.
Power Supply: AC110--240V or PoE .
Rated Carry Current:1A
DTMF: VoIP SIP Info DTMF Relay, RFC2833
LAN Protocols: Power over Ethernet(PoE, 802.3af)
WLAN: IEE802.3af, Network Access Control: IEEE802.1x
IP Protocols: IPV4, UDP, DHCP, SIP.
MTBF:100,000 hours. MTTR: 2 hours.
Speech Coding: G.711A/ u, G.7321 high/ low, G.729 a/ b, G.722, G.722.1, G726.
Echo Cancellation Code: G.167 /G.168
Circumstance noise: ≤ 60dB(A).
Sound Level of Ringing: >90dB(A).
Auxiliary Contact: 1Aux output, dry contact.
Power Supply: AC110--240V or PoE .
Rated Carry Current:1A
DTMF: VoIP SIP Info DTMF Relay, RFC2833
LAN Protocols: Power over Ethernet(PoE, 802.3af)
WLAN: IEE802.3af, Network Access Control: IEEE802.1x
IP Protocols: IPV4, UDP, DHCP, SIP.
MTBF:100,000 hours. MTTR: 2 hours.
Analog version Weatherproof & Weather Resistant Phones HZ-WP1502009A
Ambient Temperature: -30 ~ +70 degree celsius
Relative Humidity: 10% ~95%
Atmospheric Pressure: 86 - 106kpa
Sound Level of Ringing: >80dB(A). 1w speaker
Standard Frequency: Low frequency group 697, 770, 852, 941Hz. High frequency group 1209, 1336, 1477Hz.
Frequency Deviation: -1.5% ~ +1.5%
Call Transmission Index: (5km) SLR<12, RLR<-1, STMR>10, output impedance is 600ohm.
Applicable for various types of PABX with feeding voltage of 33-60V
MTBF:100,000 hours.
MTTR: 2 hours.
Relative Humidity: 10% ~95%
Atmospheric Pressure: 86 - 106kpa
Sound Level of Ringing: >80dB(A). 1w speaker
Standard Frequency: Low frequency group 697, 770, 852, 941Hz. High frequency group 1209, 1336, 1477Hz.
Frequency Deviation: -1.5% ~ +1.5%
Call Transmission Index: (5km) SLR<12, RLR<-1, STMR>10, output impedance is 600ohm.
Applicable for various types of PABX with feeding voltage of 33-60V
MTBF:100,000 hours.
MTTR: 2 hours.
HeoZ Highway Call Box Hardward & Installation
HeoZ Highway Phones Hardware Inclueds:

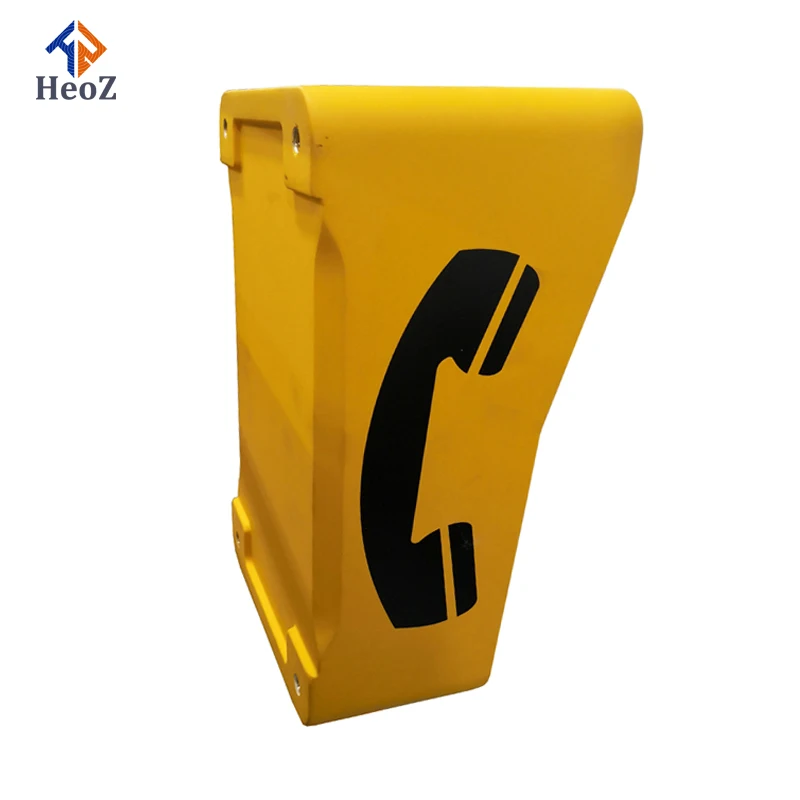

The HZ-WP1502009 with the SMC body, Micphone, speaker, LED indicator, push buttons, and the screws can be secutiry screws, the 2 sides with handset sambol to indicate the SoS function on the speed way.
HeoZ Highway Telephone Installation:
The HZ-WP1502009 is standard wall mounted telephone.
when client install it on the pillar, we can also provide the installation kits which match with your different install way.

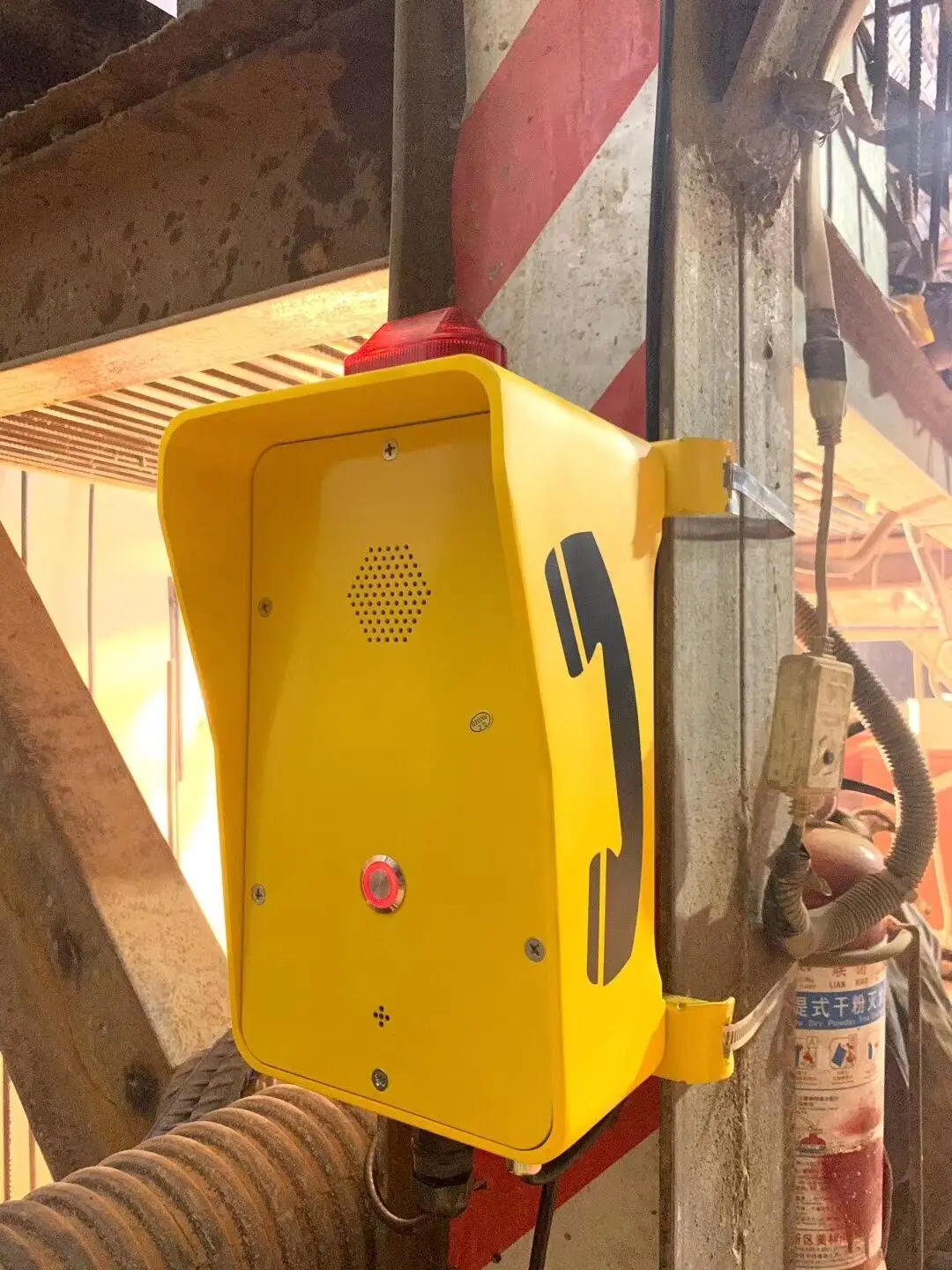

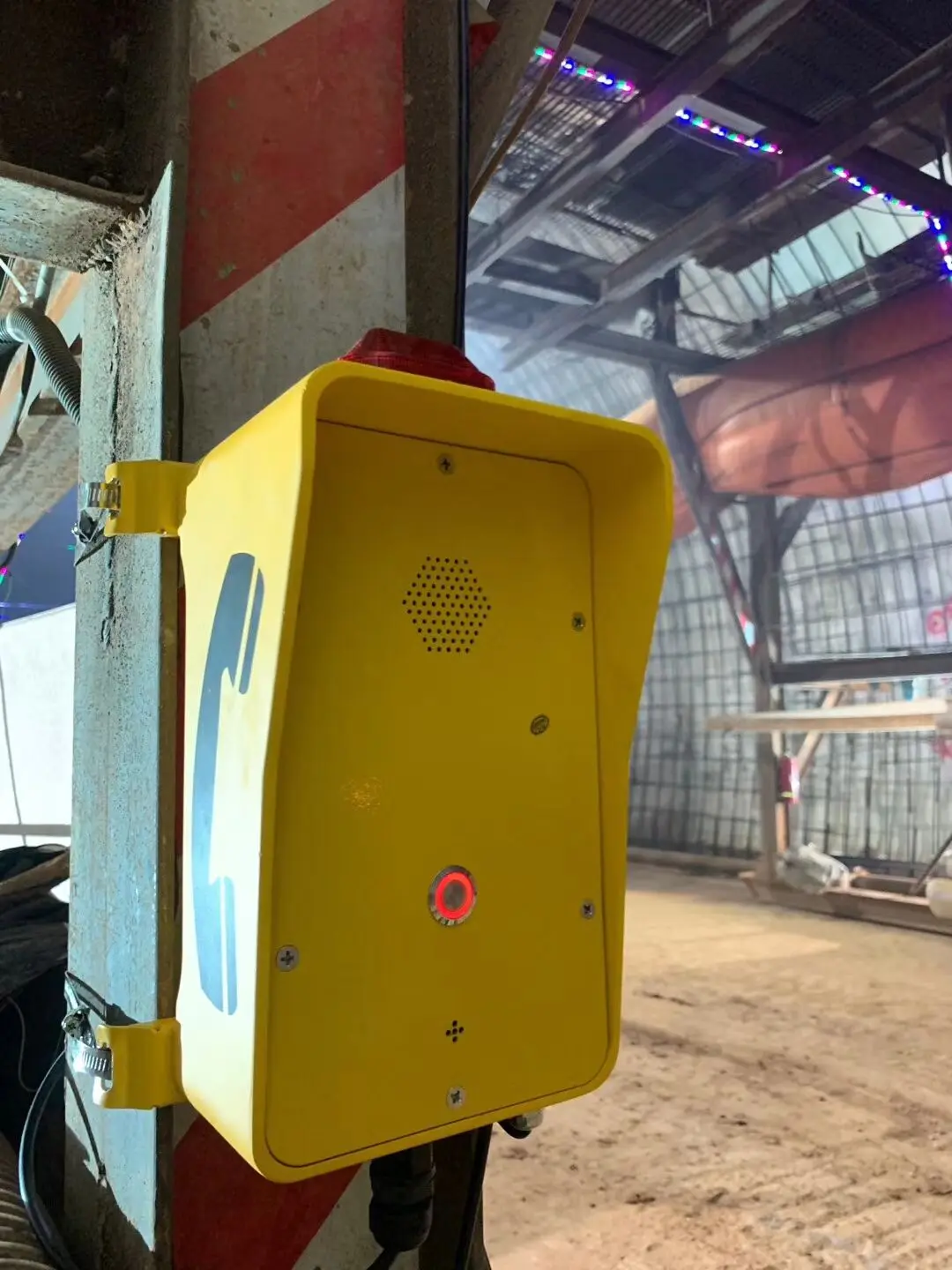

HeoZ Successful Project Installation
Company Profile
About HeoZ ---The professional and reliable industrial telephone and weatherproof telephone manufaturer
Incorporated in 2015, HeoZ technology Co., Ltd headquartered in Shenzhen. We are professional research and development,production, and marketing of emergency telephone systems, public security solutions, explosion-proof telephones, prison telephones, acoustic hoods, blue light emergency phones, and industrial telephone PCBs.
Since 2015, many contracts and purchase orders succeeded, starting from Hong Kong, Singapore, Vietnam, Thailand, India, Australia, Spain, Germany, Turkey, Russia, Saudi Arabia, United States, Mexico, Canada, Chile, Colombia, Peru, etc.Over the past 5 years, we have provided services with our partners to our clients which in Oil and Gas, Petrochemicals and Mining,Tunnels, Metro, Railway Motorway, Parking, Smart City, Prison, Hospital, Campus in more than 40 countries, worked with over 1000 customers and delivered 500+ projects by successfully.
HeoZ technology Co., Ltd stands out because of its ability to offer a flexible, tailor-made approach, using the solutions that best suit the needs of our clients. We assure always the availability of trained staff to carry out maintenance service and to provide the needed technical support.
Since 2015, many contracts and purchase orders succeeded, starting from Hong Kong, Singapore, Vietnam, Thailand, India, Australia, Spain, Germany, Turkey, Russia, Saudi Arabia, United States, Mexico, Canada, Chile, Colombia, Peru, etc.Over the past 5 years, we have provided services with our partners to our clients which in Oil and Gas, Petrochemicals and Mining,Tunnels, Metro, Railway Motorway, Parking, Smart City, Prison, Hospital, Campus in more than 40 countries, worked with over 1000 customers and delivered 500+ projects by successfully.
Quality is our main priority.
We always have a clear mission to creating a better tomorrow by acting differently!
FAQ
When can i get the quotation?
HeoZ sales team will quote within 2 hours after we got your inquiry no matter working day or weekend. If you are very urgent, please contact us via email, skype or whatsapp.
Are you a factory?
HoeZ is a industrial telecommunication devices factory with OEM/ODM service loated in Guangdong,China. .
Why choose us?
1).HeoZ team is a leading manufacuturer and Top supplier in Alibaba.
2).Competitive prices direct from factory suppliers.
3).Outstanding design and high quality.
4).Fast delivery around the global.
5).Professional OEM/ODM and personalized private customize.
How to order?
1).Confirm with HeoZ team for the best model number,quantity, function and and other special requirements.
2).Proforma Invoice will be made and send for your approval.
3).Productions will be arranged upon receipt of your approval and payment or deposit.
4).Goods will be delivered on time as stated on the proforma invoice.
5) Continue support for the import and export customers clearance for our clients.
What kind of inspection you can provide?
HeoZ has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee every unit emergency telephones or telephone parts are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
What is your warranty time?
HeoZ provides 36 months warranty for finished emergency weatherproof telephones, and 12 months for the telephone parts, which inlcued analog telephone PCB, SIP telephone PCB, GSM telephone PCB, handset, hook, keypad, louderspeaker, sos beacon,etc.
