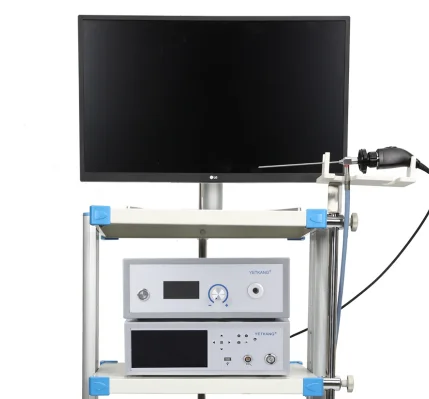

Medical Endoscope Camera Tower 1080P Full HD Cold Light Source Endoscope Camera Tower
- Category: >>>
- Supplier: Shenzhen New Concept Med Tec Co. Ltd.
Share on (1600379286194):
Product Overview
Description
Product Description

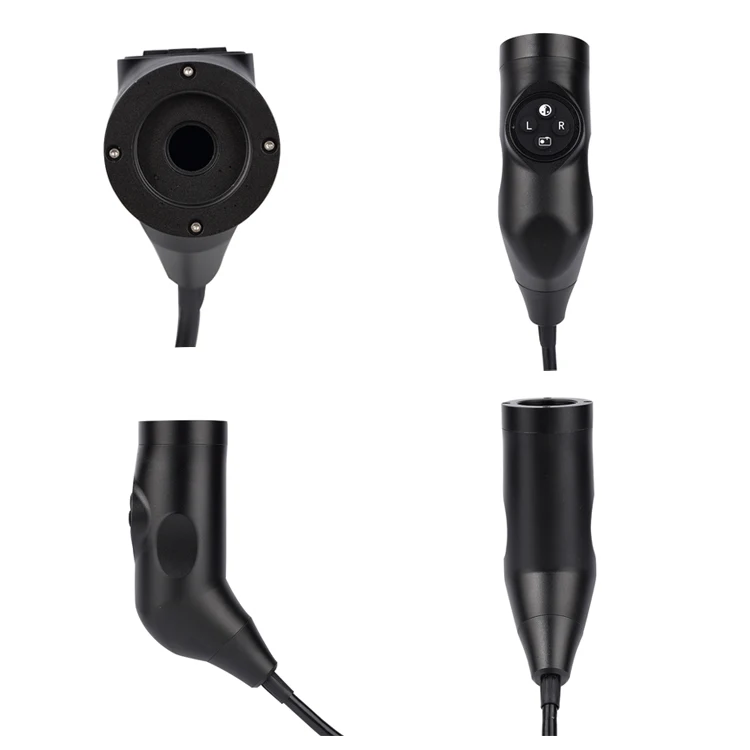

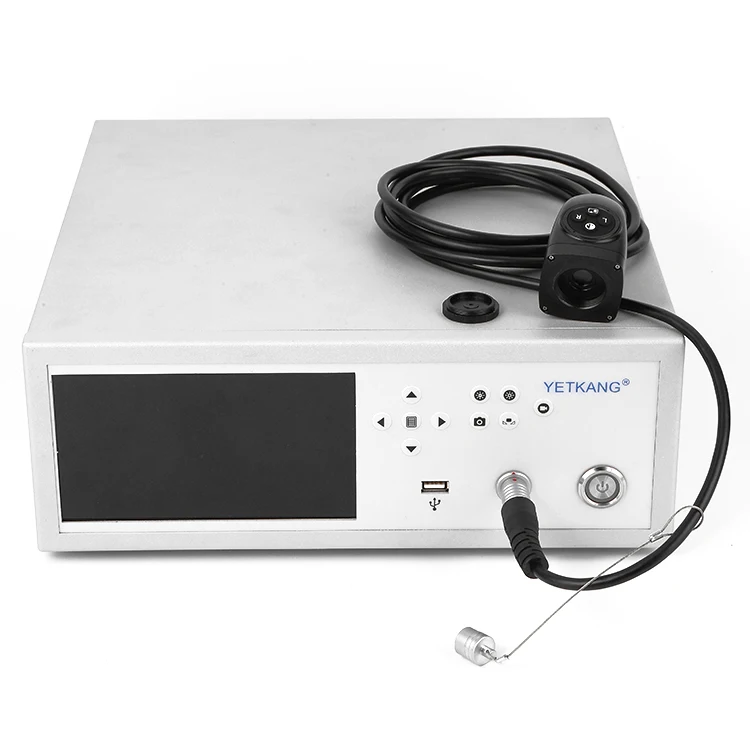

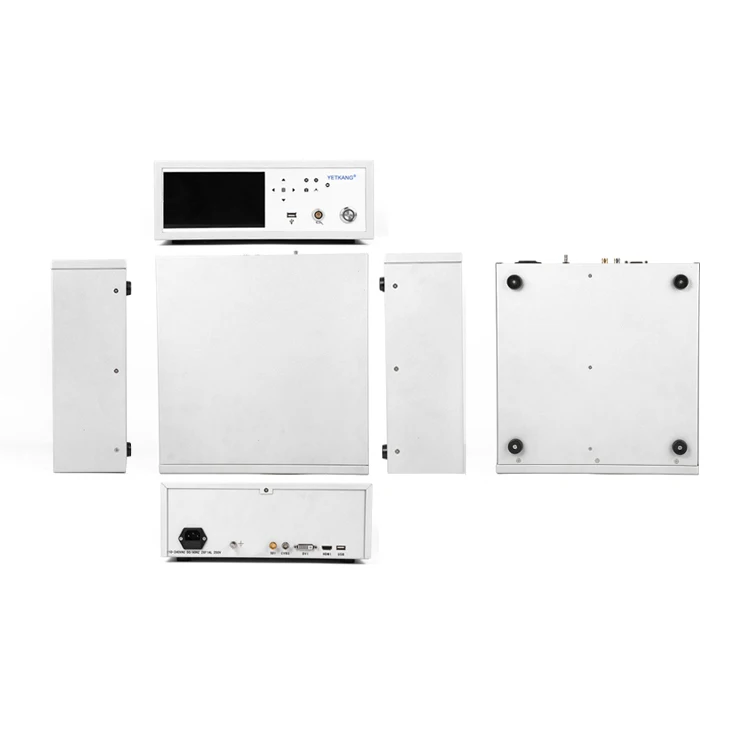

Full HD Medical USB Endoscopy Camera for ENT/Laporoscope/Urology
Item Name | FHD Endoscopy Camera | ||
Specifications | Features | ||
Active | 1920(H)X 1080(V) | Button Functions of Camera Head Can be Customized and 10 groups of surgeon scenes can be stocked in system for Direct diagnosis/Surgeon without unnecessary camera parameter adjustment,extremely convenient | |
Horizontal Resolution | 1080P Video output | ||
Minimum Illumination | 20L X F1.4 | Support USB recording for image and Video for medical conference, medical analyse and medical communication | |
Required Illumination | 2000L X F5.6 | ||
Signal/Noise Ratio | >= 54 dB | IPX8 waterproof and Autoclave Camera Head with 100% Pure Aluminum | |
Video Output Model | DVI,VGA,CVBS | ||
Network | Support IPAD/IPHONE/PC | 5mm Thickness Aluminum Housing box with perfect performance on Anti-Electromagnetic Interference | |
Pack G.W | 7.0kg | ||
Pack Dimension | 435x325x220mm | Support LAN Network, compatible with IPAD/IPHONE/PC by WIFI or LAN connection, Useful for Medical Training and Education | |
Camera Head Dimension | Diameter 36mm x L 95mm | ||

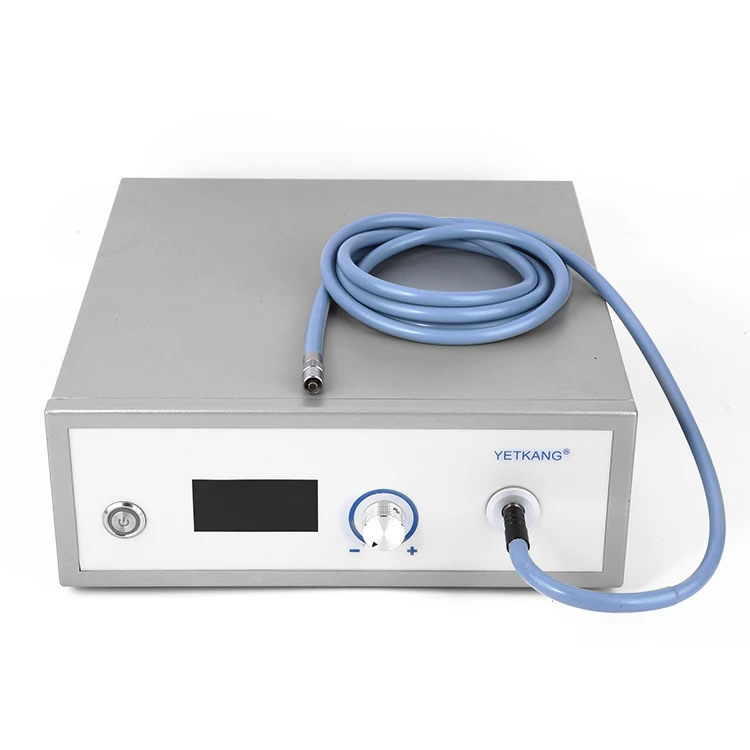

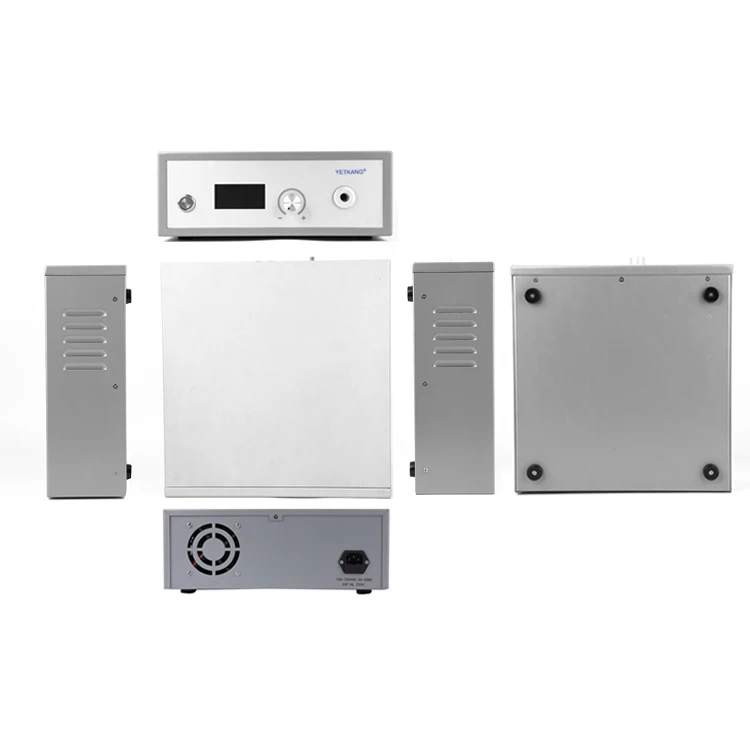

AC100~220V portable endoscope led light source Medical Equipment
Product Name | Endoscopic LED Cold Light Source | ||
Specifications | Features | ||
Illuminance | >= 2000000 Lux | LCD screen showed the machine used time, date, brightness,machine temperature. System is equipped with memory function to Calculate the used time. | |
Color temperature | 5700-6500K | ||
LED Power is 80 Watt | 100 Watt | Scroll rotating button, convenient for Adjustment | |
CRI | >= 90 | ||
Lamp Life | <= 60000 H | 5mm Thickness Aluminum housing, stiff housing, endurable | |
Item Size | 300*200*100mm | ||
Item Weight | 5.5kg | Brightness has no dark area, extremely average coverage | |
Carton Dimension | 435x325x220mm | ||
Full HD LCD Medical Endoscope Monitor for ENT, Laparoscopy, Arthroscopy 24 inch
Item Name | Medical Monitor | ||
Specifications | Feature | ||
Screen Size | 24 inch | *** High Brightness, High Contrast *** 16.7M color support *** Totally closed design for waterproof and dust-proof *** Interfaces: Composite 9BNC), S-Video, DVI-HDMI VGA and RGB (BNC*3) | |
Resolution | 1920*1200 | ||
Brightness | 450cd/m² | ||
Contrast | 1000:1 | ||
Response time | 13ms | ||
Visual angle | 178 degree H/V | ||
Hue | 16.7M | ||
Item Weight | 8.5kg | ||
Input | BNC/YC/RGB/yPbPr/VGA/DVI | ||
Output | BNC/YC/RGB/yPbP | ||
Power Supply | 100-240V | ||
Color Temperature | 5500K/6500K/7500K/9300K | ||
Working Environment | 0-40 Centigrade/30-80% humidity | ||
Dimension | 570*394*190mm | ||
Detailed Images
Main products
Factory Information
Factory workshop
Why Choose Us
FAQ
NCM has devoted itself to offer OEM/ODM service to domestic and foreign endoscopy clients since its first day of establishment. We have a professional R&D Team made up of 6 persons, who has rich experience and expertise in the fields of digital video transmission and electronic component controlling. Since All our engineers have careers in HUAWEI and HIK Vision before joining NCM MED. NCM is equipped with PCB circuit board production line and has professional dust-free environmental workshops to meet OEM/ODM service for our domestic clients and overseas clients.
The Main OEM/OEM service is for medical endoscopy Full HD 1080p camera system, medical LED cold light source, Laparoscopic CO2 insufflator, Suction/Irrigation Pump for ENT/Gynecology.
Q1:Are you a Factory or trading company?
A1: We are a factory which is located in Shenzhen, China.Our company has been specialized in medical instruments for 20 years.
Q2: What is your quality control process?
A2: We are certified with ISO, and strictly follow the ISO procedures. We do 100% testing for medical instruments and endoscopes before the order is deliveried.
Q3:What is Certificates do you have?
A3:We have CE, RoHS, ISO 13485 certificates.
Q4:What is the after sales service?
A4:We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complaints and feedback. Our warranty is 2 years.
Q5:What is your Delivery Time?
A5:7-15 days after order confirmed.
We will make the delivery as soon as possible after receive the payment.
