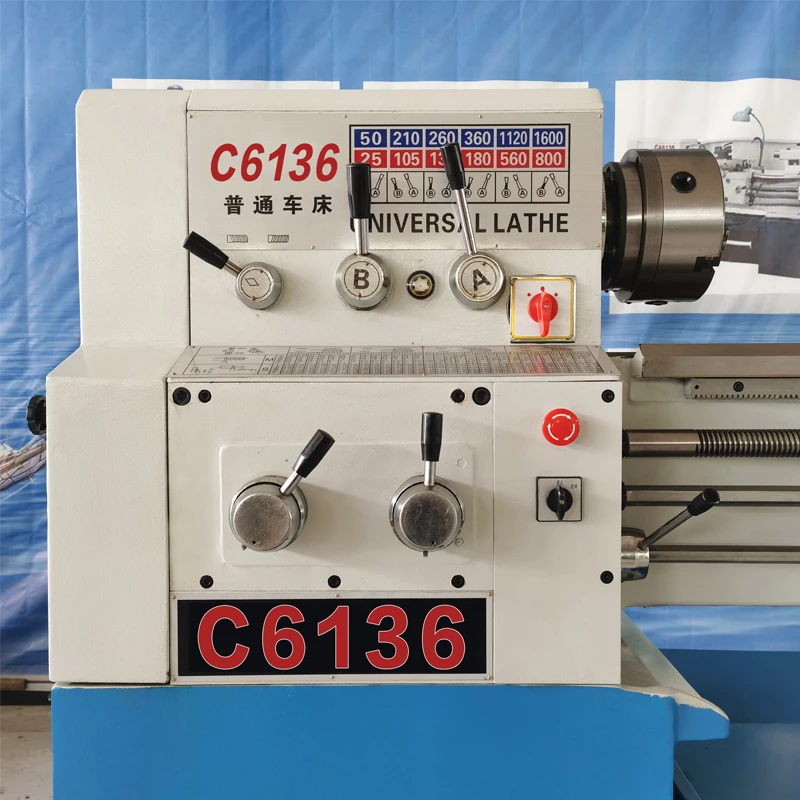

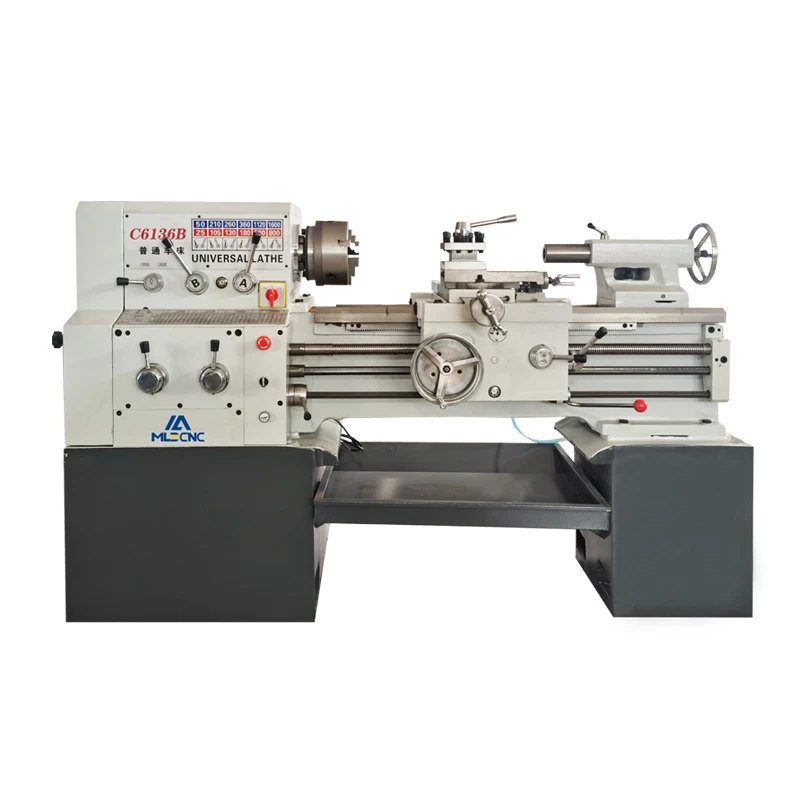

made in japan mini lathe c6236 metal lathe machine for steel
- Category: >>>
- Supplier: Shandong Mainland Cnc Equipment Co. Ltd
Share on (1600379373038):
Product Overview
Description
Products Performance
Features:
* This series universal lathe machine is suitable for internal and external turning , tapering , and other rotating faces , metric , module and inch threads , as well as drilling and pull oil slot , widely used in axial and plates processing .
* The lathe bed is wider than normal machine , the width of bed is 312mm, owns high rigidity , guideway after high frequency quenching , with high durability .
* Easy operated , one handle to operate quite convenient .
* Own high rigidity in both structure and transfer parts , high percent the use of power make the machine cutting easily . Lot of optional accessories for you to choose .
* Whole side test before leave the factory , make sure the machine owns high stability and more reliable .
* The lathe bed is wider than normal machine , the width of bed is 312mm, owns high rigidity , guideway after high frequency quenching , with high durability .
* Easy operated , one handle to operate quite convenient .
* Own high rigidity in both structure and transfer parts , high percent the use of power make the machine cutting easily . Lot of optional accessories for you to choose .
* Whole side test before leave the factory , make sure the machine owns high stability and more reliable .

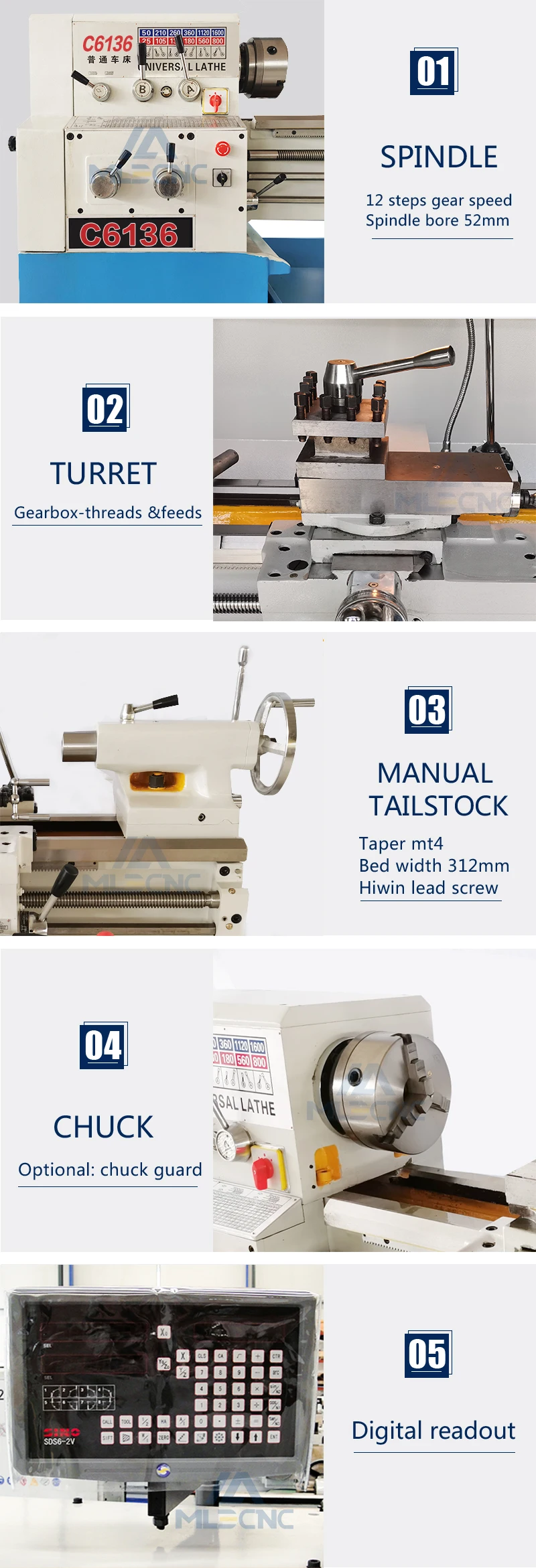

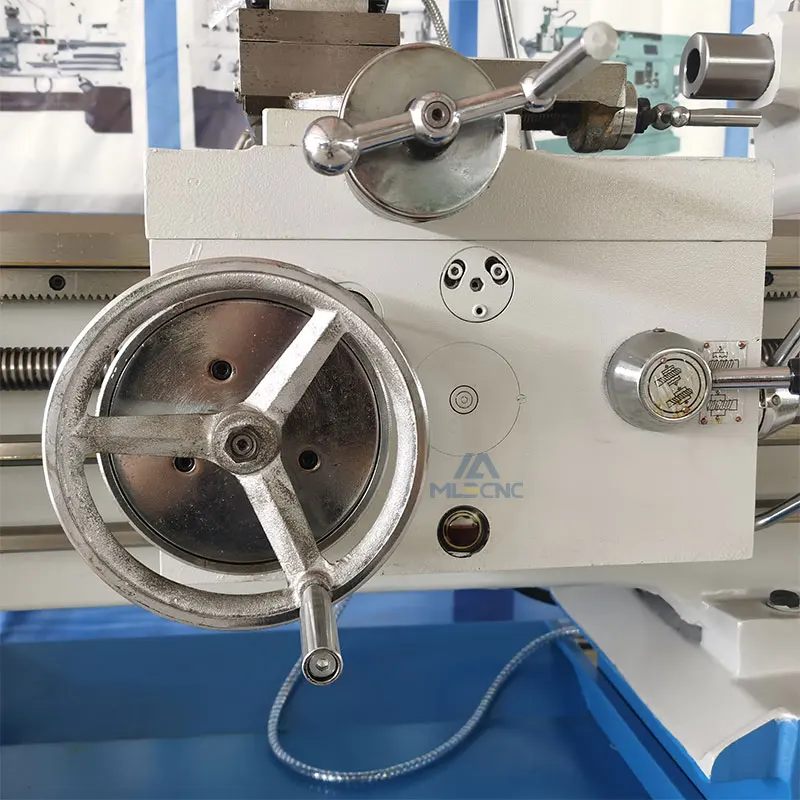

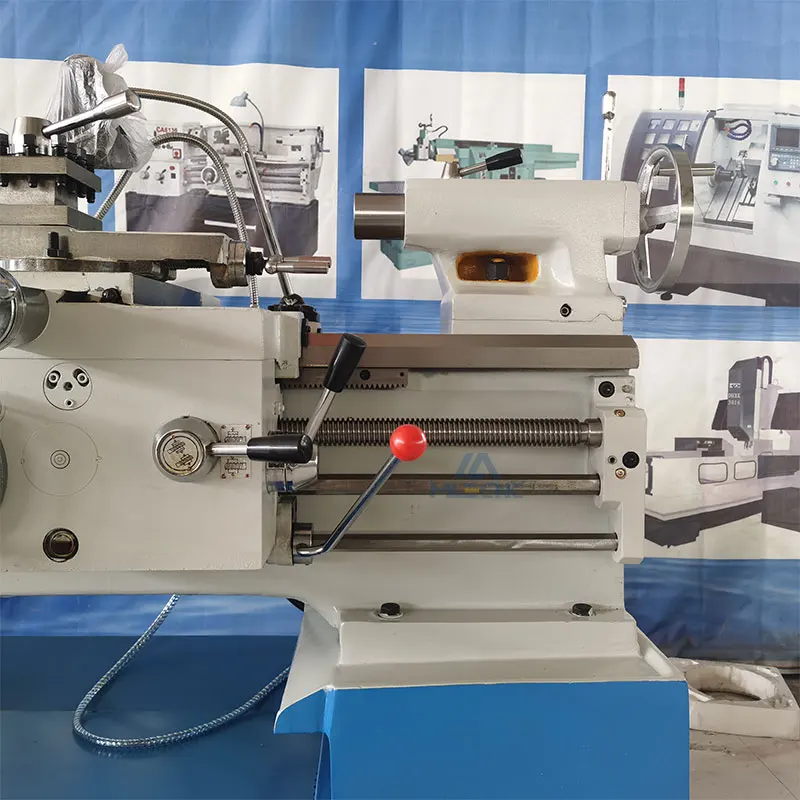

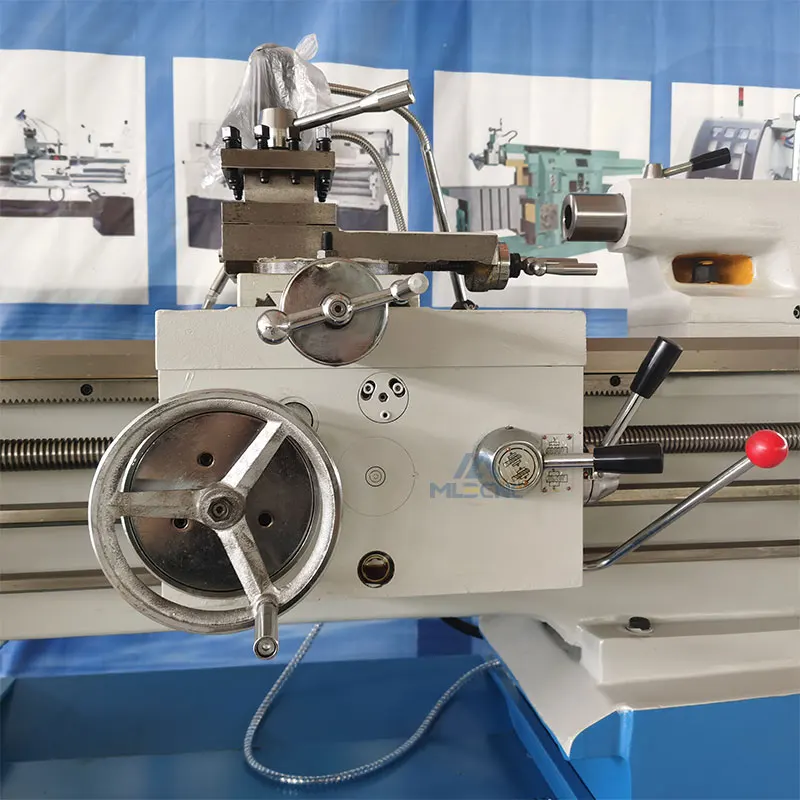

Machine Photos
Product Paramenters
item | value | ||||||
Condition | New | ||||||
Model | C6132 | C6136 | C6140 | ||||
Center height | 165 | 190 | 202 | ||||
Max. swing over bed (mm) | 330mm | 370mm | 404mm | ||||
Max. swing over carriage | 180mm | 200mm | 240mm | ||||
Max. length of work piece | 750mm/1000/1500mm | ||||||
Width of bed | 312mm | ||||||
Section of turning tool | 20×20 | ||||||
Turret rotation | ±45° | ||||||
Spindle | Spindle speed | 20- 1600r.p.m(30-2000r.p.m) 12kinds | |||||
Hole through spindle | ∮46mm | ||||||
Spindle taper | MT6 | ||||||
Feed | X axis feed | 0.04-2.16mm/r 138kinds | |||||
Z axis feed | 0.02-1.08mm/r 138kinds | ||||||
Range of metric threads | 0.45-20 mm/r 30 kinds | ||||||
Range of inch threads | 80-1 n/1” 35kinds | ||||||
Range of module threads | 0.25-10mm 25kinds | ||||||
Range of diametral pitc threads | 160-3.5dp 30kinds | ||||||
Tailstock | Max. tailstock spindle travel | 130mm | |||||
Tailstock spindle diameter | ∮60mm | ||||||
Taper of tailstock spindle center hole | MT4 | ||||||
Main motor | 4.5KW | ||||||
Packing dimensions | Overall dimensions for 750mm | 2000×1000×1350 | |||||
Overall dimensions for 1000mm | 2250×1000×1400 | ||||||
Overall dimensions for 1500mm | 2650×1000×1450 | ||||||
Weight | Overall dimensions for 750mm | 1400kg | 1500kg | 1700kg | |||
Overall dimensions for 1000mm | 1500kg | 1600kg | 1800kg | ||||
Overall dimensions for 1500mm | 1700kg | 1750kg | 1950kg | ||||
Warranty | 1 Year | ||||||
Online support, Video technical support Video technical support, Spare parts | |||||||
Key Selling Points | Easy to Operate | ||||||
Applicable Industries | Machinery Repair Shops, Construction works | ||||||
Machinery Test Report | Not Available | ||||||
Video outgoing-inspection | Provided | ||||||
Warranty of core components | 1 Year | ||||||
Core Components | Gearbox | ||||||
Standard Accessories
Standard :
1. 3-jaw chuck;
2. Cooling system;
3. Work Lamp.
4. Back guard
2. Cooling system;
3. Work Lamp.
4. Back guard
5. Tool box
6. Manual book
Optional :
1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
5. Foot plate;
6. Steady rest and Follow rest
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
5. Foot plate;
6. Steady rest and Follow rest
