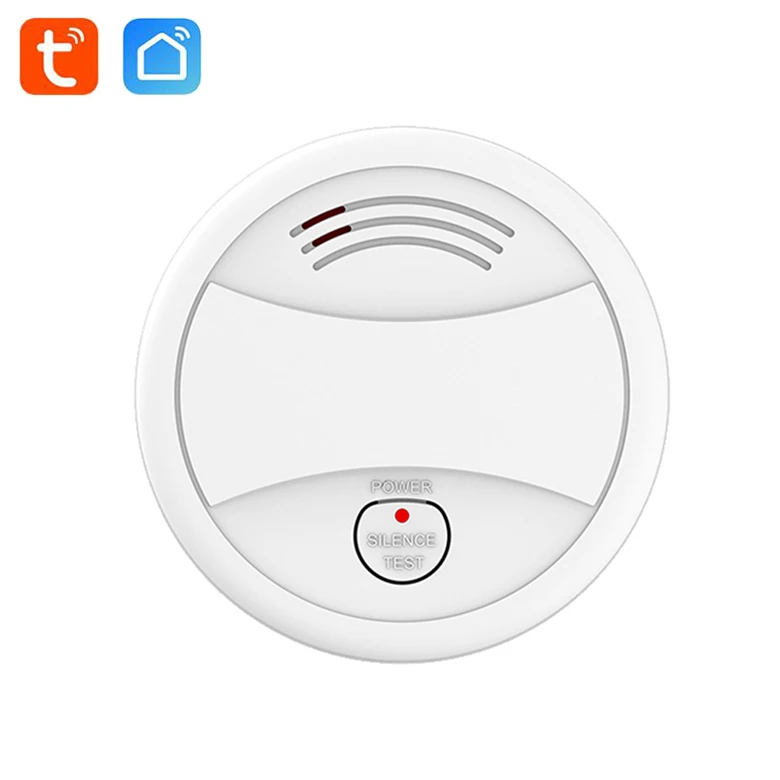

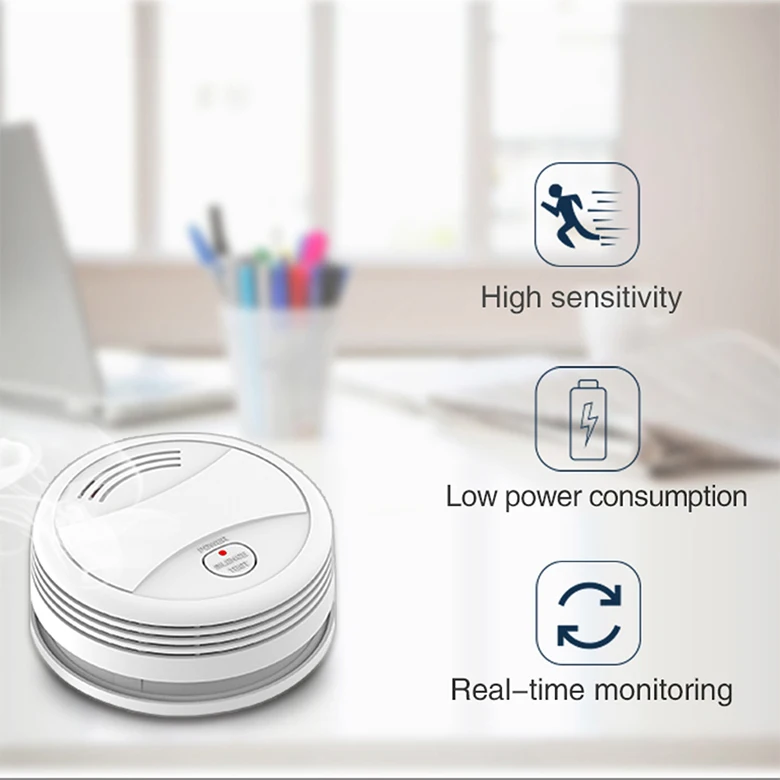

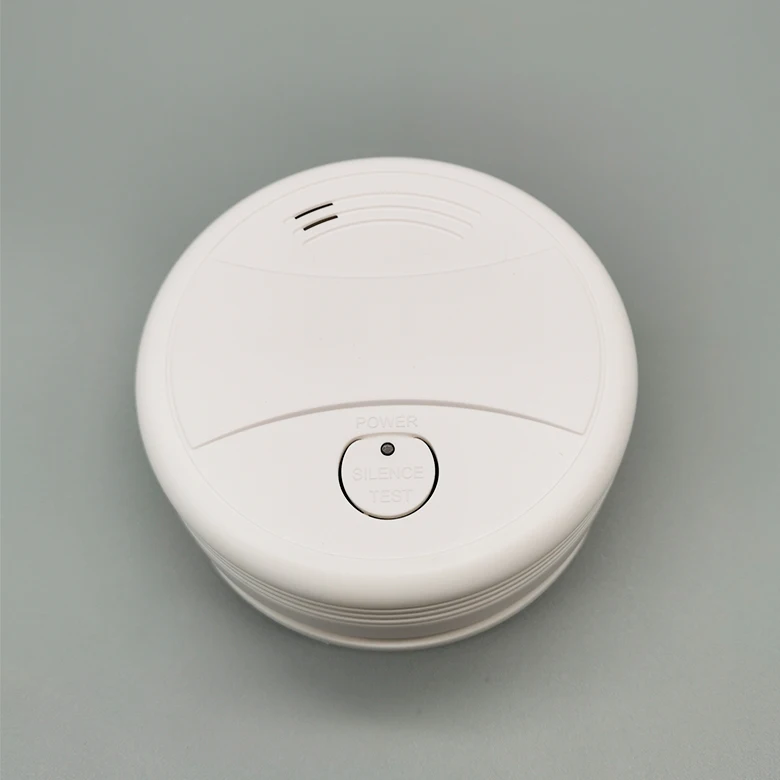

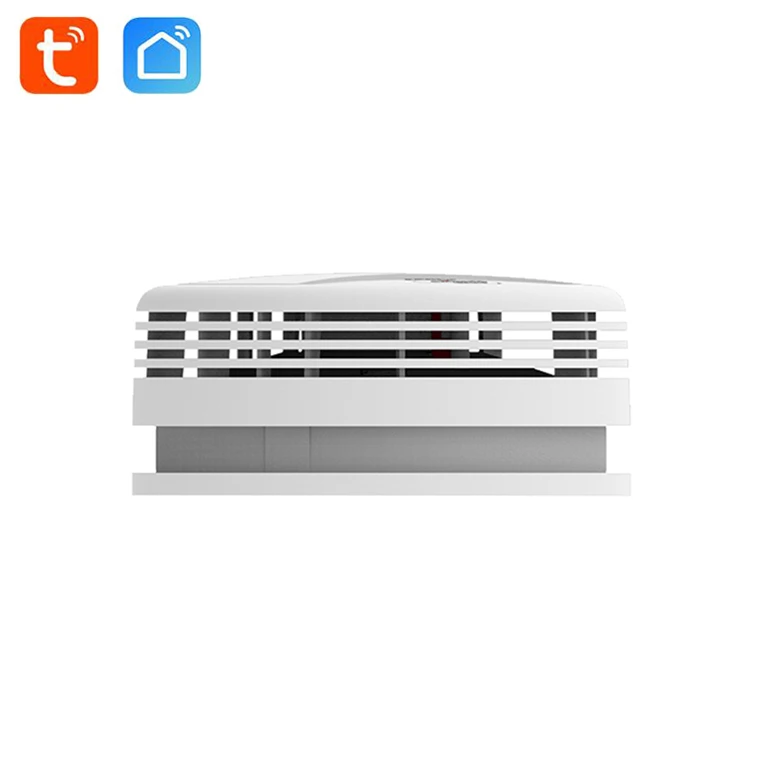

Smart Home Tuya App Alexa Google Home WiFi Standalone Independent 9v alkaline Battery Fire Alarm Smoke Detector Sensor

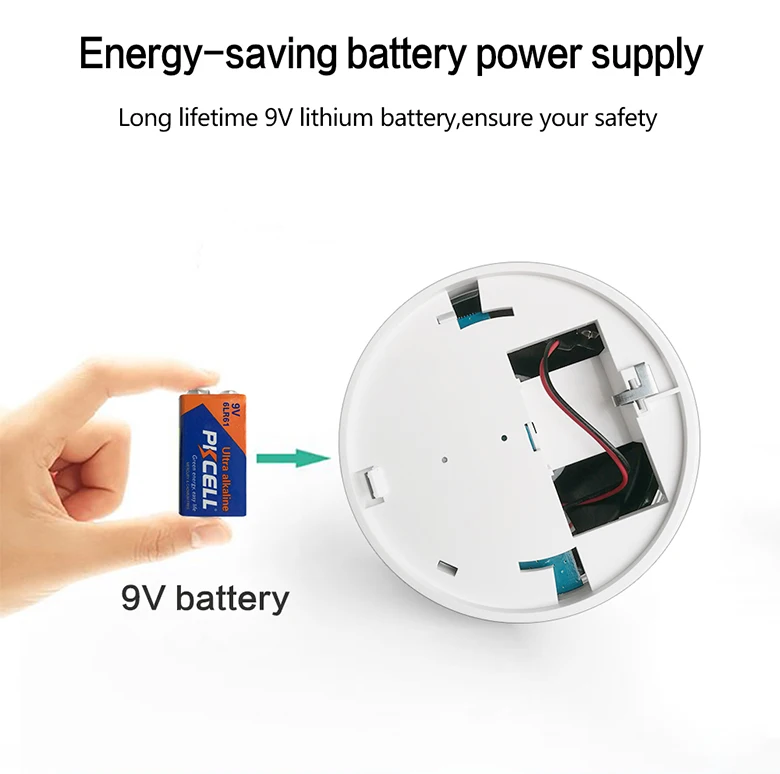

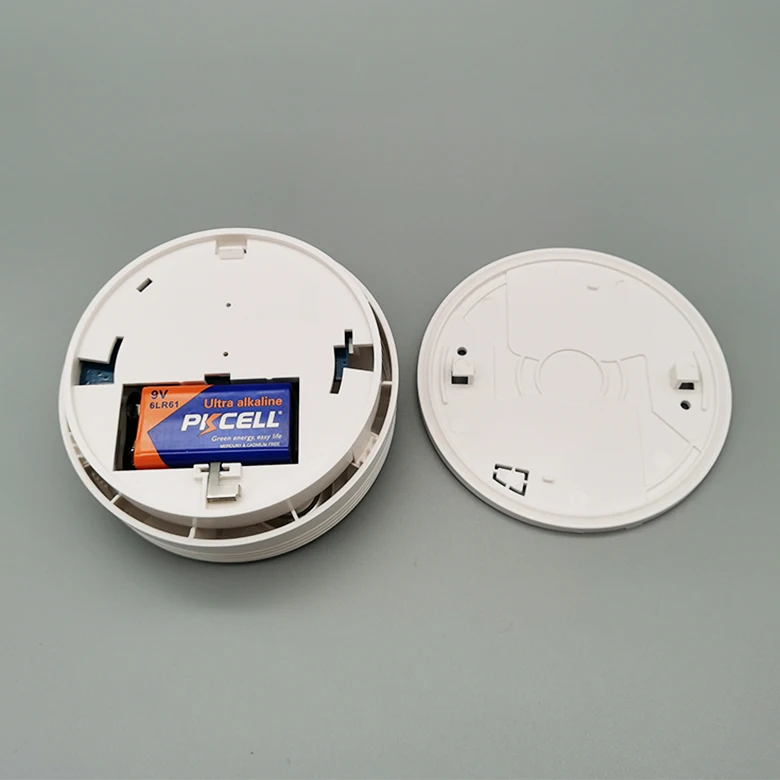

Power supply:DC9V alkaline battery (not included)
Static current:<10uA
Alarm current: <100mA
Working temperature:0℃ ~ +50℃
Humidity: ≤95%RH, no freezing
Alarm sound:>80dB
Low battery alert:≤7.0V±0.2V

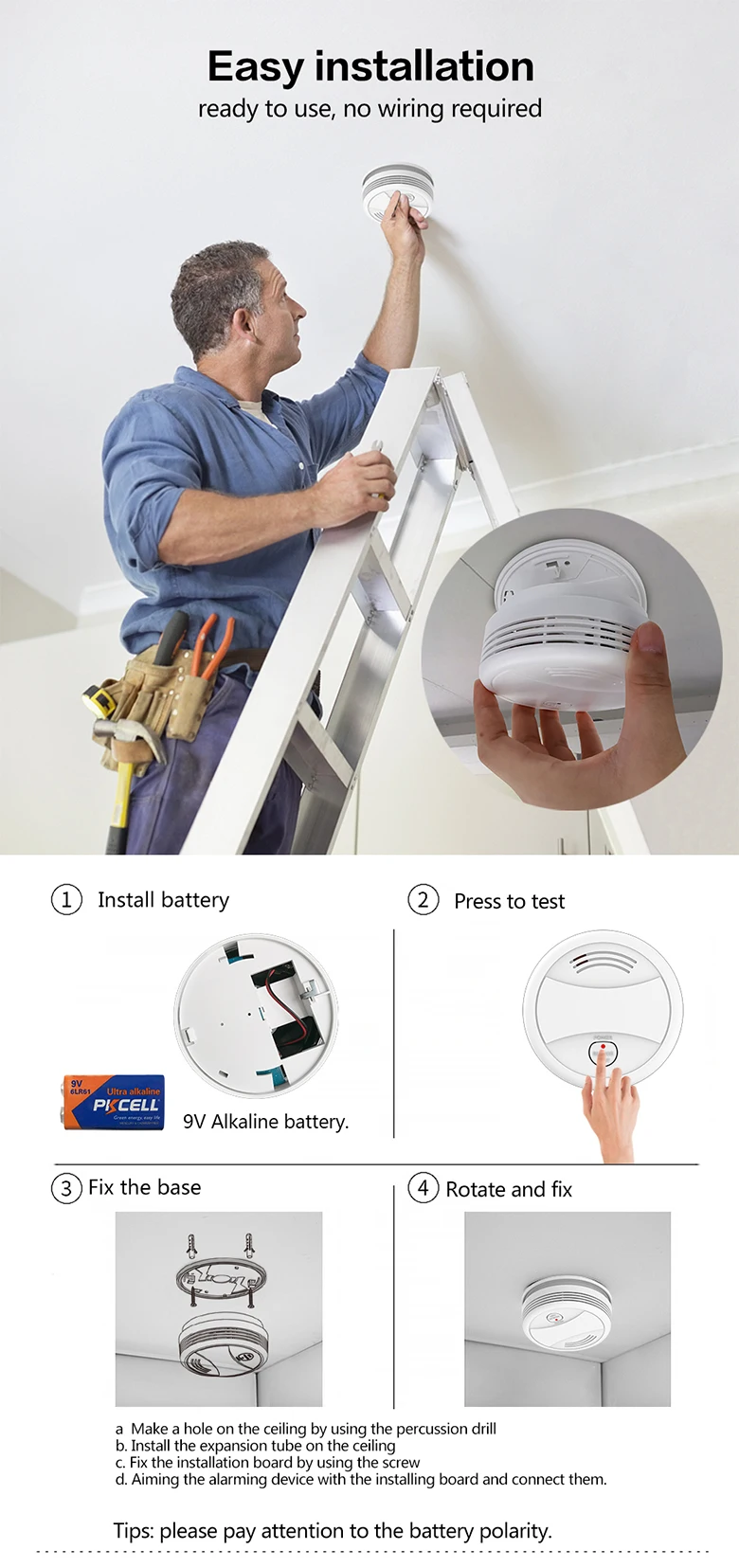

Installing method

a. Make a hole on the ceiling by using the percussion drill
b. Install the expansion tube on the ceiling

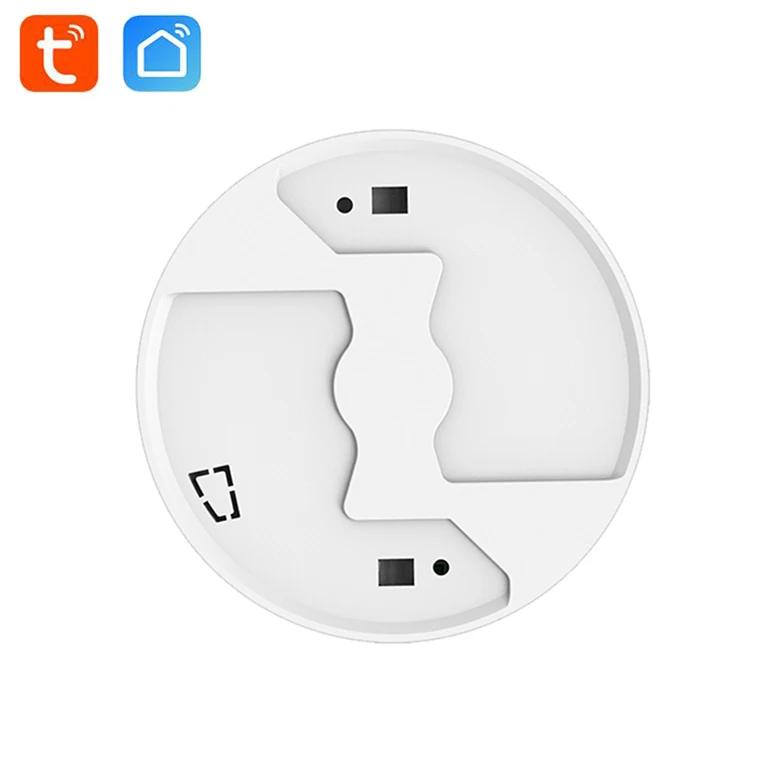

c. Fix the installation board by using the screw
d. Aiming the smoke detector with the installing board and connect them, rotating clockwise till heard the tip, means installing correctly

Mute & Testing

Mute: in alarm status, press the ‘TEST’ button to mute the buzzer, only LED indicator flashes.
Testing: in normal status, long press ‘TEST’ button for 2s to trigger the sound & light alarm, alarm message is sent to the mobile APP.

WiFi Configuration & Networking

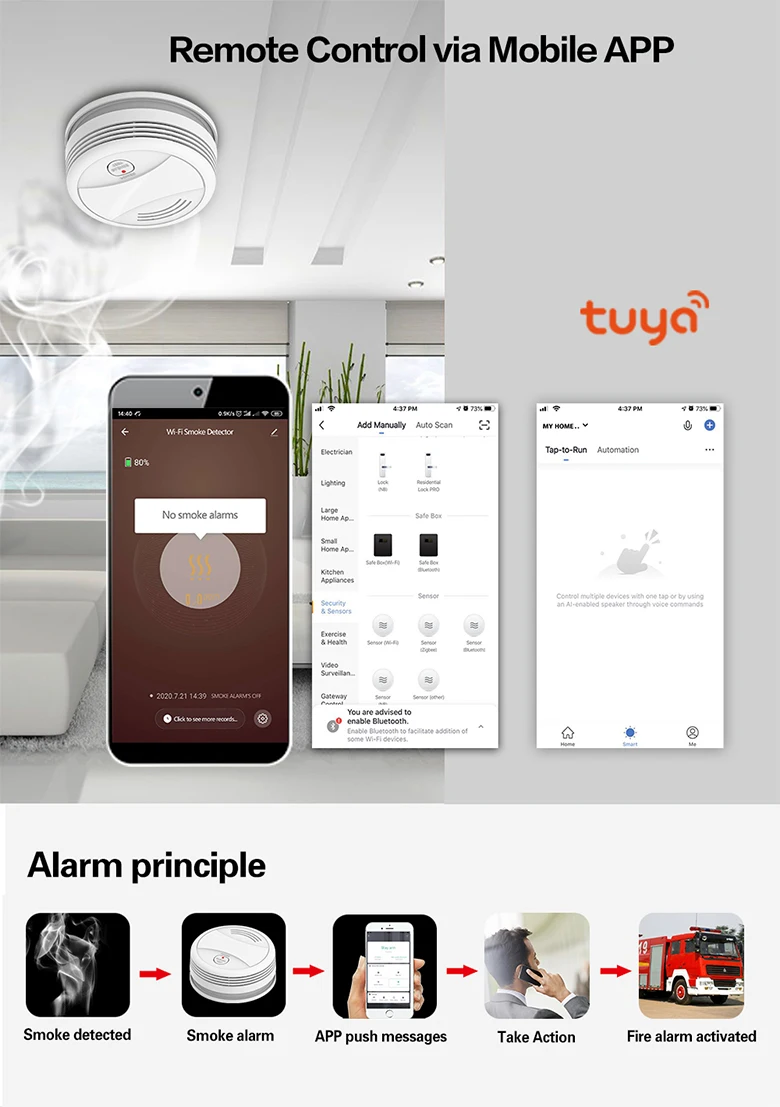

Install ‘Tuya Smart’ APP on your smartphone the first time you use the detector.

Make sure your smartphone is connected to the WiFi.
a) Launch the APP, click ‘Add device’---’Security Sensor’---’Sensor (WiFi)’ / "Smoke(WiFi)".
b) Long press the ‘TEST’ button for 5s until LED flashes with a short beep of ‘Di’ (long press the button within 20s of loading the battery to enter WiFi configuration mode).
c) Click ‘OK’ in the APP---input password for the WiFi an click ’OK’, the detector enters configuration mode which lasts for 60s maximum.

A long beep of ‘Di’ with LED indicator on for 10s means the WiFi configuration is completed. When WiFi configuration fails, the detector exits configuration mode with short beep of ‘Di Di Di’.

WiFi configuration is done based on the 3 steps above.

WiFi Networking Status: when LED indicator is on for 10s after battery is loaded, it means the detector is successfully connected to WiFi.

1. How can you control the quality?

Starz: We have IQC, OAC, QA to control the quality, which make sure every step are running well.

2. Can you make OEM package for my order?

Starz:  Yes, we have rich experience for OEM projects.

3. What colors can I choose?

Starz:  The color is optional, you can tell us which color you perfer, then we will check if we can make it or not.

4. What is your main product?

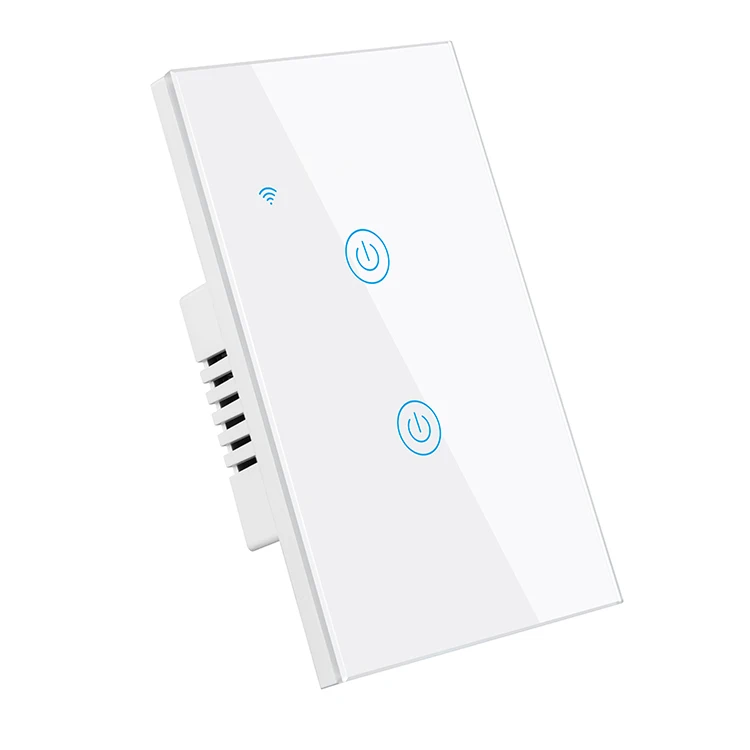

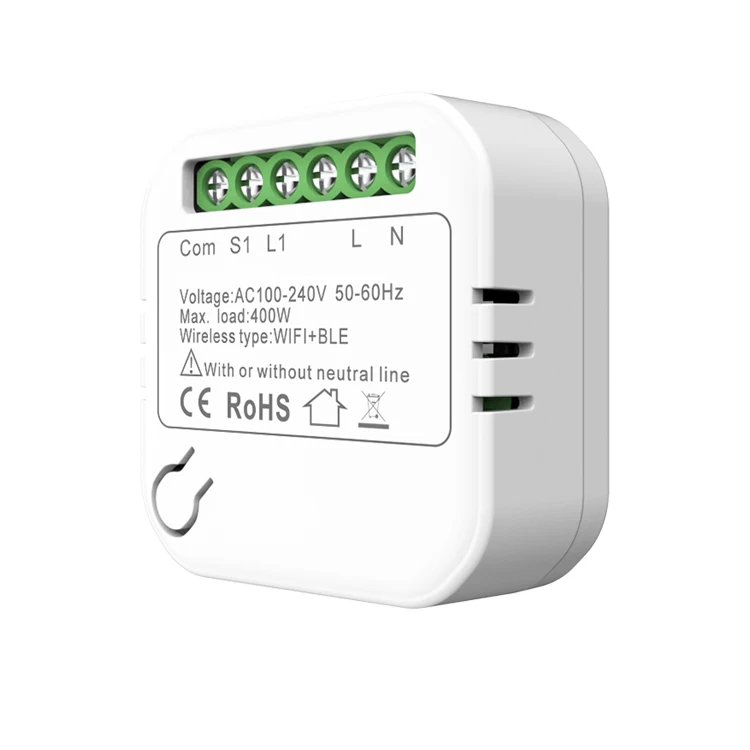

Starz: our main product line includes: Smart wifi air box, smart video doorbell, smart home camera, smart wifi switch, smart zigbee switch, smart garage door opener, mini smart switch, smart socket, etc.

5. Do you offer the free samples?

Starz:  Yes, but mostly for our old clients, for new clients, it depends on the company and need to apply with our management.

6. What's the MOQ?

Starz:  Normally we don’t have strict requirement for MOQ, the quantity can be negotiated.

7. What's your production capacity per day?

Starz:  It depends on the product line, actually it is about 5K-20K pieces per day, the monthly production capacity up to 100K PCS.

8. What's the sample delivery time?

Starz:  About 2-5 days

9. Can you provide shipping to my country?

Starz:  Yes, we can provide the shipping to your company, just please tell us your address.
