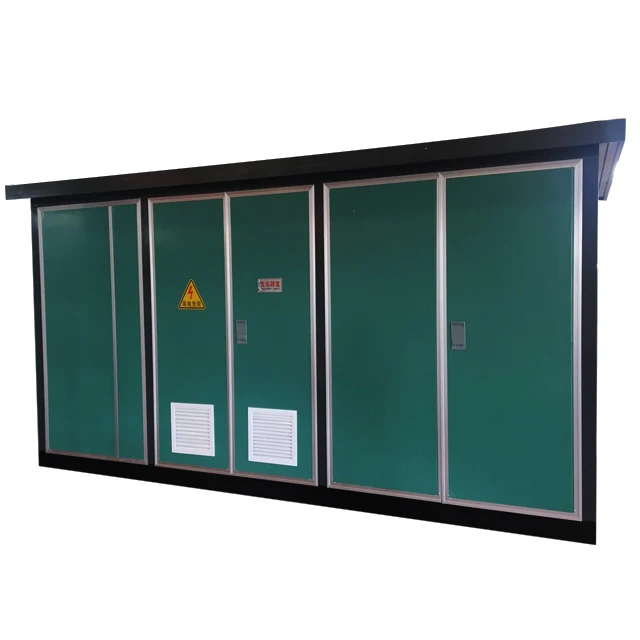

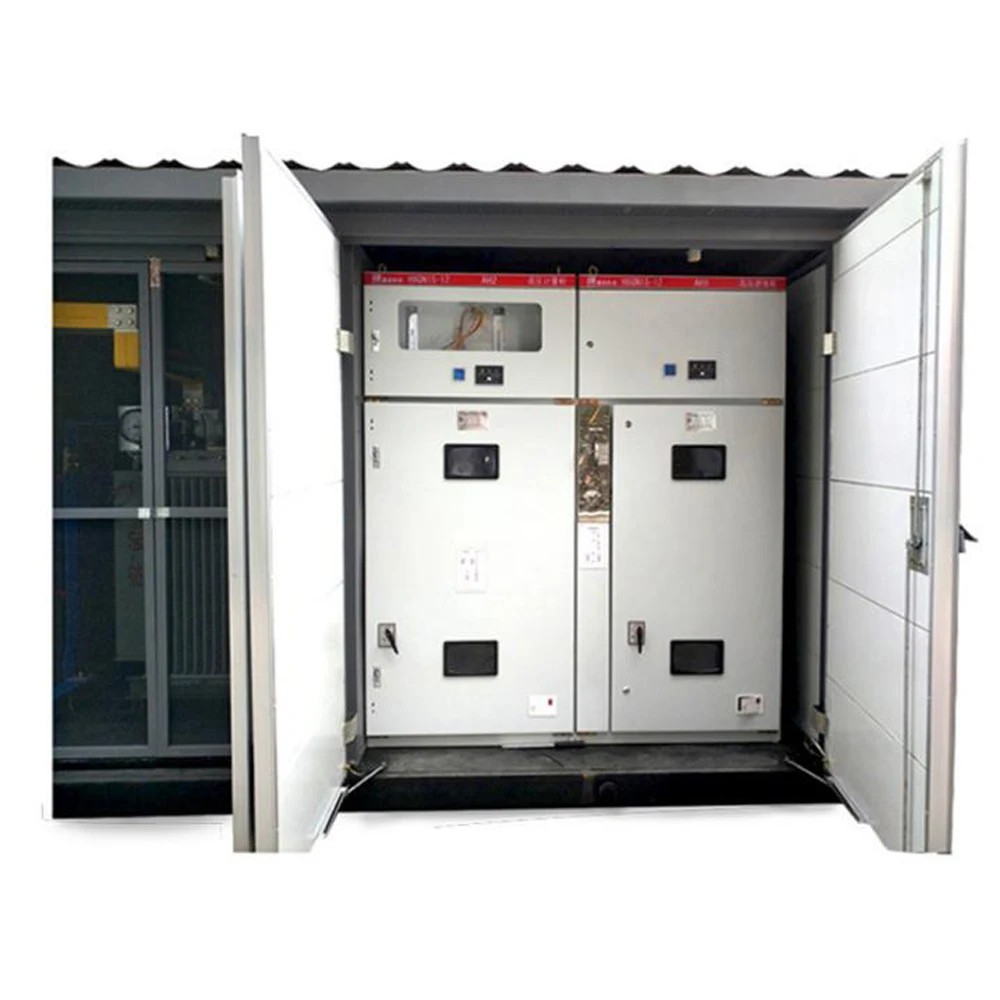

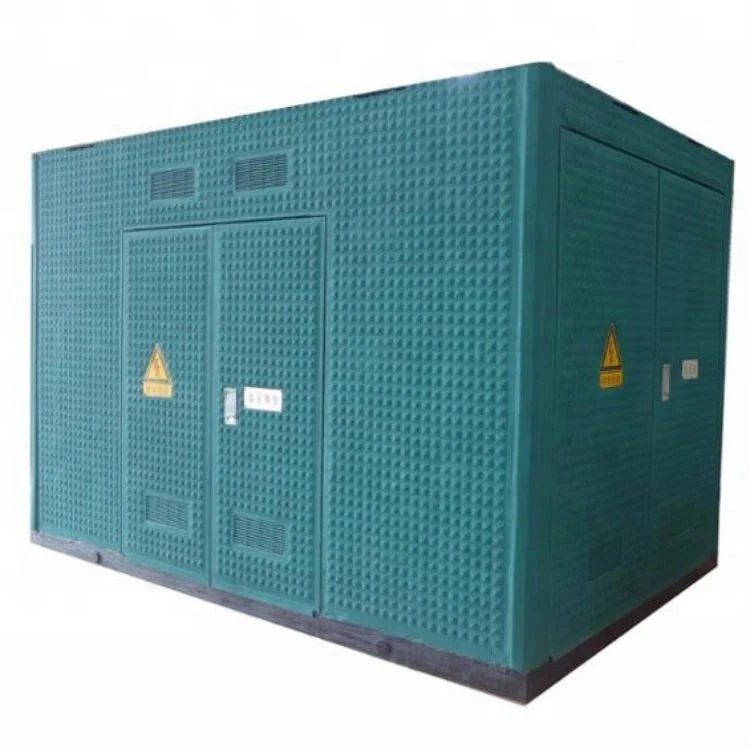

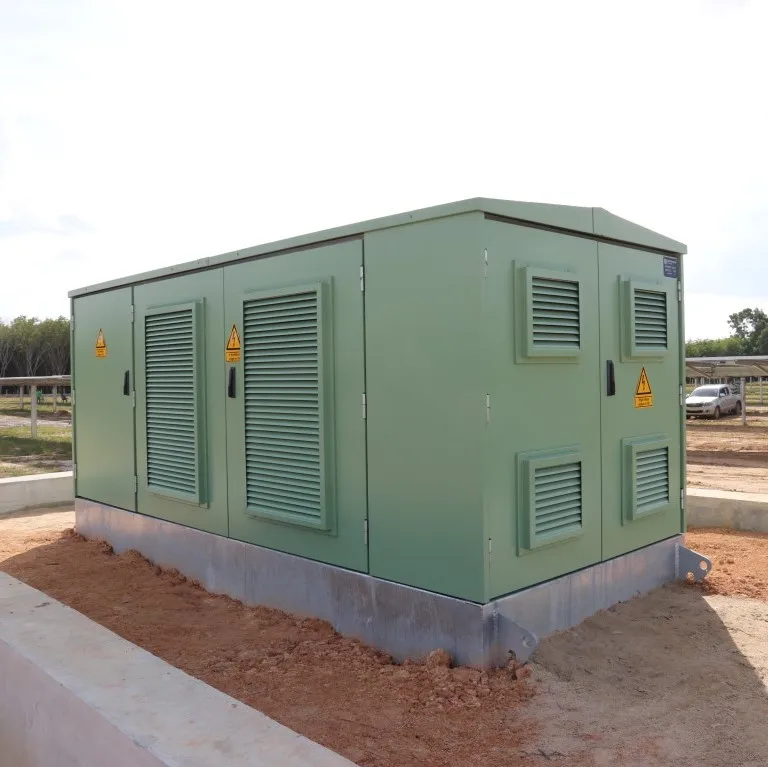

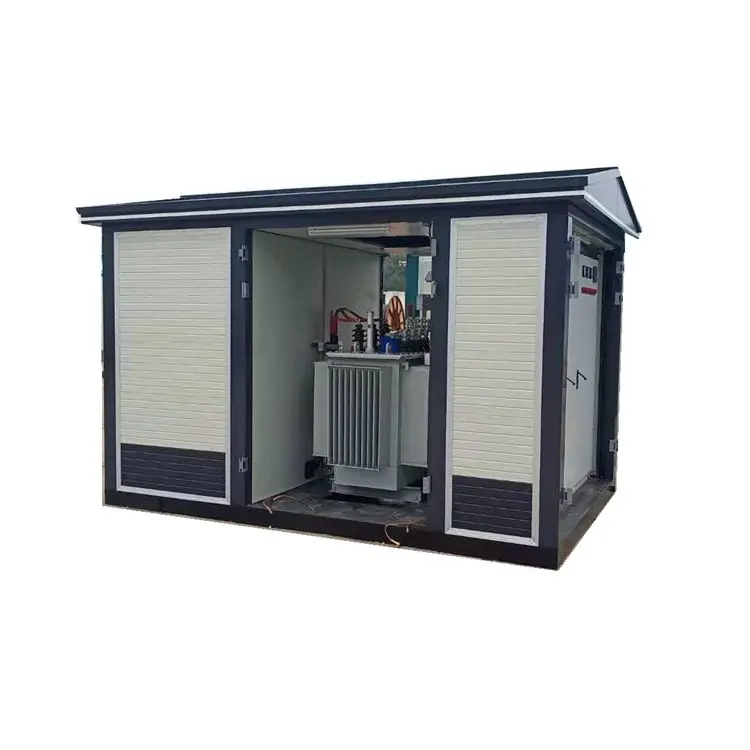

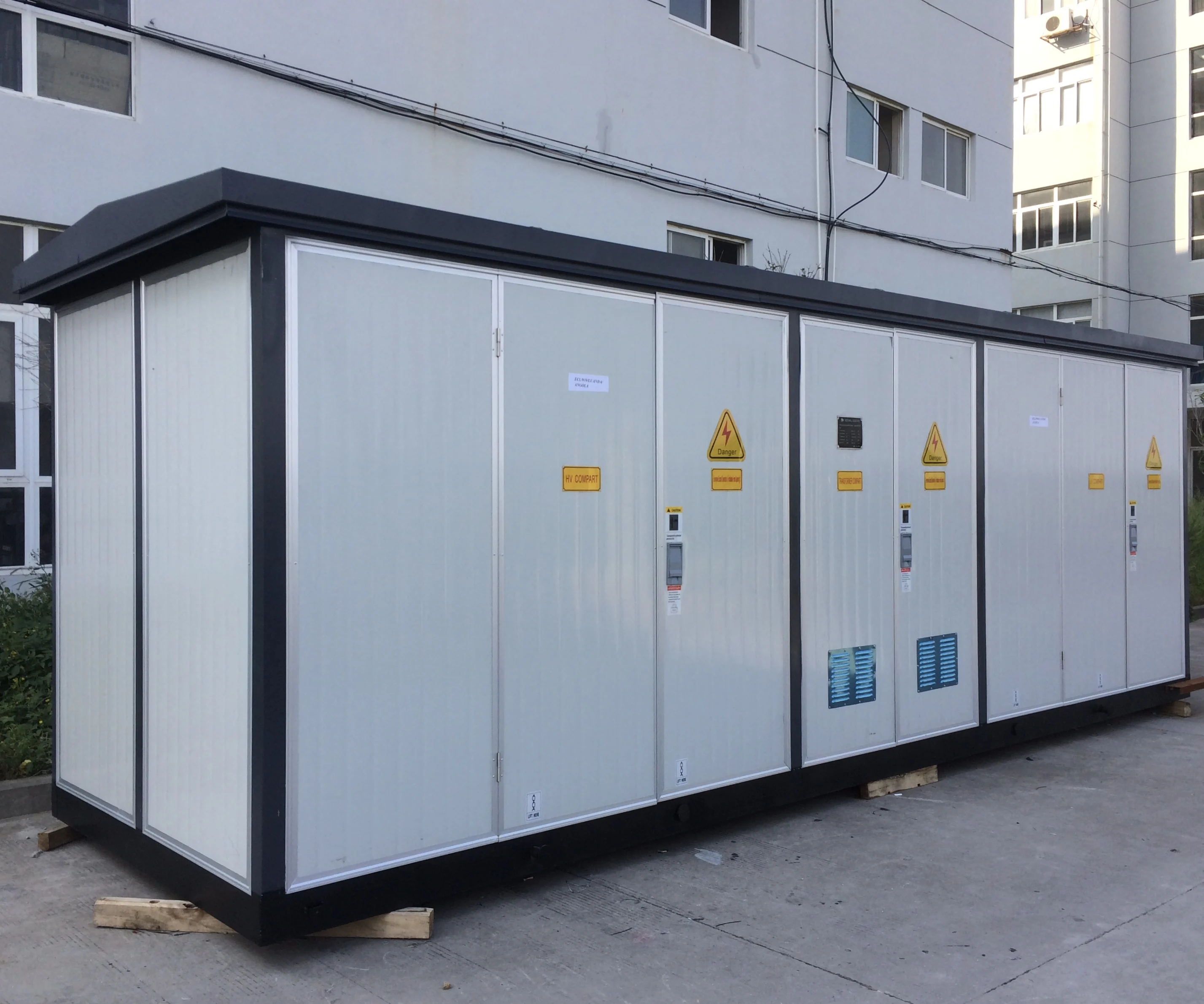

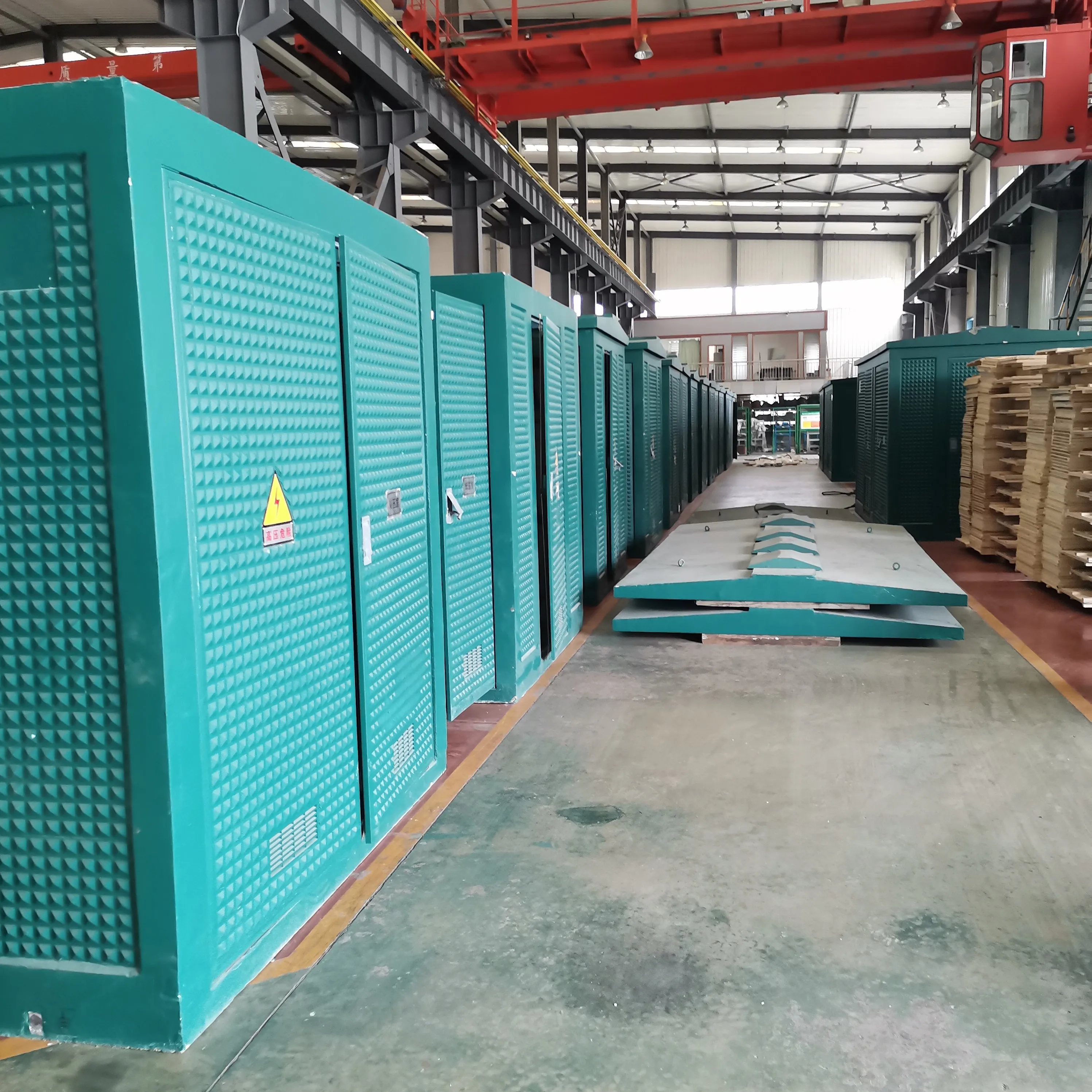

50hz/60hz compact substation FY009 29.16kv Box type substation

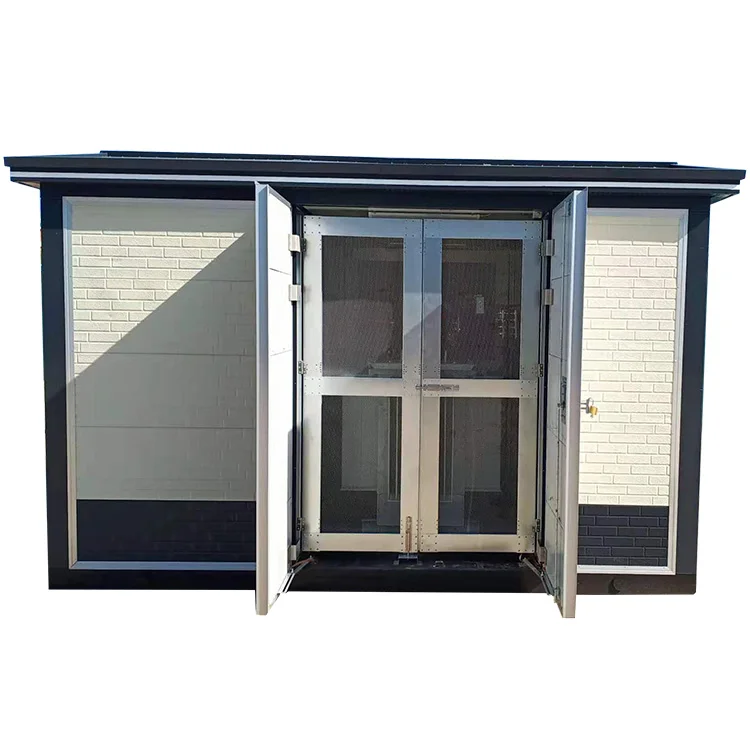

Box type substation description

Ac metal closed type shift switch cabinet is a three-phase ac 50HZ indoor device metal closed switch equipment.Is used in power plants, substation system rated voltage 35kV, rated maximum current 2000A maximum voltage no more than 40.5kV single bus or single bus sectionalized sets of distribution equipment.

This switch device meets the requirements of DL/ t404-91, IEC298, GB3906 and other standards, and has the functions of preventing wrong operation of circuit breaker, pushing and pulling handcart with load, grounding line, power transmission with grounding line and accidental charging interval (referred to as "five precautions").

Box type substation is suitable for residential district, urban public change, bustling downtown, construction power and so on. Users can choose box type change according to different use conditions and load grade. Since the advent of the box substation, it has developed very rapidly. In developed countries, 70% of the distribution transformers have been developed, and the United States has accounted for 90%. The rapid development of China's urban modernization and the renovation of urban distribution network will be widely applied.environment condition.

Box type substations are used in high-rise residential, luxurious villas, square parks, residential areas, small and medium factories, mines, oil fields, and temporary construction electricity and other places to accept and distribute electricity in the distribution system.

Environmental conditions:

Altitude: 1000m and below.
Ambient temperature: - 25 ~ +40 C.
Wind speed: no more than 35m/s.
Arelative humidity: no more than 90% (+25 C).
Seismic horizontal acceleration: no more than 0.4m/s, vertical acceleration: not greater than 0.2m/s.
Place of use: there should be no conductive, dusty, hazardous, corrosive, inflammable and explosive materials harmful to metals and insulators.

Features:

1) Smaller occupied area
2) Firm and reliable
3) Easy to move, beautiful and practical
4) Its cost is low, and the installation period is short

Jiyuan Fengyuan Electrical Equipment Co., Ltd was established in 1984 and is a designated enterprise specializing in the production of high and low voltage switch cabinets by the State Grid Corporation of China.

We have more than 30 years professional experience in high and low voltage switchgear and integrated substationm,box type substation,transformer,etc, have CE,ISO, GB,CQC,certificate

Factory directly,Professional manufacturer, All can be customized according to your local requirement

Welcome to inquiry

Q1 :I know your quality is perfect but in our market normal quality are more popular what can I do?

A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements

Q2 :Can I get a sample before the order because I really don't how is your products quality?

A: Of course! We also think sample order is the best way to build trust. We offer free sample service ! Do not hesitate to send inquiry to get the free sample!

Q3 :What's the delivery time? Because we really need them is urgently?

A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.

Q4 :What's the warranty period for your products?

A: For One year warranty.

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.

Q10 : What is the service offered by company?

A: We have the professional engineer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.

We offer free after-sale service for one year

Tips for quote &Placing Order:

The customer shall specify the following items:

♠ Primary circuit scheme and single line system diagram
♠ Secondary circuit schematic diagram, the wires shall be connected according to factory standard if customer has no requirement;
♠ Switchgear arrangement diagram, plan view of electric power substation.
♠ Detailed specification and parameter of electric element of each circuit;
♠ Surface colour of switchgear;
♠ Other requirements.

Trade terms:

1.Payment: 1) 30% in advance, 70% balance against copy of B/L
2.Port of loading: Qingdao port or Lianyungang port
3.Discounts: offered based on order quantities
4.Delivery time: 10-30 days according to order quantities
5.Package: wooden box and wooden pallet and can be csutomized
