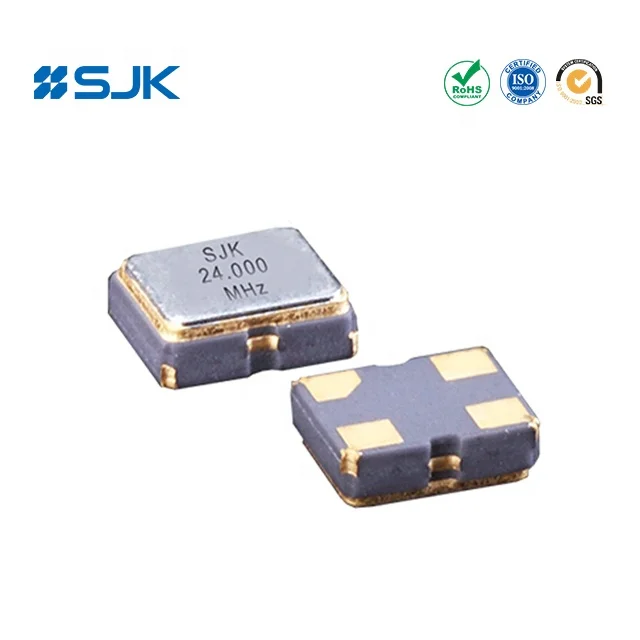

2N SMD 2520 Crystal Oscillators

Item: 2N Series (SMD 2520 Crystal Oscillators)

Frequency Range: 4~75MHz

Supply Voltage: 1.8~3.3V

Size: 2.5×.0×0.8mm Function: 3-state

Applications: WLAN,GPS, Car applications, etc.

Specifications and Dimensions

Features of 2N Series SMD 2520 Crystal Oscillators

2520 size, low profile of 0.8mm, extremely small SMD crystal oscillators

CMOS output.

Low voltage operation: 1.8~3.3V

Frequency range: 4MHz to 75MHz

3-state function

High reliable environmental performance

Low Current consumption

Automatic mounting and reflow sodlering

Applications: Wireless communications, GPS, WLAN, Cellular, Phone, Car applications, etc

RoHS Compliant /Pb-Free

Electrical Specifications of 2N Series SMD 2520 Crystal Oscillators

Item /Type	2N (SMD 2520 Crystal Oscillators)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	3.3V (1.8V, 2.5V, available)
Frequency Range	4~75MHz
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vdd /0.9Vdd
Rise (Tr) /Fall (Tf) Time	5ns Max.
Supply Current	10mA Max.
Symmetry	45~55%
Start-up Time	5ms Max.
Period Jitter	40 pSec
Phase Jitter	1 ps Max.
Aging (at 25℃)	±3ppm /Year Max.
Packing Unit	3000pcs. /Reel

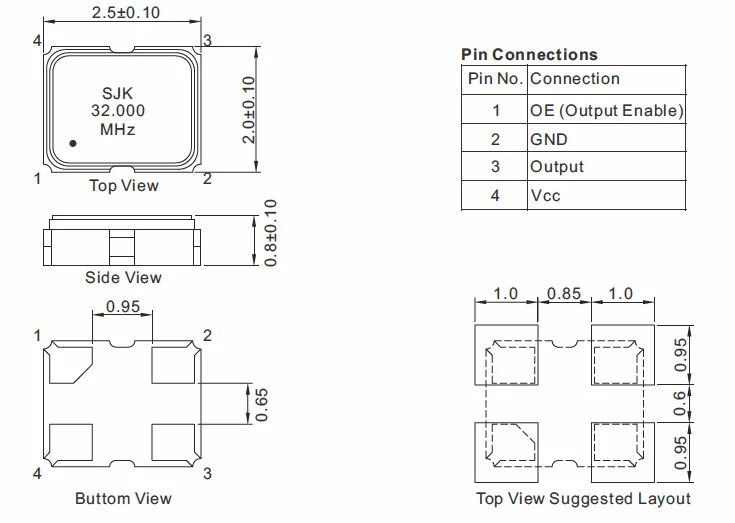

Dimensions [mm]







REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
