50L Continuous Stirring Tank Dispersion Dissolution Biodiesel Chemical Reactor

Share on (1600379608662):


Price:$3,800.00

Quantity:


Product Overview

Description


50L Continuous Stirring Tank Dispersion Dissolution Biodiesel Chemical Reactor


()



Product Description


      SG series stainless steel reaction kettle (tank) body, lid, stirrer and other parts are made of SUS304 or SUS316 stainless steel plate. The tank body is polished by fine mirror or electrolytic polishing, which conforms to the national hygiene standard. Heating and cooling devices can be configured to meet different process and production needs. Heat transfer forms include jacket electric heating, jacket external heat transfer oil circulation equipment heating, refrigeration, steam heating, coil heating. The equipment has reasonable structure design, advanced technology, durability, reaction application in cosmetics, medicine, paint, chemical industry, pigment, resin, food, scientific research and other industries.





Specifications
























Serial number



Product name



Specifications



remarks



1.1



Double layer stainless steel reactor



XHSG-50L






Kettle volume: 50L


50L stainless steel reactor


Material: SS304


Speed: 0-95rpm


Working temperature: RT + 10 ℃ ~ 200


Working pressure: - 0.1 ~ 0.3MPa


Heating mode: electric heating


Opening of kettle cover:7 port





Condensing unit: SS304 distillation return pipeline


Power supply voltage: 220 V, 50 Hz



1.2(Optional if necessary)



High temperature circulating oil bath



XHGY-50



Heating power: 5000W


Circulation flow: 25L / min


Temperature control range: room temperature ~ 250


Temperature control accuracy: ± 1


Power supply voltage: 220 V







Product specifications can be customized according to customer needs


Stainless steel reactor customization service link:https://mosende.en.alibaba.com/productgrouplist-900192609/Customized_services.html?spm=a2700.shop_index.88.24

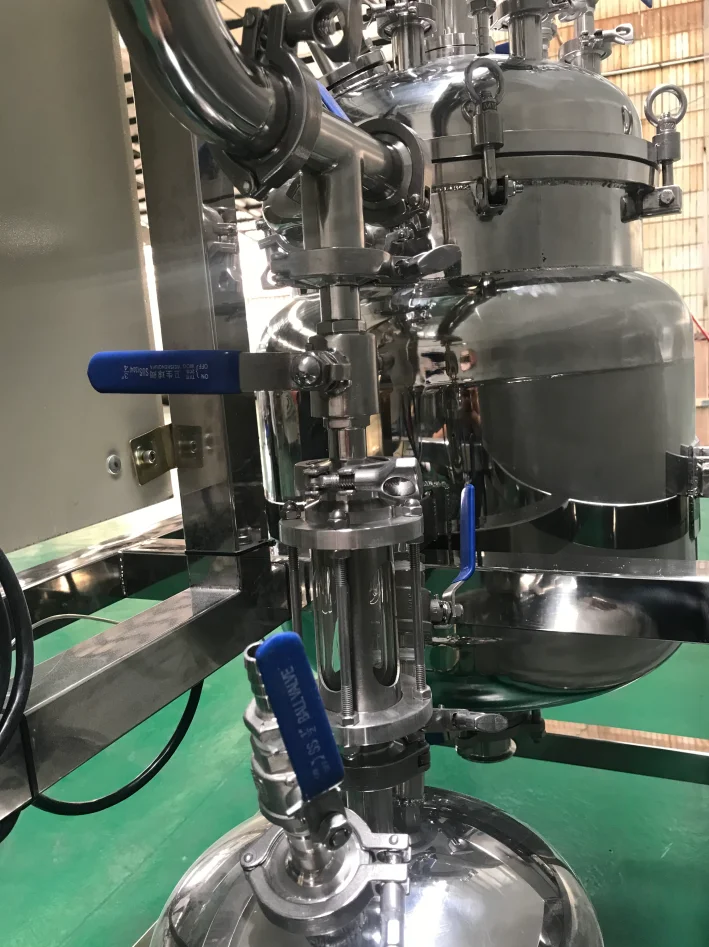

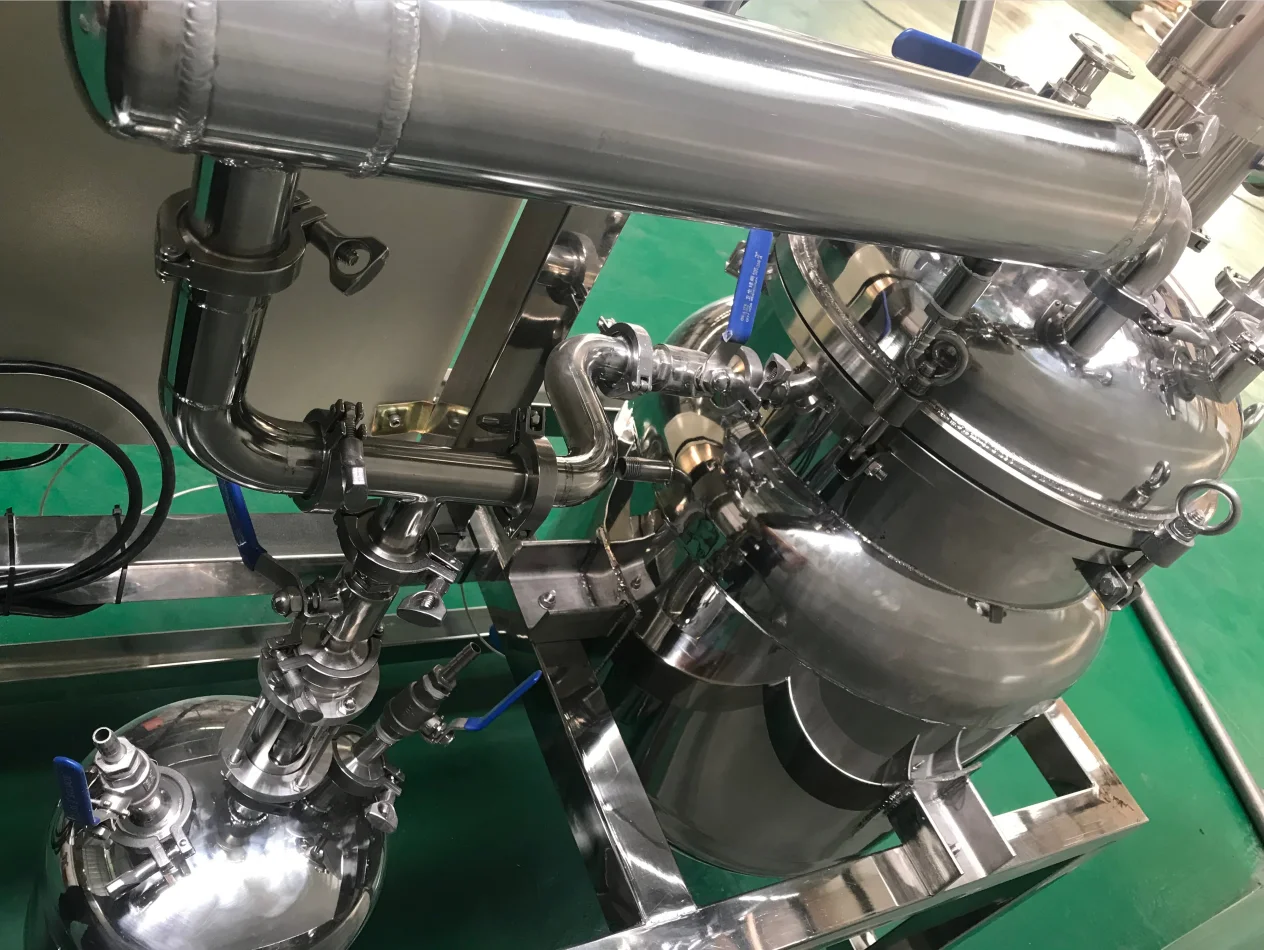

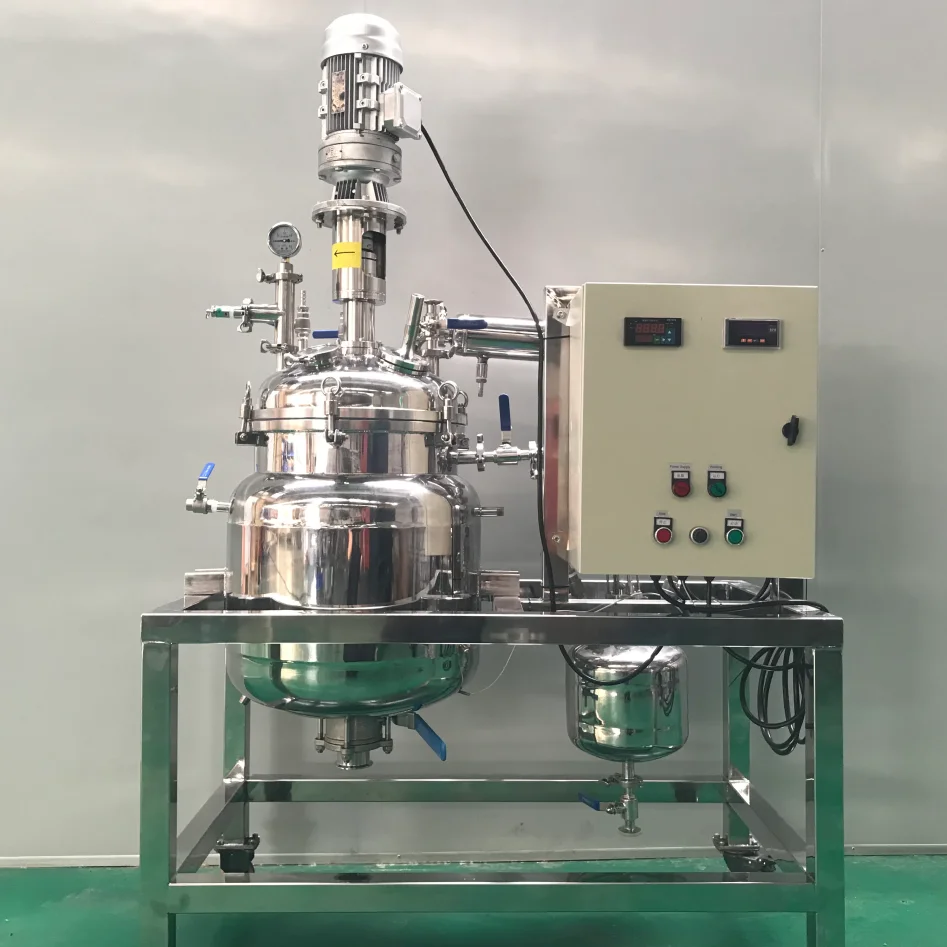

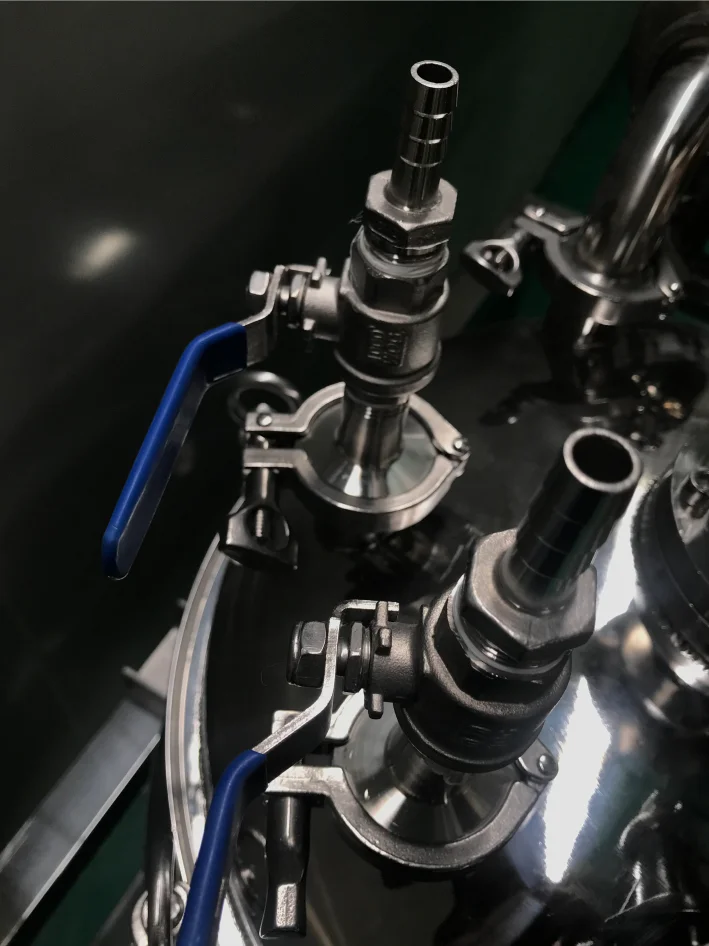

Actual photos of reactor











_02_01_022_05




CE
