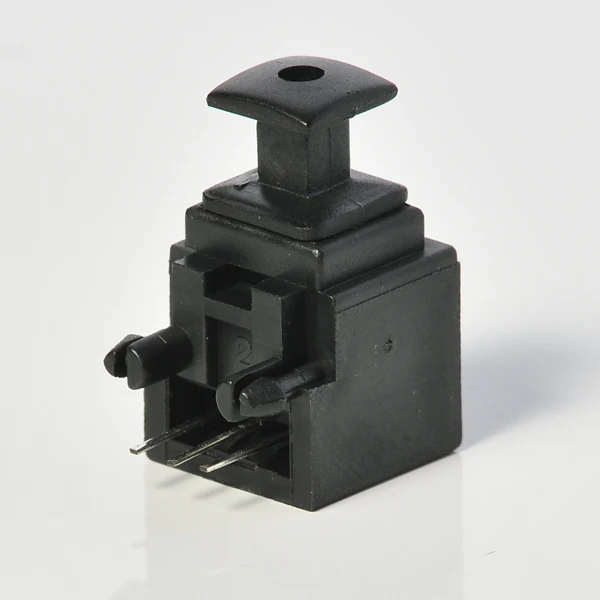

AIXIN Audio Toslink Connector Receiver Fiber Optic Jack AX DLR1121

Product Overview

Description

Descriptions
The light receiving unit is a standard-package product with connector and opto-electric
component packaged with PD and I/V amplifier IC. The function of unit changes the light signal
into electric signal.

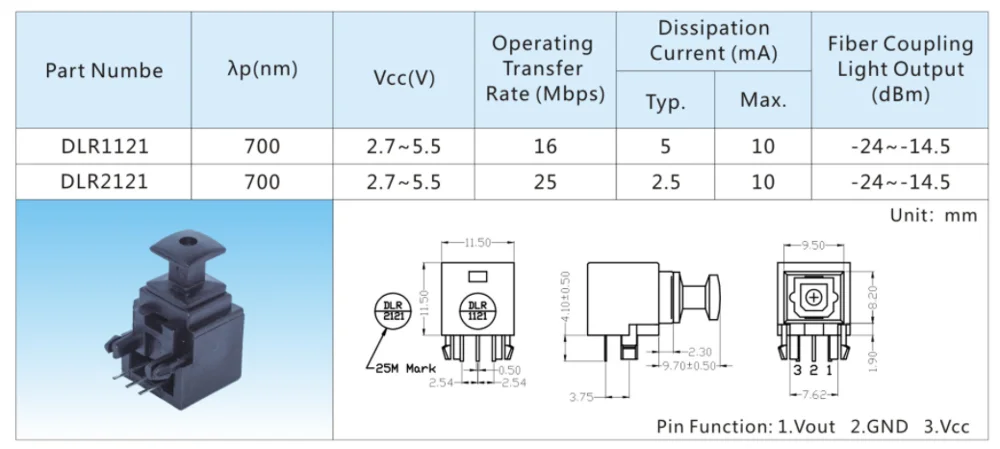

The unit is operated at +3~+5V and the input signal is TTL compatible. The DLR1121 has a maximum operating speed of 16 Mbps.
Applications
· Audio equipment
· Digital optical data link
· MD
· Sound card

Optical Fiber Connector Receiver
