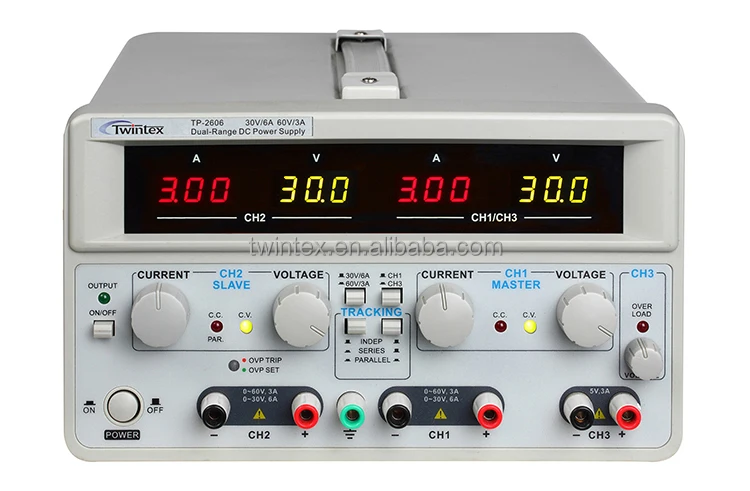

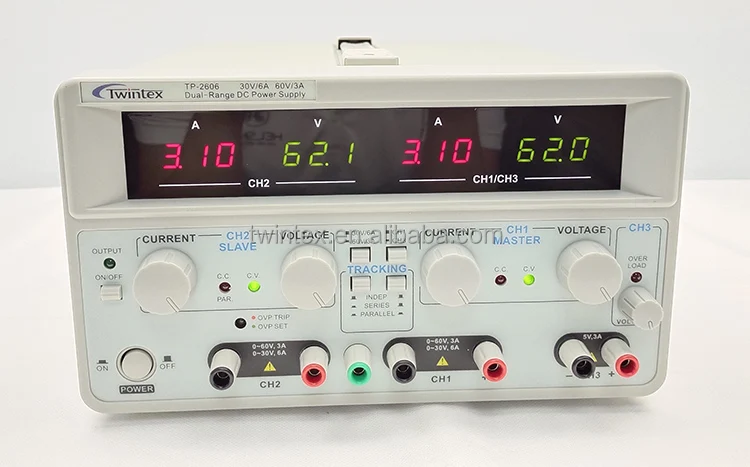

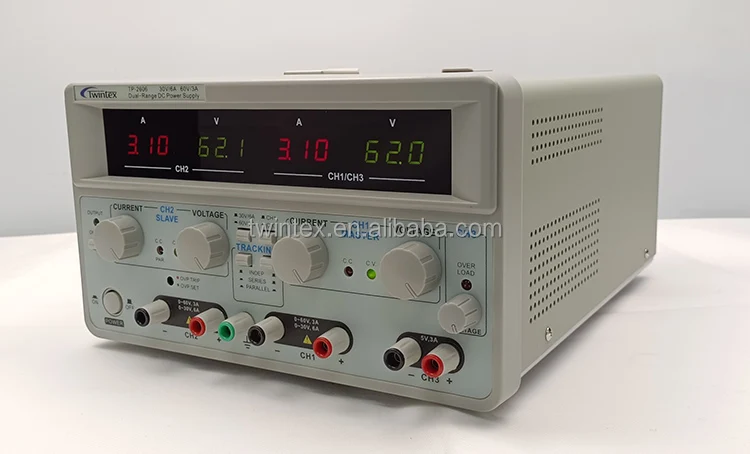

TP-2606 is a two in one switching mode precision dual range DC power supply. The dual range power supply has triple isolated output channels. CH1 and CH2 are dual range output power supply 30V 6A or 60V 3A.

The precision power supply works in automatic series or parallel operations that provides flexible variable output power supply of 30V 12A, 60V 6A and 120V 3A.

The multiple channel power supply operates in constant voltage and constant current modes. The precision laboratory power supply has remote ON/OFF control through PLC.


Features

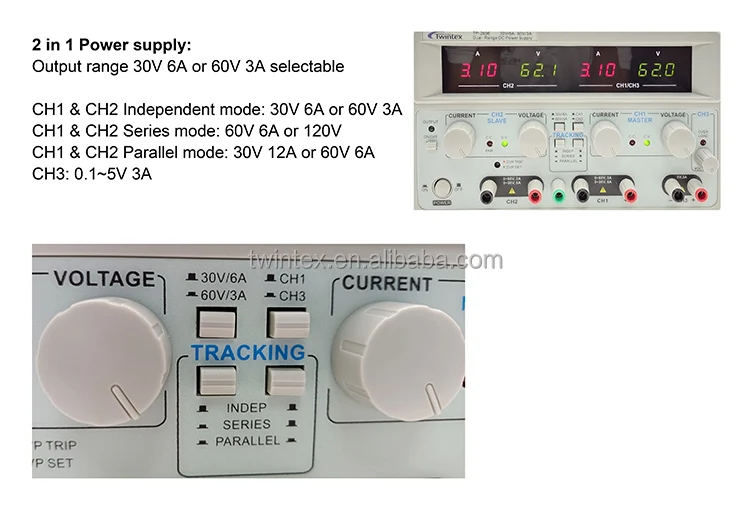

>>> CH1/CH2 independent adjustable outputs with dual ranges 0~30V/0~6A x2, 0~60V/0~3A x2
>>> CH3 0.1~5V/3A, adjustable output
>>> Constant voltage and constant current operations, auto CV and CC switch
>>> Auto Series and Parallel tracking operations, providing flexible output of 30V/12A, 60V/6A or 120V/3A
>>> High power conversion efficiency, improving the power efficiency by 25%

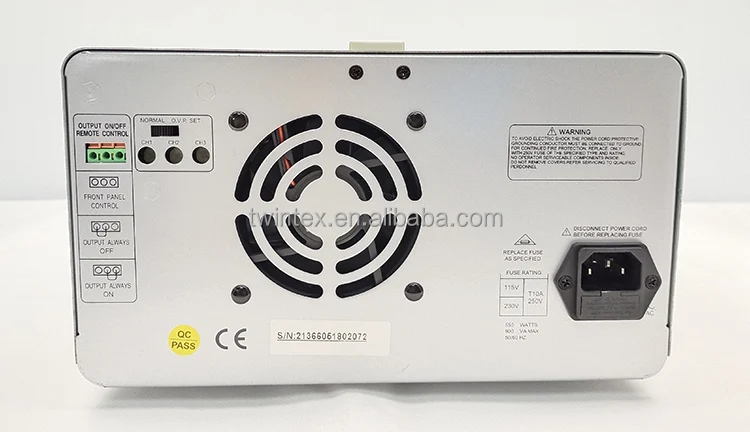

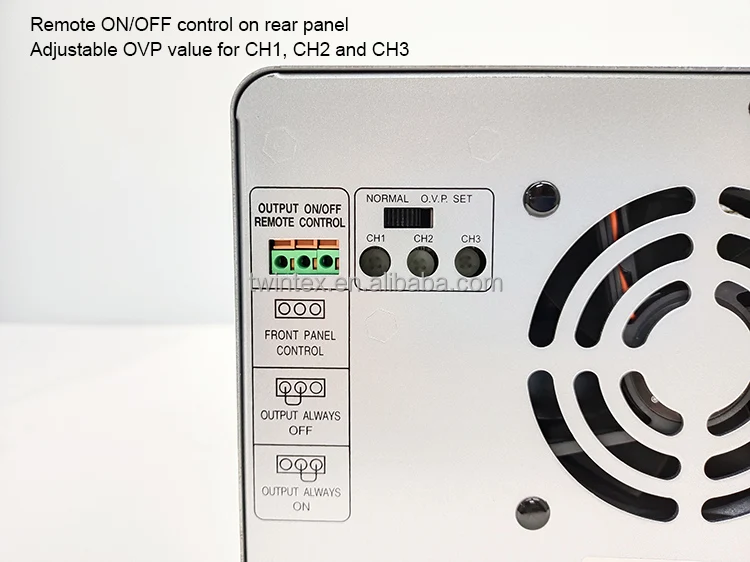

>>> Manual and remote ON/OFF control
>>> Preset function, setting of voltage and current with output open circuit
>>> Over voltage, over load, over temperature and reverse polarity protections
>>> Power source AC115V/230V auto switch
>>> Fan speed control circuit, minimizing fan acoustic noise
>>> Compact design, light weight
>>> Dual-color four digital panel meters


Specifications
Rated output
CH1&CH2 Independent mode: 0~30V/0~6A; 0~60V/0~3A
CH1&CH2 Series mode: 0~60V/0~6A; 0~120V/0~3A
CH1&CH2 Parallel mode: 0~30V/0~12A;0~60V/0~6A
CH3: 0.1~5V/3A
Constant voltage operation
Line regulation
≤0.01%+3mV
Load regulation
≤0.01%+5mV (rating current≤6A); ≤0.01%+8mV (rating current≤12A)
Ripple & Noise
≤5mVrms (5Hz~1MHz); ≤50mVpp (20Hz~20MHz)
Constant current operation
Line regulation
≤0.2%+3mA
Load regulation
≤0.2%+3mA
Ripple & Noise
≤3mArms
Tracking operation
Tracking error
≤(0.5%+10mV) of the master
Series regulation
≤300mV
Ripple & Noise
≤10mVrms (5Hz~1MHz); ≤100mVpp (20Hz~20MHz)
Remote output On/Off response time
Voltage up (10%~90%)
≤100ms (≤95% rated load)
Voltage down (90%~10%)
≤100ms (≥10% rated load)
Auxiliary output (CH3)
Output voltage
0.1~5V, adjustable
Output current
3A
Protection
Over voltage, over load, over temperature and reverse polarity protections
Over voltage protection
Accuracy
±(0.5% reading+0.5V)
Display
Voltmeter
3 1/2 digits LED display
Ammeter
3 1/2 digits LED display
Resolution
100mV/10mA
Accuracy
±(0.5% reading+2 digits)
General
Protection
Over voltage and reverse polarity protections
Remote control
Output On/Off
Fan noise
≤50dB
Insulation
Between base and output terminal: ≥100MΩ/1000VDC
Between base and AC power cord:≥100MΩ/1000VDC
Operating environment
0~40℃, ≤80%RH
Storage environment
0℃~70℃, ≤70%RH
Power source
AC115V/230V±15% auto switch, 50/60Hz
Accessories
Power cord x1, Operation manual x1
Dimension (WxHxD)
250x150x310mm
Weight
5.5kg
