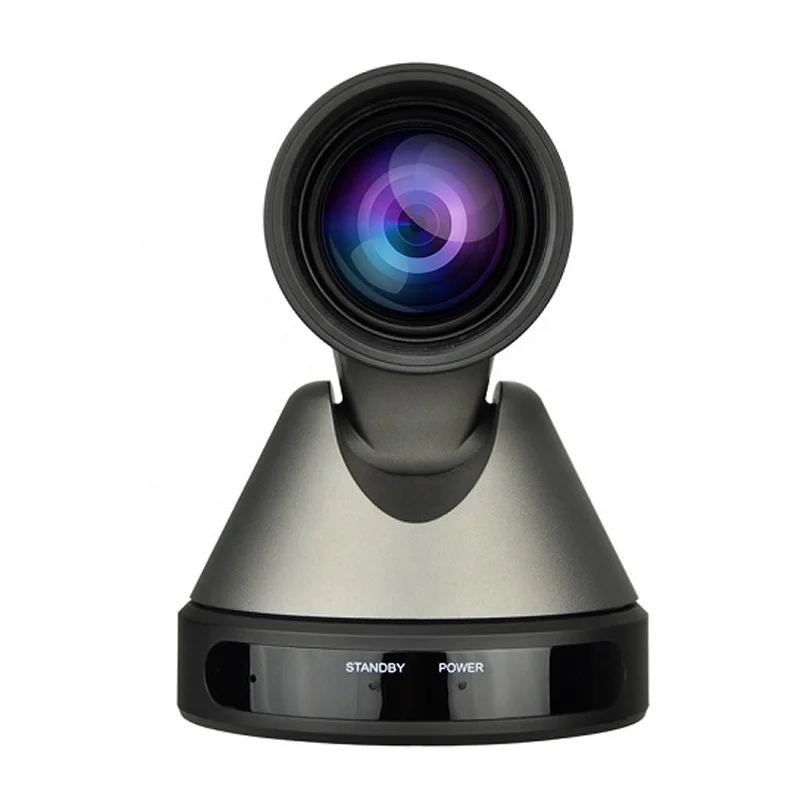

video camera full hd 1080 digital conference system high quality image sensor conference camera with usb interface
- Category: >>>
- Supplier: Shenzhen Grandvideo Technology Co. Ltd.
Share on (1600379678386):
Product Overview
Description
Product Description

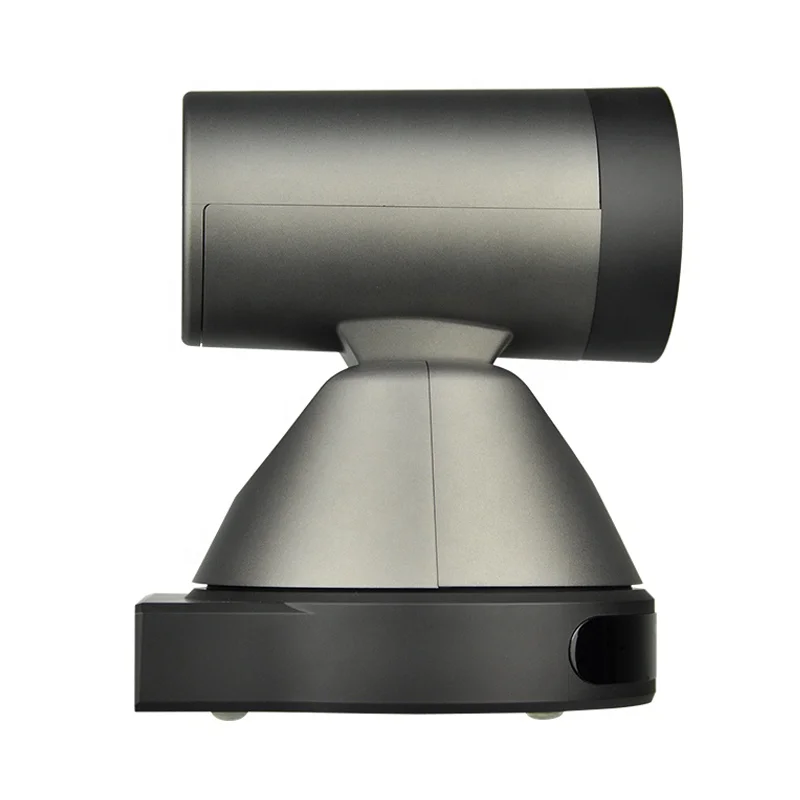

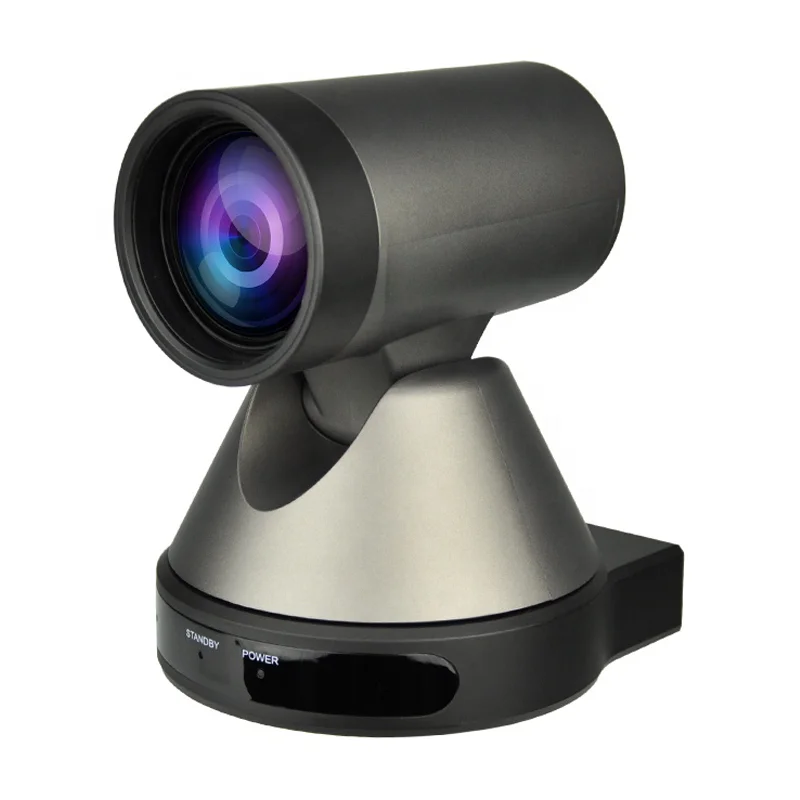

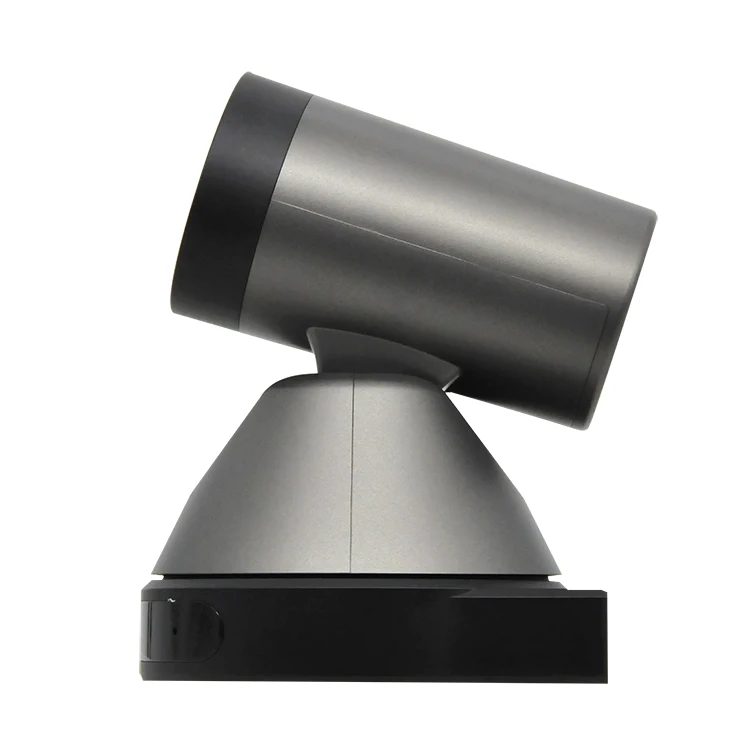

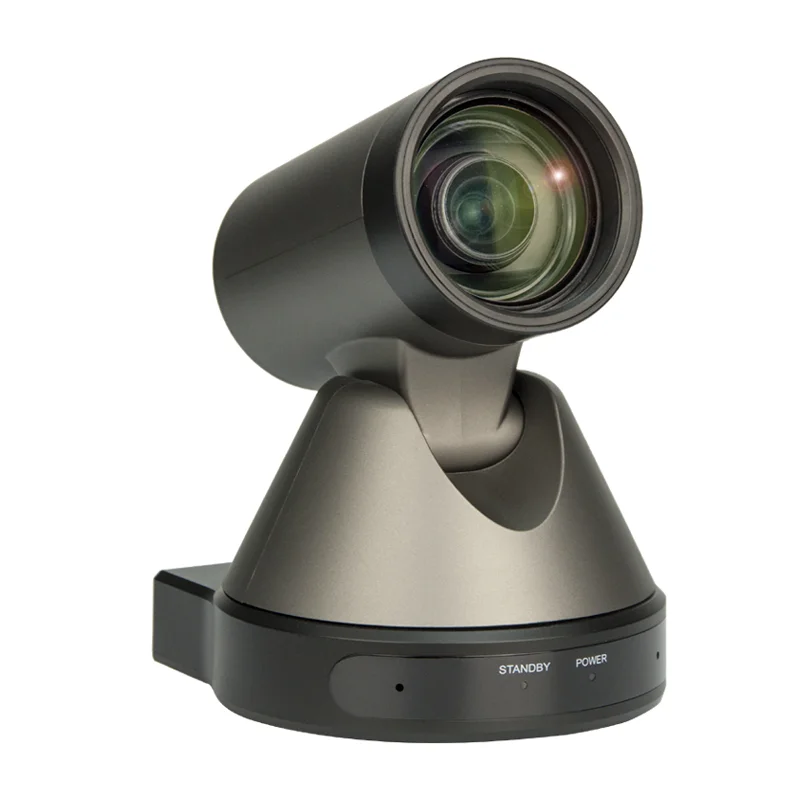

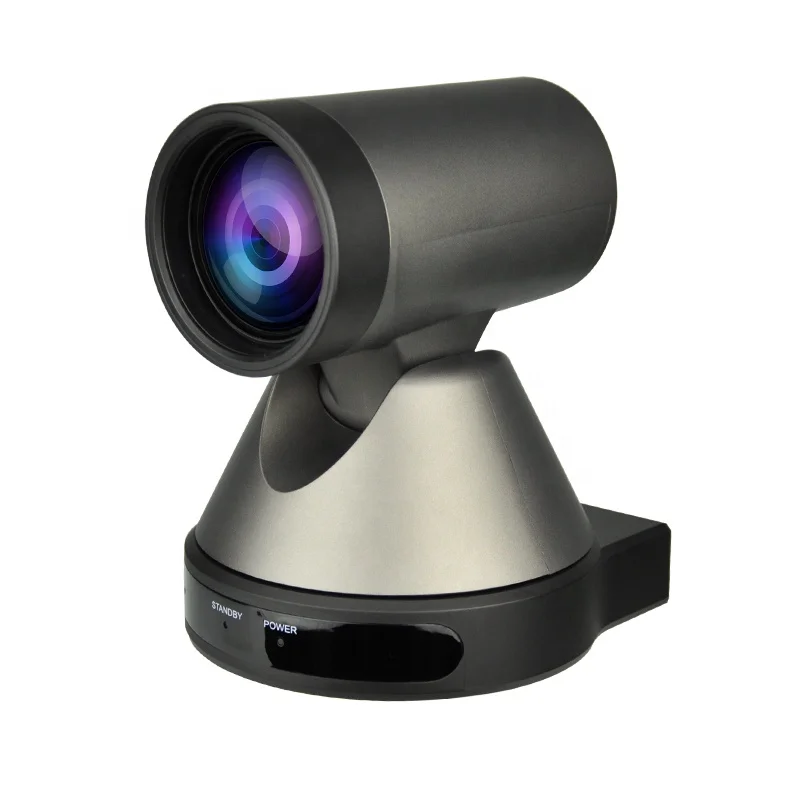

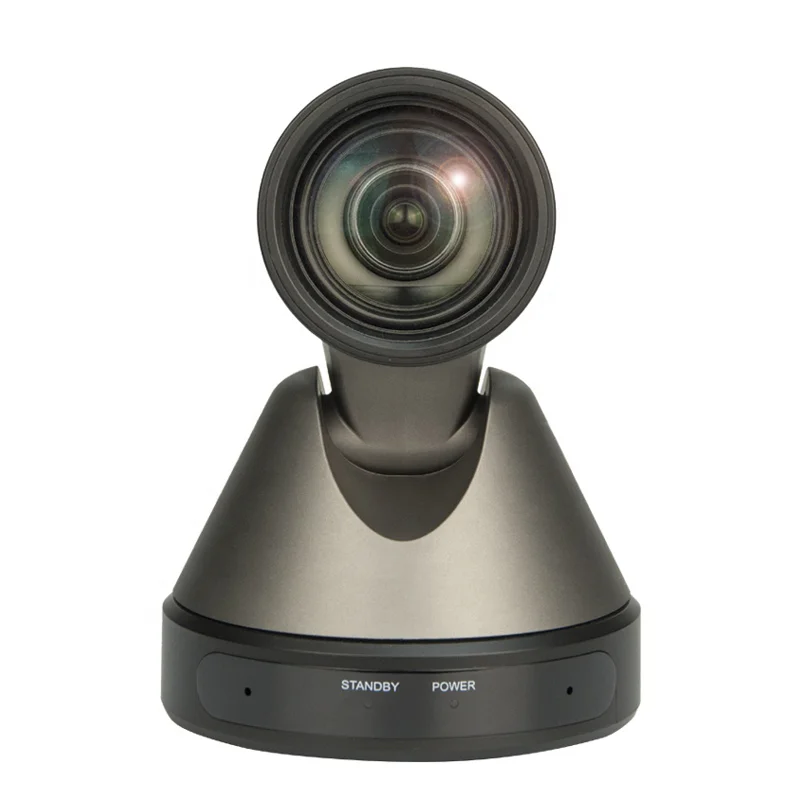

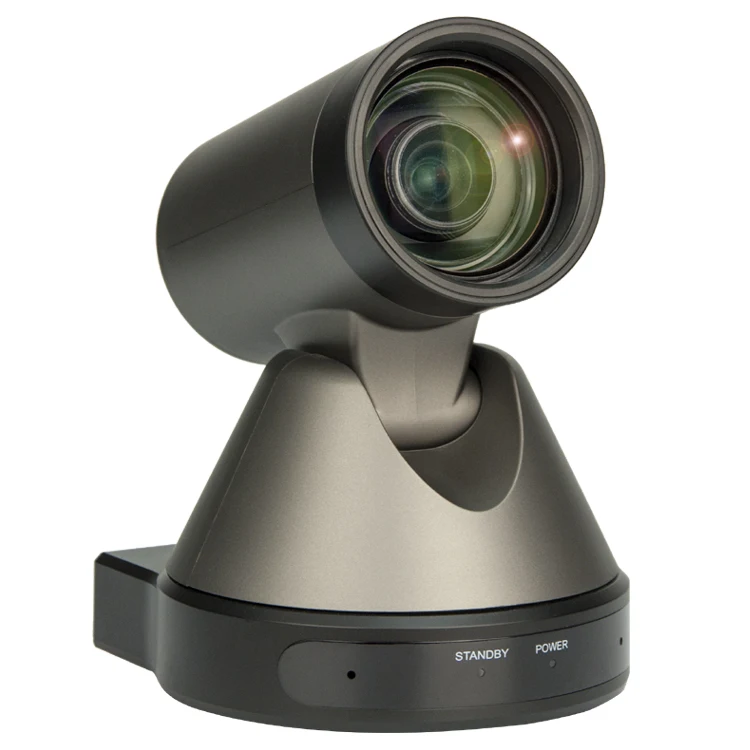

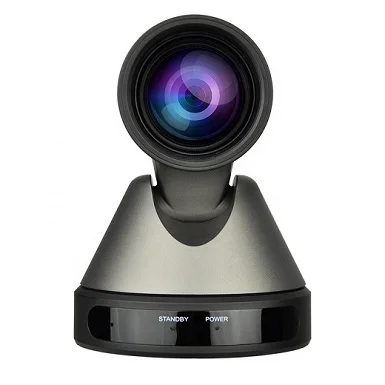

GV-V71U/V71U2
USB3.0 HD Video Conference Camera
●Completely New Look
Designed with worm gear transmission, completely new look, mini size.
●Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.5
protocol.
●Built-in Micphone (V71U2)
Built-in micphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.

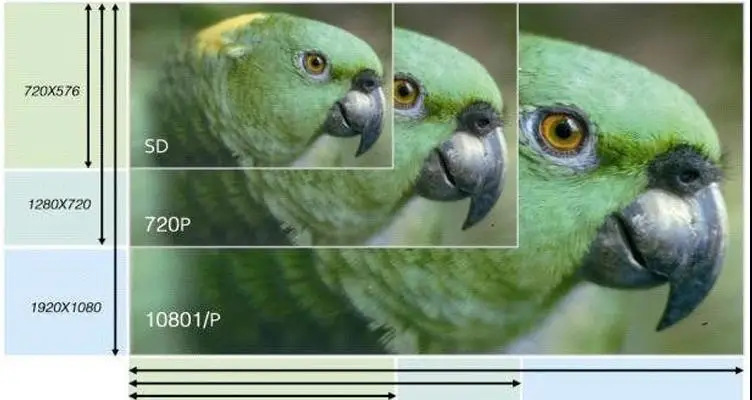

●1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high
resolution and achieve quality image.
●Ultra high compatibility
Compatible with USB 3.0 and USB 2.0, support UVC v1.5 protocol, and support almost all video conference software on the market.
●72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
●Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low
illumination conditions, picture can still keep clean and clear.
●Remote Control
Using RS232/USB, all the parameters of the camera can be remote controlled by the high-speed communications.
●H.264 Slice/ H.264 SVC Support
Support Slice and SVC encoding mode, adapts to video conference of advance USB application.
●Dual stream
Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure
●USB infrared transmission (Optional)
Base on customer needs, transmit infrared code value
Designed with worm gear transmission, completely new look, mini size.
●Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC v1.5
protocol.
●Built-in Micphone (V71U2)
Built-in micphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.
●1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high
resolution and achieve quality image.
●Ultra high compatibility
Compatible with USB 3.0 and USB 2.0, support UVC v1.5 protocol, and support almost all video conference software on the market.
●72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
●Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low
illumination conditions, picture can still keep clean and clear.
●Remote Control
Using RS232/USB, all the parameters of the camera can be remote controlled by the high-speed communications.
●H.264 Slice/ H.264 SVC Support
Support Slice and SVC encoding mode, adapts to video conference of advance USB application.
●Dual stream
Support two stream output (YUY2, MJPEG, H.264 each of both), reduce the host codec pressure
●USB infrared transmission (Optional)
Base on customer needs, transmit infrared code value
Camera
Video System | 1080P, 720P, 540P, 480P, 360P, 240P etc. | ||
Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M | ||
Scanning Mode | Progressive | ||
Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | ||
Digital Zoom | 16x | ||
Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) | ||
Shutter | 1/30s ~ 1/10000s | ||
White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR | ||
Backlight Compensation | Support | ||
Digital Noise Reduction | 2D&3D Digital Noise Reduction | ||
Video S/N | ≥55dB | ||
Horizontal Angle of View | 72.5° ~ 6.9° | ||
Vertical Angle of View | 44.8° ~ 3.9° | ||
Horizontal Rotation Range | ±170° | ||
Vertical Rotation Range | -25° ~ +25° | ||
Pan Speed Range | 1.7° ~ 100°/s | ||
Tilt Speed Range | 0.7° ~ 28°/s | ||
H & V Flip | Support | ||
Image Freeze | Support | ||
Number of Preset | 255 | ||
Preset Accuracy | 0.1° | ||
Built-in Microphone | Support | ||
Distance of Pick up | 6m | ||
USB Featured
Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | ||
Color System / Compression | YUV 4:2:2 / H.264 / MJPEG | ||
Video Format | YUY2 (BULK): max to 1080P@30fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@30fps H.264 SVC: max to 1080P@15fps MJPEG: max to 1080P@28fps | YUY2 (BULK): max to 1080P@60fps YUY2 (ISOC): max to 1080P@30fps H.264 AVC: max to 1080P@60fps H.264 SVC: max to 1080P@30fps MJPEG: max to 1080P@30fps | |
Audio on USB | Support | ||
USB Video Communication Protocol | UVC 1.5 | ||
UVC PTZ | Support | ||
Input/Output Interface
USB Interface | 1xUSB3.0: Type B female jack | ||
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | ||
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | ||
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | |||
Power Jack | JEITA type (DC IN 12V) | ||
Generic Specification
Input Voltage | DC 12V | ||
Current Consumption | 1.0A (Max) | ||
Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) | ||
Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) | ||
Power Consumption | 12W (Max) | ||
MTBF | >30000h | ||
Size | 128.5mm x 118mm x 156.2mm | ||
Net Weight | 0.91Kg | ||
Camera work for
SMB Enterprise/Government/Education and teaching/Telemedicine etc
Company Profile
Shenzhen Grandvideo Technology Co., Ltd. is a high-tech enterprise focusing on the research and development, production, sales and related technical services of audio and video equipment.
Founded in 2005, the company has more than 10 years of experience in OEM/ODM/JDM, focusing on full HD, ultra-high definition video cameras and audio equipment, covering HD video conferencing PTZ cameras, HD network cameras, integrated cameras, microphones, etc.
Products are mainly used in video conference, distance education, telemedicine, e-government, emergency communication, unified communication, multimedia classroom and other fields.Our products and solutions serve more than 30 countries and regions in the world, including China, the United States, Germany, the Netherlands, France, Norway, Italy, Singapore, Russia, South Korea, India, South Africa, etc.
The headquarter and factory are located in Baoan District, Shenzhen, with more than 150 employees and a plant area of more than 6,000 square meters, and branches and warehouses in Hong Kong, London, Hungary and the United States.
Founded in 2005, the company has more than 10 years of experience in OEM/ODM/JDM, focusing on full HD, ultra-high definition video cameras and audio equipment, covering HD video conferencing PTZ cameras, HD network cameras, integrated cameras, microphones, etc.
Products are mainly used in video conference, distance education, telemedicine, e-government, emergency communication, unified communication, multimedia classroom and other fields.Our products and solutions serve more than 30 countries and regions in the world, including China, the United States, Germany, the Netherlands, France, Norway, Italy, Singapore, Russia, South Korea, India, South Africa, etc.
The headquarter and factory are located in Baoan District, Shenzhen, with more than 150 employees and a plant area of more than 6,000 square meters, and branches and warehouses in Hong Kong, London, Hungary and the United States.

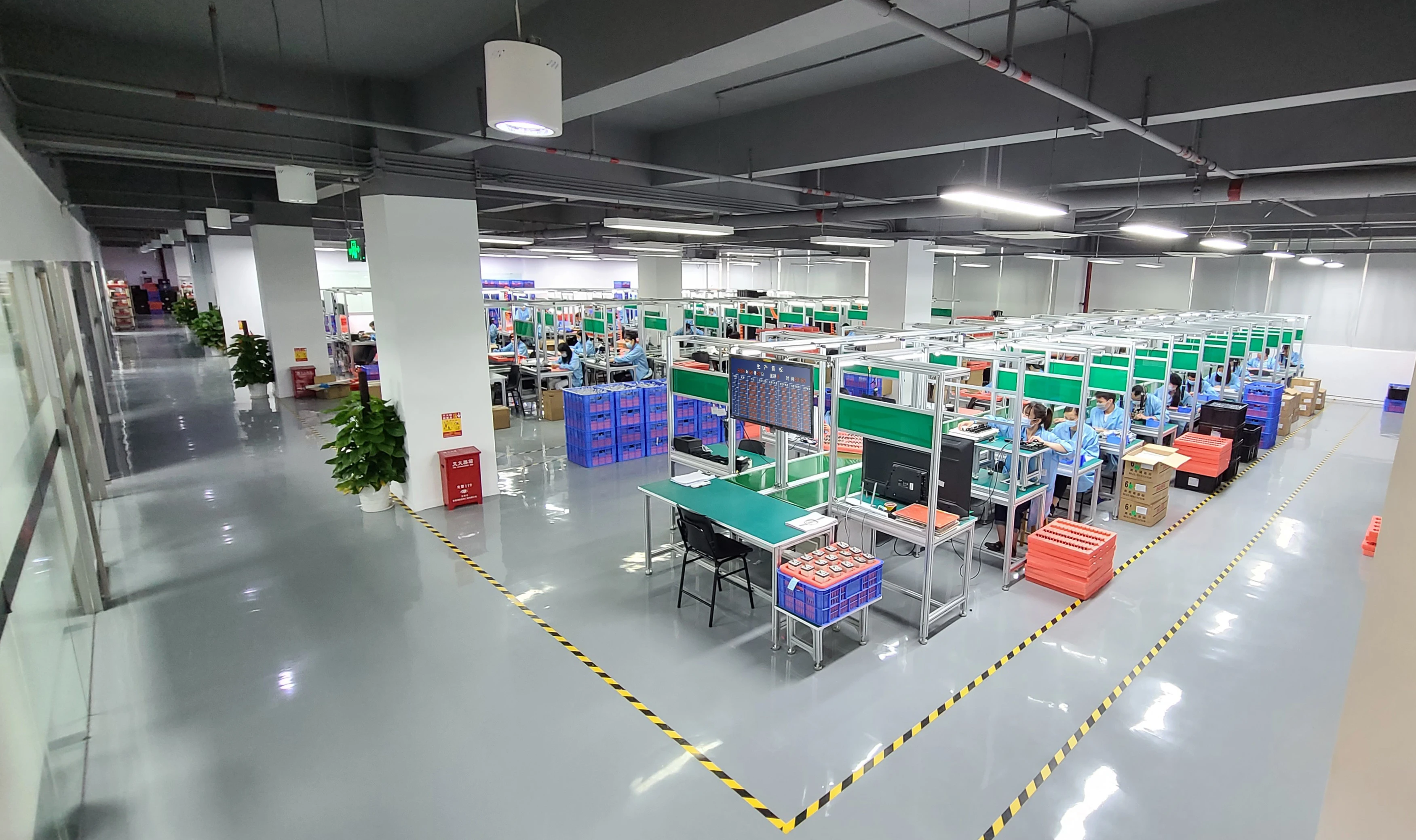

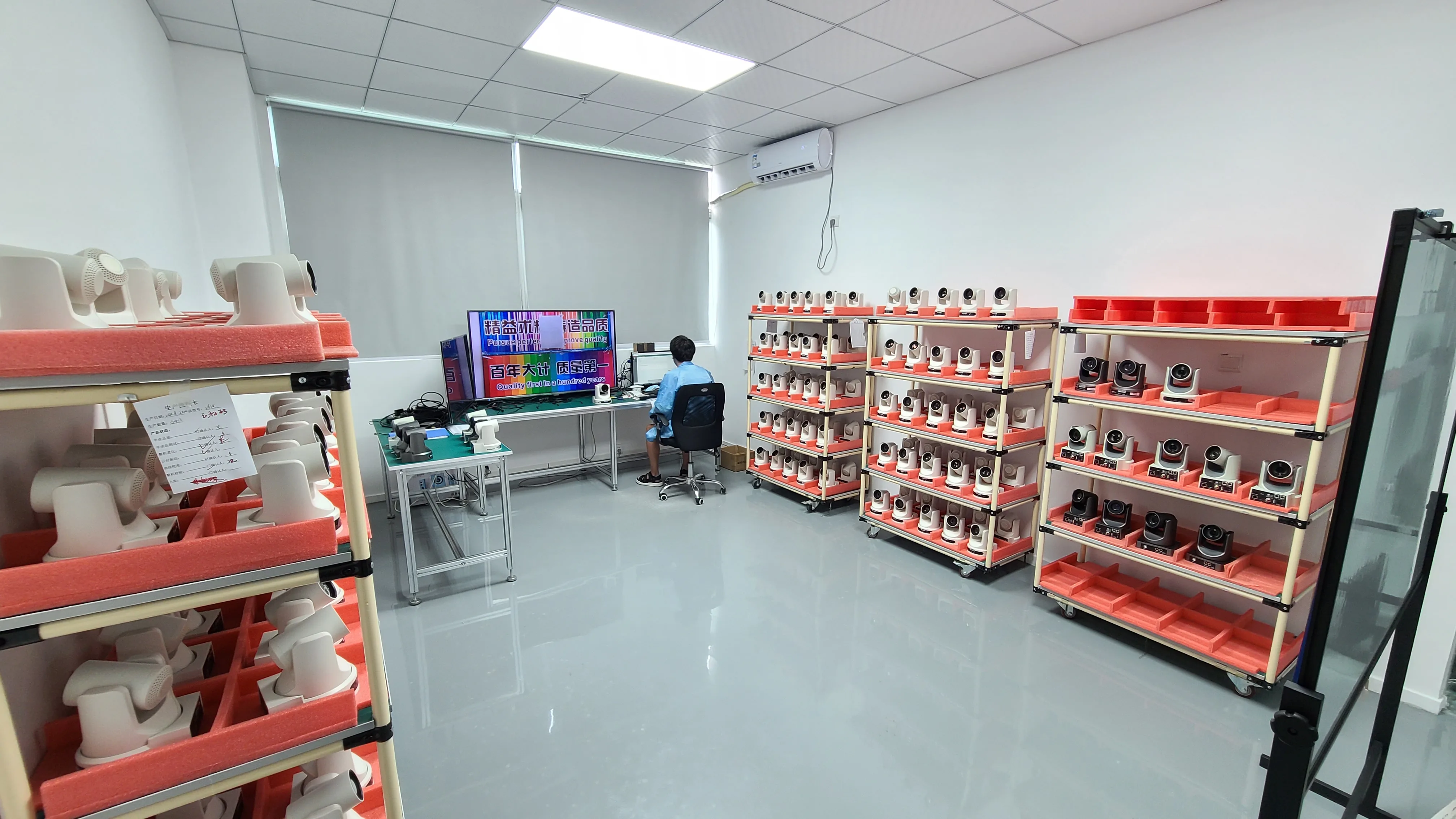

Assembled line

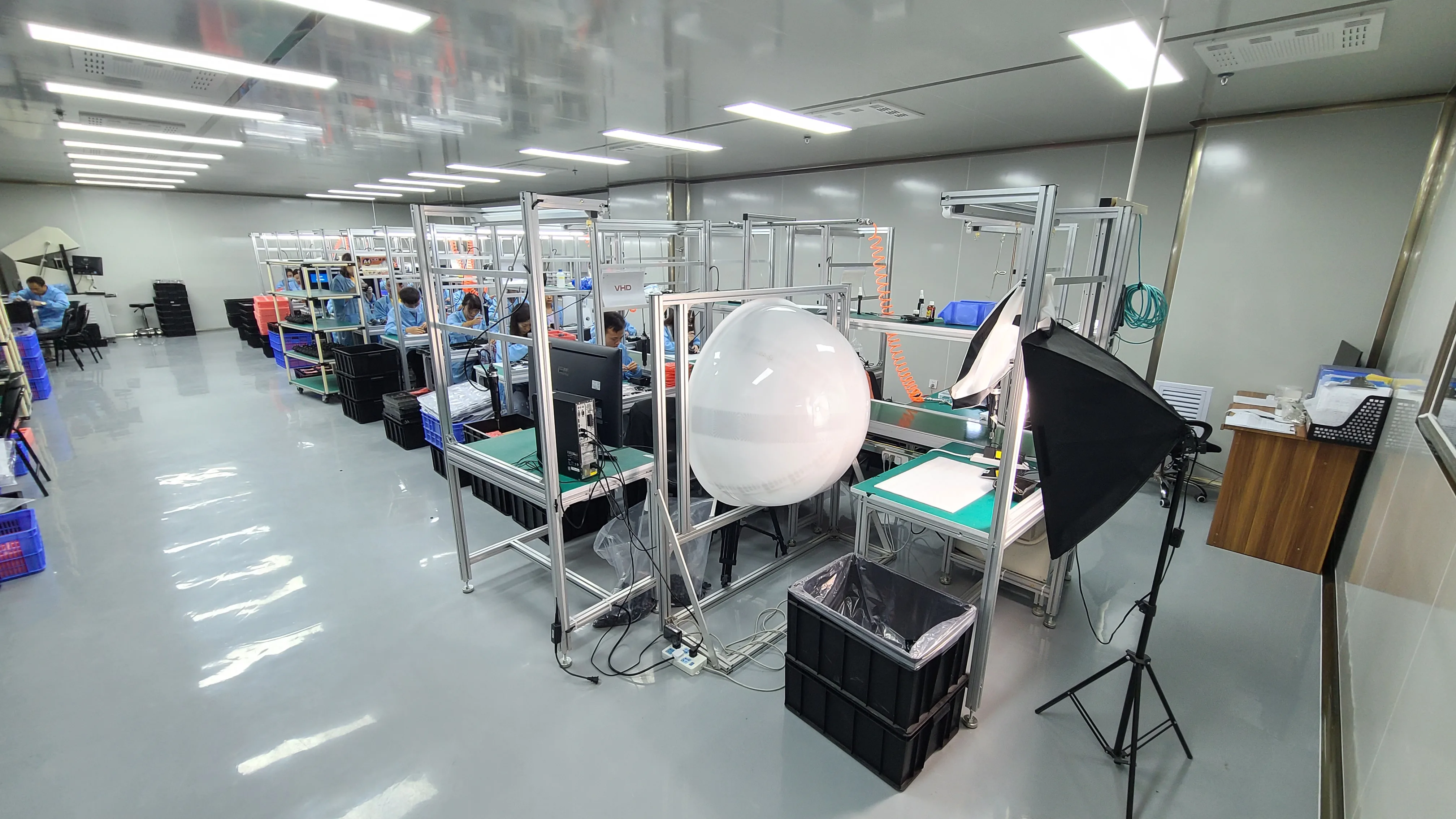

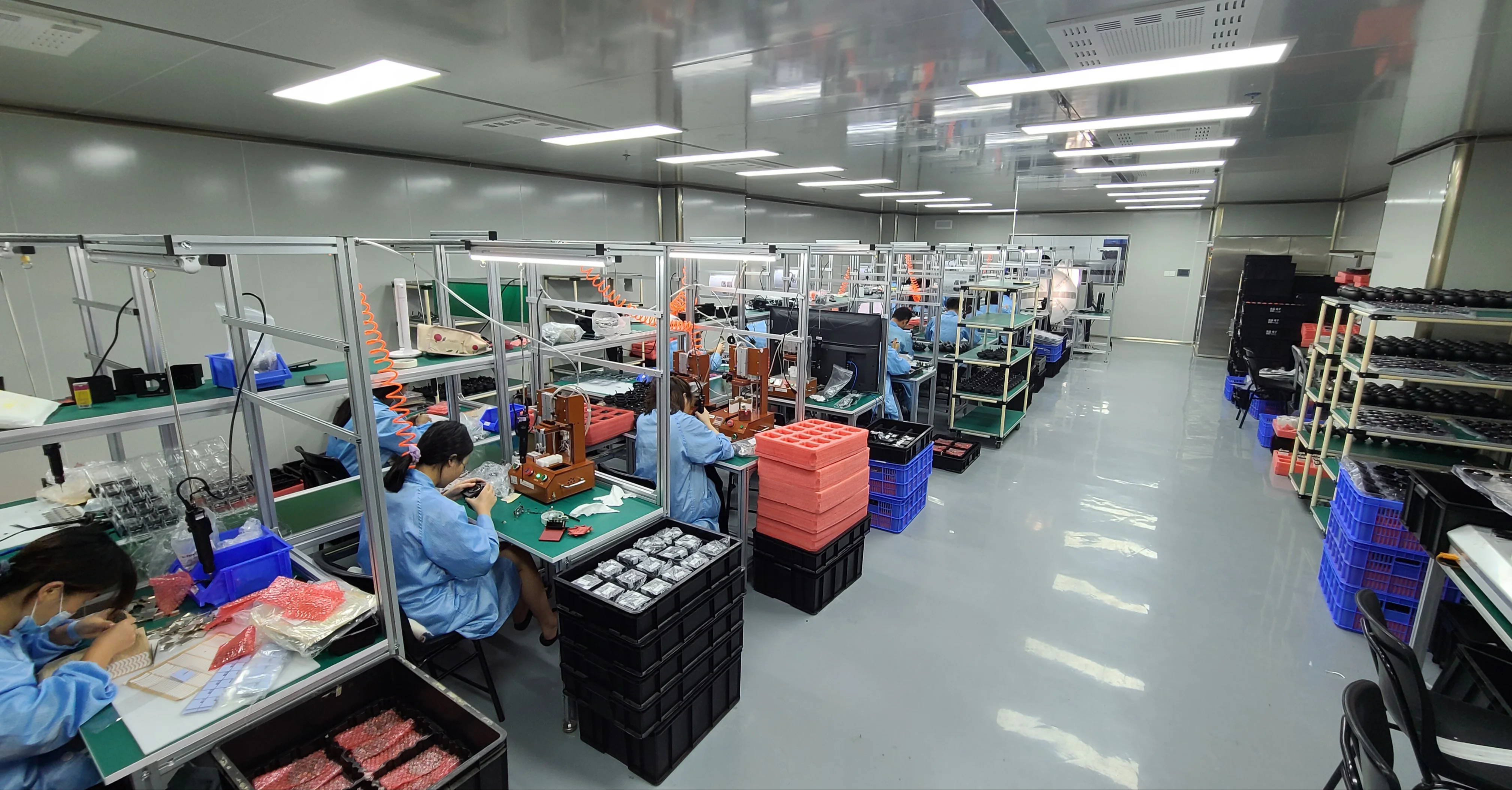

dust-free workshop
