Liyang Yongli CE wood Granulador de serradures pelletizadora para maquina de pellets
- Category: >>>
- Supplier: Jiangsu Yongli Machinery Co. Ltd.
Share on (1600379687117):
Product Overview
Description
Product Description

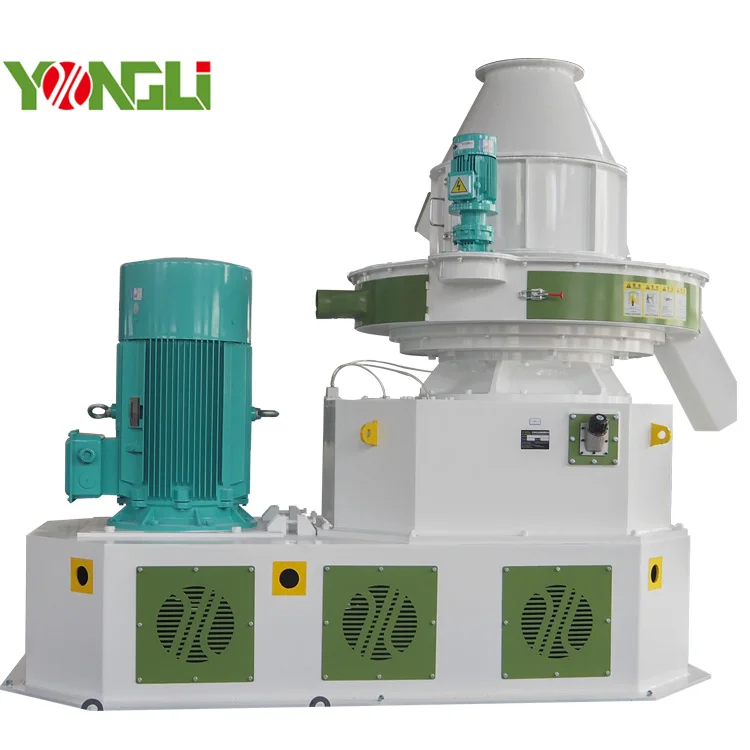

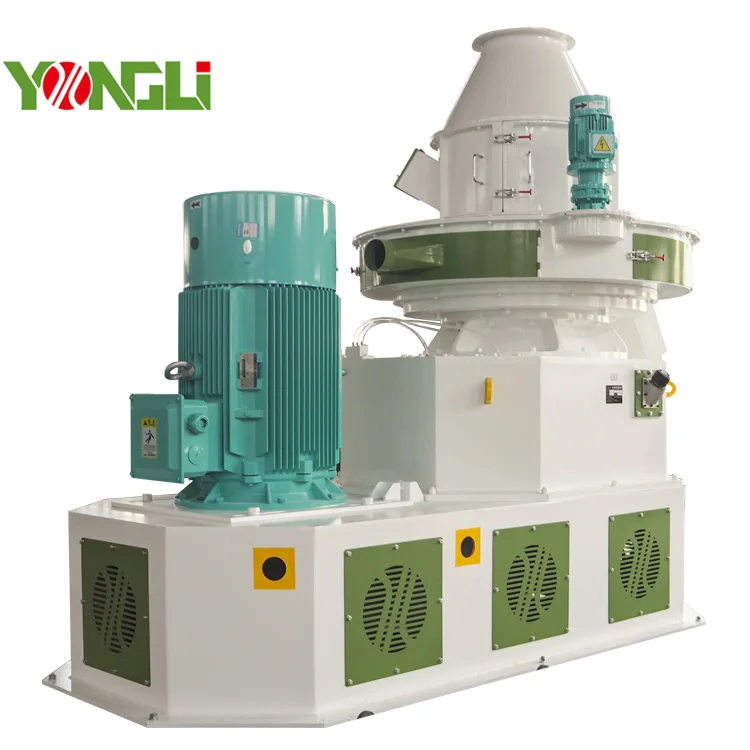

Liyang Yongli CE wood Granulador de serradures pelletizadora para maquina de pellets
Wood fuel is a renewable new energy. It has a huge economic and environmental benefits. Make full use of biomass energy can not only solve the problem of scarcity of resources today, but also to protect the Earth's environment. For the benefit of future generations, let us use biomass pellets fuel.
Application
widely used to produce wood, straw, rice husk, grass, woodchips, sawdust, cotton stalk, coconut shell, bammboo, wood shavings, sunflower and other biomass to pellets in biomass-energy fuels plant, power plant, wood processing plant etc.
Model | Capacity (t/h) | Power (kw) | Inner diameter of die | Pellet size (mm) | Dimension (mm) | Net weight (T) |
YPM250 | 0.1-0.2 | 18.5 | 250 | Ø6,Ø8,Ø10 | 1300*1330*850 | 0.73 |
YPM320 | 0.3-0.5 | 37 | 320 | Ø6,Ø8,Ø10 | 2100*1100*1140 | 1.2 |
YPM350 | 0.5-0.8 | 55 | 350 | Ø6,Ø8,Ø10 | 2500*1100*1150 | 1.65 |
YPM420 | 0.9-1.2 | 90 | 420 | Ø6,Ø8,Ø10 | 3000*1200*1470 | 2.8 |
YPM520 | 1.5-2 | 160 | 520 | Ø6,Ø8,Ø10 | 3200*1300*1420 | 4 |
YPM600 | 2.5-3 | 185 | 600 | Ø6,Ø8,Ø10 | 3000*1750*1810 | 4.5 |
YPM660 | 3-4 | 200 | 660 | Ø6,Ø8,Ø10 | 3570*1800*1850 | 7.5 |
YPM800 | 5-6 | 315 | 800 | Ø6,Ø8,Ø10 | 4300*1900*2040 | 11 |

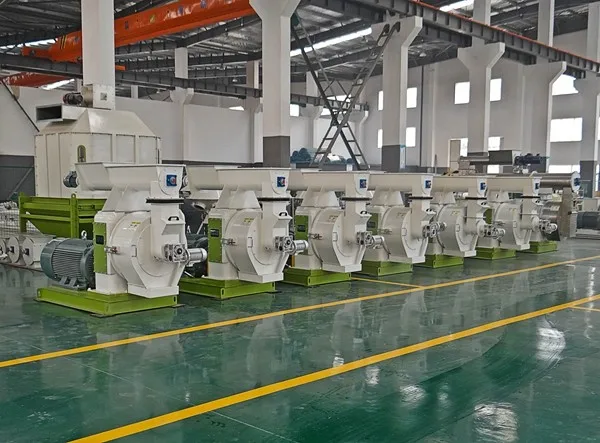

The pellet mill in Yongli warehouse.

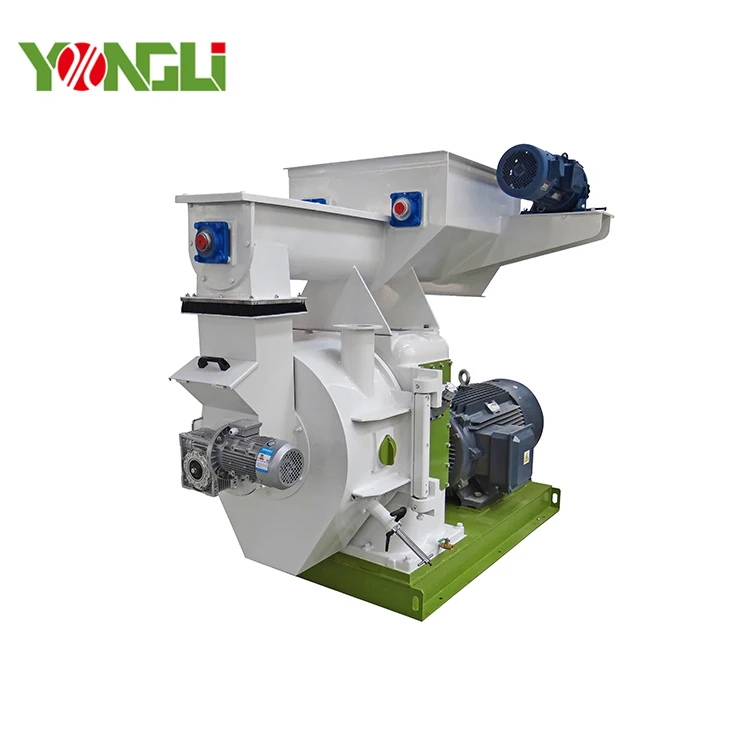

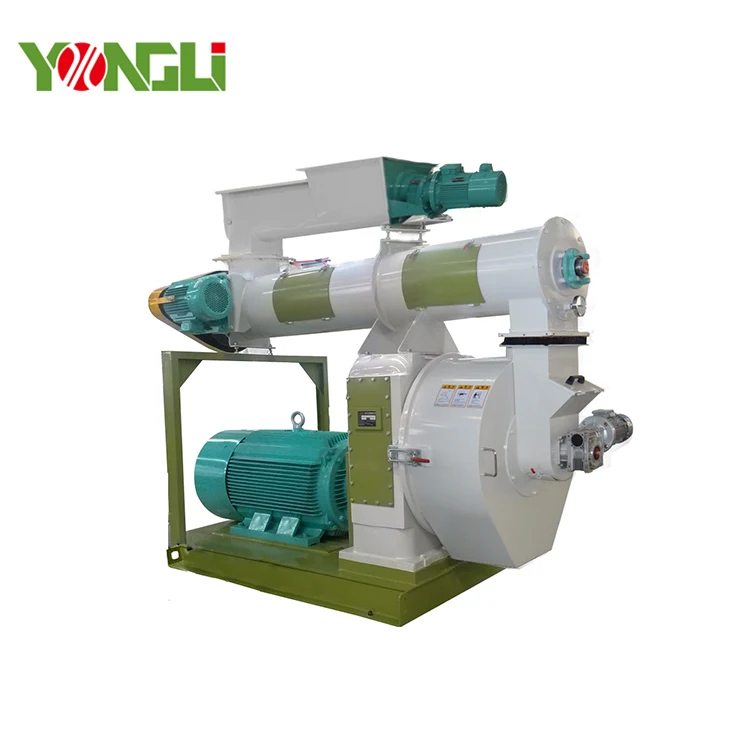

Yongli has many kinds of pellet mill for biomass pellets, the detailed pictures as below:
Main Features
1. Gear driven.
2. Force feeder.
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, imported bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
10. Patent No. ZL201120430486.

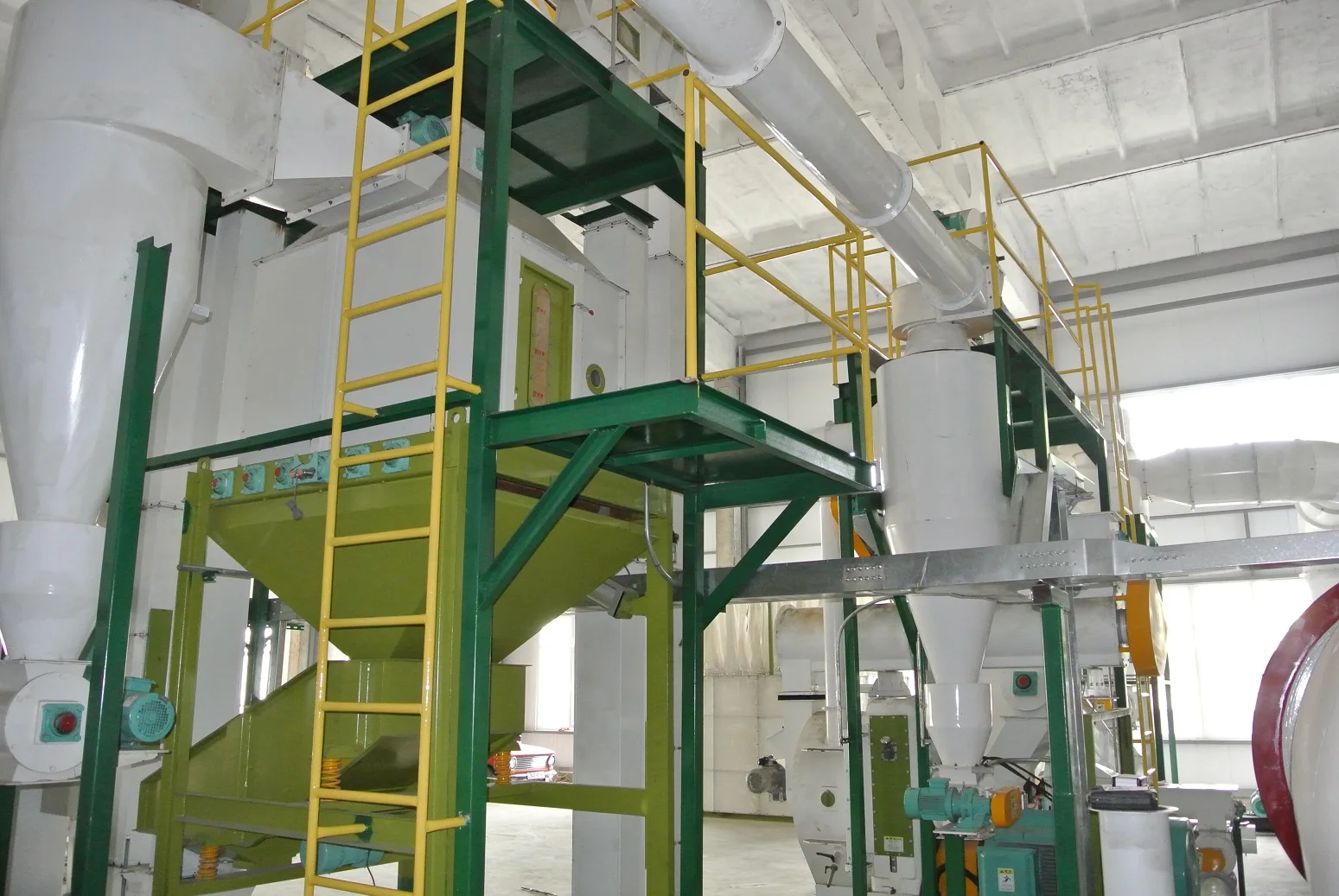

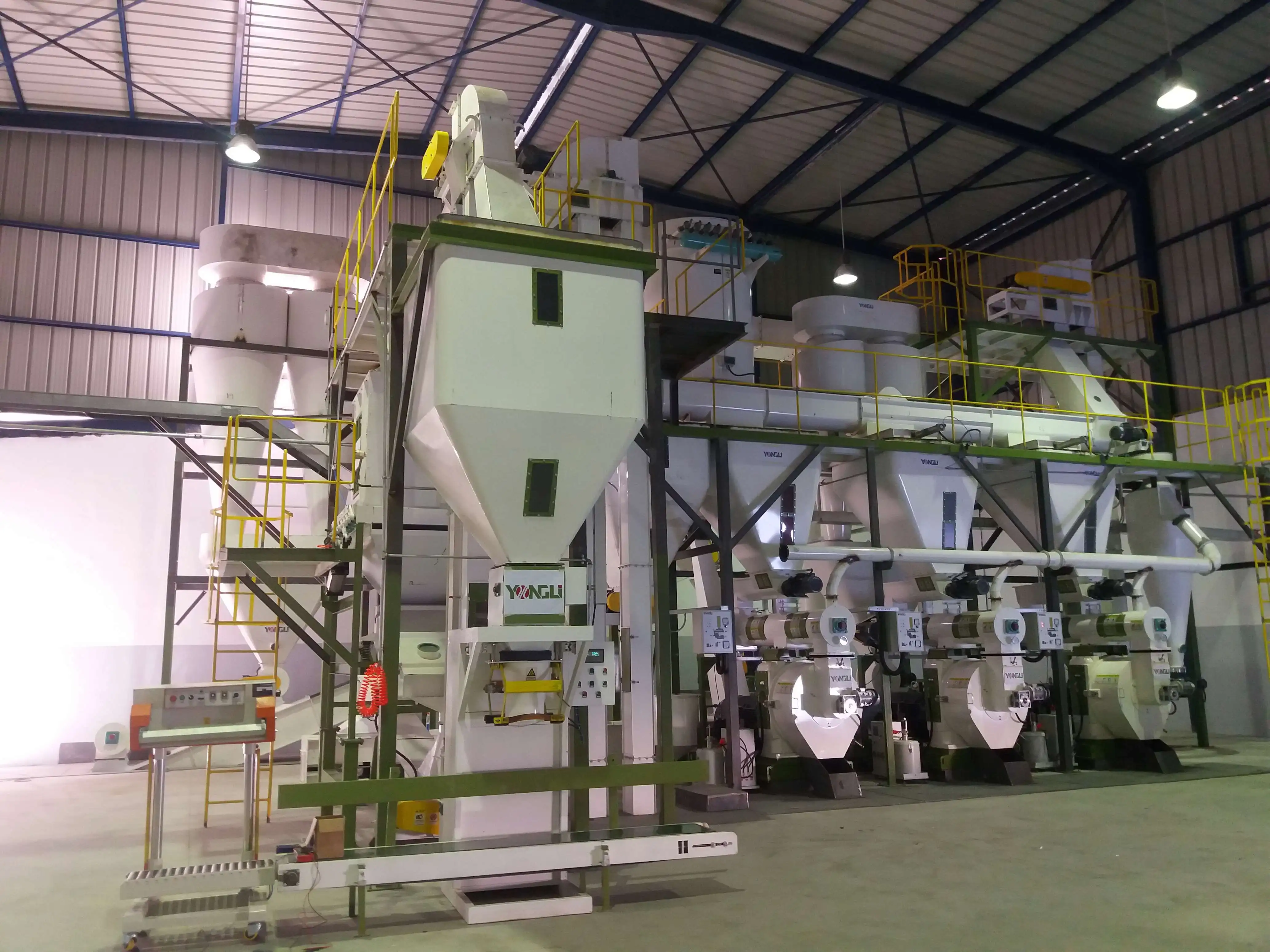

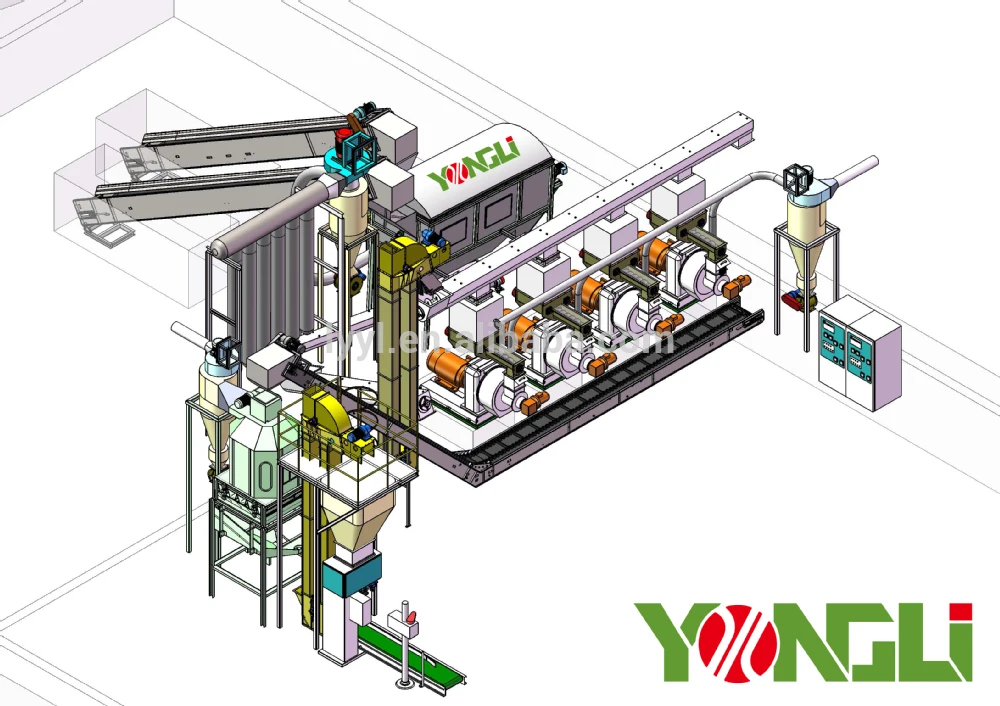

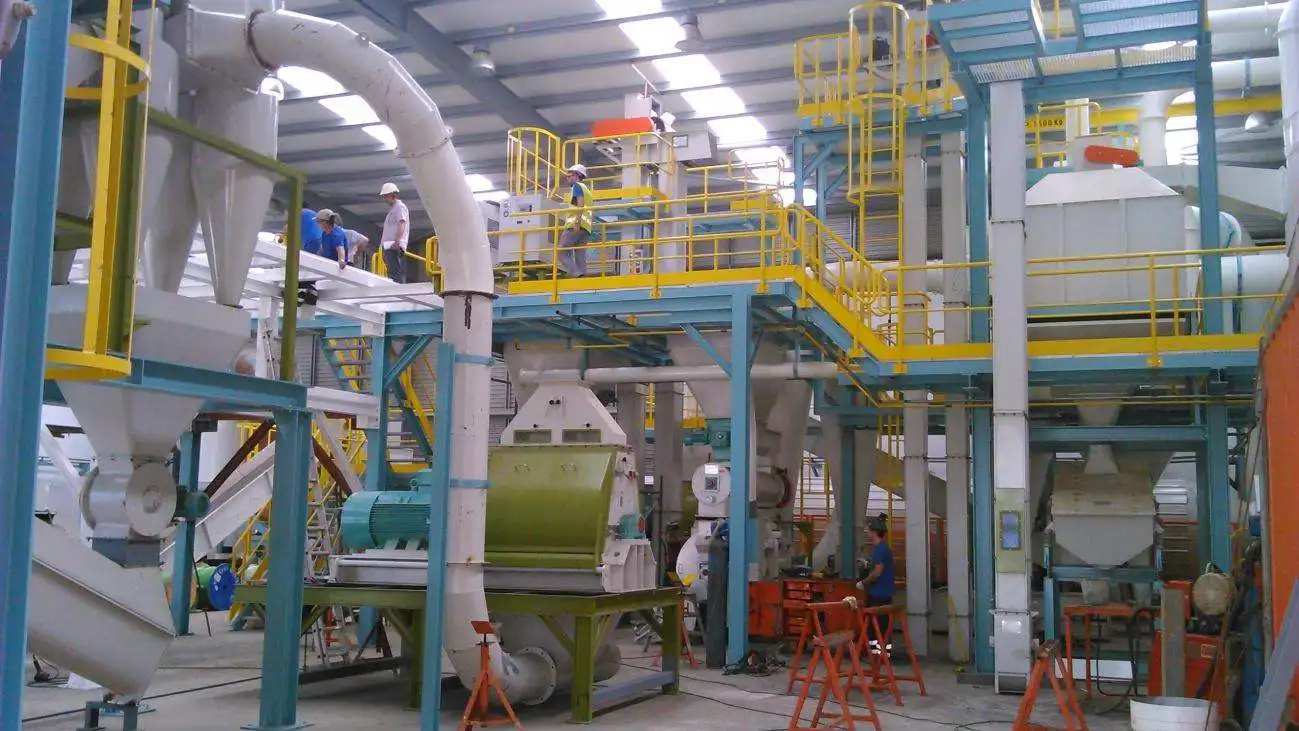

Full pellet line

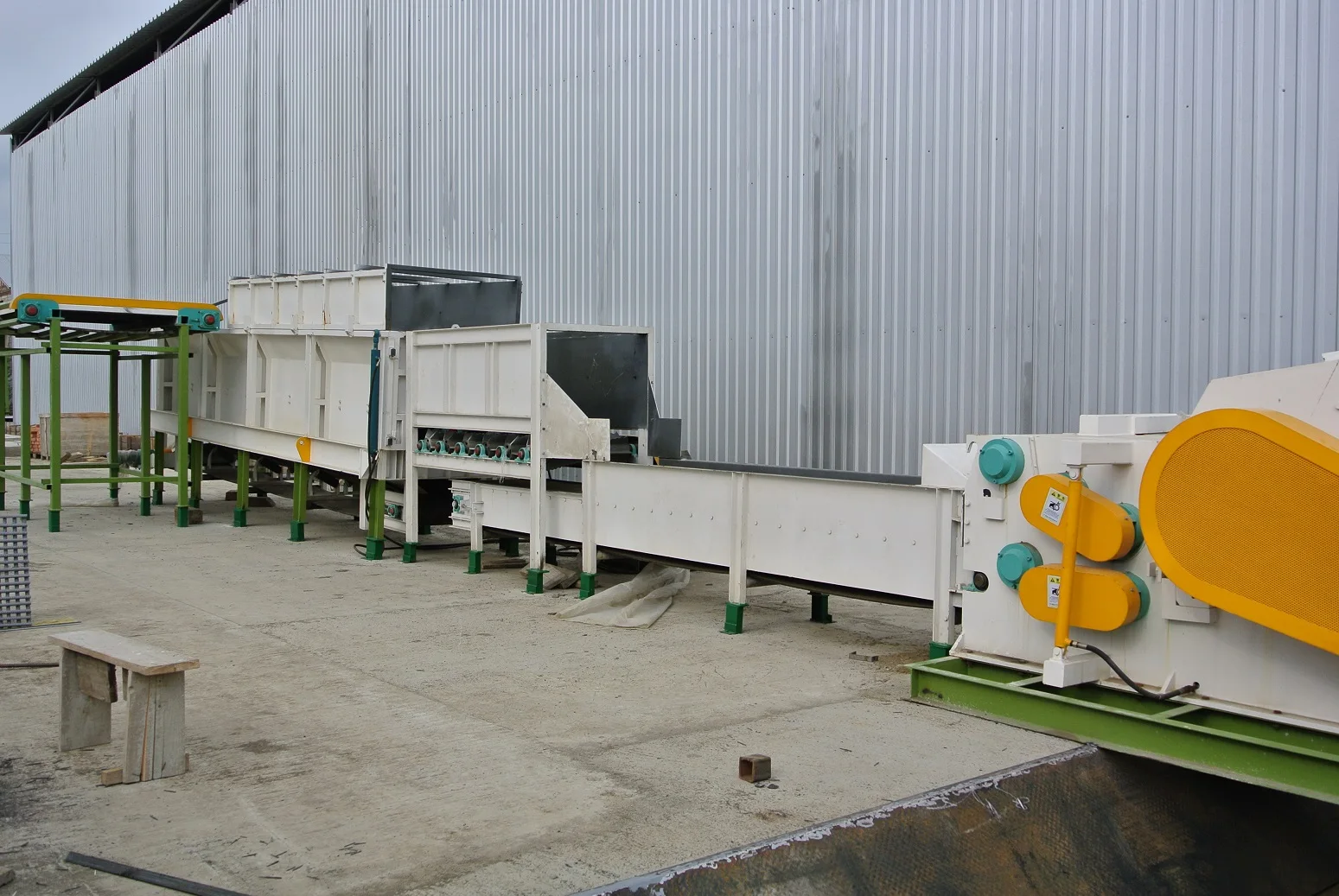

1.Debarking Process
Yongli Debarker is applicable to peel log wood with diameter 10 to 600mm. The peeled rate is more than 95%.
We have two types of debarker, one is single roller, anther is double rollers. You can choose it according to your wood log.

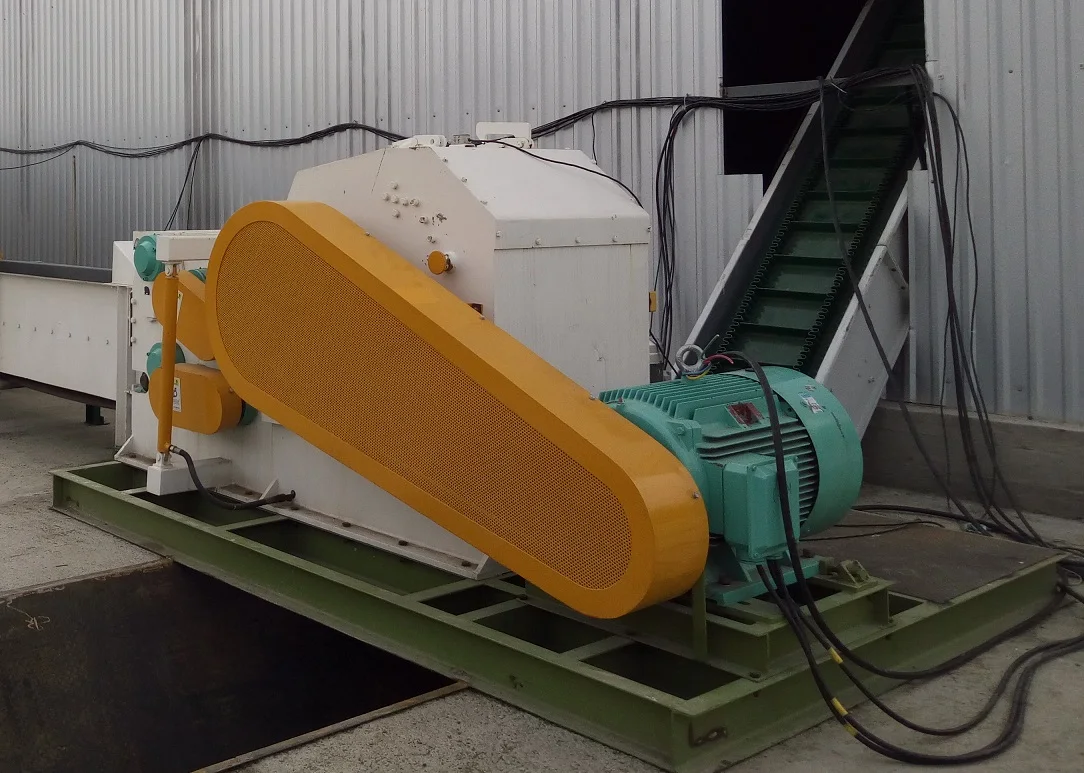

2.Chipping Process
If your raw materials are wood logs, branches, board etc, we have to use our wood chipper to produce it into smaller pieces(20-30mm lengh) before hammer mill.
The wood log processed max diameter for our drum wood chipper is 500mm.
3.Grinding Process
Yongli hammer mill is used to further crushing the small pieces woodchips into particles of less than 1-3mm.
Siemens motor and imported bearing.
Equipped with inspection and emergent stop device to protect your worker from any injuries.
Patent No.: ZL201220428707

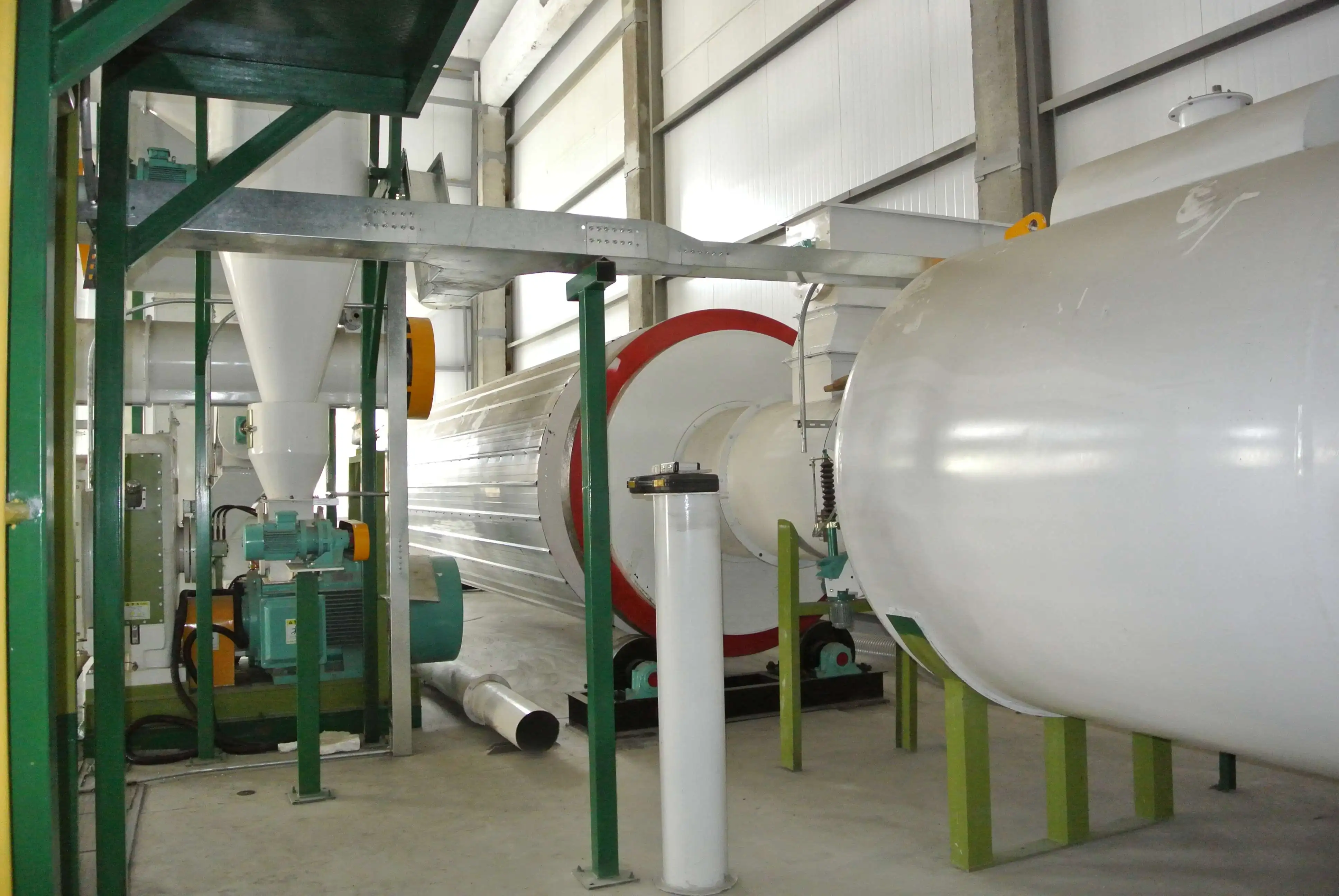

4.Drying Process
We have to use our drum dryer to dry the sawdust. The sawdust moisture before drying is normally: 30-60%, after drying is normally:13-15%. YONGLI has two types of dryer, one is single layer dryer, mainly for woodchips drying, another is three layers dryer mainly for sawdust drying.
5.Pelleting Process
We use Yongli pellet machine to make pellets into 6mm, 8mm, 10mm, 12mm etc, which can be produced based on client's request.
Automatic lubrication system is available.

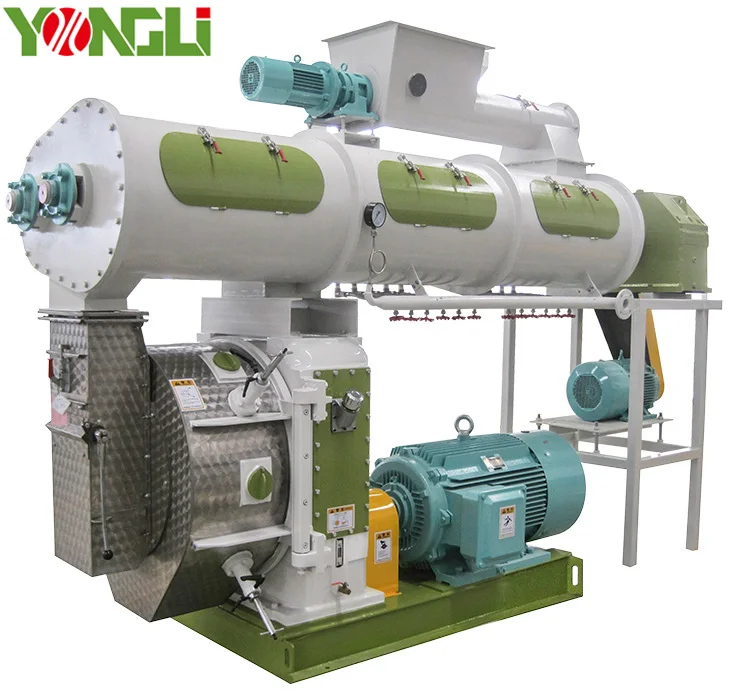

Conditioner: to adjust moisture and evenness of raw materials to improve the capacity and formation of pellets.
Simens motor and imported bearing.
Patent number: ZL201120430486
6.Cooling Process
After pellet mill, the temperature of pellets is between 60-80 degrees. For storage purpose, a cooler must be used to reduce the surface temperature and moisture content of pellets.

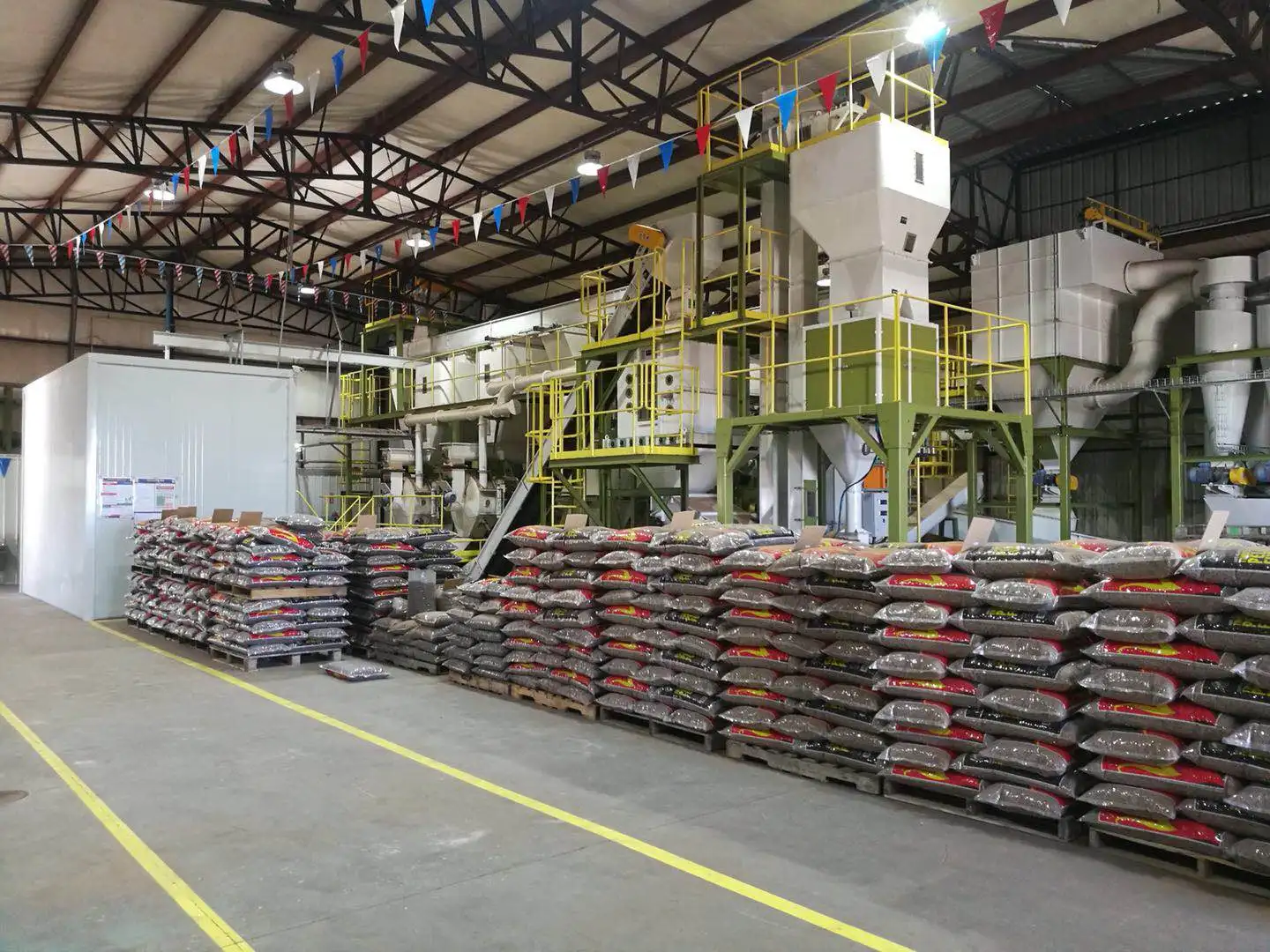

7.Packing Process
Packing process is to protect of the pellets becoming getting damp, and it is useful for transport and market sales.
YONGLI has two types of package machine, one is for small bag (15-50kg/bag), another is for ton bag. You can choose one, or both of them according to your real situation. It is very easy for package pellets.
Yongli also have full automatic packing machine and semi-automatic packing machine for your choice.

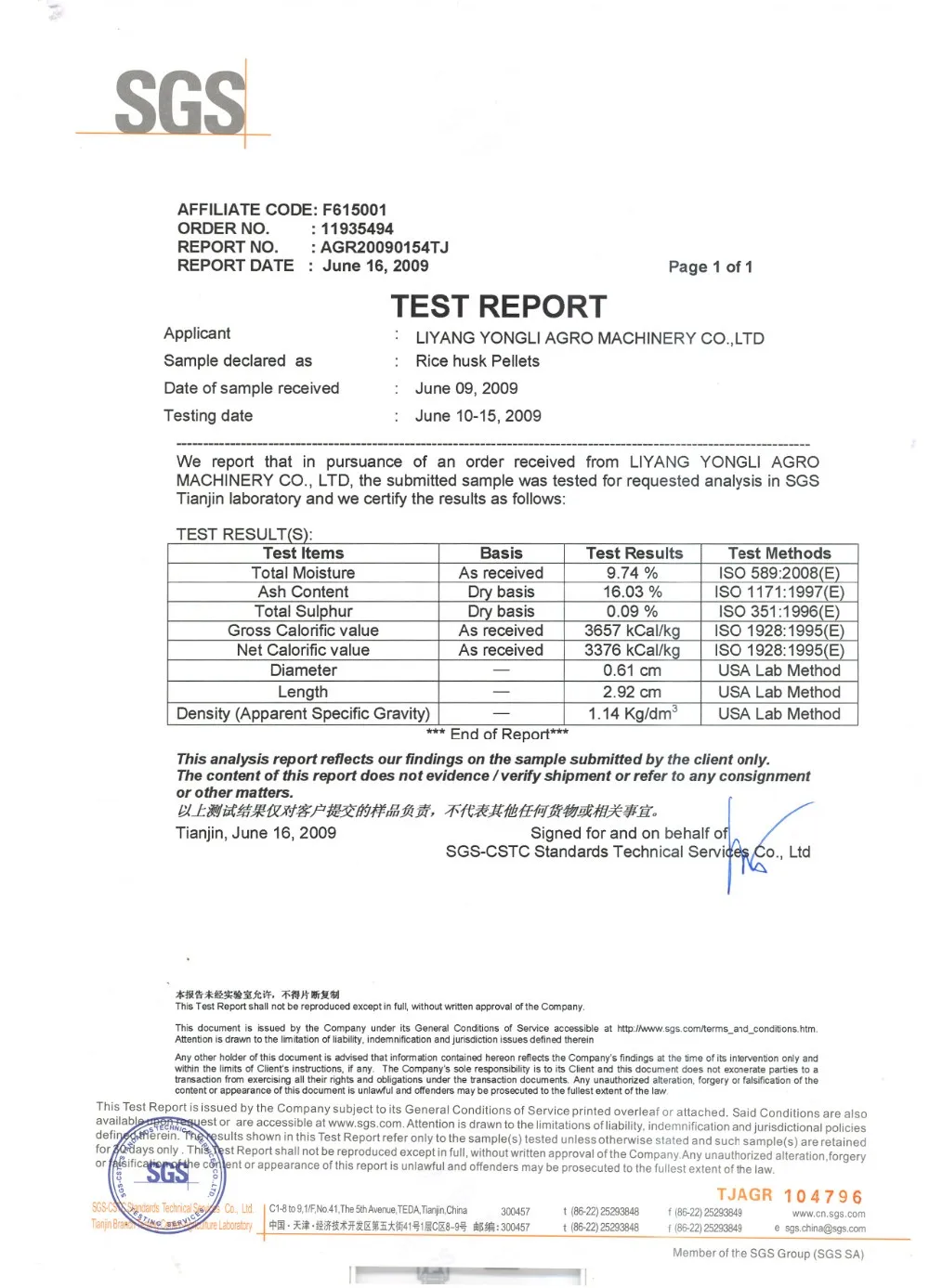

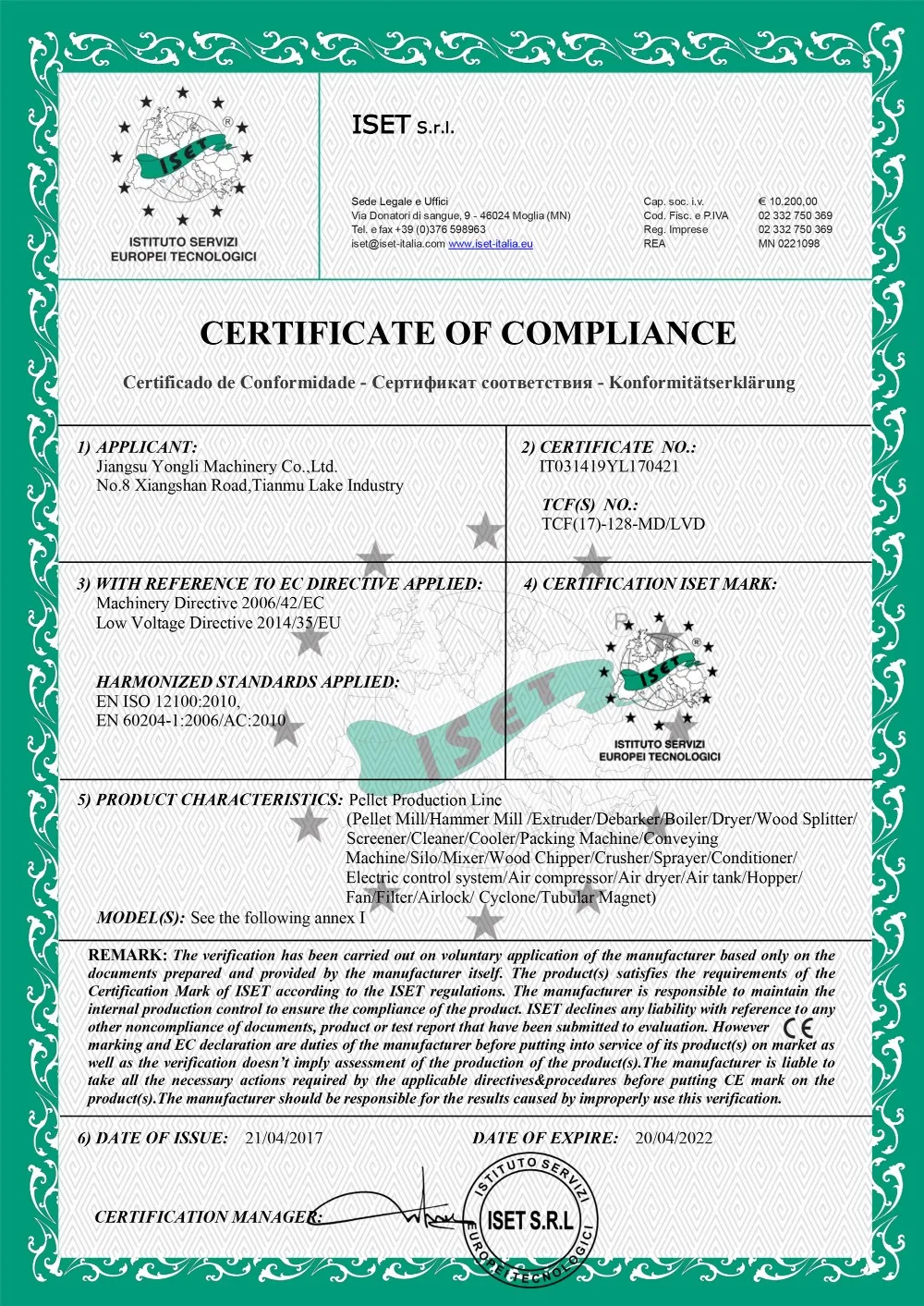

Certifications
Detailed Images
Machine Parts

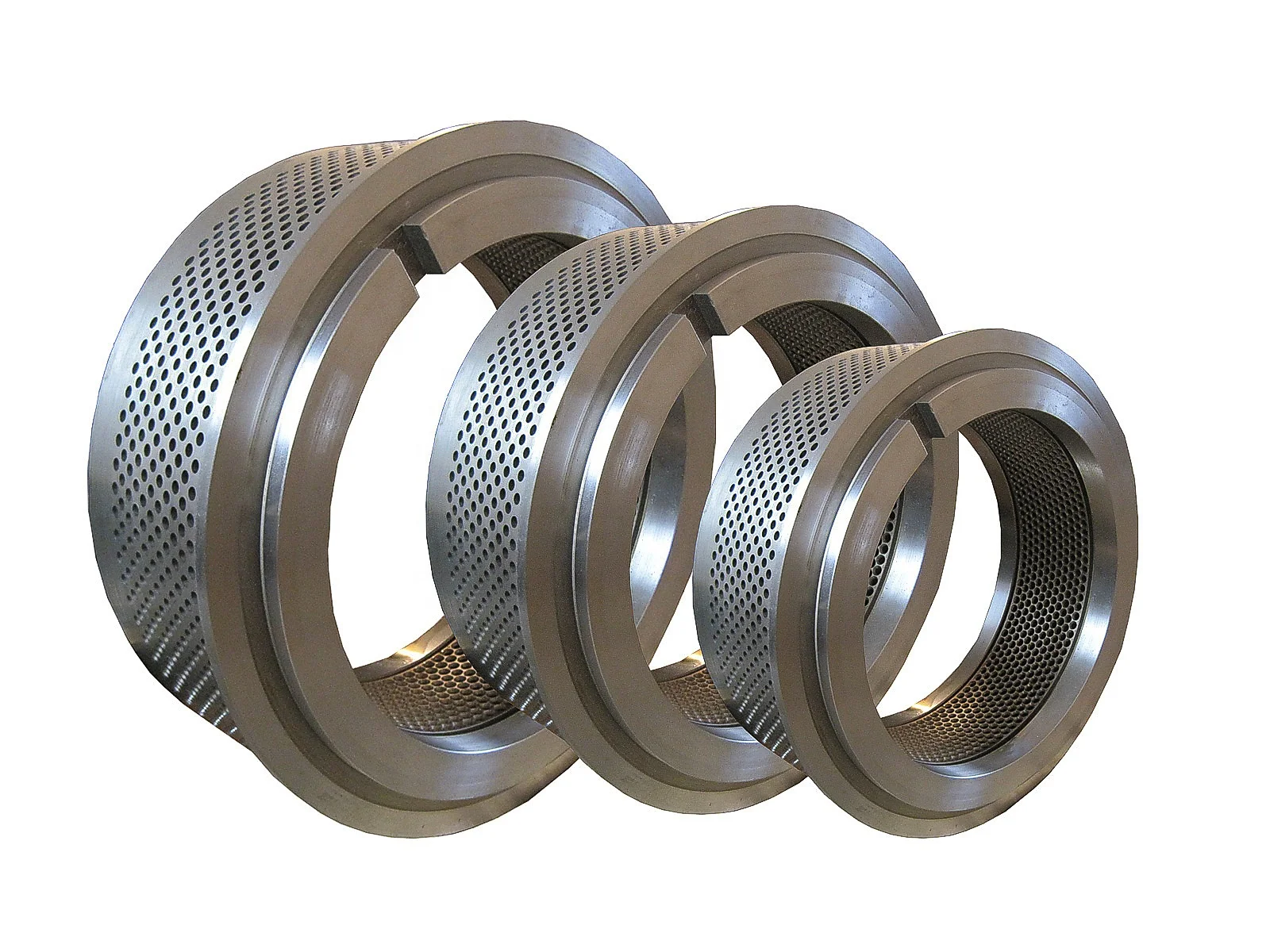

Name: Ring die
Brand: YONGLI
Original: China
Ring Die for wood pellet size:6-12mm
Main Features

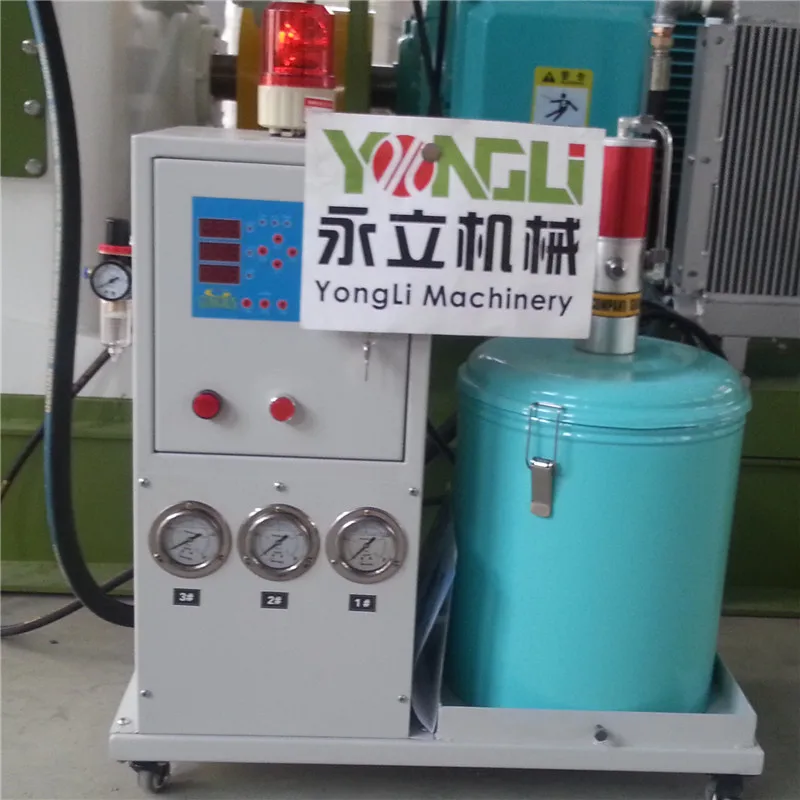

Name: Lubrication system
Lubrication system includes Automatic and Manual types
Brand: YONGLI
Original: China
Machine Parts

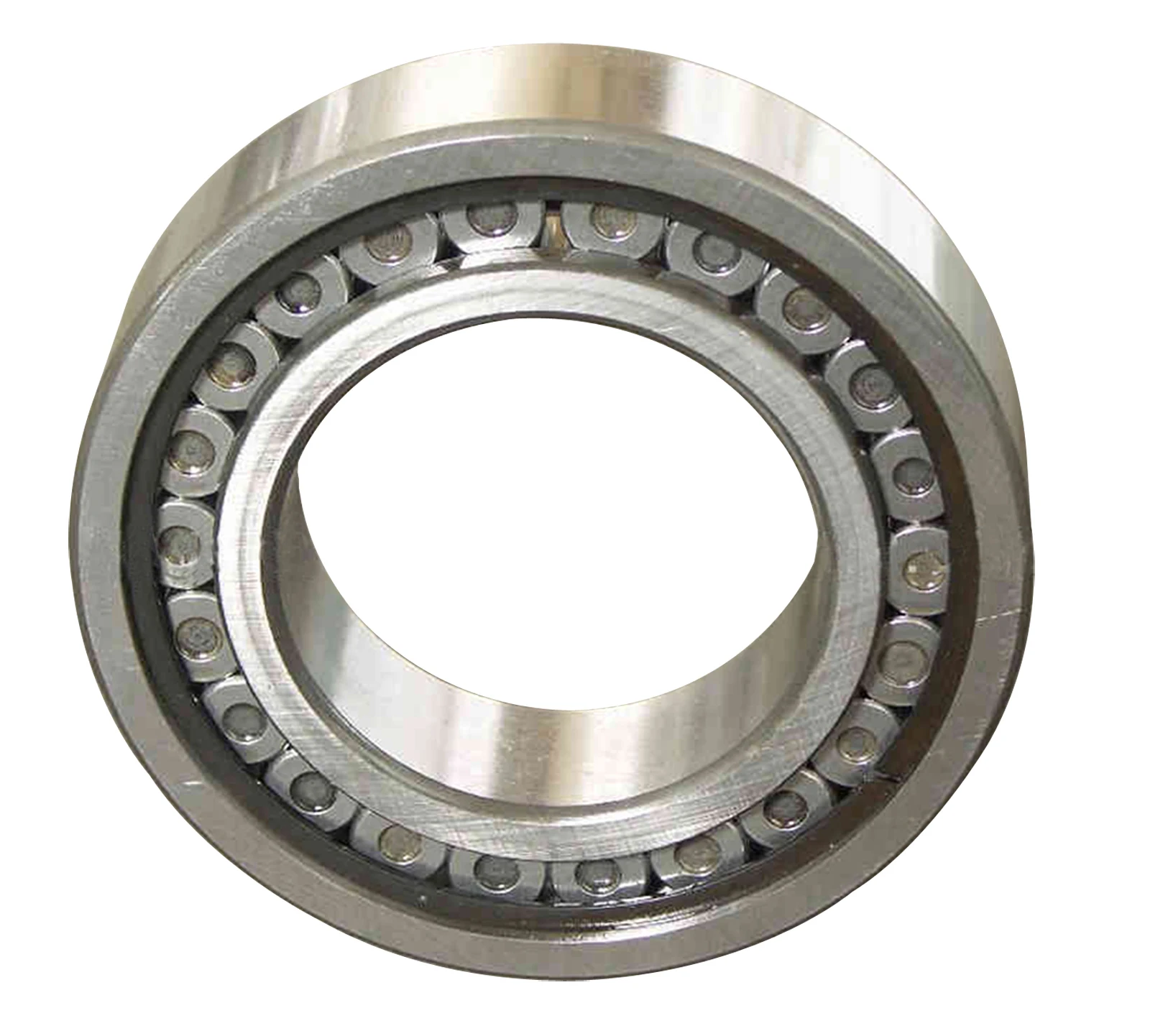

Name: Bearing
Brand: SKF/NSK
Main Features
Name: Roller assembly
Brand: YONGLI
Original: China
Our Company

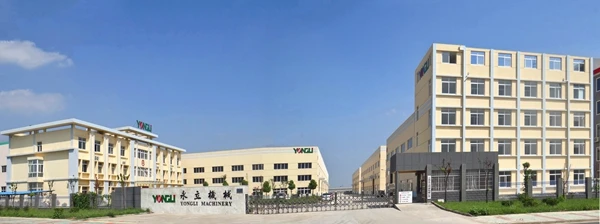

Liyang YONGLI Machinery Co.,Ltd. was founded in 2003. We are an excellent provider and operator for feed,biomass, fertilizer and Silo equipment. With the principle of High Quality, Competitive Price, Technical Innovation, Excellent Service, we constantly develop domestic market and abroad market, until now, we have finished thousands feed, biomass, fertilizer and silo projects which closely connected with the pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, feed mill, fish feed extruders, cooler, conveyors, bucket elevator etc, and gain great reputation from our clients.
YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard. Our equipment have exported to more than 50 countries: Canada, USA, Portugal, Greece, Russia, Latvia, France, Lithuania,Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand,Indonesia,Japan, Sri Lanka, Dubai, Australia, New Zealand and so on. With high-quality staffs, CAD & Solidworks design center and strong technical force, we could provide process design, manufacturing, installation, commissioning, personnel training, after-sales service and other service for our customers. We promise that customers can get optimum benefit at minimum investment.
YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard. Our equipment have exported to more than 50 countries: Canada, USA, Portugal, Greece, Russia, Latvia, France, Lithuania,Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand,Indonesia,Japan, Sri Lanka, Dubai, Australia, New Zealand and so on. With high-quality staffs, CAD & Solidworks design center and strong technical force, we could provide process design, manufacturing, installation, commissioning, personnel training, after-sales service and other service for our customers. We promise that customers can get optimum benefit at minimum investment.
Our Service
1)Consultation service before, during and after-sales.
2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.
6) Provide 1-3 years warranty for main machine and life-time maintenance service.
Packing & Delivery
Shipping way | Ocean shipping,air transport etc | |
Delivery time | 50 days | |
Packaging Details | Packaging: Wooden box or Iron case or pallet, etc. | |
