HDBaseT matrix rs232 control 4X4 4K@60HZ 4:4:4 2.1HDMI hdmi matrix audio output
- Category: >>>
- Supplier: Shenzhen Keqi Electronics Co. Limited
Share on (1600379751207):
Product Overview
Description
Product Description
Product Name :
HDBaseT matrix rs232 control 4X4 4K@60HZ 4:4:4 2.1HDMI hdmi matrix audio output
Introduction:

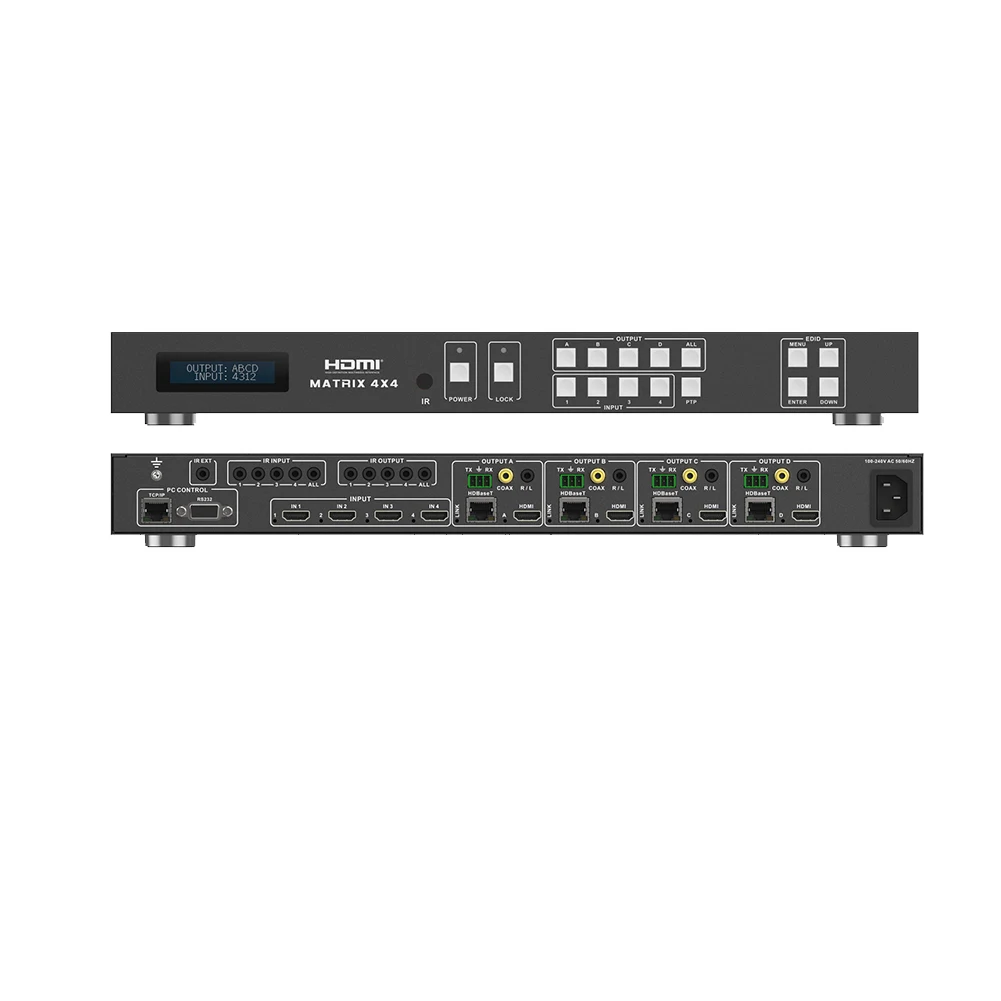

The HD BaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI
sources to eight displays. This matrix features four HDMI outputs and each HDMI output is mirrored to
provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolutions up
to 1080p Full HD and 4Kx2K@30Hz) and supports high resolution digital audio formats such as LPCM 7.1CH,
D\\o\\l\\b\\y TrueHD, D\\o\\lb\\y Digital Plus and DTS-HD Master Audio. Connect a HD BaseT Receiver to each of the
CAT-Cable outputs to extend the HDMI signal up to 230ft/70m (70m Version) or 131ft/40m(40m version)for
multi-room connectivity. It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game
consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it

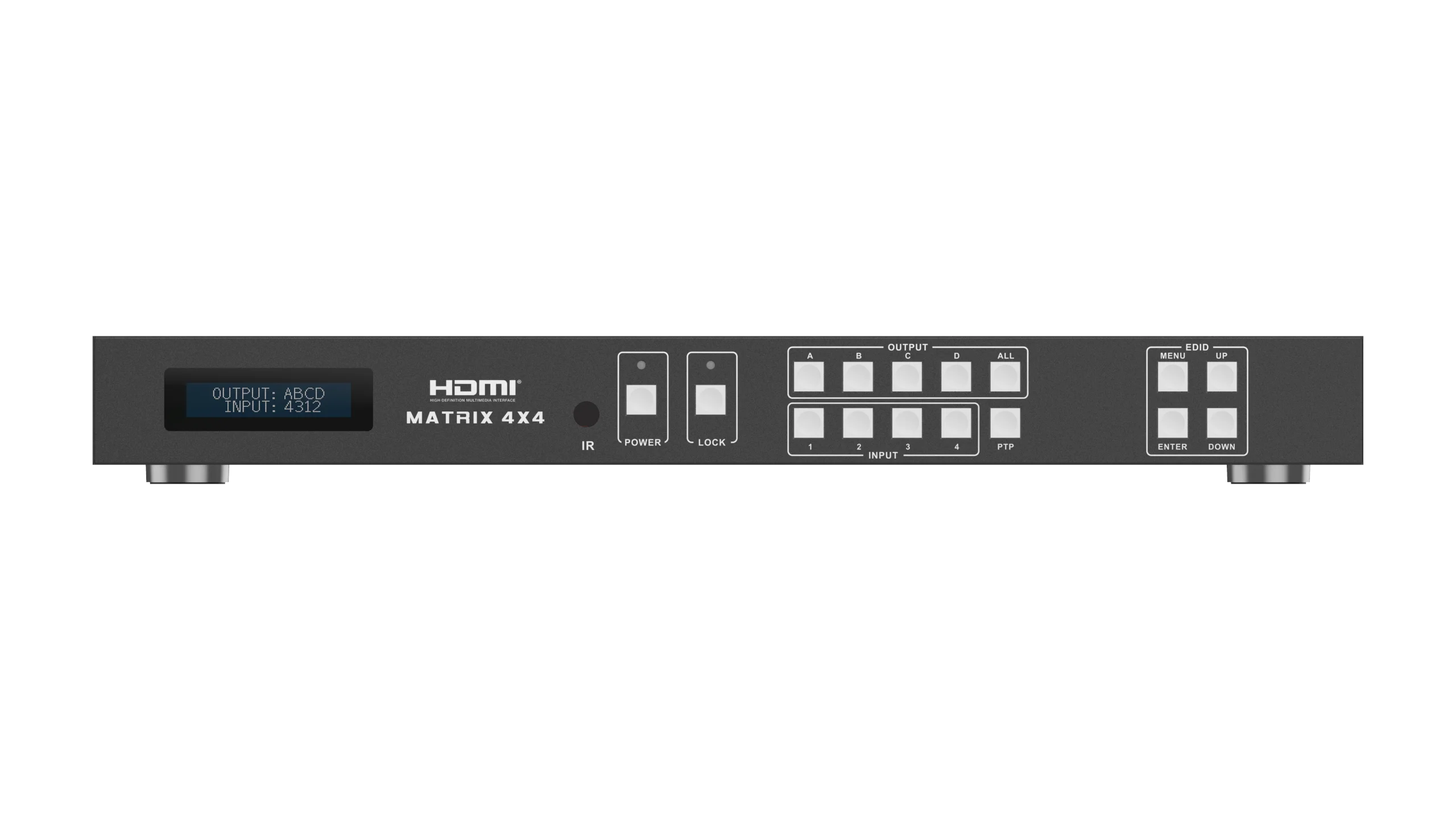

via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. This
device supports High Definition Audio, and 3D signal compatibility
Features :
HDMI2.0, HDCP2.2 compliant.
Support color space conversions among RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats without deep color.
Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0.
Support 3D frame sequential video format up to 1080p@60.
Support high resolution VESA mode video format up to QSXGA@60Hz.
Support reception of any audio data conforming to the HDMI specification such PCM up to192kHz,
compressed audio(IEC 61937),DSD,DST,DTS and HBR.
Support Transmission distance:Over CAT5e/6/7
70 meters:
1080P @60Hz@36bit; 3D1080P@30Hz36bit;
40 meters:
1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
Support POE function.
Support wideband IR(30-60Khz) matrix system, IR transport channel can be forward or backward
supports GLOBAL IR
Support RS-232 4 channel bypass.
Support simultaneous HDMI and CAT outputs
Support RS-232, remote control, on-panel control and TCP/IP Control
Support smart EDID management
Package Contents
HD BaseT 4x4 HDMI Matrix-----------------------------------------------1PC
HD BaseT Receiver----------------------------------------------------------4PCS
AC power cable--------------------------------------------------------------1PC
Operation Manual-----------------------------------------------------------1PCS
Wideband IR Tx cable------------------------------------------------------5PCS
Wideband IR Rx cable------------------------------------------------------6PCS
HDMI Matrix IR Remote --------------------------------------------------1PC
Mounting ears(Matrix)-----------------------------------------------------2PCS
Mounting ears(Receiver)--------------------------------------------------8PCS
RS-232 cable------------------------------------------------------------------1PC
Packaging & Shipping
Packing List :
1) 1x HDbaset Matrix
2) 1x 24V/8A Power Supply
3) 1x Power Cord
4) 1x Master Remote Control
5) 16x IR Transmitter cable
6) 16x IR Receiver cable
7) 2x Rack-mount ears (19” Rack-Mountable)
8) 1x Serial Cable (9-pin RS232 to 3-pin phoenix connector)
9) 16x HDbaset POC receivers(can choose quantity)
About Shipping,if in stock,prepare only need 1-2 days,ship need 3-5 days.
Our Services
Company Information
FAQ
1.Q : How long is the shipping time?
A : It usually takes 7-9 days to reach your address via DHL.
2.Q : Are you a factory or sales agent ?
A : We doing factory in shenzhen over 9 years,not agent.
3. Q : Can I use our own brand stickers for our small quantity orders ?
A : Yes you can but need you provide the LOGO to us.
4. Q : Can I pay in with PayPal ?
A : Yes we support PayPal .
5. Q : What is the OEM MOQ?
A : According to the model, small products like HDMI splitter/extender generally need 200pcs, HDMI matrix 50pcs, HDbaseT matrix 20-50pcs, etc. Please consult us for details
6. Q : Warranty?
A : We support 2 year warrranty .
7. Q : Do you have control4/ sevant etc driver? how can I use these control system control your products?
A : Our matrix/AV over IP products supports OPEN API and can be program to any other third party control system, and we have control4 driver
8. Q :How long do you recommend the HDMI cable?
A : 3-7m
