High standard custom portable truck loading unloading telescopic belt conveyor machine

Share on:

Price:$10,200.00 - $12,000.00
Price in USD:Details


Product Overview



Applicable Industries
Building Material Shops, Construction works , Energy & Mining, Farms, Food & Beverage Factory, Manufacturing Plant, Other, Printing Shops, Restaurant
Showroom Location
Carbon Steel
Belt conveyor
Place of Origin
Brand Name
2.2 KW
1 Year
Width or Diameter
Machinery Test Report
Not Available
Video outgoing-inspection
Marketing Type
New Product 2021
Warranty of core components
1 Year
Core Components
Bearing, Engine, Gear, Gearbox, Motor, Other
After Warranty Service
Online support/Spare parts/Video technical support
Product name
Telescopic Belt Conveyor
Core Components
Motor, PLC
Width or Diameter
Weight (KG)

Product Description

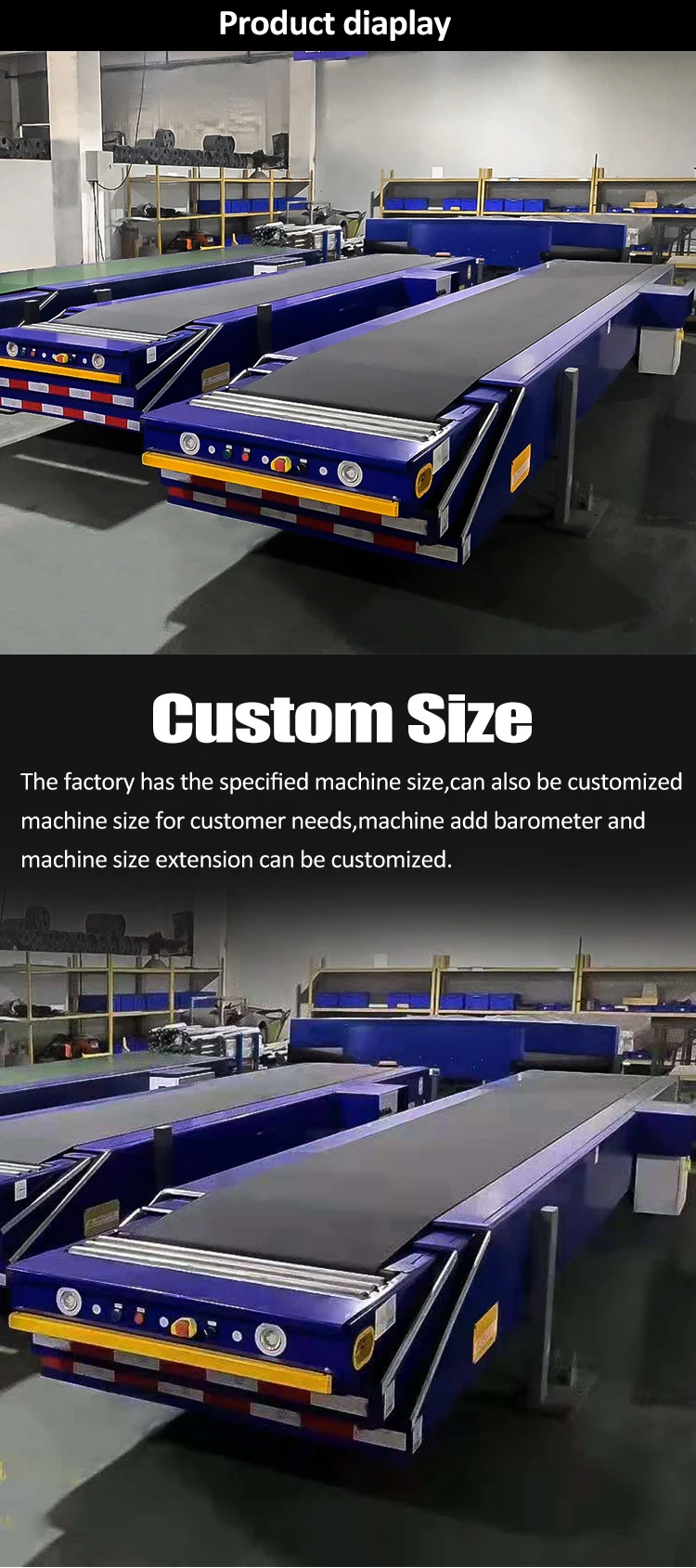

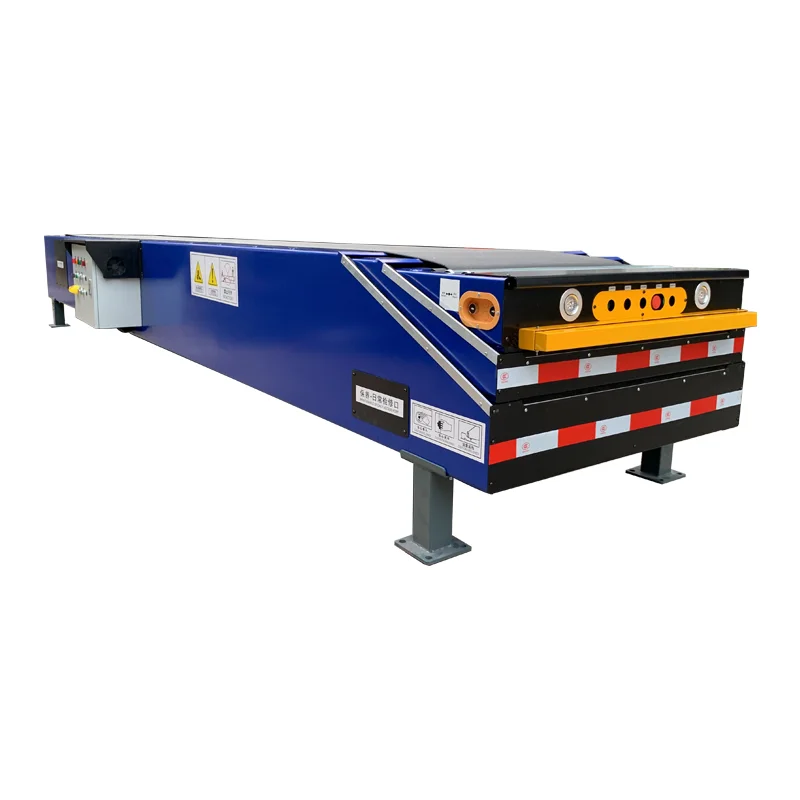

Telescopic belt conveyor
The telescopic belt conveyor is added to the common belt conveyor, which makes the belt conveyor freely retractable in the length direction. Users can adjust the button according to their own requirements to control the length of the conveyor at any time. In the model with automatic lifting device, the user can also control the height of the telescopic belt conveyor end at any time. telescopic belt conveyor is mainly used in vehicle loading and unloading and material transmission system with telescopic requirements. It shortens the distance of manual transportation of materials, shortens the loading and unloading time, reduces the labor intensity, reduces the damage of goods,reduces the loading and unloading cost, and improves the work efficiency. the telescopic belt conveyor can be operated in two
directions to transport materials. the telescopic belt conveyor can be used with other conveying equipment and material sorting system to realize the automatic production of materials in and out of storage or vehicle loading and unloading, especially in tobacco industry.

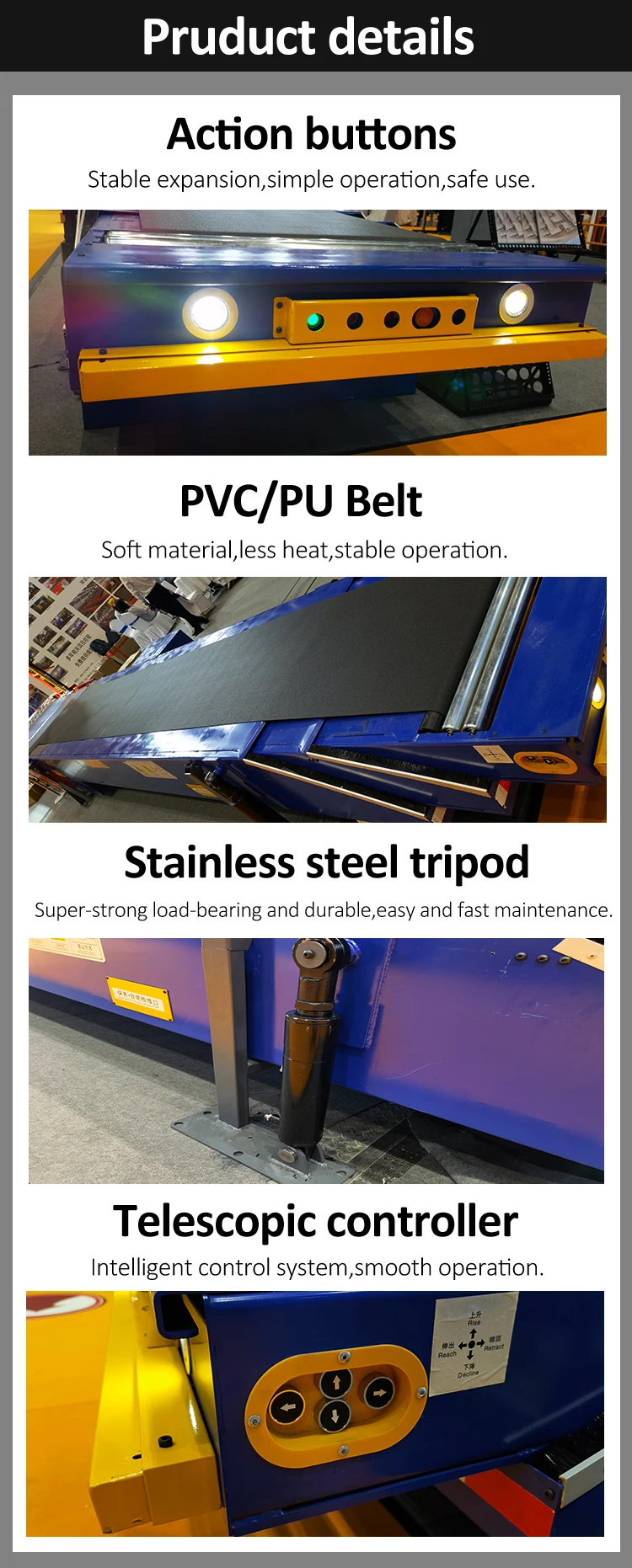

Main features
1. Adopt 600mm width 5mm thickness high grip green PVC belt
2. Conveyor height adjustable from 700mm to 2500mm
3. Belt speed variable from 10 to 20 m/min
4. Frame construction manufactured from 3mm thickness steel plate,painted surface treatment
5. Easy to movable around on 150mm heavy duty swivel lockable casters
6.Can also be fixed to certain place by tighten
the two threaded knobs between the two casters
7. Automatically stop by limit switch when lifting up and down
8.Independent electric cabinet includes OFF/ON,Emergency Stop,Forward/Reverse,Up/Down,Stop,Speed Knobs

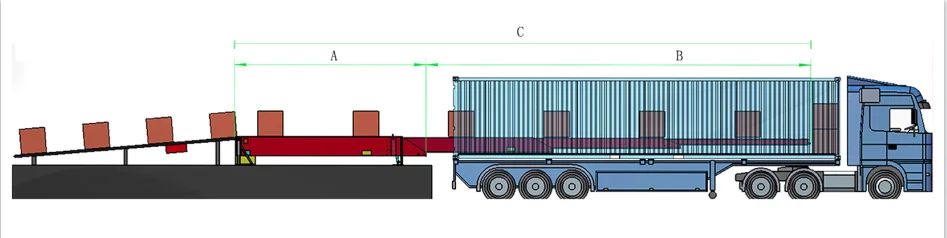

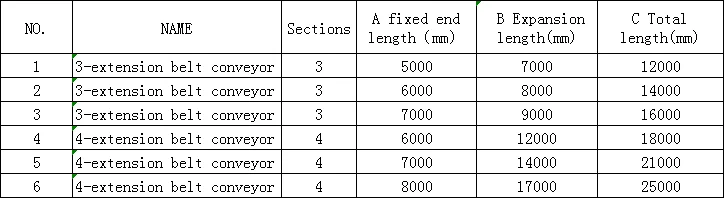

Product number

3 sections telescopic belt conveyor
Fixed length 5000mm/6000mm/7000mm Optional , Extension length 7000mm/8000mm/9000mm Optional
Total length 12000mm/14000mm/16000mm
4 sections telescopic belt conveyor
Fixed length 5000mm/6000mm/7000mm Optional , Extension length 7000mm/8000mm/9000mm Optional
Total length 12000mm/14000mm/16000mm

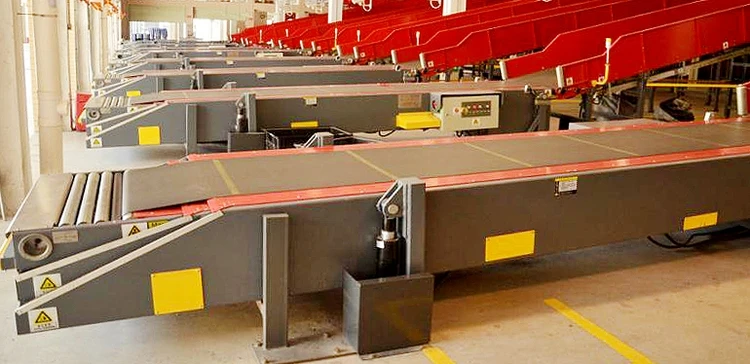

Product Application

Telescopic Belt Conveyor is an automatic loading/unloading equipment whose length is controllable widely used in logistics, ports, docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. It saves time of carrying back and forth and therefore makes the delivery work more efficient and less intensive, and also does less damage to the goods and helps enterprises decrease costs and increase efficiency and quality.

Telescopic belt conveyors can be used to load, unload parcels, boxes, sacks & tires. An intuitive smart-pad on either side enables precise control of the elevation and telescopic movement.

Packing & Delivery

We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by airor ,by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.

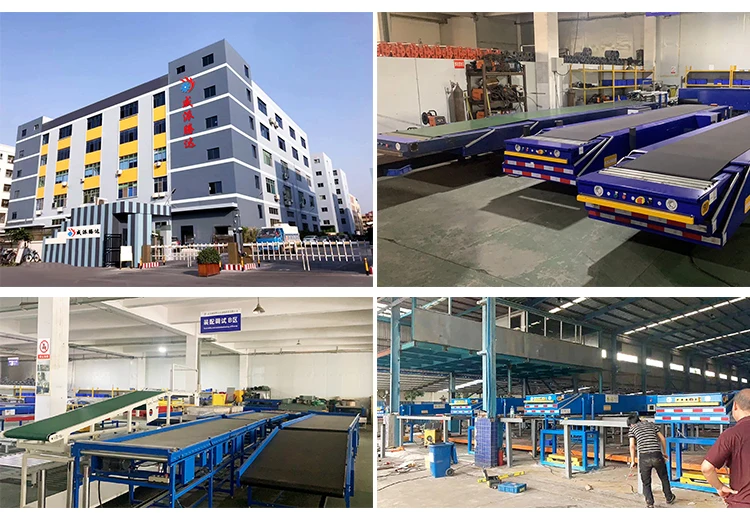

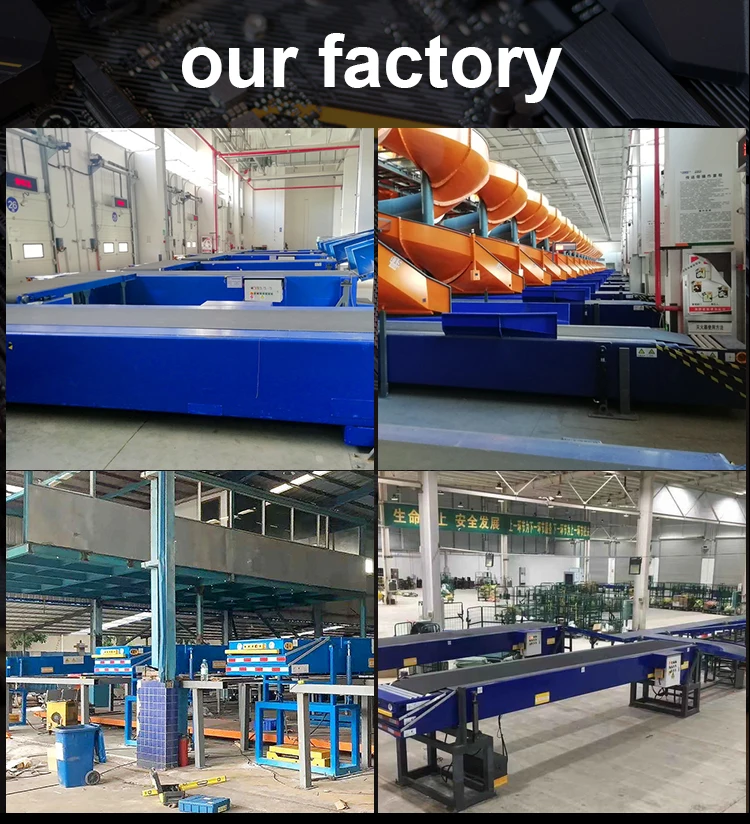

Company Profile

Shenzhen Weipai Tengda Technology Co., Ltd. was founded in 2005 as a high-tech enterprise focusing on R&D, design, production and sales of conveying equipment. Branches have been established successively in Beijing, Shanghai, Guangzhou, Shenzhen, Dongguan, Xuzhou, Wuhan and Huzhou to form a group operation.

Since the establishment of Wipa Tengda, it has focused on back-end packaging equipment and logistics, e-commerce, warehousing, and express delivery industries for site planning and intelligent sorting. With its professional level and mature technology in the field of automation, it has focused on packaging equipment and The field of transportation industry is rising rapidly. In recent years, Wipa Tengda has successively cooperated with Tmall Supermarket (Xinyi Logistics), Kejie Logistics, Gome Online, SF Express, China Post, YTO Express, and other well-known companies. High-quality products and good service make customers treat us The products were recognized. The company has always adhered to the management policy of "people-oriented, rule-based", from pre-production procurement to the satisfaction of end-of-sale customers, implementing the concept of high-quality management, and winning the recognition and trust of users. The company will continue to improve product quality and service.
Weipa Tengda will continue to uphold the corporate spirit of honesty, gratitude, innovation, unity and standardization. We will continue to work tirelessly to create the first and strive for excellence, sing the best, and create new glory!


1.What's your advantage?
A: Honest business with competitive price and professional service on export process.

2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from this site, your order and money will be well guaranteed.

3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.

4. Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.

5. How about the delivery time?
A: Within 15-35 days after we confirm you requirement.

6.what kind of payment does your company support?
A: T/T, 100% L/C at sight,Western Union are all accepted if you have other payment,please contact me.
