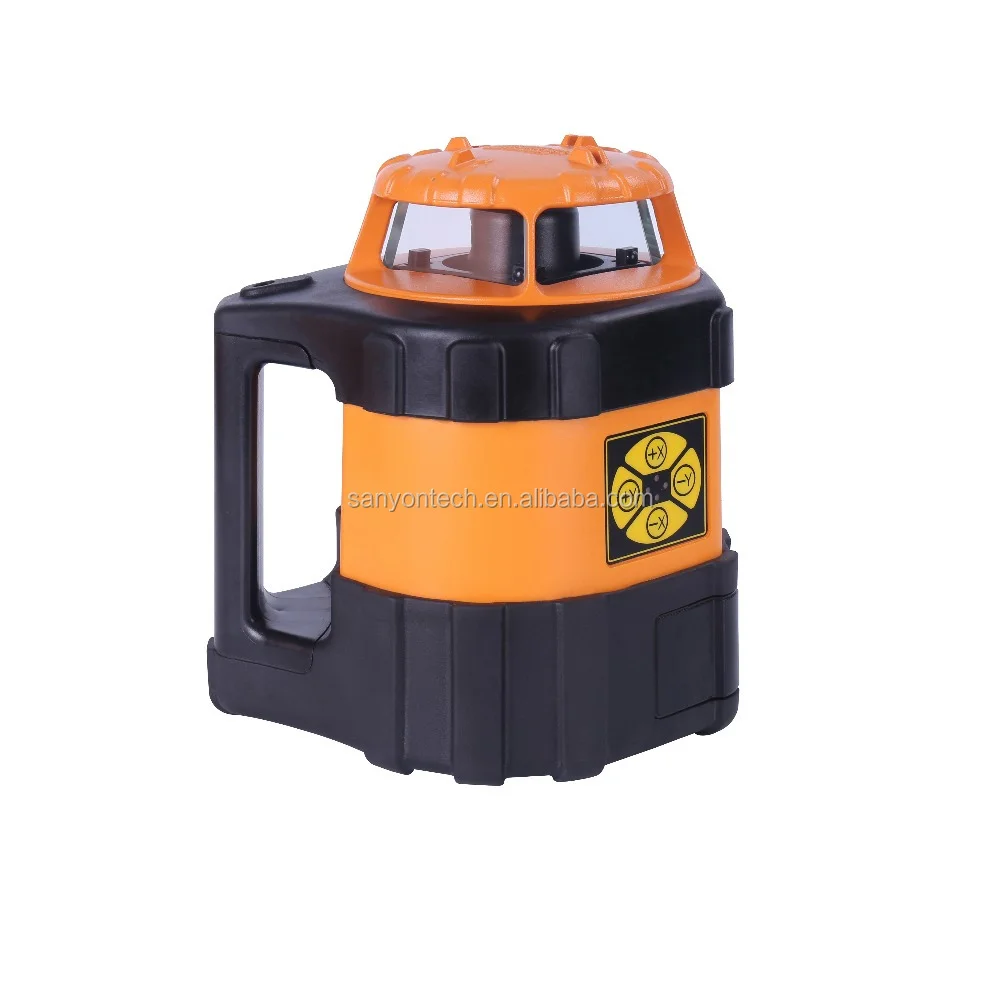

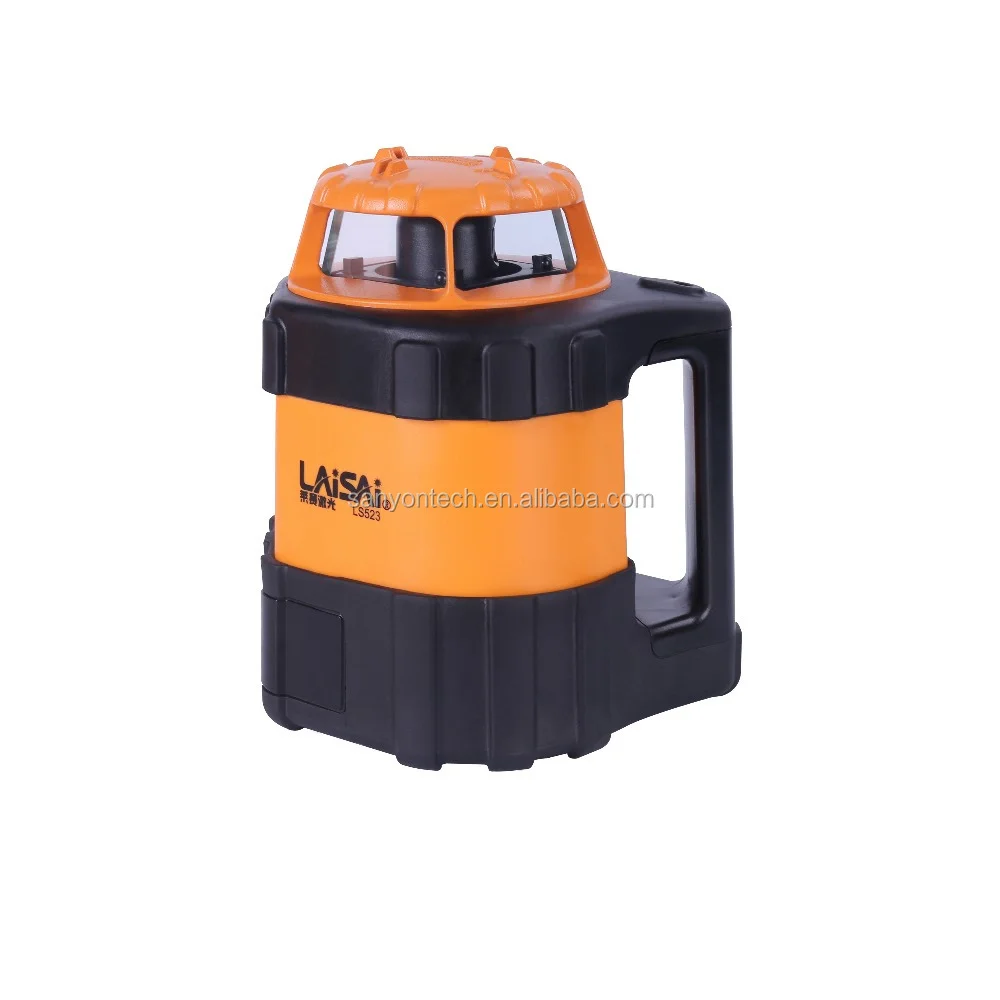

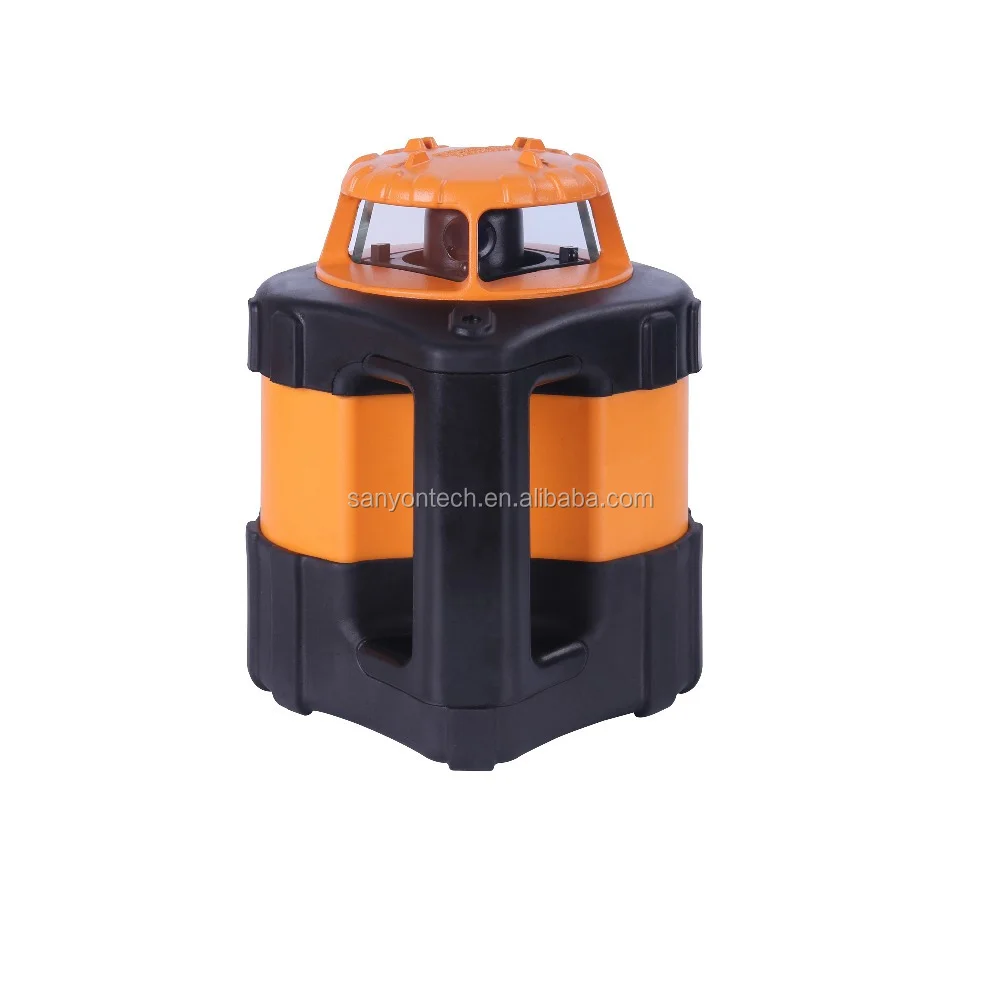

Nivel 500m Working Range Red Beam Land Automatic Self leveling Rotary Laser Level

Product Overview

Description

LS523 ELECTRONIC LEVELING SINGLE SLOPE ROTARY LASER (H)

Features

  Horizontal 360^o rotary laser

   Electronic leveling, warning when beyond auto-leveling range

  Unbalance warning function

  VWS function

  Adjustable in direction and angle of area scanning

  Dual axis grade scanning function

  Four quadrants shielding function

  Shockproof rubber protection, good waterproof and dustproof



Specifications

  Laser wavelength: 635nm

  Laser class: Class II/III

  Horizontal accuracy: ±0.075mm/m

  Auto-leveling range: ±5^o

  Working range(diameter): 600m(with LS715 detector)

  Power: Ni-MH rechargeable battery pack or Li battery pack or 6*AA battery

  Sealing: IP66

  Size: 5 1/2’’x5 1/2’’x7 1/2’’ (140x 140x190mm)

  Weight: 3.97lbs (1.8kg)

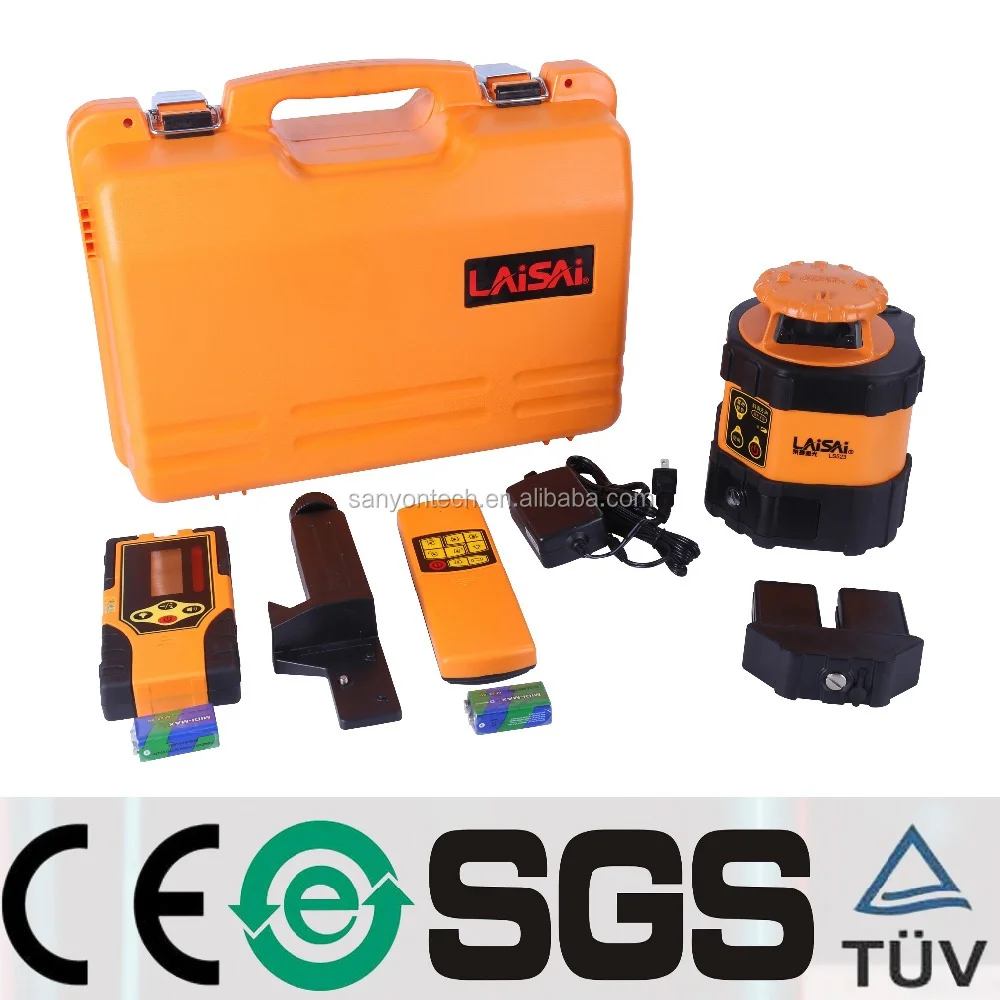

Basic Kits:

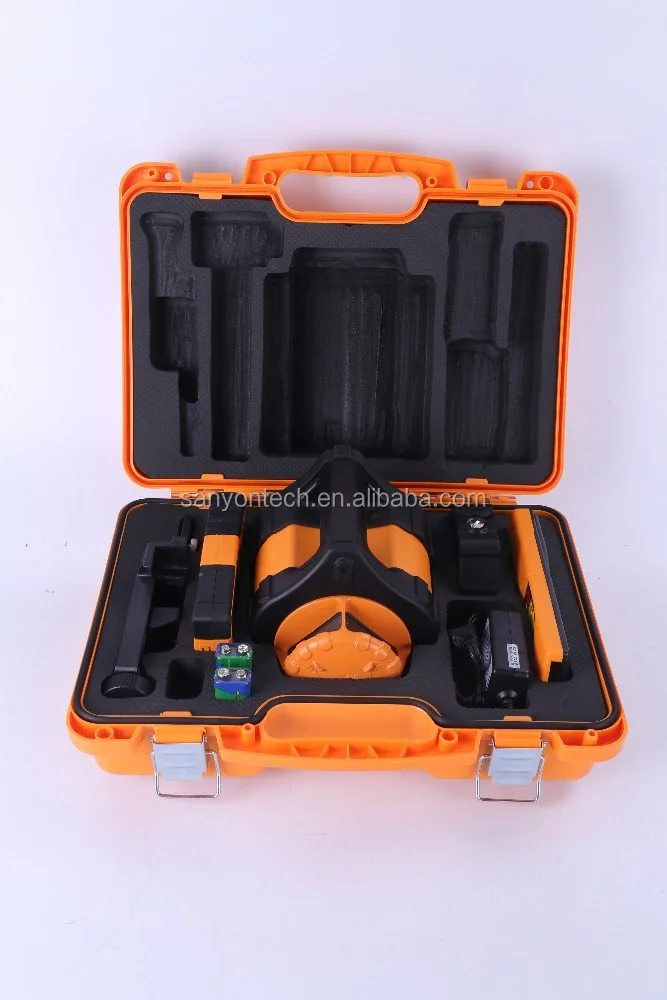

LS523 main unit, LS715 detector, LS312 remote control, LS310-2 adapter& Ni-MH rechargeable battery box (or LS310-4 adapter & Li-battery box), 5#hard carrying case
