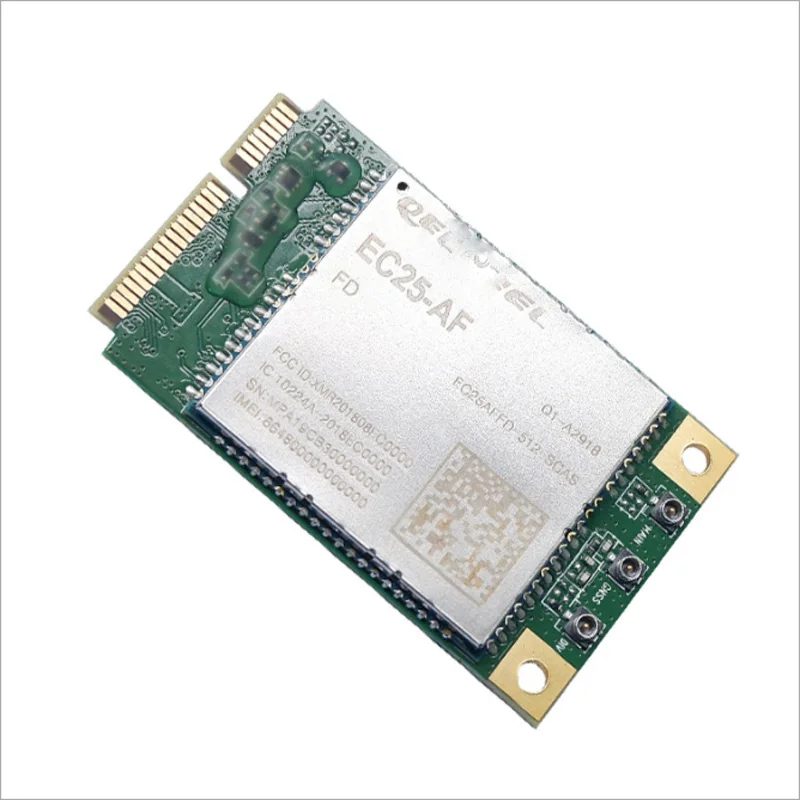

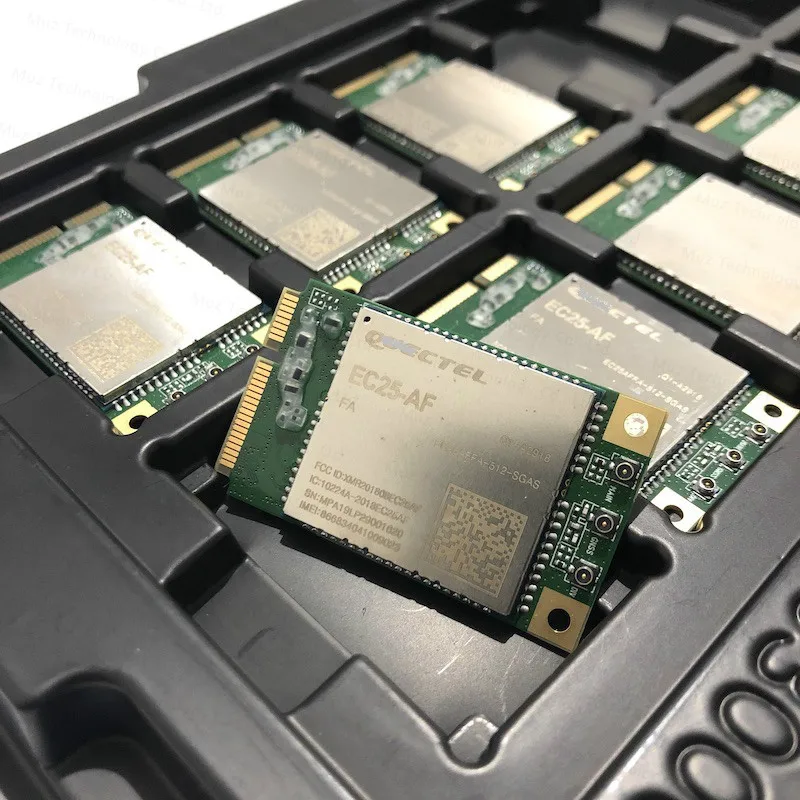

ec25-a ec25 mini pcie b2/b4/b12 4g quectel for t-mobile

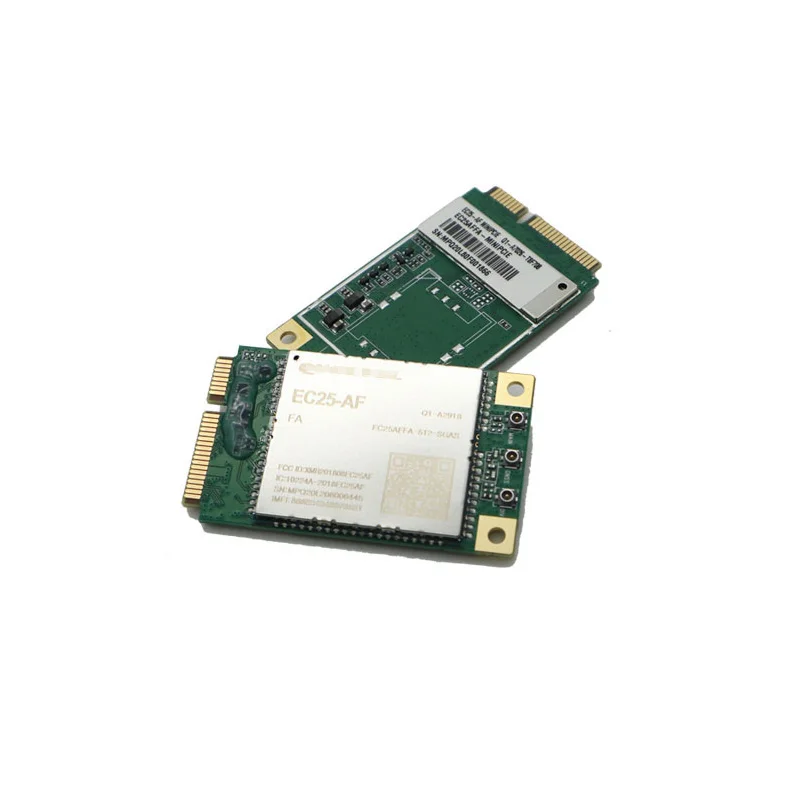

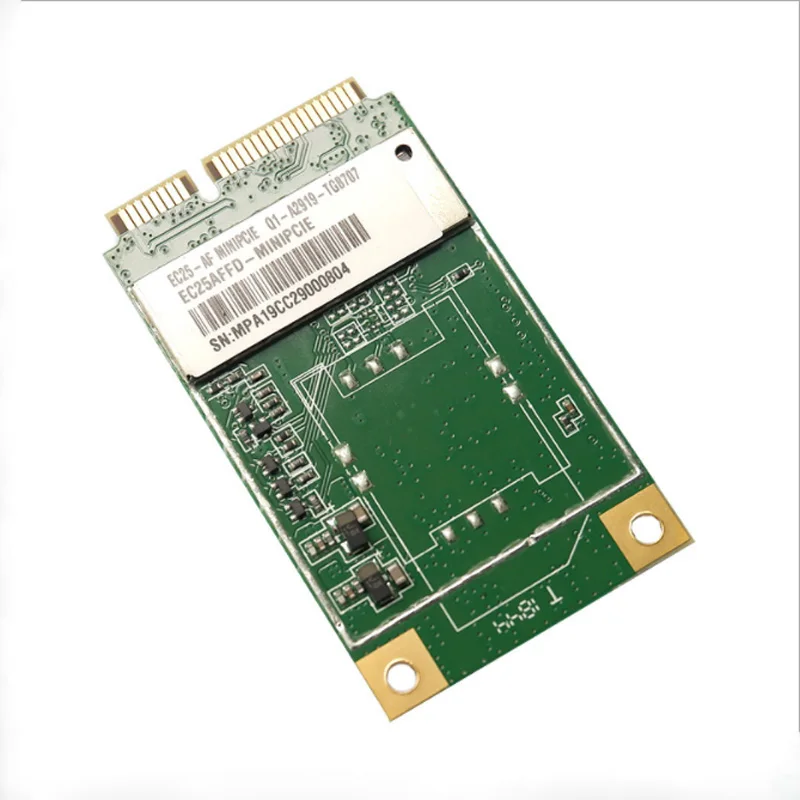

We have EC25-AFFD Mini PCie and EC25-AFFA Mini PCie veriosn for Optional.
Overview

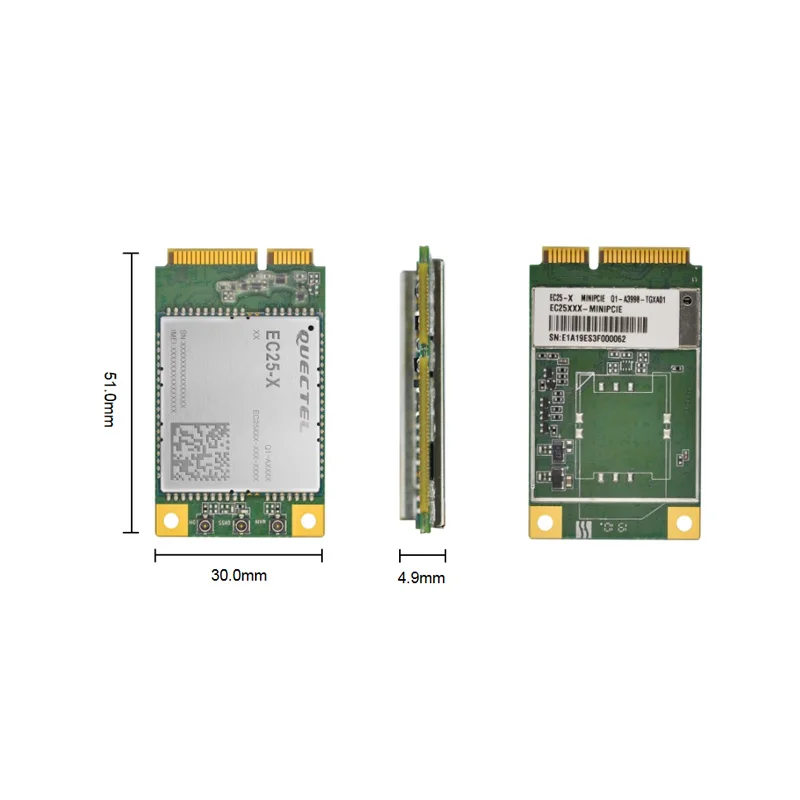

Quectel EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe).
It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
EC25 Mini PCIe contains 11 variants: EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EUX Mini PCIe, EC25-J Mini PCIe, EC25-A
Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, EC25-AFX Mini PCIe, EC25-MX Mini PCIe, EC25-AU Mini PCIe and EC25-AUX
Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected
even in remote areas devoid of 4G or 3G coverage.
EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and
QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable
positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows
7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as
industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.
Key
Benefits
LTE category 4 module optimized for broadband IoT applications
Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for
manufacturers to easily integrate wireless connectivity into their
devices
MIMO technology meets demands for data rate and link
reliability in modem wireless communication systems
Multi-constellation GNSS receiver available for applications
requiring fast and accurate fixes in any environment
| EC25-AF Mini PCIe | |
| Region/Operator | North America FirstNet |
| LTE-FDD | B2/B4/B5/B12/B13/B14/B66/B71 |
| WCDMA | B2/B4/B5 |
| GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
| Certifications | |
| North America: Verizon/AT&T/ T-Mobile/U.S. Cellular Canada: Rogers/Telus Global: GCF North America: FCC/PTCRB Canada: IC RoHS/WHQL | |
| LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) |
| DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) |
| WCDMA Data Rates (Kbps) | 384 (DL)/ 384 (UL) |
| USB Serial Driver | Windows 7/ 8/ 8.1/ 10, Linux 2.6~5.4, Android 4.x/ 5.x/ 6.x/ 7.x/ 9.x |
| Supply Voltage Range | 3.0V~3.6V, 3.3V Typ |
| Power Consumption | 2.2mA @Sleep, Typ. 21.7mA @Idle |
