Factory Supply Brand isri NTS feature Air suspension Driver seats for MAN Truck /Bus
Factory Supply Brand isri NTS feature Air suspension Driver seats for MAN Truck /Bus

Factory Supply Brand isri NTS feature Air suspension Driver seats for MAN Truck /Bus

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Overview

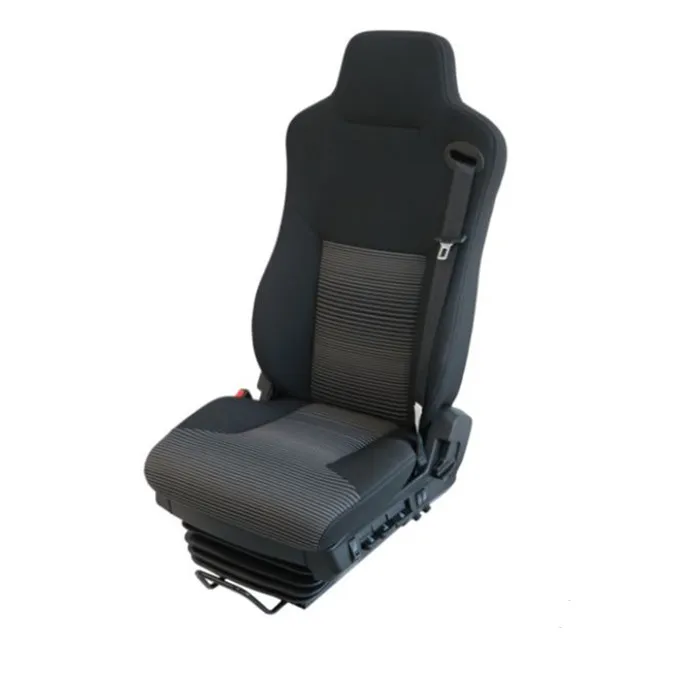

NTS isri Air suspension Driver seats with quick defation and backrest adjustment
Seats special for industrial vehicles , excavator, Marine , Van, Truck, Tractor.etc



FEATURES AT A GLANCE



Horizontal adjustment: stroke 200mm (10mm×20)
Weight adjustment: Automated up to 130kg (40~130kg),
air pressure 0.3~0.7Mpa (air
pressure of supply 0.7~0.9Mpa)
Pneumatic suspension function: stroke ±40mm
Height / rake adjustment: adjust range ±65mm, rake
adjustable ±14°;
Backrest adjustment: adjust range 80°＋41°Head restraint adjustment: adjust range 75mm (25mm×3)Seat size（length ×
height × width）
Air suspension driver seats with backrest adjustment/slider /armrest /height adjustment



PRODUCT SPECIFICATIONS


No
Item
Data
Remark
1
Rotating adjustment
360°（freely)
optional
2
Horizontal adjustment function：Route
0~200mm（10mmX20）
3
Weight adjustment：Scope
40~130kg
4
Height/ slope adjustment Function
 Front Height adjustment /65mm，Back Height adjustment/65mm，front-rear adjustable cushion inclination±14°
Backrest Height adjustment function：adjustment scope/80°＋41
5
Headrest Adjustable function
 adjustment route/75mm（25mmX3）
6
Headrest
yes
7
Armrest
yes
8
Air pressure
0.3~0.7Mpa (air
pressure of supply 0.7~0.9Mpa)


Details Images

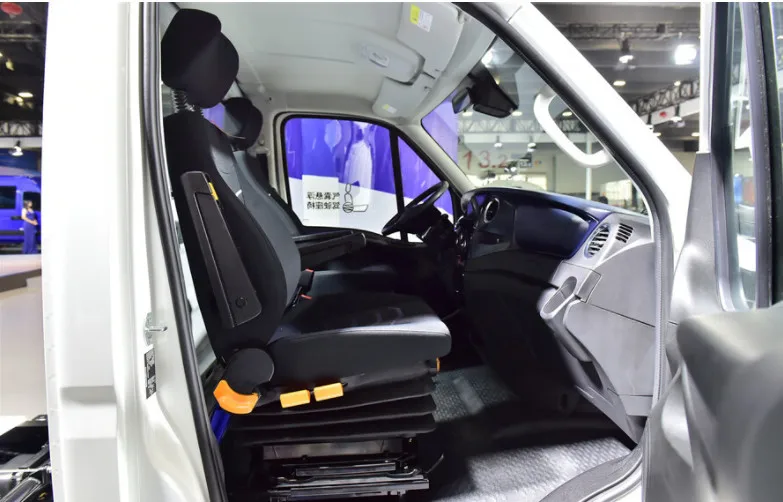

Product Application




Why Choose Us



1)We can provide you with different types of seats and parts for your selection.
2) Small MOQ: 50PCS, mixed order acceptable, welcome trial order.
3) We can provide samples for your test.
4) Our key component are imported from Germany , such as shock absorber ,air spring ,control Value.
5)OEM &ODM service available.


Company Profile


ShaanXi Yisirui Auto Parts Co.,ltd is a professional driver seat manufacturer with well-equipped testing facilities and strong technial force ,years of experience ,Located in Xian city , ShaanXi province ，China .
"YSR SEATING" is and our driver seat brand and we main produce construction driver seat ,including heavy truck/Forklift/
Excavator/Crane,RV/bus driver seat ,general folding chair ,control valve, air spring , armrest ,headrest , slide rail
,safety belt ,damper and other auto parts .
Our core components are imported from Germany with high-quality and well performance ,such as air spring ,control valve , shockabsorber etc . our products has already applied CE and PAHS certificates and CCC certificates .
our products have sold to OEM domestic and worldwide market , such as Europe,Australia ,America , Asia ,South America, Africa ,Korea and Southeast ,Middle East ,Korea etc. We have developed serises of patended vehicle driver seat ,which are popular and hotin the driver seat market now !
Appreciated to establish long-term business relationship with you and to be your trust partner soon !

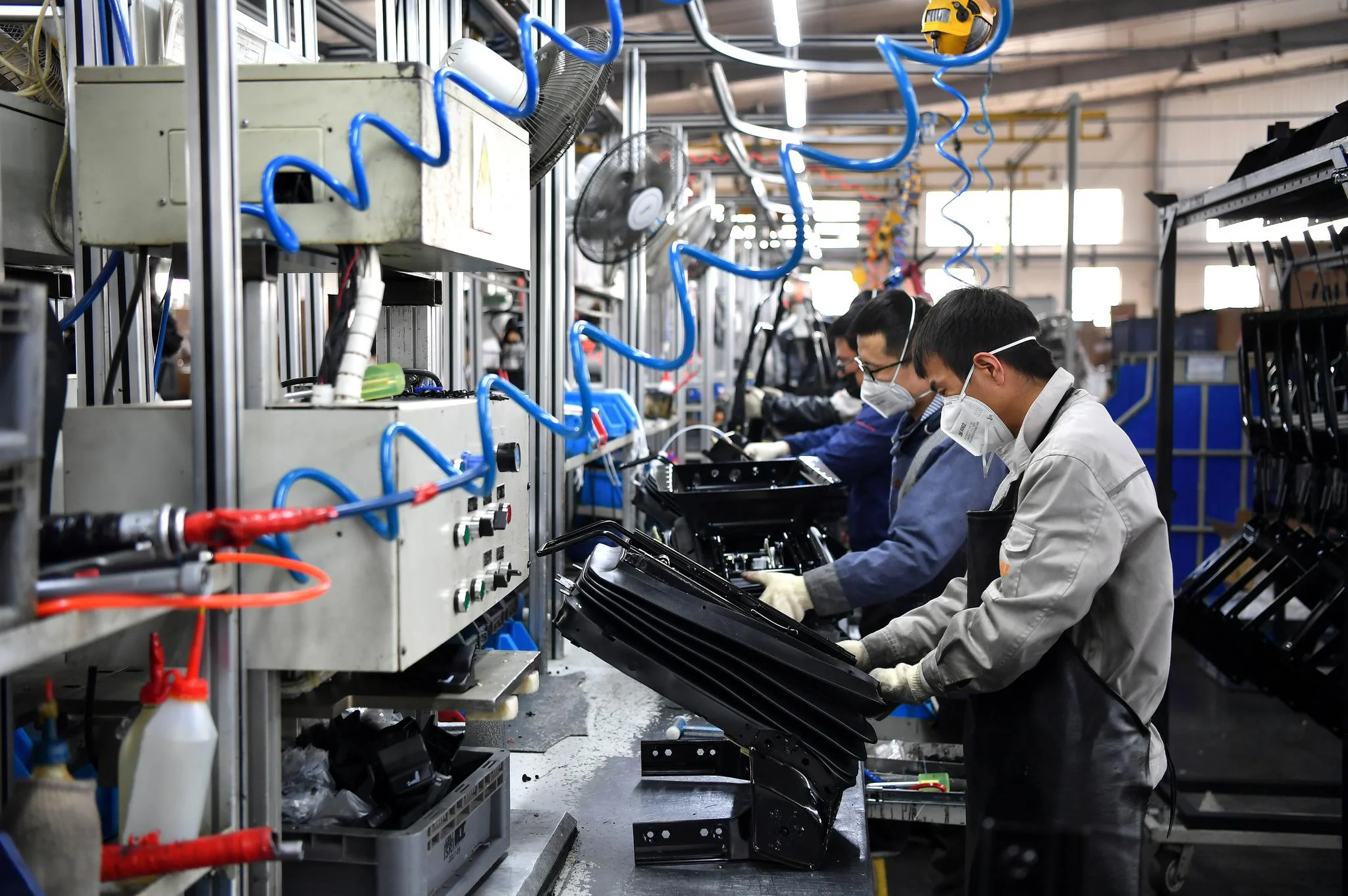

Production Line






FAQ


Q: Are you a manufacture or trading company?
A: We are a manufacturer, and we have got permit of import and export as well.

Q: How can I get the sample? What's the lead time?
A: Samples could be sent within one week, the lead time is 6-8 weeks.

Q: Do you provide ODM/OEM service?
A: We are factory and have our own engineer .OEM/ODM is welcome.

Q.Warranty?
A: We have warranty 12 months , we will ship out the new replacements. If clients get the item with defect or broken
frame.

Q. What’s payment terms?
A: Bank T/T, PayPal.
