Factory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burr





























6mm-25mm Dia  Tungsten Carbide Rotary Files Burrs YG6 / YG8 / YG10x


Recommended Grade


YG8, YG10X for carbide head,steel for shank diameter.


Size Rage


Head dia 3-35mm;
Shank dia 3,6.8mm
Increase length are available.


Tolerence


Head diameter is +0.3 to +0.5mm;
Head cutting part is +0.5 to 1.0mm;
Shank diameter is +0 to +0.04mm
Totel length is +-0.1mm


Sets for carbide cutters.


3pcs/5pcs/6pcs/8pcs/10pcs/12pcs/14pcs in aluminum sets
3pcs/5pcs/6pcs/8pcs/10pcs/12pcs/14pcs in plastic sets
The items can be selectable according to client demand.


Applications:


Milling out Weld dressing Deburring Cutting out holes Surface work Milling Weld dressing

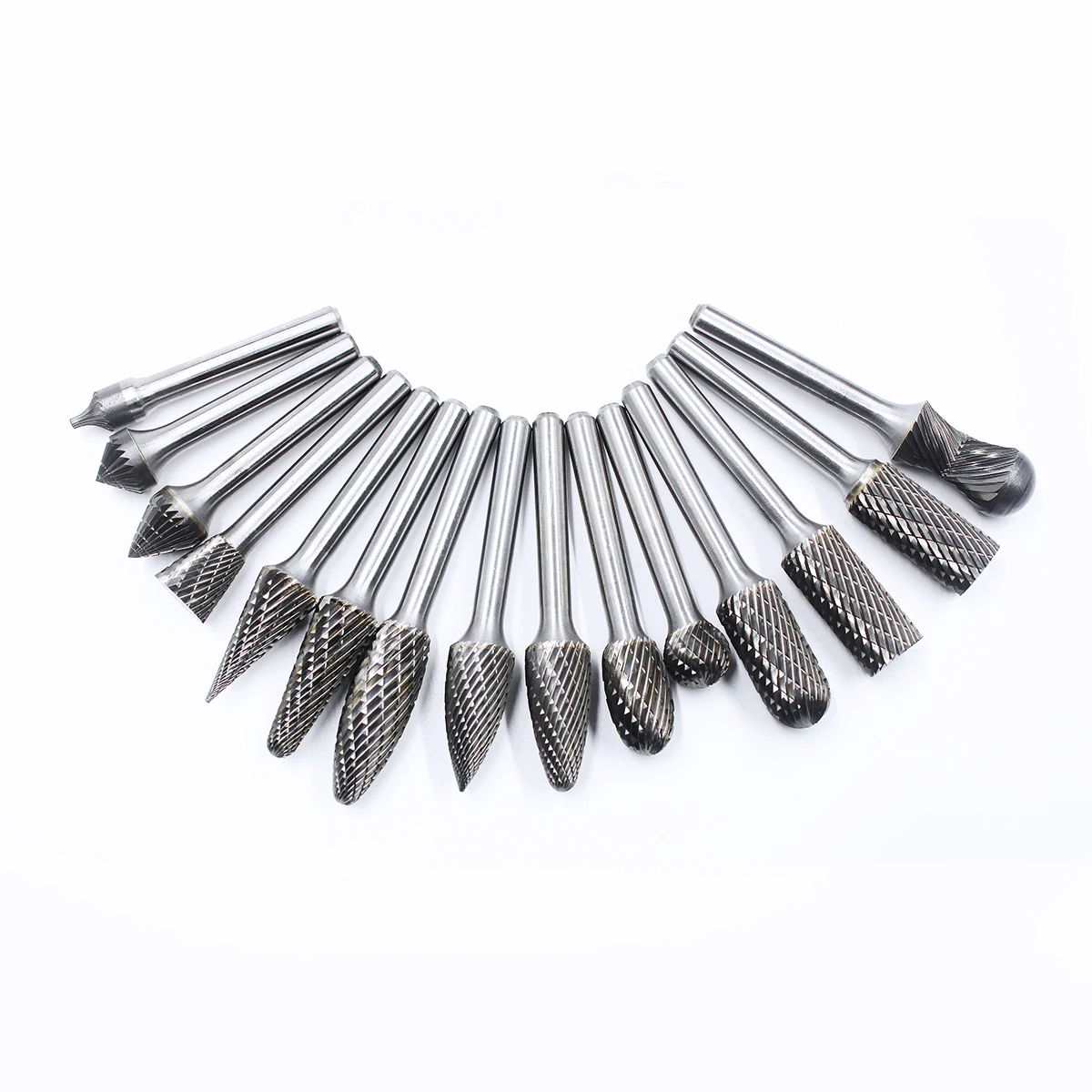

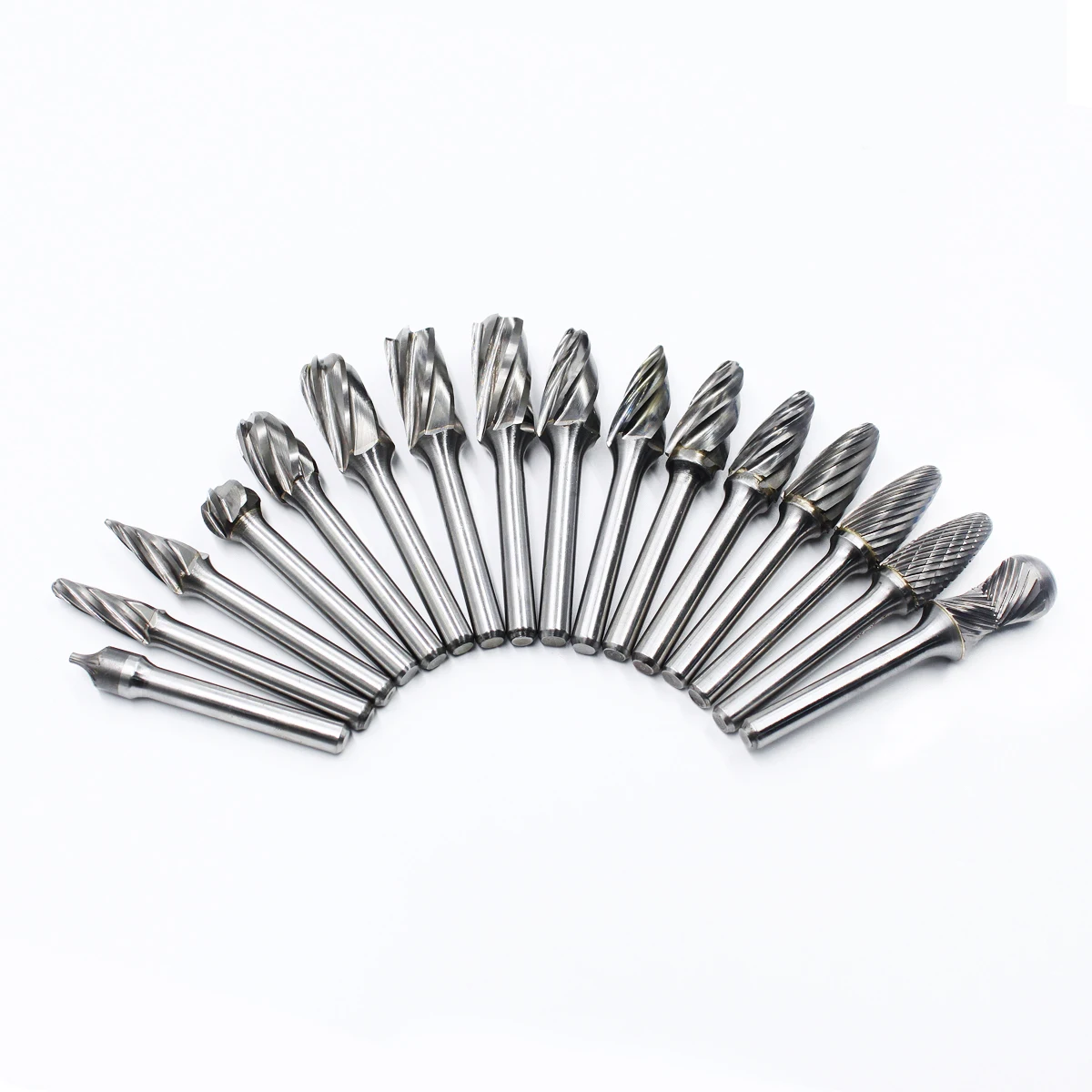

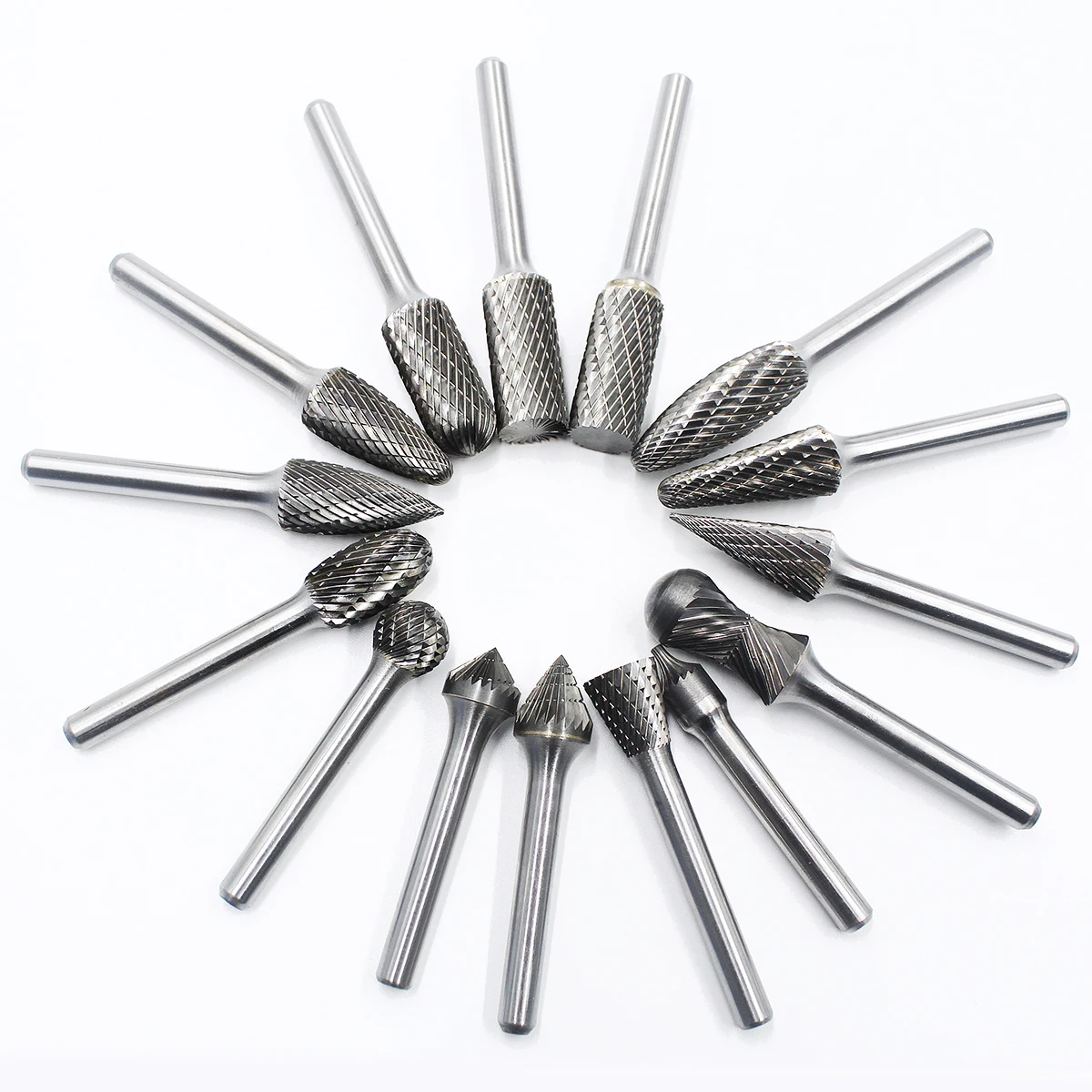

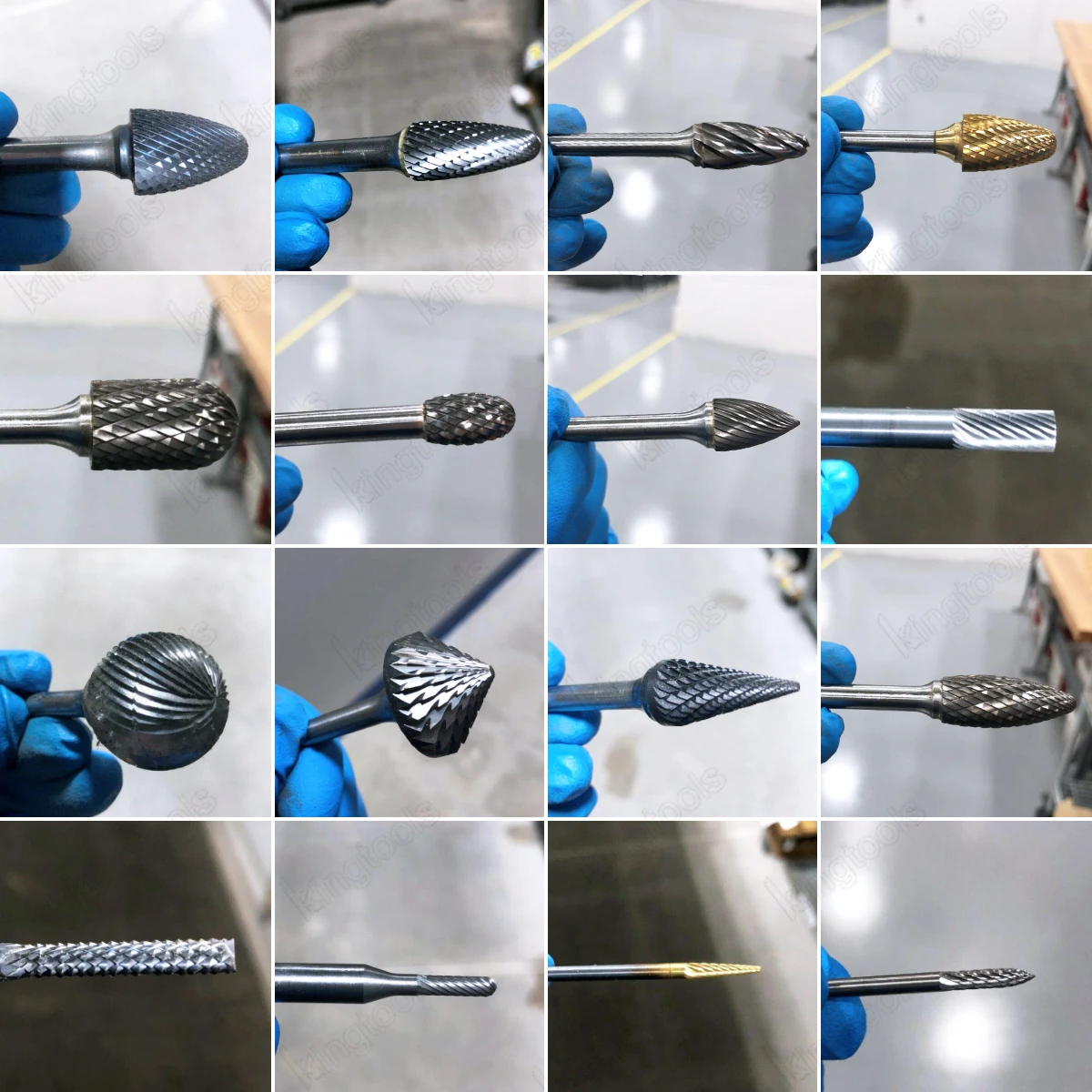

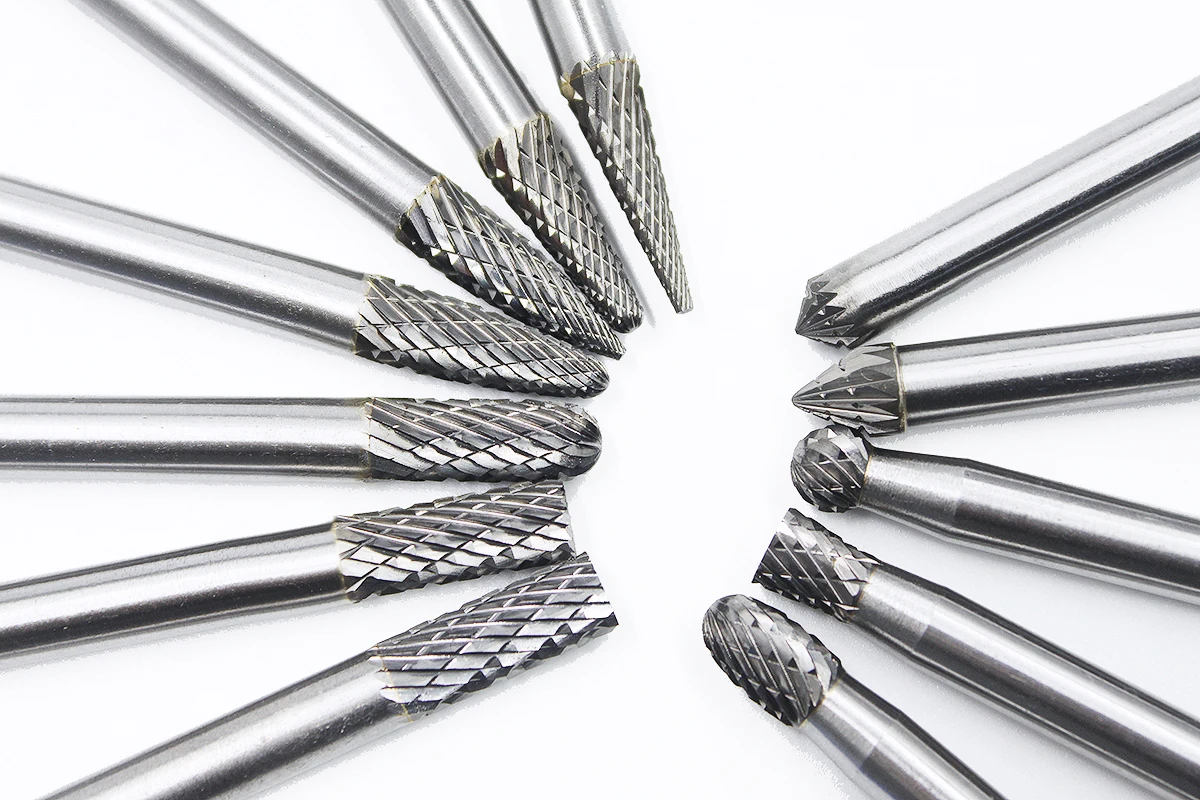

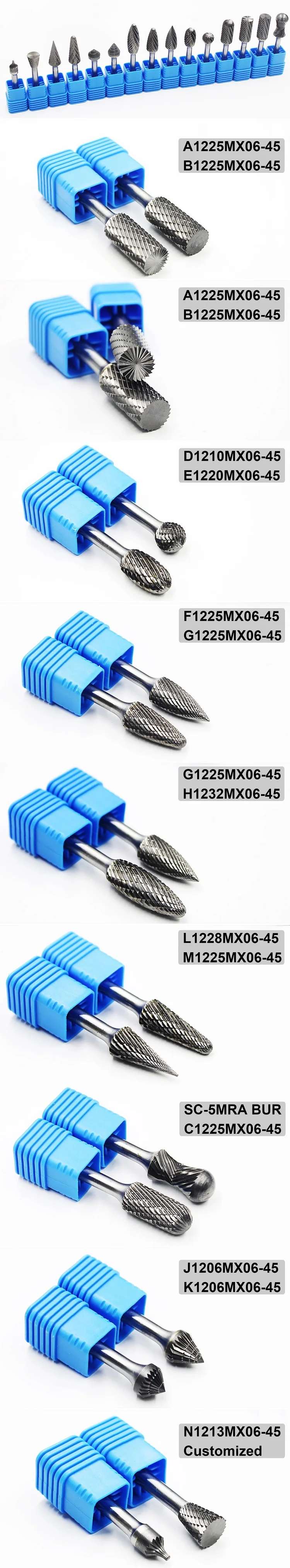

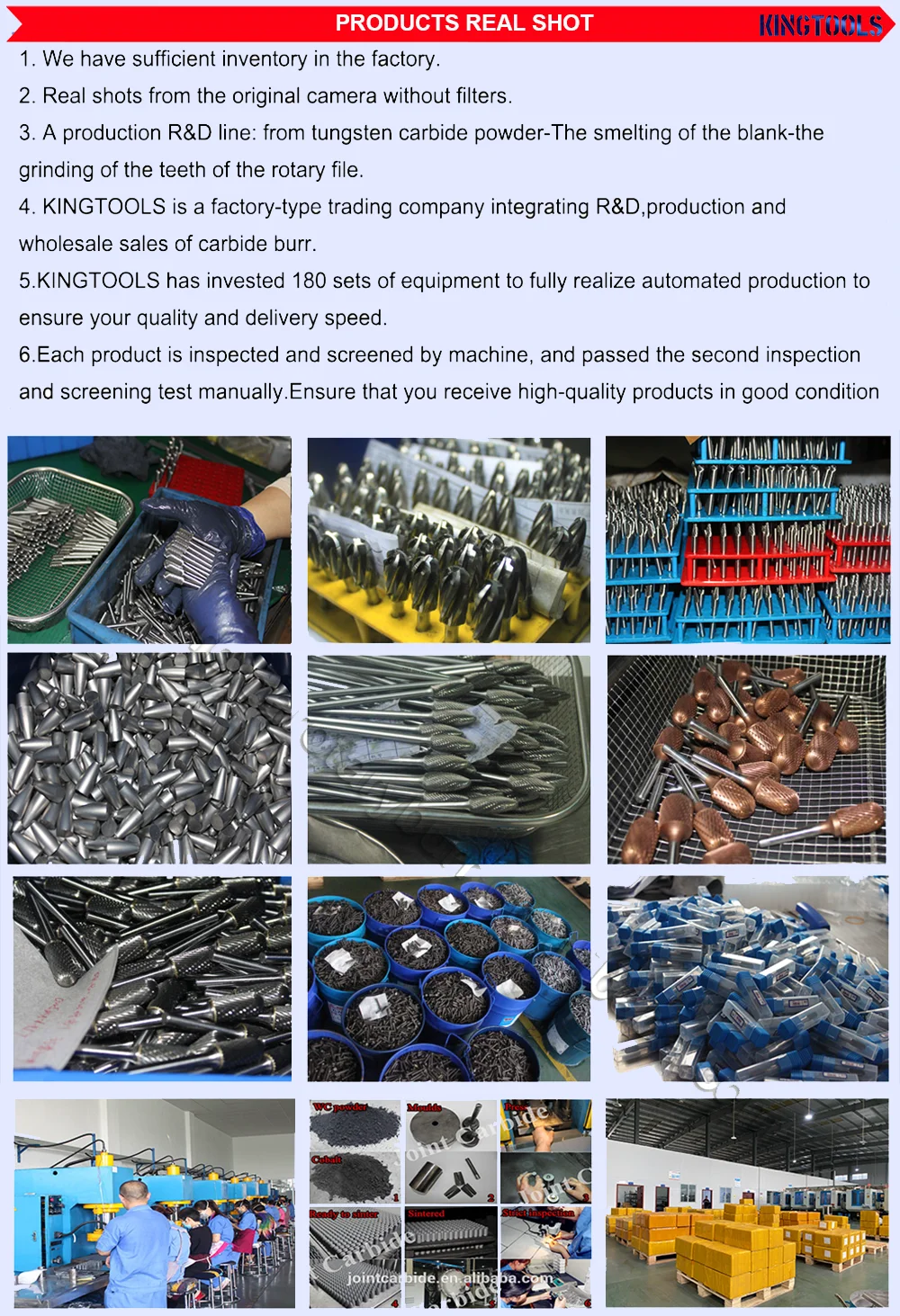

Products Real Shot


Factory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burrFactory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burrFactory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burrFactory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burrFactory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burrFactory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burr

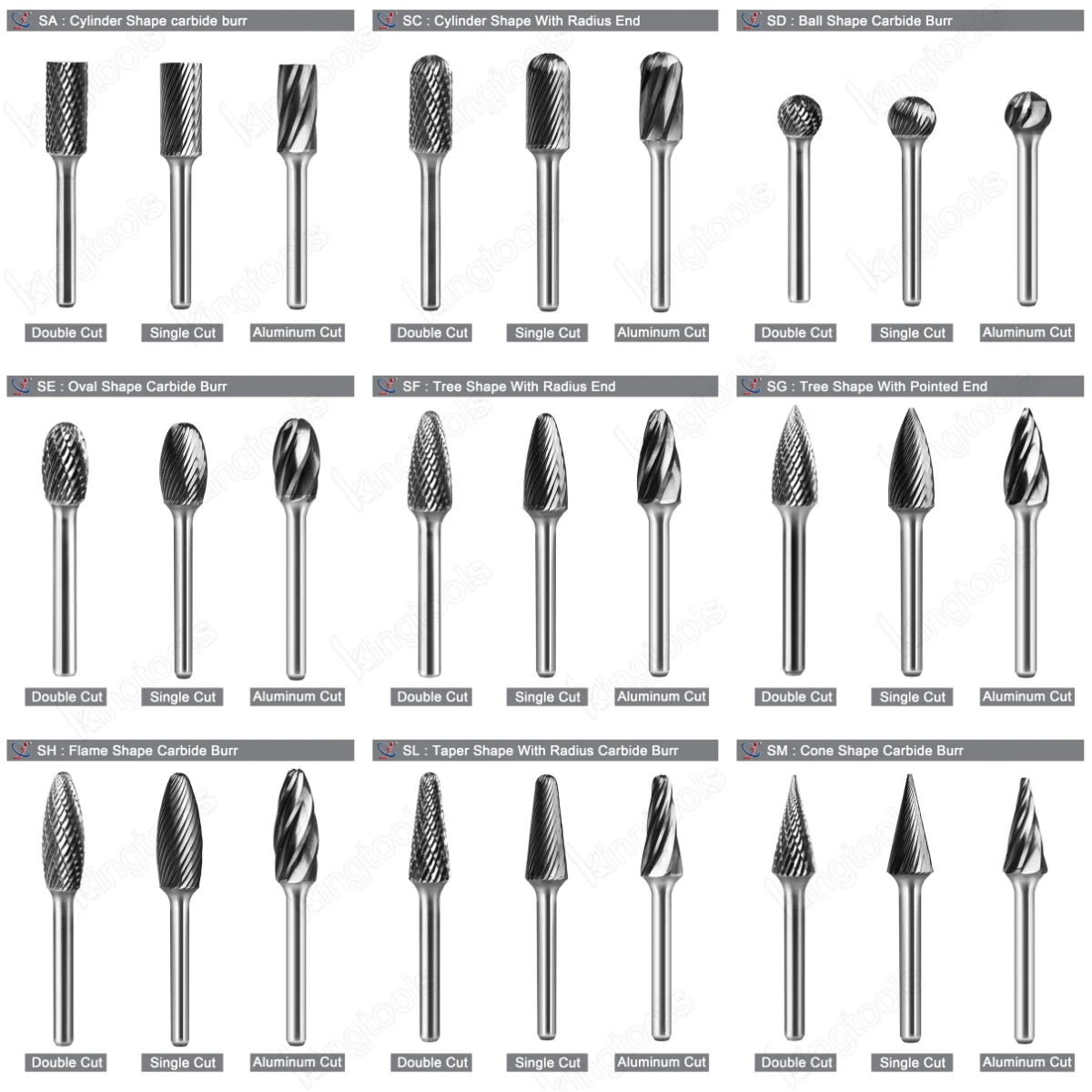

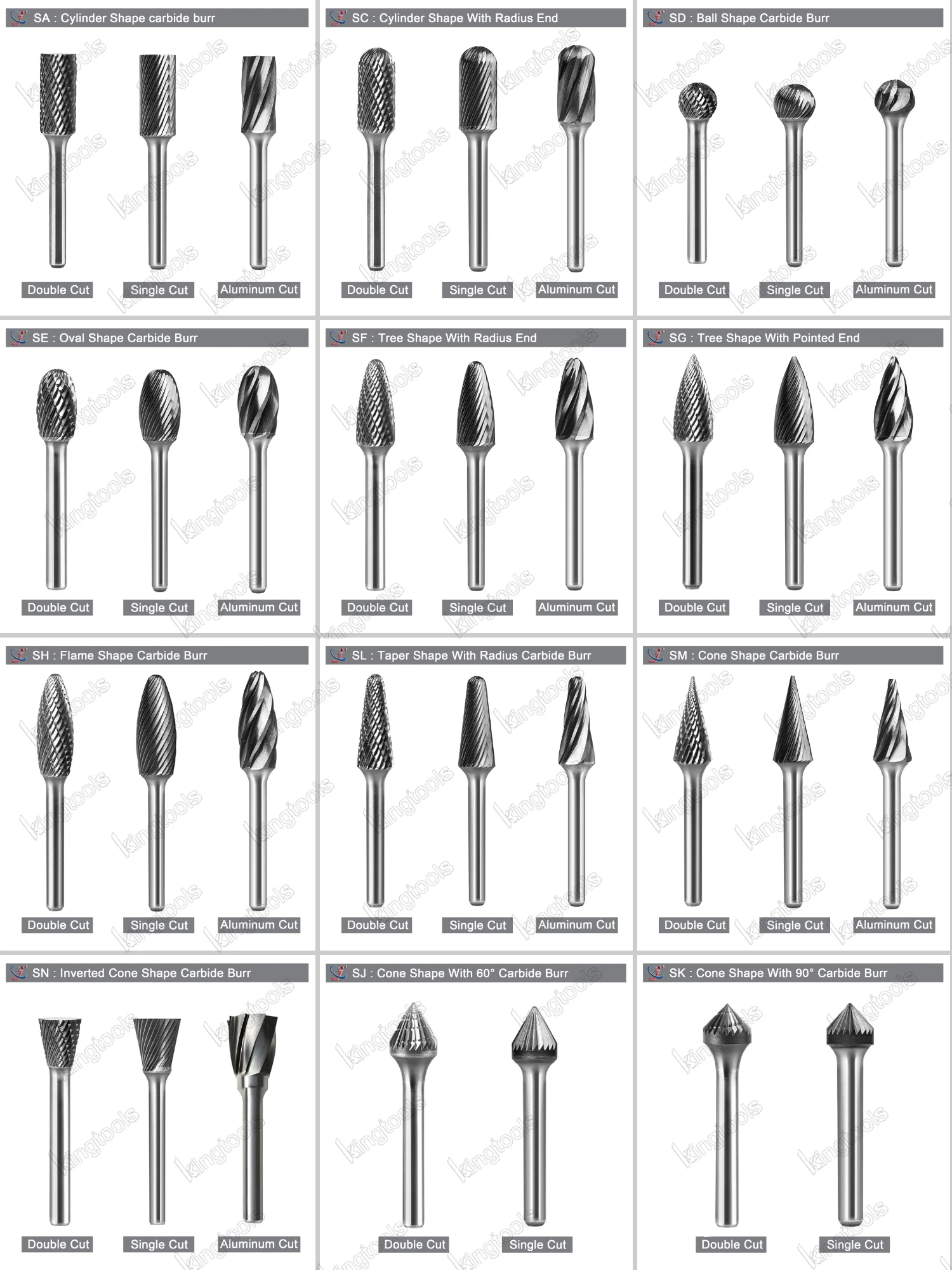

NameTypeCutMaterialProduct ProcessHead HardnessLOGO
Cylindrical Shape BurrAStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Cylindrical End Cut BurrBStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Cylindrical Radius EndCStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Ball Shape BurrDStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Oval Shape BurrEStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Tree Shape Radius EndFStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Tree Pointed Ends BurrGStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Flame Shape Burr BurrHStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Cone Shape With 60°JStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Cone Shape With 90°KStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Taper Radius End BurrLStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Cone BurrMStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Inverted Cone BurrNStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Disc Type BurrWStandard/Single/Double/alumaTungsten carbide/YG7/TCTCNC90-91HRAavailable
Grades of Carbide Tungsten Burr
China GradeISO gradeDensity(g/cm3)Hardness(HRA)TRS(Mpa)
YG6K2014.95911800
YG6XK1014.95921800
YKM6AK1014.9592.51800
YG8K3014.7-14.8901950
YT5P301390.81900
YT14P10-2011.591.51500
YT15P10-2011.391.81450
YW1M10-2013.191.51600
YW2M10-2013.1911600
YS25P2512.891.51900
YC30SP3012.8912000
ZP35P3512.8912000
YC40P3513.2901850
Speed /RPM
1.6mm or 1/16" 25,000 - 35,000
2.35mm or 3/32" 25,000 - 35,000
3mm or 1/8"  25,000 - 35,000
6mm or 1/4"25,000 - 35,000
12mm or 1/2" 25,000 - 35,000
16mm or 5/8"25,000 - 35,000
Single-cut burs :are for general purpose work and provide good material removal.
Double-cut burs :produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.

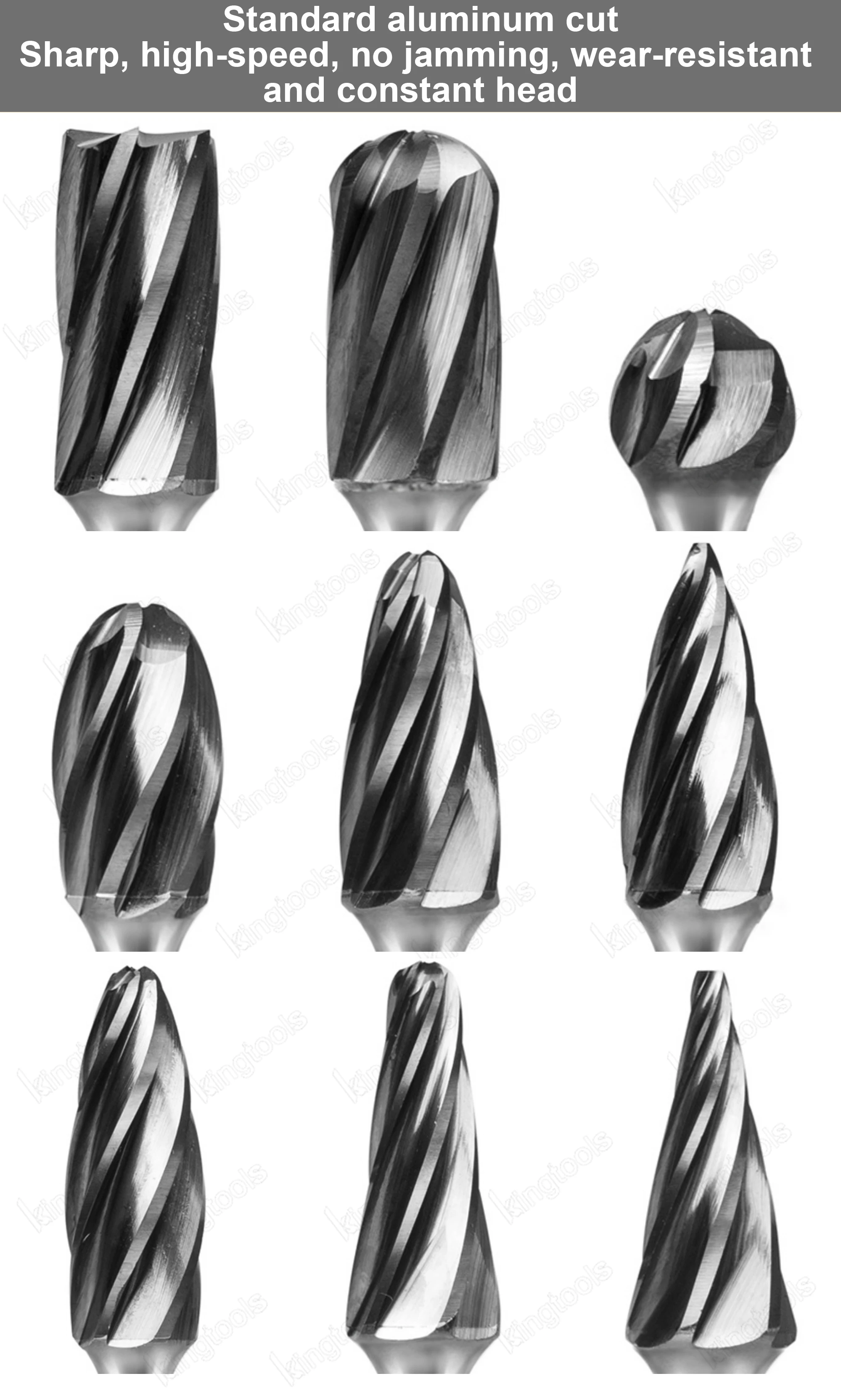

Aluma-cut burs :have a wide flute design for easy stock removal without loading on applications such as nonferrous and soft materials.

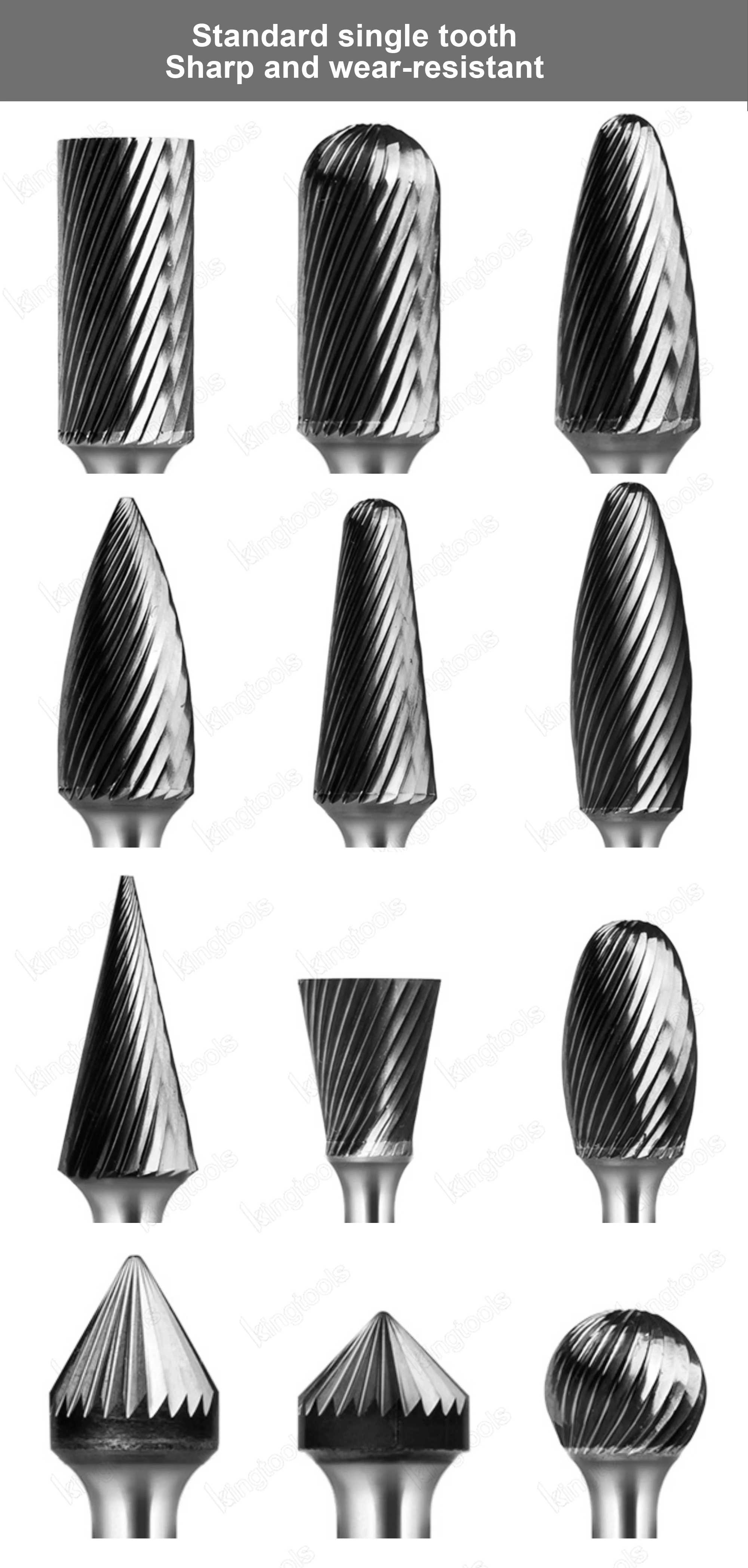

Standard-cut burs :are widely uesed and leave a fine finish

Factory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burrFactory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burrFactory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burr



Main Products


Wholesale Tungsten Carbide Bur Dental Blanks

















Customized Service

Factory Wholesale Metal wood rotary grinding drilling polishing tools tungsten carbide rotary burr















KINGTOOLS produces an extensive range of top quality carbide burs and bi-metal hole saws. KINGTOOLS burs deliver very high stock removal performance over their entire service life, providing outstanding results in minimal time.



Tungsten Carbide Conical Pointed Nose Rotary Burrs Use for

Metal Wood Hard aluminium alloys Bronze Other non-ferrous metals Hard non-ferrous metal Stainless steel (INOX) Case-hardened
steels Steel, cast steel Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC) Hardened, heat-treated steels over 1,200
N/mm2 (over 38 HRC) Hardened, heat-treated steels over 700 N/mm² (> 220 HB) Grey/nodular cast iron (GG/GJL, GGG/GJS) Cast iron
Copper Soft non-ferrous metal Brass Hard non-ferrous metal Black cast iron (GTS, GJMB) Annealed cast iron Steel Steel, cast steel
Steels up to 1,200 N/mm² (< 38 HRC) Steels up to 700 N/mm² (< 220 HB) Cast steel Steel materials with a hardness over 54 HRC
Annealed cast iron Titanium Titanium alloys White annealed cast iron (GTW, GJMW) Tool steels Zinc

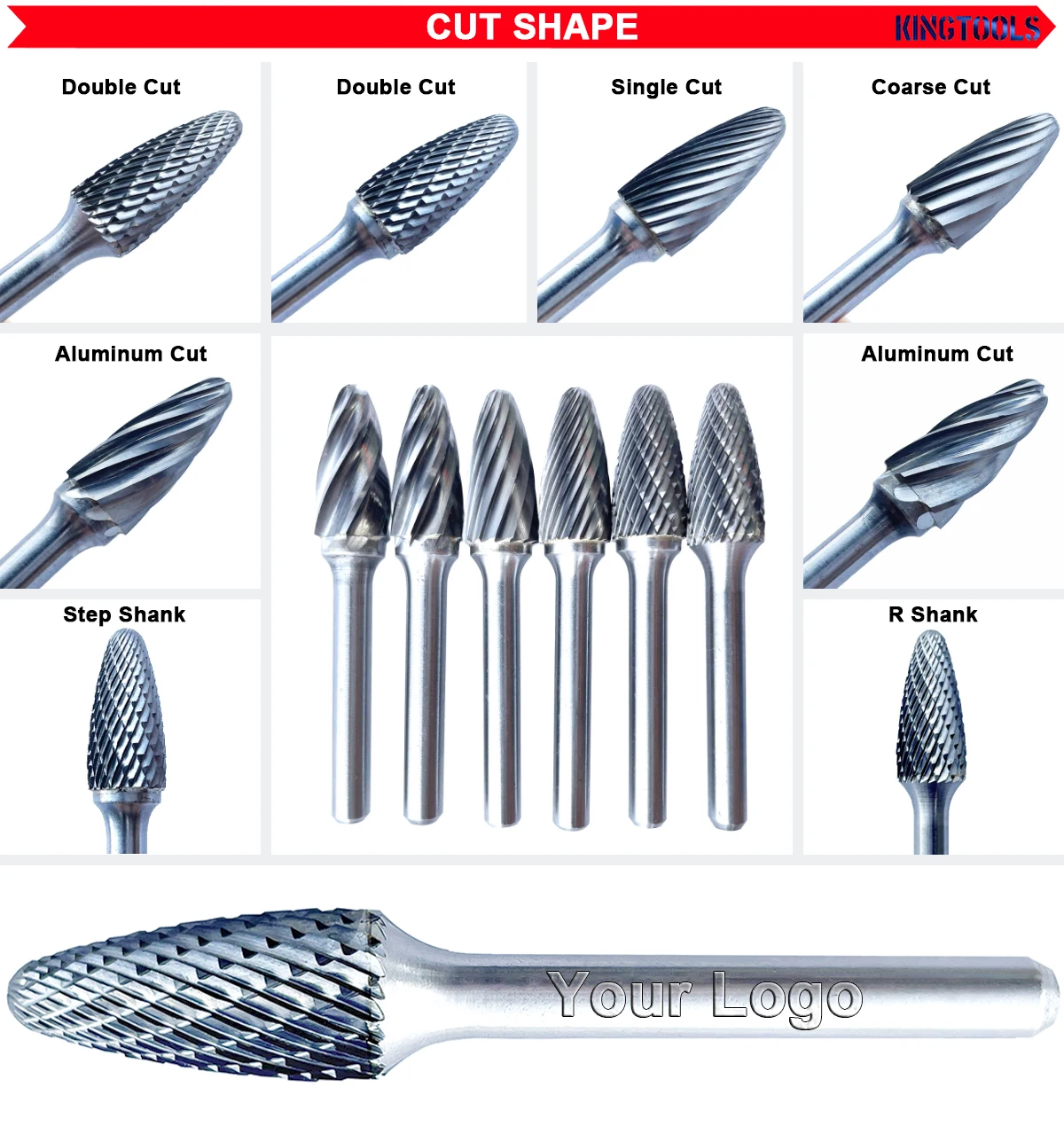

Cutter Pattern:



* DX: Double Cut
* C: Coarse Cut
* M: Standard Single Cut
* W: Aluminum Cut Single Cut
* F: Fine Single Cut
* Z: Cast Single Cut
* MX: Standard Cross Gear Cut
* ZX: Casting Cross Cut
* L: Diamond Cut
* SX: Steel File Cross Cut
* FX: Fine Tooth Cross Cut
* CX: Coarse Cross Cut
* WX: Aluminum Cut Cross Cut

* Other Contact us




Specification :

* HRA: ≥ 85
* Suggested RPM:25000-50000, Max RPM 70000
* Package:Individually packaged and can be customized
* Technology:100% Flat bottom silver welding tungsten carbide burrs




Features:

* Used to process all kinds of metal (including hardened steel) and nonmetal
* High production efficiency, Can reduce labor intensity convenient to use.
* Widely used in the pneumatic or electric tools.
