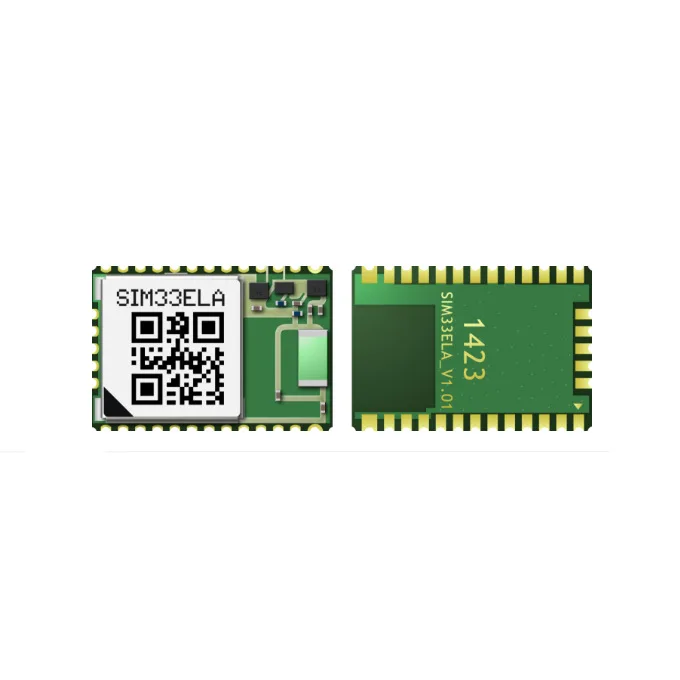

SIM33ELA SIMCOM GNSS GPS Module with Antenna
- Category: GPS Modules & Receivers >>>
- Supplier: Zhonghong Blueprint Industry (Shenzhen) Co. Ltd.
Share on (1600380249425):
Product Overview
Description

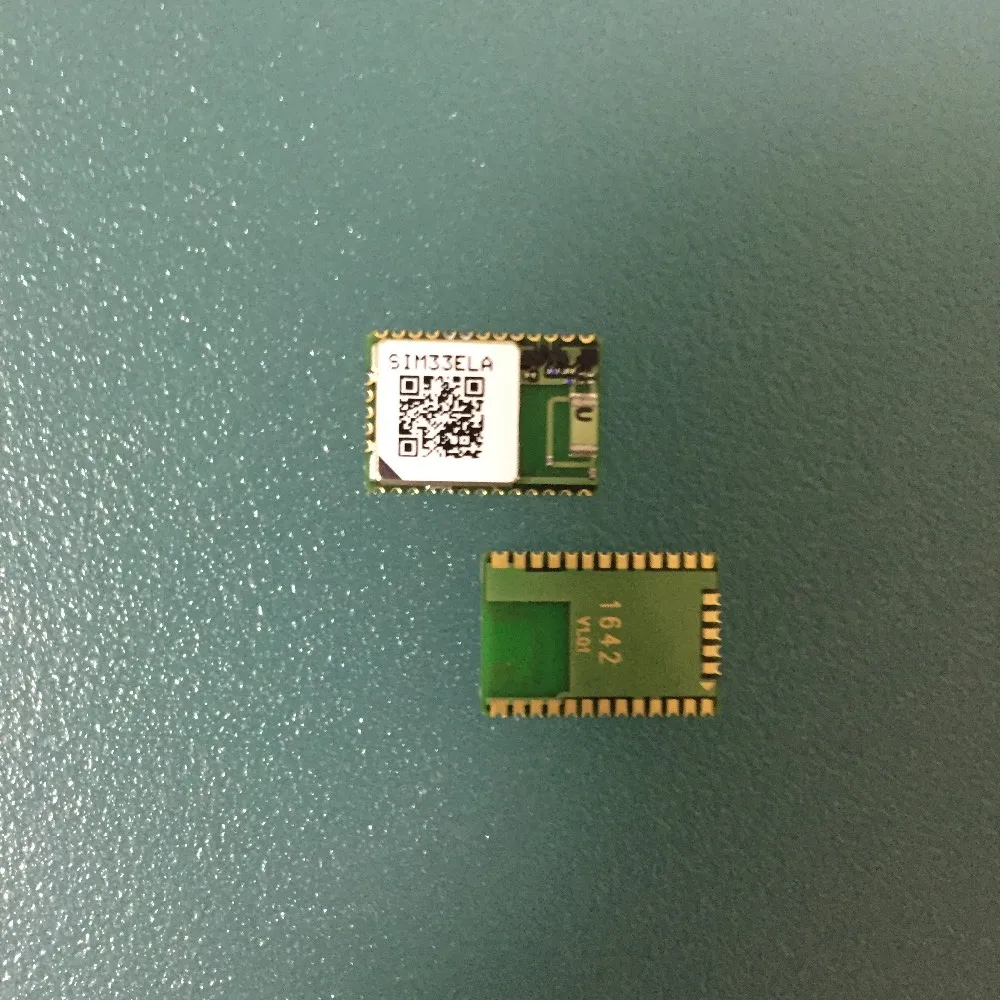

SIM33ELA Introduction SIMCom presents a high performance GPS module accompany with GNSS antenna - SIM33ELA. This is a standalone GNSS module embedded a linear antenna . Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.
Performance data
•Receiver type 33tracking/99 acquisitionchannel GNSS receiver
•Max. update rate 10Hz
•Sensitivity1
Tracking: -165 dBm
Reacquisition: -160 dBm
Cold starts: -147 dBm
•Time-To-First-Fix2
Cold starts: 28 s (typical)
Warm starts: 26s
Hot starts: <1s
EPO Assist: 13s(CTTFF)
• Accuracy
Automatic Position3: 2.5m CEP
Speed4: 0.1m/s
•Operation temperature: -40℃~+85 ℃
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
Performance data
•Receiver type 33tracking/99 acquisitionchannel GNSS receiver
•Max. update rate 10Hz
•Sensitivity1
Tracking: -165 dBm
Reacquisition: -160 dBm
Cold starts: -147 dBm
•Time-To-First-Fix2
Cold starts: 28 s (typical)
Warm starts: 26s
Hot starts: <1s
EPO Assist: 13s(CTTFF)
• Accuracy
Automatic Position3: 2.5m CEP
Speed4: 0.1m/s
•Operation temperature: -40℃~+85 ℃
Support product
•SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
•Power supply 2.8~4.3V
•Backup power 2.0V~4.3V
•Power consumption2 3.3V(typical)
Acquisition 25mA
Tracking 20mA
Backup 14uA
1.Demonstrated on EVB KIT at library
2.All SV @ –130 dBm
3.50% 24 hr static, -130dBm
4.50%@ 30m/s
