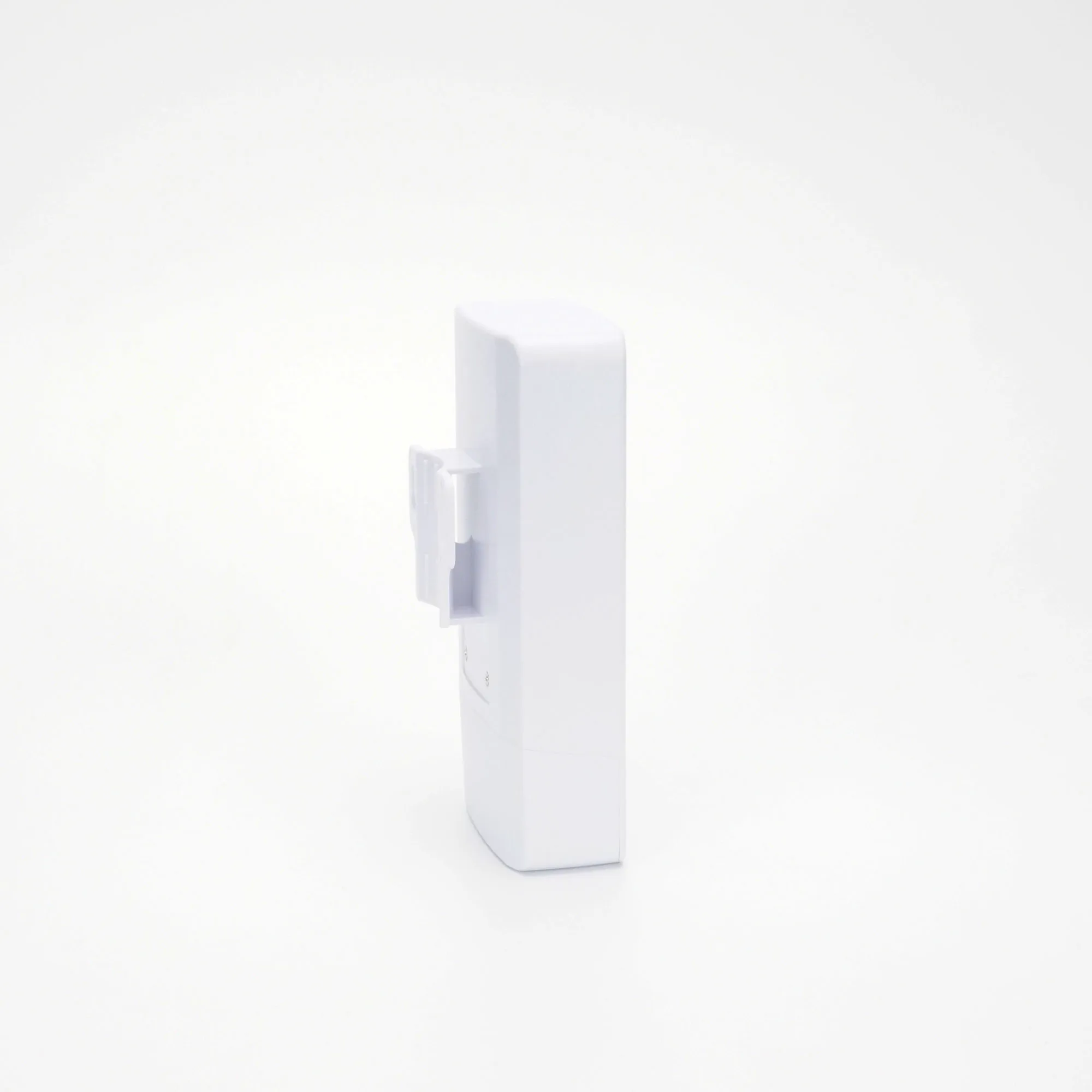

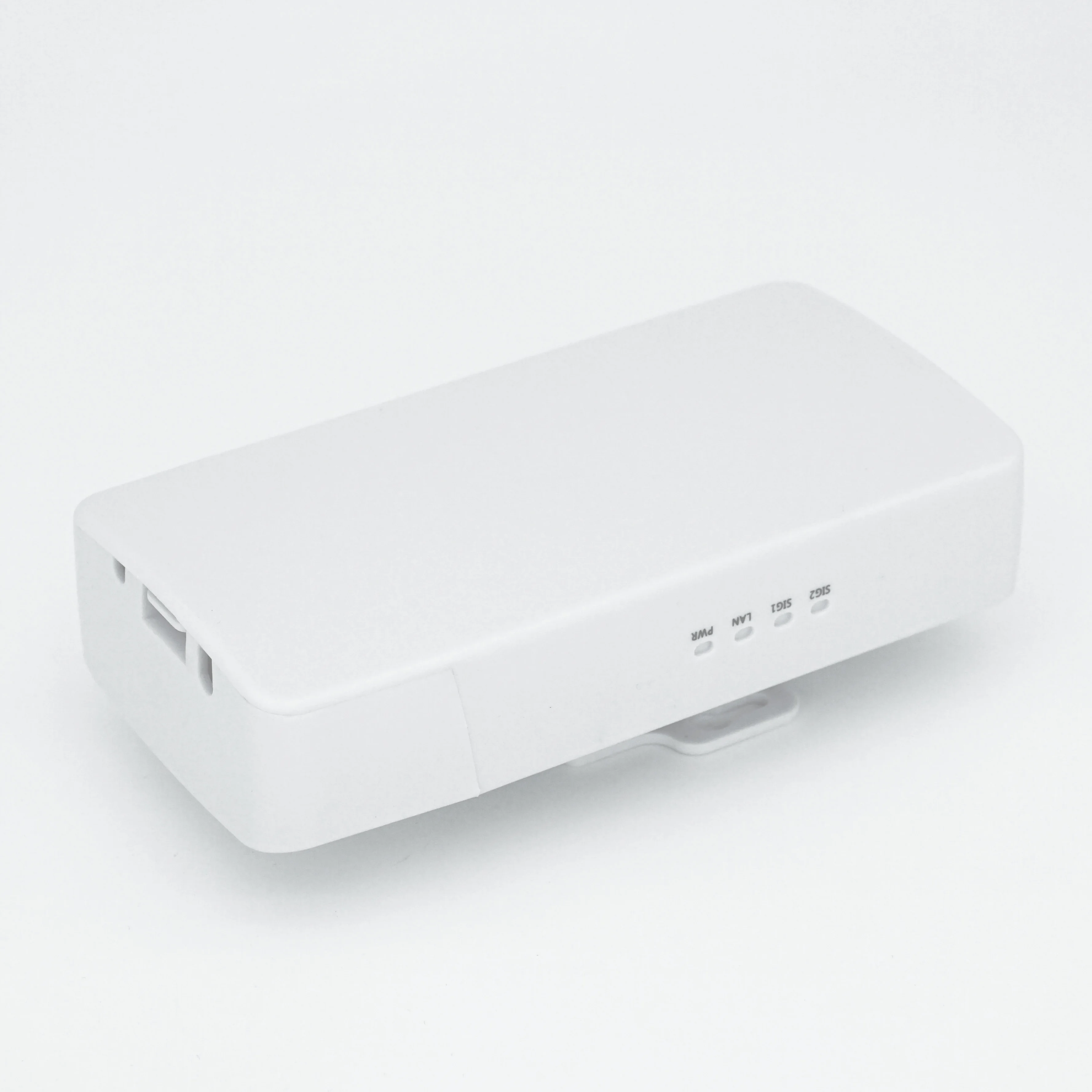

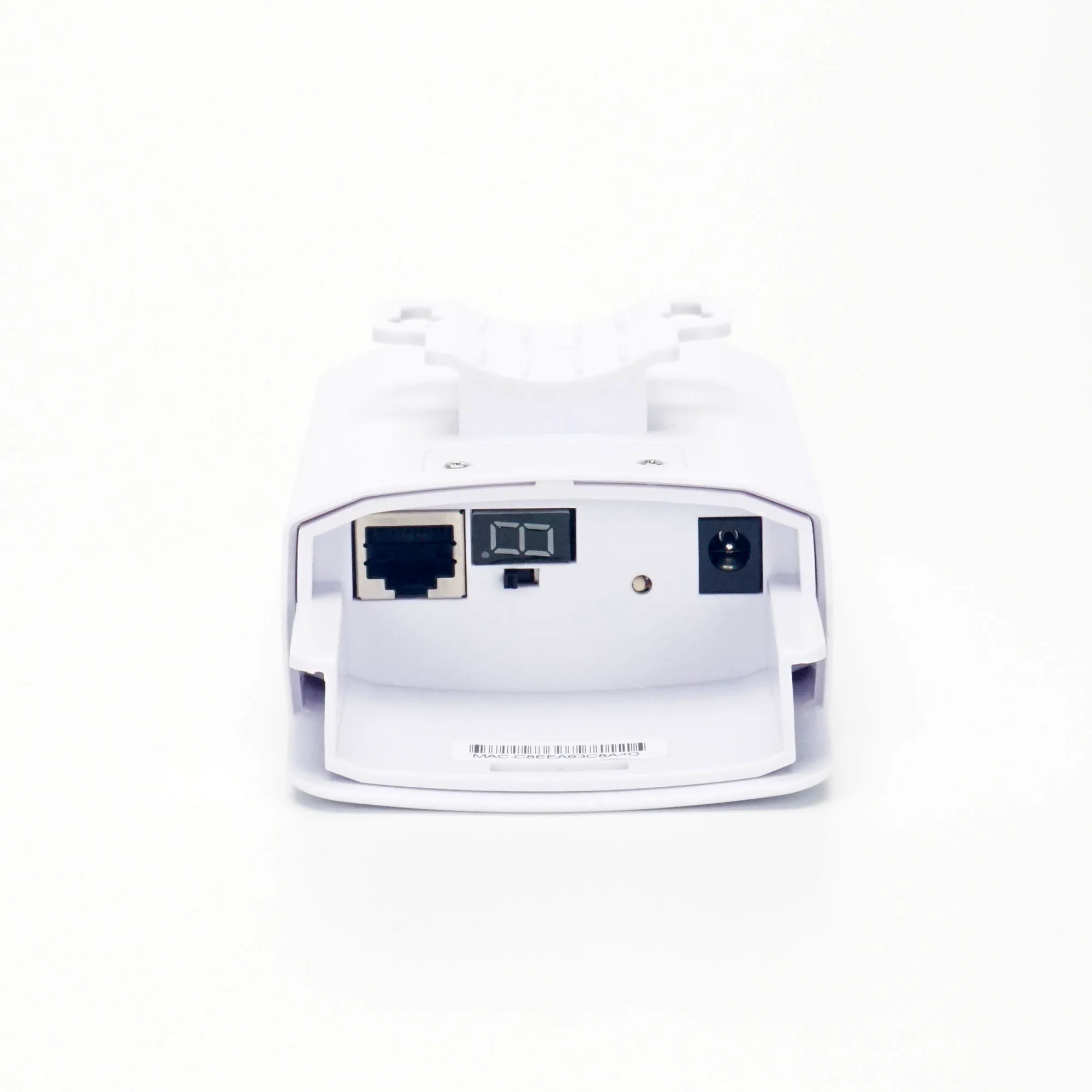

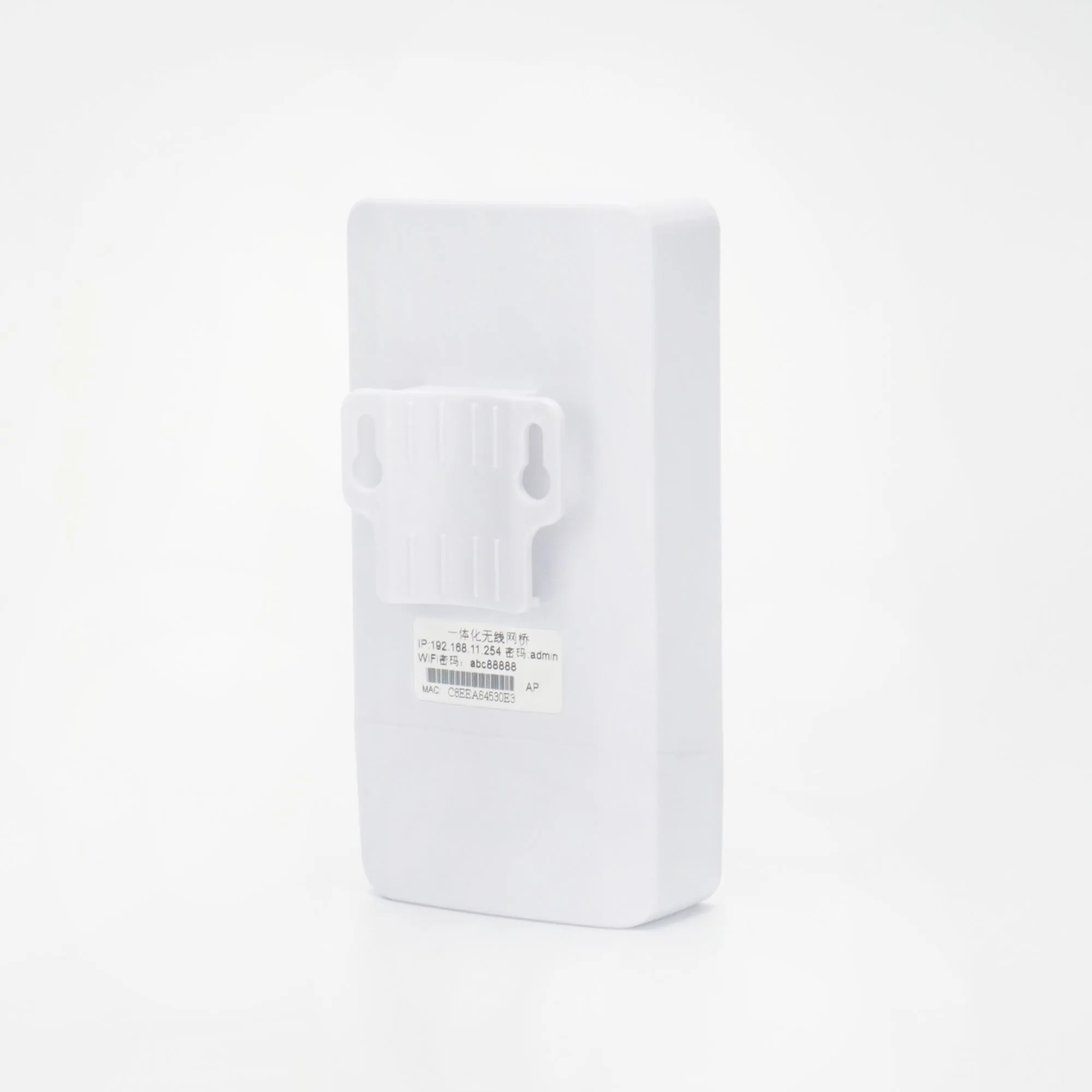

2.4Ghz 300Mbps PTP PTMP Outdoor Wifi Wireless CPE Router AP
- Category: >>>
- Supplier: Shenzhen Huachuangyilian Electronics Co. Ltd.
Share on (1600380258500):
Product Overview
Description
Drop Shipping WQ2 300Mbps MTK7628 1KM Wireless Outdoor CPE/ 2.4GHz Wireless CPE Outdoor Wireless Access Point
WQ2 is a 2.4G 300Mbps outdoor wireless bridge/AP/CPE, support 1-3KM.

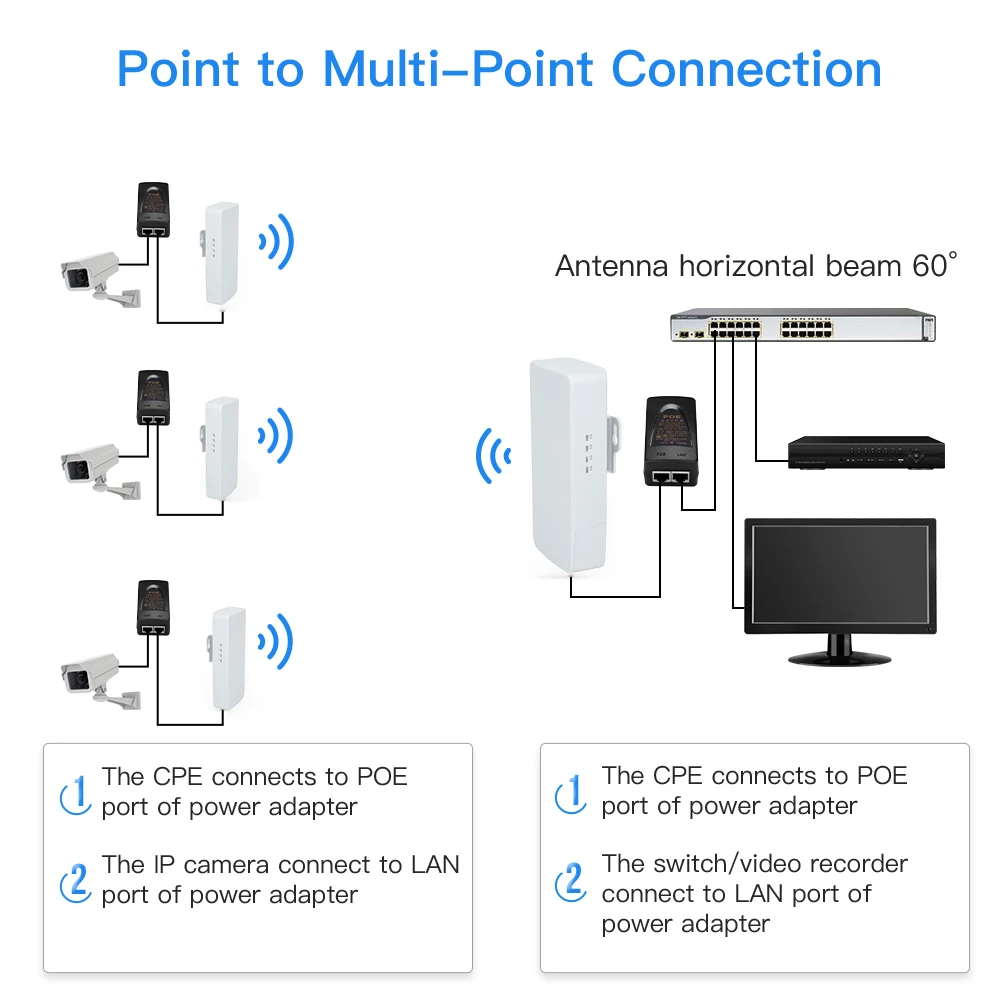

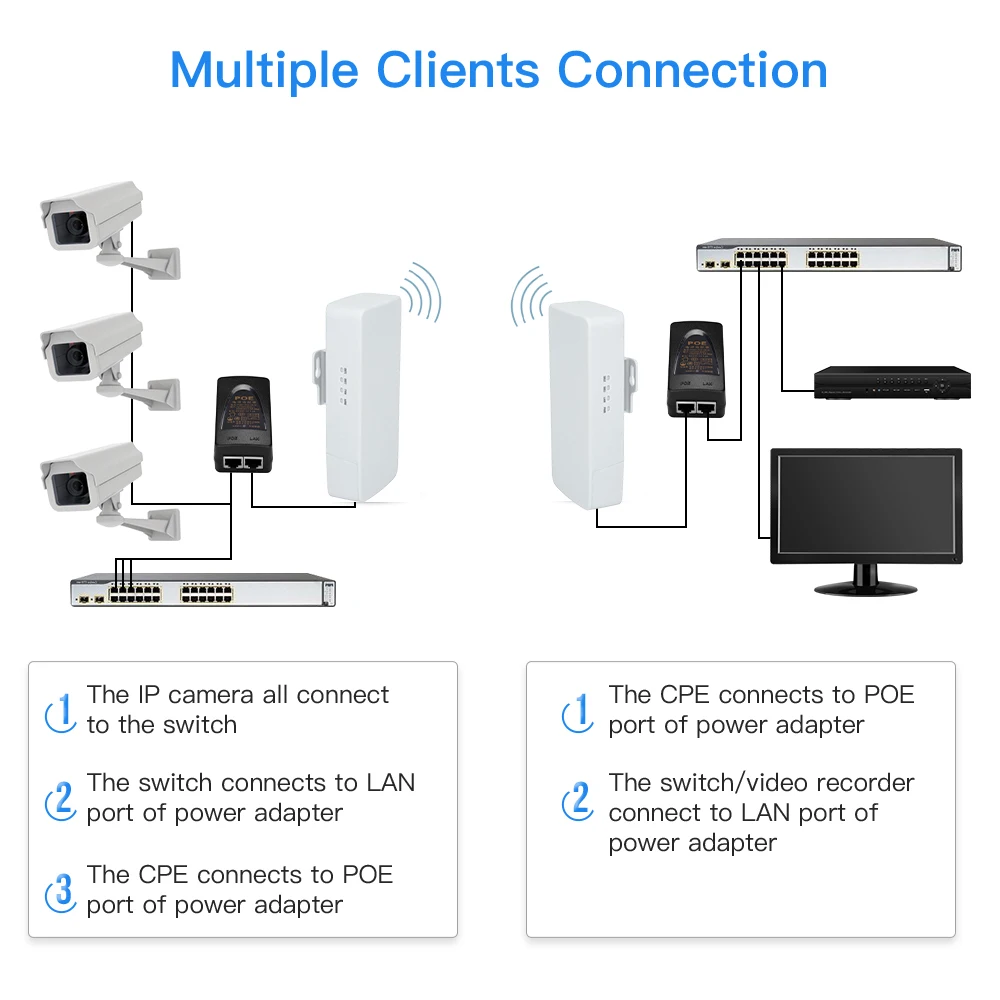

Mainly for outdoor point to point or point to multi-point transmission, and CCTV ect.
Product Description
Hardware Specification | ||||||||
Chipset | MTK7628KN, main frequency is 580MHz | |||||||
Protocol Standard | IEEE802.11n/b/g, IEEE802.3, IEEE802.3u | |||||||
DDR | 8Mbyte | |||||||
Flash | 2Mbyte SPI FLASH | |||||||

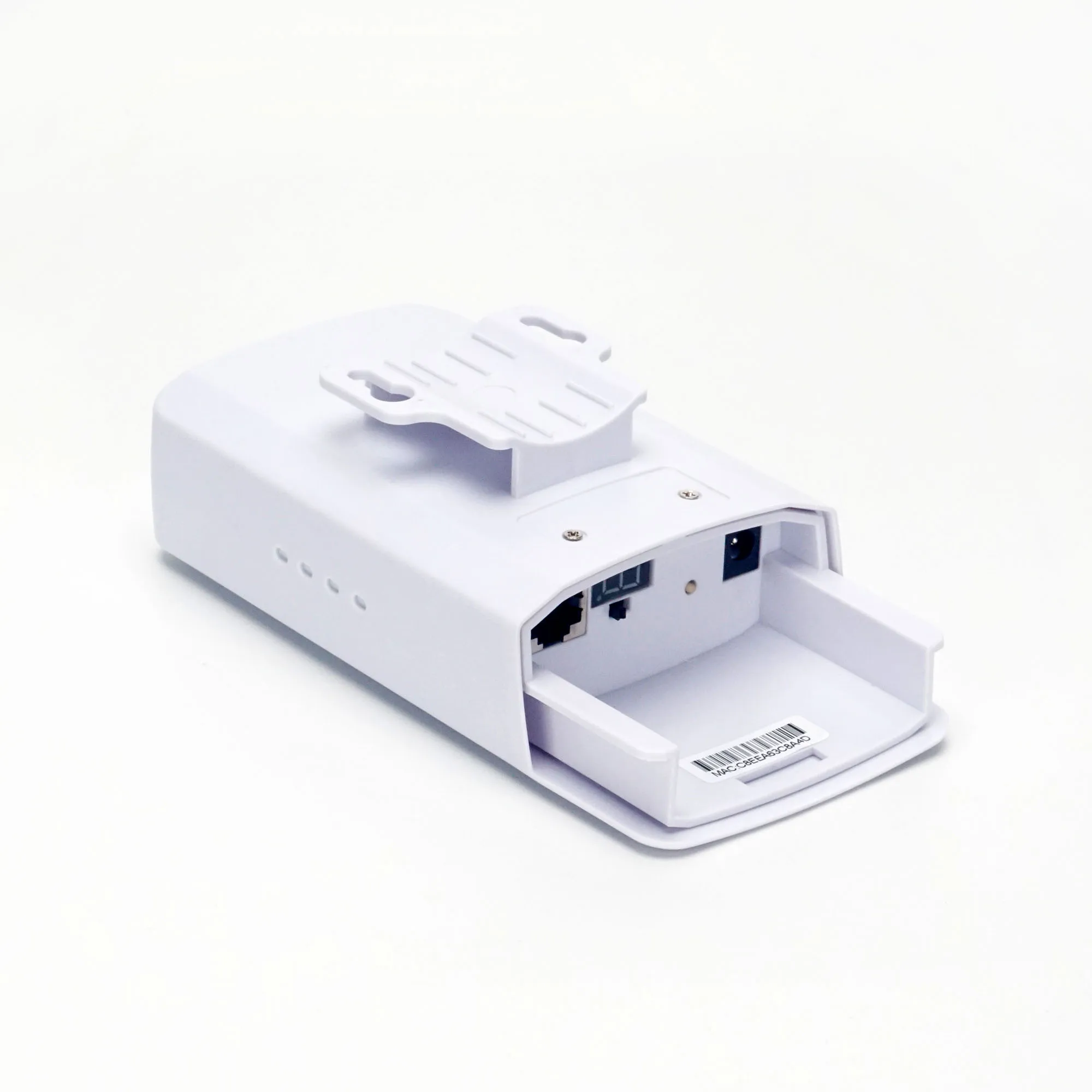

Power Port | 2*Ethernet Port, support 24V POE power Supply 1*DC Port | |||||||
Antenna | 12dBi Directional Antenna | |||||||
Antenna Configuration | WIFI : 1×2 (1Tx,1 Rx) | |||||||
WAN/LAN Port | 2*10/100Mbp RJ45 Ethernet Port | |||||||
Button | 1 Reset Button, support reset to factory setting | |||||||

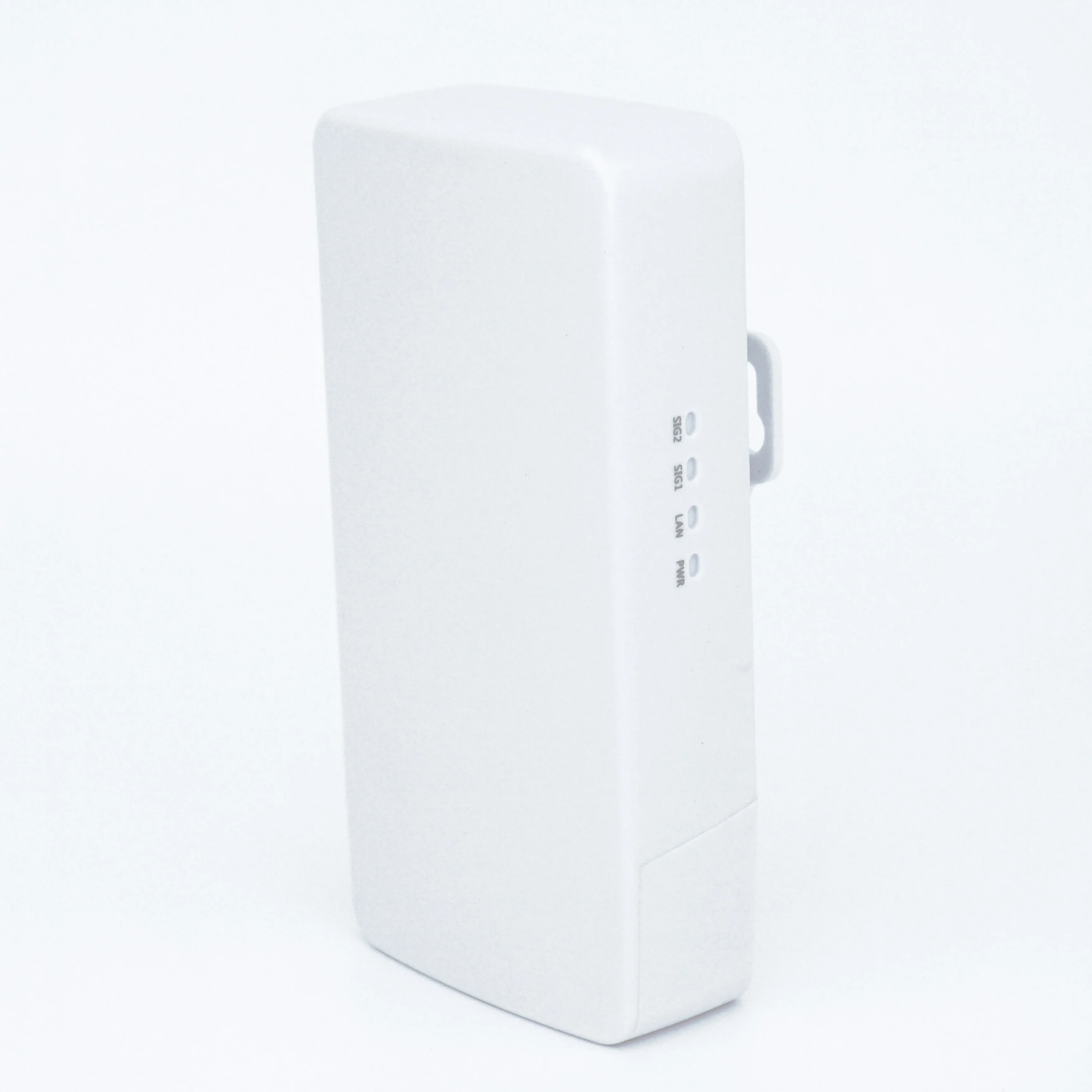

LED Indicator | POWER LAN1 LAN2 SIG1 SIG2 SIG3 | |||||||
Wireless Transmission Rate | 11b: 11M, 5.5M, 2M, 1Mbps 11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps 11N:6.5M, 13M, 13.5M,19.5M, 26M,27M, 39M, 40.5M,52M, 54M,58.5M, 65M,81M,108M,121.5M,135M,150Mbps | |||||||
Modulation | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | |||||||
RF Frequency Range | 2412 GHz ~ 2472GHz (Channel 1 ~ Channel13) | |||||||
Output Power (2.4G) | 802.11b | 11Mbps | 20.0 ± 2.0dBm | |||||
802.11g | 6Mbps (-25@EVM) | MCS 7 | 18.0 ± 2.0dBm | |||||
54Mbps (-25@EVM) | MCS 7 | 17.0 ± 2.0dBm | ||||||
802.11n | HT20 (-30@EVM) | MCS 7 | 15.0 ± 2.0dBm | |||||
HT40 (-30@EVM) | MCS 7 | 15.0 ± 2.0dBm | ||||||
Sensitivity | IEEE 802.11b 1Mbps≦-95dBm 11Mbps≦-89dBm | IEEE 802.11g 6Mbps≦-92dBm 54Mbps≦-73dBm | IEEE 802.11n HT 20 MCS 0≦-86dBm MCS 7≦-68dBm HT 40 MCS 0≦-83dBm MCS 7≦-65dBm | |||||
Packing Information | ||||||||
Dimension | 110mmx69mm | |||||||
Weight | ≦300g | |||||||
Environment | ||||||||
Operation Temperature | -20~+65°C | |||||||
Operation Humidity (No Condensation) | 10%~90% RH | |||||||
Storage Temperature | -40~+85°C | |||||||
Storage Humidity (No Condensation) | 10%~90% RH | |||||||
Certifications
All of our products have passed CCC, CE, FCC, ROHS certificates, support different countries customer's needs.
Packing & Delivery
Payment Item:
Paypal, Credit Card, West Union, T/T, etc.
Shipment Item:
UPS, Fedex, TNT, Aramex, UPS, Sea Shipment etc.
Packing Item:
1pcs device with accessories/1 gift box.
20pcs devices + accessories with gift box/1 carton
Company Profile

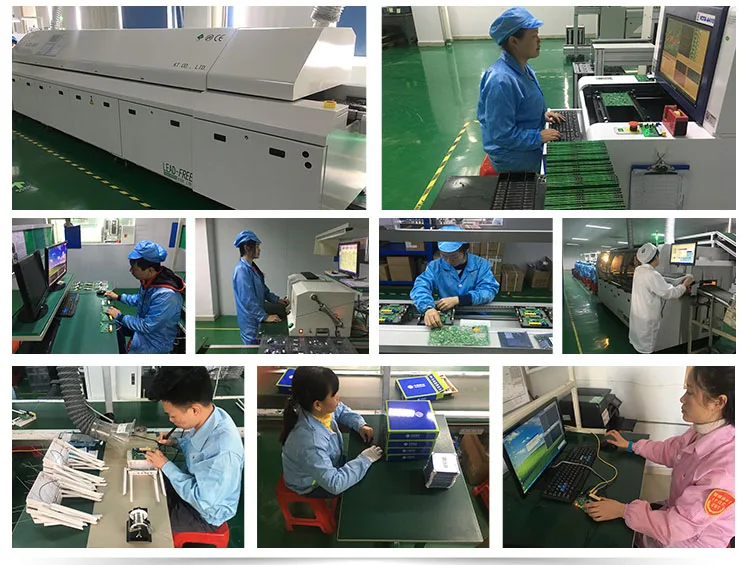

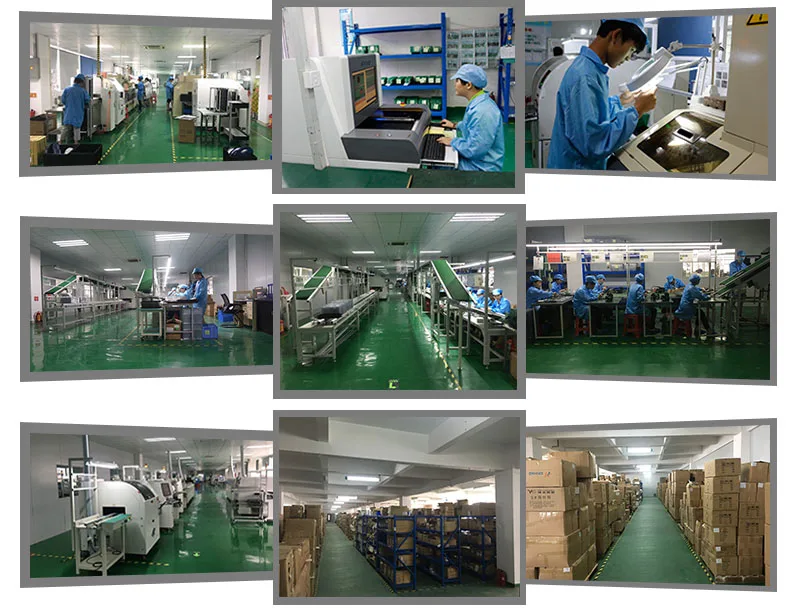

Shenzhen Huachuangyilian Electronics Co.,Ltd. is a professional wireless network and telecommunication equipment developer and manufacturer, we have a professional production factory around 20,000 square metes and a team of more than 100 R&D engineers.
We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, 5G/4G Module etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
Our vision are providing best service to customers.
We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, 5G/4G Module etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
Our vision are providing best service to customers.
FAQ
Can you printing Customer logo on products?
Yes, we support OEM, support print your logo on products.
Do you provide PCBA board order only?
Of course, we can provide PCBA in a short time with good quality.
Can you design products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
Yes, we support OEM, support print your logo on products.
Do you provide PCBA board order only?
Of course, we can provide PCBA in a short time with good quality.
Can you design products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Can you flash customer's firmware?
Yes, flash customer's firmware are no problem. Our default firmware is openWRT.
Yes, flash customer's firmware are no problem. Our default firmware is openWRT.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
Drop Shipping Best 192.168.1.1 OpenWRT Openvpn 4G SIM Card Router
Introduction

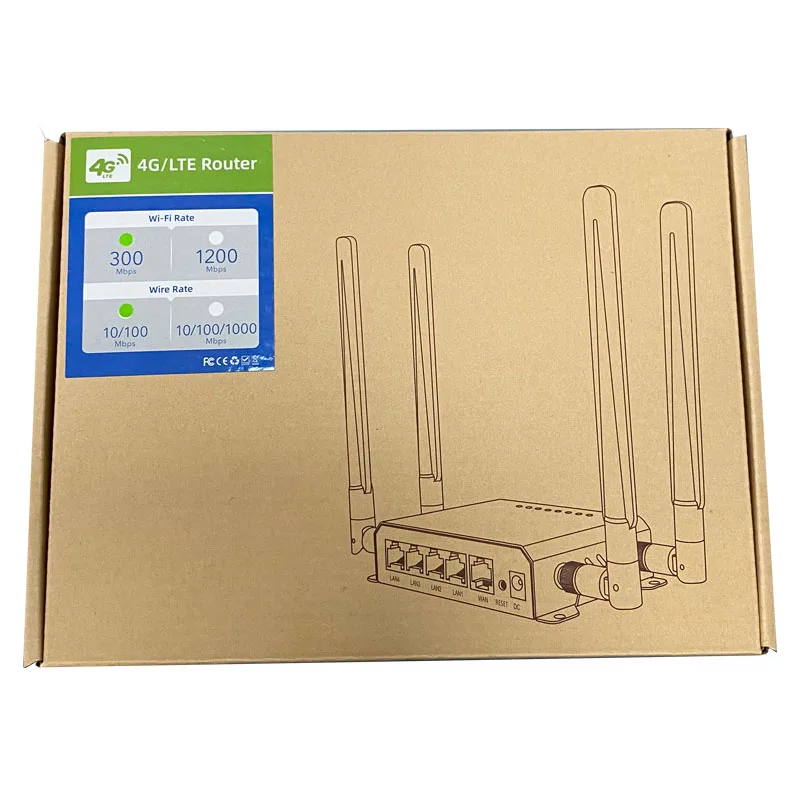

WE826 is one 2.4G 300Mbps integrated CAT4 4G Wireless Router.
WE826 is one 2.4G 300Mbps integrated CAT4 4G Wireless Router.
Below is different market 4G solution details for your reference. If you don't know which one solution is suitable for your country, please contact us after your order.
Item | Frequency Band | ||||||
HCYL826(USA/Canada) | FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 | ||||||
HCYL826(Australia/South America) | FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD LTE: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 | ||||||
HCYL826(Europe/Middle East/South East) | FDD:B1/B3/B7/B8/B20/B28A TDD:B38/B40/B41 WCDMA:B1/B8 GSM:B3/B8 | ||||||
Operation System
GoldenOrb ROOTER Firmware
Support Bank Lock, openVPN, different theme etc.
OS System
Easy SettingWifi Setting, APN Setting, VPN(PPTP, L2TP), Remote Management
OpenWRT Firmware
Product Description
Simple Introduction
The WE826-T2 and WE826-Q uses the latest wireless solution, performs better and more function. Stable wireless performance, more functions, 2.4G 300Mbps, support 3G/4G. Provide 1 USB2.0 port, 1 Micro slot, 1 SIM Slot.
Product Feature
2.4G wifi frequency, wifi rate up to 300Mbps, support 802.11n/802.11g/802.11b network protocol
5* 10/100Mbps Auto MDI/MDIX Ports (1 WAN Port+4 LAN Ports), support 802.3/802.3u protocol
1 USB 2.0 date interface, support provide power to other devices
1 Micro SD Card Slot
Support 3G/4G
Many kinds of encryptions to protect your data transmission
5* 10/100Mbps Auto MDI/MDIX Ports (1 WAN Port+4 LAN Ports), support 802.3/802.3u protocol
1 USB 2.0 date interface, support provide power to other devices
1 Micro SD Card Slot
Support 3G/4G
Many kinds of encryptions to protect your data transmission
Hardware | ||
Main Chipset | MT7620A/QCA9531 | |
RAM | DDR2 128MB (MAX DDR2 256MB) | |
SPI FLASH | 16MB (MAX 32MB) | |
Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac, IEEE802.11a, IEEE 802.3, IEEE 802.3u | |
RT Power | 802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; | |
Reception Sensitivity | 802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER | |
Work Channel | 2.4GHz choose: 1-13 | |
Wireless Rate | Max. 300Mbps | |
Work Frequency | 2.4GHz | |
Antenna | 2* 5dBi antenna or 4*5dbi external antenna (With 3G/4G) | |
Interface | 1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100/100M WAN port (Auto MDI/MDIX) 4*10/100/100M LAN port (Auto MDI/MDIX) | |
LED | Power, USB, 2.4G, WAN, LAN1, LAN2, LAN3, LAN4 | |
Button | Reset | |
Max Power consumption | < 12W | |
Others | ||
Work Environments | Operating Temperature：-10℃ ~ 45℃； Storage Temperature：-40℃~ 70℃； Operating Humidity：0%~90% non-condensing Storage Humidity：0%~90% non-condensing | |
Adapter | 12V 1A | |
Authentication | CE, FCC, RoHs | |
Other accessories | Power adapter, Ethernet cable | |
Certifications
All of our products have passed CCC, CE, FCC, ROHS certificates, support different countries customer's needs.
Packing & Delivery
Payment Item:
Paypal, Credit Card, West Union, T/T, etc.
Shipment Item:
UPS, Fedex, TNT, Aramex, UPS, Sea Shipment etc.
Packing Item:
1pcs device with accessories/1 gift box.
20pcs devices + accessories with gift box/1 carton
Company Profile
Shenzhen Huachuangyilian Electronics Co.,Ltd. is a professional wireless network and telecommunication equipment developer and manufacturer, we have a professional production factory around 20,000 square metes and a team of more than 100 R&D engineers.
We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, 5G/4G Module etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
Our vision are providing best service to customers.
We provide high quality wireless network and telecommunication equipment products, including 5G/4G LTE Wifi Router, Vehicle Router, AP/CPE, 4G Outdoor Router, 4G Wingle, 5G/4G Mifi, 5G/4G Module etc., ODM&OEM service is available.
We build a long term cooperation with Mediatek, Qualcomm and Realtek, capably offering good quality product and offer a good after sell service. Until now we have exportated to over 40 countries and regions.
Our vision are providing best service to customers.
FAQ
Can you printing Customer logo on products?
Yes, we support OEM, support print your logo on products.
Do you provide PCBA board order only?
Of course, we can provide PCBA in a short time with good quality.
Can you design products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
Yes, we support OEM, support print your logo on products.
Do you provide PCBA board order only?
Of course, we can provide PCBA in a short time with good quality.
Can you design products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Can you flash customer's firmware?
Yes, flash customer's firmware are no problem. Our default firmware is openWRT.
Yes, flash customer's firmware are no problem. Our default firmware is openWRT.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
