Product Overview
Description

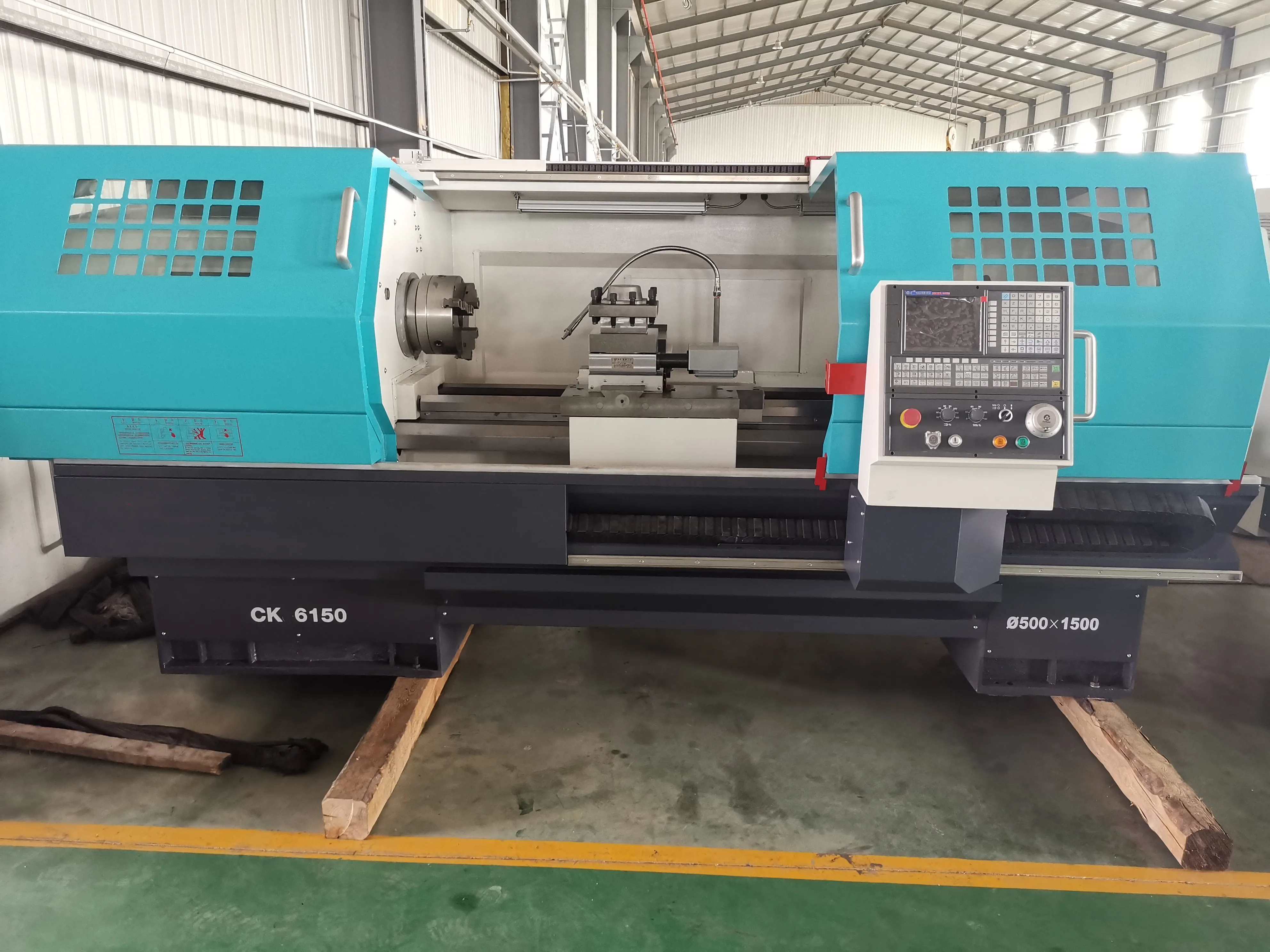

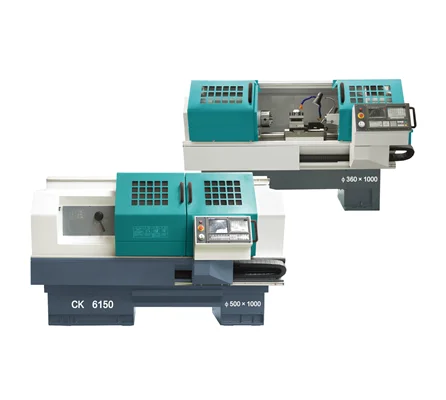

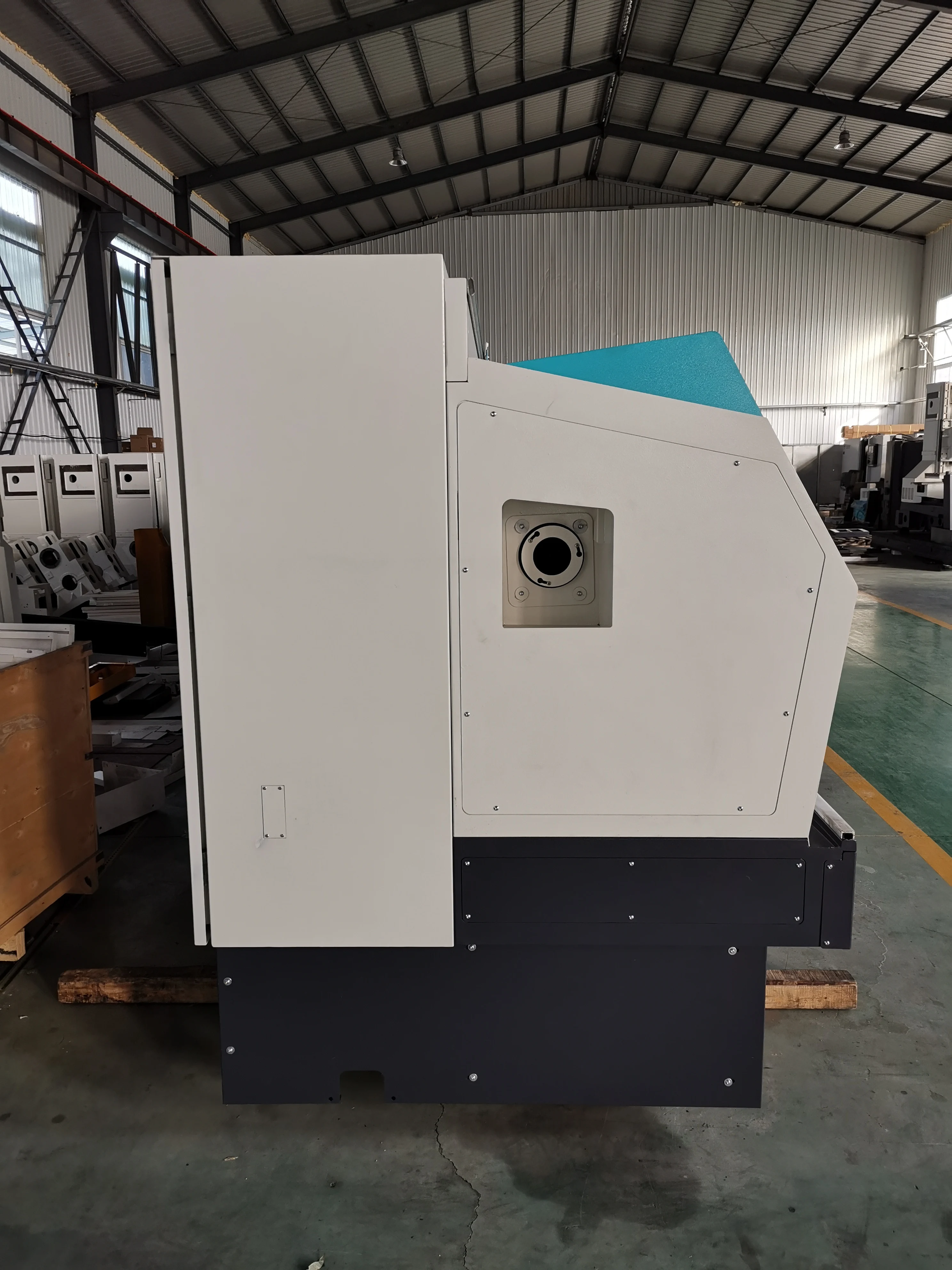

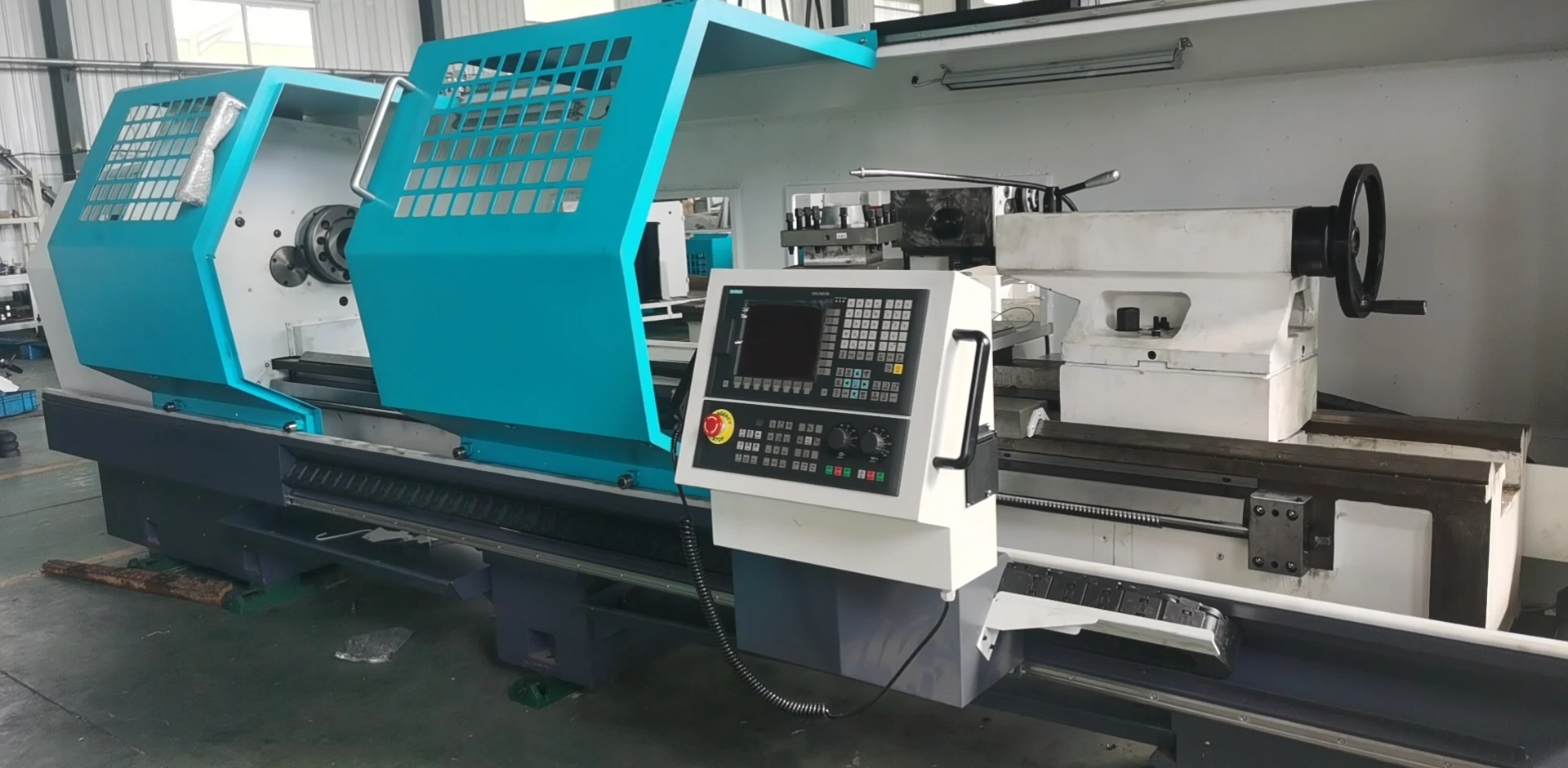

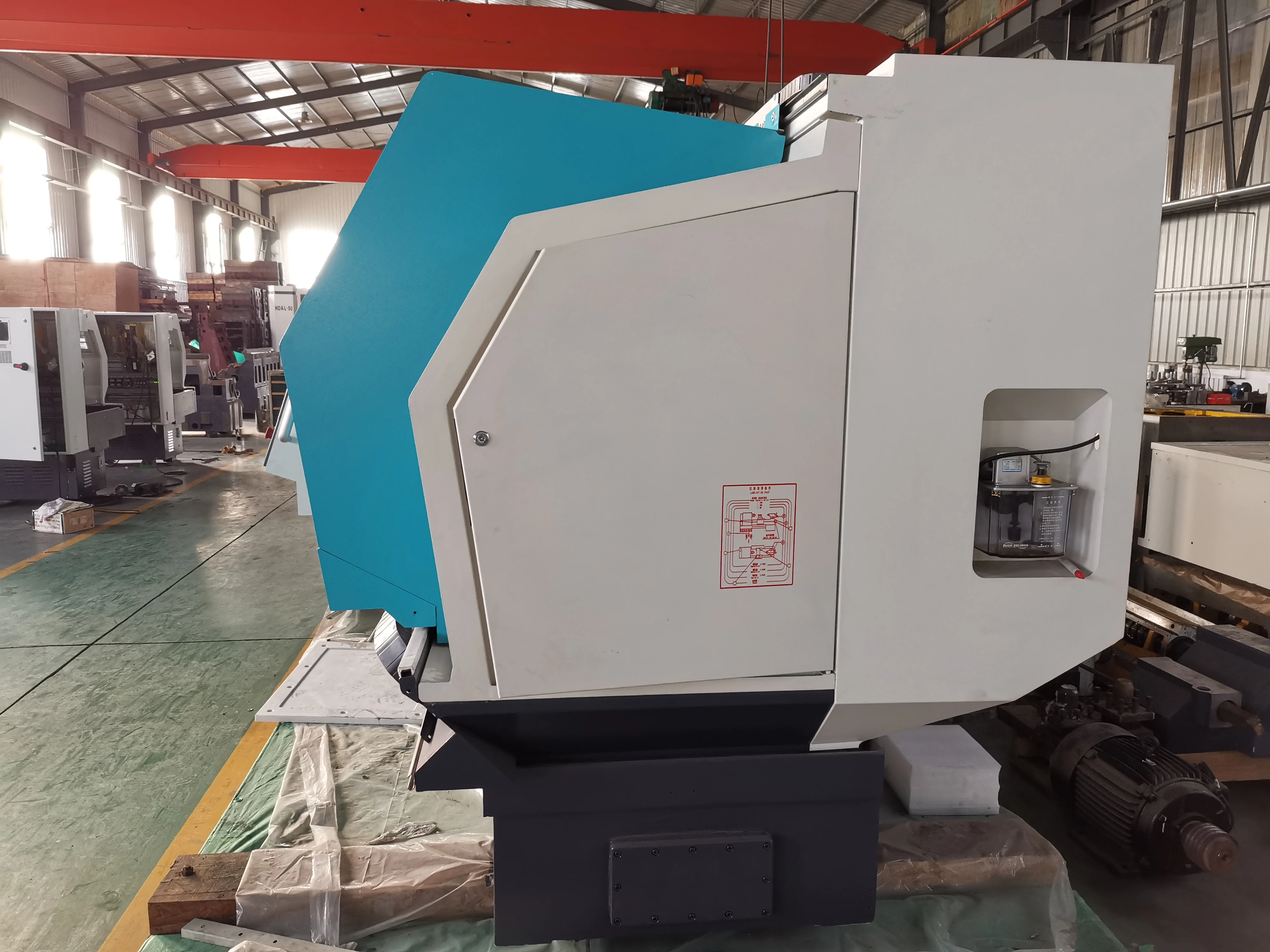

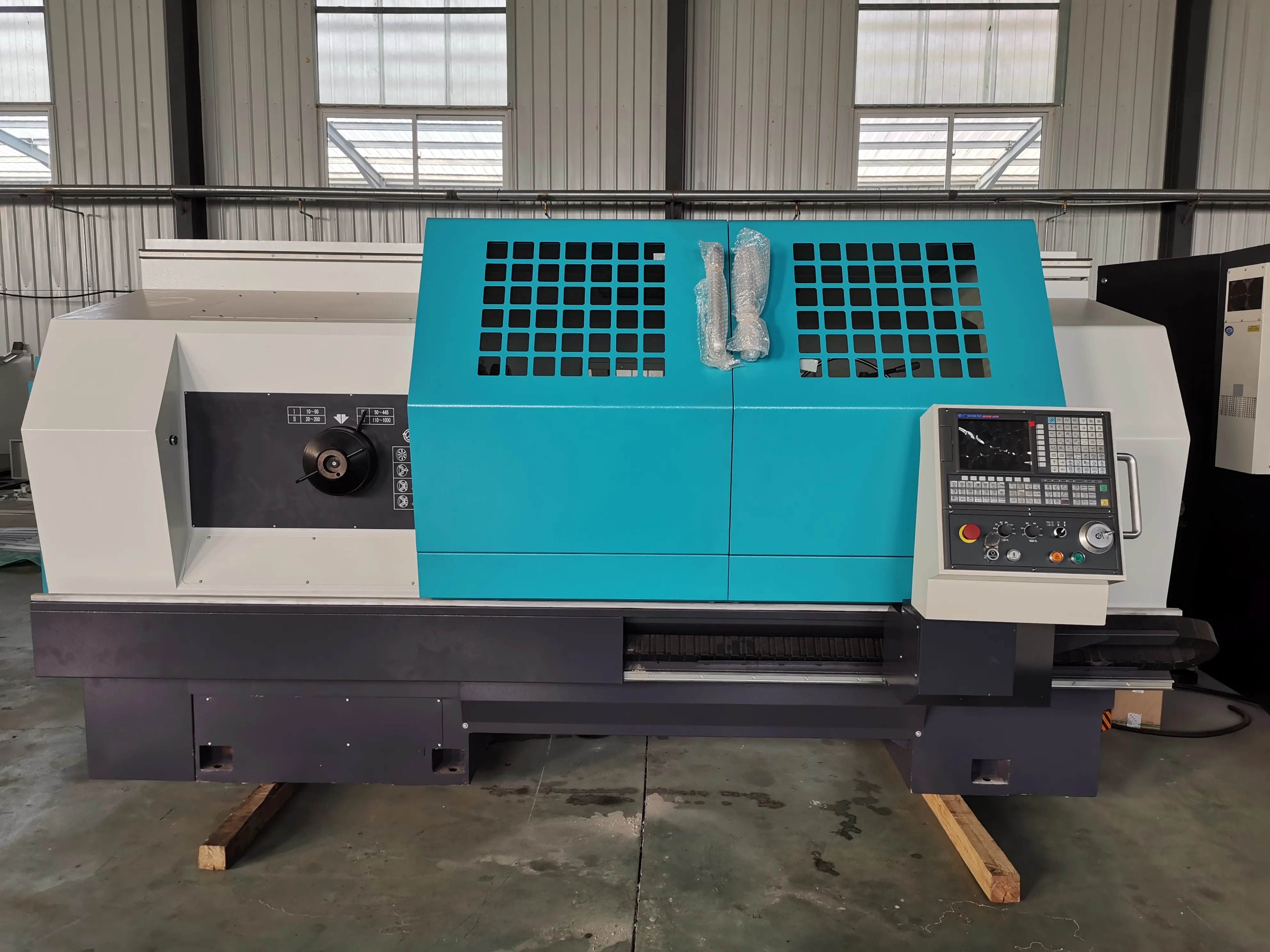

Flat bed CNC lathe CK6150

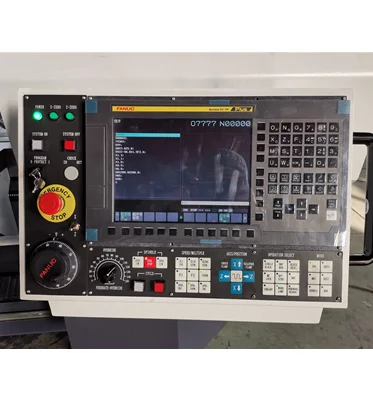

CK6150 is a CNC horizontal lathe with controls on both Z & X axis. Tons of shaft-type and disc-type workpiece machining can be achieved, such as OD, conical surface, arc surface, end surface, grooving, chamfering, in addition to metric straight thread, end thread, imperial straight thread and conical thread. Fanuc, Siemens, GSK system can be applied to CK6150. It is suitable for multiple-type complicated workpiece, small and medium production.
Please pay attention! All products in this store are customized products, not directly ordered products. The specific parameters and appearance shall be subject to the communication between both parties! | ||||
Technical | Max. Swing over bed | φ530mm | ||
Max. Swing over cross slide | φ310mm | |||
Max component length | 1500 mm | |||
Max cutting length | 1440 mm | |||
Max turning diameter （Vertical 4-position toolpost） | 510 mm | |||
（Horizontal 6 position toolpost） | 410 mm | |||
Spindle front bearing diameter | φ120 mm | |||
Spindle center height | 260 mm | |||
Max component weight(Only with chuck) | 400 kg | |||
Transmission | Main motor horsepower （regular） （VFD） | 7 kw 7.5 kw | ||
Spindle bore | φ82 mm | |||
Spindle bore taper | Front Ф90mm | |||
Spindle nose | D8 | |||
Spindle speed (regular) 45～2000 r/min | ||||

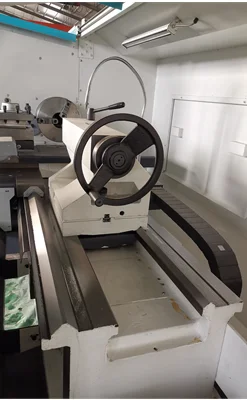

Tailstock | Quill diameter | φ76 mm | ||
Quill travel | Manua 160 mm | |||
Feed system | Toolpost max. travel (X) \u007F\u007F\u007F (Z) | 690 mm | ||
Ballscrew diameter*screw pitch (X) (Z) | φ20× 4 (mm) φ40× 6 (mm) | |||
Rapid feed （X） （Z） | 4000mm/min 8000mm/min | |||
Max. Cutting speed （X） （Z） | 2000 mm/min 4000 mm/min | |||
Positioning accuracy （X） （Z） | 0.030 mm 0.040 mm | |||
Repeated position accuracy （X） （Z） | 0.012 mm 0.016 mm | |||

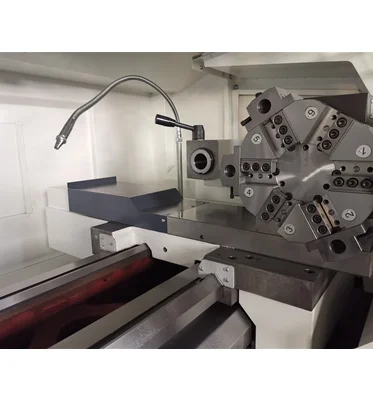

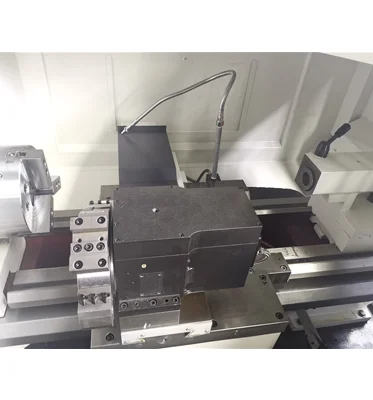

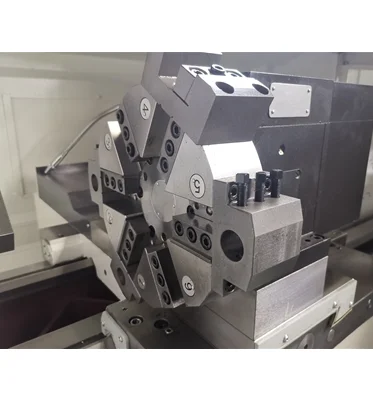

Toolpost Standard： Electrical vertical 4position toolpost | horsepower | 190 W | ||
Speed r/min | 1500 r/min | |||
Tool shank mm | 25 × 25 mm | |||
Repeated position accuracy mm | 0.008 mm | |||
Tool-change time | 3sec | |||
Cooling system | TANK VOLUME | 35L | ||
Horsepower | 200 W | |||
Flow | 25 L/min | |||
Size & weight | Dimensions | 3350×1760×1630mm | ||
Weight | 2800 kg | |||
Product packaging

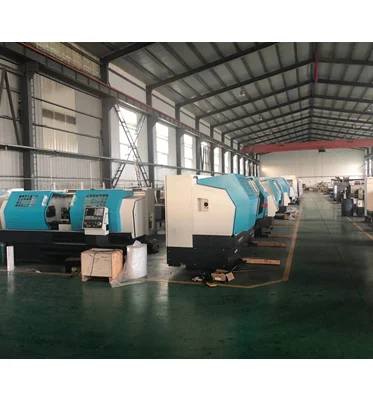

Exhibition
1. who are we?
We are based in Liaoning, China, start from 2019,sell to South Asia(10.00%),Southern Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LATHE,CNC LATHE,VERTICAL MACHING CENTER,Pipe threading machine,Vertical lathe
4. why should you buy from us not from other suppliers?
As an independent R & D manufacturer, the company is committed to manufacturing and selling CNC lathes, machining centers, flexible production lines, precision molds and parts processing equipment, exporting to more than 30 countries such as Russia.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Liaoning, China, start from 2019,sell to South Asia(10.00%),Southern Europe(10.00%),Central America(10.00%),Western Europe(10.00%),Mid East(10.00%),Oceania(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),North America(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LATHE,CNC LATHE,VERTICAL MACHING CENTER,Pipe threading machine,Vertical lathe
4. why should you buy from us not from other suppliers?
As an independent R & D manufacturer, the company is committed to manufacturing and selling CNC lathes, machining centers, flexible production lines, precision molds and parts processing equipment, exporting to more than 30 countries such as Russia.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
