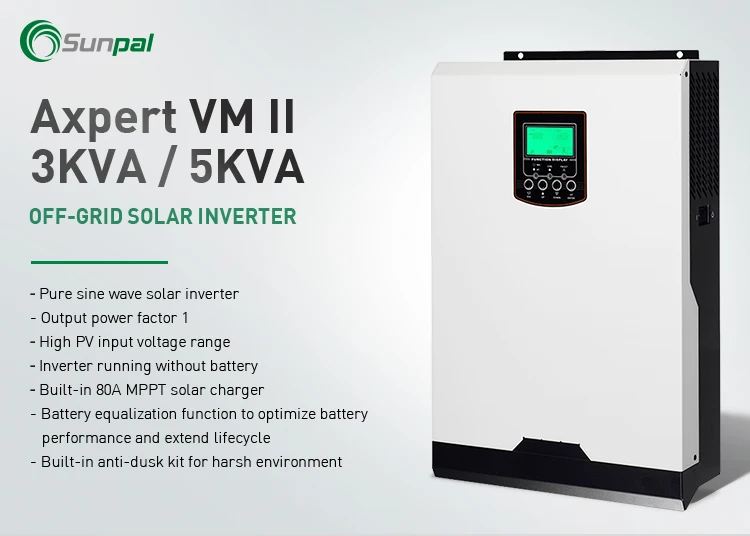

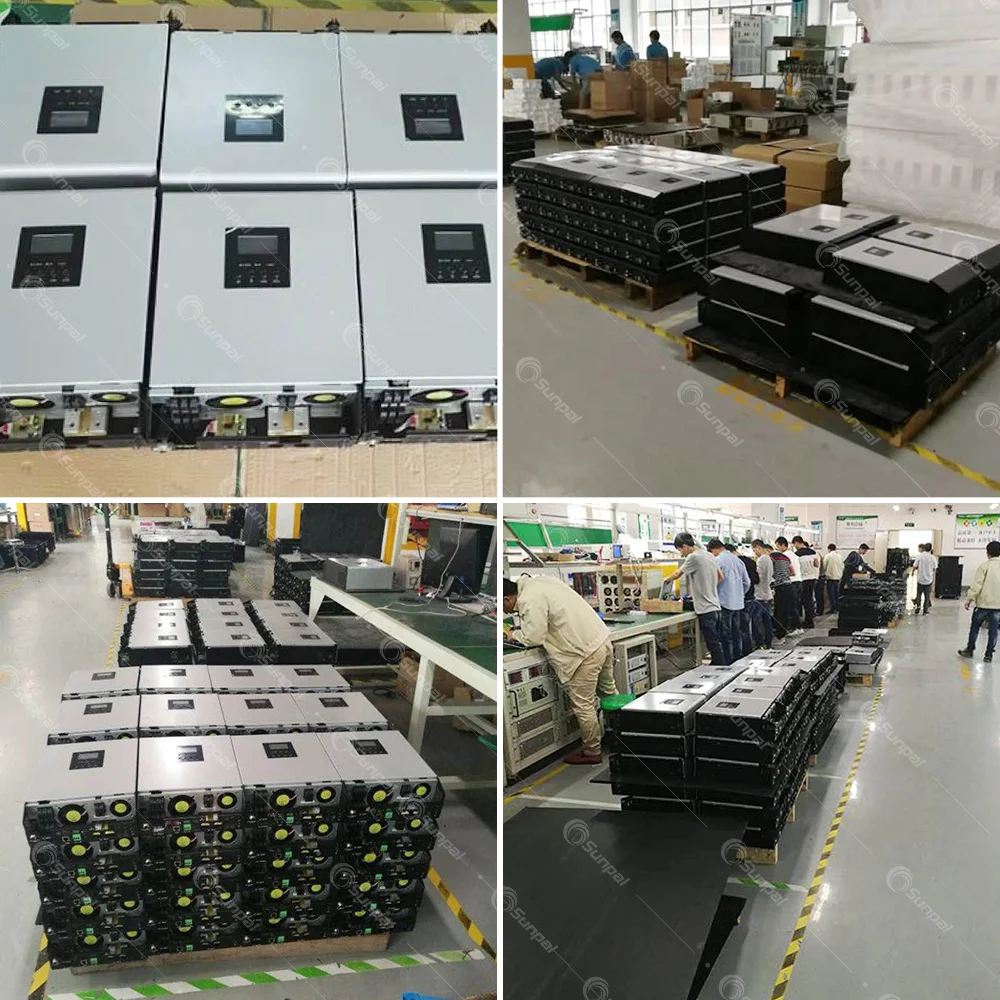

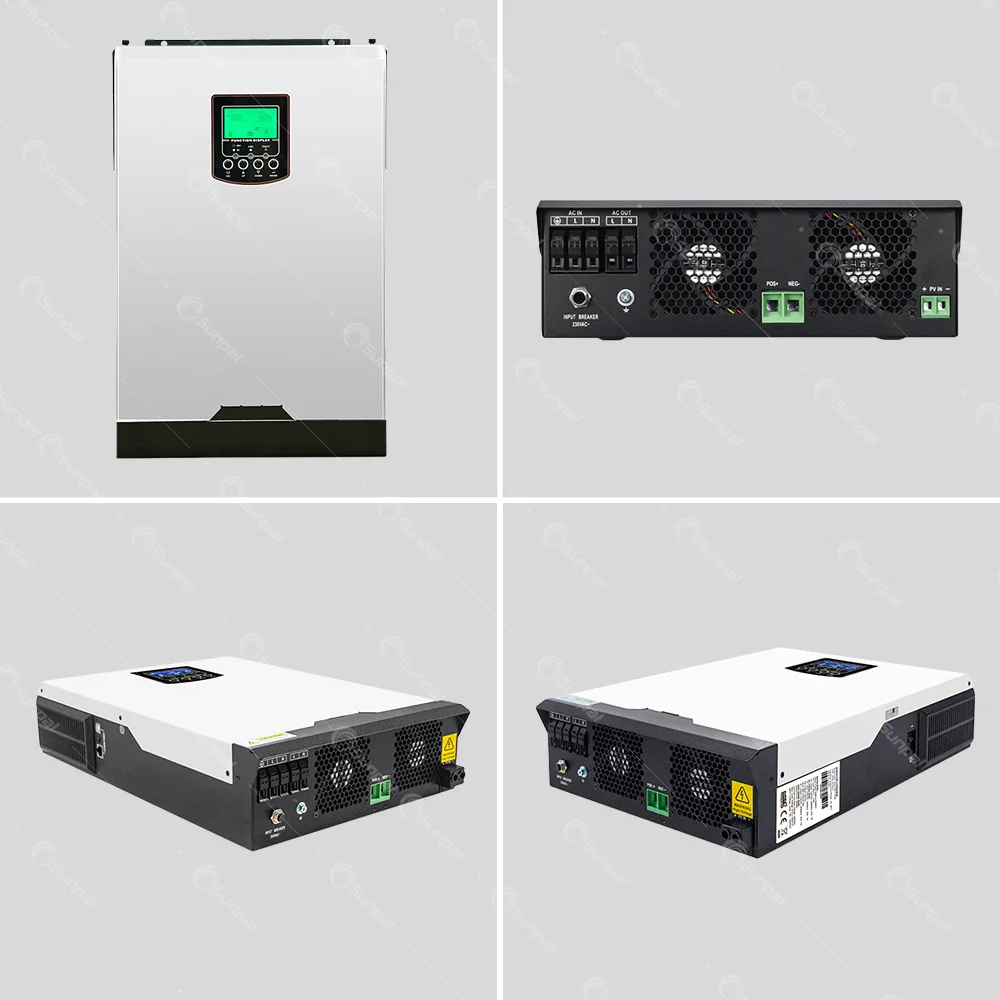

Voltronic 48VDC Off Grid Hybrid Invert 5000W Mpp Solar Hybrid Inverter 5Kva
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (1600380419982):
Product Overview
Description
Product Description

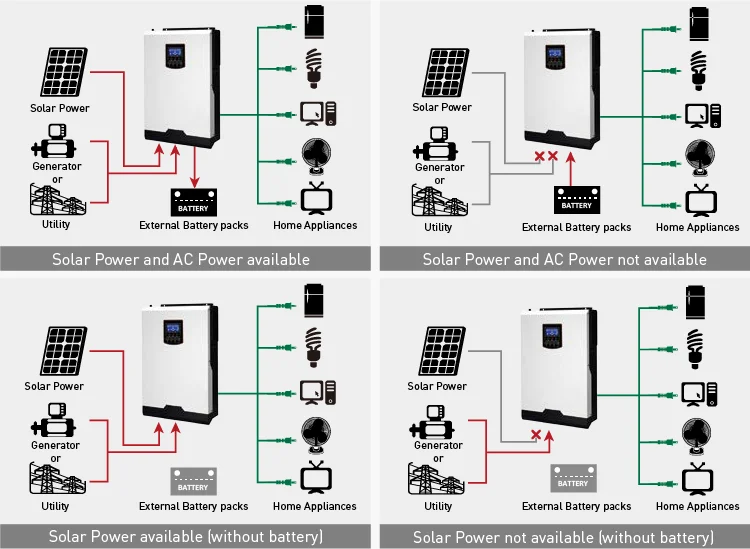

System Diagram Operation with battery
Technical specifications
Axpert VM II | VM II 3000-24 | VM II 5000-48 | ||
Rated Power | 3000VA/3000W | 5000VA/4000W | ||

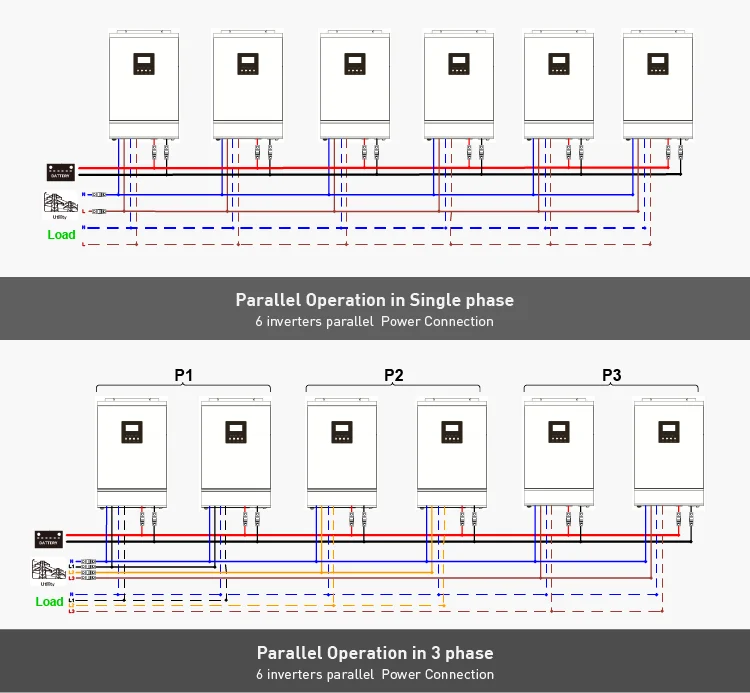

INPUT | Yes, need at lest 2 units in parallel | Yes, need at lest 2 units in parallel | ||
Voltage | 230 VAC | 230 VAC | ||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | WiFi or GPRS | ||
Frequency Range | 50 Hz/60Hz (Auto sensing) | |||
OUTPUT | 110/120VAC | 110/120VAC | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | 230VAC ± 5% | ||
Surge Power | 6000VA | 10000VA | ||
Efficiency (Peak) | 90% ~ 93% | 90% ~ 93% | ||
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |||
Waveform | Pure sine wave | 145V | ||
BATTERY | 2000W | 4500W | ||
Battery Voltage | 24 VDC | 48 VDC | ||
Floating Charge Voltage | 27 VDC | 54 VDC | ||
Overcharge Protection | 32 VDC | 63 VDC | ||
SOLAR CHARGER & AC CHARGER | 50Hz/60Hz | 50Hz/60Hz | ||
Maximum PV Array Power | 4000W | 4000W | ||
MPPT Range @Operating Voltage | 120 VDC ~ 450 VDC | 120 VDC ~ 450 VDC | ||
Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC | ||
Maximum Solar Charge Current | 80A | 80A | ||
Maximum AC Charge Current | 60A | 60A | ||
Maximum Charge Current | 80A | 150A | ||
PHYSICAL | ||||
Dimension,DxWxH (mm) | 100 x 300 x 440 | 100 x 300 x 440 | ||
Net Weight (kgs) | 9 | 10 | ||
ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Operating Temperature | -10°C~50°C | 0°C~50°C | ||
Storage Temperature | -15°C~60°C | -15°C~60°C | ||

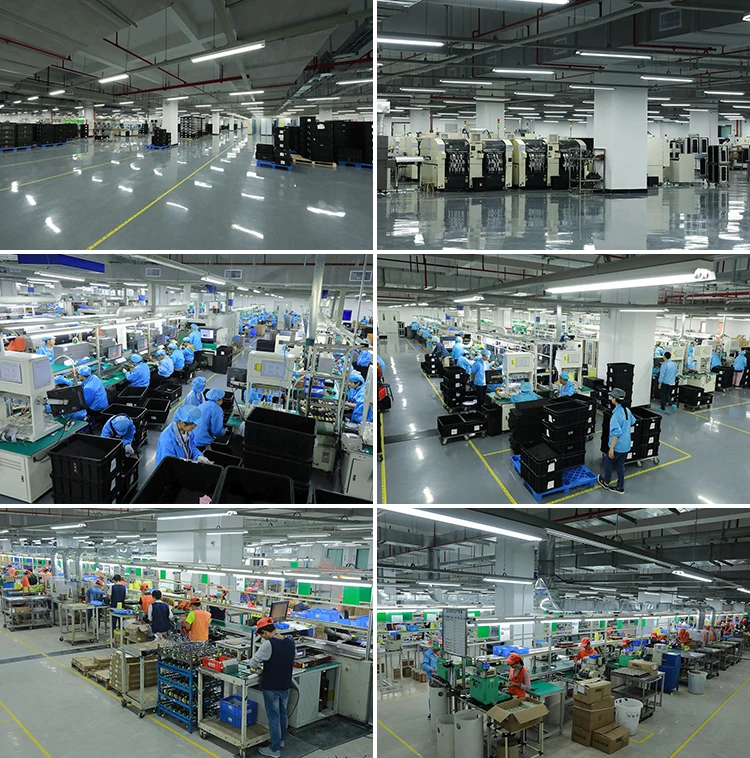

Our Factory

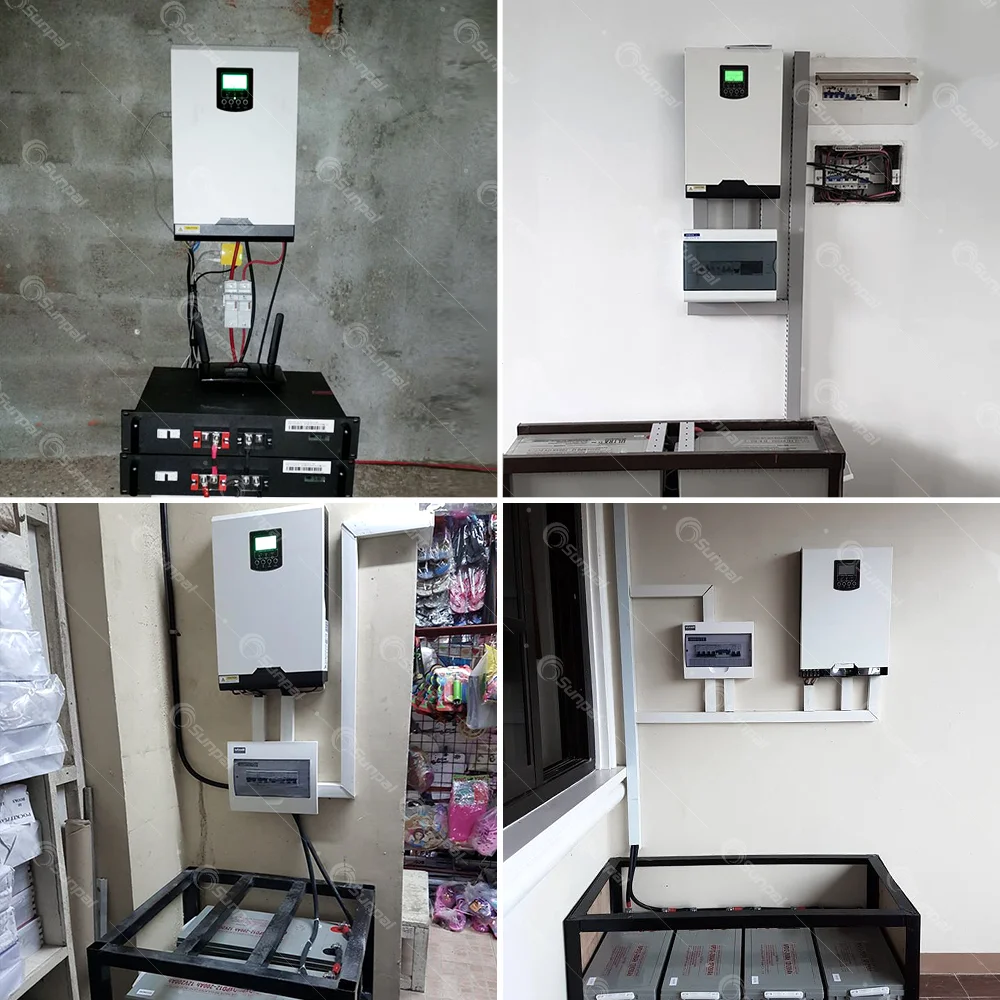

Our Projects
Certifications
