Large Diameter PE Restraint Flange Adaptor With Brass Thrust Ring
- Category: >>>
- Supplier: Syi Industrial Co. Ltd.
Share on (1600380438619):
Product Overview
Description

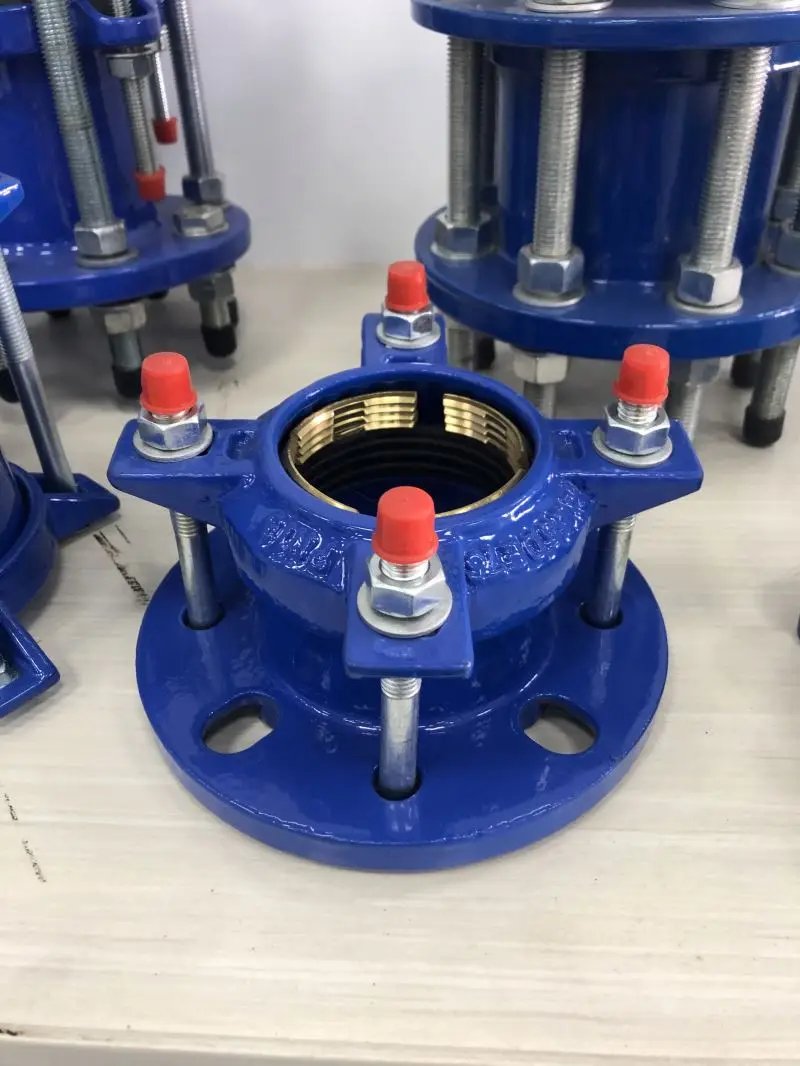

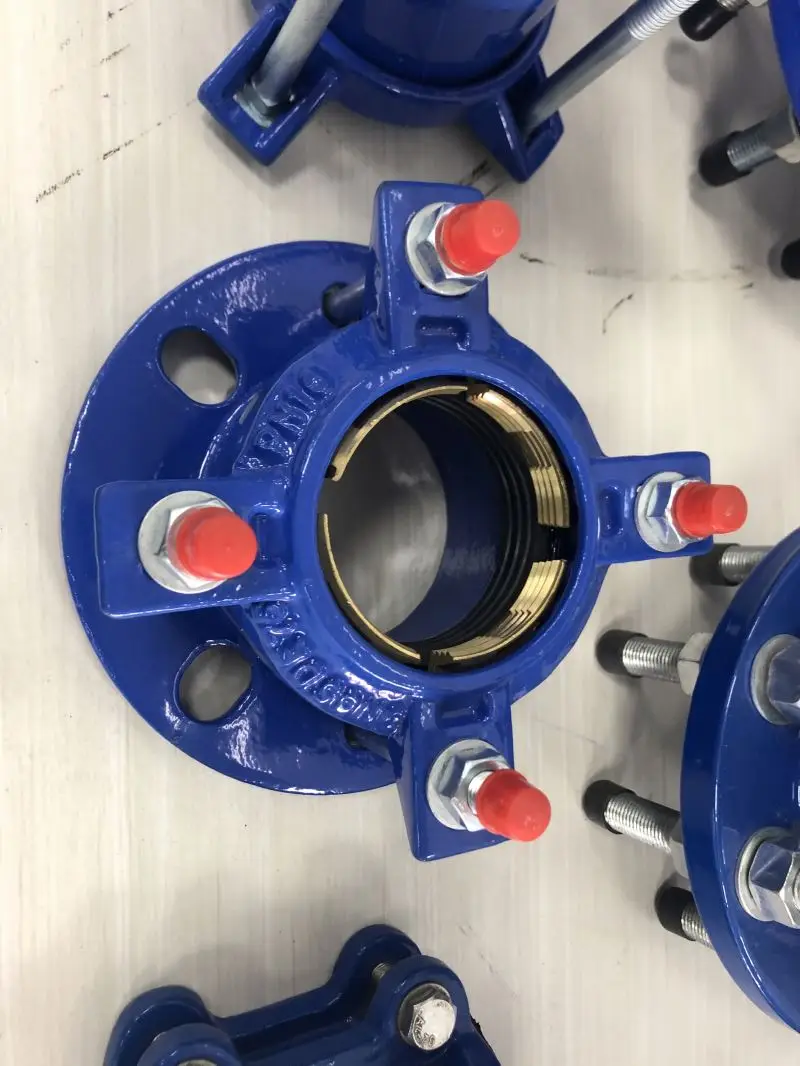

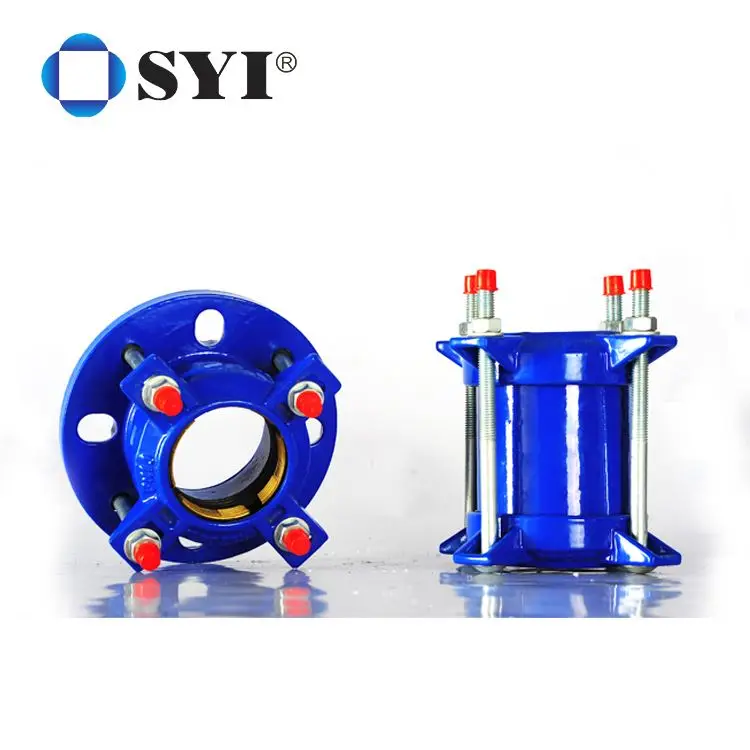

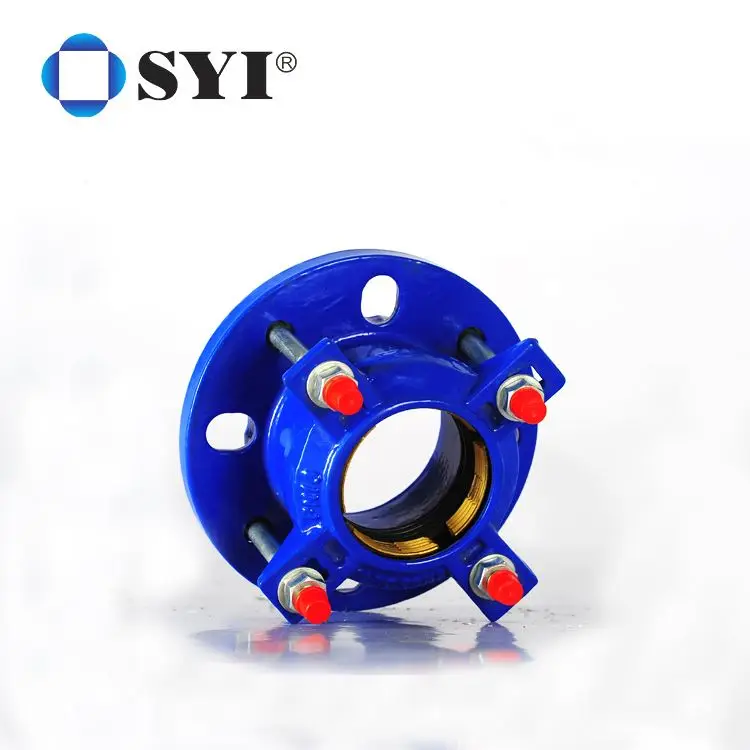

SYI Ductile Iron Compact Restrained Flanged Adaptors for PE Pipes
Product Description
SYI can supply COMPACT Restrained Flanged Adaptors with most reasonable design in the market, according to EN 14525, ISO2531,EN545, EN598, from DN40 to DN2000, Restrained Flanged Adaptors support and grip PE pipe to prevent pipe collapse and pullout. Compact Design, More Lighter, More Easier, More Lower Cost!
Material: Body:Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 Gland:Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 Gasket:Rubber E.P.D.M./NBR/SBR in accordance with EN 681.1 D-Bolts And Nuts: Carbon Steel Grade 8.8 with dacromet coating | ||
Flange：Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2. | Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2. | |
Working Pressure: 16 Bar or 250 PSI | ||
Fluid Temperature:0°C-50°C, excluding frost | ||
Allowed Angular Deflection | 3° | |
Joint Gap | 19mm | |
Coating | ||
External coatings | Internal coatings | |
liquid epoxy resin painting epoxy applied by FBE according to customers' requirements | liquid epoxy resin painting epoxy applied by FBE according to customers' requirements | |
Reference Rules:Designed and tested in accordance with EN14525, ANSI/AWWA C219 and EN545 | ||
SYI-RC, devel oped by experienced engineers in SYI in 2020, in response to demand for a simple, high performance end load restraint mechanical method of joining polyethylene pipe.
SYI-RC, designed to support and grip PE pipe to prevent pipe collapse and pullout.

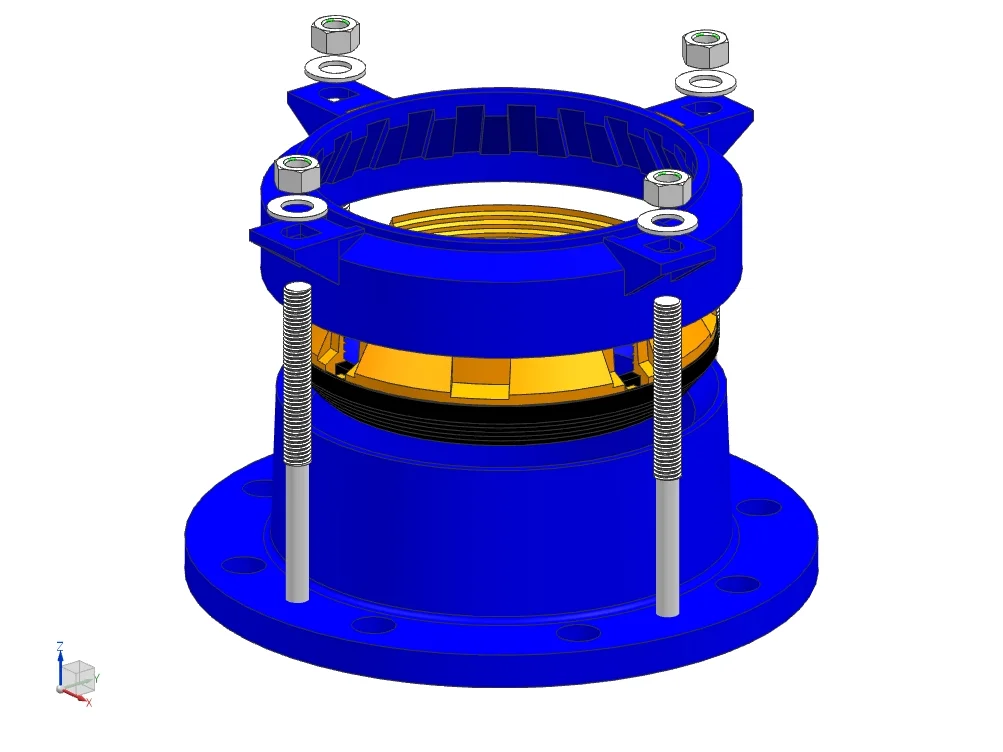

Combination Brass Griping Ring and Sealing Gaskets provide more easier installation and higher performance.
Slip-on coupling without centre stop or obstruction making it easier to make repairs to existing pipelines. No need to dismantle products to install.
SYI-RC, designed to support and grip PE pipe to prevent pipe collapse and pullout.
Combination Brass Griping Ring and Sealing Gaskets provide more easier installation and higher performance.
Slip-on coupling without centre stop or obstruction making it easier to make repairs to existing pipelines. No need to dismantle products to install.
SYI Compact Restrained Flanged Adaptors Dimensions
SYI S. N. | DN | OD | D3 | D | b | L1 | Bolt | |||||||||
mm | no. | size | ||||||||||||||
SYI-RFA5050 | 50 | 50 | 54.4 | 185 | 16 | 61 | 2 | |||||||||
SYI-RFA5063 | 50 | 63 | 78 | 188 | 18 | 63 | 4 | |||||||||
SYI-RFA60/6563/75 | 60/65 | 63/75 | 92 | 187 | 17 | 65 | 4 | |||||||||
SYI-RFA8090 | 80 | 90 | 105 | 203 | 17 | 67 | 4 | |||||||||
SYI-RFA100110 | 100 | 110 | 126 | 221 | 16 | 66.5 | 4 | |||||||||
SYI-RFA100125 | 100 | 125 | 123 | 223 | 19 | 67 | 4 | |||||||||
SYI-RFA125125 | 125 | 125 | 144 | 252 | 19 | 67 | 4 | |||||||||
SYI-RFA125140 | 125 | 140 | 156 | 253 | 19 | 67 | 4 | |||||||||
SYI-RFA150160 | 150 | 160 | 177 | 288 | 16 | 65.3 | 4 | |||||||||
SYI-RFA150180 | 150 | 180 | 171 | 285 | 18 | 78 | 4 | |||||||||
SYI-RFA200200 | 200 | 200 | 217 | 340 | 17.5 | 77 | 4 | |||||||||
SYI-RFA200225 | 200 | 225 | 214 | 340 | 17 | 89 | 4 | |||||||||
SYI-RFA250250 | 250 | 250 | 268 | 400 | 18.5 | 89 | 6 | |||||||||
SYI-RFA250280 | 250 | 280 | 275 | 400 | 20 | 88 | 6 | |||||||||
SYI-RFA300315 | 300 | 315 | 334 | 457 | 20 | 90 | 6 | |||||||||
For other sizes not mentioned above, please contact us. We have right to change the data without further notice. | ||||||||||||||||
Quality Control
SYI Pipeline regards quality as an essential and integral part of our business success.
Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities.
Manufacturing "SYI" Brand products has evolved as a mark of quality!
Chemical Analyzing
Microstructure Testing
Press Ring Experiment
Spectrum Analyzing
Product Packaging

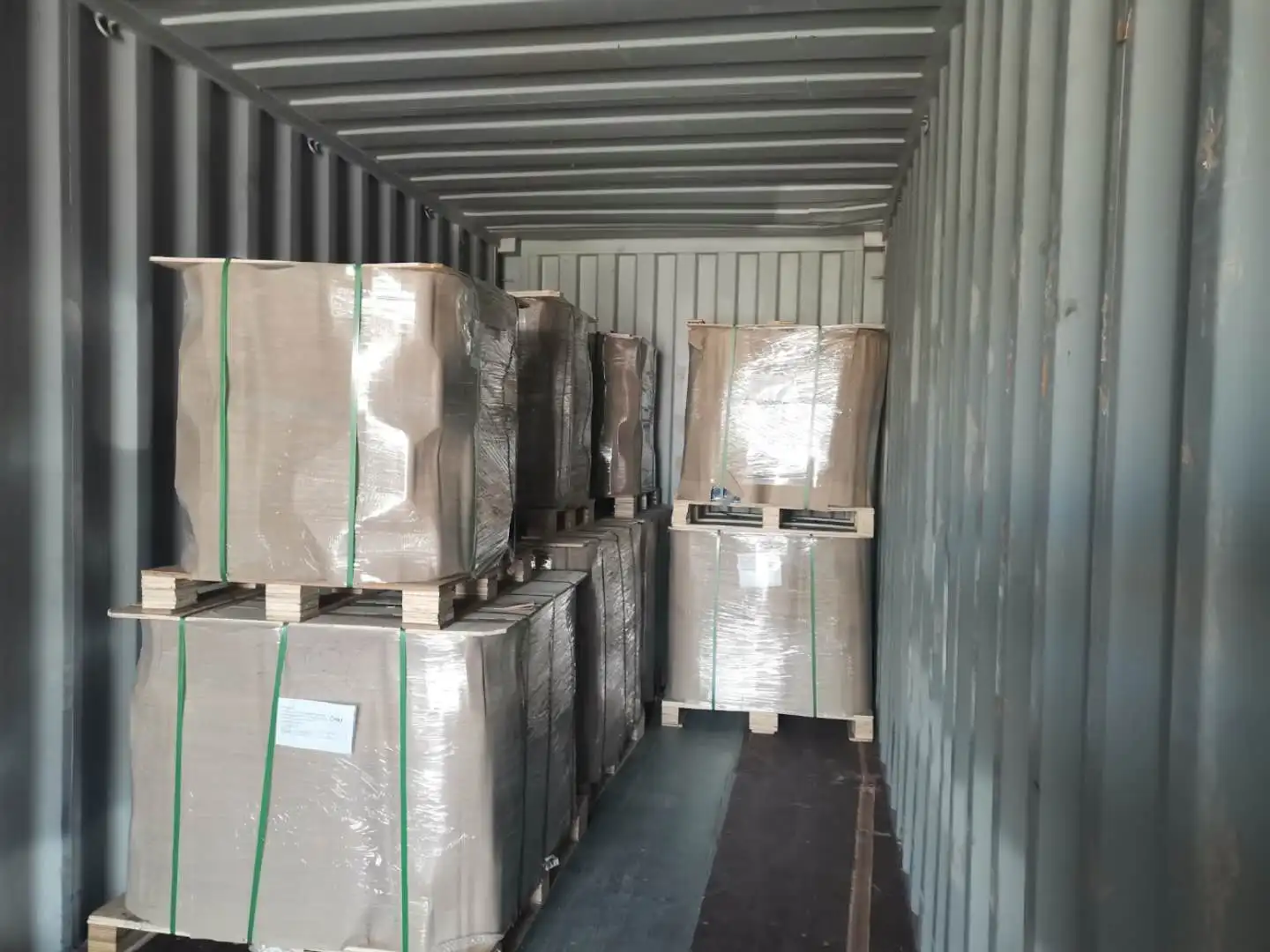

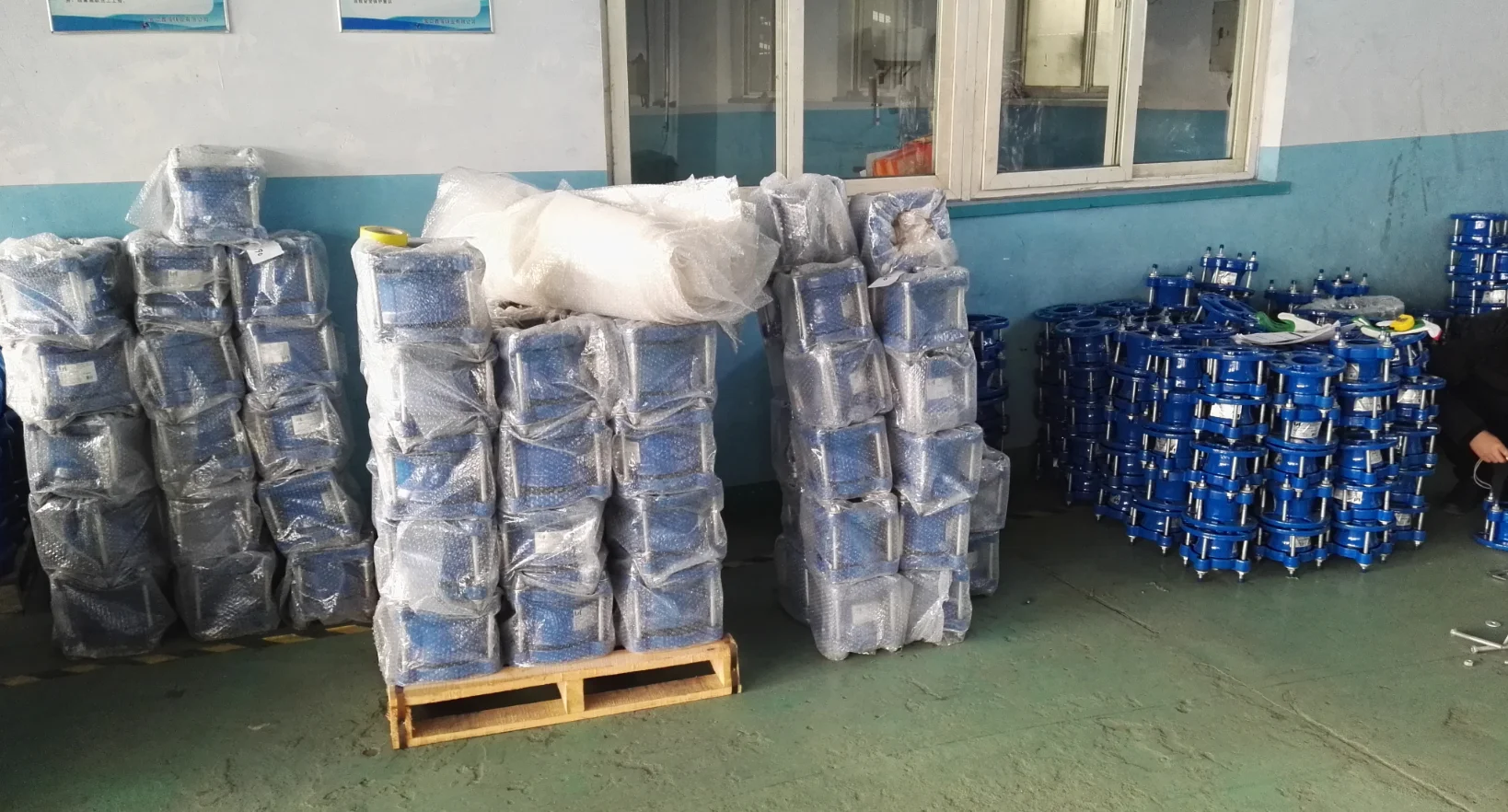

Packing: Different package upon your request,like wood cases&pallets,ply-wood crates&pallets,steel crates&pallets and etc.
Company Profile
SYI Pipeline Corporation - a Proud Member of SYI Group - manufactures a full range of Pipeline products and accessories like Pipes, Fittings, Universal Couplings, Flanged Adaptors, Restrained Adaptors, Dismantling Joints, Clamps, Valves, Fire Hydrants and etc.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
SYI products have served 118 countries worldwide up to now!
Most of these customers cooperated with SYI for more than 20 years!
We value long term cooperation relationship mostly!
Most of these customers cooperated with SYI for more than 20 years!
We value long term cooperation relationship mostly!
Value Added Services
A dedicated Customer Service team with 50 staff covering Marketing, Sales, Technical, Production, Inspection, Logistics and
Management.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
Free catalogues, certificates.
Individual QCP.
MTC with pictures and videos.
Free Extra Accessories and Repair Tools.
1 specialized Customer Service Staff to follow your each single project.
Professional Logistic Services.
Free Installation Instruction, Product Standards and Inspection Certificates.
One-stop Service
1. Sales Service
40 staff covering the pre-sales, on-sales, after-sales services.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
We promise to respond your questions within 24 hours.
2. Customer Service
For your every single PO, we have 1 Customer Service person to independently follow up.
Professional Logistic Department
Product Installation Instructions are available.
A dedicated Customer Service team with 50 staff covering Marketing, Sales, Technical, Production, Inspection, Logistics and
Management.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
Free catalogues, certificates.
Individual QCP.
MTC with pictures and videos.
Free Extra Accessories and Repair Tools.
1 specialized Customer Service Staff to follow your each single project.
Professional Logistic Services.
Free Installation Instruction, Product Standards and Inspection Certificates.
One-stop Service
1. Sales Service
40 staff covering the pre-sales, on-sales, after-sales services.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
We promise to respond your questions within 24 hours.
2. Customer Service
For your every single PO, we have 1 Customer Service person to independently follow up.
Professional Logistic Department
Product Installation Instructions are available.
