plastic sheet plastic piece advance producing line plastic PLA PET PS PP extruder machine

Share on (1600380467804):


Price:US$ 218’000.00 - US$ 220’000.00

Quantity:


Product Overview

Description



Product Description

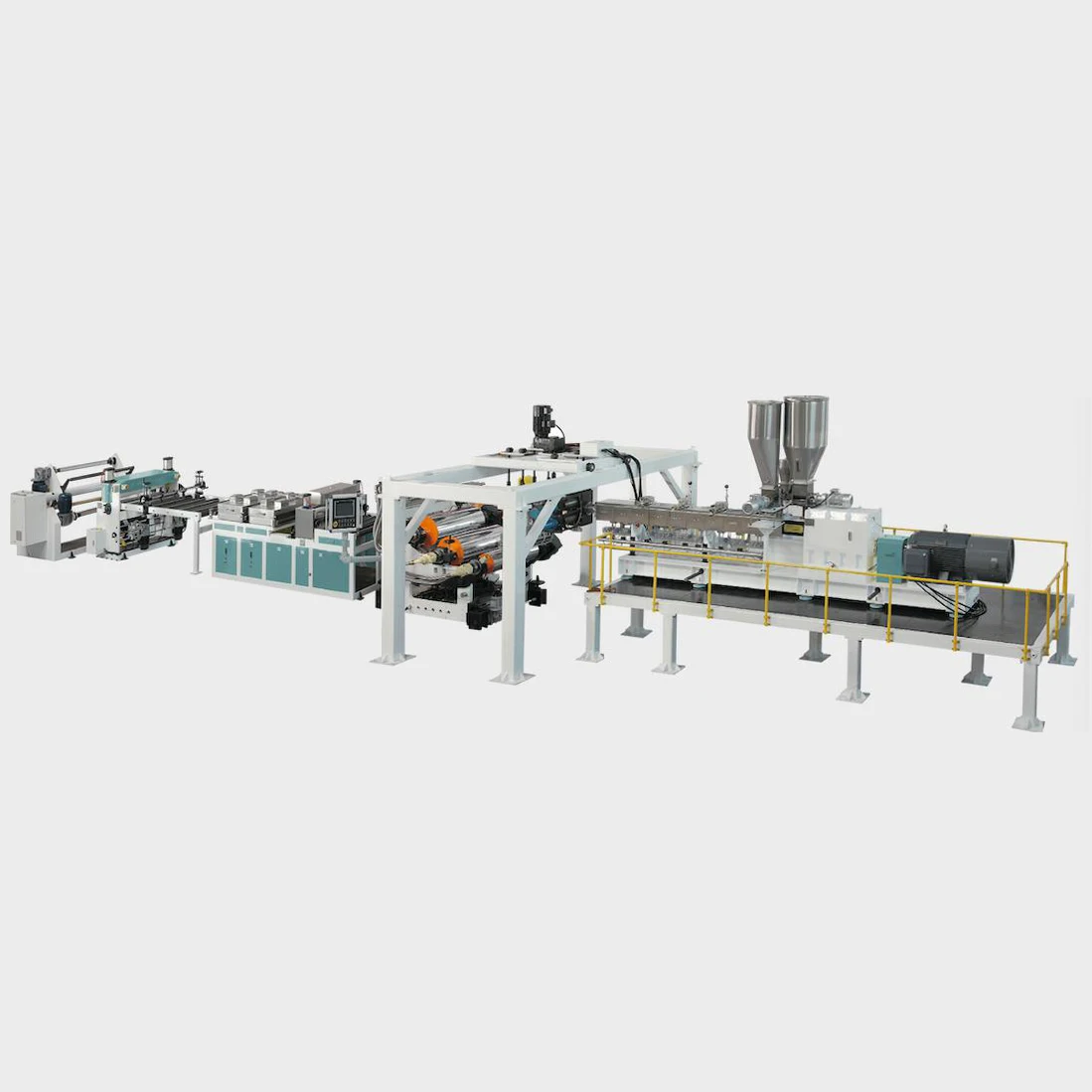

This Machine is one of the most advanced production line with matured technology and stability in China. It can more than over 30% higher in overall efficiency compared with other same kind equipment. This line also suitable for PS, PP, PE and PLA sheet production.
Not need crystallizer and Dryer. Free of crystallization drying system. The new designed line can greatly reduce the cost of production.

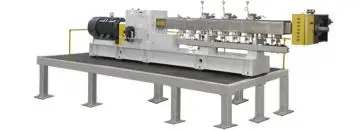

Name: Screw Extruder
Motor: 132kw AC Motor Siemens
Inverter: Delta 132kw
Nitride layer thickness: 0.5-0.8mm
Gear box output: 300r/min
Gear box cooling pump: 1.5kw
Gear box to motor: Direct connection
Screw diameter: 72.4mm
L/D: 40:01:00
Screw Max. Speed: 300r/min
Screw mandrel material: 40CrNiMoA
Screw material: 38CrMnAIA
Screw hardness: HV950-1050
Screw roughness: Ra≤1.6um
Screw heating power: 32kw
Screw cooling method: Soft water recycle system
Vacuum pump: Combined Bipolar vacuum pump


Name:Screen Changer
Drive type:Hydraulic drive with hydraulic station
Heating method:Stainless steel heating rods
Structure type:Double slide plate automatic change
Name:Die Head
T-Die structure:Clothes hanger type
Width:L=950mm
Heating zone:5 zones
Heating power:36kw
Die head material:5CrNimo


Name:Gear pump Type:150cc
Power:7.5kw
Inverter:Delta 7.5kw
Gear box:China brand
Others:Equipped with temperature and pressure
sensor (Gerfan)

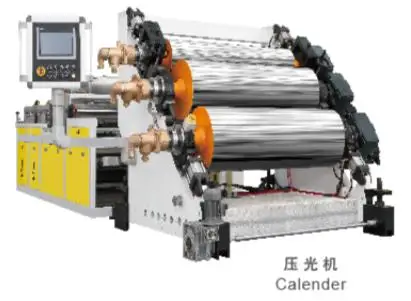

Name: Three-roller calendar
Calendar type: “L” type Middle & Rear roller: Φ500mm
Front roller: Φ320mm
Surface roughness: Ra≤0.015um
Surface hardness: HRC≥58
Chromium coated thickness: ≥0.1mm
Transmission type: Separate drive
Gap adjustable method: Hydraulic oil cylinder
Bearing of the roller: Japan NSK
The frame: One block of solid steel
Rotational joint: Flange type



Name:Oiling station
Rubber roller: PU material
Oil groove: Stainless steel
Oiling type: single face
Nozzle: Japan Meiji
Name:Haul off unit.
Haul off roller: Up rubber, down steel
Rubber roller material: Nitrile rubber
Roller size: Ф200mm×1000mm
Gear box: China Evergear.
X eliminator: Double side



Name:Cooling bracket
Bracket length: 5 m
Roller: Aluminum oxidized, polished.
Size: Φ70×1000mm
Edge trimming units: 3 knives, adjustable. Edge recycle winding: 1 unit


Name:Winder
Working type: Two position rotation
Drive motor: Torque motor
Max. winding diameter: Ф900mm
Winding speed: 0.3-30m/min
Air shaft: Inner core 3 inches
Name:Electric system
Screen touch: Siemens TP-270
PLC: Siemens S7-300
Contractor: Schneider
Relay: Japan Omron
Breaker: Schneider
Air switch: Schneider
Buttons & lights: Schneider


Specification


item
value
Application
Sheet
Plastic Processed
PE, PP, PET, PE/PP, HIPS
Screw Design
Double-screw
Screw Material
38CrMoALA
Screw diameter (mm)
72.4
Screw L/D Ratio
40:1
Screw Speed (rpm)
300rpm
Voltage
380V/3P/50Hz
Dimension(L*W*H)
7.5*2.4*2.2m
Power (kW)
80
Weight
7.5T
Certification
CE
Warranty
1 Year
Sheet Specification
L=810mm
Max. Capacity
250-380kg/h
Total Power
About 200kw
Air Pressure
0.6-0.8Mpa
Screw extruder Motor
132kw AC Motor Siemens
Screw extruder Inverter
Delta 132kw
Screw extruder Nitride layer thickness
0.5-0.8mm
Screw extruder Gear box output
300r/min
Gear box cooling pump
1.5kw

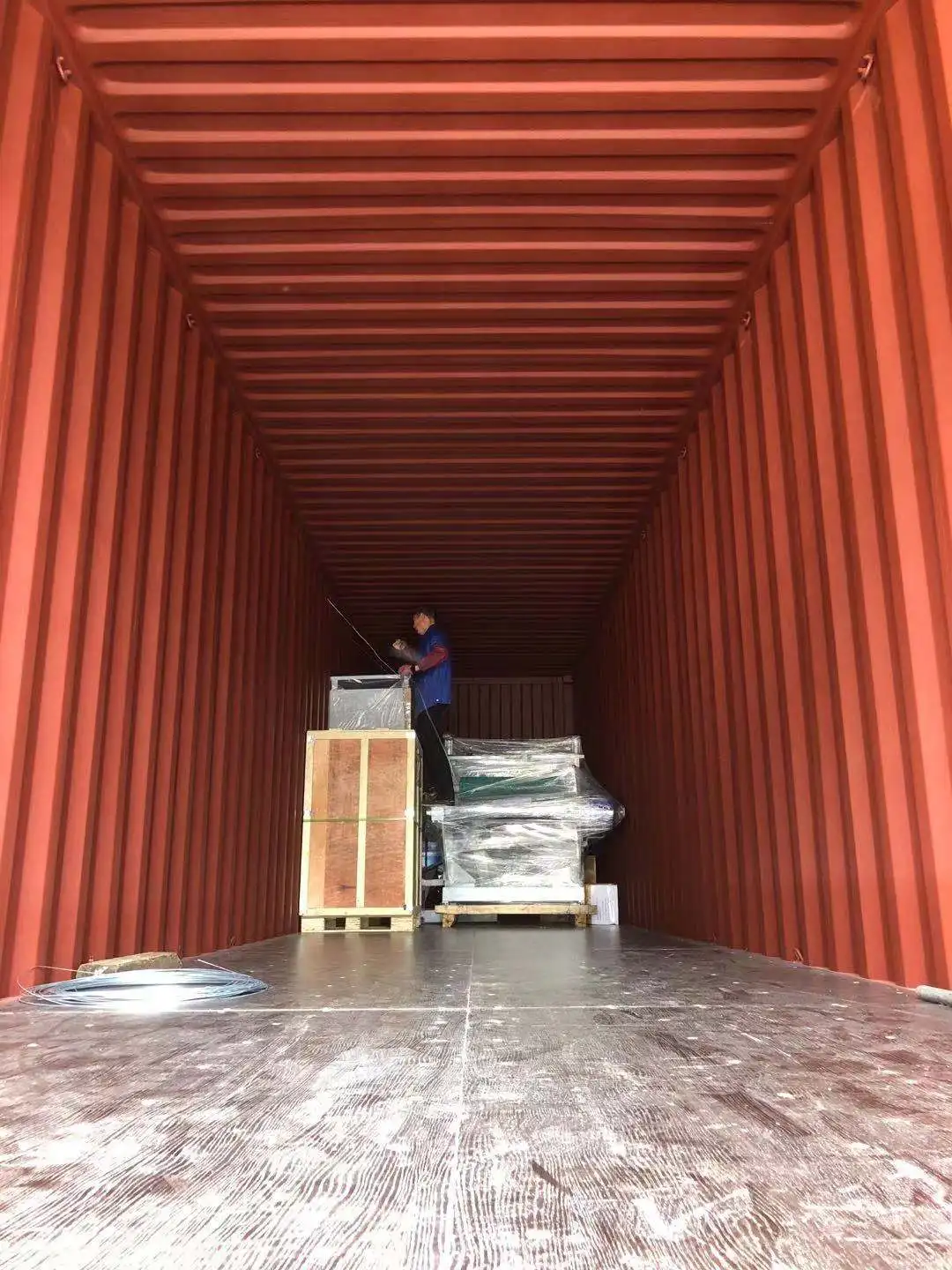

Packing & Delivery




1. Standard package PE film
2..Wooden case


Company Profile






Wenzhou Dabaplas Machinery Co., Ltd, as a professional manufacturer of all kinds of thermoforming machine, was established more than ten years ago. Our company consists of Technical Development Department, Manufacturing Department, Domestic and International Sales Department and After-Sales Service Department.
Our main products include:
1.plastic thermoforming machine (adhesive multistation plastic thermoforming machine , BOPS plastic thermoforming machine , plastic cup thermoforming machine ,plastic lid thermoforming machine ),
2.plastic extruder production line (adhesive plastic PP/PS extruder, plastic PET extruder, plastic PLA extruder) ,
3.plastic cup printing machine,
4.vacuum forming machine (adhesive high speed automatic vacuum forming machine, negative pressure three station vacuum forming machine, nagative pressure four station vacuum forming machine ),
5.plastic package machine (adhesive plastic cup package machine , multi-station pillow packing machine,)
6.Automatic paper-plastic packaging machine
7.Auxiliary equipment (adhesive crusher, air compressor, chiller, dryer, air tank, lifter)
Dabaplas has over 10 years, our company has been a leader in Chinese plastic machinery area. Now, we have got ISO9001 Quality Management System Certificate and some products have got CE Certificate.Through our continuous research and development, advanced skills, and a strong commitment to customer service,we have firmly established ourselves as a dependable supplier of China. No matter whether you are looking for a single machine or a whole production line, you can get outstanding machines and know-how results from our technical department. Every DaBa machine is quality proven, superior in design and produced as per the highest quality standards. Before leaving our factory, it is tested and retested for performance, productivity and durability. Because of good quality and service, we have won a good reputation among domestic and international customers.

Our products sell well in Asia (such as India,Thailand, Vietnam, Indonesia, Malaysia, Sri Lanka), the middle east (Iran, Pakistan, Saudi Arabia, Kuwait ), Europe(Russia, Rumania,Bulgaria, Italy)Africa (Nigeria, Guinea, Congo), North America and South America.
We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiry about our machines, please feel free to contact us.
