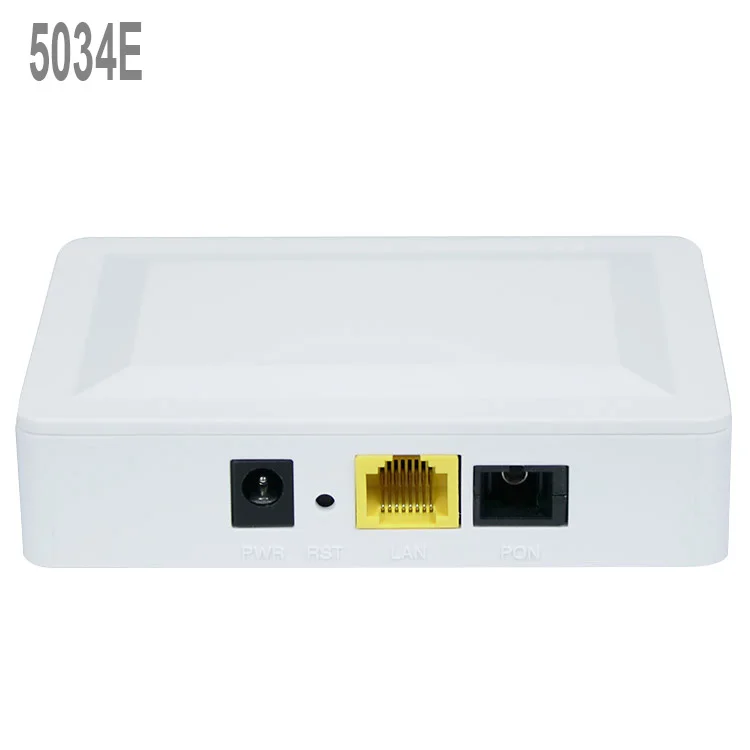

Philippines Hot Sale 1G Port 5034E 1GE SFP Ports Interface Gpon Xpon Epon Router ONT Connector Interface ONT Epon ONU
- Category: >>>
- Supplier: ShenZhen Hi-Fiber Electronic Co. Ltd
Share on (1600380487882):
Product Overview
Description
Products Description
1.EPON ONU 1GE SPECIFICATION
HFR5034E is designed as HGU (Home Gateway Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service access.
HFR5034E is based on mature and stable, cost-effective EPON technology.
HFR5034E adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0
HFR5034E is designed by Realtek chipset 9601D
HFR5034E adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0
HFR5034E is designed by Realtek chipset 9601D
2.Functional Feature
Support EPON mode and switch mode automatically
Support ONU auto-discovery/Link detection/remote upgrade of software
Support Route PPPoE/DHCP/Static IP and Bridge mode
Support IPv4/IPv6
Support Firewall function and IGMP multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Specialized design for system breakdown prevention to maintain able system
Support ONU auto-discovery/Link detection/remote upgrade of software
Support Route PPPoE/DHCP/Static IP and Bridge mode
Support IPv4/IPv6
Support Firewall function and IGMP multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Specialized design for system breakdown prevention to maintain able system
3.Application
Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
Typical Business：INTERNET、IPTV、IP Camera etc
4.Ordering information
We are authorized agent of Huawei and ZTE in China. we sell Optical Network Terminal (ONT), 4G WiFi, 5G CPE, Wireless Routers, welcome customers from all over the world source from me.
Version & Firmware
All ONU products are Global Version with English Firmware and English Package Box.
Power Plugs
we can provide Power Plug with Europe Standard, America Standard, Australia Standard, United-Kingdom Standard and India Standard, please choose according to your target marketplace.

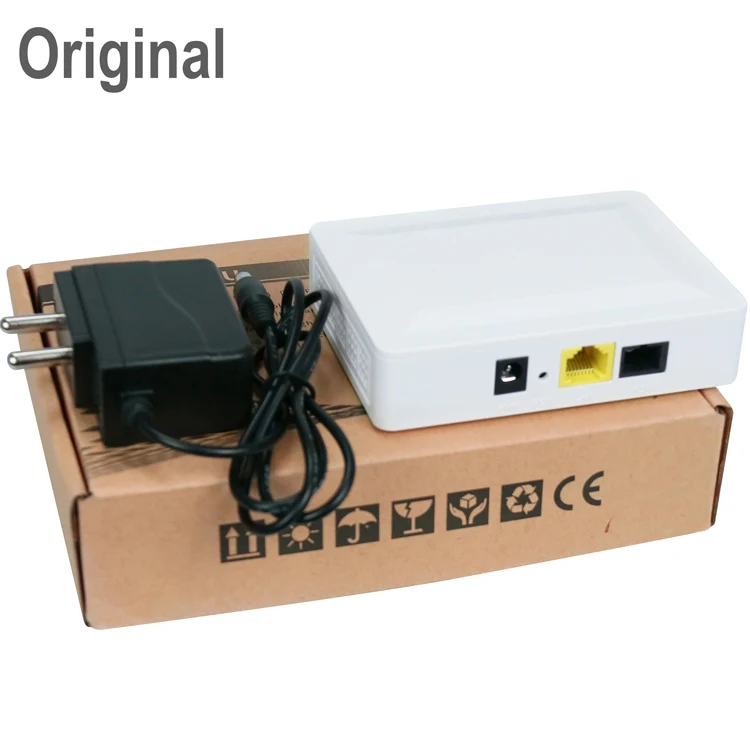

Package Box
Size:16.7*13.2*4.7 CM
Weight: 0.2 KG
Carton
Size : 55*52*24.5CM
Weight: 13.5KG
QTY/CTN:60 pcs
QTY/CTN:60 pcs
Product Paramenters
PON Interface | 1 GEPON port(EPON PX20) Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
Wavelength | TX: 1310nm, RX: 1490nm |
Optical Interface | SC/UPC Connector |
LAN Interface | 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector |
LED | 4 LED, For Status of PWR、LOS、PON、LINK/ACT |
Push-Button | 2,For Function of Poweron/off,Reset |
Operating Condition | Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） |
Storing Condition | Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） |
Power Supply | DC 12V/0.5A |
Power Consumption | <3W |
Dimension | 120mmx78mmx30mm(L×W×H) |
Net Weight | 0.13Kg |
