Softel Optical Network 1GE 1FE CATV XPON ONT CATV HUAWEI ONT WITH WIFI
- Category: >>>
- Supplier: Hangzhou Softel Optic Co. Ltd.
Share on (1600380574510):
Product Overview
Description
Products Description
ONT-1GE-1FE-RFW
ONT-1FE-1GE-RF-W is fiber to the home multi service access XPON ONT. It’s based on the mature, stable, high cost performance EPON/GPON technology and has gigabit Ethernet switching, WDM and HFC technology. ONT-1FE-1GE-RF-W has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee. It supports GPON and EPON two modes adaptive, can quickly and effectively distinguish between GPON and EPON systems, so normal operation under the current system.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.
ONT-1FE-1GE-RF-W can integration wireless function with meet 802.11 n/b/g technical standards, It has external high gain
directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.
ONT-1FE-1GE-RF-W can integration wireless function with meet 802.11 n/b/g technical standards, It has external high gain
directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
Adaptive GPON mode:
* Single-fiber access, provides internet, CATV, WIFI multipleservice
* In compliant with ITU - T G. 984Standard
* Support ONU auto-discovery/Link detection/remote upgrade ofsoftware
* Wi-Fi series meet 802.11 n/b/g technicalstandards
* Support VLAN transparent, tag configuration
* Support multicastfunction
* Support DHCP/Static/PPPOE internetmode
* Supportport-binding
* Support OMCI+TR069 remotemanagement
* Support data encryption and decryption function
* Support Dynamic Bandwidth Allocation(DBA)
* Support MAC filter and URL access control
* Support remote CATV portmanagement
* Support power-off alarm function ,easy for link problemdetection
* Specialized design for system breakdown prevention to maintain stablesystem
* EMS network management based on SNMP ,convenient formaintenance
Adaptive EPON mode:
* Single-fiber access, provides internet, CATV, WIFI multipleservice
* In compliant with IEEE802.3ah Standard
* Support ONU auto-discovery/Link detection/remote upgrade ofsoftware
* Wi-Fi series meet 802.11 n/b/g technicalstandards
* Support VLAN transparent, tag configuration
* Support multicastfunction
* Support DHCP/Static/PPPOE internetmode
* Supportport-binding
* Support OAM+TR069 remote management
* Support data encryption and decryption function
* Support Dynamic Bandwidth Allocation(DBA)
* Support MAC filter and URL access control
* Support remote CATV portmanagement
* Support power-off alarm function ,easy for link problemdetection
* Specialized design for system breakdown prevention to maintain stablesystem
* Single-fiber access, provides internet, CATV, WIFI multipleservice
* In compliant with ITU - T G. 984Standard
* Support ONU auto-discovery/Link detection/remote upgrade ofsoftware
* Wi-Fi series meet 802.11 n/b/g technicalstandards
* Support VLAN transparent, tag configuration
* Support multicastfunction
* Support DHCP/Static/PPPOE internetmode
* Supportport-binding
* Support OMCI+TR069 remotemanagement
* Support data encryption and decryption function
* Support Dynamic Bandwidth Allocation(DBA)
* Support MAC filter and URL access control
* Support remote CATV portmanagement
* Support power-off alarm function ,easy for link problemdetection
* Specialized design for system breakdown prevention to maintain stablesystem
* EMS network management based on SNMP ,convenient formaintenance
Adaptive EPON mode:
* Single-fiber access, provides internet, CATV, WIFI multipleservice
* In compliant with IEEE802.3ah Standard
* Support ONU auto-discovery/Link detection/remote upgrade ofsoftware
* Wi-Fi series meet 802.11 n/b/g technicalstandards
* Support VLAN transparent, tag configuration
* Support multicastfunction
* Support DHCP/Static/PPPOE internetmode
* Supportport-binding
* Support OAM+TR069 remote management
* Support data encryption and decryption function
* Support Dynamic Bandwidth Allocation(DBA)
* Support MAC filter and URL access control
* Support remote CATV portmanagement
* Support power-off alarm function ,easy for link problemdetection
* Specialized design for system breakdown prevention to maintain stablesystem
* EMS network management based on SNMP ,convenient for maintenance
Specifications
Item | Parameter | ||
Interface | PON Interface | GPON/EPON mode adaptive 1*GPON port, FSAN G.984.2 standard, support for backward compatibility with EPON SC/PC single mode fiber | |
CATV Interface | 1 RF output F-Type Connector | ||
Ethernet Interface | 1*10/100/1000M and 1*10/100M auto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance | ||
Power Interface | 12V DC Power supply | ||
Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: 0.5～5dBm Rx Sensitivity: -28dBm Saturation Optical Power: -8dBm | |
Data Transmission Parameter | PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s Ethernet: 1000Mbps and 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms | ||
Network Management | Management Mode | When adaptive to GPON mode, support standard compliant OMCI interface as defined by ITU-T G.984.4, TR069 remote management and WEB management | |
When adaptive to EPON mode, Support IEEE802.3 QAM, ONU can be remotely managed by OLT, TR069 remote management and WEB management | |||
Management Function | Status monitor, Configuration management, Alarm management, Log management | ||
Physical Features | Shell | White plastic casing | |
Power | Power supply: DC 12V /0.6A Power consumption: <5W | ||
Physical Specifications | Item Dimension：160mm(L)*139.5mm(W)*28.5mm(H) Item weight：0.35kg | ||
Environmental Specifications | Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 10% to 90%(Non-condensing) | ||

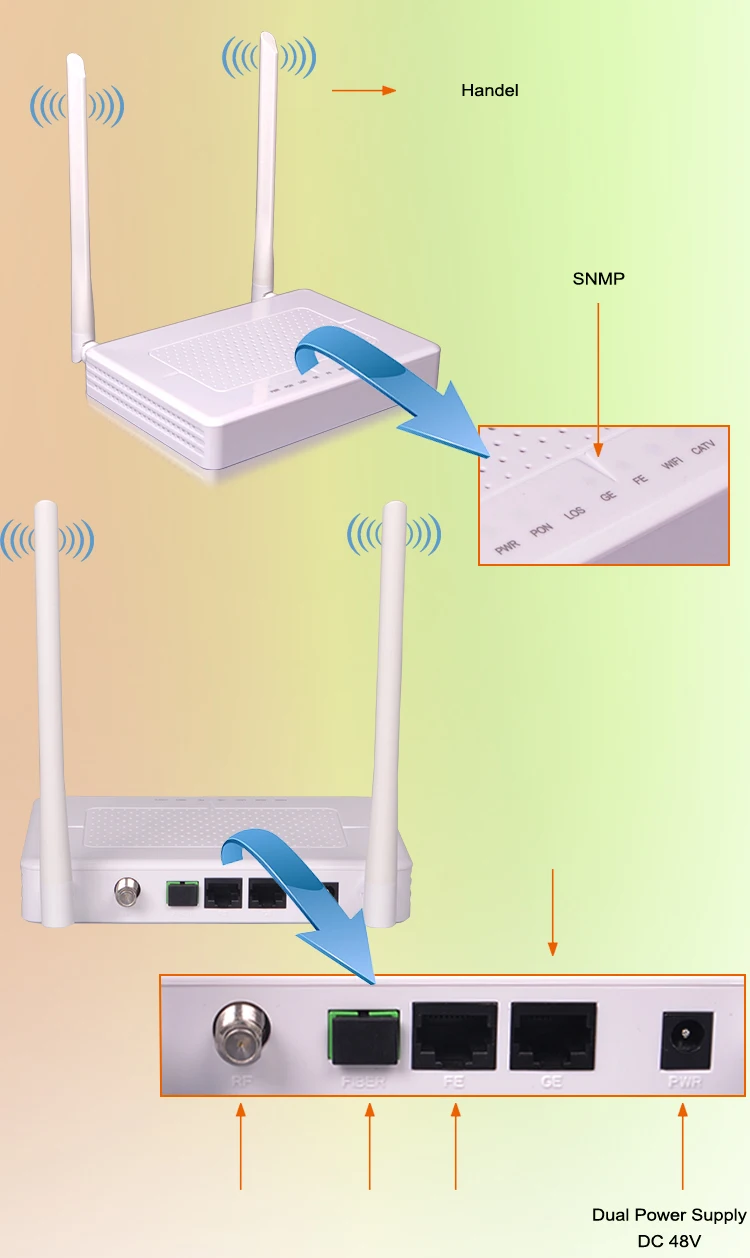

Details Images
Recommend Products
GPON OLT 16 ports professional
This small capacity and enhancement mode cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards.
FTTH High power 1550nm edfa WDM
Dual power supply guarantee: high-quality power supply(hot-plug optional)，can work under 90V～265VAC or-48VDC.
Soho 2.4G/5G dual band wifi router
SWR-1200L2 is a 1200M 11AC dual-band wireless router specially designed for large-sized apartments.
Application area

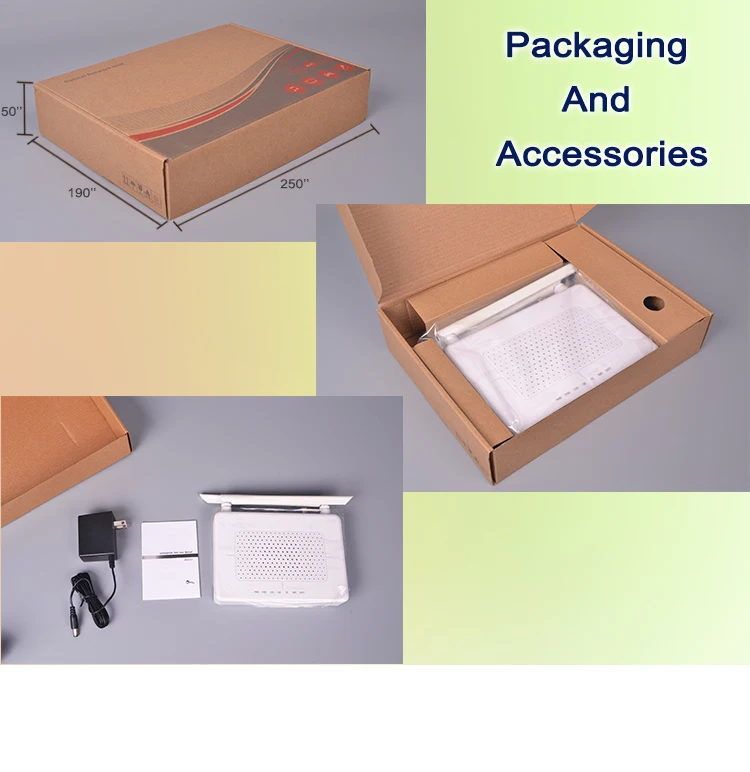

Product Packaging
