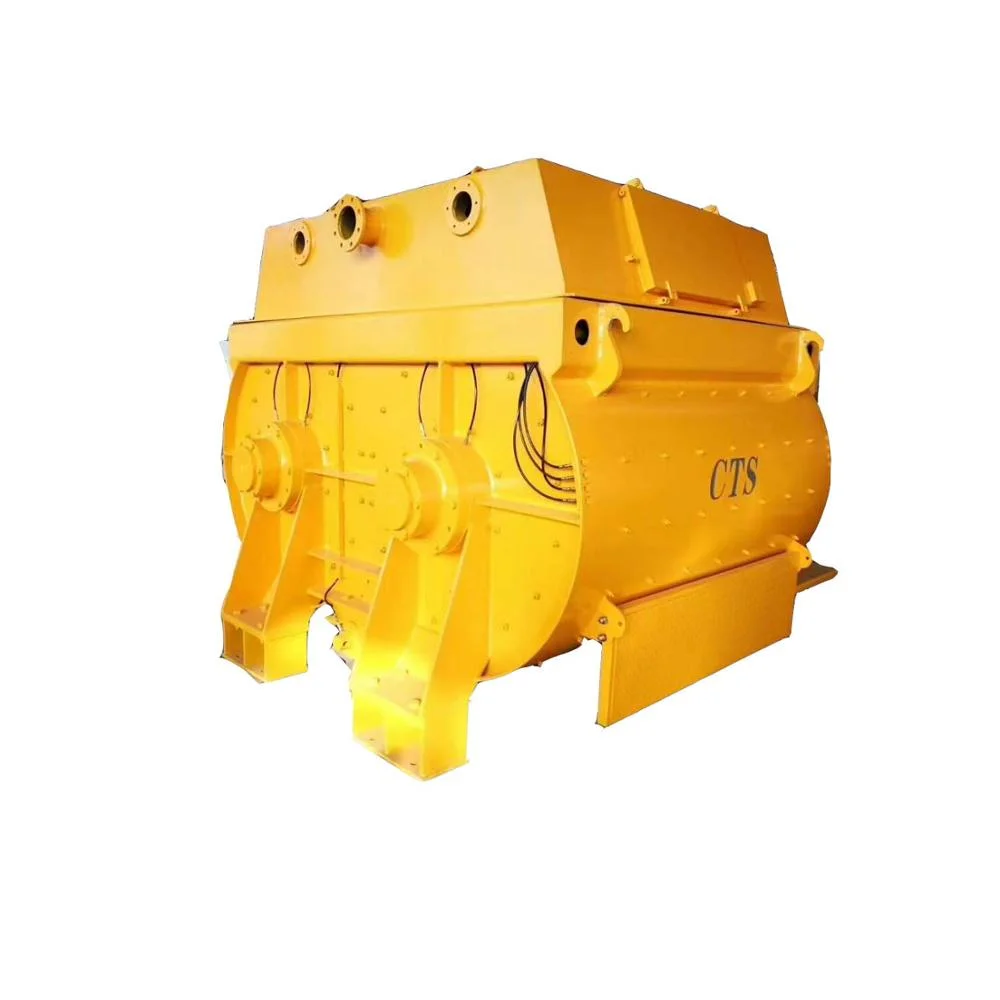

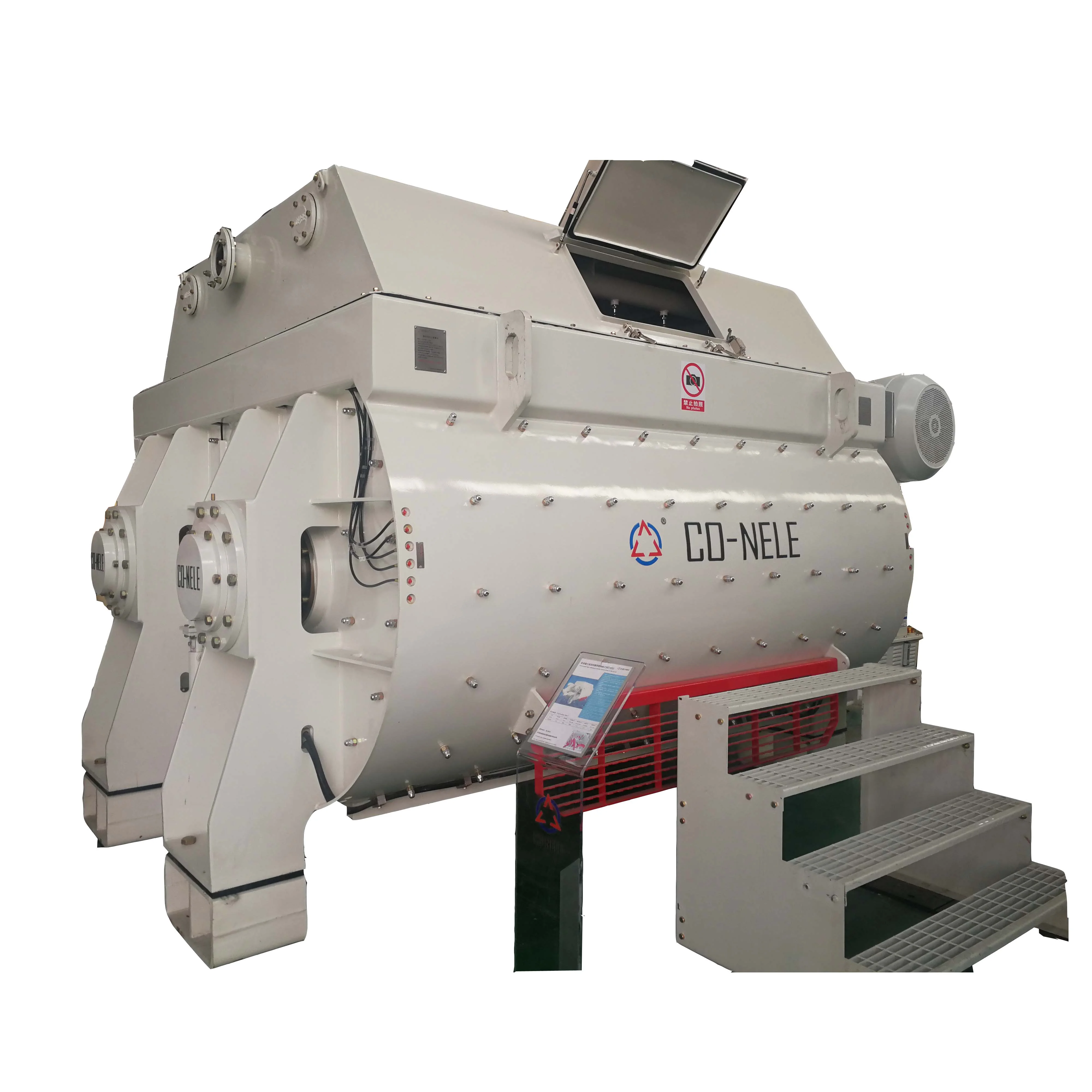

CHS1000 twin shaft concrete mixer with new design

JS Twin shaft concrete mixer adopts Germany and Italy European technology used for producing and mixing concrete, which is widely used by all over the world. It is not only applies in common concrete, mix dry-hard concrete,  wet concrete,precast concrete but also in high performance concrete. It is applicable for large/medium-scale construction projects, such as high-speed railway, hydropower construction, large&medium scale prefabricated factory,airport, road,highway, bridge, etc, and production of high-quality concrete.

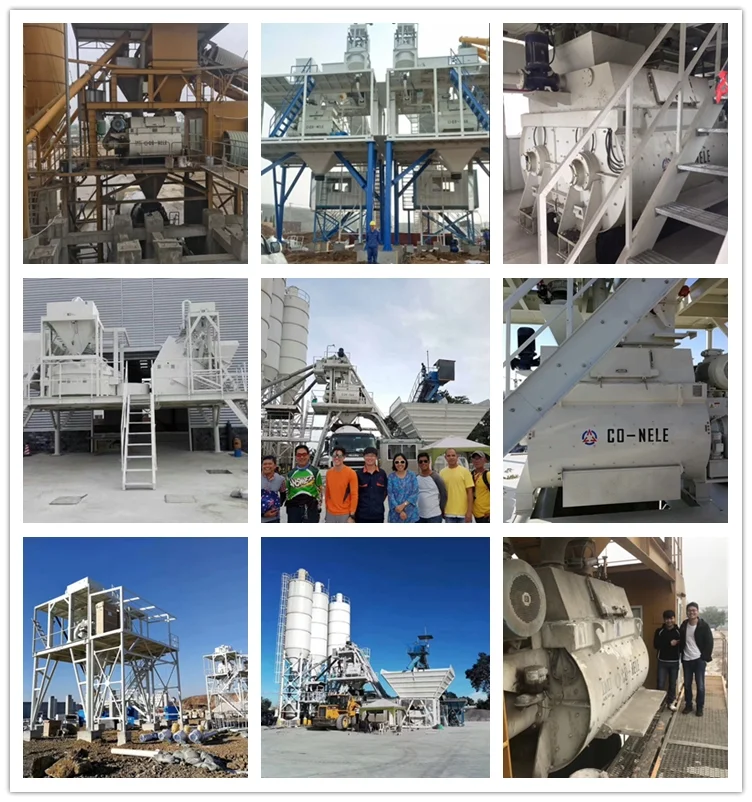

Twin shaft concrete mixer can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching machine, silo, etc, they can form a simple mixing plant.

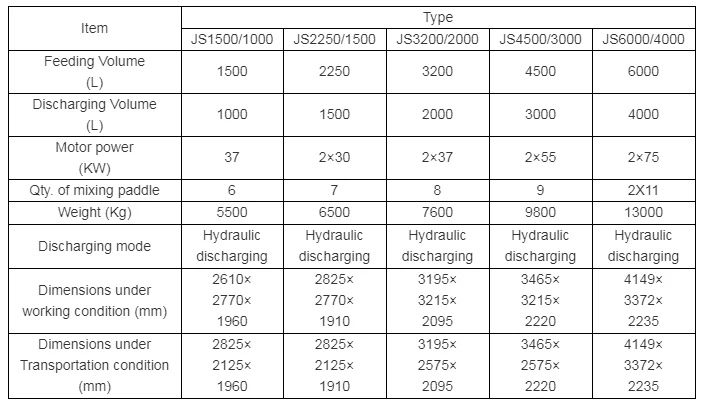

Capacity ranged from 0.5 cu.m to 7.0 cu.m

Shaft ends multi seal protection and air purge seal protection to efficiently prevent leakage.

Main Features
1) The structure of the mixer is reasonably and compactly, which can save space and be installed&replaced easily

2) Combined double floating seal and unique seal with high pressure grease, which can make it a longer service life;
3) The mixing arms are streamline in axial and in radial direction which ensures fast mixing speed and can reach to the homogeneity quickly. Meanwhile, the unique designed structure can improve the utilization rate of cement;
4) Scale board and paddle are made of manganese steel, which can increase the service life;
5) High pressure cleaning device, consistence probe are optional.

 Qingdao CO-NELE Machinery  Co.,Ltd is one of the national science&technology innovating enterprises located in Qingdao, a beutiful coastal city. The company is the most professional one and ranks in the top of the mixing equipments manufacturers with its products applied widely. Basing on the advanced European technolohy, we keep close eye to the state of the art and we know well about competitors and ourselves. We pay great attention to product research and development, and till now have gained over 40 patents. CO-NELE follows strictly to the ISO9001 Quality Management System, and also is the first company who got the CE certificate in the same industry in China. CO-NELE provides high quality products throughout the country and also exports to more than 50 countries and regions from Europe, America, Asia, Africa and Astralasia.
