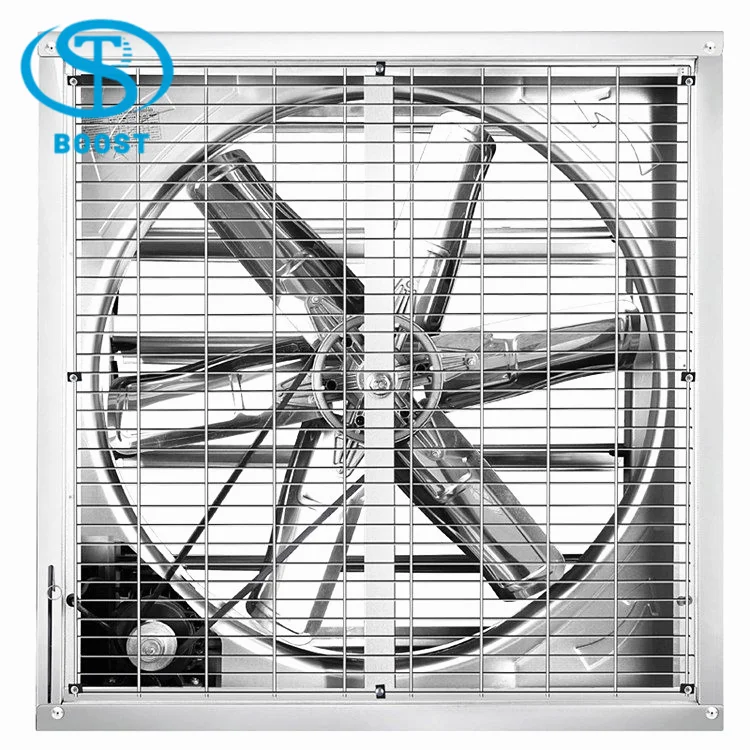

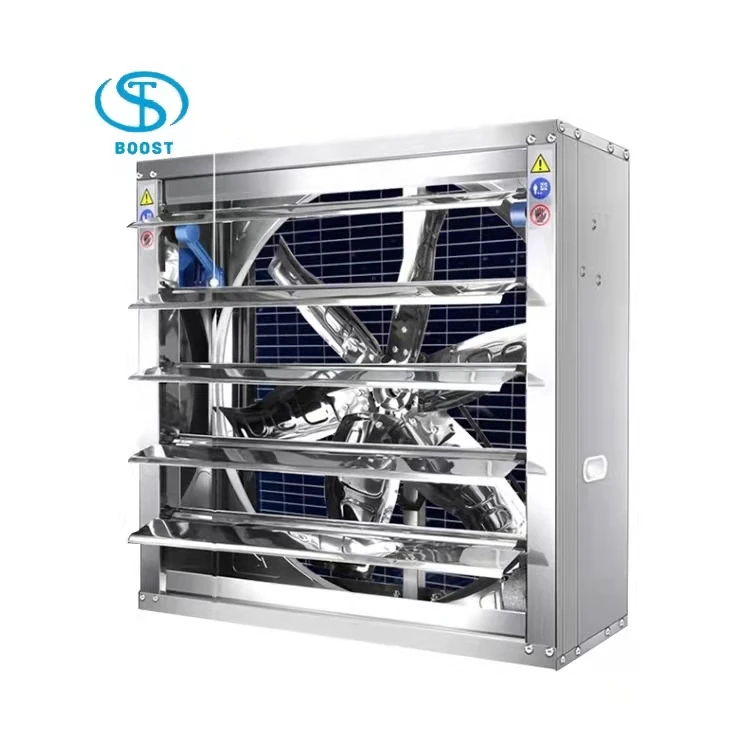

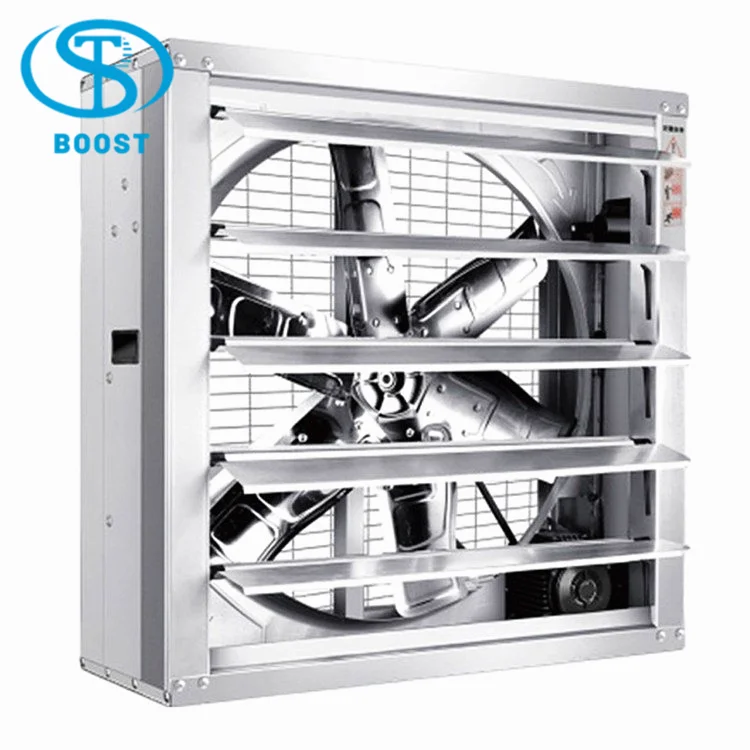

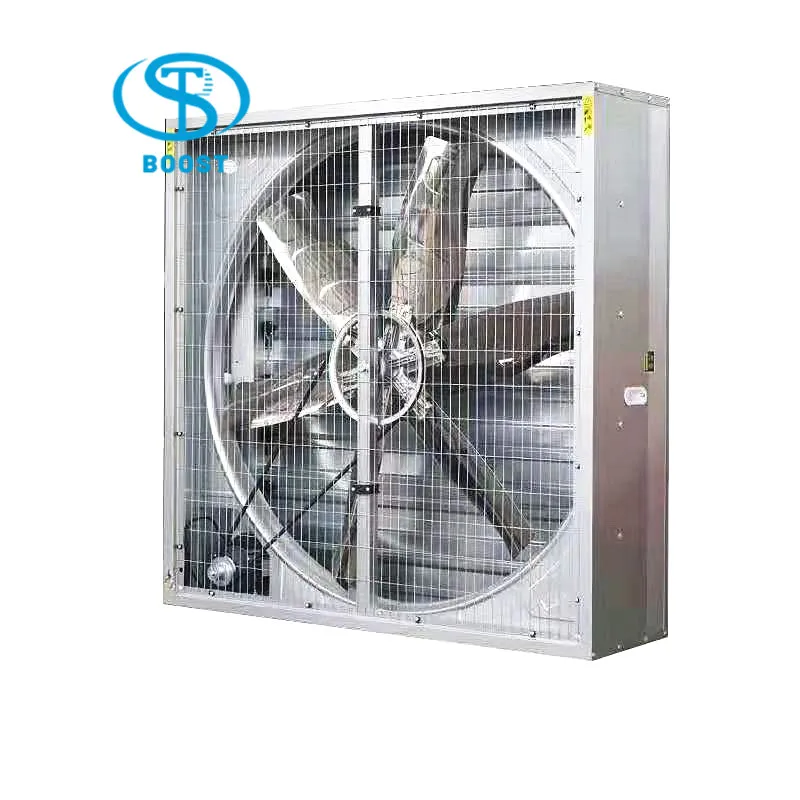

50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600380598561):
Product Overview
Description
Products Description

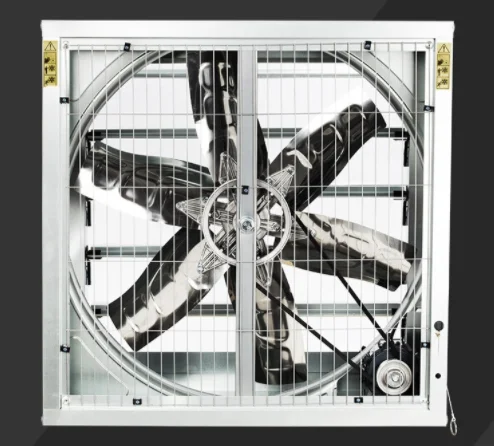

50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.

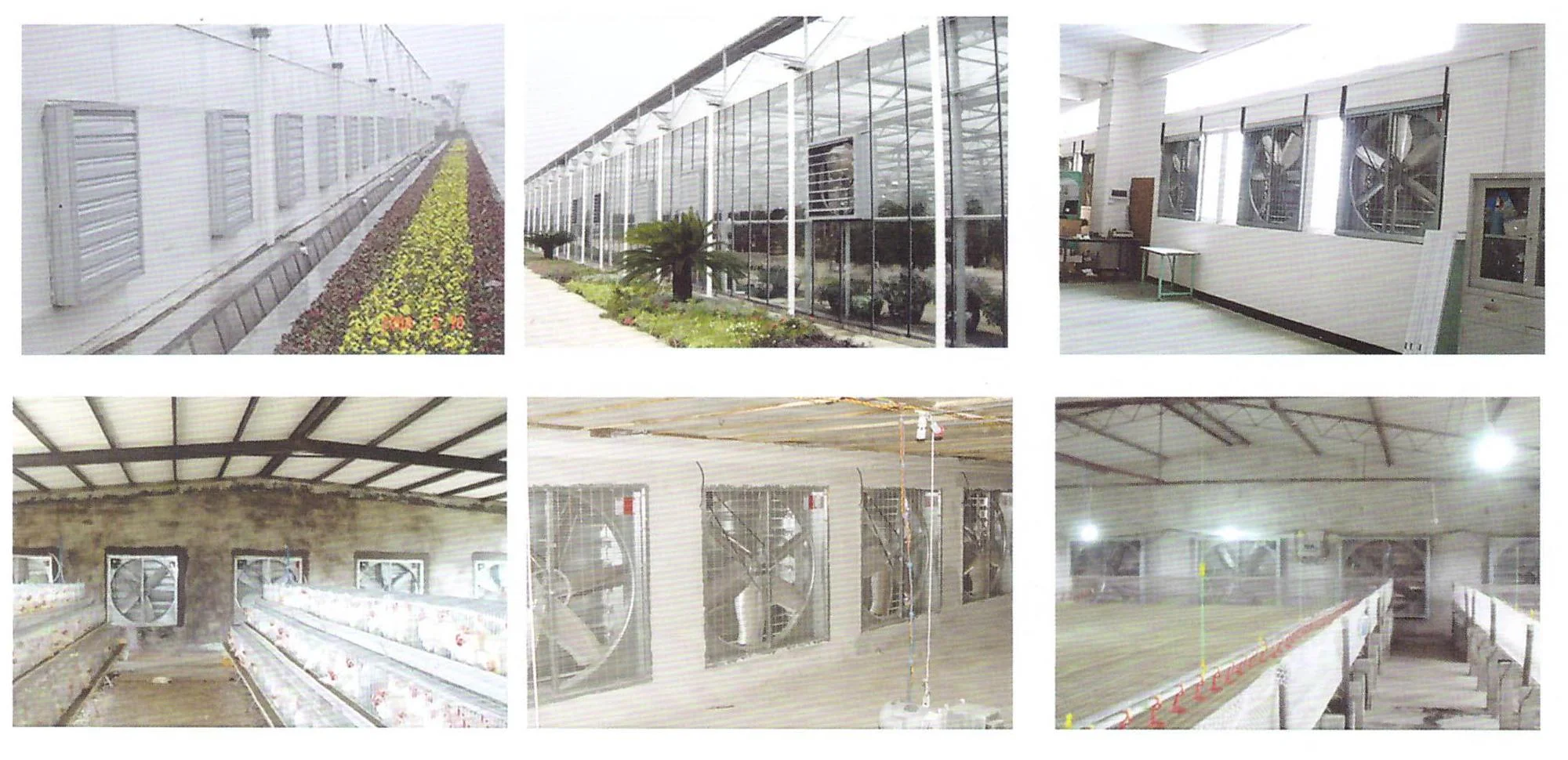

BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal
husbandry,poultry house,livestock breeding,greenhouse, factory workshop,textile etc.
husbandry,poultry house,livestock breeding,greenhouse, factory workshop,textile etc.
Model | BST1380 |
Blade diameter | 1270mm |
Blade rpm | 439rpm |
Motor rpm | 1400rpm |
Air rpm | 44000m3/h |
Input power | 1100W |
Rated power | 220V/380V/Customized |
Size | 1380*1380*400mm |
Noise | <64 |
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air flowm³/hr | Input power(W) | Noise(db) |
BST400 | Drive | 300 | 1400 | 1400 | 2000 | 180 | ＜70 |
BST480 | Diect | 380 | 1400 | 1400 | 6000 | 180 | ＜70 |
BST600 | Direct | 500 (20inch) | 1400 | 1400 | 1200 | 370 | ＜70 |
BST800 | Belt | 710(28inch) | 560 | 1400 | 18000 | 370 | ＜65 |
BST900 | Belt | 750(30inch) | 550 | 1400 | 26000 | 370 | ＜65 |
BST1000 | Belt | 900(36inch) | 550 | 1400 | 28000 | 750 | ＜65 |
BST1100 | Belt | 51000(40inch) | 550 | 1400 | 30000 | 750 | ＜65 |
BST1220 | Belt | 1100(44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
⭐BST1380 | Belt | 1270(50inch) | 439 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400(56inch) | 325 | 1400 | 55000 | 1500 | ＜64 |

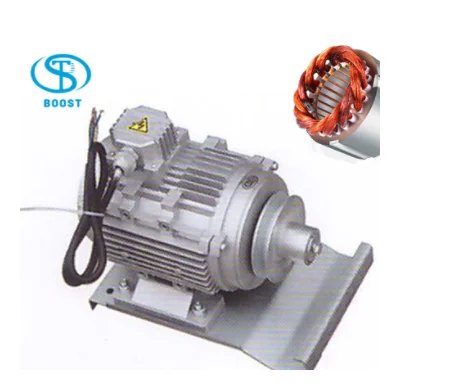

MOTOR
50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.Brand: Chinese motor and Siemens motor Certificate: CCC Protection
class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

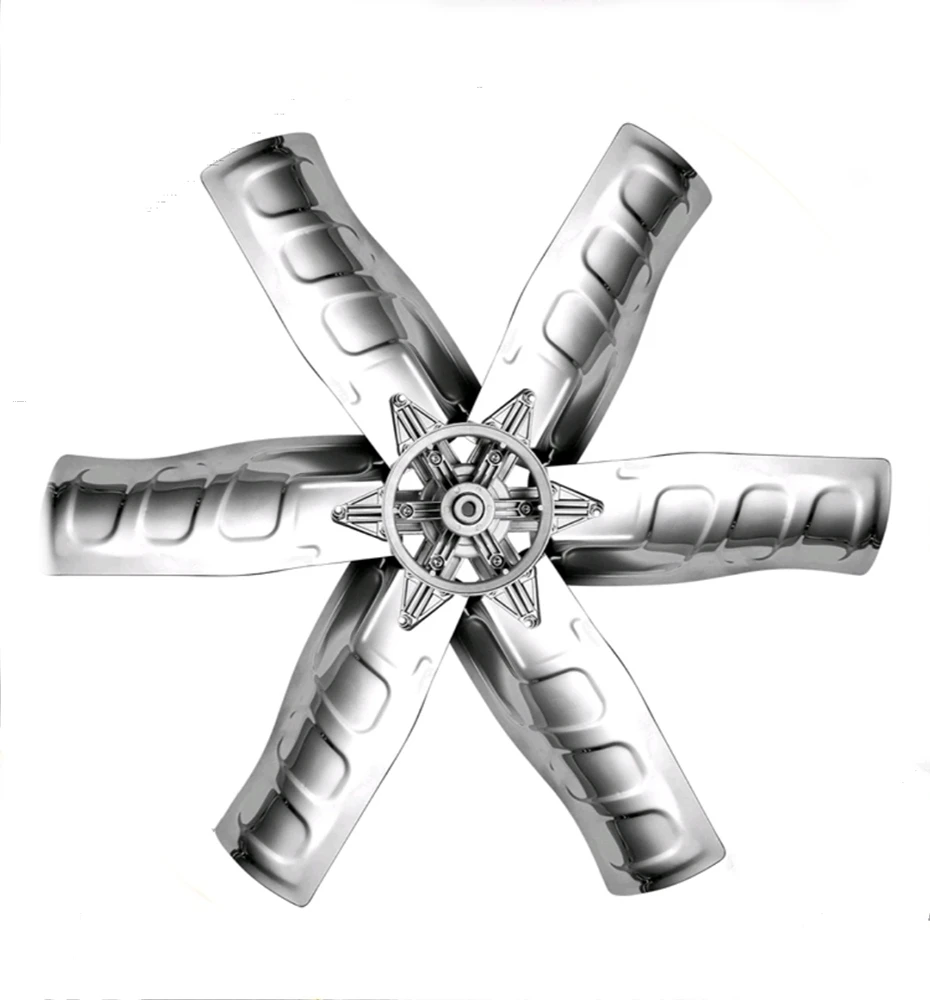

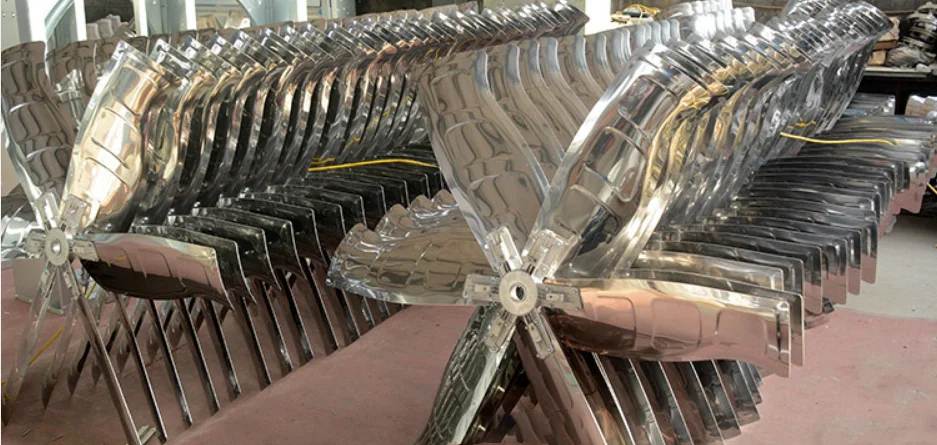

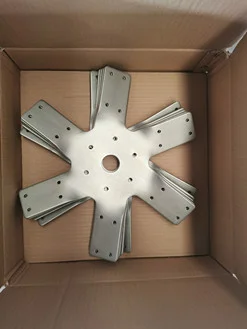

Fan blade which punching formed
50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.
1. Material : Krupp 430 stainless steel, thickness 1.2 mm
2. Diameter: 1270 mmAdvantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
1.No electricity ventilation,Pull ring for assistance the Heavy Hammer
2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
1.No electricity ventilation,Pull ring for assistance the Heavy Hammer
2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.

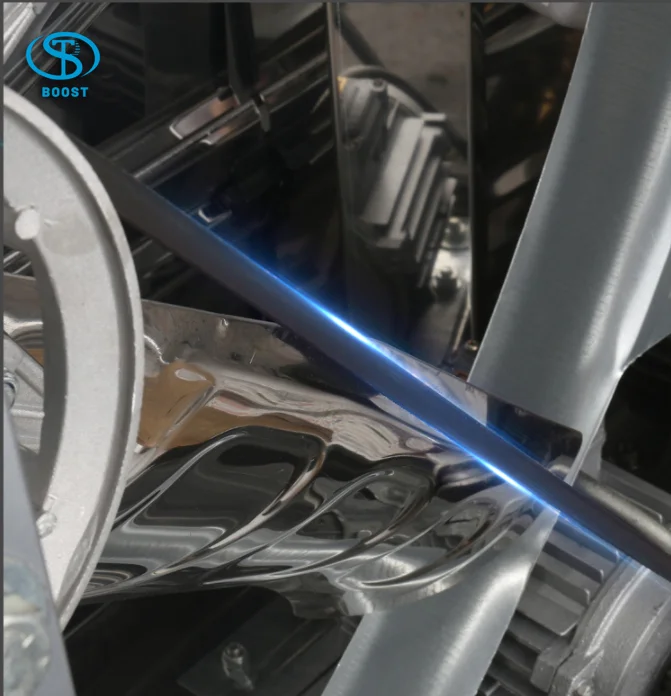

BELT
50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.
We have Chinese belt and Japanese Mitsubishi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3 times than Type A

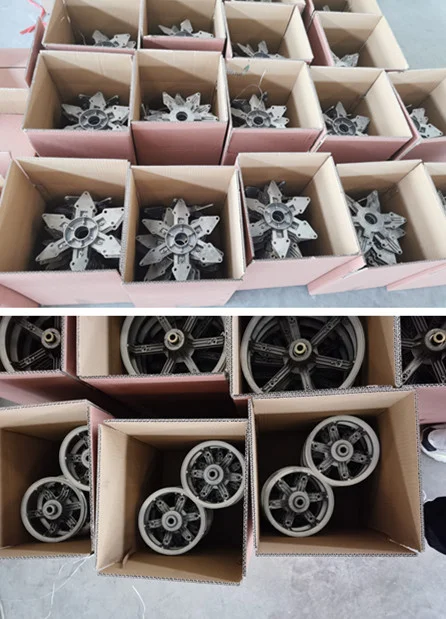

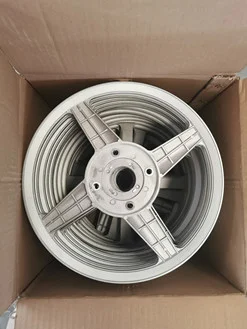

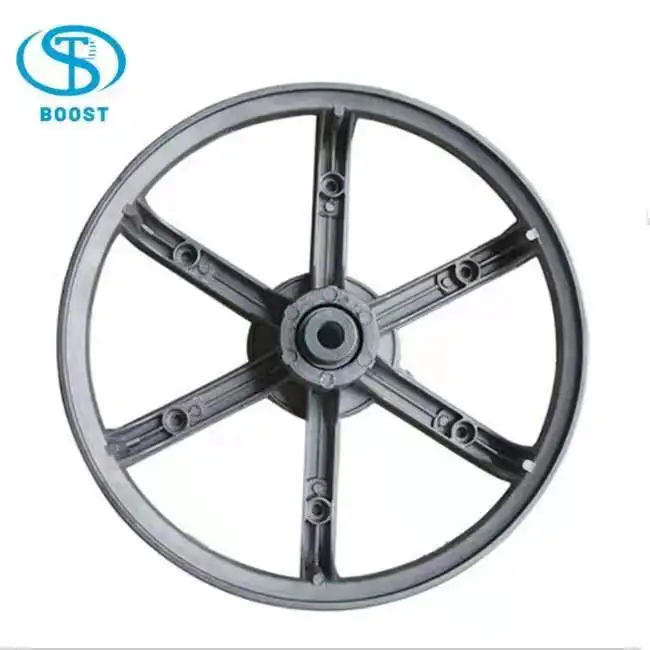

Fan belt pulley
50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.
Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.
Advantage:
The angle of blade hub is designed after double tested which can be fix with blade exactly.
Advantage:
Small wind resistance,Large air flow, attractive and durable.

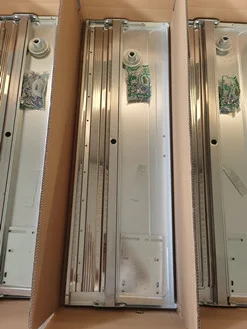

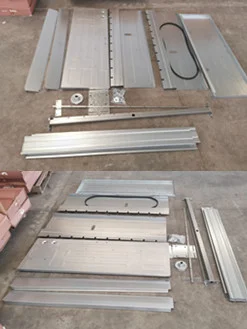

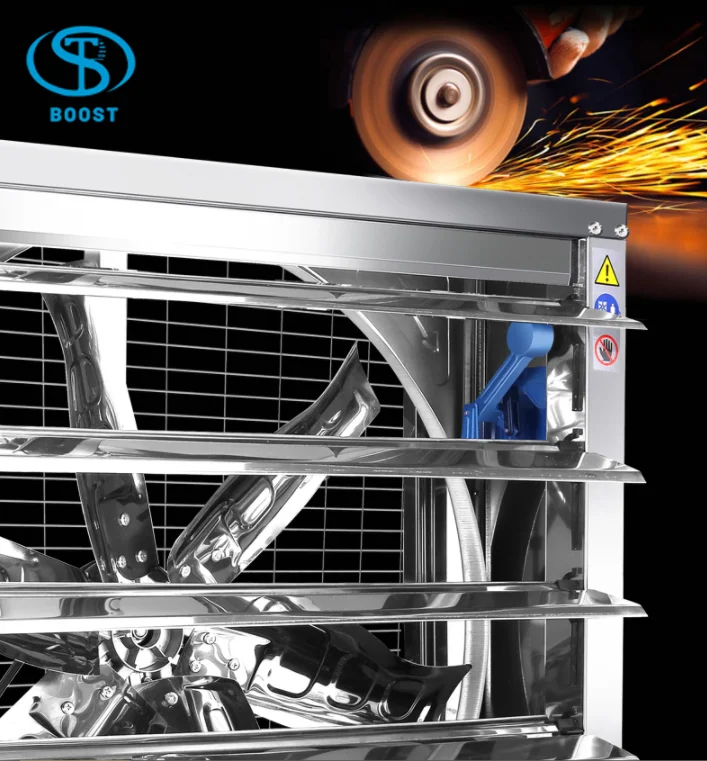

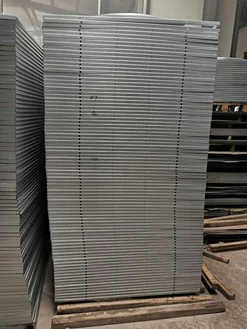

Frame: Thicken galvanized sheet
50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.
We has advanced production technology with automatic equipment. professional production line, NC-based professional equipment.Auto
punching and bending. Highly-accurated. Materials is made by 275 g coating weight galvanized sheet. Advantage:
High strength,Strong corrosion resistance

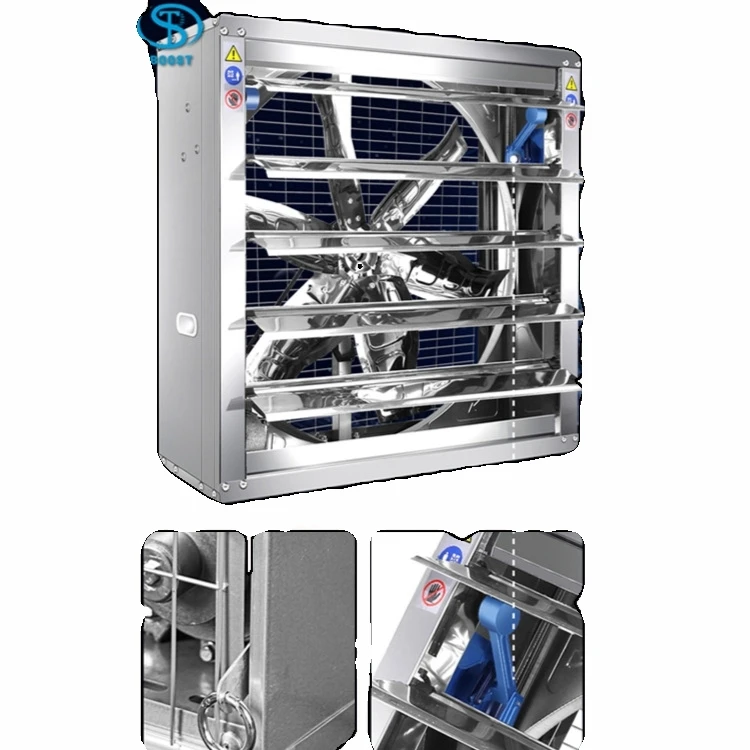

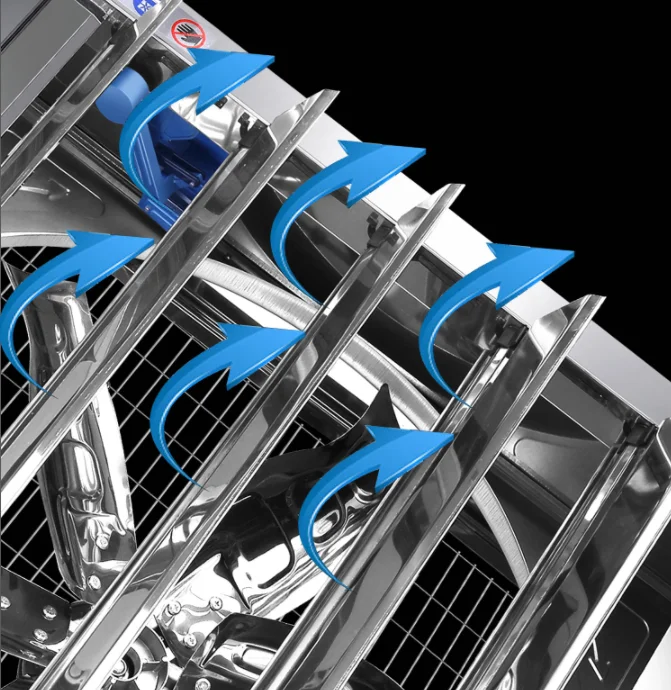

Shutters open/close automatically
50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.
No electricity ventilation,Pull ring for assistance the Heavy Hammer,then Shutters can open and close automatically.
Advantage:
Windproff ,Rainproff
50 inches 380 V 50 HZ fan blowers Industrial Warehouse fan for ventilation,Cooling Agricultural greenhouse.

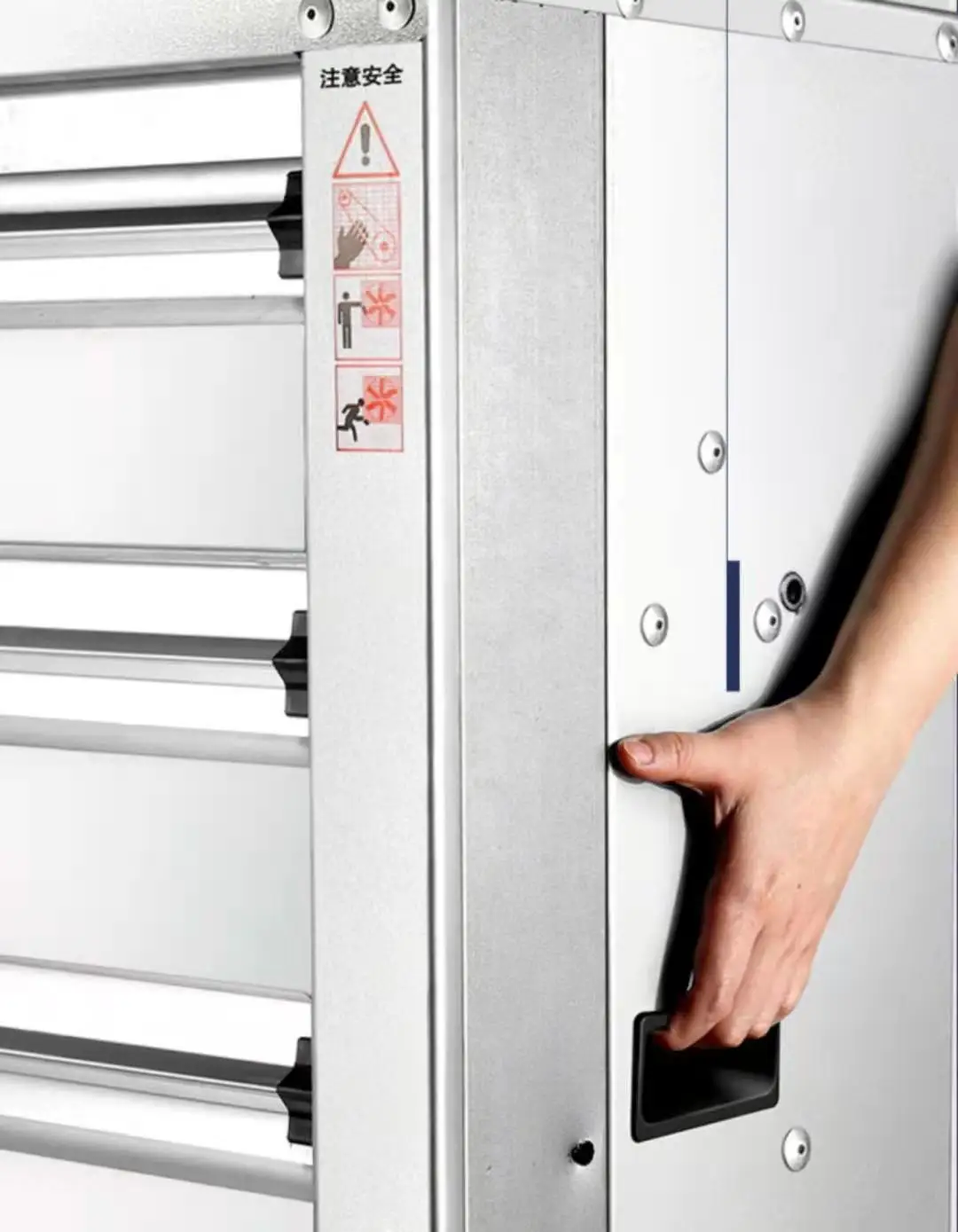

More humanized design
Easy to move
Not to be broken
Detailed Images

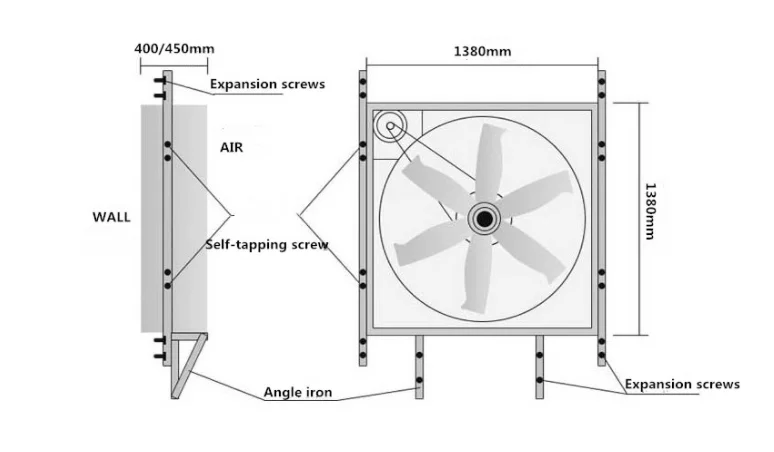

How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .

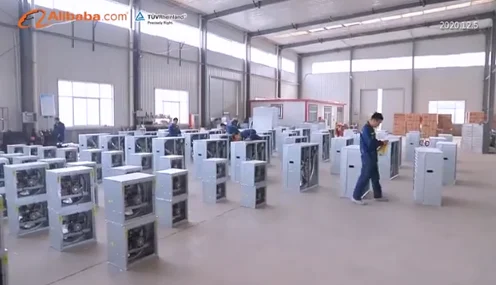

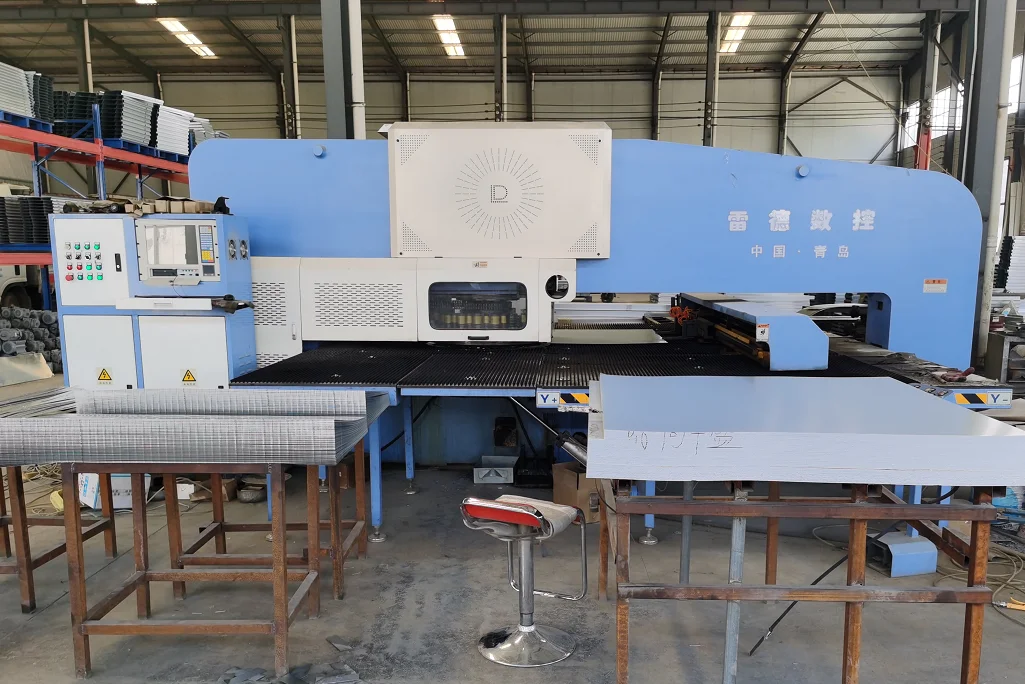

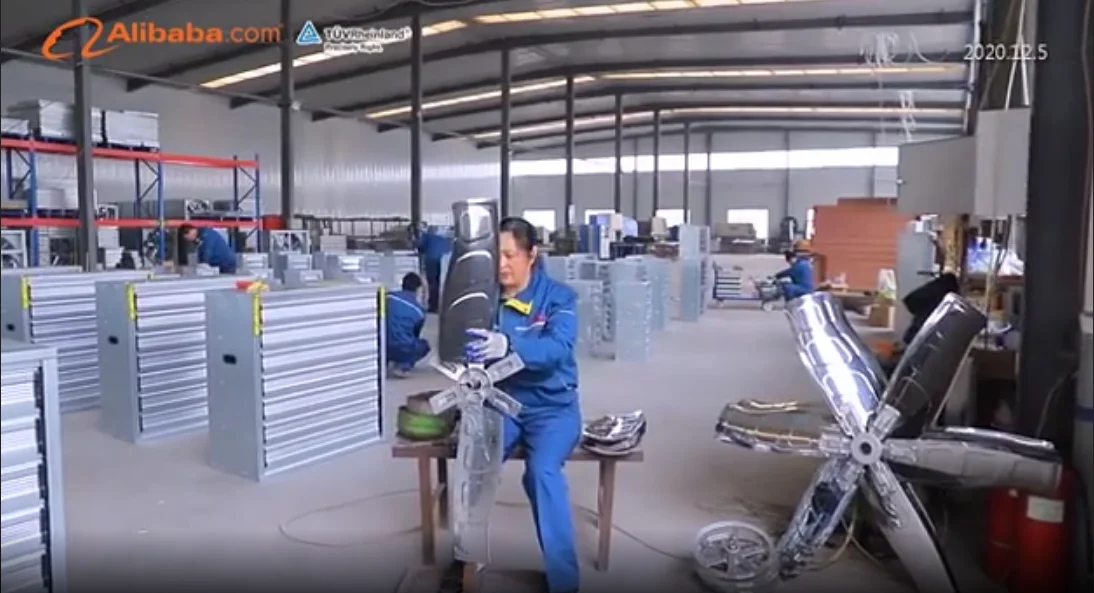

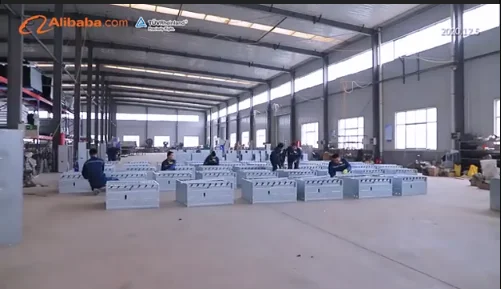

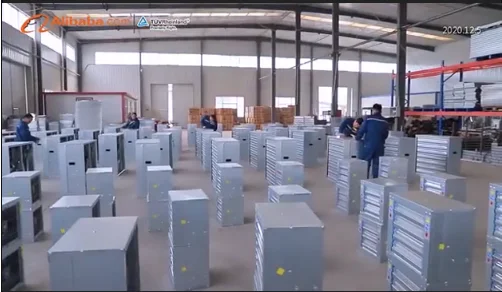

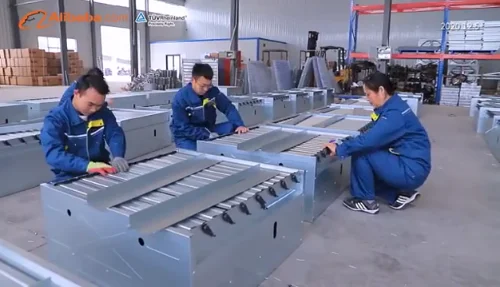

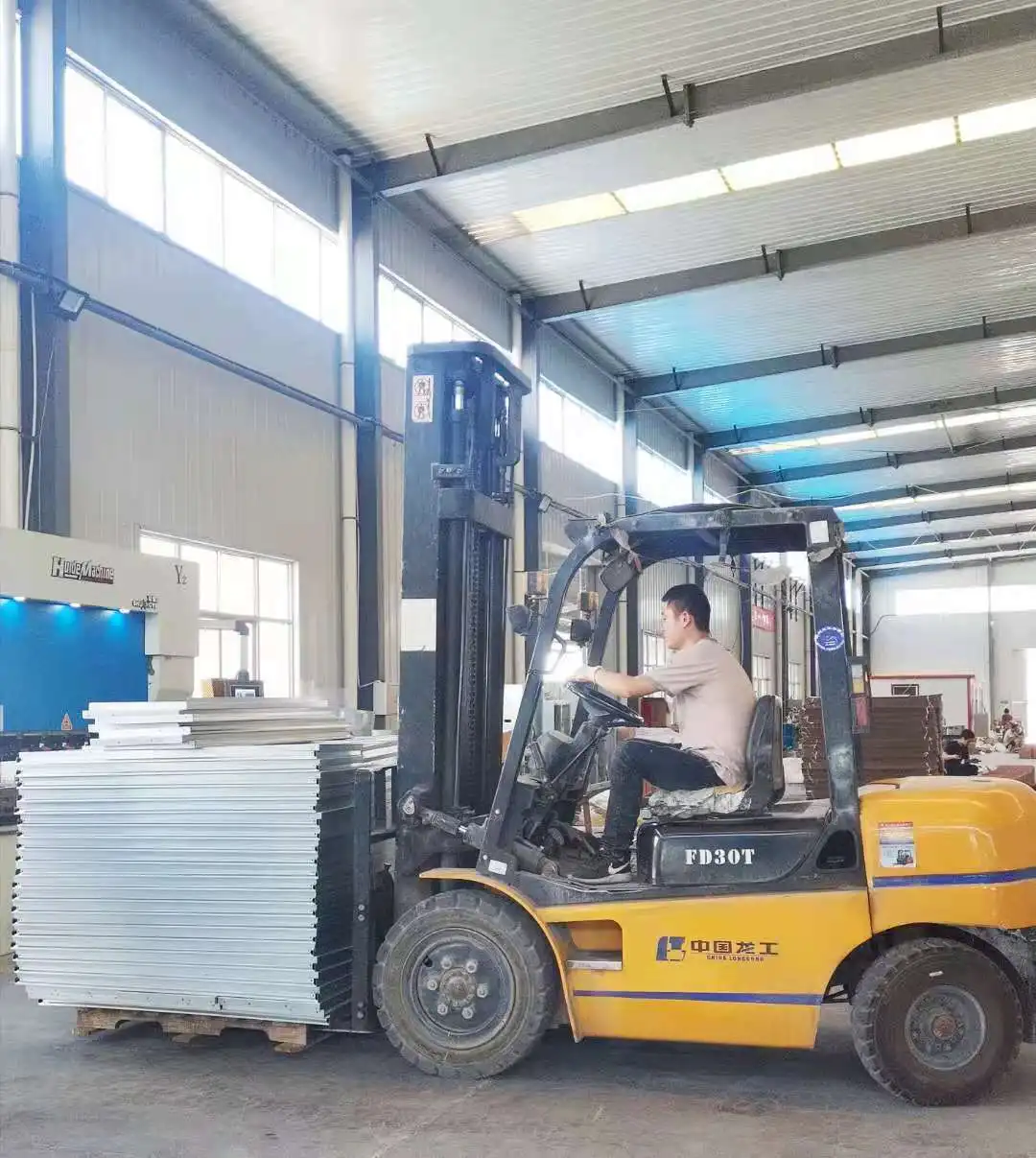

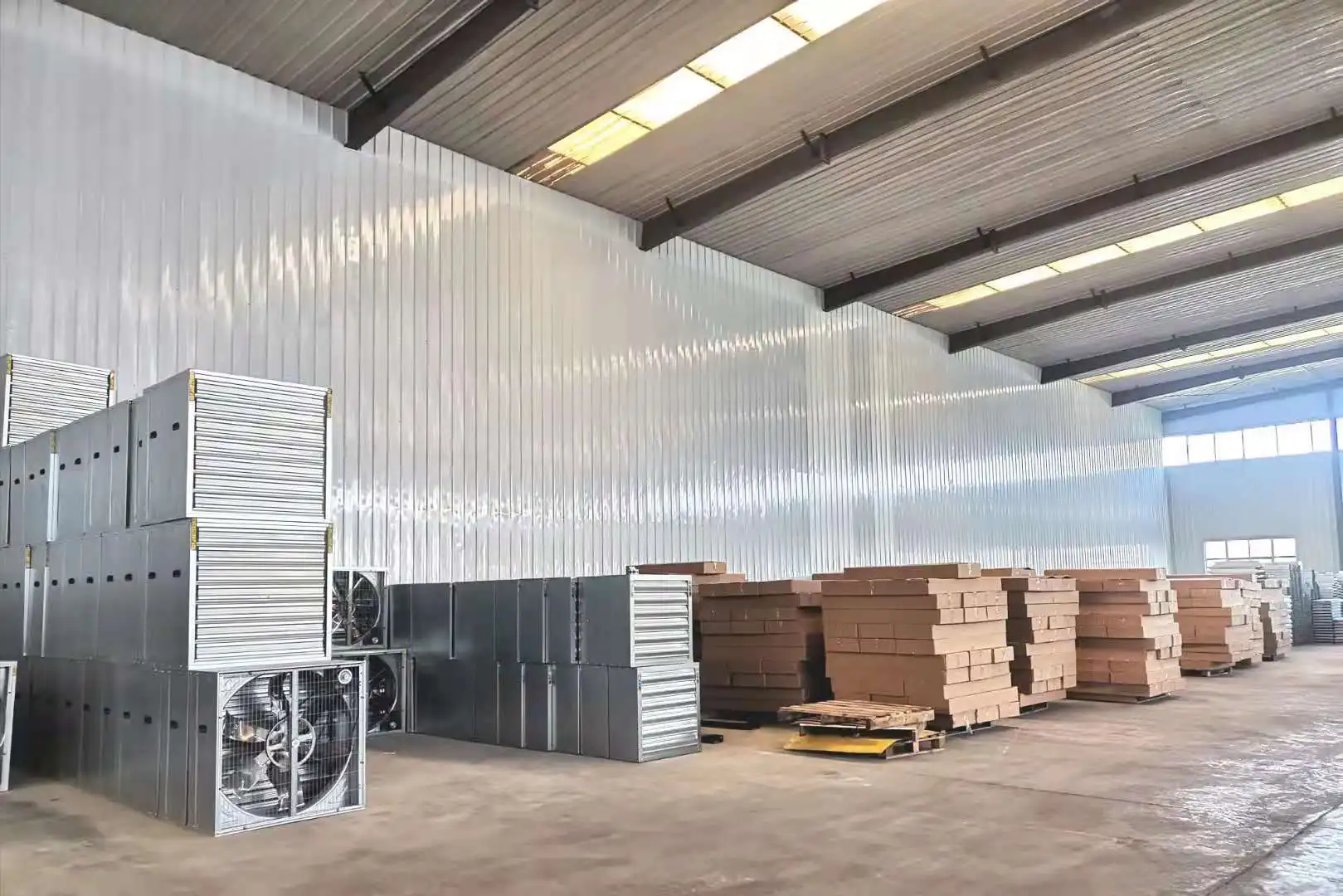

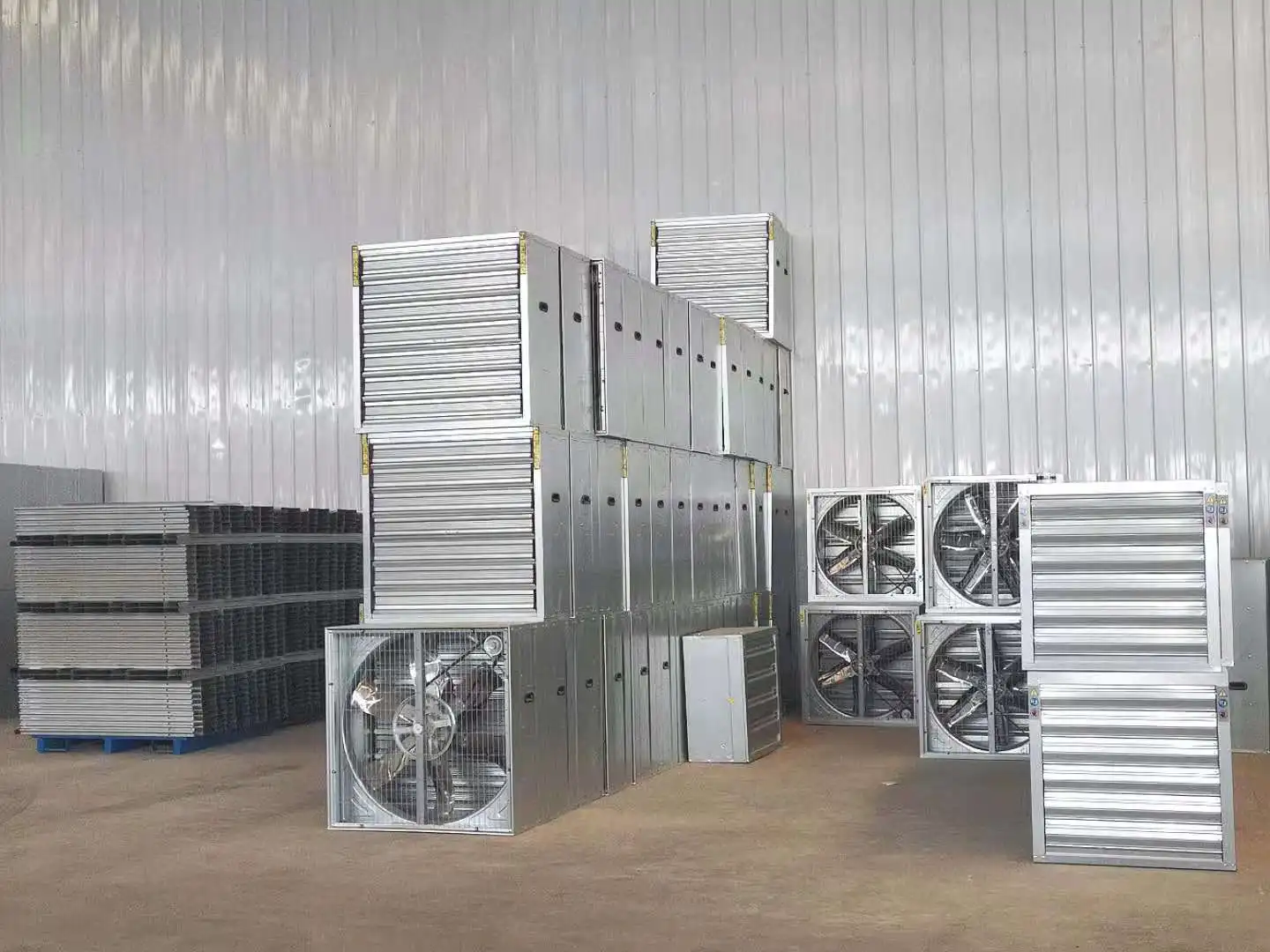

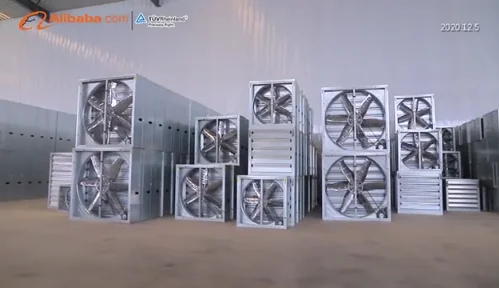

Factory&Workshop
WHY CHOOSE BOOST?

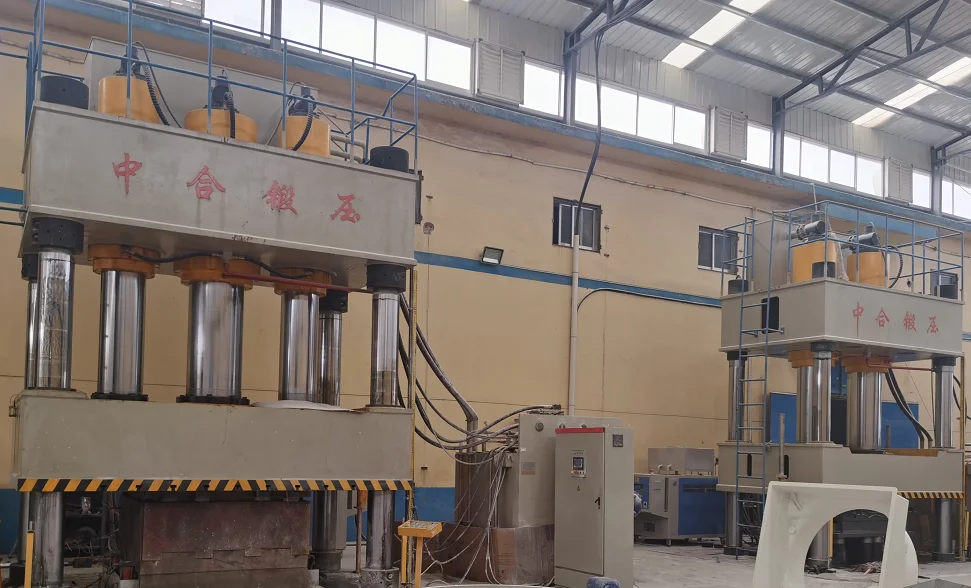

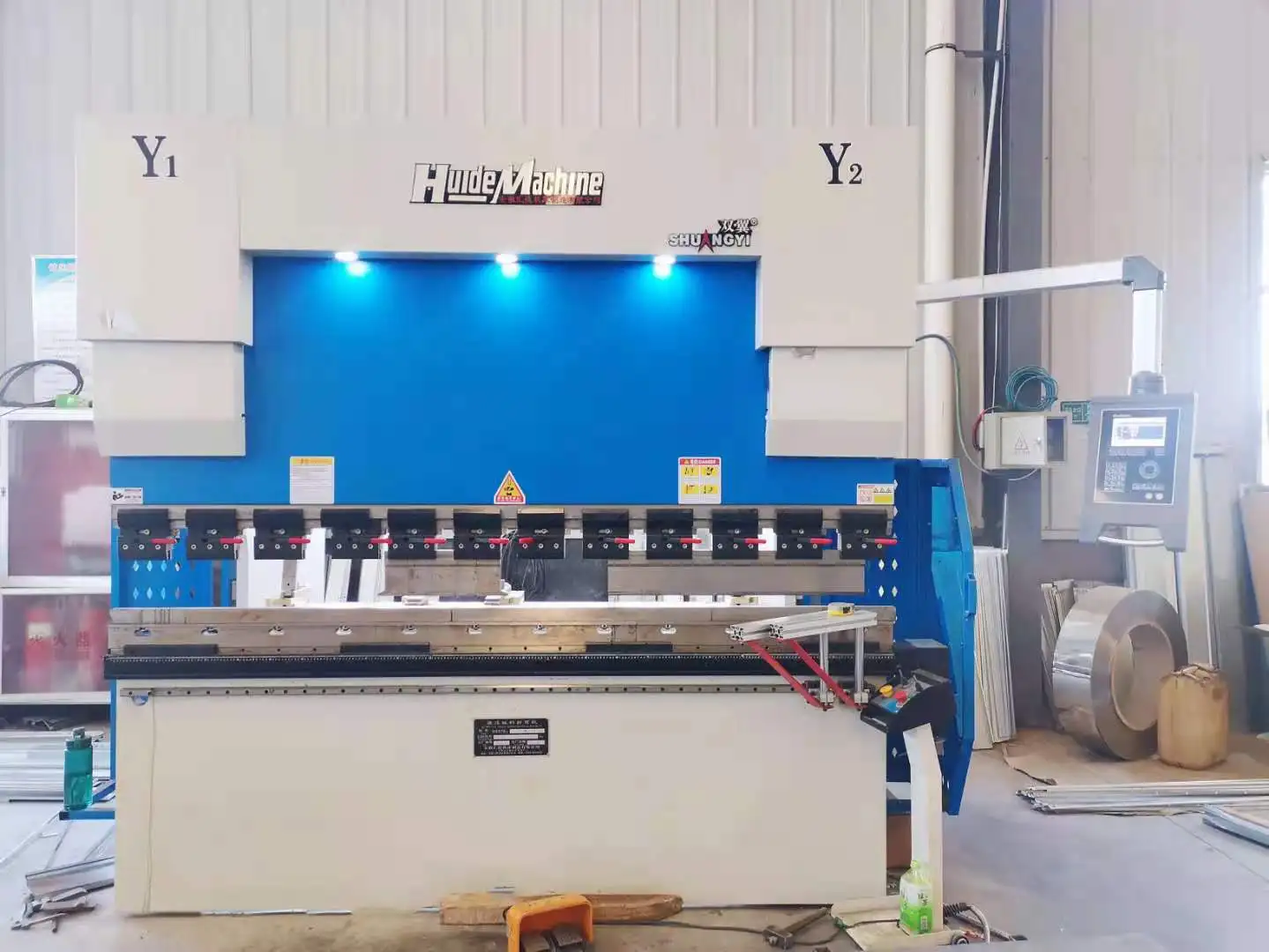

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

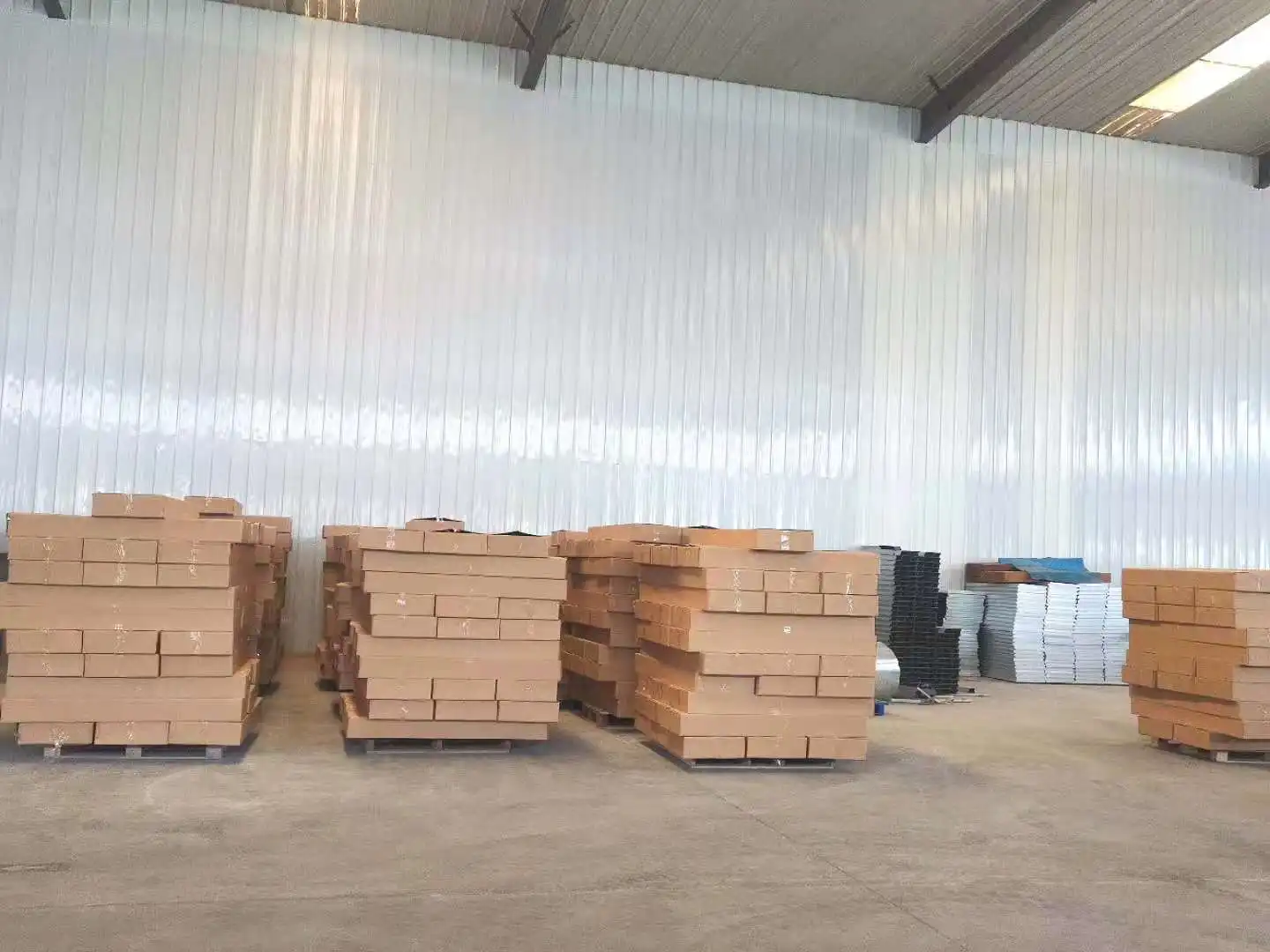

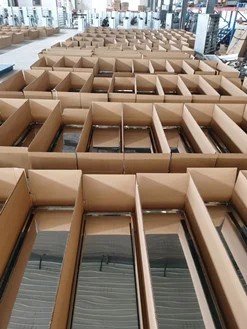

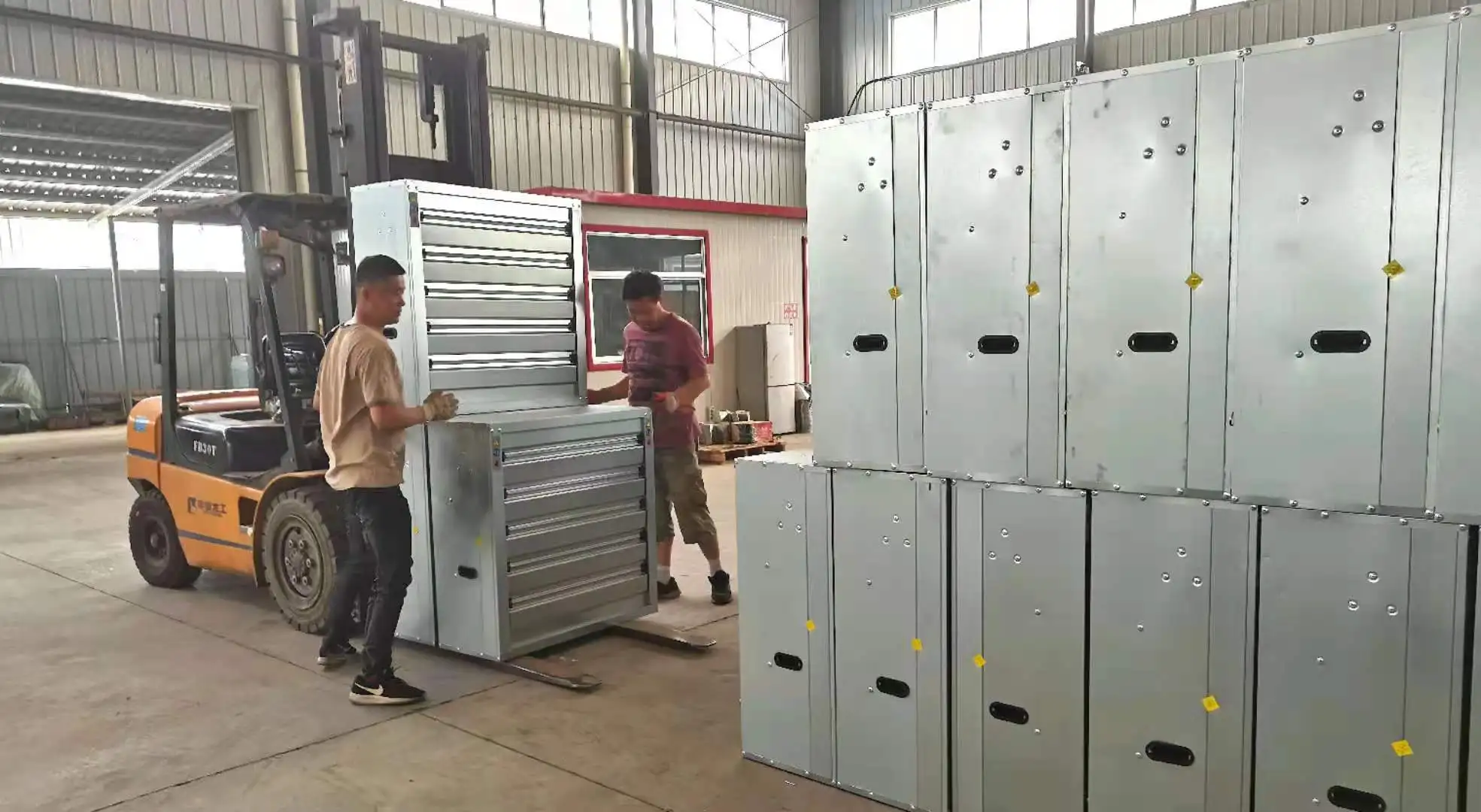

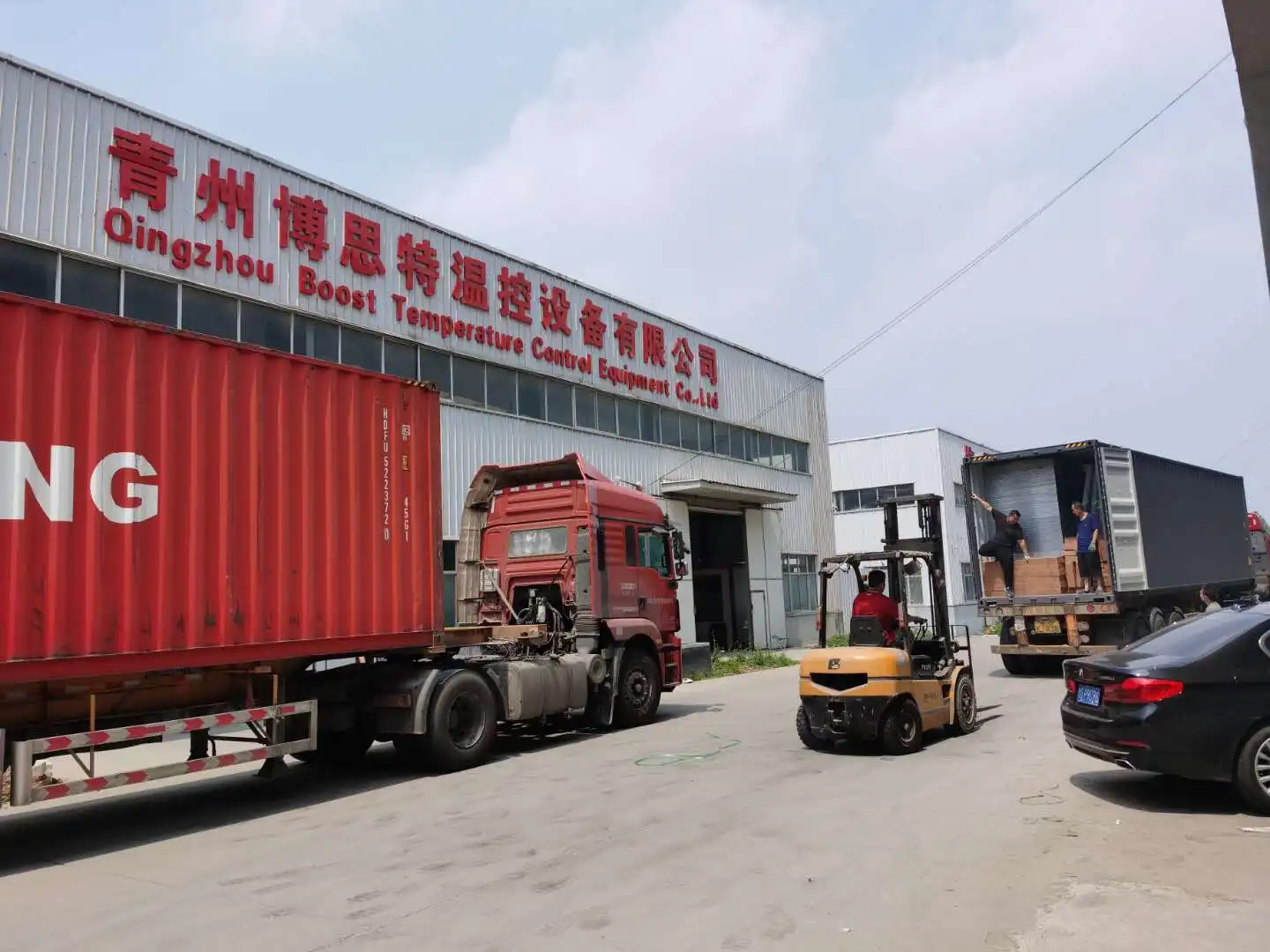

Packing&Shipping
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment
and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum order quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC
certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection institution?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum order quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC
certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection institution?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got
perfect inspection report.
Q: How about the delivery date?
A: In General, the delivery date will be 7-15 working days for normal buy quantity. But if bigger order, please check us further.
A: In General, the delivery date will be 7-15 working days for normal buy quantity. But if bigger order, please check us further.
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas
* Engineers are available to service machinery overseas
