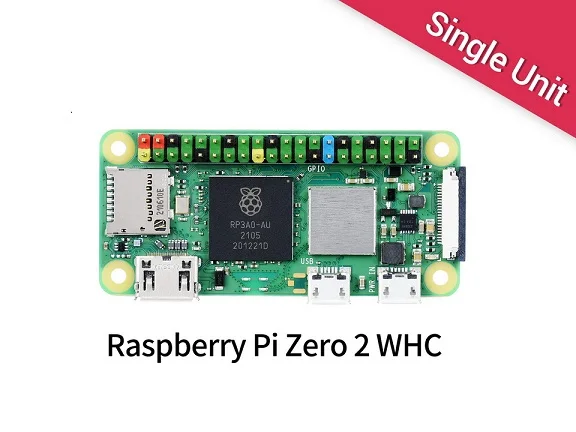

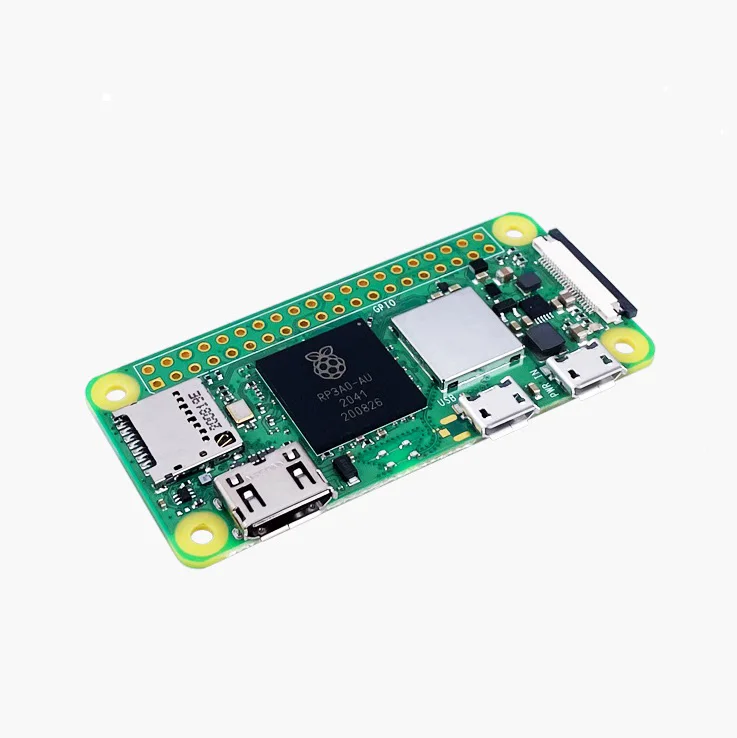

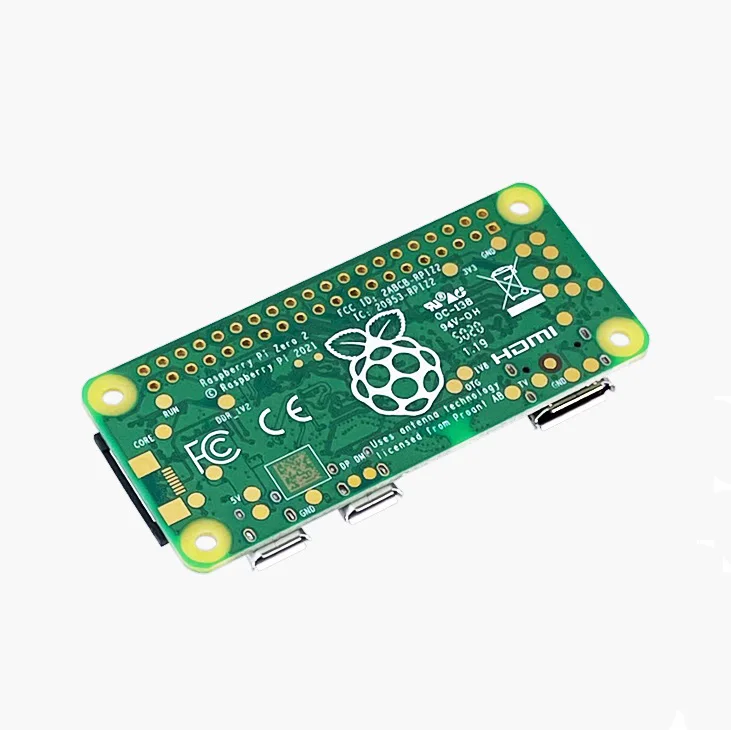

Raspberry Pi Zero 2 Вт макетная плата с 1 ГГц 64 разрядным четырёхъядерным Cortex A53 процессор 512 Мб SDRAM (синхронное динамическое ОЗУ BT 4,2

Product Overview

Description

Raspberry Pi Zero 2 W, Five Times Faster. 1GHz Quad-Core Cortex-A53 CPU, WiFi, BT 4.2 BLE







                                                              Just as small. Five times as fast.

Ideal Choice For Smart Home Applications And Other IoT Projects



Board Specifications

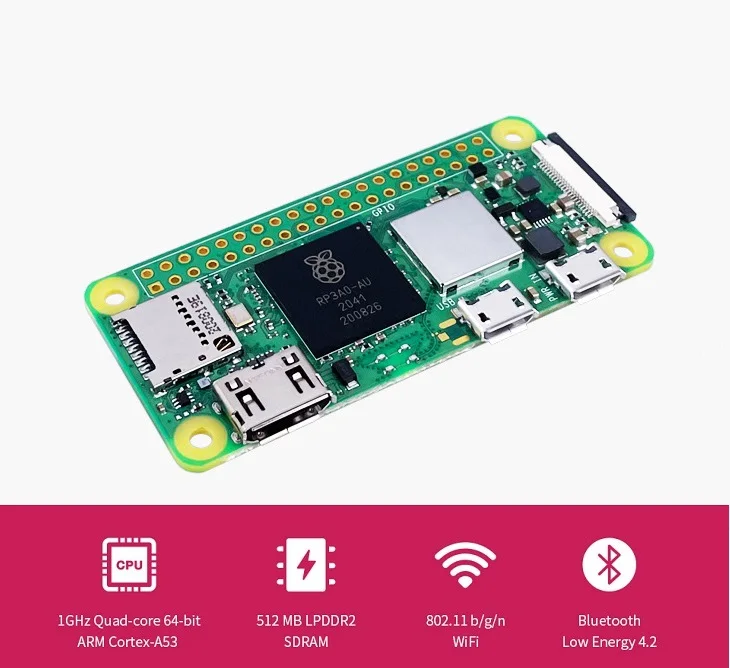

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. As for heat dissipation concern, Zero 2 W uses thick internal copper layers to conduct heat away from the processor, sustaining higher performance without higher temperature.

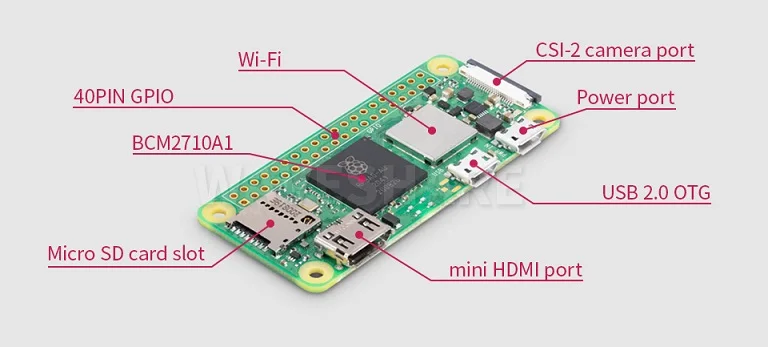

Key features include:

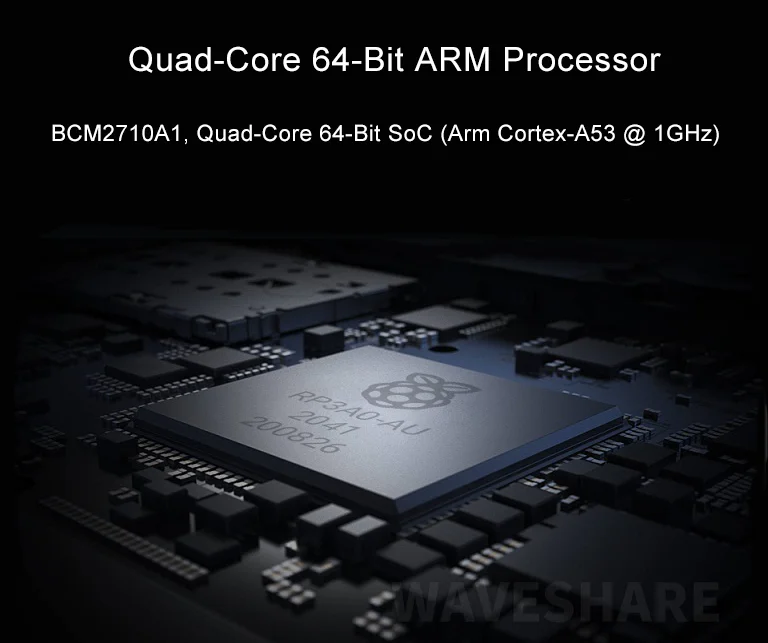

Broadcom BCM2710A1, 1GHz quad-core 64-bit A.r.m Cortex-A53 CPU

512MB LPDDR2 SDRAM

2.4GHz 802.11 b/g/n wireless LAN

BT 4.2, BT Low Energy (BLE), onboard antenna

Mini H.D.M.I port and micro USB On-The-Go (OTG) port

Micro.SD card slot

CSI-2 camera connector

HAT-compatible 40-pin header footprint (unpopulated)

Micro USB power

Composite video and reset pins via solder test points

H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)

OpenGL ES 1.1, 2.0 graphics

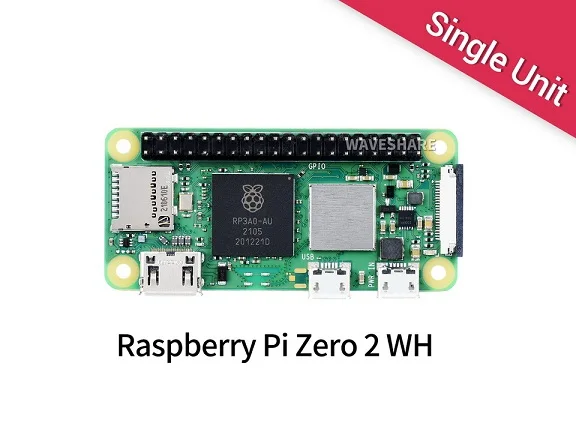

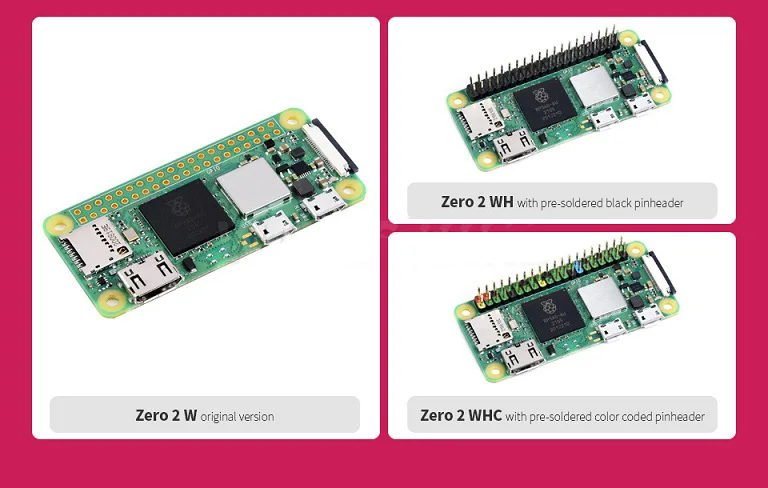

Pinheader Options







Introduction

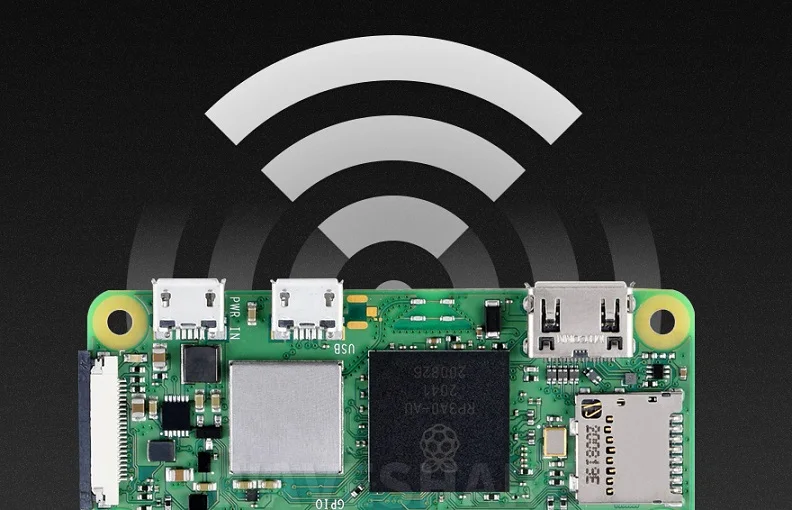

WiFi & BT Wireless

2.4GHz 802.11 B/G/N Wireless LAN BT 4.2, BT Low Energy (BLE)

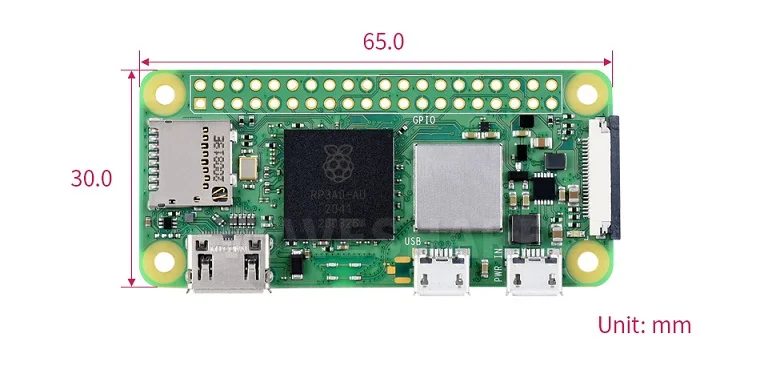

Outline Dimensions



Zero Specification Comparison

	ZERO	ZERO W	ZERO WH	ZERO 2 W	ZERO 2 WH	ZERO 2 WHC
PROCESSOR	BCM2835			BCM2710A1
CPU	1GHz A.R.M11 single core			1GHz A.R.M Cortex-A53 64-bit quad-core
GPU	VideoCore IV GPU, OpenGL ES 1.1, 2.0
MEMORY	512 MB LPDDR2 SDRAM
WIFI	-	2.4GHz IEEE 802.11b/g/n
Bt	-	BT 4.1, BLE, onboard antenna		BT 4.2, BLE, onboard antenna
VIDEO	Mini H.D.M.I port, supports PAL and NTSC standard, supports H.D.M.I (1.3 and 1.4), 640 × 350 to 1920 × 1200 pixels
CAMERA	CSI-2 connector
USB	micro USB On-The-Go (OTG) connector, supports USB HUB expansion
GPIO	Raspberry Pi 40 Pin GPIO footprint
SLOT	Micro SD card slot
POWER	5V, via Micro USB or GPIO
PRE-SOLDERED PINHEADER	-		black	-	black	color coded





Optional:

Option 1:

Option 2:

Option 3:
