Product Overview
Description
Product Overview

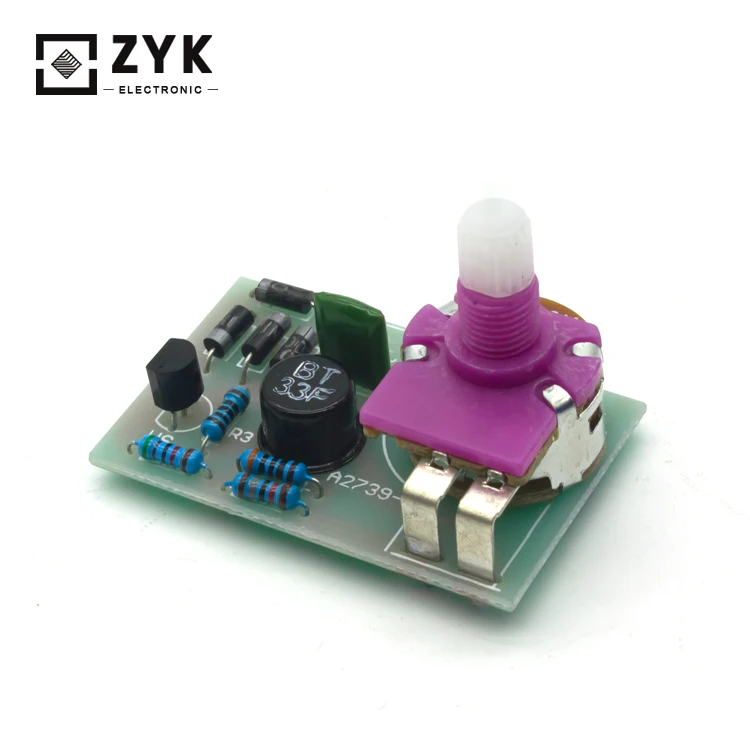

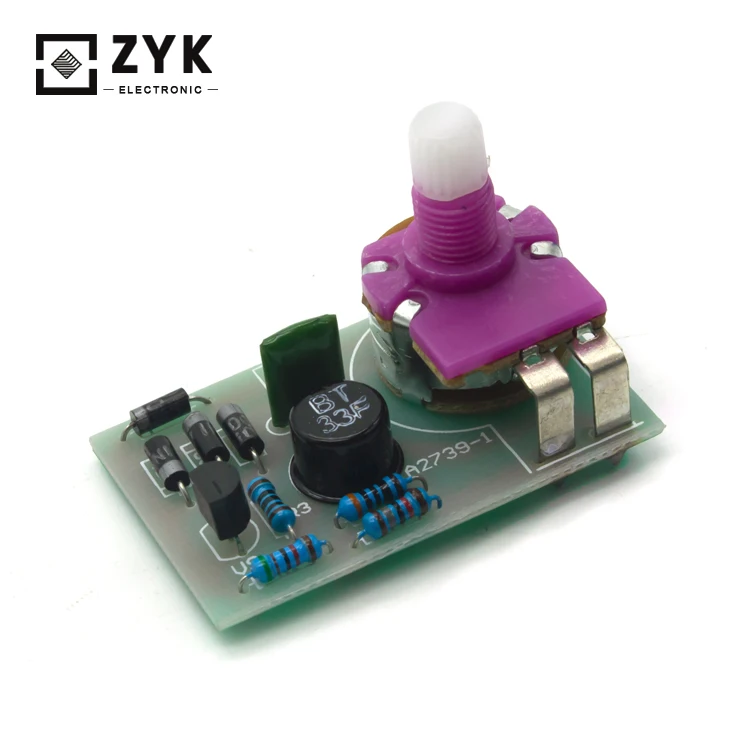

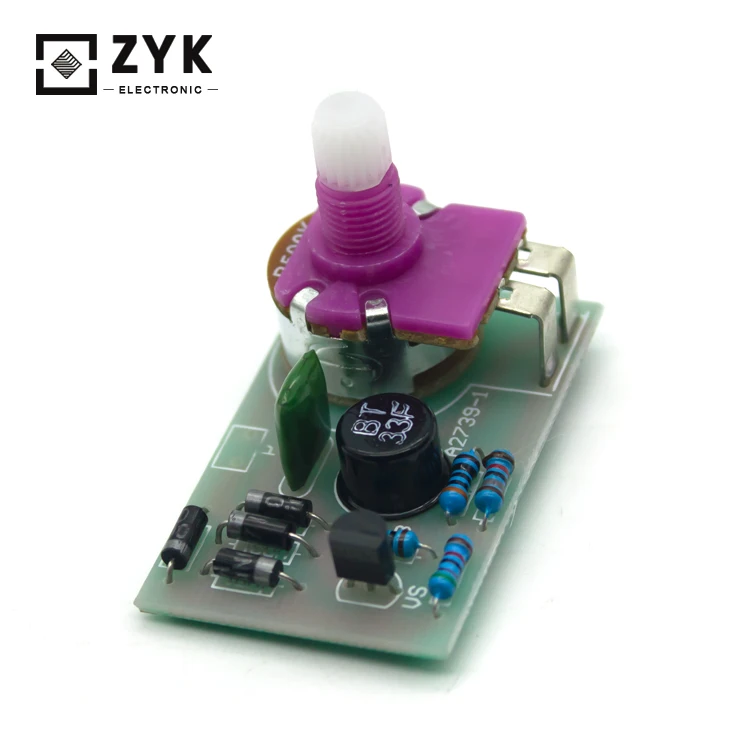

Reminder: This product is a set of spare parts, you need to assemble it by yourself! BT33 desk lamp dimming kit uses a dimmer
switch kit composed of a single junction transistor BT33 and a one-way thyristor MCR100-6. The dimming circuit can make the
voltage at both ends of the bulb In the range of tens of volts to 200 volts, the dimming effect is significant. The working
principle is simple, easy to understand and master, and it is also convenient to strengthen the understanding of the working
principle of single-cell transistors during the production and debugging process.
Note
This circuit uses 220V mains power supply, which can dimming 10-40W incandescent lamps. Pay attention to the installation and
debugging process, and do not touch the circuit board when the power is turned on. The working voltage of the circuit: 220V
circuit load 10-40W incandescent lamp can not use energy-saving lamps.
switch kit composed of a single junction transistor BT33 and a one-way thyristor MCR100-6. The dimming circuit can make the
voltage at both ends of the bulb In the range of tens of volts to 200 volts, the dimming effect is significant. The working
principle is simple, easy to understand and master, and it is also convenient to strengthen the understanding of the working
principle of single-cell transistors during the production and debugging process.
Note
This circuit uses 220V mains power supply, which can dimming 10-40W incandescent lamps. Pay attention to the installation and
debugging process, and do not touch the circuit board when the power is turned on. The working voltage of the circuit: 220V
circuit load 10-40W incandescent lamp can not use energy-saving lamps.

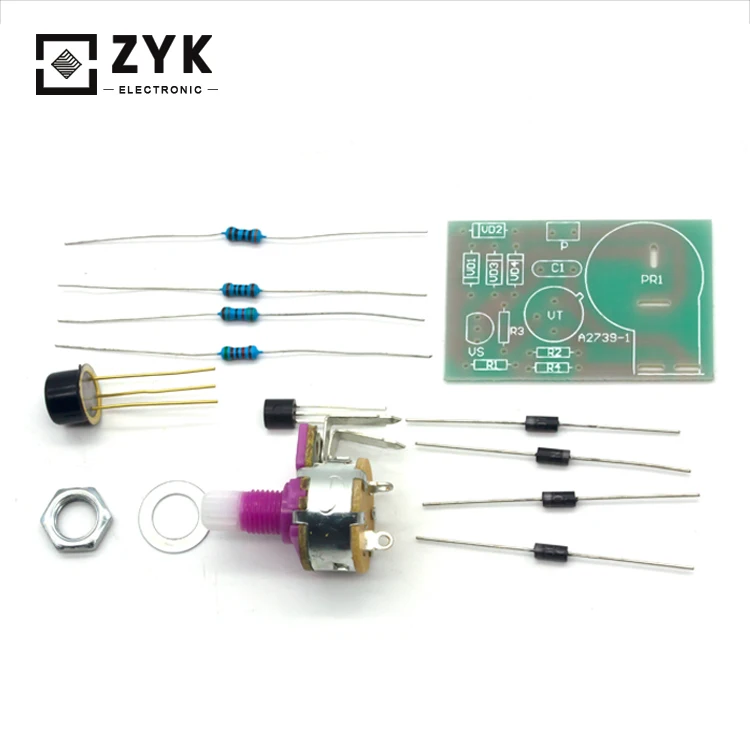

Installation sequence | Tag | Name | Specification | Quantity |
1 | D1 D2 D3 D4R1 R2 R3 R4 | diode resistance resistance resistance resistance | 1N400751K 300Ω 100Ω 18K | 41 1 1 1 |
2 | VT | Single junction transistor | BT33 | 1 |
3 | VS | Thyristor | MCR100-6 | 1 |
4 | C1 | Polyester capacitor | 223 | 1 |
RP | Potentiometer with switch | 500K | 1 | |
5 | China | Circuit board | 1 |
