  • ONPOW 19mm spst push button Switch (GQ19H 10/S) CE, RoHS
ONPOW 19mm spst push button Switch (GQ19H 10/S) CE, RoHS
ONPOW 19mm spst push button Switch (GQ19H-10/S) CE, RoHS
ONPOW 19mm spst push button Switch (GQ19H-10/S) CE, RoHS
ONPOW 19mm spst push button Switch (GQ19H-10/S) CE, RoHS
ONPOW 19mm spst push button Switch (GQ19H-10/S) CE, RoHS
ONPOW 19mm spst push button Switch (GQ19H-10/S) CE, RoHS
ONPOW 19mm spst push button Switch (GQ19H-10/S) CE, RoHS

ONPOW 19mm spst push button Switch (GQ19H 10/S) CE, RoHS

Share on (1600380642787):


Price:$1.96 - $2.17

Quantity:


Product Overview

Description






















































































TypeGQ19H-10/S
Maximum voltage220V
Maximum current2A
Protection ClassIP65,IK08
Mounting hole19mm
Electrical  life200000
Mechanical life 1000000
The Front ShapeHigh Round
Terminal TypeScrew terminal
Crust materialStainless steel
Button materialStainless steel
Nut TorqueAbout 0.8Nm
Panel Thickness1~4mm
Operation forceAbout 4N
Operation travelAbout 1.5mm
Rated CurrentMomentary(1NO)
CertificationCE,ROHS
OEM&ODMAvailable
Interval PriceUSD1.94-USD2.28

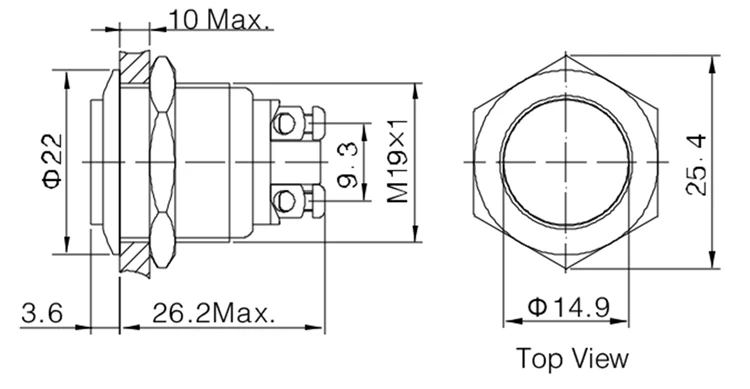

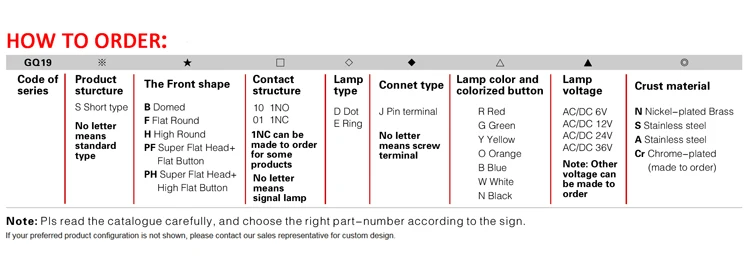

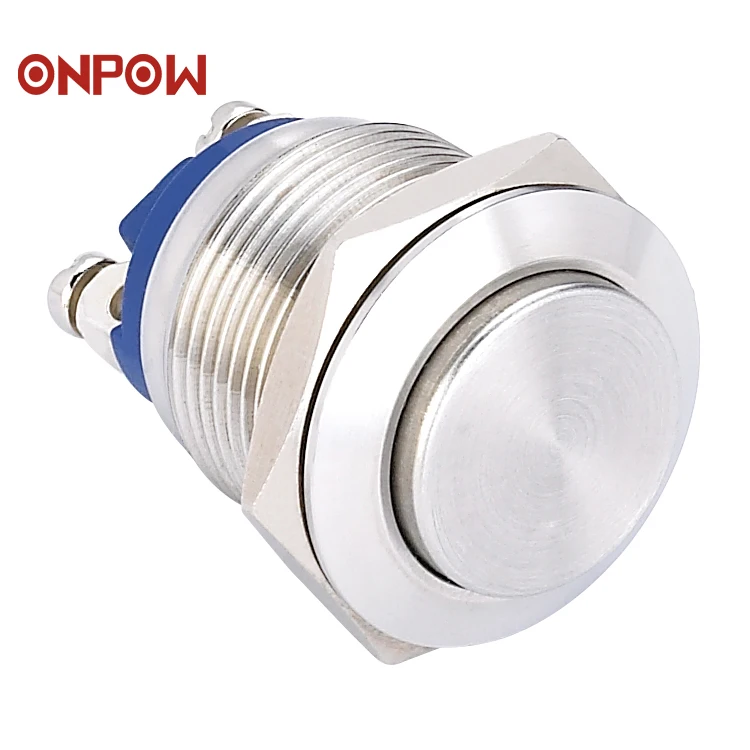

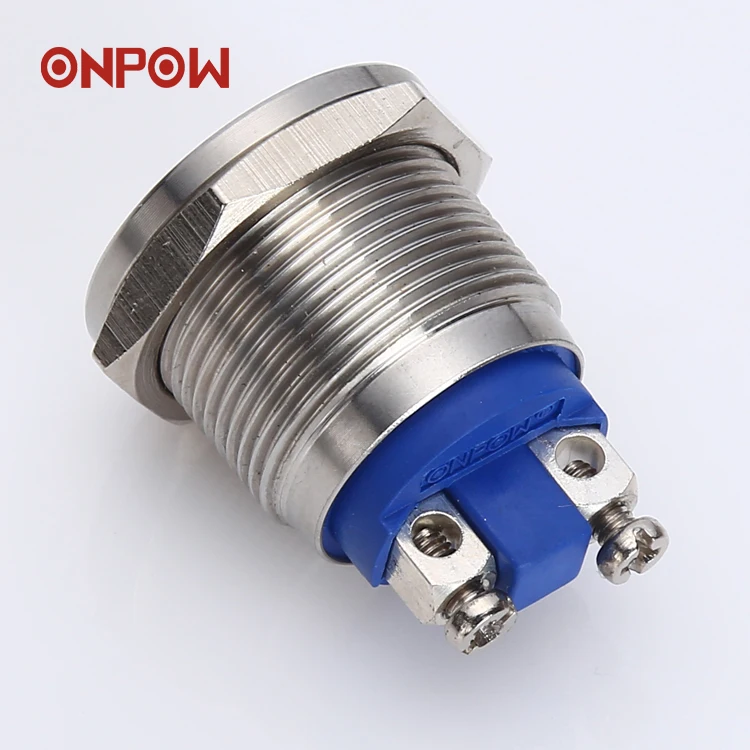

3 (1).jpg3 (2).jpg3 (3).jpg3 (4).jpg3 (5).jpg3 (6).jpg
