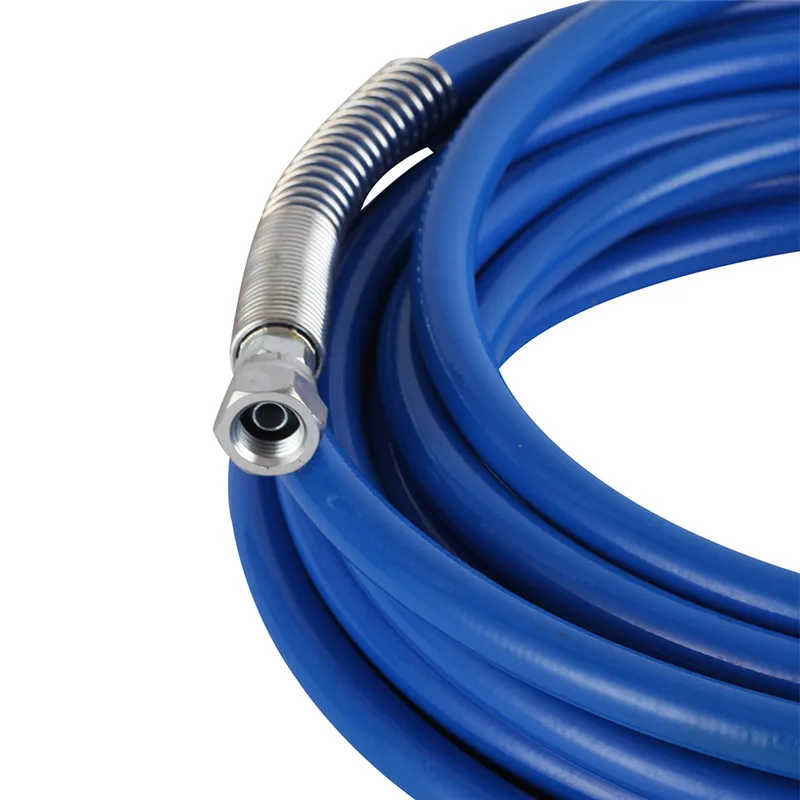

High quality 3/8 pin hole twin hydraulic hose non conductive thermoplastic oil hose gas hose
- Category: >>>
- Supplier: Hengshui Xinliyuan Technology Co. Ltd.
Share on (1600380655884):
Product Overview
Description
Product Description

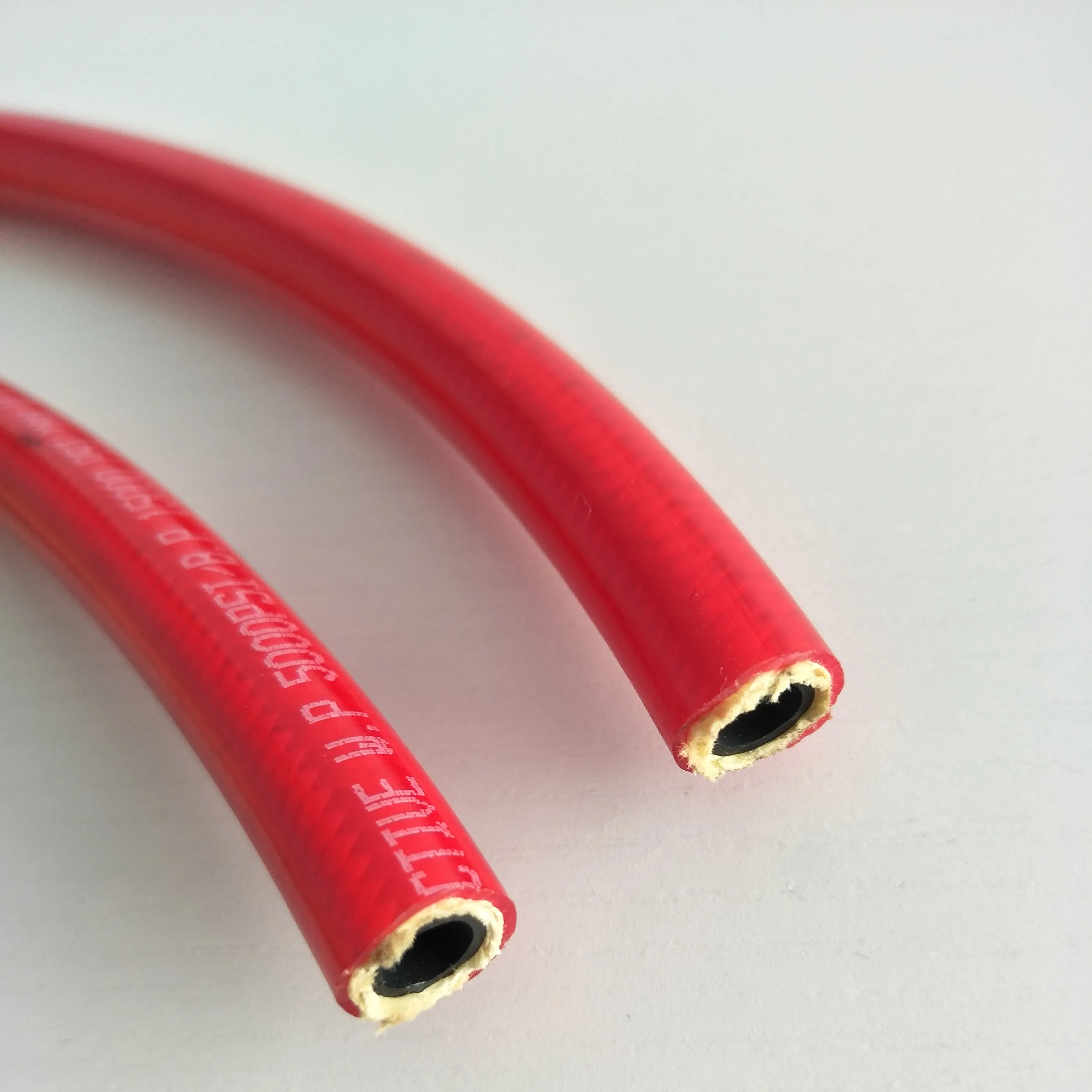

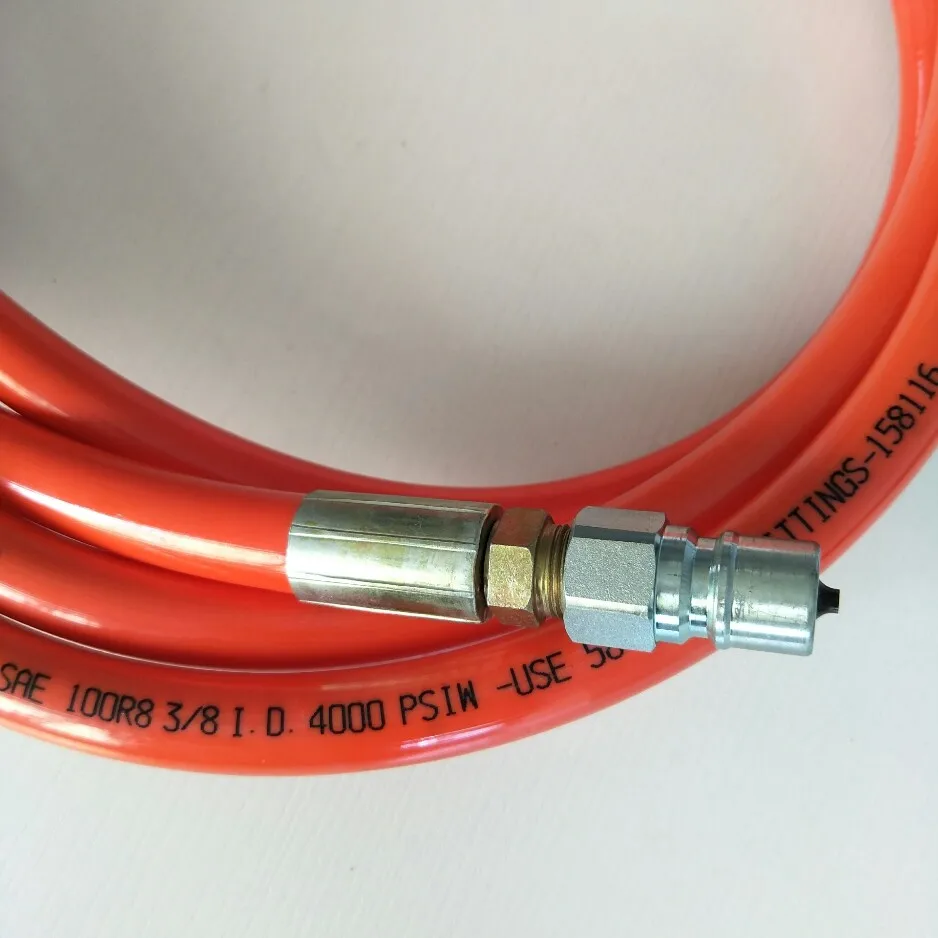

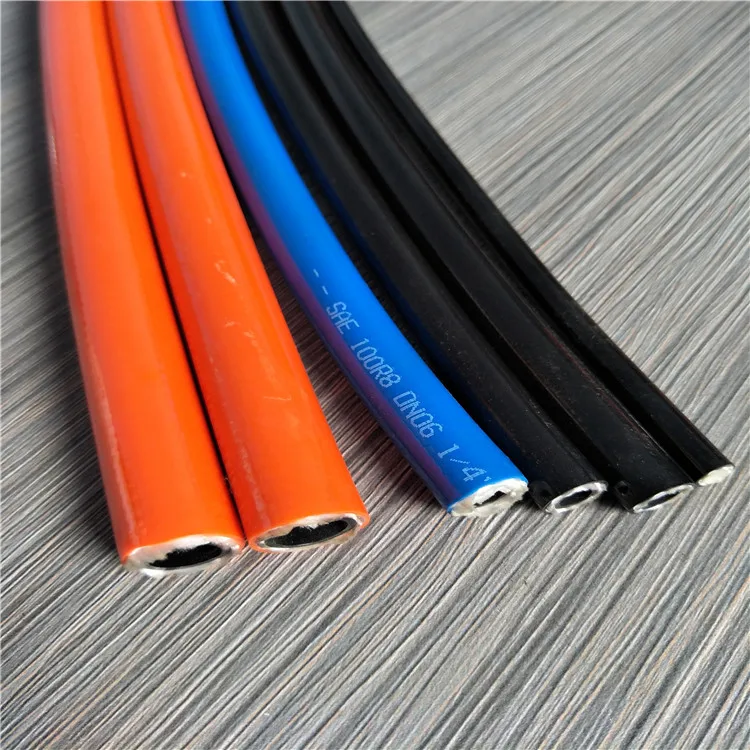

High quality 3/8 pin hole twin hydraulic hose non conductive thermoplastic oil hose gas hose
FEATURES
Inner TubeCoextruded conductive polyamide and polyamide PA12 Reinforcement
One or two braids of aramid fiber plus one braid of synthetic fiber
Cover

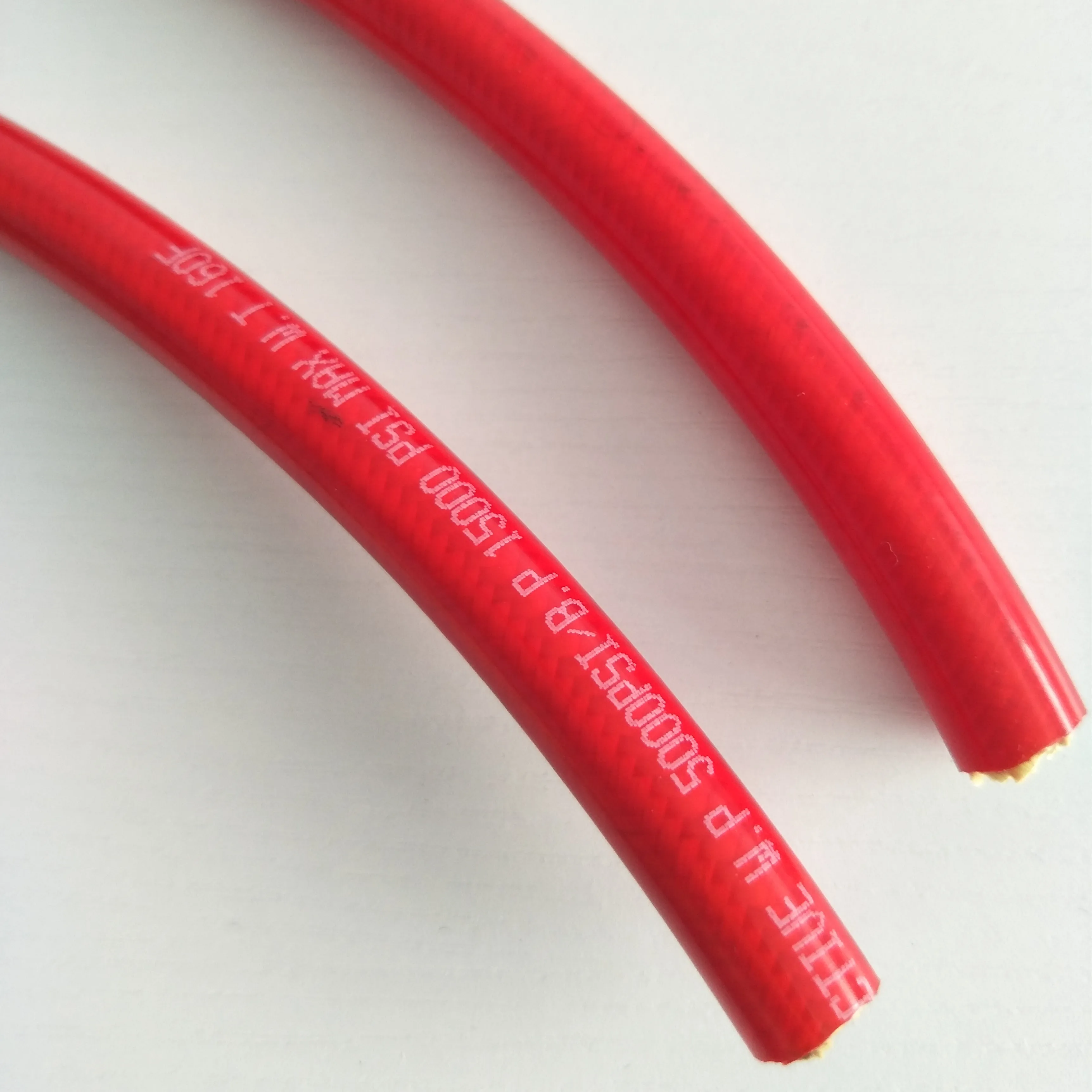

Polyurethane - red - pinpricked - white ink jet branding
Applications
Refueling hose for mobile and stationary units used to refill natural gas vehicles ( NGV) tanks - CNG Transfer lines
Features
Static charge dissipating thanks to the conductive inner tube - Optimum bonding between tube braids and cover - Non metallic design - Lightweight and flexible - Extra tough cover for abrasion
One or two braids of aramid fiber plus one braid of synthetic fiber
Cover
Polyurethane - red - pinpricked - white ink jet branding
Applications
Refueling hose for mobile and stationary units used to refill natural gas vehicles ( NGV) tanks - CNG Transfer lines
Features
Static charge dissipating thanks to the conductive inner tube - Optimum bonding between tube braids and cover - Non metallic design - Lightweight and flexible - Extra tough cover for abrasion
High pressure hose suitable for CNG refueling applications featuring conductive inner tube to dissipate static electric build up . Extra tough cover for abrasion water and micro biological resistance . Non metallic lightweight design for easy handling and manipulation . Rugged
construction to give kink - crush - twist and pul resistance . Twin lines available with vent hose . Other colors available on request .
Temperature Range
-40℃ to 70℃(-40° F to 158° F )
Specifications

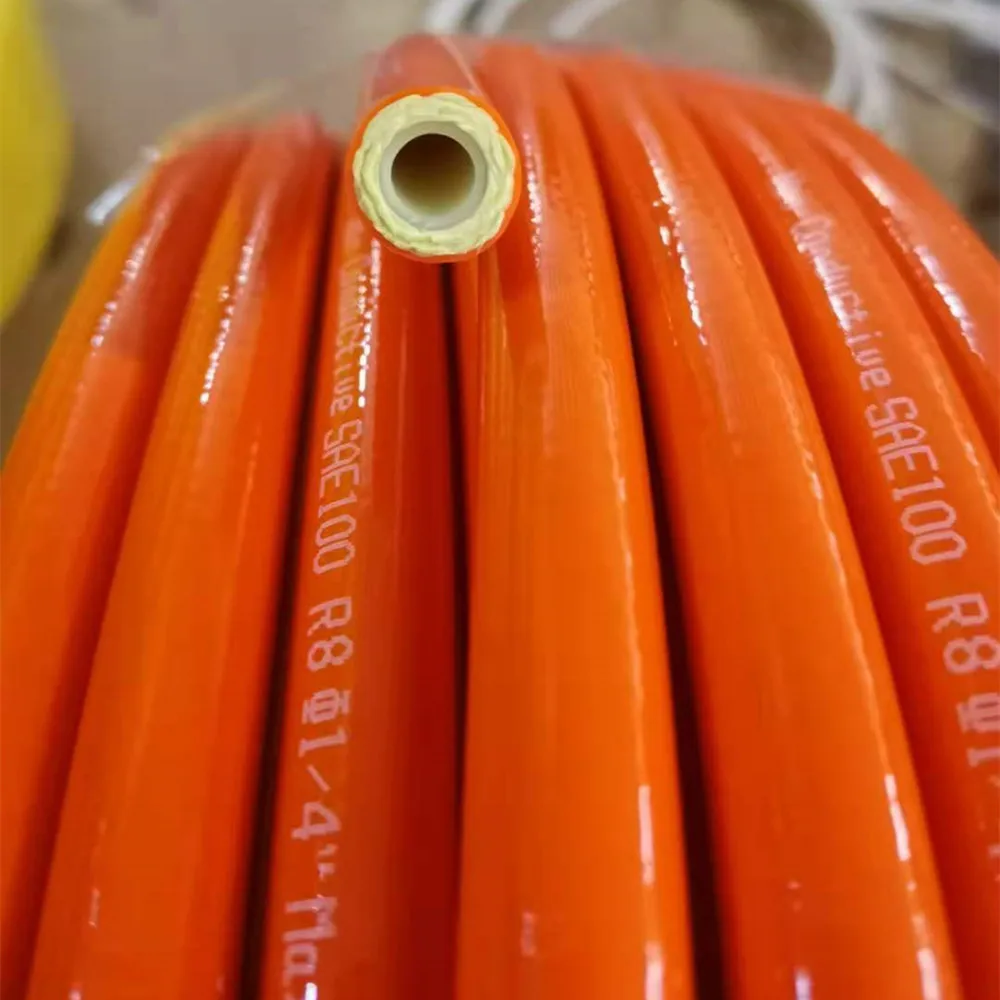

Hose meets applicable requirements of ISO 15500-17, SAE J517 10OR8 Hoses Certified " Ansi / Csa Ngv 4.2-2014- Csa 12.52-2014- Hoses For Natural Gas Dispensing Systems ".
construction to give kink - crush - twist and pul resistance . Twin lines available with vent hose . Other colors available on request .
Temperature Range
-40℃ to 70℃(-40° F to 158° F )
Specifications
Hose meets applicable requirements of ISO 15500-17, SAE J517 10OR8 Hoses Certified " Ansi / Csa Ngv 4.2-2014- Csa 12.52-2014- Hoses For Natural Gas Dispensing Systems ".
Part no. | DN | Inches | Dash | ID (mm) | OD (mm) | WP (bar) | BP (bar) | BR (mm) | Weight (gr/m) |
CK06 | DN6 | 1/4 | -4 | 6.5 | 13.7 | 350 | 1400 | 50 | 126 |
CK10 | DN10 | 3/8 | -6 | 9.7 | 18.9 | 350 | 1400 | 70 | 219 |
CK12 | DN12 | 1/2 | -8 | 13.0 | 22.5 | 350 | 1400 | 90 | 285 |
CK20 | DN20 | 3/4 | -12 | 19.5 | 29.6 | 350 | 1400 | 180 | 406 |
CK25 | DN25 | 1 | -16 | 25.9 | 39.0 | 350 | 1400 | 200 | 724 |
Packing & Delivery

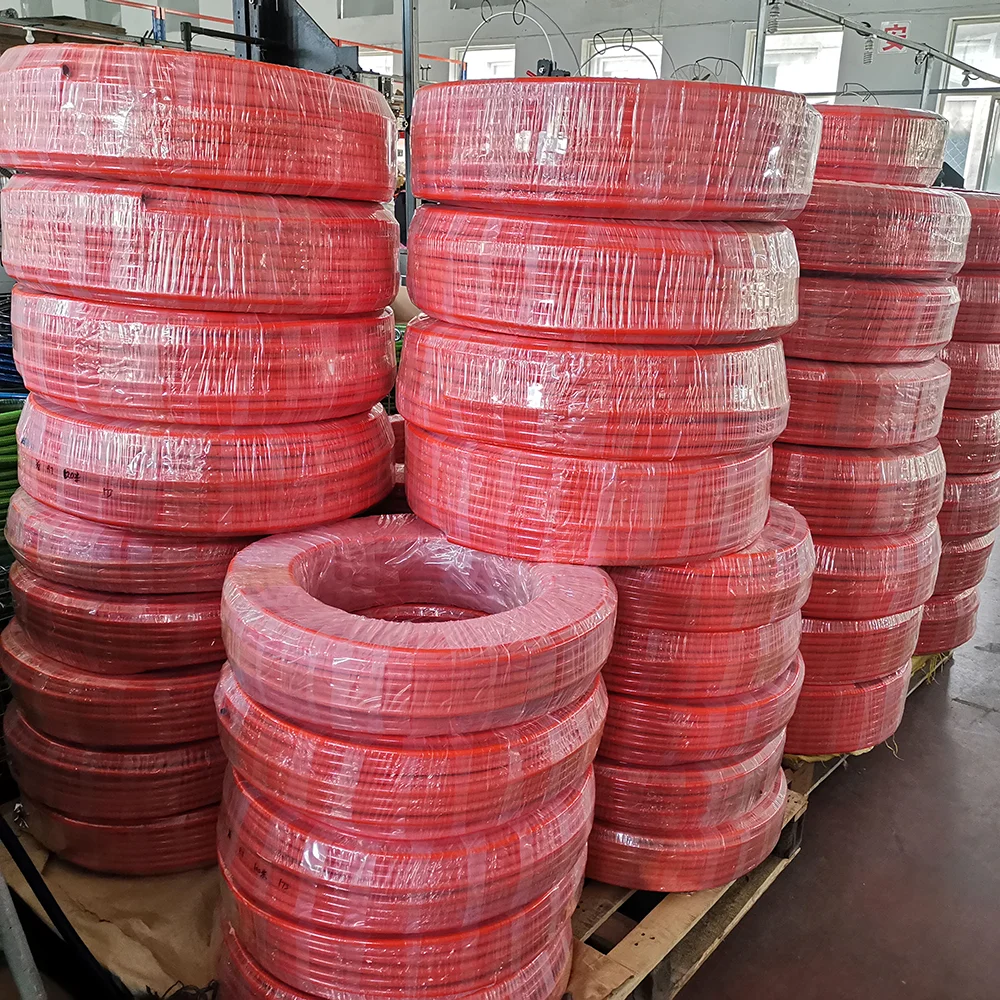

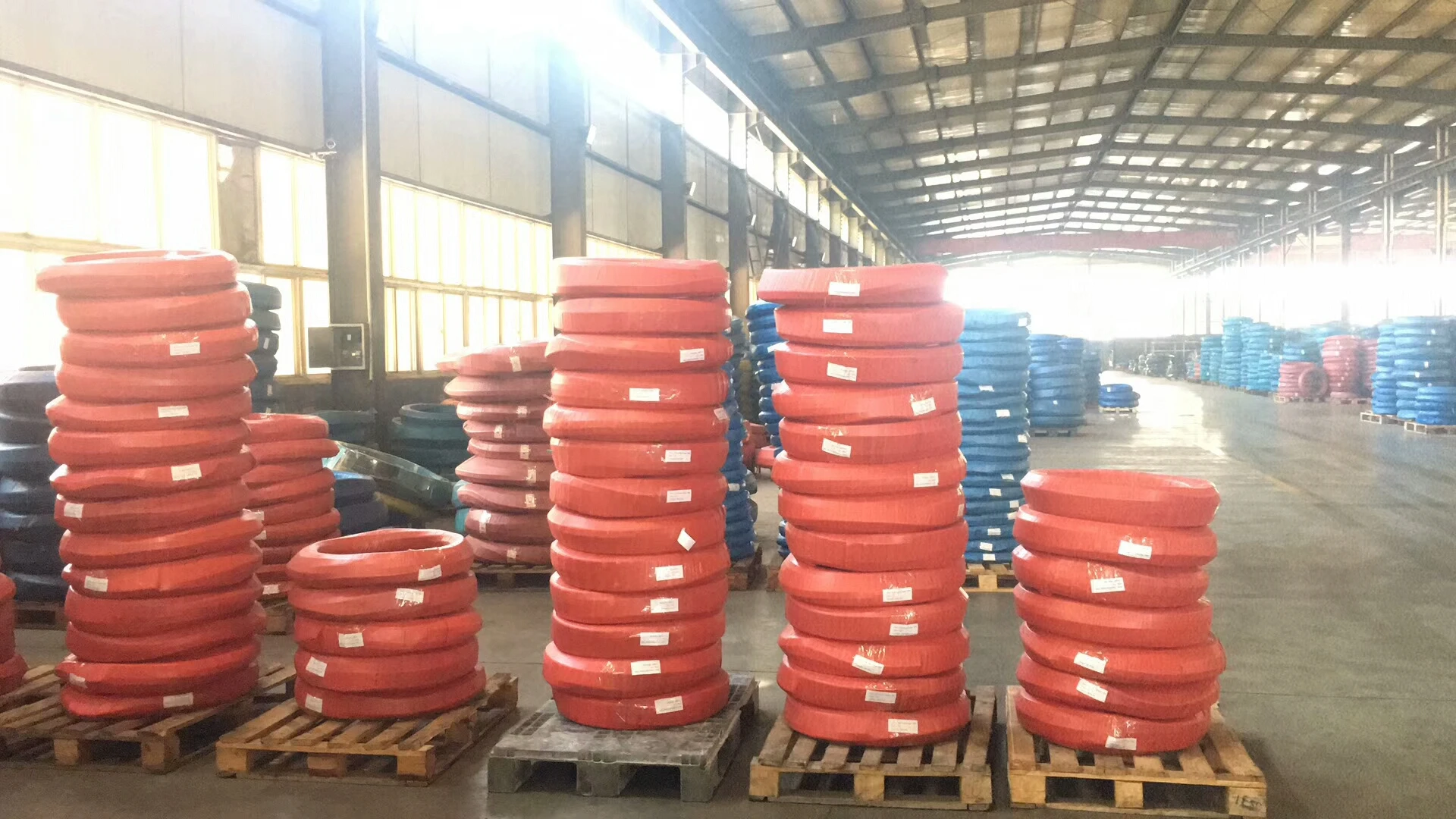

Package: plastic weave belt or pallet for High quality 3/8 pin hole twin hydraulic hose non conductive thermoplastic oil hose gas hose
Company Profile
More Product Recommend for you:
Steel Wire Braided Hydraulic Hose
Steel Wire Spiral Hydraulic Hose
Fiber Reinforcement Hydraulic Hose
High Pressure Thermoplastic Hose
Stainless Steel Wire Braided PTFE Hose
Nylon/Stainless Steel Wire Braided Cover Oil Hose
Motorcycle Brake Hose Line
High Pressure Air Brake Hose
Air/Water/Oil/Fuel Discharge Hose
Air/Water/Oil/Fuel Suction & Discharge Hose
High Pressure Steel Wire and Fiber Steam Hose
PA11/PA12 Plastic Hose
Hydraulic Adaptor/Fitting/Quick Coupling/Camlock Coupling

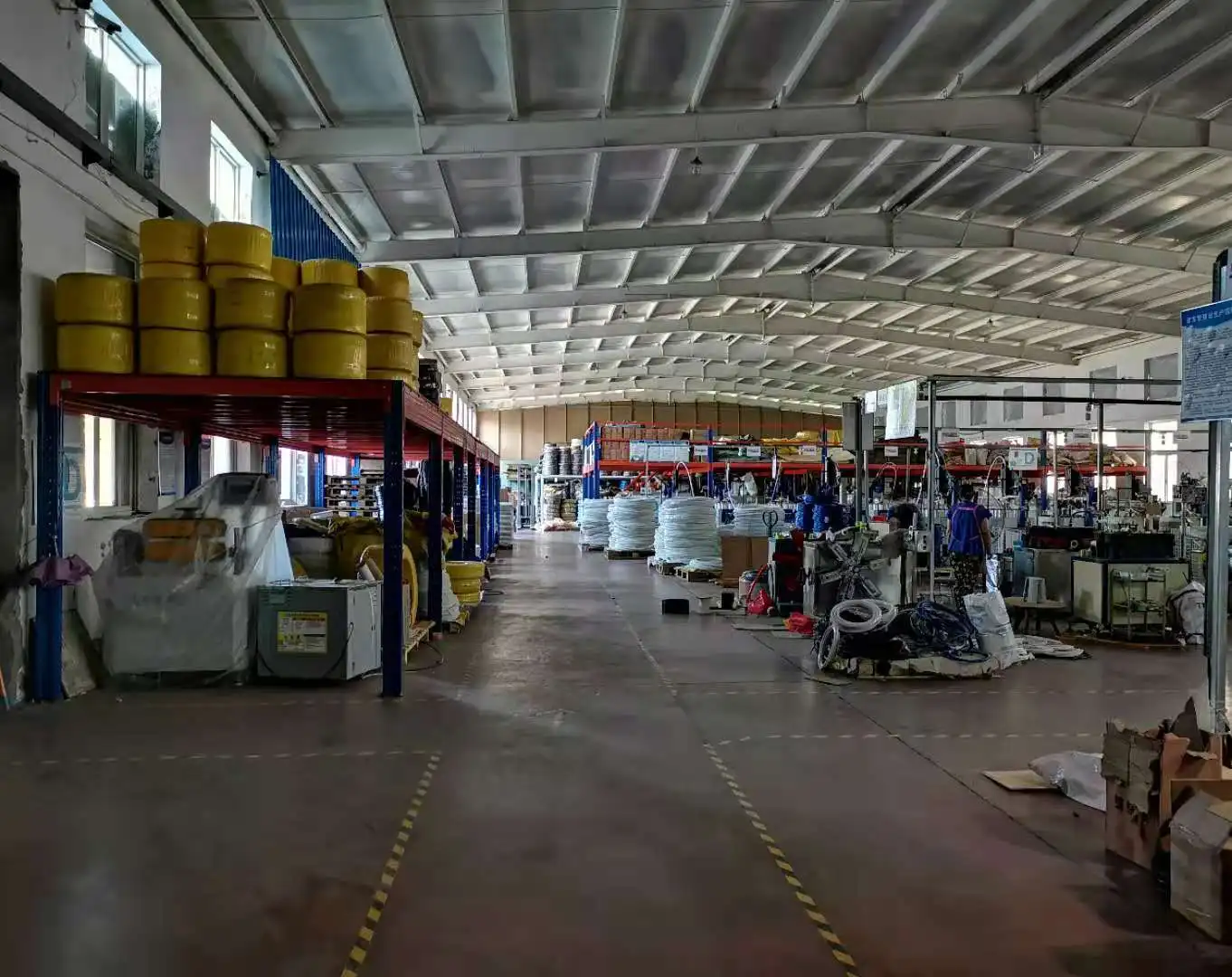

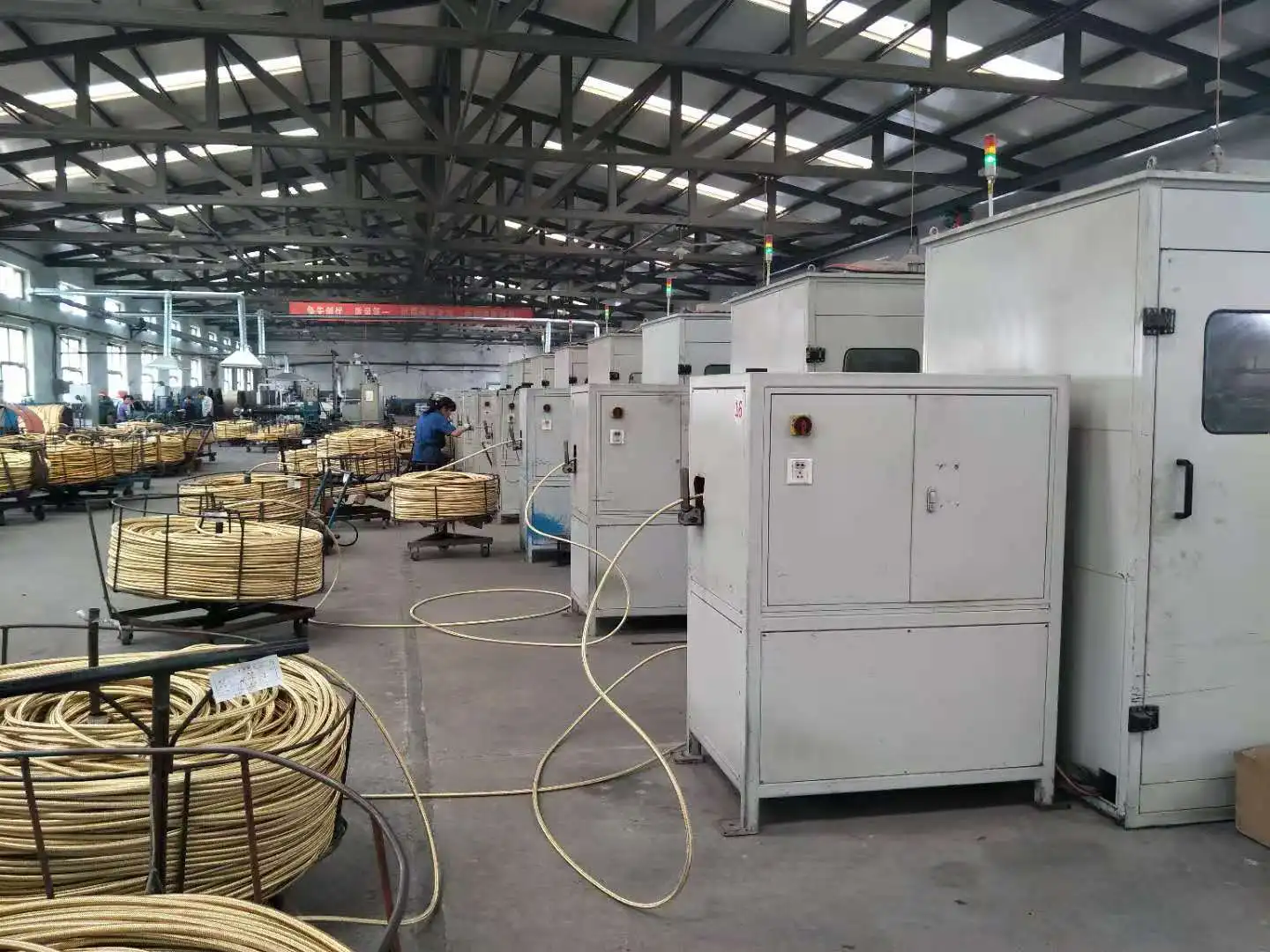

Hengshui Xinliyuan Technology Co.,LTD Founded in 2017, it cover 8000 square metre and about 62 employees with a complete and scientific management system. We produce and supply Car & Motorcycle Hose and parts,Hydraulic Hose Fitting,Hydraulic Hose Adapter,Ferrule,Quick Coupling,Hydraulic Hose and Rubber Hose,OEM Logo is available.Export to Europe,United States, Japan, Australia,Middle East, Southeast Asia etc.
