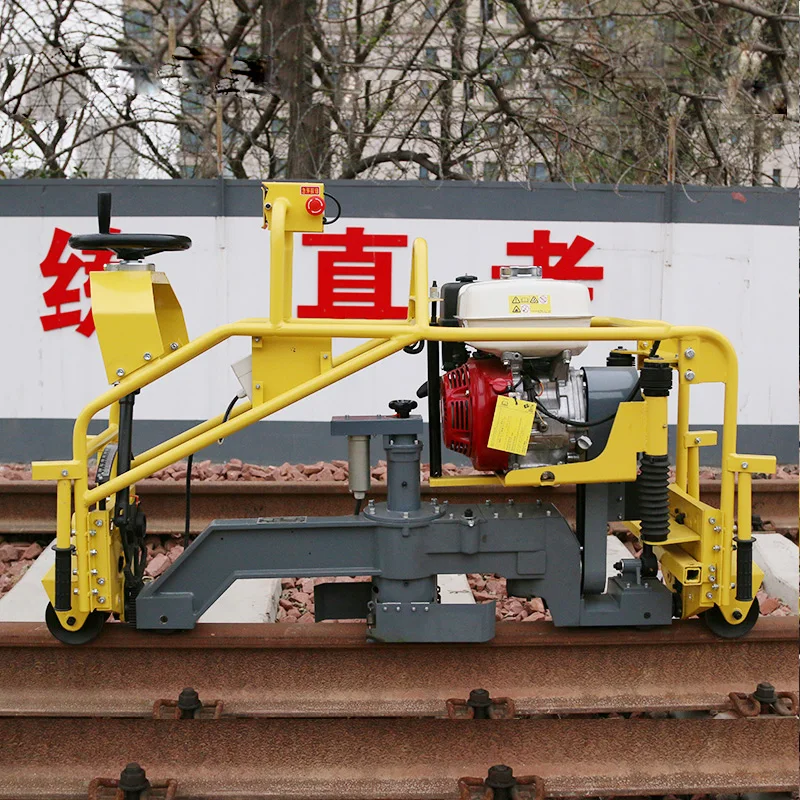

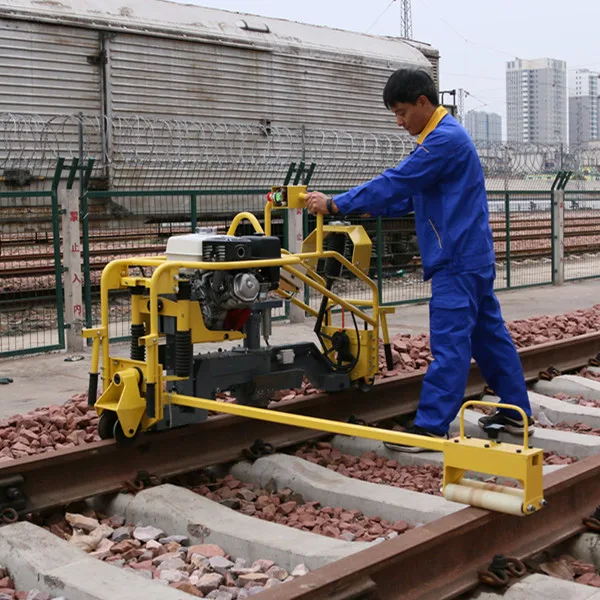

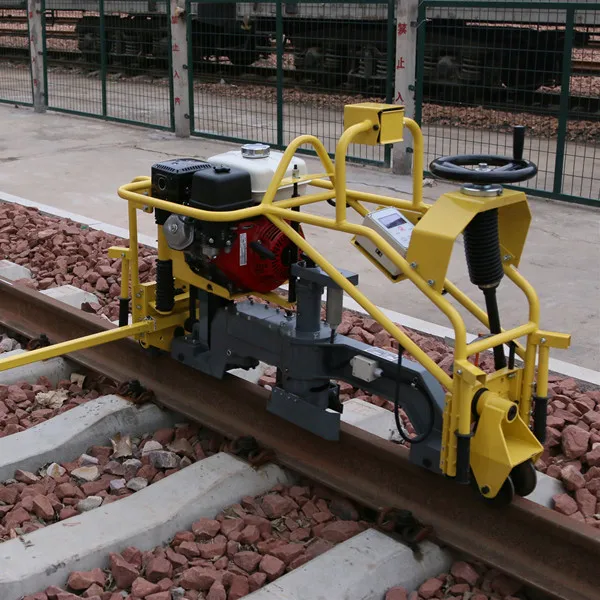

New design NGM 6.3 Internal combustion rail profile modeling grinder with High precision & intelligent control
- Category: >>>
- Supplier: Henan Qiangli Machinery Co. Ltd.
Share on (1600380697729):
Product Overview
Description
Products Description

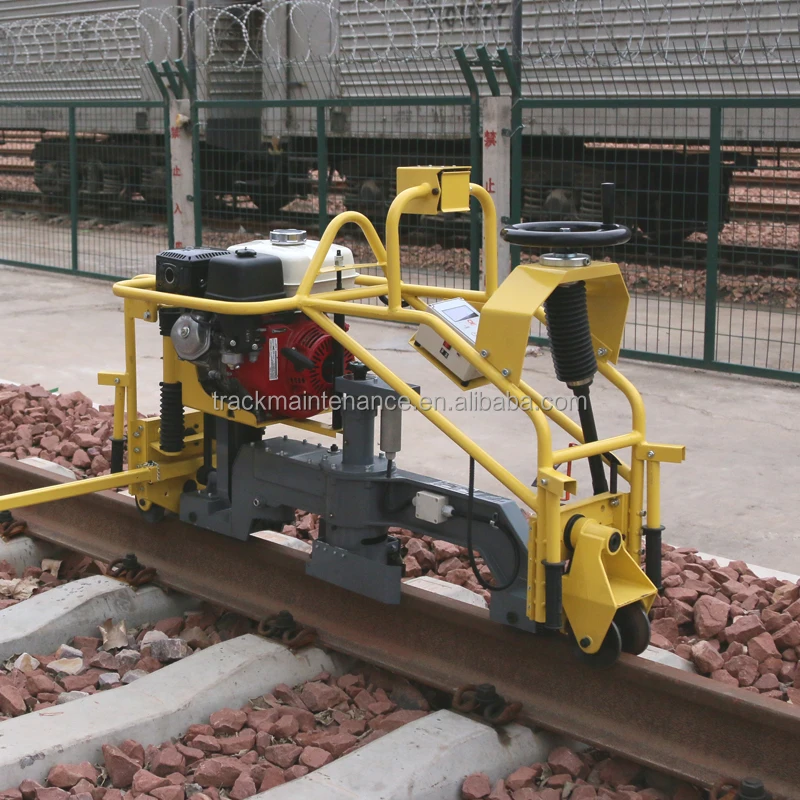

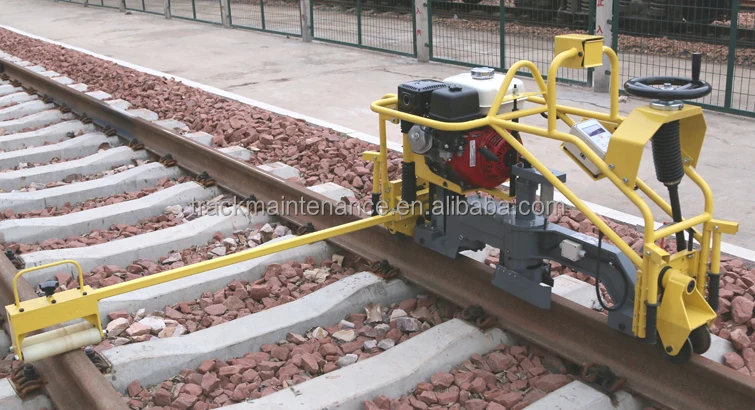

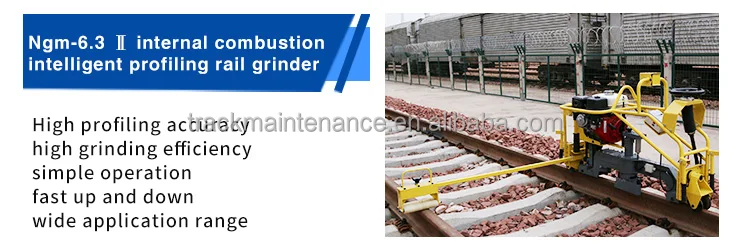

NGM-6.3 Ⅱ is a new generation of rail grinding construction equipment developed by our company on the basis of the original NGM-4.8 profiling rail grinding machine. Compared with the original model, the structural layout, transmission mode and control mode of the machine have been greatly improved. Not only the profiling accuracy and grinding efficiency have been greatly improved, but also the digital control of grinding wheel feed has been realized due to the development and application of NC feed unit. The operation steps of construction operation and measurement are greatly simplified, and the problem of "excessive grinding" in construction is avoided. The further optimized structural design and humanized operation element layout of the whole machine make the construction operation easier, simple, fast and efficient.
Features of the machine :

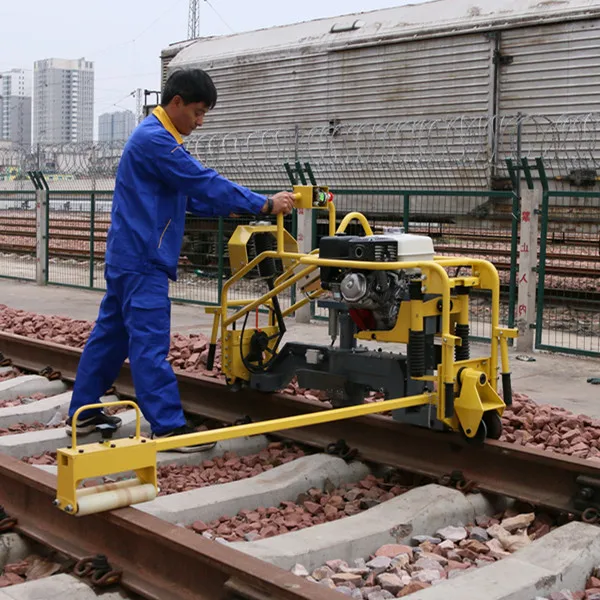

This machine is used for a wide range of online line road and building construction and can be used in road maintenance work . The machine is light , small volume, portable machine. Solid, accurate installation, removed rapidly, can effectively guarantee the driving safety.
Main specification :
1. Supporting power: imported GX270 gasoline engine (6.3kW / 3600rpm) |
2. MCU running speed: 16 MIPS |
3. LCD display resolution: 128 × 64 DOTS |
4. Timer real-time display resolution: hour, minute and second |
5. Timer cumulative display resolution: hours |
6. Timer output resolution: year, month, day, hour, minute |
7. Magneto output voltage: ~ 12V |
8. External charging power supply: ~ 220 V |
9. Grinding wheel stroke: 59 mm |
10. Profiling track: 1010 mm |
11. Deflection angle of profiling: ± 90 ° |
12. Grinding wheel inching feed accuracy: 0.01 ~ 0.5 mm (real-time setting) |
13. Working environment temperature: - 20 ℃ ~ + 70 ℃ |
14. Overall dimension of main engine (length) × wide × Height): 1565 ×550 × 973 (mm) |
15. Machine weight: 99 kg |
Different grinding angle can be adjustable

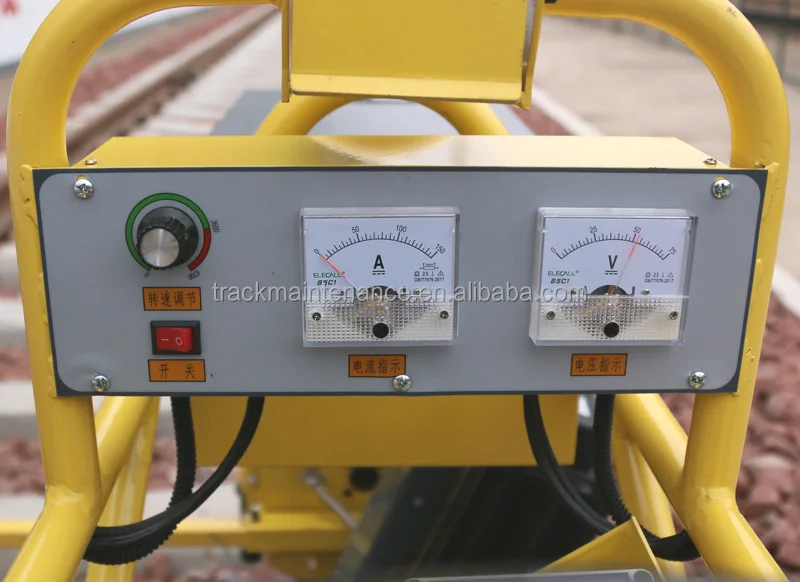

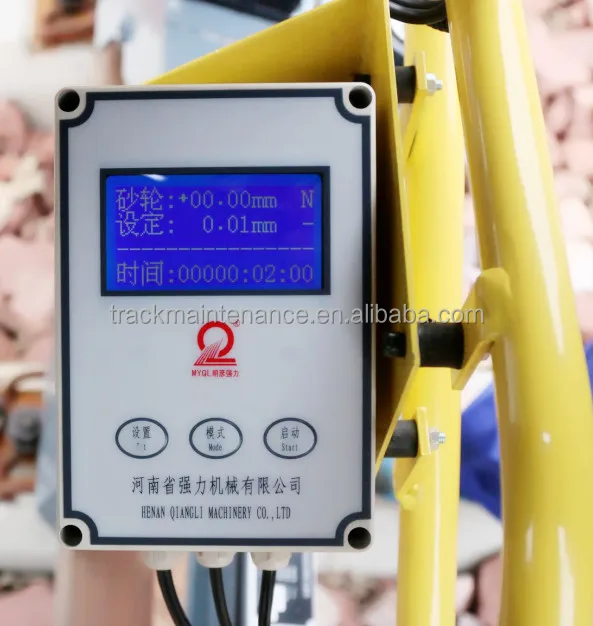

Intelligent / Digital control panel

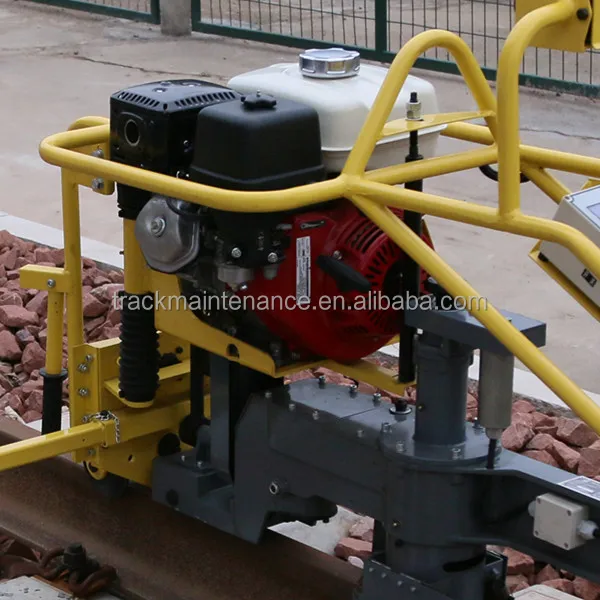

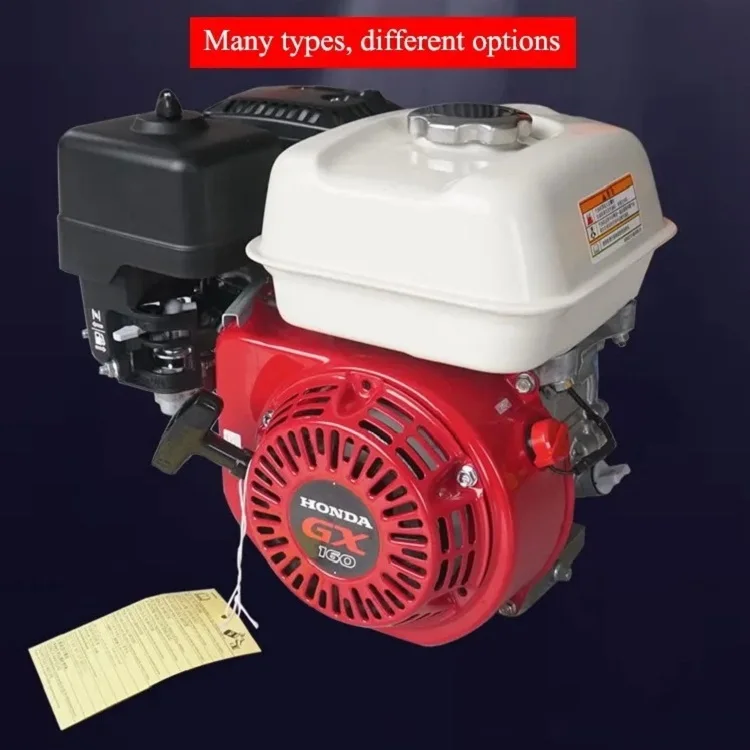

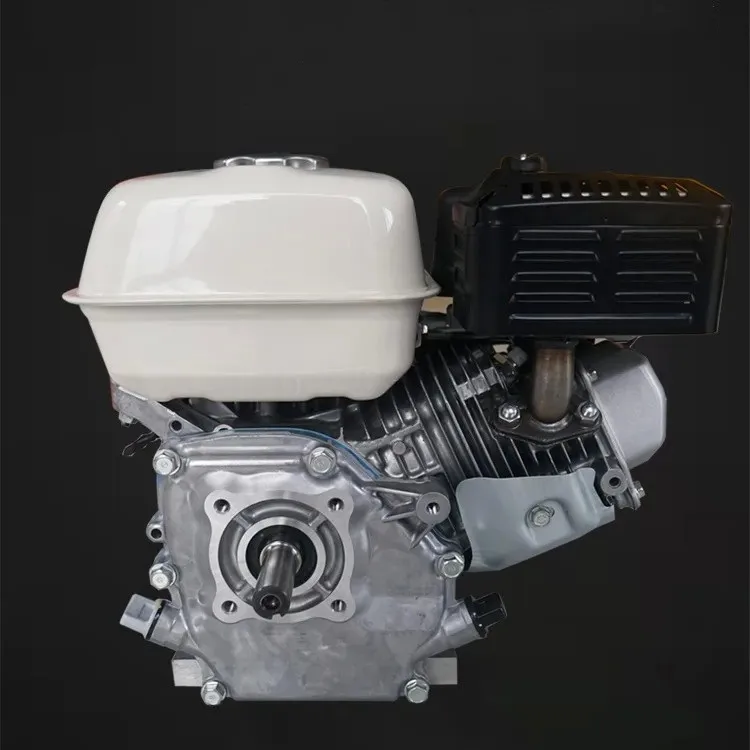

High quality HONDA petrol / gasoline engine
High quality grinding wheel
Low consumption
Main wearing parts
Warehouse showing and packing

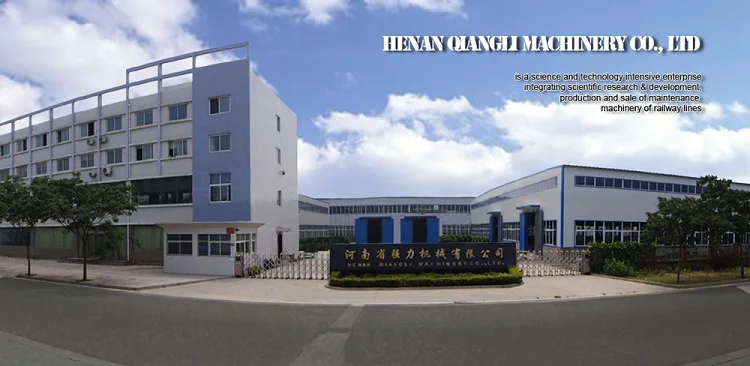

Company Profile
Henan Qiangli Machinery Co.,Ltd. is a scientific and technological enterprise integrating the research, development, production and sales of railway line maintenance machinery. It is located in Zhengzhou high tech development zone.
Since its establishment, the company has always adhered to the three high principles of "high starting point, high level and high quality", and has enjoyed a good reputation in the field of railway maintenance equipment with high-quality products, reasonable price and honest service.
With first-class products, services and reputation, it is our purpose to do a good job in every process and meet the needs of every customer.
Since its establishment, the company has always adhered to the three high principles of "high starting point, high level and high quality", and has enjoyed a good reputation in the field of railway maintenance equipment with high-quality products, reasonable price and honest service.
With first-class products, services and reputation, it is our purpose to do a good job in every process and meet the needs of every customer.
Exhibition
FAQ
Q:Are you a manufacturer or trading company? A:We are a manufacturer that specialized in small track maintenance machines. Our products have obtained the CE.CRCC.
Q: What kind of delivery for the product?
A: We can arrange the shipping by sea or by air.
Q: How is your after-sales service?
A: All the product is guarantee for one year.And we will supply the technical support after the warranty time. You can contact us 24 hours each day online.
Q:How can I get some samples?
A: We welcome sample order to test and check quality. We can’t offer free sample, please pay the sample and express fee.
Q: How about the packing?
A: packed in carton/wooden box can customized different logo according to customers' requirements. If you have any other questions, you can leave us message or inquiry then we will contact you. Or you can directly call us or send us direct mail or fax to consult us.
Q: What kind of delivery for the product?
A: We can arrange the shipping by sea or by air.
Q: How is your after-sales service?
A: All the product is guarantee for one year.And we will supply the technical support after the warranty time. You can contact us 24 hours each day online.
Q:How can I get some samples?
A: We welcome sample order to test and check quality. We can’t offer free sample, please pay the sample and express fee.
Q: How about the packing?
A: packed in carton/wooden box can customized different logo according to customers' requirements. If you have any other questions, you can leave us message or inquiry then we will contact you. Or you can directly call us or send us direct mail or fax to consult us.
