Ceiling nano pin full spectrum dimmable color changing board led panel lights
- Category: >>>
- Supplier: Zhongshan Qisen Lighting Company
Share on (1600380706692):
Product Overview
Description
Ceiling nano pin full spectrum dimmable color changing board led panel lights
Product Description
Brand | Qisen / OEM | Model | QS-RP-12 |
Input Voltage(V) | 85-265 | Power | 3/6/9/12/15/18/24W |
Luminous Flux(lm) | 140/360/580/810/1200/1440/1800 | CRI (Ra>) | 80 |
Temperature | -20~50℃ | Lifetime | 25000h |
IP Rating | IP33 | Back Cover | Iron |
Cover Material | Aluminum | Frame Material | Aluminum |
Light source | LED | LED Chips | SMD2835 |

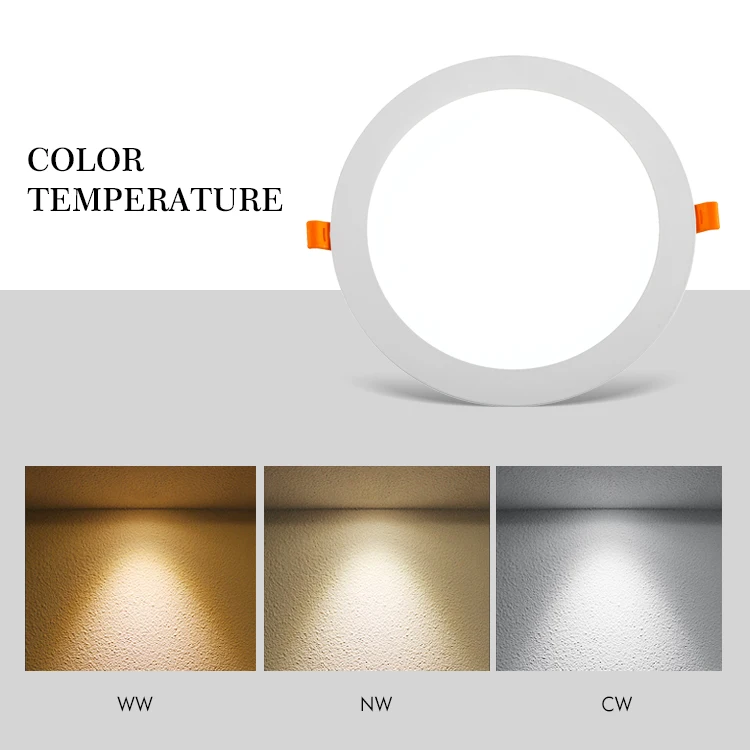

CCT | 3000K/4000/6500K | Beam angle | 120° |
Light Color | natural / warm / cold | Installation | Recessed |
Product Feature
- New design,all-inclusive cover, no light leakage
- Good quality aluminum, good heat sink
- Lmported high lumen copper 2835 chip,high temperature resistance,lifespan over 25000 hours

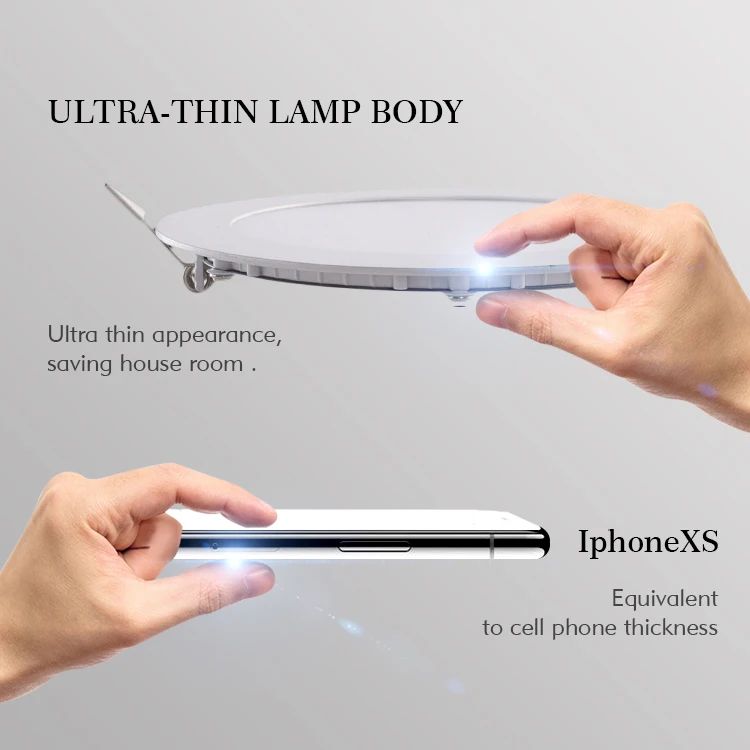

- Ultra thin appearance, saving house room
- Edge lit light, three reflections, light is soft and protect eye
- Drive case can resist high temperature 85℃ and stop burning
Product Details

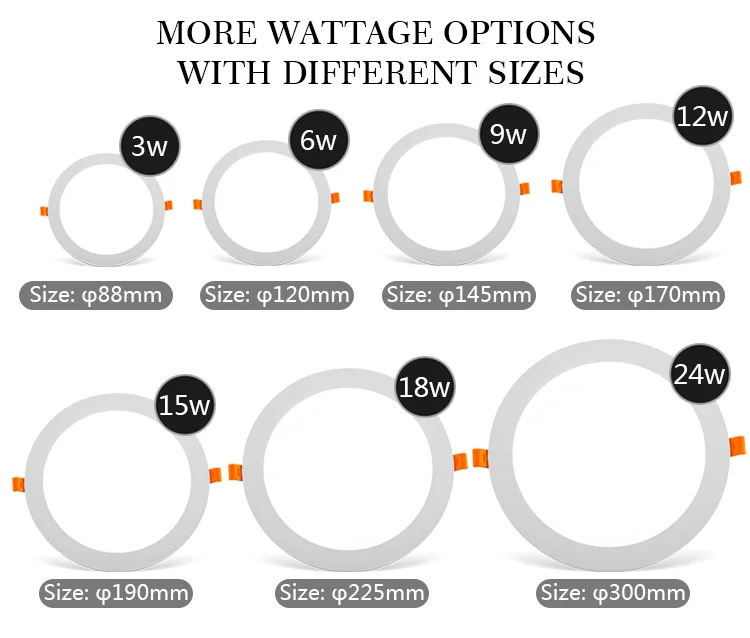

| Recessed Led Panel Light | ||||||
| Model | Shape | Size | Power | Luminous Flux | Lamp beads | IP Rating |
| QS-RP-3 | Round panel | φ88mm | 3W | 140Lm | 15 | IP33 |
| QS-RP-6 | Round panel | φ120mm | 6W | 360Lm | 30 | IP33 |
| QS-RP-9 | Round panel | φ145mm | 9W | 580Lm | 45 | IP33 |
| QS-RP-12 | Round panel | φ170mm | 12W | 810Lm | 60 | IP33 |
| QS-RP-15 | Round panel | φ190mm | 15W | 1200Lm | 75 | IP33 |
| QS-RP-18 | Round panel | φ225mm | 18W | 1440Lm | 90 | IP33 |
| QS-RP-24 | Round panel | φ300mm | 24W | 1800Lm | 120 | IP33 |
| QS-SP-3 | Square panel | 88*88mm | 3W | 140Lm | 15 | IP33 |
| QS-SP-6 | Square panel | 120*120mm | 6W | 360Lm | 30 | IP33 |
| QS-SP-9 | Square panel | 145*145mm | 9W | 580Lm | 45 | IP33 |
| QS-SP-12 | Square panel | 170*170mm | 12W | 810Lm | 60 | IP33 |
| QS-SP-15 | Square panel | 190*190mm | 15W | 1200Lm | 75 | IP33 |
| QS-SP-18 | Square panel | 225*225mm | 18W | 1440Lm | 90 | IP33 |
| QS-SP-24 | Square panel | 300*300mm | 24W | 1800Lm | 120 | IP33 |
More detail information, please just feel free to contact us.
Packaging & Shipping
Our Products: | Panel light, Downlight,Tube light, Batten light, Bulb light, Track light >>HOMEPAGE |
MOQ: | Small order can be acceptable; |
Packing: | According to customer requirements |
Delivery Time: | Shipped in about 30 days after payment; |
Supply Ability: | 30000 pieces per Month; |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, Cash |
Shipping way: | Sea or air transportation; Port of Loading: Guangzhou/Shenzhen |
Company Information
FAQ
Q 1. Can you provide free samples?
A. Yes, but you need to pay for shipping.
Q 2. What about the delivery time?
A. 3 days for sample,25-30 days for mass order.
Q 3. Do you have a MOQ limit?
A. We accept trial order.
Q 4. What is your warranty?
A. 1-5years,depend on your need.
Q 5. Can I print my logo on led products?
A. Yes,customized package and product is available.
