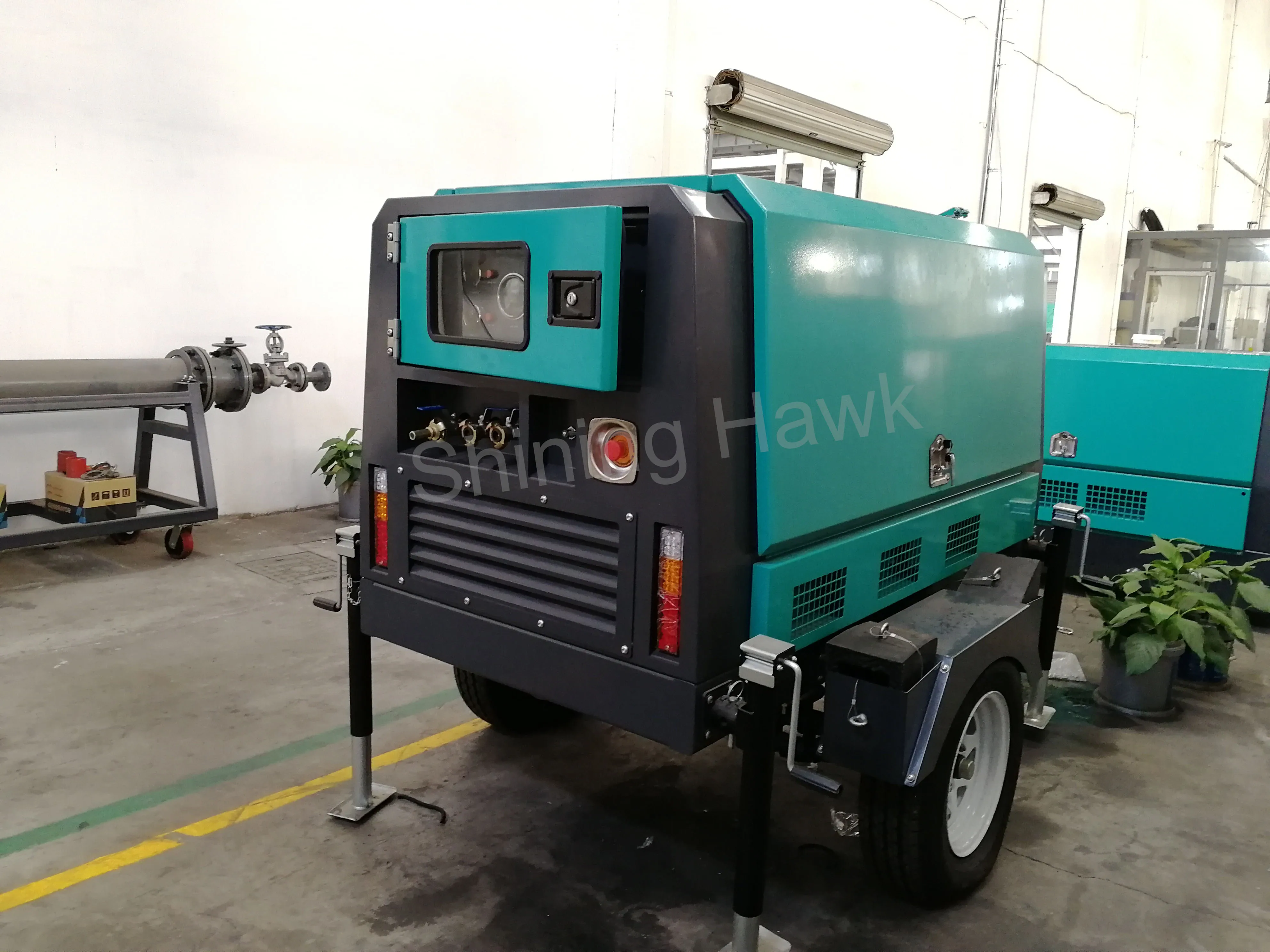

155CBM Mobile air compressor model with diesel engine

TECHNICAL DATA

UDS-125S

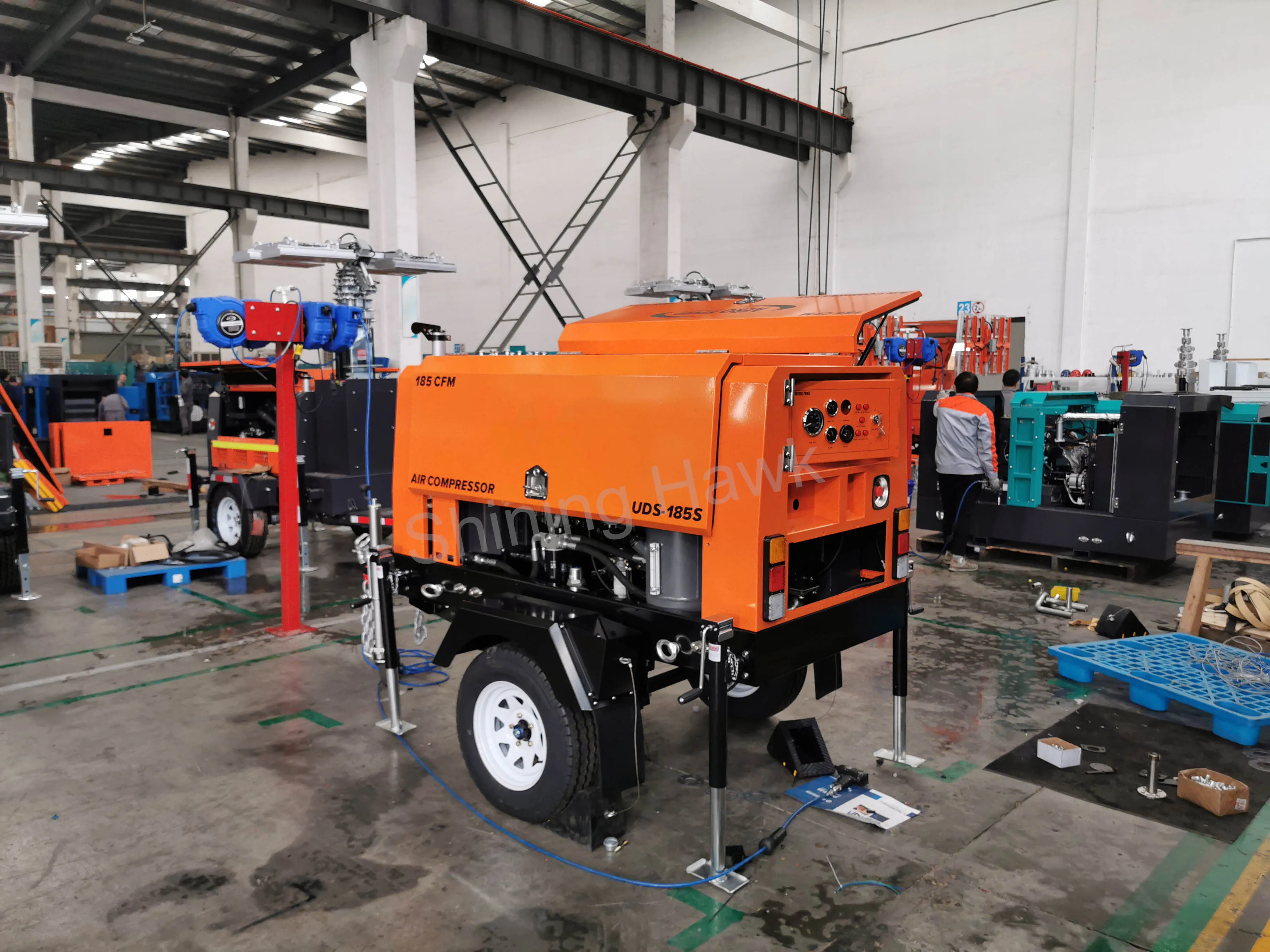

UDS-185S

UDS-265S

UDS-390S

UDS-535S

UDS-750S

Type

Rotary twin screw

Rotary twin screw

Rotary twin screw

Rotary twin screw

Rotary twin screw

Rotary twin screw

Free air delivery m³/min

3.5

5.2

7.5

11

15

21

Free air delivery CFM

140

185

265

390

535

750

Rated Operating pressure kg/cm² (bar)

7

7

8

10

10

10

Receiver Tank capacity m³

0.015

0.02

0.064

0.1

0.2

0.2

Air outlet

2x3/4"

3x3/4"

3x3/4"

3x3/4" and 1x2"

2x3/4" and 2x2"

2x3/4" and 2x2"

Engine

Engine type

Water-cooled, 4 stroke

Water-cooled, 4 stroke

Water-cooled, 4 stroke

Water-cooled, 4 stroke

Water-cooled, 4 stroke

Water-cooled, 4 stroke

Model

FAW 4DW91-56G2

Isuzu 4JB1-C

Isuzu 4JB1T-C

Cummins 6BT5.9-C150

Cummins 6BTA5.9-C180

Cummins 6CTA8.3-C260

Rated power

Cylinders

4

4

4

4

6

6

Bore x stroke (mm)

37kw@2500rpm

40kw@2500rpm

56kw@2500rpm

112kw@2200rpm

132kw@2500rpm

194kw@2200rpm

Intake method

Nature aspirate

Nature aspirate

Turbo charged

Turbo charged

Turbo charged after-cooled.

Turbo charged after-cooled.

Displacement (L)

2.54

2.771

2.771

5.9

5.9

8.3

Fuel consumption (L/h)

8.2

9

12.2

23.1

27.8

40.5

Lubrication oil capacity (L)

7.4

8.5

8.5

16.3

16.3

21.9

Dimension and weight

Net weight (kg)

1550

1665

1780

2160

2840

3450

Packing size LxWxH (mm)

2000*950*1000

2000*950*1000

2100*1200*1250

2700*1400*1700

3650*1685*1800

4000*2100*2100

Fuel tank capacity (L)

80

80

100

200

200

320
